Item holder class. More...

#include <ilviews/gadgets/itemgdt.h>

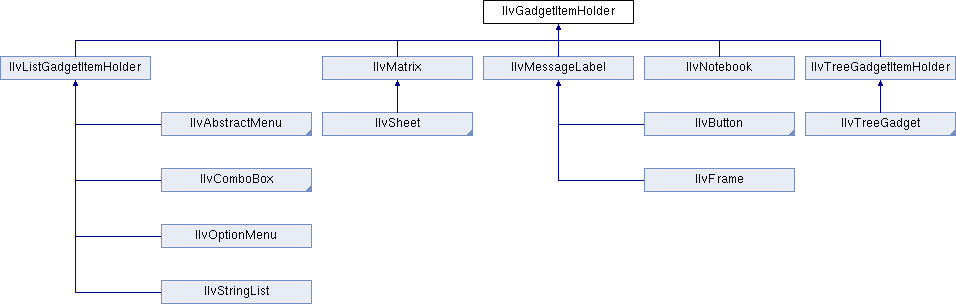

Inheritance diagram for IlvGadgetItemHolder:

Public Member Functions
virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem func, IlAny arg)
	Applies the specified function to all the items of the holder. More...

virtual IlvGadgetItem *	createItem (const char label, IlvGraphic graphic=0, IlvBitmap bitmap=0, IlvBitmap selbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...

virtual void	drawGadgetItem (const IlvGadgetItem item, IlvPort port, const IlvRect &rect, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws a specific gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvPalette *	getInsensitivePalette () const =0
	Returns the palette used to draw an item that is not sensitive. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

virtual IlvPalette *	getNormalTextPalette () const =0
	Returns the default palette used to draw an item. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

virtual IlvPalette *	getSelectionPalette () const =0
	Returns the selection palette used to draw selected items. More...

virtual IlvPalette *	getSelectionTextPalette () const =0
	Returns the selection palette used to draw the label of selected items. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Static Public Member Functions
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *item)
	Is called when an item is activated. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Friends
class	IlvGadgetItem

Detailed Description

Item holder class.

Library: ilvgadgt

IlvGadgetItemHolder is an abstract class used to manage IlvGadgetItem objects.

See also: IlvGadgetItem, IlvListGadgetItemHolder.

Member Function Documentation

◆ abortDragItem()

virtual void IlvGadgetItemHolder::abortDragItem ( )

protectedvirtual

Is called when a drag-and-drop operation is aborted.

This member function is called when the users cancels a drag-and-drop operation by pressing the Escape key. Its default implementation calls the Abort Drag callback.

See also: startDragItem(), endDragItem(), AbortDragItemCallbackType(), getDraggedItem().

◆ AbortDragItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::AbortDragItemCallbackType ( )

static

Returns the callback type of the Abort Drag callback.

The Abort Drag callback is invoked when the use presses the Escape key during a drag-and-drop operation.

Returns: The callback type of the Abort Drag callback.

See also: StartDragItemCallbackType(), DragItemCallbackType(), abortDragItem().

◆ abortEdit()

virtual void IlvGadgetItemHolder::abortEdit ( IlvGadgetItem * item )

protectedvirtual

Is called when the editing of the specified item is aborted.

This member function is called when the users cancels editing by pressing the Escape key. Its default implementation calls the Abort Edit callback.

Parameters

item	The edited gadget item.

See also: startEdit(), endEdit(), AbortEditItemCallbackType().

◆ AbortEditItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::AbortEditItemCallbackType ( )

static

Returns the callback type of the Abort Edit callback.

The Abort Edit callback is invoked when the use presses the Escape key while editing an item.

Returns: The callback type of the Abort Edit callback.

See also: StartEditItemCallbackType(), EndEditItemCallbackType().

◆ ActivateCallbackType()

static IlSymbol* IlvGadgetItemHolder::ActivateCallbackType ( )

static

Returns the callback type of the Activate callback.

The Activate callback is invoked when an item is activated.

Returns: The callback type of the Activate callback.

See also: itemActivated().

◆ applyToItems()

virtual IlvGadgetItem* IlvGadgetItemHolder::applyToItems	(	IlvApplyGadgetItem	func,
		IlAny	arg
	)

virtual

Applies the specified function to all the items of the holder.

Parameters

func	The function to be applied.
arg	The argument that will be passed to the function func.

Returns: The item that stopped the operation.

See also: IlvApplyGadgetItem, recomputeAllItems(), getItemByName().

Reimplemented in IlvNotebook, IlvMatrix, IlvListGadgetItemHolder, IlvTreeGadgetItemHolder, and IlvMessageLabel.

◆ createItem()

virtual IlvGadgetItem* IlvGadgetItemHolder::createItem	(	const char *	label,
		IlvGraphic *	graphic = `0`,
		IlvBitmap *	bitmap = `0`,
		IlvBitmap *	selbitmap = `0`,
		IlBoolean	copy = `IlTrue`
	)		const

virtual

Returns a new gadget item.

You can override this member function in a subclass to create your own items.

Parameters

label	The item label.
graphic	The `IlvGraphic` object representing the picture associated with the item.
bitmap	The `IlvBitmap` object representing the picture associated with the item.
selbitmap	The `IlvBitmap` object representing the picture of the item when it is selected.
copy	Specifies whether a label should be copied. If the value is `IlFalse`, then you must allocate some memory for the label because in any case the label characters are deleted from the memory by the IlvGadgetItem.

Note: If both the second and third parameters are not 0, only the second parameter is used.

Returns: The created gadget item.

Reimplemented in IlvTreeGadgetItemHolder, IlvFileChooserSheet, IlvFileChooserTree, IlvAbstractMenu, IlvTreeGadget, IlvOptionMenu, IlvNotebook, and IlvComboBox.

◆ DragItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::DragItemCallbackType ( )

static

Returns the callback type of the Drag Item callback.

The Drag Item callback is invoked each time the user moves the mouse during a drag-and-drop operation.

Returns: The callback type of the Drag Item callback.

See also: StartDragItemCallbackType(), EndDragItemCallbackType(), itemDragged().

◆ drawDraggedImage()

virtual void IlvGadgetItemHolder::drawDraggedImage	(	const IlvPoint &	point,
		const IlvTransformer *	t
	)

protectedvirtual

Is called to draw the ghost image during a drag-and-drop operation.

The drawing takes place at the location specified by point.

Parameters

point	The location where the ghost image is drawn, expressed in global coordinates.
t	Not used.

See also: startDragItem(), endDragItem(), getDraggedItem().

◆ drawGadgetItem()

virtual void IlvGadgetItemHolder::drawGadgetItem	(	const IlvGadgetItem *	item,
		IlvPort *	port,
		const IlvRect &	rect,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws a specific gadget item.

Redraws item in port at the location specified by rect using the clipping area clip. This method simply calls IlvGadgetItem::draw() using the item instance.

Parameters

item	The item to be redrawn.
port	The destination drawing port.
rect	The bounding box of the item.
t	The transformer used to draw the item. Not used.
clip	The clipping area.

See also: IlvGadgetItem::draw().

Reimplemented in IlvToolBar, IlvMenuBar, IlvAbstractBar, IlvTreeGadget, IlvStringList, IlvPopupMenu, IlvFrame, and IlvButton.

◆ endDragItem()

virtual void IlvGadgetItemHolder::endDragItem ( const IlvPoint & point )

protectedvirtual

Is called when a drag-and-drop operation is finished.

The default implementation invokes the End Drag callback.

Parameters

point The location where the dragged item is dropped expressed in global coordinates.

See also: startDragItem(), abortDragItem(), EndDragItemCallbackType(), getDraggedItem().

◆ EndDragItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::EndDragItemCallbackType ( )

static

Returns the callback type of the End Drag callback.

The End Drag callback is invoked at the end of a drag-and-drop operation.

Returns: The callback type of the End Drag callback.

See also: StartDragItemCallbackType(), DragItemCallbackType(), endDragItem().

◆ endEdit()

virtual void IlvGadgetItemHolder::endEdit ( IlvGadgetItem * item )

protectedvirtual

Is called after an item has been edited.

The default implementation calls the End Edit callback.

Parameters

item	The edited gadget item.

See also: startEdit(), abortEdit(), EndEditItemCallbackType().

Reimplemented in IlvMatrix.

◆ EndEditItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::EndEditItemCallbackType ( )

static

Returns the callback type of the End Edit callback.

The End Edit callback is invoked just after the item is edited.

Returns: The callback type of the End Edit callback.

See also: StartEditItemCallbackType(), AbortEditItemCallbackType().

◆ getCallbackItem()

IlvGadgetItem* IlvGadgetItemHolder::getCallbackItem ( ) const

Returns the item that triggered a callback.

Returns: The item that triggered the callback. The returned item is valid only inside the callback.

◆ getDragDropTarget()

IlvGadgetItem* IlvGadgetItemHolder::getDragDropTarget ( ) const

Returns the target item of a drag-and-drop operation.

Returns: A pointer to the target item of a drag-and-drop operation.

See also: setDragDropTarget().

◆ getDraggedImage()

IlvGraphic* IlvGadgetItemHolder::getDraggedImage ( ) const

Returns the graphic object used to draw the ghost image during a drag-and-drop operation.

Returns: The graphic object used to draw the ghost image during a drag-and-drop operation.

See also: setDraggedImage().

◆ getDraggedItem()

IlvGadgetItem* IlvGadgetItemHolder::getDraggedItem ( ) const

Returns the item that is being dragged during a drag-and-drop operation.

Returns: The item that is being dragged during a drag-and-drop operation.

See also: setDraggedItem().

◆ getEditedItem()

IlvGadgetItem* IlvGadgetItemHolder::getEditedItem ( ) const

Returns the item that is being edited.

Returns: The item that is being edited. Returns 0 if no item is being edited.

◆ getHighlightTextPalette()

virtual IlvPalette* IlvGadgetItemHolder::getHighlightTextPalette ( ) const

virtual

Returns the highlight palette used to draw the label of highlighted items.

Returns: The palette used to draw the label of highlighted items.

Reimplemented in IlvPopupMenu.

◆ getInsensitivePalette()

virtual IlvPalette* IlvGadgetItemHolder::getInsensitivePalette ( ) const

pure virtual

Returns the palette used to draw an item that is not sensitive.

Returns: The palette used to draw an item that is not sensitive.

Implemented in IlvMatrix.

◆ getItemByName()

virtual IlvGadgetItem* IlvGadgetItemHolder::getItemByName ( const char * name ) const

virtual

Returns the item whose name is specified.

Parameters

name	The name of the item.

Returns: The item found or 0 if the specified item cannot be found.

See also: IlvGadgetItem::setName(), applyToItems().

Reimplemented in IlvAbstractMenu.

◆ getNormalTextPalette()

virtual IlvPalette* IlvGadgetItemHolder::getNormalTextPalette ( ) const

pure virtual

Returns the default palette used to draw an item.

Returns: The default palette used to draw an item.

Implemented in IlvTreeGadget, IlvStringList, IlvOptionMenu, IlvNotebook, IlvMessageLabel, IlvMatrix, IlvComboBox, IlvComboBox::PopupMenu, and IlvAbstractMenu.

◆ getOpaquePalette()

virtual IlvPalette* IlvGadgetItemHolder::getOpaquePalette ( ) const

virtual

Returns the opaque palette used to draw opaque items.

Returns: The opaque palette used to draw opaque items.

Reimplemented in IlvTreeGadget, IlvStringList, IlvOptionMenu, IlvNotebook, IlvMessageLabel, IlvMatrix, IlvComboBox, IlvComboBox::PopupMenu, and IlvAbstractMenu.

◆ getSelectionPalette()

virtual IlvPalette* IlvGadgetItemHolder::getSelectionPalette ( ) const

pure virtual

Returns the selection palette used to draw selected items.

Returns: The selection palette used to draw selected items.

Implemented in IlvMatrix.

◆ getSelectionTextPalette()

virtual IlvPalette* IlvGadgetItemHolder::getSelectionTextPalette ( ) const

pure virtual

Returns the selection palette used to draw the label of selected items.

Returns: The selection palette used to draw the label of selected items.

Implemented in IlvMatrix.

◆ getToolTipItem()

IlvGadgetItem* IlvGadgetItemHolder::getToolTipItem ( ) const

Returns the item that is displaying a tooltip.

Returns: The item that is displaying a tooltip. Returns 0 if no tooltip is displayed.

◆ initReDrawItems()

virtual void IlvGadgetItemHolder::initReDrawItems ( )

virtual

Begins a redraw session.

Redrawing is performed with the member function IlvGadgetItemHolder::reDrawItems(), which allows you to group drawing operations. Calls to IlvGadgetItemHolder::initRedrawsItems() can be nested.

See also: reDrawItems().

◆ itemActivated()

virtual void IlvGadgetItemHolder::itemActivated ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is activated.

The default implementation calls the Activate callback.

Parameters

item	The activated gadget item.

See also: IlvGadgetItem::activate().

Reimplemented in IlvTreeGadget, IlvMatrix, and IlvAbstractMenu.

◆ itemDeSelected()

virtual void IlvGadgetItemHolder::itemDeSelected ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is deselected.

The default implementation does nothing.

Parameters

item	The deselected gadget item.

See also: IlvGadgetItem::deSelect().

Reimplemented in IlvTreeGadget.

◆ itemDragged()

virtual void IlvGadgetItemHolder::itemDragged ( const IlvPoint & point )

protectedvirtual

Is called each time the user moves the mouse during a drag-and-drop operation.

The default implementation invokes the Drag Item callback.

Parameters

point The location where the item is dragged, in global coordinates.

See also: startDragItem(), endDragItem(), abortDragItem(), DragItemCallbackType.

◆ itemHighlighted()

virtual void IlvGadgetItemHolder::itemHighlighted ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is highlighted or unhighlighted.

The default implementation does nothing.

Parameters

item	The highlighted gadget item.

See also: IlvGadgetItem::highlight().

◆ itemSelected()

virtual void IlvGadgetItemHolder::itemSelected ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is selected.

The default implementation does nothing.

Parameters

item	The selected gadget item.

See also: IlvGadgetItem::select().

Reimplemented in IlvTreeGadget.

◆ recomputeAllItems()

virtual void IlvGadgetItemHolder::recomputeAllItems ( )

virtual

Recomputes the size of all the items managed by the holder.

Calls the IlvGadgetItem::recomputeSize() member function for all the items managed by this holder.

See also: IlvGadgetItem::recomputeSize(), applyToItems().

Reimplemented in IlvTreeGadget, IlvStringList, IlvOptionMenu, IlvNotebook, IlvPopupMenu, and IlvAbstractMenu.

◆ reDrawItems()

virtual void IlvGadgetItemHolder::reDrawItems ( )

virtual

Ends a redraw session.

Redraws invalidated items after a call to initRedrawsItems.

See also: initRedrawsItems().

◆ setDragDropTarget()

void IlvGadgetItemHolder::setDragDropTarget ( IlvGadgetItem * item )

Sets the target item of a drag-and-drop operation.

Sets item as the target item of a drag-and-drop operation. Note that the target of a drag-and-drop operation is not automatically set when dragging an item. Setting an item as the target of a drag-and-drop operation simply modifies the way it is drawn by making it appear as if it were selected. This feature can be used to give a feedback to the user during a drag-and-drop operation.

Parameters

item	The new target item.

See also: getDragDropTarget().

◆ setDraggedImage()

void IlvGadgetItemHolder::setDraggedImage ( IlvGraphic * graphic )

Sets the graphic object used to draw the ghost image during a drag-and-drop operation.

If you do not provide a ghost image, a default ghost image is used. Note that if there was already a graphic object used to draw the ghost image, this object is deleted.

Parameters

graphic The new graphic object used to draw the ghost image.

See also: getDraggedImage().

◆ setDraggedItem()

void IlvGadgetItemHolder::setDraggedItem ( IlvGadgetItem * item )

Sets the dragged item.

Changes the item that is being dragged. Usually, you do not have to call this member function, except for stopping a drag-and-drop operation. In this case, call it with 0 as its parameter.

Parameters

item	The new dragged item.

See also: getDraggedItem().

◆ startDragItem()

virtual void IlvGadgetItemHolder::startDragItem ( IlvGadgetItem * item )

protectedvirtual

Is called when a drag-and-drop operation begins.

The default implementation invokes the Start Drag callback.

Parameters

item	The dragged item.

See also: StartDragItemCallbackType(), abortDragItem(), endDragItem(), getDraggedItem().

◆ StartDragItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::StartDragItemCallbackType ( )

static

Returns the callback type of the Start Drag callback.

The Start Drag callbak is invoked at the beginning of a drag-and-drop operation.

Returns: The callback type of the Start Drag callback.

See also: EndDragItemCallbackType(), DragItemCallbackType(), startDragItem().

◆ startEdit()

virtual void IlvGadgetItemHolder::startEdit ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is edited.

The default implementation calls the Start Edit callback.

Parameters

item	The edited gadget item.

See also: abortEdit(), endEdit(), StartEditItemCallbackType().

◆ StartEditItemCallbackType()

static IlSymbol* IlvGadgetItemHolder::StartEditItemCallbackType ( )

static

Returns the callback type of the Start Edit callback.

The Start Edit callback is invoked just before the item is edited.

Returns: The callback type of the Start Edit callback.

See also: EndEditItemCallbackType(), AbortEditItemCallbackType().

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Function Documentation

◆ abortDragItem()

◆ AbortDragItemCallbackType()

◆ abortEdit()

◆ AbortEditItemCallbackType()

◆ ActivateCallbackType()

◆ applyToItems()

◆ createItem()

◆ DragItemCallbackType()

◆ drawDraggedImage()

◆ drawGadgetItem()

◆ endDragItem()

◆ EndDragItemCallbackType()

◆ endEdit()

◆ EndEditItemCallbackType()

◆ getCallbackItem()

◆ getDragDropTarget()

◆ getDraggedImage()

◆ getDraggedItem()

◆ getEditedItem()

◆ getHighlightTextPalette()

◆ getInsensitivePalette()

◆ getItemByName()

◆ getNormalTextPalette()

◆ getOpaquePalette()

◆ getSelectionPalette()

◆ getSelectionTextPalette()

◆ getToolTipItem()

◆ initReDrawItems()

◆ itemActivated()

◆ itemDeSelected()

◆ itemDragged()

◆ itemHighlighted()

◆ itemSelected()

◆ recomputeAllItems()

◆ reDrawItems()

◆ setDragDropTarget()

◆ setDraggedImage()

◆ setDraggedItem()

◆ startDragItem()

◆ StartDragItemCallbackType()

◆ startEdit()

◆ StartEditItemCallbackType()
