IlvFileChooserTree Class Reference

Tree class for file chooser dialog. More...

#include <ilviews/gadgets/filechoo.h>

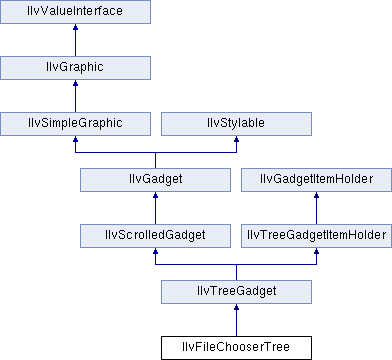

Inheritance diagram for IlvFileChooserTree:
IlvTreeGadget IlvScrolledGadget IlvTreeGadgetItemHolder IlvGadget IlvGadgetItemHolder IlvSimpleGraphic IlvStylable IlvGraphic IlvValueInterface

Public Member Functions

 IlvFileChooserTree (IlvDisplay *display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Constructor. More...

virtual IlvGadgetItemcreateItem (const char *label, IlvGraphic *graphic=0, IlvBitmap *bitmap=0, IlvBitmap *selbitmap=0, IlBoolean copy=IlTrue) const
 Returns a new gadget item. More...

- Public Member Functions inherited from IlvTreeGadget
 IlvTreeGadget (IlvDisplay *display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Constructor. More...

IlvTreeGadgetItemaddItem (IlvTreeGadgetItem *parent, const char *label, IlInt index=-1, IlvBitmap *bitmap=0, IlvBitmap *expandedBitmap=0, IlBoolean redraw=IlTrue)
 Adds a new item to the tree gadget. More...

virtual IlBoolean allowDragDrop () const
 Indicates whether drag-and-drop operations are allowed for the tree gadget. More...

void allowDragDrop (IlBoolean allow)
 Specifies whether drag-and-drop operations should be allowed for the tree gadget. More...

IlBoolean areButtonsVisible () const
 Indicates whether the buttons located to the left of parent items are displayed. More...

IlBoolean areLinesVisible () const
 Indicates whether the lines connecting tree items to their parent are visible. More...

IlBoolean areRootsLinked () const
 Indicates whether the children of the root item are linked by a connecting line. More...

virtual void beginPopulate ()
 Stops all scroll bar computing while populating the tree gadget. More...

IlBoolean buttonBBox (IlvTreeGadgetItem *item, IlvRect &bbox, const IlvTransformer *t=0) const
 Returns the bounding box of the button associated with the specified item. More...

virtual void constantItemHeightAssumed (IlBoolean assumed)
 Indicates that all items are assumed to be the same height. More...

void deSelectAll (IlBoolean redraw=IlTrue)
 Deselects all the selected items. More...

virtual void drawBackground (IlvPort *, const IlvTransformer *, const IlvRegion *) const
 Draws the gadget background. More...

virtual void drawButton (IlvPort *dst, const IlvTreeGadgetItem *item, const IlvRect &bbox, const IlvRegion *clip=0) const
 Is called to draw the button of the specified item. More...

virtual void drawFrame (IlvPort *, const IlvTransformer *, const IlvRegion *) const
 Draws the gadget frame. More...

virtual void drawGadgetItem (const IlvGadgetItem *, IlvPort *port, const IlvRect &rect, const IlvTransformer *t, const IlvRegion *clip) const
 Draws a specific gadget item. More...

virtual void endPopulate (IlBoolean redraw=IlTrue)
 Launches all scroll bar computing after the populating of tree. gadget. More...

void ensureVisible (IlvTreeGadgetItem *item, IlBoolean horizontal=IlTrue, IlBoolean redraw=IlTrue)
 Ensures that the specified tree gadget item is visible. More...

void expandItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue, IlBoolean all=IlFalse)
 Expands the specified item so that its children become visible. More...

virtual void getButtonSize (const IlvTreeGadgetItem *item, IlvDim &width, IlvDim &height) const
 Returns the size of the button of the specified tree gadget item. More...

IlvTreeGadgetItemgetCallbackItem () const
 Returns the item that triggered the callback. More...

IlvTreeGadgetItemgetFirstVisibleItem () const
 Returns the first visible item of the tree gadget. More...

IlvDim getIndent () const
 Returns the number of pixels that children are indented relative to the parent. More...

virtual void getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
 Returns the default orientation of the tree item labels. More...

virtual IlvPosition getLabelPosition () const
 Returns the default position of the tree item labels, relative to the picture. More...

IlvTreeGadgetItemgetLastFullVisibleItem (const IlvTransformer *t=0) const
 Returns the last visible item that can be seen without scrolling the tree gadget. More...

IlvTreeGadgetItemgetLastVisibleItem (const IlvTransformer *t=0) const
 Returns the last visible item of the tree gadget. More...

IlBoolean getLinesAtRoot () const
 Indicates whether lines connecting the root item to its children are drawn. More...

virtual IlvPalettegetNormalTextPalette () const
 Returns the default palette used to draw an item. More...

IlvDim getOffset () const
 Returns the horizontal offset defined for the tree gadget. More...

virtual IlvPalettegetOpaquePalette () const
 Returns the opaque palette used to draw opaque items. More...

IlvTreeGadgetItemgetRoot () const
 Returns the root item of the tree hierarchy. More...

IlvTreeSelectionMode getSelectionMode () const
 Returns the selection mode of the tree gadget. More...

virtual IlBoolean handleGadgetEvent (IlvEvent &event)
 Handles the gadget events. More...

virtual IlBoolean handleTreeEvent (IlvEvent &event)
 Handles the events occurring to the tree. More...

virtual IlBoolean hasToolTips () const
 Indicates whether the tree gadget displays tooltips. More...

virtual IlBoolean isConstantItemHeightAssumed () const
 Returns IlTrue when all items are assumed to be the same height. More...

virtual IlBoolean isEditable () const
 Indicates whether the tree items can be edited. More...

virtual IlBoolean isShowingLabel () const
 Indicates whether the tree item labels are displayed. More...

virtual IlBoolean isShowingPicture () const
 Indicates whether the tree item pictures are displayed. More...

IlBoolean itemBBox (IlvTreeGadgetItem *item, IlvRect &bbox, const IlvTransformer *t=0) const
 Returns the bounding box of the specified item. More...

void linkRoots (IlBoolean value, IlBoolean redraw=IlTrue)
 Specifies whether the children of the root item should be linked by a connecting line. More...

IlvTreeGadgetItempointToItem (const IlvPoint &point, IlBoolean &button, const IlvTransformer *t) const
 Returns the item located at the specified position. More...

IlvTreeGadgetItempointToItemLine (const IlvPoint &point, const IlvTransformer *t) const
 Returns the item located at the specified point. More...

virtual void recomputeAllItems ()
 Recomputes the size of all the items managed by the holder. More...

void removeAllItems (IlBoolean redraw=IlTrue)
 Removes all the items from the tree gadget. More...

void removeItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
 Removes and destroys the specified item. More...

void scrollToItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
 Sets the specified item as the first visible item in the tree gadget. More...

void selectItem (IlvTreeGadgetItem *item, IlBoolean value, IlBoolean deselectAll=IlTrue, IlBoolean redraw=IlTrue)
 Selects or deselects the specified tree gadget item. More...

void setEditable (IlBoolean value=IlTrue)
 Specifies whether the tree gadget should be editable. More...

void setIndent (IlvDim indent, IlBoolean redraw=IlTrue)
 Sets the number of pixels that children are indented relative to the parent. More...

void setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
 Sets the default orientation of the tree item labels. More...

void setLabelPosition (IlvPosition position, IlBoolean redraw=IlTrue)
 Sets the default position of the tree item labels, relative to the picture. More...

void setLinesAtRoot (IlBoolean value, IlBoolean redraw=IlTrue)
 Specifies whether lines connecting the root item to its children should be drawn. More...

void setOffset (IlvDim offset, IlBoolean redraw=IlTrue)
 Sets the horizontal offset of the tree gadget. More...

void setSelectionMode (IlvTreeSelectionMode mode)
 Specifies the selection mode of the tree gadget. More...

void showButtons (IlBoolean value, IlBoolean redraw=IlTrue)
 Shows or hides the buttons appearing to the left of each parent item. More...

void showLabel (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
 Indicates whether the tree item labels should be shown or hidden. More...

void showLines (IlBoolean value, IlBoolean redraw=IlTrue)
 Shows or hides the lines connecting the tree items to their parent. More...

void showPicture (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
 Specifies whether the tree item pictures should be shown or hidden. More...

void shrinkItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
 Shrinks the specified item so that its children are no longer visible. More...

virtual void sort (IlvTreeGadgetItem *=0, IlUInt levels=(IlUInt) -1, IlvTreeGadgetItemCompareFunction=0)
 Sorts the children of the specified item. More...

void useToolTips (IlBoolean value=IlTrue)
 Specifies whether the tree gadget should display tooltips. More...

- Public Member Functions inherited from IlvScrolledGadget
 IlvScrolledGadget (IlvDisplay *display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Constructor. More...

virtual void adjustScrollBars (IlBoolean redraw=IlFalse)
 Recomputes the scroll bars. More...

void computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
 Computes the bounding boxes of the elements that compose the gadget. More...

void computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
 Computes the bounding boxes of the elements that compose the gadget. More...

virtual IlvScrollBarcreateScrollBar (const IlvRect &rect, IlvDirection direction, IlUShort thickness, IlvPalette *palette)
 Returns a new instance of the IlvScrollBar class. More...

virtual void drawScrollBar (IlvPort *dst, IlvDirection direction, const IlvTransformer *t=0, const IlvRegion *clip=0) const
 Draws the specified internal scroll bar. More...

void fitToRect (const IlvRect &rect)
 Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort getBottomMargin () const
 Returns the bottom margin. More...

IlvScrollBargetHorizontalScrollBar () const
 Returns a pointer to the internal horizontal scroll bar. More...

IlUShort getLeftMargin () const
 Returns the left margin. More...

IlUShort getRightMargin () const
 Returns the right margin. More...

IlvScrollBargetScrollBar (IlvDirection direction) const
 Returns a pointer to the specified internal scroll bar. More...

void getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
 Returns the scroll bar mode of the internal scroll bars. More...

IlUShort getTopMargin () const
 Returns the top margin. More...

IlvScrollBargetVerticalScrollBar () const
 Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean handleScrollBarsEvent (IlvEvent &event)
 Handles the internal scroll bars event. More...

void hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
 Hides the specified internal scroll bar. More...

virtual void internalBBox (IlvRect &bbox, const IlvTransformer *t=0) const
 Returns the internal bounding box of the gadget. More...

void moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
 Moves the specified internal scroll bar to a new position. More...

virtual void scrollableSize (IlvDim &width, IlvDim &height) const
 Returns the size of the scrollable area of the gadget. More...

virtual void scrollBarBBox (IlvDirection direction, IlvRect &bbox, const IlvTransformer *t=0) const
 Returns the bounding box of the specified internal scroll bar. More...

virtual void scrollBarHasMoved (IlvDirection direction)
 Is called when an internal scroll bar has moved. More...

void scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
 Sets the scroll bar mode of the internal scroll bars. More...

virtual void scrollBarVisibilityChanged (IlvDirection direction)
 Is called when an internal scroll bar is shown or hidden. More...

void setBottomMargin (IlUShort margin)
 Sets the bottom margin. More...

void setLeftMargin (IlUShort margin)
 Sets the left margin. More...

void setMargin (IlUShort val)
 Sets the left, right, top, and bottom margins. More...

void setRightMargin (IlUShort margin)
 Sets the right margin. More...

void setTopMargin (IlUShort margin)
 Sets the top margin. More...

void showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
 Shows the specified internal scroll bar. More...

virtual void visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
 Returns the visible bounding box of the gadget. More...

IlvPosition whereIsScrollBar (IlvDirection direction) const
 Returns the location of the specified internal scroll bar. More...

- Public Member Functions inherited from IlvTreeGadgetItemHolder
void addItem (IlvTreeGadgetItem *parent, IlvTreeGadgetItem *item, IlInt index=-1)
 Adds the specified item to the tree hierarchy. More...

virtual IlvGadgetItemapplyToItems (IlvApplyGadgetItem f, IlAny arg)
 Applies the specified function to all the items of the holder. More...

virtual int compareItems (const IlvTreeGadgetItem *item1, const IlvTreeGadgetItem *item2) const
 Compares a pair of items. More...

void deSelectAll ()
 Deselects all the selected items. More...

void detachItem (IlvTreeGadgetItem *item)
 Removes the specified item from the tree without destroying it. More...

IlvTreeGadgetItemgetFirstSelectedItem () const
 Retrieves the first selected item. More...

IlUInt getItemsCount () const
 Returns the number of items in the tree. More...

IlUInt getVisibleItemsCount () const
 Returns the number of visible tree items. More...

void moveItem (IlvTreeGadgetItem *item, IlvTreeGadgetItem *parent, IlInt index=-1)
 Moves the specified item to a new parent. More...

void removeItem (IlvTreeGadgetItem *item)
 Removes the specified item from the tree. More...

- Public Member Functions inherited from IlvGadgetItemHolder
IlvGadgetItemgetCallbackItem () const
 Returns the item that triggered a callback. More...

IlvGadgetItemgetDragDropTarget () const
 Returns the target item of a drag-and-drop operation. More...

IlvGraphicgetDraggedImage () const
 Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItemgetDraggedItem () const
 Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItemgetEditedItem () const
 Returns the item that is being edited. More...

virtual IlvPalettegetHighlightTextPalette () const
 Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItemgetItemByName (const char *name) const
 Returns the item whose name is specified. More...

IlvGadgetItemgetToolTipItem () const
 Returns the item that is displaying a tooltip. More...

virtual void initReDrawItems ()
 Begins a redraw session. More...

virtual void reDrawItems ()
 Ends a redraw session. More...

void setDragDropTarget (IlvGadgetItem *item)
 Sets the target item of a drag-and-drop operation. More...

void setDraggedImage (IlvGraphic *graphic)
 Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void setDraggedItem (IlvGadgetItem *item)
 Sets the dragged item. More...


Additional Inherited Members

- Static Public Member Functions inherited from IlvTreeGadget
static IlSymbolExpandCallbackType ()
 Returns the callback type for the Expand callback. More...

static IlSymbolSelectCallbackType ()
 Returns the callback type for the Select callback. More...

static IlSymbolShrinkCallbackType ()
 Returns the callback type for the Shrink callback. More...

- Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbolScrollBarMovedSymbol ()
 Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbolScrollBarVisibilitySymbol ()
 Returns the callback type for the Scroll Bar Visibility Changed callback. More...

- Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbolAbortDragItemCallbackType ()
 Returns the callback type of the Abort Drag callback. More...

static IlSymbolAbortEditItemCallbackType ()
 Returns the callback type of the Abort Edit callback. More...

static IlSymbolActivateCallbackType ()
 Returns the callback type of the Activate callback. More...

static IlSymbolDragItemCallbackType ()
 Returns the callback type of the Drag Item callback. More...

static IlSymbolEndDragItemCallbackType ()
 Returns the callback type of the End Drag callback. More...

static IlSymbolEndEditItemCallbackType ()
 Returns the callback type of the End Edit callback. More...

static IlSymbolStartDragItemCallbackType ()
 Returns the callback type of the Start Drag callback. More...

static IlSymbolStartEditItemCallbackType ()
 Returns the callback type of the Start Edit callback. More...

- Protected Member Functions inherited from IlvTreeGadget
virtual void activate (IlvTreeGadgetItem *item)
 Is called by the interactor when an item is activated. More...

virtual void adjustFromScrollBar (const IlvScrollBar *sb, IlvDirection dir)
 Is called to adjust the gadget to the scroll bars values. More...

virtual void adjustScrollBarValue (IlvScrollBar *sb, IlvDirection dir)
 Is called to adjust the scroll bar values. More...

virtual void deSelect (IlvTreeGadgetItem *item)
 Is called by the interactor when an item is deselected. More...

virtual void drawGadgetContents (IlvPort *dst, const IlvTransformer *t=0, const IlvRegion *clip=0) const
 Draws the gadget contents. More...

virtual void expand (IlvTreeGadgetItem *item)
 Is called by the interactor when an item is expanded. More...

virtual void itemActivated (IlvGadgetItem *item)
 Is called when an item is activated. More...

virtual void itemDeSelected (IlvGadgetItem *item)
 Is called when an item is deselected. More...

virtual void itemSelected (IlvGadgetItem *item)
 Is called when an item is selected. More...

virtual void select (IlvTreeGadgetItem *item)
 Is called by the interactor when an item is selected. More...

virtual void shrink (IlvTreeGadgetItem *item)
 Is called by the interactor when an item is shrunk. More...

- Protected Member Functions inherited from IlvScrolledGadget
IlvDim getLimitHeightValue () const
 Returns the limit value for the vertical scrolling. More...

IlvDim getLimitWidthValue () const
 Returns the limit value for the horizontal scrolling. More...

IlvDim getScrollableHeight () const
 Returns the height of the scrollable area. More...

IlvDim getScrollableWidth () const
 Returns the width of the scrollable area. More...

void setLimitHeightValue (IlvDim value)
 Sets the limit value for the vertical scrolling. More...

void setLimitWidthValue (IlvDim value)
 Sets the limit value for the horizontal scrolling. More...

void setScrollableHeight (IlvDim height)
 Sets the height of the scrollable area. More...

void setScrollableWidth (IlvDim width)
 Sets the width of the scrollable area. More...

- Protected Member Functions inherited from IlvGadgetItemHolder
virtual void abortDragItem ()
 Is called when a drag-and-drop operation is aborted. More...

virtual void abortEdit (IlvGadgetItem *item)
 Is called when the editing of the specified item is aborted. More...

virtual void drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
 Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void endDragItem (const IlvPoint &point)
 Is called when a drag-and-drop operation is finished. More...

virtual void endEdit (IlvGadgetItem *item)
 Is called after an item has been edited. More...

virtual void itemDragged (const IlvPoint &point)
 Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void itemHighlighted (IlvGadgetItem *item)
 Is called when an item is highlighted or unhighlighted. More...

virtual void startDragItem (IlvGadgetItem *item)
 Is called when a drag-and-drop operation begins. More...

virtual void startEdit (IlvGadgetItem *item)
 Is called when an item is edited. More...


Detailed Description

Tree class for file chooser dialog.

Library: ilvadvgdt

This tree gadget class manages a subclass of tree gadget item (IlvTreePathGadgetItem) which can store path name information. An object of this class is used by the file chooser dialog to display the directory tree. Note: The objects of this class cannot be saved to ilv files.

See also
IlvTreePathGadgetItem, IlvFileChooser, IlvTreeGadget.

Constructor & Destructor Documentation

◆ IlvFileChooserTree()

IlvFileChooserTree::IlvFileChooserTree ( IlvDisplay display,
const IlvRect rect,
IlUShort  thickness = IlvDefaultGadgetThickness,
IlvPalette palette = 0
)

Constructor.

Initializes a new instance of the class IlvFileChooserTree.

Parameters
displayThe connection to the display.
rectThe size and position of the tree gadget.
thicknessThe thickness of the tree gadget.
paletteThe palette used by the tree gadget.

Member Function Documentation

◆ createItem()

virtual IlvGadgetItem* IlvFileChooserTree::createItem ( const char *  label,
IlvGraphic graphic = 0,
IlvBitmap bitmap = 0,
IlvBitmap selbitmap = 0,
IlBoolean  copy = IlTrue
) const
virtual

Returns a new gadget item.

You can override this member function in a subclass to create your own gadget items, however your subclass of gadget item must inherit from IlvTreePathGadgetItem.

Parameters
labelThe item label.
graphicThe IlvGraphic object representing the picture associated with the item.
bitmapThe IlvBitmap object representing the picture associated with the item.
selbitmapThe IlvBitmap object representing the picture of the item when it is selected.
copySpecifies whether a label should be copied. If the value is IlFalse, then memory must be allocated for the label because the label characters are deleted from memory by the IlvGadgetItem.
Note
If the second and third parameters are both not 0, only the second parameter is used.
Returns
The created gadget item.

Reimplemented from IlvTreeGadget.
