Geometric class. More...

#include <ilviews/base/geometry.h>

Inheritance diagram for IlvRect:

Public Member Functions
	IlvRect (IlvPos x=0, IlvPos y=0, IlvDim w=0, IlvDim h=0)
	Constructor. More...

IlvRect &	add (const IlvPoint &point)
	Adds a point. More...

IlvRect &	add (const IlvRect &rect)
	Adds a rectangle. More...

IlvPos	bottom () const
	Retrieves the location of the bottom border. More...

IlvPoint	center () const
	Retrieves to location of the center. More...

IlvPos	centerx () const
	Retrieves the x coordinate of the center. More...

IlvPos	centery () const
	Retrieves the y coordinate of the center. More...

IlBoolean	contains (const IlvPoint &p) const
	Checks if a point is located in this rectangle. More...

IlBoolean	contains (const IlvRect &rect) const
	Checks if a rectangle is located in this rectangle. More...

void	expand (IlvPos delta)
	Uniformly expands the rectangle. More...

void	expand (IlvPos dx, IlvPos dy)
	Expands the rectangle. More...

IlvDim	getH () const
	Retrieves the height. More...

IlvDim	getW () const
	Retrieves the width. More...

IlvPos	getX () const
	Retrieves the x coordinate of the origin. More...

IlvPos	getY () const
	Retrieves the y coordinate of the origin. More...

void	grow (IlvPos dw, IlvPos dh)
	Resizes the rectangle. More...

IlBoolean	inside (const IlvRect &rect) const
	Checks if a rectangle is located in this rectangle. More...

IlvRect &	intersection (const IlvRect &other)
	Computes an intersection. More...

IlBoolean	intersects (const IlvRect &rect) const
	Checks if a rectangle intersects with this rectangle. More...

IlvPos	left () const
	Retrieves the location of the left border. More...

IlvPoint	lowerLeft () const
	Retrieves to location of the lower-left corner. More...

IlvPoint	lowerRight () const
	Retrieves to location of the lower-right corner. More...

void	move (const IlvPoint &orig)
	Moves the rectangle. More...

void	move (IlvPos x, IlvPos y)
	Moves the rectangle. More...

void	moveResize (IlvPos x, IlvPos y, IlvDim w, IlvDim h)
	Moves and resizes the rectangles. More...

IlvRect &	operator= (const IlvRect &r)
	Assignment operator. More...

int	operator== (const IlvRect &r) const
	Equality operator. More...

void	resize (IlvDim w, IlvDim h)
	Resizes the rectangle. More...

IlvPos	right () const
	Retrieves the location of the right border. More...

void	scale (IlFloat sw, IlFloat sh)
	Resizes the rectangle. More...

void	set (IlvPos x, IlvPos y, IlvDim w, IlvDim h)
	Moves and resizes the rectangles. More...

void	setH (IlvDim newH)
	Sets the height. More...

void	setW (IlvDim newW)
	Sets the width. More...

void	setX (IlvPos newX)
	Sets the x coordinate of the origin. More...

void	setY (IlvPos newY)
	Sets the y coordinate of the origin. More...

void	size (IlvDim &w, IlvDim &h) const
	Retrieves the dimensions. More...

IlvPos	top () const
	Retrieves the location of the top border. More...

void	translate (const IlvPoint &dp)
	Translates the rectangle. More...

void	translate (IlvPos dx, IlvPos dy)
	Translates the rectangle. More...

const IlvPoint &	upperLeft () const
	Retrieves to location of the upper-left corner. More...

IlvPoint	upperRight () const
	Retrieves to location of the upper-right corner. More...

Detailed Description

Geometric class.

Library: xviews or winviews or mviews (mutually exclusive)

The IlvRect class handle rectangular geometric entities which are always specified by four numbers: the x and y coordinates of the top-left corner (also called the origin of the rectangle), the width and the height.

See also: IlvFloatRect, IlvPoint.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\nThis class defines the following accessors:

Data accessors

Name	Type	Equivalent methods
`x`	Int	`getX()`, `setX(IlvPos)`
`y`	Int	`getY()`, `setY(IlvPos)`
`w`	UInt	`getW()`, `setW(IlvDim)`
`h`	UInt	`getH()`, `setH(IlvDim)`
`right`	Int	`right()`
`bottom`	Int	`bottom()`

Method accessors

Name	Return type	Equivalent methods
`IlvRect(Int x, Int y, UInt w, UInt h)`	IlvRect	See [Constructor note] below.

[Constructor note]: using this accessor allows to create an instance of IlvRect from a script. For example :

myrect = new IlvRect(100, 200, 60, 40);

This is equivalent to the following C++ code :

new IlvRect(100, 200, 60, 40);

Constructor & Destructor Documentation

◆ IlvRect()

IlvRect::IlvRect	(	IlvPos	x = `0`,
		IlvPos	y = `0`,
		IlvDim	w = `0`,
		IlvDim	h = `0`
	)

Constructor.

This constructor initializes a new rectangle with defined location and sizes.

Parameters

x	The x coordinate of the top-left corner of this rectangle.
y	The y coordinate of the top-left corner of this rectangle.
w	The width of this rectangle.
h	The height of this rectangle. rectangle.

Member Function Documentation

◆ add() [1/2]

IlvRect& IlvRect::add ( const IlvPoint & point )

Adds a point.

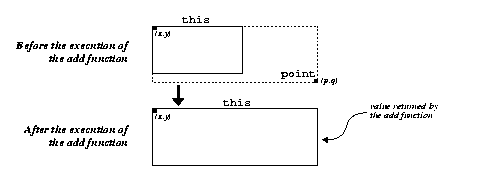

The following diagram illustrates how this first method add() operates:

- The method IlvRect::add(const IlvPoint&) -

The method add():

Stretches the rectangle this so that it is just big enough to include the point at (p, q) referred to as point. In the special case in which point lies inside the rectangle this, the rectangle is not modified.
Assigns (if stretching took place) the stretched rectangle to this.

As a result of the execution of the member function add(), the object this is modified. In the above diagram, the modified object this is still located at the point (x, y), but is changed in size. This would not be the case if the provided point was located to the left or above the rectangle top-left corner.

Parameters

point The point to be added.

Returns: The modified object this.

◆ add() [2/2]

IlvRect& IlvRect::add ( const IlvRect & rect )

Adds a rectangle.

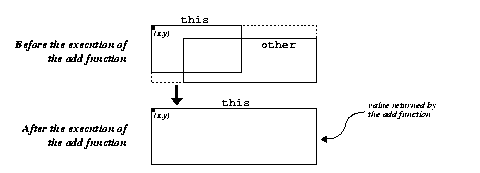

The following diagram illustrates the way in which this second method add() operates:

- The IlvRect::add(const IlvRect&) method -

The method add():

Calculates the rectangular union of the rectangle this with another given rectangle, referred to as other.
Assigns this union to the rectangle this. As a result of the execution of the method add(), the object this is modified. Note that in the above diagram, the modified object this is still located at the point (x, y), but it has changed in size. That would not be the case if the provided rectangle was located to the left or above the original rectangle top-left corner.
Returns the modified object this.

Parameters

rect	The rectangle to add.

Returns: The modified object this.

◆ bottom()

IlvPos IlvRect::bottom ( ) const

Retrieves the location of the bottom border.

This member function is equivalent to getY()+getH().

Returns: The y coordinate of the bottom-right corner of this rectangle.

◆ center()

IlvPoint IlvRect::center ( ) const

Retrieves to location of the center.

Returns: The coordinates of the center of this rectangle.

◆ centerx()

IlvPos IlvRect::centerx ( ) const

Retrieves the x coordinate of the center.

This member function is equivalent to getX()+(getW()/2).

Returns: The x coordinate of the center of this rectangle.

◆ centery()

IlvPos IlvRect::centery ( ) const

Retrieves the y coordinate of the center.

Returns: The y coordinate of the center of this rectangle.

◆ contains() [1/2]

IlBoolean IlvRect::contains ( const IlvPoint & p ) const

Checks if a point is located in this rectangle.

Returns: an IlBoolean value indicating whether or not the current rectangle contains a certain point.

◆ contains() [2/2]

IlBoolean IlvRect::contains ( const IlvRect & rect ) const

Checks if a rectangle is located in this rectangle.

Returns: an IlBoolean value indicating whether or not the current rectangle contains the rectangle passed as the rect parameter.

◆ expand() [1/2]

void IlvRect::expand ( IlvPos delta )

Uniformly expands the rectangle.

This member function is equivalent to:

translate(-delta, -delta);

grow(2*delta, 2*delta);

If delta is negative, and 2*|delta| is bigger than of one of the rectangle's current dimensions, this dimension (width or height) is set to 0.

Parameters

delta The growth to be applied to the rectangle, in all directions.

◆ expand() [2/2]

void IlvRect::expand	(	IlvPos	dx,
		IlvPos	dy
	)

Expands the rectangle.

This member function is equivalent to:

translate(-dx, -dy);

grow(2*dx, 2*dy);

If dx is negative, and |dx| is bigger than the current width, the new width is set to 0. If dy is negative, and |dy| is bigger than the current height, the new height is set to 0.

Parameters

dx	The horizontal growth to be applied to the rectangle.
dy	The vertical growth to be applied to the rectangle.

◆ getH()

IlvDim IlvRect::getH ( ) const

Retrieves the height.

Returns: The height of this rectangle.

◆ getW()

IlvDim IlvRect::getW ( ) const

Retrieves the width.

Returns: The width of this rectangle.

◆ getX()

IlvPos IlvRect::getX ( ) const

Retrieves the x coordinate of the origin.

Returns: The x coordinate of the top-left corner of the rectangle.

◆ getY()

IlvPos IlvRect::getY ( ) const

Retrieves the y coordinate of the origin.

Returns: The y coordinate of the top-left corner of the rectangle.

◆ grow()

void IlvRect::grow	(	IlvPos	dw,
		IlvPos	dh
	)

Resizes the rectangle.

Changes the dimensions of this object by means of a variation of the current width and height. The new width is the sum of the old width and dw. Sets the new width of the rectangle to 0 if -dw is larger than the current width. The new height is the sum of the old height and dh.Sets the new height of the rectangle to 0 if -dh is larger than the current height.

◆ inside()

IlBoolean IlvRect::inside ( const IlvRect & rect ) const

Checks if a rectangle is located in this rectangle.

This is similar to contains(const IlvRect&).

Returns: an IlBoolean value indicating whether or not the current rectangle is inside or contained in the rectangle rect.

◆ intersection()

IlvRect& IlvRect::intersection ( const IlvRect & other )

Computes an intersection.

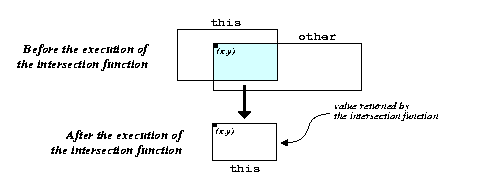

The diagram below illustrates how the intersection() method operates:

- The IlvRect::intersection() method -

The intersection method:

Calculates the rectangular intersection of the rectangle this with another given rectangle, designated by the parameter other.
Assigns this intersection to the rectangle this.

As a result of the execution of the method intersection, the object this is modified. In the above diagram, the modified object this has changed in both position and size. It is now located at the same point as the rectangle other: that is at (x, y).

Returns the modified object this.

If the rectangles this and other do not intersect, then this is given 0 width and height, indicating an invalid rectangle. In this case, both the x and the y coordinates of the rectangle this are left unchanged.

◆ intersects()

IlBoolean IlvRect::intersects ( const IlvRect & rect ) const

Checks if a rectangle intersects with this rectangle.

Returns: an IlBoolean value indicating whether or not the current rectangle forms a non-empty intersection with another given rectangle.

◆ left()

IlvPos IlvRect::left ( ) const

Retrieves the location of the left border.

This member function is equivalent to x().

Returns: The x coordinate of the top-left corner of this rectangle.

◆ lowerLeft()

IlvPoint IlvRect::lowerLeft ( ) const

Retrieves to location of the lower-left corner.

Returns: The coordinates of the lower-left corner of this rectangle.

◆ lowerRight()

IlvPoint IlvRect::lowerRight ( ) const

Retrieves to location of the lower-right corner.

Returns: The coordinates of the lower-right corner of this rectangle.

◆ move() [1/2]

void IlvRect::move ( const IlvPoint & orig )

Moves the rectangle.

Parameters

orig	The new origin of this rectangle.

◆ move() [2/2]

void IlvRect::move	(	IlvPos	x,
		IlvPos	y
	)

Moves the rectangle.

Parameters

x	The new x coordinate of the top-left corner.
y	The new y coordinate of the top-left corner.

◆ moveResize()

void IlvRect::moveResize	(	IlvPos	x,
		IlvPos	y,
		IlvDim	w,
		IlvDim	h
	)

Moves and resizes the rectangles.

Parameters

x	The new x coordinate of the top-left corner of this rectangle.
y	The new y coordinate of the top-left corner of this rectangle.
w	The new width of this rectangle.
h	The new height of this rectangle.

◆ operator=()

IlvRect& IlvRect::operator= ( const IlvRect & r )

Assignment operator.

Parameters

r	The rectangle that is copied to the current object.

◆ operator==()

int IlvRect::operator== ( const IlvRect & r ) const

Equality operator.

Parameters

r	The rectangle to compare to.

Returns: 0 if r is different than the current object.

◆ resize()

void IlvRect::resize	(	IlvDim	w,
		IlvDim	h
	)

Resizes the rectangle.

Parameters

w	The new width of this rectangle.
h	The new height of this rectangle.

◆ right()

IlvPos IlvRect::right ( ) const

Retrieves the location of the right border.

This member function is equivalent to getX()+getW().

Returns: The x coordinate of the bottom-right corner of this rectangle.

◆ scale()

void IlvRect::scale	(	IlFloat	sw,
		IlFloat	sh
	)

Resizes the rectangle.

Changes the dimensions of this object by means of two scaling factors applied to both the width and the height of this rectangle. sw and sh must be positive values.

◆ set()

void IlvRect::set	(	IlvPos	x,
		IlvPos	y,
		IlvDim	w,
		IlvDim	h
	)

Moves and resizes the rectangles.

Parameters

x	The new x coordinate of the top-left corner of this rectangle.
y	The new y coordinate of the top-left corner of this rectangle.
w	The new width of this rectangle.
h	The new height of this rectangle.

◆ setH()

void IlvRect::setH ( IlvDim newH )

Sets the height.

Parameters

newH	The new height of this rectangle.

◆ setW()

void IlvRect::setW ( IlvDim newW )

Sets the width.

Parameters

newW	The new width of this rectangle.

◆ setX()

void IlvRect::setX ( IlvPos newX )

Sets the x coordinate of the origin.

Parameters

newX	The new x coordinate of the origin.

◆ setY()

void IlvRect::setY ( IlvPos newY )

Sets the y coordinate of the origin.

Parameters

newY	The new y coordinate of the origin.

◆ size()

void IlvRect::size	(	IlvDim &	w,
		IlvDim &	h
	)		const

Retrieves the dimensions.

Parameters

w	Is assigned the width of this rectangle.
h	Is assigned the height of this rectangle.

◆ top()

IlvPos IlvRect::top ( ) const

Retrieves the location of the top border.

This member function is equivalent to y().

Returns: The y coordinate of the top-left corner of this rectangle.

◆ translate() [1/2]

void IlvRect::translate ( const IlvPoint & dp )

Translates the rectangle.

Parameters

dp	The translation applied to the rectangle.

◆ translate() [2/2]

void IlvRect::translate	(	IlvPos	dx,
		IlvPos	dy
	)

Translates the rectangle.

Parameters

dx	The x translation applied to the rectangle.
dy	The y translation applied to the rectangle.

◆ upperLeft()

const IlvPoint& IlvRect::upperLeft ( ) const

Retrieves to location of the upper-left corner.

This member function is equivalent to orig().

Returns: The coordinates of the upper-left corner of this rectangle.

◆ upperRight()

IlvPoint IlvRect::upperRight ( ) const

Retrieves to location of the upper-right corner.

Returns: The coordinates of the upper-right corner of this rectangle.

Public Member Functions

Detailed Description

Data accessors

Method accessors

Constructor & Destructor Documentation

◆ IlvRect()

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ bottom()

◆ center()

◆ centerx()

◆ centery()

◆ contains() [1/2]

◆ contains() [2/2]

◆ expand() [1/2]

◆ expand() [2/2]

◆ getH()

◆ getW()

◆ getX()

◆ getY()

◆ grow()

◆ inside()

◆ intersection()

◆ intersects()

◆ left()

◆ lowerLeft()

◆ lowerRight()

◆ move() [1/2]

◆ move() [2/2]

◆ moveResize()

◆ operator=()

◆ operator==()

◆ resize()

◆ right()

◆ scale()

◆ set()

◆ setH()

◆ setW()

◆ setX()

◆ setY()

◆ size()

◆ top()

◆ translate() [1/2]

◆ translate() [2/2]

◆ upperLeft()

◆ upperRight()
