Gadget class. More...

#include <ilviews/gadgets/scgadget.h>

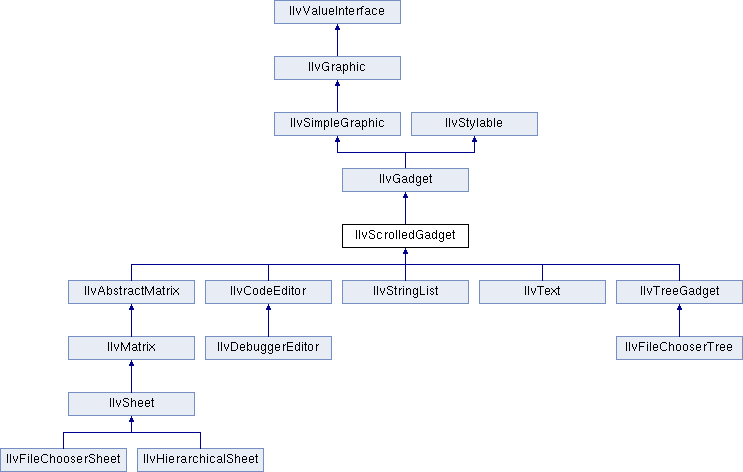

Inheritance diagram for IlvScrolledGadget:

Public Member Functions
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustScrollBars (IlBoolean redraw=IlFalse)
	Recomputes the scroll bars. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &rect, IlvDirection direction, IlUShort thickness, IlvPalette *palette)
	Returns a new instance of the `IlvScrollBar` class. More...

virtual void	drawBackground (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget background. More...

virtual void	drawFrame (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget frame. More...

virtual void	drawGadgetContents (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget contents. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &event)
	Handles the gadget events. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

virtual void	internalBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the internal bounding box of the gadget. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollableSize (IlvDim &width, IlvDim &height) const
	Returns the size of the scrollable area of the gadget. More...

virtual void	scrollBarBBox (IlvDirection direction, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

virtual void	scrollBarHasMoved (IlvDirection direction)
	Is called when an internal scroll bar has moved. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

virtual void	scrollBarVisibilityChanged (IlvDirection direction)
	Is called when an internal scroll bar is shown or hidden. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Static Public Member Functions
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Protected Member Functions
virtual void	adjustFromScrollBar (const IlvScrollBar *scrollbar, IlvDirection direction)
	Is called to adjust the gadget to the scroll bars values. More...

virtual void	adjustScrollBarValue (IlvScrollBar *scrollbar, IlvDirection direction)
	Is called to adjust the scroll bar values. More...

IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Friends
class	IlvDefaultScrolledGadgetLFHandler

Detailed Description

Gadget class.

Library: ilvadvgdt

The IlvScrolledGadget class is an abstract gadget class that handles scroll bars. It is the base class for the gadgets that have scroll bars.

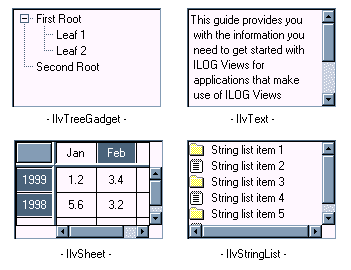

Examples of subclasses of the IlvScrolledGadget class

See also: IlvAbstractMatrix, IlvAnnoText, IlvScrollBar, IlvStringList, IlvText, IlvTreeGadget.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvGadget and adds the following ones:

Name	Type	Equivalent methods
`horizontalScrollbar`	Boolean	`getScrollBar()`, `showScrollBar()`, `hideScrollBar()`
`verticalScrollbar`	Boolean	`getScrollBar()`, `showScrollBar()`, `hideScrollBar()`
`horizontalScrollbarAsNeeded`	Boolean	`getScrollBarShowAsNeeded()`, `scrollBarShowAsNeeded()`
`verticalScrollbarAsNeeded`	Boolean	`getScrollBarShowAsNeeded()`, `scrollBarShowAsNeeded()`
`horizontalScrollbarPosition`	Direction	`whereIsScrollBar()`, `moveScrollBar()`
`verticalScrollbarPosition`	Direction	`whereIsScrollBar()`, `moveScrollBar()`
`leftMargin`	UInt	`getLeftMargin()`, `setLeftMargin()`
`rightMargin`	UInt	`getRightMargin()`, `setRightMargin()`
`topMargin`	UInt	`getTopMargin()`, `setTopMargin()`
`bottomMargin`	UInt	`getBottomMargin()`, `setBottomMargin()`

Constructor & Destructor Documentation

◆ IlvScrolledGadget()

IlvScrolledGadget::IlvScrolledGadget	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the IlvScrolledGadget class.

Parameters

display	The connection to the display.
rect	The size and position of the gadget.
thickness	The thickness of the gadget.
palette	The palette used by the gadget.

Member Function Documentation

◆ adjustFromScrollBar()

virtual void IlvScrolledGadget::adjustFromScrollBar	(	const IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the gadget to the scroll bars values.

Is called each time the scroll bar scrollbar of direction direction moves. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustScrollBarValue().

Reimplemented in IlvTreeGadget, IlvStringList, IlvCodeEditor, IlvAbstractMatrix, and IlvText.

◆ adjustScrollBars()

virtual void IlvScrolledGadget::adjustScrollBars ( IlBoolean redraw = IlFalse )

virtual

Recomputes the scroll bars.

Sets the right values to the scroll bars.

Parameters

redraw A Boolean value specifying whether the gadget should be redrawn.

Reimplemented in IlvText.

◆ adjustScrollBarValue()

virtual void IlvScrolledGadget::adjustScrollBarValue	(	IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the scroll bar values.

Is called by the member function adjustScrollBars() to adjust the values of the scroll bar scrollbar of direction direction. This member function must modify the scrollbar values to match the gadget scrolling mode. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustFromScrollBar().

Reimplemented in IlvTreeGadget, IlvStringList, IlvCodeEditor, IlvAbstractMatrix, and IlvText.

◆ computeBBox() [1/2]

void IlvScrolledGadget::computeBBox	(	IlvRect &	ibox,
		IlvRect &	vbox,
		IlvRect &	vs,
		IlvRect &	hs,
		const IlvTransformer *	t = `0`
	)		const

Computes the bounding boxes of the elements that compose the gadget.

Parameters

ibox	The returned internal bounding box of the gadget.
vbox	The returned visible bounding box of the gadget.
vs	The returned internal vertical scroll bar bounding box of the gadget.
hs	The returned internal horizontal scroll bar bounding box of the gadget.
t	The transformer applied to the gadget.

See also: internalBBox(), visibleBBox(), scrollBarBBox().

◆ computeBBox() [2/2]

void IlvScrolledGadget::computeBBox	(	IlvRect &	ibox,
		IlvRect &	vs,
		IlvRect &	hs,
		const IlvTransformer *	t = `0`
	)		const

Computes the bounding boxes of the elements that compose the gadget.

Parameters

ibox	The returned internal bounding box of the gadget.
vs	The returned internal vertical scroll bar bounding box of the gadget.
hs	The returned internal horizontal scroll bar bounding box of the gadget.
t	The transformer applied to the gadget.

See also: internalBBox(), scrollBarBBox().

◆ createScrollBar()

virtual IlvScrollBar* IlvScrolledGadget::createScrollBar	(	const IlvRect &	rect,
		IlvDirection	direction,
		IlUShort	thickness,
		IlvPalette *	palette
	)

virtual

Returns a new instance of the IlvScrollBar class.

Is called by the member function showScrollBar() to create a new scroll bar. If you want to create your own scroll bars, you can override this member function in a subclass.

Parameters

rect	The bounding box of the scroll bar to be created.
direction	The direction of the scroll bar to be created. Valid values are: `IlvHorizontal` and `IlvVertical`.
thickness	The thickness of the scroll bar to create.
palette	The palette of the scroll bar to create.

See also: IlvScrollBar.

Reimplemented in IlvAbstractMatrix.

◆ drawBackground()

virtual void IlvScrolledGadget::drawBackground	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget background.

Is called from the draw() method. This method is not called if the gadget is transparent.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawFrame(), drawScrollBar(), drawGadgetContents(), IlvGadget::isTransparent().

Reimplemented from IlvGadget.

Reimplemented in IlvTreeGadget, IlvText, IlvStringList, and IlvMatrix.

◆ drawFrame()

virtual void IlvScrolledGadget::drawFrame	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget frame.

Is called from the draw() method. This method is not called if the method isShowingFrame() returns IlFalse.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawGadgetContents().

Reimplemented from IlvGadget.

Reimplemented in IlvSheet, IlvTreeGadget, IlvText, IlvStringList, and IlvMatrix.

◆ drawGadgetContents()

virtual void IlvScrolledGadget::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented in IlvTreeGadget, IlvStringList, IlvSheet, IlvCodeEditor, IlvAbstractMatrix, IlvText, and IlvMatrix.

◆ drawScrollBar()

virtual void IlvScrolledGadget::drawScrollBar	(	IlvPort *	dst,
		IlvDirection	direction,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the specified internal scroll bar.

Parameters

dst	The destination drawing port.
direction	The direction of the internal scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawFrame(), drawGadgetContents().

◆ fitToRect()

void IlvScrolledGadget::fitToRect ( const IlvRect & rect )

Resizes the object so that the scrollable area fits the specified rectangle.

Parameters

rect	The new size of the scrollable area.

See also: IlvGadget::fitToContents().

◆ getBottomMargin()

IlUShort IlvScrolledGadget::getBottomMargin ( ) const

Returns the bottom margin.

Returns: The bottom margin.

See also: setBottomMargin().

◆ getHorizontalScrollBar()

IlvScrollBar* IlvScrolledGadget::getHorizontalScrollBar ( ) const

Returns a pointer to the internal horizontal scroll bar.

Returns: A pointer to the internal horizontal scroll bar. Returns 0 if there is no horizontal scroll bar.

See also: getScrollBar(), getVerticalScrollBar().

◆ getLeftMargin()

IlUShort IlvScrolledGadget::getLeftMargin ( ) const

Returns the left margin.

Returns: The left margin.

See also: setLeftMargin().

◆ getLimitHeightValue()

IlvDim IlvScrolledGadget::getLimitHeightValue ( ) const

protected

Returns the limit value for the vertical scrolling.

Returns: The limit value for the vertical scrolling.

See also: setLimitHeightValue(), getLimitWidthValue().

◆ getLimitWidthValue()

IlvDim IlvScrolledGadget::getLimitWidthValue ( ) const

protected

Returns the limit value for the horizontal scrolling.

Returns: The limit value for the horizontal scrolling.

See also: setLimitWidthValue(), getLimitHeightValue().

◆ getRightMargin()

IlUShort IlvScrolledGadget::getRightMargin ( ) const

Returns the right margin.

Returns: The right margin.

See also: setRightMargin().

◆ getScrollableHeight()

IlvDim IlvScrolledGadget::getScrollableHeight ( ) const

protected

Returns the height of the scrollable area.

Returns: The height of the scrollable area.

See also: setScrollableHeight(), getScrollableWidth().

◆ getScrollableWidth()

IlvDim IlvScrolledGadget::getScrollableWidth ( ) const

protected

Returns the width of the scrollable area.

Returns: The width of the scrollable area.

See also: setScrollableWidth(), getScrollableHeight().

◆ getScrollBar()

IlvScrollBar* IlvScrolledGadget::getScrollBar ( IlvDirection direction ) const

Returns a pointer to the specified internal scroll bar.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

Returns: A pointer to the internal scroll bar specified by direction. Returns 0 if such a scroll bar does not exist.

See also: getVerticalScrollBar(), getHorizontalScrollBar().

◆ getScrollBarShowAsNeeded()

void IlvScrolledGadget::getScrollBarShowAsNeeded	(	IlBoolean &	vert,
		IlBoolean &	hor
	)		const

Returns the scroll bar mode of the internal scroll bars.

Parameters

vert	A Boolean value specifying whether the visibility of the internal vertical scroll bar should be managed by the gadget automatically.
hor	A Boolean value specifying whether the visibility of the internal horizontal scroll bar should be managed by the gadget automatically.

See also: scrollBarShowAsNeeded(), showScrollBar(), hideScrollBar().

◆ getTopMargin()

IlUShort IlvScrolledGadget::getTopMargin ( ) const

Returns the top margin.

Returns: The top margin.

See also: setTopMargin().

◆ getVerticalScrollBar()

IlvScrollBar* IlvScrolledGadget::getVerticalScrollBar ( ) const

Returns a pointer to the internal vertical scroll bar.

Returns: A pointer to the internal vertical scroll bar. Returns 0 if there is no vertical scroll bar.

See also: getScrollBar(), getHorizontalScrollBar().

◆ handleGadgetEvent()

virtual IlBoolean IlvScrolledGadget::handleGadgetEvent ( IlvEvent & event )

virtual

Handles the gadget events.

Is called by handleEvent() when the member function handleScrollBarsEvent() returns IlFalse. Its default implementation does nothing. You can override this member function to implement your own gadget behavior.

Parameters

event The event.

See also: handleScrollBarsEvent().

Reimplemented in IlvTreeGadget, IlvStringList, IlvCodeEditor, IlvText, and IlvAbstractMatrix.

◆ handleScrollBarsEvent()

virtual IlBoolean IlvScrolledGadget::handleScrollBarsEvent ( IlvEvent & event )

virtual

Handles the internal scroll bars event.

Is called from the handleEvent method. You can override this member function to implement your own scroll bar behavior.

Parameters

event The event.

Returns: IlFalse if the event has not been handled by the scroll bars. In this case, handleGadgetEvent() will be called.

See also: handleGadgetEvent().

Reimplemented in IlvCodeEditor.

◆ hideScrollBar()

void IlvScrolledGadget::hideScrollBar	(	IlvDirection	direction,
		IlBoolean	redraw = `IlTrue`
	)

Hides the specified internal scroll bar.

The scroll bar is deleted. Does nothing if the scroll bar mode is "as needed".

Parameters

direction	The direction for which the scroll bar should be hidden. Valid values are: `IlvHorizontal` and `IlvVertical`.
redraw	A Boolean value specifying whether the gadget should be redrawn.

See also: getScrollBar(), getScrollBarShowAsNeeded(), showScrollBar(), drawScrollBar().

◆ internalBBox()

virtual void IlvScrolledGadget::internalBBox	(	IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the internal bounding box of the gadget.

Puts in bbox the internal bounding box of the scrolled gadget computed with the transformer t. The internal bounding box is used to draw the frame and to compute the scrollable area. If you want to change the internal bounding box, you can override this member function in a subclass.

Parameters

bbox	The returned internal bounding box.
t	The transformer applied to the gadget.

See also: visibleBBox(), scrollBarBBox().

Reimplemented in IlvMatrix.

◆ moveScrollBar()

void IlvScrolledGadget::moveScrollBar	(	IlvDirection	direction,
		IlvPosition	where,
		IlBoolean	redraw = `IlTrue`
	)

Moves the specified internal scroll bar to a new position.

Parameters

direction	The direction for which the scroll bar should be hidden. Valid values are: `IlvHorizontal` and `IlvVertical`.
where	The new position of the internal scroll bar. Valid values are: `IlvLeft` and `IlvRight` for horizontal scroll bars, and `IlvTop` and `IlvBottom` for vertical scroll bars.
redraw	A Boolean value specifying whether the gadget should be redrawn.

See also: showScrollBar(), hideScrollBar(), whereIsScrollBar(), drawScrollBar().

◆ scrollableSize()

virtual void IlvScrolledGadget::scrollableSize	(	IlvDim &	width,
		IlvDim &	height
	)		const

virtual

Returns the size of the scrollable area of the gadget.

Puts the width and height of the scrollable area in width and height, respectively. These values are used to compute the values of the scroll bars. You can override this member function to change the scrollable area.

Reimplemented in IlvCodeEditor.

◆ scrollBarBBox()

virtual void IlvScrolledGadget::scrollBarBBox	(	IlvDirection	direction,
		IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the bounding box of the specified internal scroll bar.

Puts in bbox the bounding box of the internal scroll bar specified by direction using the transformer t. If you want to change the internal scroll bars bounding box, you can override this member function in a subclass.

Parameters

direction	The direction of the internal scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.
bbox	The returned internal scroll bar bounding box.
t	The transformer applied to the gadget.

See also: internalBBox(), visibleBBox().

Reimplemented in IlvAbstractMatrix.

◆ scrollBarHasMoved()

virtual void IlvScrolledGadget::scrollBarHasMoved ( IlvDirection direction )

virtual

Is called when an internal scroll bar has moved.

Is called by handleEvent() each time the value of the internal scroll bar specified by direction changes. The default implementation invokes the Scroll Bar Moved callback.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

See also: ScrollBarMovedSymbol().

Reimplemented in IlvText, IlvAbstractMatrix, and IlvStringList.

◆ ScrollBarMovedSymbol()

static IlSymbol* IlvScrolledGadget::ScrollBarMovedSymbol ( )

static

Returns the callback type for the Scroll Bar Moved callback.

The Scroll Bar Moved callback is invoked each time a scroll bar is moved.

Returns: The callback type for the Scroll Bar Moved callback.

See also: IlvGraphic::setCallback(), scrollBarHasMoved().

◆ scrollBarShowAsNeeded()

void IlvScrolledGadget::scrollBarShowAsNeeded	(	IlBoolean	vertical,
		IlBoolean	horizontal,
		IlBoolean	redraw = `IlTrue`
	)

Sets the scroll bar mode of the internal scroll bars.

The "as needed" scroll bar mode lets the gadget manage the scroll bar visibility by showing or hiding the internal scroll bars when needed.

Parameters

vertical	A Boolean value specifying whether the visibility of the internal vertical scroll bar should be managed by the gadget automatically.
horizontal	A Boolean value specifying whether the visibility of the internal horizontal scroll bar should be managed by the gadget automatically.
redraw	A Boolean value specifying whether the gadget should be redrawn.

See also: getScrollBarShowAsNeeded(), showScrollBar(), hideScrollBar().

◆ scrollBarVisibilityChanged()

virtual void IlvScrolledGadget::scrollBarVisibilityChanged ( IlvDirection direction )

virtual

Is called when an internal scroll bar is shown or hidden.

Is called by handleEvent() each time the internal scroll bar specified by direction is shown or hidden. The default implementation invokes the Scroll Bar Visibility Changed callback.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

See also: ScrollBarVisibilitySymbol().

Reimplemented in IlvText, and IlvMatrix.

◆ ScrollBarVisibilitySymbol()

static IlSymbol* IlvScrolledGadget::ScrollBarVisibilitySymbol ( )

static

Returns the callback type for the Scroll Bar Visibility Changed callback.

The Scroll Bar Visibility Changed callback is invoked each time an internal scroll bar is shown or hidden.

Returns: The callback type for the Scroll Bar Visibility Changed callback.

See also: IlvGraphic::setCallback(), scrollBarVisibilityChanged().

◆ setBottomMargin()

void IlvScrolledGadget::setBottomMargin ( IlUShort margin )

Sets the bottom margin.

Parameters

margin The new bottom margin.

See also: setMargin().

◆ setLeftMargin()

void IlvScrolledGadget::setLeftMargin ( IlUShort margin )

Sets the left margin.

Parameters

margin The new left margin.

See also: setMargin().

◆ setLimitHeightValue()

void IlvScrolledGadget::setLimitHeightValue ( IlvDim value )

protected

Sets the limit value for the vertical scrolling.

This value is used to compute the maximum value that can have a vertical scroll bar connected to this scrolled gadget.

Parameters

value The new limit value for the vertical scrolling.

See also: setLimitWidthValue(), setScrollableHeight().

◆ setLimitWidthValue()

void IlvScrolledGadget::setLimitWidthValue ( IlvDim value )

protected

Sets the limit value for the horizontal scrolling.

This value is used to compute the maximum value that can have a horizontal scroll bar connected to this scrolled gadget.

Parameters

value The new limit value for the horizontal scrolling.

See also: setLimitHeightValue(), setScrollableWidth().

◆ setMargin()

void IlvScrolledGadget::setMargin ( IlUShort val )

Sets the left, right, top, and bottom margins.

Parameters

val	The new value for margins.

See also: setLeftMargin(), setRightMargin(), setTopMargin(), setBottomMargin().

◆ setRightMargin()

void IlvScrolledGadget::setRightMargin ( IlUShort margin )

Sets the right margin.

Parameters

margin The new right margin.

See also: setMargin().

◆ setScrollableHeight()

void IlvScrolledGadget::setScrollableHeight ( IlvDim height )

protected

Sets the height of the scrollable area.

Call this method each time the height of the scrolled object encapsulated by this scrolled gadget changes.

Parameters

height The new scrollable height.

See also: setScrollableWidth(), setLimitHeightValue().

◆ setScrollableWidth()

void IlvScrolledGadget::setScrollableWidth ( IlvDim width )

protected

Sets the width of the scrollable area.

Call this method each time the width of the scrolled object encapsulated by this scrolled gadget changes.

Parameters

width The new scrollable width.

See also: setScrollableHeight(), setLimitWidthValue().

◆ setTopMargin()

void IlvScrolledGadget::setTopMargin ( IlUShort margin )

Sets the top margin.

Parameters

margin The new top margin.

See also: setMargin().

◆ showScrollBar()

void IlvScrolledGadget::showScrollBar	(	IlvDirection	direction,
		IlBoolean	redraw = `IlTrue`
	)

Shows the specified internal scroll bar.

Does nothing if the scroll bar mode is "as needed".

Parameters

direction	The direction for which the scroll bar should be visible. Valid values are: `IlvHorizontal` and `IlvVertical`.
redraw	A Boolean value specifying whether the gadget should be redrawn.

See also: getScrollBar(), getScrollBarShowAsNeeded(), hideScrollBar(), drawScrollBar().

◆ visibleBBox()

virtual void IlvScrolledGadget::visibleBBox	(	IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the visible bounding box of the gadget.

Puts in bbox the visible bounding box of the scrolled gadget computed with the transformer t. The visible bounding box is used to draw the gadget contents. The default implementation computes the internal bounding box and subtracts the margins from it. If you want to change the visible bounding box, you can override this member function in a subclass.

Parameters

bbox	The returned visible bounding box.
t	The transformer applied to the gadget.

See also: internalBBox(), scrollBarBBox().

◆ whereIsScrollBar()

IlvPosition IlvScrolledGadget::whereIsScrollBar ( IlvDirection direction ) const

Returns the location of the specified internal scroll bar.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

Returns: The location of the scroll bar specified by direction.

See also: moveScrollBar().

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ IlvScrolledGadget()

Member Function Documentation

◆ adjustFromScrollBar()

◆ adjustScrollBars()

◆ adjustScrollBarValue()

◆ computeBBox() [1/2]

◆ computeBBox() [2/2]

◆ createScrollBar()

◆ drawBackground()

◆ drawFrame()

◆ drawGadgetContents()

◆ drawScrollBar()

◆ fitToRect()

◆ getBottomMargin()

◆ getHorizontalScrollBar()

◆ getLeftMargin()

◆ getLimitHeightValue()

◆ getLimitWidthValue()

◆ getRightMargin()

◆ getScrollableHeight()

◆ getScrollableWidth()

◆ getScrollBar()

◆ getScrollBarShowAsNeeded()

◆ getTopMargin()

◆ getVerticalScrollBar()

◆ handleGadgetEvent()

◆ handleScrollBarsEvent()

◆ hideScrollBar()

◆ internalBBox()

◆ moveScrollBar()

◆ scrollableSize()

◆ scrollBarBBox()

◆ scrollBarHasMoved()

◆ ScrollBarMovedSymbol()

◆ scrollBarShowAsNeeded()

◆ scrollBarVisibilityChanged()

◆ ScrollBarVisibilitySymbol()

◆ setBottomMargin()

◆ setLeftMargin()

◆ setLimitHeightValue()

◆ setLimitWidthValue()

◆ setMargin()

◆ setRightMargin()

◆ setScrollableHeight()

◆ setScrollableWidth()

◆ setTopMargin()

◆ showScrollBar()

◆ visibleBBox()

◆ whereIsScrollBar()
