Gadget class. More...

#include <ilviews/gadgets/text.h>

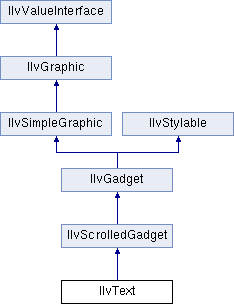

Inheritance diagram for IlvText:

Public Member Functions
	IlvText (IlvDisplay display, const IlvPoint &point, const char const labels=0, IlUShort count=0, IlBoolean copy=IlTrue, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new `IlvText` instance with some text lines, at a given location. More...

	IlvText (IlvDisplay display, const IlvPoint &point, const char text, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IlvText` instance with some text content, at a given location. More...

	IlvText (IlvDisplay display, const IlvRect &rect, const char const labels=0, IlUShort count=0, IlBoolean copy=IlTrue, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new `IlvText` instance with some text lines, located in given rectangle. More...

	IlvText (IlvDisplay display, const IlvRect &rect, const char text, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new empty `IlvText` instance, located in given rectangle. More...

void	addLine (const char *text, IlShort line=-1)
	Inserts a new text line at the specified location. More...

virtual void	addLines (const char const labels, IlUShort count, IlShort line=-1, IlBoolean redraw=IlFalse)
	Adds the specified text lines to the text gadget. More...

void	addText (const char *text, IlShort line=-1, IlBoolean redraw=IlFalse)
	Adds the specified text to the text gadget. More...

virtual void	adjustScrollBars (IlBoolean=IlFalse)
	Recomputes the scroll bars. More...

virtual IlBoolean	check (IlUShort character)
	Is called by the interactor for each key down event that corresponds to a regular character. More...

virtual void	cursorMoved ()
	Is called from the interactor when the cursor is moved. More...

void	cutLine (const IlvTextLocation &location)
	Removes the end of the specified line. More...

virtual void	drawBackground (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget background. More...

virtual void	drawFrame (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget frame. More...

virtual void	drawGadgetContents (IlvPort , const IlvTransformer =0, const IlvRegion *=0) const
	Draws the gadget contents. More...

void	ensureVisible (const IlvTextLocation &location, const IlvTransformer *t=0)
	Changes the first line and the offset of the text gadget to ensure that the specified text location is visible. More...

IlvTextLocation	getCursorLocation () const
	Returns the current location of the cursor. More...

IlvTextLocation	getEndLocation () const
	Returns the last location of the text. More...

IlUShort	getFirstLine () const
	Returns the index of the first text line displayed. More...

IlUShort	getLastFullVisibleLine (const IlvTransformer *t=0) const
	Returns the index of the last visible line that can be seen without scrolling. More...

IlUShort	getLastLine (const IlvTransformer *t=0) const
	Returns the index of the last text line displayed. More...

const char *	getLine (IlUShort index) const
	Returns the specified text line. More...

IlUShort	getLineLength (IlUShort index) const
	Returns the number of characters in the specified text line. More...

const char const	getLines (IlUShort &count) const
	Returns an array of strings representing the text stored in the gadget. More...

IlvDim	getMaxWidth () const
	Returns the width of the largest visible line. More...

IlUShort	getNumberOfLines () const
	Returns the number of text lines stored in the object. More...

IlUShort	getNumberOfVisibleLines (const IlvTransformer *t=0) const
	Returns the number of visible text lines. More...

IlvDim	getOffset () const
	Returns the text gadget offset. More...

const char *	getSelectedText () const
	Returns the selected text. More...

void	getSelection (IlvTextLocation &from, IlvTextLocation &to) const
	Returns the location of the current selection. More...

const char *	getText () const
	Returns the text stored in the text gadget. More...

virtual IlBoolean	handleAltKey (IlUShort character)
	Is called by the interactor to handle keys pressed with the `IlvMetaModifier`. More...

virtual IlBoolean	handleControl (IlUShort character)
	Is called by the interactor to handle the control keys. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &)
	Handles the gadget events. More...

void	insertChar (const IlvTextLocation &location, IlUShort character)
	Inserts a character at the specified location. More...

void	insertText (const char *text, IlvTextLocation &location, IlBoolean redraw=IlFalse)
	Inserts text into the text gadget at the specified location. More...

IlBoolean	isCursorShown () const
	Indicates whether the cursor is visible. More...

IlBoolean	isEditable () const
	Indicates whether the text gadget can be edited. More...

void	locateWord (const IlvTextLocation &location, IlvTextLocation &start, IlvTextLocation &end) const
	Finds the word at the specified location. More...

IlvTextLocation	pointToPosition (const IlvPoint &point, const IlvTransformer *t=0) const
	Returns the location of the specified point in the text. More...

IlBoolean	readText (const char filename=0, const IlvTransformer t=0)
	Inserts the contents of the specified file into the text gadget. More...

void	readText (std::istream &istream, const IlvTransformer *t=0)
	Inserts the contents of the specified stream into the text gadget. More...

void	removeChar (const IlvTextLocation &location)
	Removes a character from a specified location. More...

void	removeLine (IlUShort line)
	Removes and deletes the specified text line. More...

void	removeLines (IlUShort line, IlUShort count)
	Removes and deletes several text lines. More...

virtual void	scrollBarVisibilityChanged (IlvDirection)
	Is called when an internal scroll bar is shown or hidden. More...

virtual void	selectionChanged ()
	Is called from the interactor when the selection is modified. More...

void	setCursorLocation (const IlvTextLocation &location)
	Sets the cursor location to a new location. More...

void	setEditable (IlBoolean value)
	Specifies whether editing is allowed for the text gadget. More...

void	setFirstLine (IlUShort line)
	Sets the first text line to be displayed. More...

void	setLine (IlUShort line, const char *text, IlBoolean copy=IlTrue)
	Replaces the text line specified by line with text. More...

virtual void	setLines (const char const labels, IlUShort count, IlBoolean copy=IlTrue)
	Replaces all the text in the text gadget. More...

void	setOffset (IlvDim offset)
	Sets the text gadget offset. More...

void	setSelection (const IlvTextLocation &from, const IlvTextLocation &to)
	Sets the location of the current selection. More...

virtual void	setText (const char *text)
	Sets the text to be stored in the text gadget. More...

void	showCursor (IlBoolean value)
	Specifies whether the cursor should be visible. More...

virtual void	valueChanged ()
	Is called from the interactor when the value is modified. More...

Public Member Functions inherited from IlvScrolledGadget
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &rect, IlvDirection direction, IlUShort thickness, IlvPalette *palette)
	Returns a new instance of the `IlvScrollBar` class. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

virtual void	internalBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the internal bounding box of the gadget. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollableSize (IlvDim &width, IlvDim &height) const
	Returns the size of the scrollable area of the gadget. More...

virtual void	scrollBarBBox (IlvDirection direction, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Static Public Member Functions
static IlSymbol *	CursorMovedSymbol ()
	Returns the callback type of the Cursor Moved callback. More...

static IlSymbol *	SelectionChangedSymbol ()
	Returns the callback type of the Selection Changed callback. More...

static IlSymbol *	ValueChangedSymbol ()
	Returns the callback type of the Value Changed callback. More...

Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Protected Member Functions
virtual void	adjustFromScrollBar (const IlvScrollBar *, IlvDirection)
	Is called to adjust the gadget to the scroll bars values. More...

void	adjustScrollBarValue (IlvScrollBar *, IlvDirection)
	Is called to adjust the scroll bar values. More...

virtual void	scrollBarHasMoved (IlvDirection)
	Is called when an internal scroll bar has moved. More...

Protected Member Functions inherited from IlvScrolledGadget
IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Friends
class	IlvDefaultTextLFHandler

Detailed Description

Gadget class.

Library: ilvadvgdt

The IlvText class defines a multiline text editor that can contain up to 65535 lines of text. The contents of a text gadget can be edited.

A Multiline Text Gadget

See also: IlvTextLocation, IlvTextField.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvScrolledGadget and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`lines`	UInt	`getNumberOfLines()`
`text`	String	`getText()`, `setText()`
`selectedText`	String	`getSelectedText()`
`editable`	Boolean	`isEditable()`, `setEditable()`
`cursorLocation`	UInt	`getCursorLocation()`, `setCursorLocation()`
`selectionStart`	UInt	`getSelection()`, `setSelection()`
`selectionEnd`	UInt	`getSelection()`, `setSelection()`

Method accessors

Name	Return type	Equivalent methods
`getLine(UInt index)`	String	`getLine(IlUShort index) const`
`setLine(UInt index, String str)`	Void	`setLine(IlUShort index, const char* str, IlBoolean)`
`removeLine(UInt index)`	Void	`removeLine(IlUShort index)`
`addLine(String str, UInt index)`	Void	`addLine(const char* str, IlShort index)`

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvText() [1/4]

IlvText::IlvText	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlBoolean	copy = `IlTrue`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvText instance with some text lines, at a given location.

The size of the object is computed by calling the method IlvGadget::fitToContents(). If you want to specify its size, use a constructor that takes an IlvRect reference instead of an IlvPoint object as parameter.

Parameters

display	The connection to the display.
point	The position of the text gadget.
labels	An array of strings representing the lines of the text gadget.
count	The number of elements in the labels array.
copy	If `IlTrue`, the labels array is copied. Otherwise it is stored as is, and deleted when this `IlvText` is destroyed.
thickness	The thickness of the text gadget.
palette	The palette used by the text gadget.

◆ IlvText() [2/4]

IlvText::IlvText	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlBoolean	copy = `IlTrue`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvText instance with some text lines, located in given rectangle.

Parameters

display	The connection to the display.
rect	The size and position of the text gadget.
labels	An array of strings representing the lines of the text gadget.
count	The number of elements in the labels array.
copy	If `IlTrue`, the labels array is copied. Otherwise it is stored as is, and deleted when this `IlvText` is destroyed.
thickness	The thickness of the text gadget.
palette	The palette used by the text gadget.

◆ IlvText() [3/4]

IlvText::IlvText	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char *	text,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvText instance with some text content, at a given location.

The size of the object is computed by calling the IlvGadget::fitToContents() method. If you want to specify its size, use a constructor that takes an IlvRect reference instead of an IlvPoint object as parameter.

Parameters

display	The connection to the display.
point	The position of the text gadget.
text	The text of the text gadget. The ' ' character identifies a new line. The text is copied.
thickness	The thickness of the text gadget.
palette	The palette used by the text gadget.

◆ IlvText() [4/4]

IlvText::IlvText	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char *	text,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new empty IlvText instance, located in given rectangle.

Parameters

display	The connection to the display.
rect	The size and position of the text gadget.
text	The text of the text gadget. The ' ' character identifies a new line. The text is copied.
thickness	The thickness of the text gadget.
palette	The palette used by the text gadget.

Member Function Documentation

◆ addLine()

void IlvText::addLine	(	const char *	text,
		IlShort	line = `-1`
	)

Inserts a new text line at the specified location.

Parameters

text	The new text line. This string is copied.
line	The index where text should be inserted.

See also: setLine(), removeLine(), setLines().

◆ addLines()

virtual void IlvText::addLines	(	const char const	labels,
		IlUShort	count,
		IlShort	line = `-1`,
		IlBoolean	redraw = `IlFalse`
	)

virtual

Adds the specified text lines to the text gadget.

The labels are copied.

Parameters

labels	The array of strings to be added.
count	The number of elements in the labels array.
line	The index of the line where the labels array will be inserted.
redraw	Indicates whether the text gadget should be redrawn.

◆ addText()

void IlvText::addText	(	const char *	text,
		IlShort	line = `-1`,
		IlBoolean	redraw = `IlFalse`
	)

Adds the specified text to the text gadget.

Parameters

text	The text to be added. The ' ' character identifies a new line. The text is copied.
line	The index of the line where the text will be inserted.
redraw	Specifies whether the text gadget should be redrawn.

See also: addLines(), insertText().

◆ adjustFromScrollBar()

virtual void IlvText::adjustFromScrollBar	(	const IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the gadget to the scroll bars values.

Is called each time the scroll bar scrollbar of direction direction moves. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustScrollBarValue().

Reimplemented from IlvScrolledGadget.

◆ adjustScrollBars()

virtual void IlvText::adjustScrollBars ( IlBoolean redraw = IlFalse )

virtual

Recomputes the scroll bars.

Sets the right values to the scroll bars.

Parameters

redraw A Boolean value specifying whether the gadget should be redrawn.

Reimplemented from IlvScrolledGadget.

◆ adjustScrollBarValue()

void IlvText::adjustScrollBarValue	(	IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the scroll bar values.

Is called by the member function adjustScrollBars() to adjust the values of the scroll bar scrollbar of direction direction. This member function must modify the scrollbar values to match the gadget scrolling mode. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustFromScrollBar().

Reimplemented from IlvScrolledGadget.

◆ check()

virtual IlBoolean IlvText::check ( IlUShort character )

virtual

Is called by the interactor for each key down event that corresponds to a regular character.

Its default implementation inserts the character (erasing the selection if there is one) and updates the display accordingly.

Parameters

character The ASCII code of the character.

◆ cursorMoved()

virtual void IlvText::cursorMoved ( )

virtual

Is called from the interactor when the cursor is moved.

The default implementation calls the Cursor Moved callback.

See also: CursorMovedSymbol().

◆ CursorMovedSymbol()

static IlSymbol* IlvText::CursorMovedSymbol ( )

static

Returns the callback type of the Cursor Moved callback.

The Cursor Moved callback is invoked after the cursor of the text gadget is moved through the interactor.

Returns: The callback type of the Cursor Moved callback.

See also: SelectionChangedSymbol(), ValueChangedSymbol(), IlvGraphic::setCallback().

◆ cutLine()

void IlvText::cutLine ( const IlvTextLocation & location )

Removes the end of the specified line.

Parameters

location The location from which the line will be removed.

See also: removeChar(), removeLine().

◆ drawBackground()

virtual void IlvText::drawBackground	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget background.

Is called from the draw() method. This method is not called if the gadget is transparent.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawFrame(), drawScrollBar(), drawGadgetContents(), IlvGadget::isTransparent().

Reimplemented from IlvScrolledGadget.

◆ drawFrame()

virtual void IlvText::drawFrame	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget frame.

Is called from the draw() method. This method is not called if the method isShowingFrame() returns IlFalse.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawGadgetContents().

Reimplemented from IlvScrolledGadget.

◆ drawGadgetContents()

virtual void IlvText::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented from IlvScrolledGadget.

◆ ensureVisible()

void IlvText::ensureVisible	(	const IlvTextLocation &	location,
		const IlvTransformer *	t = `0`
	)

Changes the first line and the offset of the text gadget to ensure that the specified text location is visible.

Parameters

location	The text location.
t	The transformer applied to the text gadget.

See also: setOffset(), setFirstLine().

◆ getCursorLocation()

IlvTextLocation IlvText::getCursorLocation ( ) const

Returns the current location of the cursor.

Returns: The current location of the cursor.

See also: setCursorLocation(), getEndLocation().

◆ getEndLocation()

IlvTextLocation IlvText::getEndLocation ( ) const

Returns the last location of the text.

Returns: The last location of the text.

See also: getCursorLocation(), pointToPosition().

◆ getFirstLine()

IlUShort IlvText::getFirstLine ( ) const

Returns the index of the first text line displayed.

Returns: The index of the first line of text displayed.

See also: setFirstLine(), ensureVisible().

◆ getLastFullVisibleLine()

IlUShort IlvText::getLastFullVisibleLine ( const IlvTransformer * t = 0 ) const

Returns the index of the last visible line that can be seen without scrolling.

Parameters

t	The transformer applied to the text gadget.

Returns: The index of the last visible line that can be seen without scrolling when the text is displayed with the transformer t.

See also: getLastLine(), getNumberOfVisibleLines().

◆ getLastLine()

IlUShort IlvText::getLastLine ( const IlvTransformer * t = 0 ) const

Returns the index of the last text line displayed.

Parameters

t	The transformer applied to the text gadget.

Returns: The index of the last text line displayed when the text is displayed with the transformer t.

See also: getLastFullVisibleLine(), getNumberOfVisibleLines().

◆ getLine()

const char* IlvText::getLine ( IlUShort index ) const

Returns the specified text line.

Parameters

index The index of the text line.

Returns: The text line specified by index. The returned value should not be modified or deleted.

See also: getLines(), setLine().

◆ getLineLength()

IlUShort IlvText::getLineLength ( IlUShort index ) const

Returns the number of characters in the specified text line.

Parameters

index The index of the line.

Returns: The number of characters in the text line specified by index. In a mutibyte environment, this might be different from the number of bytes, as a character may be stored on several bytes.

◆ getLines()

const char* const* IlvText::getLines ( IlUShort & count ) const

Returns an array of strings representing the text stored in the gadget.

Parameters

count The number of elements in the returned array.

Returns: An array of count strings representing the text stored in the gadget. This array should not be modified or deleted.

See also: getLine(), setLines().

◆ getMaxWidth()

IlvDim IlvText::getMaxWidth ( ) const

Returns the width of the largest visible line.

Returns: The width of the largest visible line.

◆ getNumberOfLines()

IlUShort IlvText::getNumberOfLines ( ) const

Returns the number of text lines stored in the object.

Returns: The number of lines stored in the object.

See also: addLine().

◆ getNumberOfVisibleLines()

IlUShort IlvText::getNumberOfVisibleLines ( const IlvTransformer * t = 0 ) const

Returns the number of visible text lines.

The last line is not taken into account if it is not entirely visible.

Parameters

t	The transformer applied to the text gadget.

Returns: The number of visible text lines when the text gadget is displayed with the transformer t.

See also: getNumberOfLines().

◆ getOffset()

IlvDim IlvText::getOffset ( ) const

Returns the text gadget offset.

This offset value is the distance between the left side of the text gadget bounding box and the starting point of the text.

Returns: The text gadget offset.

See also: setOffset().

◆ getSelectedText()

const char* IlvText::getSelectedText ( ) const

Returns the selected text.

Returns: The selected text. The returned string should not be deleted.

See also: getSelection(), setSelection().

◆ getSelection()

void IlvText::getSelection	(	IlvTextLocation &	from,
		IlvTextLocation &	to
	)		const

Returns the location of the current selection.

Parameters

from	The returned starting location of the current selection.
to	The returned ending location of the current selection.

See also: setSelection().

◆ getText()

const char* IlvText::getText ( ) const

Returns the text stored in the text gadget.

Returns: The text stored in the text gadget. The returned string must not be modified or deleted.

See also: getLines().

◆ handleAltKey()

virtual IlBoolean IlvText::handleAltKey ( IlUShort character )

virtual

Is called by the interactor to handle keys pressed with the IlvMetaModifier.

Parameters

character The ASCII code of the character.

See also: handleControl().

◆ handleControl()

virtual IlBoolean IlvText::handleControl ( IlUShort character )

virtual

Is called by the interactor to handle the control keys.

Should only handle control characters, that is, characters for which a call to iscntrl() returns a value different from 0.

Parameters

character The ASCII code of the control character.

See also: handleAltKey().

◆ handleGadgetEvent()

virtual IlBoolean IlvText::handleGadgetEvent ( IlvEvent & event )

virtual

Handles the gadget events.

Is called by handleEvent() when the member function handleScrollBarsEvent() returns IlFalse. Its default implementation does nothing. You can override this member function to implement your own gadget behavior.

Parameters

event The event.

See also: handleScrollBarsEvent().

Reimplemented from IlvScrolledGadget.

◆ insertChar()

void IlvText::insertChar	(	const IlvTextLocation &	location,
		IlUShort	character
	)

Inserts a character at the specified location.

Parameters

location	The location where the character is inserted.
character	The character to be inserted.

See also: removeChar(), pointToPosition().

◆ insertText()

void IlvText::insertText	(	const char *	text,
		IlvTextLocation &	location,
		IlBoolean	redraw = `IlFalse`
	)

Inserts text into the text gadget at the specified location.

Parameters

text	The text to be inserted. The "\n" character identifies a new line. The text is copied.
location	The location where text will be inserted. If this location is not valid, the new text is inserted at the end of the existing text.
redraw	Specifies whether the text gadget should be redrawn.

See also: insertLabels(), addText().

◆ isCursorShown()

IlBoolean IlvText::isCursorShown ( ) const

Indicates whether the cursor is visible.

Returns: IlTrue if the cursor is visible. Otherwise, returns IlFalse.

See also: showCursor().

◆ isEditable()

IlBoolean IlvText::isEditable ( ) const

Indicates whether the text gadget can be edited.

The user cannot type in a text gadget for which editing is not allowed. However, the text can still be selected and copied.

Returns: IlTrue if the text gadget is editable and IlFalse if it is not.

See also: setEditable().

◆ locateWord()

void IlvText::locateWord	(	const IlvTextLocation &	location,
		IlvTextLocation &	start,
		IlvTextLocation &	end
	)		const

Finds the word at the specified location.

Uses start and end to return the locators of the word at the specified location. A word is composed of successive characters that are not in the set: ‘_.,;:-=+/()[]{}*&%!|’`

Parameters

location	The initial location.
start	The returned starting location of the word found.
end	The returned ending location of the word found.

◆ pointToPosition()

IlvTextLocation IlvText::pointToPosition	(	const IlvPoint &	point,
		const IlvTransformer *	t = `0`
	)		const

Returns the location of the specified point in the text.

Parameters

point	The point to be located.
t	The transformer applied to the text gadget.

Returns: The location in the text of point, when the text object is displayed with the transformer t.

◆ readText() [1/2]

IlBoolean IlvText::readText	(	const char *	filename = `0`,
		const IlvTransformer *	t = `0`
	)

Inserts the contents of the specified file into the text gadget.

Removes the existing text and inserts the contents of filename.

Parameters

filename	The name of the file to be inserted.
t	Not used.

◆ readText() [2/2]

void IlvText::readText	(	std::istream &	istream,
		const IlvTransformer *	t = `0`
	)

Inserts the contents of the specified stream into the text gadget.

Removes the existing text and inserts the contents of istream.

Parameters

istream	The input stream.
t	Not used.

◆ removeChar()

void IlvText::removeChar ( const IlvTextLocation & location )

Removes a character from a specified location.

Parameters

location The location of the character to be removed.

See also: insertChar(), pointToPosition().

◆ removeLine()

void IlvText::removeLine ( IlUShort line )

Removes and deletes the specified text line.

Parameters

line	The index of the text line to be removed.

See also: addLine(), setLine(), getLine().

◆ removeLines()

void IlvText::removeLines	(	IlUShort	line,
		IlUShort	count
	)

Removes and deletes several text lines.

Parameters

line	The index of the first text line to be removed.
count	The number of lines to delete.

See also: addLine(), setLine(), getLine(), removeLine().

◆ scrollBarHasMoved()

virtual void IlvText::scrollBarHasMoved ( IlvDirection direction )

protectedvirtual

Is called when an internal scroll bar has moved.

Is called by handleEvent() each time the value of the internal scroll bar specified by direction changes. The default implementation invokes the Scroll Bar Moved callback.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

See also: ScrollBarMovedSymbol().

Reimplemented from IlvScrolledGadget.

◆ scrollBarVisibilityChanged()

virtual void IlvText::scrollBarVisibilityChanged ( IlvDirection direction )

virtual

Is called when an internal scroll bar is shown or hidden.

Is called by handleEvent() each time the internal scroll bar specified by direction is shown or hidden. The default implementation invokes the Scroll Bar Visibility Changed callback.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

See also: ScrollBarVisibilitySymbol().

Reimplemented from IlvScrolledGadget.

◆ selectionChanged()

virtual void IlvText::selectionChanged ( )

virtual

Is called from the interactor when the selection is modified.

The default implementation calls the Selection Changed callback.

See also: SelectionChangedSymbol().

◆ SelectionChangedSymbol()

static IlSymbol* IlvText::SelectionChangedSymbol ( )

static

Returns the callback type of the Selection Changed callback.

The Selection Changed callback is invoked after the selection of the text gadget has changed through the interactor.

Returns: The callback type of the Selection Changed callback.

See also: CursorMovedSymbol(), ValueChangedSymbol(), IlvGraphic::setCallback().

◆ setCursorLocation()

void IlvText::setCursorLocation ( const IlvTextLocation & location )

Sets the cursor location to a new location.

If location is not a valid value, it is converted to the nearest valid location.

Parameters

location The new cursor location.

See also: getCursorLocation().

◆ setEditable()

void IlvText::setEditable ( IlBoolean value )

Specifies whether editing is allowed for the text gadget.

The user cannot type in a text gadget for which editing is not allowed. However, the text can still be selected and copied.

Parameters

value Specifies whether the text gadget can be edited (IlTrue) or not (IlFalse).

◆ setFirstLine()

void IlvText::setFirstLine ( IlUShort line )

Sets the first text line to be displayed.

Parameters

line	The index of the new first line of text.

See also: getFirstLine().

◆ setLine()

void IlvText::setLine	(	IlUShort	line,
		const char *	text,
		IlBoolean	copy = `IlTrue`
	)

Replaces the text line specified by line with text.

Parameters

line	The index of the text line to be replaced.
text	The new text line.
copy	If `IlTrue`, the text string is copied. Otherwise it is stored as is, and deleted when this `IlvText` is destroyed.

See also: addLine(), removeLine(), setLines().

◆ setLines()

virtual void IlvText::setLines	(	const char const	labels,
		IlUShort	count,
		IlBoolean	copy = `IlTrue`
	)

virtual

Replaces all the text in the text gadget.

Sets the contents of this object to the labels array of count text lines.

Parameters

labels	The array of new strings.
count	The number of elements in the labels array.
copy	If `IlTrue`, the labels array is copied. Otherwise it is stored as is, and deleted when this `IlvText` is destroyed.

◆ setOffset()

void IlvText::setOffset ( IlvDim offset )

Sets the text gadget offset.

Parameters

offset The new text gadget offset.

See also: getOffset(), ensureVisible().

◆ setSelection()

void IlvText::setSelection	(	const IlvTextLocation &	from,
		const IlvTextLocation &	to
	)

Sets the location of the current selection.

Parameters

from	The location where the new selection starts.
to	The location where the new selection ends.

See also: getSelection().

◆ setText()

virtual void IlvText::setText ( const char * text )

virtual

Sets the text to be stored in the text gadget.

Parameters

text	The text to be stored in the text gadget. The ' ' character identifies a new line. The text is copied.

See also: getText().

◆ showCursor()

void IlvText::showCursor ( IlBoolean value )

Specifies whether the cursor should be visible.

Parameters

value Specifies whether the cursor should be visible (IlTrue) or not (IlFalse).

See also: isCursorShown().

◆ valueChanged()

virtual void IlvText::valueChanged ( )

virtual

Is called from the interactor when the value is modified.

The default implementation calls the Value Changed callback.

See also: ValueChangedSymbol().

◆ ValueChangedSymbol()

static IlSymbol* IlvText::ValueChangedSymbol ( )

static

Returns the callback type of the Value Changed callback.

The Value Changed callback is invoked after the text gadget has been modified through the interactor.

Returns: The callback type of the Value Changed callback.

See also: CursorMovedSymbol(), SelectionChangedSymbol(), IlvGraphic::setCallback().

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Data accessors

Method accessors

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvText() [1/4]

◆ IlvText() [2/4]

◆ IlvText() [3/4]

◆ IlvText() [4/4]

Member Function Documentation

◆ addLine()

◆ addLines()

◆ addText()

◆ adjustFromScrollBar()

◆ adjustScrollBars()

◆ adjustScrollBarValue()

◆ check()

◆ cursorMoved()

◆ CursorMovedSymbol()

◆ cutLine()

◆ drawBackground()

◆ drawFrame()

◆ drawGadgetContents()

◆ ensureVisible()

◆ getCursorLocation()

◆ getEndLocation()

◆ getFirstLine()

◆ getLastFullVisibleLine()

◆ getLastLine()

◆ getLine()

◆ getLineLength()

◆ getLines()

◆ getMaxWidth()

◆ getNumberOfLines()

◆ getNumberOfVisibleLines()

◆ getOffset()

◆ getSelectedText()

◆ getSelection()

◆ getText()

◆ handleAltKey()

◆ handleControl()

◆ handleGadgetEvent()

◆ insertChar()

◆ insertText()

◆ isCursorShown()

◆ isEditable()

◆ locateWord()

◆ pointToPosition()

◆ readText() [1/2]

◆ readText() [2/2]

◆ removeChar()

◆ removeLine()

◆ removeLines()

◆ scrollBarHasMoved()

◆ scrollBarVisibilityChanged()

◆ selectionChanged()

◆ SelectionChangedSymbol()

◆ setCursorLocation()

◆ setEditable()

◆ setFirstLine()

◆ setLine()

◆ setLines()

◆ setOffset()

◆ setSelection()

◆ setText()

◆ showCursor()

◆ valueChanged()

◆ ValueChangedSymbol()
