This class allows the edition of text contents with editing features and syntax coloring, autoindent, undo/redo etc... More...

#include <ilviews/gadgets/codeedit.h>

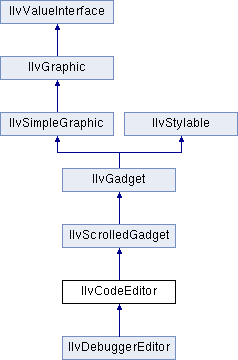

Inheritance diagram for IlvCodeEditor:

Classes
class	Binding
	Holds the key binding for the commands of a Code Editor . More...

class	CommandPerformedObserver
	This observer is notified when a command was executed in a Code Editor. More...

class	ContentChangedObserver
	This observer is notified when the content of a Code Editor is modified, or when the read-only state of the Code Editor is changed. More...

class	CursorMovedObserver
	This observer is notified when the location of the cursor of a Code Editor is modified. More...

class	Location
	The position of a logical character in the text managed by an `IlvCodeEditor`. More...

class	Observer
	Observers receive notifications when commands impact the Code Editor. More...

class	Parser
	A Parser can read the text content of a CodeEditor and decorate it. More...

class	SelectionChangedObserver
	This observer is notified when the selected area of a Code Editor is changed. More...

class	StyleSheet
	A style sheet is a container with several styles that holds palettes for the decorations and options like syntax highlighting, auto-indent mode, brace highlighting, tabulations shown has blank characters. More...

class	Trigger
	Triggers are invoked when a Code Editor handles key events that trigger actions that must be implemented on the application side. More...

Public Member Functions
	IlvCodeEditor (IlvDisplay display, const IlvRect &rect, const char text, IlUShort thickness, StyleSheet sheet, IlvDim marginWidth, Binding::Mode mode, Parser parser=0)
	Constructor. More...

	IlvCodeEditor (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, Binding::Mode mode=Binding::MSVCMode, StyleSheet sheet=0)
	Constructor. More...

void	adjustFromScrollBar (const IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the gadget to the scroll bars values. More...

void	adjustScrollBarValue (IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the scroll bar values. More...

void	appendText (const char *text)
	Appends the given text to the buffer. More...

IlBoolean	appendToClipBoard ()
	Appends the current selection to the clipboard. More...

void	blockUndoRedo ()
	Inhibits the undo/redo feature. More...

IlBoolean	braceHighLight () const
	Tells if brace matching highlighting is activated. More...

IlInt	breakLine (IlBoolean autoIndent)
	Breaks a line at the current cursor position. More...

IlBoolean	centerOnCurrentLine ()
	Scrolls as needed to place the current line at the center of the editor view. More...

void	clearEditSignal ()
	Sets the edition signal to `IlFalse`.

IlBoolean	commentRegion ()
	Inserts a mono-line comment in the text. More...

IlBoolean	completeWord ()
	Tries to complete the word preceding the cursor. More...

char *	concatText (const Location &begin, const Location &end, IlBoolean tabAsBlanks) const
	Concatenates the text between two locations. More...

IlBoolean	copyToClipBoard () const
	Copies the current selection to the clipboard. More...

IlBoolean	cutLineToClipBoard ()
	Executes a partial cut from cursor to end of line and puts it into the clipboard. More...

IlBoolean	cutToClipBoard ()
	Cuts the current selection to the clipboard. More...

virtual void	drawGadgetContents (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget contents. More...

IlBoolean	find (IlBoolean forwardDir, IlBoolean limited, IlBoolean caseSensitive, IlBoolean wholeWord, const char *pattern, Location from, Location to, IlBoolean s=IlTrue)
	Finds the first occurence of the specified pattern from the current cursor position. More...

IlInt	getCursorColumn () const
	Returns the column where the cursor is located. More...

IlInt	getCursorLine () const
	Returns the index of the line where the cursor is located. More...

const Location &	getCursorLocation () const
	Returns the location of the cursor.

void	getRedoCommandLabel (IlString &l) const
	Returns in its argument the label of the last redoable command. More...

char *	getSelection () const
	Retrieves the text from the current selection. More...

void	getSelection (Location &from, Location &to) const
	Returns the start and end locations of the current selection.

Location	getSelectionEnd () const
	Returns the location of the end of the current selection. More...

IlInt	getSelectionEndColumn () const
	Returns the index of the last column of the current selection. More...

IlInt	getSelectionEndLine () const
	Returns the index of the last line of the current selection. More...

Location	getSelectionStart () const
	Returns the location of the start of the current selection. More...

IlInt	getSelectionStartColumn () const
	Returns the index of the first column of the current selection. More...

IlInt	getSelectionStartLine () const
	Returns the index of the first line of the current selection. More...

char *	getText (IlBoolean blanks)
	Gets the text from the buffer. More...

void	getUndoCommandLabel (IlString &l) const
	Returns in its argument the label of the last undoable command. More...

void	gotoEnd ()
	Moves the cursor to the end of the buffer. More...

IlBoolean	gotoLine (IlInt line)
	Moves the cursor to the given line. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &event)
	Handles the gadget events. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

IlBoolean	hasSelection () const
	Tells whether there is an active selection or not. More...

IlInt	indentLine (IlInt line)
	indents the specified line. More...

IlInt	insertCharacter (char key, IlBoolean bckIndent=IlTrue)
	Inserts the given charater at the current cursor location. More...

IlInt	insertTabulation ()
	Inserts a tabulation at the current cursor location. More...

Location	insertText (const char *text, const Location &at, IlBoolean reDraw=IlFalse)
	Concatenates the text between two locations. More...

void	insertText (const char *text, IlInt line, IlInt column, IlBoolean reDraw=IlFalse)
	Inserts the given text at the given location. More...

void	insertTextReversible (const char *text, IlInt line, IlInt column, IlBoolean reDraw)
	Inserts the given text at the given location. More...

IlBoolean	isBlockCloser (char character) const
	tells if the given charater is a block closer. More...

IlBoolean	isMultilineSelection () const
	Indicates if the current selection spans several lines. More...

IlBoolean	isReadOnly () const
	Returns the editor read-only state. More...

IlBoolean	isRedoable () const
	Tells if the redo feature is usable. More...

IlBoolean	isSaveNeeded () const
	Tells if the buffer has been changed. More...

IlBoolean	isTabulation (const Location &l) const
	Tells if the character at location is a tabulation. More...

IlBoolean	isUndoable () const
	Tells if the undo feature is usable. More...

IlBoolean	killComment ()
	Removes a mono-line comment in the text. More...

IlBoolean	loadFile (const IlPathName &filePath, IlBoolean redraw=IlTrue)
	Loads text from given file into the buffer. More...

void	loadText (const char *text)
	Loads the given text into the buffer. More...

IlBoolean	pasteFromClipBoard ()
	Pastes the clipboard contents replacing the current selection if any. More...

void	propagateSheet (const StyleSheet *s=0)
	Propagates style sheet modifications. More...

IlBoolean	redo ()
	Replays the last undone command. More...

void	removeMarker (IlvCEdtMarker &marker, IlInt line)
	Removes a marker from the margin of a line. More...

void	removeMarkers (IlInt line=-1)
	Removes all markers from the margin of a given line or all lines. More...

void	removeOneLogicalCharacter ()
	Removes one logical character just before the cursor. More...

char *	removeText (const Location &start, const Location &end, IlBoolean retStr=IlTrue)
	Removes the text and the lines between two locations. More...

void	replaceSelection (const char *replacement, IlBoolean autoRedraw, IlBoolean forwardDir)
	Replaces the selected text by the new value. More...

void	resetAll ()
	Empties the buffer and releases the internal memory.

void	resetSaveNeeded ()
	Resets the buffer changed indicator. More...

virtual void	scrollableSize (IlvDim &w, IlvDim &h) const
	Returns the size of the scrollable area of the gadget. More...

IlBoolean	selectAll ()
	Selects all text from the buffer. More...

void	setCursorLocation (const Location &loc)
	Sets the location of the cursor.

void	setCursorLocation (IlInt line, IlInt column)
	Moves the cursor to the location given by its arguments. More...

void	setEditable (IlBoolean mode)
	Sets the editor to be editable or read-only. More...

void	setFindTrigger (Trigger *trigger)
	Sets the Find trigger. More...

void	setGotoTrigger (Trigger *trigger)
	Sets the Goto trigger. More...

void	setKillBufferTrigger (Trigger *trigger)
	Sets the Kill Buffer trigger. More...

void	setLine (IlInt line, const char *text)
	Replaces the text at line by the new value. More...

IlBoolean	setMark ()
	Sets the selection mark. More...

void	setMarker (IlvCEdtMarker &marker, IlInt line)
	Adds a marker to the margin of a line. More...

void	setOpenTrigger (Trigger *trigger)
	Sets the Open trigger. More...

void	setQuitTrigger (Trigger *trigger)
	Sets the Quit trigger. More...

void	setReadOnlyTrigger (Trigger *trigger)
	Sets the Read Only trigger. More...

void	setReplaceTrigger (Trigger *trigger)
	Sets the Replace trigger. More...

void	setSaveAllTrigger (Trigger *trigger)
	Sets the Save All trigger. More...

void	setSaveAsTrigger (Trigger *trigger)
	Sets the Save As trigger. More...

void	setSaveTrigger (Trigger *trigger)
	Sets the Save trigger. More...

IlBoolean	setSelection (IlInt startOffset, IlInt endOffset)
	Selects part of the text on current line. More...

void	setSwitchBufferTrigger (Trigger *trigger)
	Sets the Switch Buffer trigger. More...

void	setText (const char *text)
	Loads the given text into the buffer. More...

void	stopBraceHighLighting ()
	Inhibits the brace matching highlight feature.

IlBoolean	syntaxHighLight () const
	Tells if syntax highlighting is activated. More...

IlBoolean	undo ()
	Reverses the effects of the last run command. More...

IlInt	unindentLine (IlInt line)
	Outdents the specified line. More...

void	unsetMark ()
	Removes the selection mark. More...

Public Member Functions inherited from IlvScrolledGadget
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustScrollBars (IlBoolean redraw=IlFalse)
	Recomputes the scroll bars. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &rect, IlvDirection direction, IlUShort thickness, IlvPalette *palette)
	Returns a new instance of the `IlvScrollBar` class. More...

virtual void	drawBackground (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget background. More...

virtual void	drawFrame (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget frame. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

virtual void	internalBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the internal bounding box of the gadget. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollBarBBox (IlvDirection direction, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

virtual void	scrollBarHasMoved (IlvDirection direction)
	Is called when an internal scroll bar has moved. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

virtual void	scrollBarVisibilityChanged (IlvDirection direction)
	Is called when an internal scroll bar is shown or hidden. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Protected Member Functions inherited from IlvScrolledGadget
IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Detailed Description

This class allows the edition of text contents with editing features and syntax coloring, autoindent, undo/redo etc...

Library: ilvadvgdt

It uses a series of Line objects as a fundamental data structure for representing source code.

It delegates to the lines the drawing. The lines themselves delegate to their margin and to their decorators the corresponding drawing actions. Most of the interactions (handleGadgetEvent()) are encapsulated in an IlvCodeEditor::Binding derived class, which is a kind of interactor, so that it is possible to switch at runtime between MSVC-like and EMACS-like key binding modes.

When a file is loaded and its extension has been associated to a parser with Parser::associate(), it uses this Parser for syntax coloring, autoindentation and word selection/navigation features. It delegates to the parser the decorator instantiation for each line of text.

It uses an StyleSheet as a style sheet for coloration, and tabulation size.

The undo and redo chain management is delegated to an instance of the CommandProcessor class. The instance is implicitly created when the editor is build. The command processor, in turn, implicitly creates a command factory.

An instance of this class knows when to notify observers for enabling/disabling outside menu items, buttons, modifier indicators, etc...

It manages a list of syntax error lines and allows to add markers in the margin.

It also has a mechanism for keyword online help.

Warning

[Limitations]

Only one font for the entire text.
No word-wrapping.
If "tabulation as blanks" is set to IlFalse then the tab stops calculation does not occur, resulting in fixed size tabulations.

Constructor & Destructor Documentation

◆ IlvCodeEditor() [1/2]

IlvCodeEditor::IlvCodeEditor	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		Binding::Mode	mode = `Binding::MSVCMode`,
		StyleSheet *	sheet = `0`
	)

Constructor.

Initializes a new empty Code Editor.

Parameters

display	the display to attach to.
rect	the bounding box for the editor.
thickness	the editor border thickness.
mode	the editor key binding mode
sheet	the style sheet to use.

◆ IlvCodeEditor() [2/2]

IlvCodeEditor::IlvCodeEditor	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char *	text,
		IlUShort	thickness,
		StyleSheet *	sheet,
		IlvDim	marginWidth,
		Binding::Mode	mode,
		Parser *	parser = `0`
	)

Constructor.

Initializes a new Code Editor for the given style sheet, text, and parser.

The given text is split into lines, at the EoL characters. It is always copied.

Parameters

display	the display to attach to.
rect	the bounding box for the editor.
text	the text to insert in the editor and colorize .
thickness	the editor border thickness.
sheet	the style sheet to use.
marginWidth	the width of the margin, set on one side.
mode	the editor key binding mode
parser	the parser to scan the text

Member Function Documentation

◆ adjustFromScrollBar()

void IlvCodeEditor::adjustFromScrollBar	(	const IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

virtual

Is called to adjust the gadget to the scroll bars values.

Is called each time the scroll bar scrollbar of direction direction moves. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustScrollBarValue().

Reimplemented from IlvScrolledGadget.

◆ adjustScrollBarValue()

void IlvCodeEditor::adjustScrollBarValue	(	IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

virtual

Is called to adjust the scroll bar values.

Is called by the member function adjustScrollBars() to adjust the values of the scroll bar scrollbar of direction direction. This member function must modify the scrollbar values to match the gadget scrolling mode. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustFromScrollBar().

Reimplemented from IlvScrolledGadget.

◆ appendText()

void IlvCodeEditor::appendText ( const char * text )

Appends the given text to the buffer.

Parameters

text	The text to append.

◆ appendToClipBoard()

IlBoolean IlvCodeEditor::appendToClipBoard ( )

Appends the current selection to the clipboard.

Returns: IlTrue if the selection was added to the clipboard; IlFalse if there is no current selection.

◆ blockUndoRedo()

void IlvCodeEditor::blockUndoRedo ( )

Inhibits the undo/redo feature.

This function delegates the actual processing to the command processor.

◆ braceHighLight()

IlBoolean IlvCodeEditor::braceHighLight ( ) const

Tells if brace matching highlighting is activated.

Returns: IlTrue if the brace matching highlighting feature is enabled.

◆ breakLine()

IlInt IlvCodeEditor::breakLine ( IlBoolean autoIndent )

Breaks a line at the current cursor position.

Parameters

autoIndent set the possibility to automatically indent the new line.

Returns: The indentation made.

◆ centerOnCurrentLine()

IlBoolean IlvCodeEditor::centerOnCurrentLine ( )

Scrolls as needed to place the current line at the center of the editor view.

Returns: The result of the scrolling operation.

◆ commentRegion()

IlBoolean IlvCodeEditor::commentRegion ( )

Inserts a mono-line comment in the text.

The comment is inserted at the cursor line.

◆ completeWord()

IlBoolean IlvCodeEditor::completeWord ( )

Tries to complete the word preceding the cursor.

If a potential completion is found, it is inserted after the cursor location.

Returns: IlTrue if the command processor succeeded; IlFalse if there is no current selection.

Note: This action is undoable.

◆ concatText()

char* IlvCodeEditor::concatText	(	const Location &	begin,
		const Location &	end,
		IlBoolean	tabAsBlanks
	)		const

Concatenates the text between two locations.

Parameters

begin	the start location.
end	the end location.
tabAsBlanks	should tabs be converted to blank charaters.

Returns: The concatenated text with line breaks inserted.

It is the caller responsibility to destroy the returned value.

◆ copyToClipBoard()

IlBoolean IlvCodeEditor::copyToClipBoard ( ) const

Copies the current selection to the clipboard.

Returns: IlTrue if the selection was put to the clipboard; IlFalse if there is no current selection.

◆ cutLineToClipBoard()

IlBoolean IlvCodeEditor::cutLineToClipBoard ( )

Executes a partial cut from cursor to end of line and puts it into the clipboard.

Returns: IlTrue if the command processor succeeded; IlFalse if the cursor is not in a valid location.

Note

This action is undoable.
There is a cumulative effect when a series of cut are made successively.
It's processing is similar to the Emacs one: that is the line end is not cut on first occurence but only when it is the only character after the cursor.

◆ cutToClipBoard()

IlBoolean IlvCodeEditor::cutToClipBoard ( )

Cuts the current selection to the clipboard.

Returns: IlTrue if the command processor succeeded; IlFalse if there is no current selection.

Note: This action cannot be undone.

◆ drawGadgetContents()

virtual void IlvCodeEditor::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented from IlvScrolledGadget.

◆ find()

IlBoolean IlvCodeEditor::find	(	IlBoolean	forwardDir,
		IlBoolean	limited,
		IlBoolean	caseSensitive,
		IlBoolean	wholeWord,
		const char *	pattern,
		Location	from,
		Location	to,
		IlBoolean	s = `IlTrue`
	)

Finds the first occurence of the specified pattern from the current cursor position.

Parameters

forwardDir	Will the search proceed forward or backward.
limited	Will the search proceed only between valid start and end locations.
caseSensitive	Case sensitivity of the search.
wholeWord	Should only find whole words.
pattern	The pattern to search.
from	Start location of the search.
to	End location of the search.
s	Should the selection be extended if the pattern spans several lines.

Returns: IlTrue if the pattern is found.

◆ getCursorColumn()

IlInt IlvCodeEditor::getCursorColumn ( ) const

Returns the column where the cursor is located.

Note: If the cursor is before the first character of a line, then this method returns 0.

◆ getCursorLine()

IlInt IlvCodeEditor::getCursorLine ( ) const

Returns the index of the line where the cursor is located.

Note: The first line has an index of 0.

◆ getRedoCommandLabel()

void IlvCodeEditor::getRedoCommandLabel ( IlString & l ) const

Returns in its argument the label of the last redoable command.

This function delegates the actual processing to the command processor.

Parameters

l	On output, will contain the label of the command.

◆ getSelection()

char* IlvCodeEditor::getSelection ( ) const

Retrieves the text from the current selection.

Returns: A copy of the selection text or null if there is no active selection.

Note: The tabs are copied as blank characters.

◆ getSelectionEnd()

Location IlvCodeEditor::getSelectionEnd ( ) const

Returns the location of the end of the current selection.

Returns: The location of the end of current selection if there is one, Location(-1, -1) otherwise.

◆ getSelectionEndColumn()

IlInt IlvCodeEditor::getSelectionEndColumn ( ) const

Returns the index of the last column of the current selection.

Returns: The index of the last column of the selection if there is one, -1 otherwise.

◆ getSelectionEndLine()

IlInt IlvCodeEditor::getSelectionEndLine ( ) const

Returns the index of the last line of the current selection.

Returns: The index of the last line of the selection if there is one, -1 otherwise.

◆ getSelectionStart()

Location IlvCodeEditor::getSelectionStart ( ) const

Returns the location of the start of the current selection.

Returns: The location of the start of current selection if there is one, Location(-1, -1) otherwise.

◆ getSelectionStartColumn()

IlInt IlvCodeEditor::getSelectionStartColumn ( ) const

Returns the index of the first column of the current selection.

Returns: The index of the first column of the current selection if there is one, -1 otherwise.

◆ getSelectionStartLine()

IlInt IlvCodeEditor::getSelectionStartLine ( ) const

Returns the index of the first line of the current selection.

Returns: The index of the first line of the current selection if there is one, -1 otherwise.

◆ getText()

char* IlvCodeEditor::getText ( IlBoolean blanks )

Gets the text from the buffer.

Parameters

blanks Should tabs be translated to blank chars.

Returns: The buffer contents as a string.

◆ getUndoCommandLabel()

void IlvCodeEditor::getUndoCommandLabel ( IlString & l ) const

Returns in its argument the label of the last undoable command.

Parameters

l	On output, will contain the label of the command.

This function delegates the actual processing to the command processor.

◆ gotoEnd()

void IlvCodeEditor::gotoEnd ( )

Moves the cursor to the end of the buffer.

Note: If the buffer is empty, the cursor will be set at its begining.

◆ gotoLine()

IlBoolean IlvCodeEditor::gotoLine ( IlInt line )

Moves the cursor to the given line.

Parameters

line	The line number to move the cursor to.

Returns: IlTrue unless the line number is invalid.

◆ handleGadgetEvent()

virtual IlBoolean IlvCodeEditor::handleGadgetEvent ( IlvEvent & event )

virtual

Handles the gadget events.

Is called by handleEvent() when the member function handleScrollBarsEvent() returns IlFalse. Its default implementation does nothing. You can override this member function to implement your own gadget behavior.

Parameters

event The event.

See also: handleScrollBarsEvent().

Reimplemented from IlvScrolledGadget.

◆ handleScrollBarsEvent()

virtual IlBoolean IlvCodeEditor::handleScrollBarsEvent ( IlvEvent & event )

virtual

Handles the internal scroll bars event.

Is called from the handleEvent method. You can override this member function to implement your own scroll bar behavior.

Parameters

event The event.

Returns: IlFalse if the event has not been handled by the scroll bars. In this case, handleGadgetEvent() will be called.

See also: handleGadgetEvent().

Reimplemented from IlvScrolledGadget.

◆ hasSelection()

IlBoolean IlvCodeEditor::hasSelection ( ) const

Tells whether there is an active selection or not.

Returns: IlTrue is some text is selected.

◆ indentLine()

IlInt IlvCodeEditor::indentLine ( IlInt line )

indents the specified line.

Parameters

line	the line index.

Returns: Always 0.

◆ insertCharacter()

IlInt IlvCodeEditor::insertCharacter	(	char	key,
		IlBoolean	bckIndent = `IlTrue`
	)

Inserts the given charater at the current cursor location.

Parameters

key	the character to insert.
bckIndent	.

Returns: The column index of the insertion.

◆ insertTabulation()

IlInt IlvCodeEditor::insertTabulation ( )

Inserts a tabulation at the current cursor location.

Returns: Always 0.

◆ insertText() [1/2]

Location IlvCodeEditor::insertText	(	const char *	text,
		const Location &	at,
		IlBoolean	reDraw = `IlFalse`
	)

Concatenates the text between two locations.

Parameters

text	the text to insert.
at	the insertion start location.
reDraw	is re-drawing requested.

Returns: The end location of the insertion.

◆ insertText() [2/2]

void IlvCodeEditor::insertText	(	const char *	text,
		IlInt	line,
		IlInt	column,
		IlBoolean	reDraw = `IlFalse`
	)

Inserts the given text at the given location.

The function will do nothing if the given text is null or is an empty string.

If need be, the text may be converted to wide chars.

Parameters

text	The text to insert.
line	The line at which the insertion is to be done.
column	The column at which the insertion is to be done.
reDraw	Should the buffer be redrawn.

Note: The action of this function is not undoable.

◆ insertTextReversible()

void IlvCodeEditor::insertTextReversible	(	const char *	text,
		IlInt	line,
		IlInt	column,
		IlBoolean	reDraw
	)

Inserts the given text at the given location.

The function will do nothing if the given text is null or is an empty string.

If need be, the text may be converted to wide chars.

Parameters

text	The text to insert.
line	The line at which the insertion is to be done.
column	The column at which the insertion is to be done.
reDraw	Should the buffer be redrawn.

Note: The action of this function is reversible that is can be undone.

◆ isBlockCloser()

IlBoolean IlvCodeEditor::isBlockCloser ( char character ) const

tells if the given charater is a block closer.

Parameters

character the character to test.

Returns: IlTrue if there is a parser and the character is declared as a block closer.

◆ isMultilineSelection()

IlBoolean IlvCodeEditor::isMultilineSelection ( ) const

Indicates if the current selection spans several lines.

Returns: IlTrue if there is a selection that spans across several lines.

◆ isReadOnly()

IlBoolean IlvCodeEditor::isReadOnly ( ) const

Returns the editor read-only state.

Returns: IlTrue if the editor is read only, IlFalse otherwise.

◆ isRedoable()

IlBoolean IlvCodeEditor::isRedoable ( ) const

Tells if the redo feature is usable.

This function delegates the actual processing to the command processor.

◆ isSaveNeeded()

IlBoolean IlvCodeEditor::isSaveNeeded ( ) const

Tells if the buffer has been changed.

Returns: IlTrue if the text was changed; IlFalse otherwise.

◆ isTabulation()

IlBoolean IlvCodeEditor::isTabulation ( const Location & l ) const

Tells if the character at location is a tabulation.

Returns: IlTrue if the character is a tabulation or a blank character part of one.

◆ isUndoable()

IlBoolean IlvCodeEditor::isUndoable ( ) const

Tells if the undo feature is usable.

This function delegates the actual processing to the command processor.

◆ killComment()

IlBoolean IlvCodeEditor::killComment ( )

Removes a mono-line comment in the text.

The comment is removed at the cursor line or in the lines selected. Only the first comment met is processed.

◆ loadFile()

IlBoolean IlvCodeEditor::loadFile	(	const IlPathName &	filePath,
		IlBoolean	redraw = `IlTrue`
	)

Loads text from given file into the buffer.

The function will do nothing if the given pathanme is empty.

If need be, the file contents may be converted to wide chars.

Parameters

filePath	The file path that is loaded.
redraw	if `IlTrue`, the Code Editor is redrawn.

Returns: IlTrue if the file was accessible and the load proceeded; IlFalse in all other cases.

Note: The buffer previous contents will be lost.

◆ loadText()

void IlvCodeEditor::loadText ( const char * text )

Loads the given text into the buffer.

The function will do nothing if the given text is null.

If need be, the text may be converted to wide chars.

Parameters

text	The text to load.

Note: The buffer previous contents will be lost.

◆ pasteFromClipBoard()

IlBoolean IlvCodeEditor::pasteFromClipBoard ( )

Pastes the clipboard contents replacing the current selection if any.

Returns: IlTrue if the command processor succeeded; IlFalse if there is no current selection.

Note: This action is undoable.

◆ propagateSheet()

void IlvCodeEditor::propagateSheet ( const StyleSheet * s = 0 )

Propagates style sheet modifications.

Parameters

s	The style sheet to propagate.

The function propagates the effect of the sheet modification, ensuring consistency of lines ans editor internal states. If the s sheet argument is null then it propagates the value of the current sheet. It copies the s sheet before propagating if it is not null.

◆ redo()

IlBoolean IlvCodeEditor::redo ( )

Replays the last undone command.

This function delegates the actual processing to the command processor.

Returns: The result from the command processor action.

◆ removeMarker()

void IlvCodeEditor::removeMarker	(	IlvCEdtMarker &	marker,
		IlInt	line
	)

Removes a marker from the margin of a line.

Parameters

marker	the marker to remove.
line	the line to remove the symbol from the margin.

The line number should be valid with respect to the contents of the editor. That is greater or equal to 0 and lesser than the number of lines in the editor text.

The line is redrawn.

◆ removeMarkers()

void IlvCodeEditor::removeMarkers ( IlInt line = -1 )

Removes all markers from the margin of a given line or all lines.

Parameters

line	the line to remove the markers from the margin.

If given the line number should be valid with respect to the contents of the editor. That is greater or equal to 0 and lesser than the number of lines in the editor text. If no line number is given, all markers will be removed from all lines.

The editor is redrawn.

◆ removeOneLogicalCharacter()

void IlvCodeEditor::removeOneLogicalCharacter ( )

Removes one logical character just before the cursor.

If the character is a tabulation represented with blanks, all are deleted.

◆ removeText()

char* IlvCodeEditor::removeText	(	const Location &	start,
		const Location &	end,
		IlBoolean	retStr = `IlTrue`
	)

Removes the text and the lines between two locations.

Parameters

start	The start location.
end	The end location.
retStr	Whether or not the removed text should be returned.

Returns: If requested, the removed text.

Tabs are translated to blank characters in the returned string.

◆ replaceSelection()

void IlvCodeEditor::replaceSelection	(	const char *	replacement,
		IlBoolean	autoRedraw,
		IlBoolean	forwardDir
	)

Replaces the selected text by the new value.

Parameters

replacement	The text to replace the selection with.
autoRedraw	Should the buffer be redrawn after insertion.
forwardDir	If false, the cursor will be set at the begining of the selection.

The function does nothing if the cursor is not in a valid position or there if is no selected text.

Actually the action is turned into two commands: one to remove the selected text and one to insert the new text.

◆ resetSaveNeeded()

void IlvCodeEditor::resetSaveNeeded ( )

Resets the buffer changed indicator.

The change is propagated to the observers.

◆ scrollableSize()

virtual void IlvCodeEditor::scrollableSize	(	IlvDim &	width,
		IlvDim &	height
	)		const

virtual

Returns the size of the scrollable area of the gadget.

Puts the width and height of the scrollable area in width and height, respectively. These values are used to compute the values of the scroll bars. You can override this member function to change the scrollable area.

Reimplemented from IlvScrolledGadget.

◆ selectAll()

IlBoolean IlvCodeEditor::selectAll ( )

Selects all text from the buffer.

Returns: Always IlTrue.

◆ setCursorLocation()

void IlvCodeEditor::setCursorLocation	(	IlInt	line,
		IlInt	column
	)

Moves the cursor to the location given by its arguments.

Note: To move the cursor before the first character of the first line, line and column should be set to 0.

◆ setEditable()

void IlvCodeEditor::setEditable ( IlBoolean mode )

Sets the editor to be editable or read-only.

Parameters

mode	the state to set the readOnly option to.

If the editor needs an input method, it is set when the mode is set to editable, removed if the opposite is true.

◆ setFindTrigger()

void IlvCodeEditor::setFindTrigger ( Trigger * trigger )

Sets the Find trigger.

When the Find action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Find trigger is removed.

◆ setGotoTrigger()

void IlvCodeEditor::setGotoTrigger ( Trigger * trigger )

Sets the Goto trigger.

When the Goto Line action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Goto trigger is removed.

◆ setKillBufferTrigger()

void IlvCodeEditor::setKillBufferTrigger ( Trigger * trigger )

Sets the Kill Buffer trigger.

When the Kill Buffer action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Kill Buffer trigger is removed.

◆ setLine()

void IlvCodeEditor::setLine	(	IlInt	line,
		const char *	text
	)

Replaces the text at line by the new value.

Parameters

line	The line number.
text	The new contents for the line

◆ setMark()

IlBoolean IlvCodeEditor::setMark ( )

Sets the selection mark.

Returns: Always IlTrue.

Note: This method only makes sense when in Binding::Emacs mode.

◆ setMarker()

void IlvCodeEditor::setMarker	(	IlvCEdtMarker &	marker,
		IlInt	line
	)

Adds a marker to the margin of a line.

Parameters

marker	The marker to add.
line	The line to add the symbol to.

The line number should be valid with respect to the contents of the editor. That is greater or equal to 0 and lesser than the number of lines in the editor text.

The line is redrawn.

◆ setOpenTrigger()

void IlvCodeEditor::setOpenTrigger ( Trigger * trigger )

Sets the Open trigger.

When the Open action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Open trigger is removed.

◆ setQuitTrigger()

void IlvCodeEditor::setQuitTrigger ( Trigger * trigger )

Sets the Quit trigger.

When the Quit action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Quit trigger is removed.

◆ setReadOnlyTrigger()

void IlvCodeEditor::setReadOnlyTrigger ( Trigger * trigger )

Sets the Read Only trigger.

When the Code Editor cannot perform an action because it is read-only, this trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Read Only trigger is removed.

◆ setReplaceTrigger()

void IlvCodeEditor::setReplaceTrigger ( Trigger * trigger )

Sets the Replace trigger.

When the Replace action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Replace trigger is removed.

◆ setSaveAllTrigger()

void IlvCodeEditor::setSaveAllTrigger ( Trigger * trigger )

Sets the Save All trigger.

When the Save All action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Save All trigger is removed.

◆ setSaveAsTrigger()

void IlvCodeEditor::setSaveAsTrigger ( Trigger * trigger )

Sets the Save As trigger.

When the Save As action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Save As trigger is removed.

◆ setSaveTrigger()

void IlvCodeEditor::setSaveTrigger ( Trigger * trigger )

Sets the Save trigger.

When the Save action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Save trigger is removed.

◆ setSelection()

IlBoolean IlvCodeEditor::setSelection	(	IlInt	startOffset,
		IlInt	endOffset
	)

Selects part of the text on current line.

Parameters

startOffset	The start index of the new selection.
endOffset	The end index of the new selection.

◆ setSwitchBufferTrigger()

void IlvCodeEditor::setSwitchBufferTrigger ( Trigger * trigger )

Sets the Switch Buffer trigger.

When the Switch Buffer action is invoked from the Code Editor, the trigger is invoked.

Parameters

trigger The trigger to be set. If trigger is 0 then the Switch Buffer trigger is removed.

◆ setText()

void IlvCodeEditor::setText ( const char * text )

Loads the given text into the buffer.

The function is for compatibility with IlvText; it is strictly equivalent to loadText().

Parameters

text	The text to set.

◆ syntaxHighLight()

IlBoolean IlvCodeEditor::syntaxHighLight ( ) const

Tells if syntax highlighting is activated.

Returns: IlTrue if the syntax highlighting feature is enabled.

◆ undo()

IlBoolean IlvCodeEditor::undo ( )

Reverses the effects of the last run command.

This function delegates the actual processing to the command processor.

Returns: The result from the command processor action.

◆ unindentLine()

IlInt IlvCodeEditor::unindentLine ( IlInt line )

Outdents the specified line.

Parameters

line	the line index.

Returns: Always 0.

◆ unsetMark()

void IlvCodeEditor::unsetMark ( )

Removes the selection mark.

The selection is completely released, hence the involved lines are redrawn.

Note: This method only makes sense when in Binding::Emacs mode.

Classes

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IlvCodeEditor() [1/2]

◆ IlvCodeEditor() [2/2]

Member Function Documentation

◆ adjustFromScrollBar()

◆ adjustScrollBarValue()

◆ appendText()

◆ appendToClipBoard()

◆ blockUndoRedo()

◆ braceHighLight()

◆ breakLine()

◆ centerOnCurrentLine()

◆ commentRegion()

◆ completeWord()

◆ concatText()

◆ copyToClipBoard()

◆ cutLineToClipBoard()

◆ cutToClipBoard()

◆ drawGadgetContents()

◆ find()

◆ getCursorColumn()

◆ getCursorLine()

◆ getRedoCommandLabel()

◆ getSelection()

◆ getSelectionEnd()

◆ getSelectionEndColumn()

◆ getSelectionEndLine()

◆ getSelectionStart()

◆ getSelectionStartColumn()

◆ getSelectionStartLine()

◆ getText()

◆ getUndoCommandLabel()

◆ gotoEnd()

◆ gotoLine()

◆ handleGadgetEvent()

◆ handleScrollBarsEvent()

◆ hasSelection()

◆ indentLine()

◆ insertCharacter()

◆ insertTabulation()

◆ insertText() [1/2]

◆ insertText() [2/2]

◆ insertTextReversible()

◆ isBlockCloser()

◆ isMultilineSelection()

◆ isReadOnly()

◆ isRedoable()

◆ isSaveNeeded()

◆ isTabulation()

◆ isUndoable()

◆ killComment()

◆ loadFile()

◆ loadText()

◆ pasteFromClipBoard()

◆ propagateSheet()

◆ redo()

◆ removeMarker()

◆ removeMarkers()

◆ removeOneLogicalCharacter()

◆ removeText()

◆ replaceSelection()

◆ resetSaveNeeded()

◆ scrollableSize()

◆ selectAll()

◆ setCursorLocation()

◆ setEditable()

◆ setFindTrigger()

◆ setGotoTrigger()

◆ setKillBufferTrigger()

◆ setLine()

◆ setMark()

◆ setMarker()

◆ setOpenTrigger()

◆ setQuitTrigger()

◆ setReadOnlyTrigger()

◆ setReplaceTrigger()
