Gadget class. More...

#include <ilviews/gadgets/tree.h>

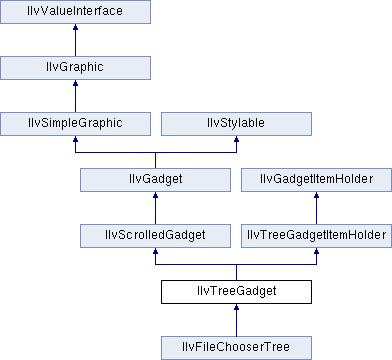

Inheritance diagram for IlvTreeGadget:

Public Member Functions
	IlvTreeGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

IlvTreeGadgetItem *	addItem (IlvTreeGadgetItem parent, const char label, IlInt index=-1, IlvBitmap bitmap=0, IlvBitmap expandedBitmap=0, IlBoolean redraw=IlTrue)
	Adds a new item to the tree gadget. More...

virtual IlBoolean	allowDragDrop () const
	Indicates whether drag-and-drop operations are allowed for the tree gadget. More...

void	allowDragDrop (IlBoolean allow)
	Specifies whether drag-and-drop operations should be allowed for the tree gadget. More...

IlBoolean	areButtonsVisible () const
	Indicates whether the buttons located to the left of parent items are displayed. More...

IlBoolean	areLinesVisible () const
	Indicates whether the lines connecting tree items to their parent are visible. More...

IlBoolean	areRootsLinked () const
	Indicates whether the children of the root item are linked by a connecting line. More...

virtual void	beginPopulate ()
	Stops all scroll bar computing while populating the tree gadget. More...

IlBoolean	buttonBBox (IlvTreeGadgetItem item, IlvRect &bbox, const IlvTransformer t=0) const
	Returns the bounding box of the button associated with the specified item. More...

virtual void	constantItemHeightAssumed (IlBoolean assumed)
	Indicates that all items are assumed to be the same height. More...

virtual IlvGadgetItem *	createItem (const char label, IlvGraphic g=0, IlvBitmap bitmap=0, IlvBitmap sbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...

void	deSelectAll (IlBoolean redraw=IlTrue)
	Deselects all the selected items. More...

virtual void	drawBackground (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget background. More...

virtual void	drawButton (IlvPort dst, const IlvTreeGadgetItem item, const IlvRect &bbox, const IlvRegion *clip=0) const
	Is called to draw the button of the specified item. More...

virtual void	drawFrame (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget frame. More...

virtual void	drawGadgetItem (const IlvGadgetItem , IlvPort port, const IlvRect &rect, const IlvTransformer t, const IlvRegion clip) const
	Draws a specific gadget item. More...

virtual void	endPopulate (IlBoolean redraw=IlTrue)
	Launches all scroll bar computing after the populating of tree. gadget. More...

void	ensureVisible (IlvTreeGadgetItem *item, IlBoolean horizontal=IlTrue, IlBoolean redraw=IlTrue)
	Ensures that the specified tree gadget item is visible. More...

void	expandItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue, IlBoolean all=IlFalse)
	Expands the specified item so that its children become visible. More...

virtual void	getButtonSize (const IlvTreeGadgetItem *item, IlvDim &width, IlvDim &height) const
	Returns the size of the button of the specified tree gadget item. More...

IlvTreeGadgetItem *	getCallbackItem () const
	Returns the item that triggered the callback. More...

IlvTreeGadgetItem *	getFirstVisibleItem () const
	Returns the first visible item of the tree gadget. More...

IlvDim	getIndent () const
	Returns the number of pixels that children are indented relative to the parent. More...

virtual void	getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
	Returns the default orientation of the tree item labels. More...

virtual IlvPosition	getLabelPosition () const
	Returns the default position of the tree item labels, relative to the picture. More...

IlvTreeGadgetItem *	getLastFullVisibleItem (const IlvTransformer *t=0) const
	Returns the last visible item that can be seen without scrolling the tree gadget. More...

IlvTreeGadgetItem *	getLastVisibleItem (const IlvTransformer *t=0) const
	Returns the last visible item of the tree gadget. More...

IlBoolean	getLinesAtRoot () const
	Indicates whether lines connecting the root item to its children are drawn. More...

virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

IlvDim	getOffset () const
	Returns the horizontal offset defined for the tree gadget. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

IlvTreeGadgetItem *	getRoot () const
	Returns the root item of the tree hierarchy. More...

IlvTreeSelectionMode	getSelectionMode () const
	Returns the selection mode of the tree gadget. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &event)
	Handles the gadget events. More...

virtual IlBoolean	handleTreeEvent (IlvEvent &event)
	Handles the events occurring to the tree. More...

virtual IlBoolean	hasToolTips () const
	Indicates whether the tree gadget displays tooltips. More...

virtual IlBoolean	isConstantItemHeightAssumed () const
	Returns `IlTrue` when all items are assumed to be the same height. More...

virtual IlBoolean	isEditable () const
	Indicates whether the tree items can be edited. More...

virtual IlBoolean	isShowingLabel () const
	Indicates whether the tree item labels are displayed. More...

virtual IlBoolean	isShowingPicture () const
	Indicates whether the tree item pictures are displayed. More...

IlBoolean	itemBBox (IlvTreeGadgetItem item, IlvRect &bbox, const IlvTransformer t=0) const
	Returns the bounding box of the specified item. More...

void	linkRoots (IlBoolean value, IlBoolean redraw=IlTrue)
	Specifies whether the children of the root item should be linked by a connecting line. More...

IlvTreeGadgetItem *	pointToItem (const IlvPoint &point, IlBoolean &button, const IlvTransformer *t) const
	Returns the item located at the specified position. More...

IlvTreeGadgetItem *	pointToItemLine (const IlvPoint &point, const IlvTransformer *t) const
	Returns the item located at the specified point. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

void	removeAllItems (IlBoolean redraw=IlTrue)
	Removes all the items from the tree gadget. More...

void	removeItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
	Removes and destroys the specified item. More...

void	scrollToItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
	Sets the specified item as the first visible item in the tree gadget. More...

void	selectItem (IlvTreeGadgetItem *item, IlBoolean value, IlBoolean deselectAll=IlTrue, IlBoolean redraw=IlTrue)
	Selects or deselects the specified tree gadget item. More...

void	setEditable (IlBoolean value=IlTrue)
	Specifies whether the tree gadget should be editable. More...

void	setIndent (IlvDim indent, IlBoolean redraw=IlTrue)
	Sets the number of pixels that children are indented relative to the parent. More...

void	setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
	Sets the default orientation of the tree item labels. More...

void	setLabelPosition (IlvPosition position, IlBoolean redraw=IlTrue)
	Sets the default position of the tree item labels, relative to the picture. More...

void	setLinesAtRoot (IlBoolean value, IlBoolean redraw=IlTrue)
	Specifies whether lines connecting the root item to its children should be drawn. More...

void	setOffset (IlvDim offset, IlBoolean redraw=IlTrue)
	Sets the horizontal offset of the tree gadget. More...

void	setSelectionMode (IlvTreeSelectionMode mode)
	Specifies the selection mode of the tree gadget. More...

void	showButtons (IlBoolean value, IlBoolean redraw=IlTrue)
	Shows or hides the buttons appearing to the left of each parent item. More...

void	showLabel (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Indicates whether the tree item labels should be shown or hidden. More...

void	showLines (IlBoolean value, IlBoolean redraw=IlTrue)
	Shows or hides the lines connecting the tree items to their parent. More...

void	showPicture (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Specifies whether the tree item pictures should be shown or hidden. More...

void	shrinkItem (IlvTreeGadgetItem *item, IlBoolean redraw=IlTrue)
	Shrinks the specified item so that its children are no longer visible. More...

virtual void	sort (IlvTreeGadgetItem *=0, IlUInt levels=(IlUInt) -1, IlvTreeGadgetItemCompareFunction=0)
	Sorts the children of the specified item. More...

void	useToolTips (IlBoolean value=IlTrue)
	Specifies whether the tree gadget should display tooltips. More...

Public Member Functions inherited from IlvScrolledGadget
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustScrollBars (IlBoolean redraw=IlFalse)
	Recomputes the scroll bars. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &rect, IlvDirection direction, IlUShort thickness, IlvPalette *palette)
	Returns a new instance of the `IlvScrollBar` class. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

virtual void	internalBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the internal bounding box of the gadget. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollableSize (IlvDim &width, IlvDim &height) const
	Returns the size of the scrollable area of the gadget. More...

virtual void	scrollBarBBox (IlvDirection direction, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

virtual void	scrollBarHasMoved (IlvDirection direction)
	Is called when an internal scroll bar has moved. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

virtual void	scrollBarVisibilityChanged (IlvDirection direction)
	Is called when an internal scroll bar is shown or hidden. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Public Member Functions inherited from IlvTreeGadgetItemHolder
void	addItem (IlvTreeGadgetItem parent, IlvTreeGadgetItem item, IlInt index=-1)
	Adds the specified item to the tree hierarchy. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem f, IlAny arg)
	Applies the specified function to all the items of the holder. More...

virtual int	compareItems (const IlvTreeGadgetItem item1, const IlvTreeGadgetItem item2) const
	Compares a pair of items. More...

void	deSelectAll ()
	Deselects all the selected items. More...

void	detachItem (IlvTreeGadgetItem *item)
	Removes the specified item from the tree without destroying it. More...

IlvTreeGadgetItem *	getFirstSelectedItem () const
	Retrieves the first selected item. More...

IlUInt	getItemsCount () const
	Returns the number of items in the tree. More...

IlUInt	getVisibleItemsCount () const
	Returns the number of visible tree items. More...

void	moveItem (IlvTreeGadgetItem item, IlvTreeGadgetItem parent, IlInt index=-1)
	Moves the specified item to a new parent. More...

void	removeItem (IlvTreeGadgetItem *item)
	Removes the specified item from the tree. More...

Public Member Functions inherited from IlvGadgetItemHolder
IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Static Public Member Functions
static IlSymbol *	ExpandCallbackType ()
	Returns the callback type for the Expand callback. More...

static IlSymbol *	SelectCallbackType ()
	Returns the callback type for the Select callback. More...

static IlSymbol *	ShrinkCallbackType ()
	Returns the callback type for the Shrink callback. More...

Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions
virtual void	activate (IlvTreeGadgetItem *item)
	Is called by the interactor when an item is activated. More...

virtual void	adjustFromScrollBar (const IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the gadget to the scroll bars values. More...

virtual void	adjustScrollBarValue (IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the scroll bar values. More...

virtual void	deSelect (IlvTreeGadgetItem *item)
	Is called by the interactor when an item is deselected. More...

virtual void	drawGadgetContents (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget contents. More...

virtual void	expand (IlvTreeGadgetItem *item)
	Is called by the interactor when an item is expanded. More...

virtual void	itemActivated (IlvGadgetItem *item)
	Is called when an item is activated. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	select (IlvTreeGadgetItem *item)
	Is called by the interactor when an item is selected. More...

virtual void	shrink (IlvTreeGadgetItem *item)
	Is called by the interactor when an item is shrunk. More...

Protected Member Functions inherited from IlvScrolledGadget
IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Friends
class	IlvDefaultTreeGadgetLFHandler

class	IlvTreeGadgetItem

Detailed Description

Gadget class.

Library: ilvadvgdt

An IlvTreeGadget is a gadget that displays a hierarchical list of items. Each item is an instance of the IlvTreeGadgetItem class. Each tree gadget item displays a label and an optional bitmap and has a list of subitems. The user can expand or shrink the item to show or hide its subitems. The main callback of the tree gadget is invoked when the user double-clicks an item that has no children.

- Tree Gadget -

See also: IlvTreeGadgetItem, IlvHierarchicalSheet.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvScrolledGadget and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`indentation`	UInt	`getIndent()`, `setIndent()`
`linesAtRoot`	Boolean	`getLinesAtRoot()`, `setLinesAtRoot()`
`visibleButtons`	Boolean	`areButtonsVisible()`, `showButtons()`
`visibleLines`	Boolean	`areLinesVisible()`, `showLines()`
`linkedRoots`	Boolean	`areRootsLinked()`, `linkRoots()`
`editable`	Boolean	`isEditable()`, `setEditable()`
`showLabel`	Boolean	`isShowingLabel()`, `showLabel()`
`showPicture`	Boolean	`isShowingPicture()`, `showPicture()`
`labelPosition`	Direction	`getLabelPosition()`, `setLabelPosition()`
`labelOrientation`	Direction	`getLabelOrientation()`, `setLabelOrientation()`
`flipLabel`	Boolean	`getLabelOrientation()`, `setLabelOrientation()`
`hasToolTips`	Boolean	`hasToolTips()`, `useToolTips()`
`dragdrop`	Boolean	`allowDragDrop()`, `allowDragDrop()`
`selectionMode`	String	`getSelectionMode()`, `setSelectionMode()`
`itemsCount`	UInt	`getItemsCount()`
`root`	Object	`getRoot()`
`firstVisible`	Object	`getFirstVisibleItem()`
`firstSelectedItem`	Object	`getFirstSelectedItem()`
`callbackItem`	Object	`getCallbackItem()`

Method accessors

Name	Return type	Equivalent methods
`shrinkItem(IlvTreeGadgetItem item)`	Void	`shrinkItem(IlvTreeGadgetItem* item, IlBoolean)`
`expandItem(IlvTreeGadgetItem item)`	Void	`expandItem(IlvTreeGadgetItem* item, IlBoolean, IlBoolean)`
`removeAllItems()`	Void	`removeAllItems()`
`removeItem(IlvTreeGadgetItem item)`	Void	`removeItem(IlvTreeGadgetItem* item, IlBoolean)`
`addItem(IlvTreeGadgetItem parent, String label, IlInt index, Bitmap bitmap, Bitmap expandedBitmap)`	Object	`addItem(IlvTreeGadgetItem* parent, const char* label, IlInt index, IlvBitmap* bitmap, IlvBitmap* expandedBitmap, IlBoolean)`
`selectItem(IlvTreeGadgetItem item, Boolean set, Boolean deselectAll)`	Void	`selectItem(IlvTreeGadgetItem* item, IlBoolean set, IlBoolean deselectAll, IlBoolean)`
`deSelectAll()`	Void	`deSelectAll()`
`sort(IlvTreeGadgetItem item, UInt levels)`	Void	`sort(IlvTreeGadgetItem* item, IlUInt levels, IlvTreeGadgetItemCompareFunction)`
`getItemByName(String name)`	Object	`getItemByName(const char* name) const`

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvTreeGadget()

IlvTreeGadget::IlvTreeGadget	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the class IlvTreeGadget.

Parameters

display	The connection to the display.
rect	The size and position of the tree gadget.
thickness	The thickness of the tree gadget.
palette	The palette used by the tree gadget.

Member Function Documentation

◆ activate()

virtual void IlvTreeGadget::activate ( IlvTreeGadgetItem * item )

protectedvirtual

Is called by the interactor when an item is activated.

An item is activated when the user double-clicks on it. The default implementation calls the Activate callback.

Parameters

item	The activated item.

See also: IlvGadgetItemHolder::ActivateCallbackType(), IlvGadgetItem::activate().

◆ addItem()

IlvTreeGadgetItem* IlvTreeGadget::addItem	(	IlvTreeGadgetItem *	parent,
		const char *	label,
		IlInt	index = `-1`,
		IlvBitmap *	bitmap = `0`,
		IlvBitmap *	expandedBitmap = `0`,
		IlBoolean	redraw = `IlTrue`
	)

Adds a new item to the tree gadget.

Parameters

parent	The parent item to which the new item will be attached. If parent is `0`, the item is added to the root item of the tree gadget.
label	The label of the new item.
index	The position where the new item will be added. If index is `-1`, the item is added at the end of the parent child list.
bitmap	The sensitive bitmap of the new item.
expandedBitmap	The expanded bitmap of the new item.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: IlvTreeGadgetItem::insertChild(), removeItem(), detachItem().

◆ adjustFromScrollBar()

virtual void IlvTreeGadget::adjustFromScrollBar	(	const IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the gadget to the scroll bars values.

Is called each time the scroll bar scrollbar of direction direction moves. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustScrollBarValue().

Reimplemented from IlvScrolledGadget.

◆ adjustScrollBarValue()

virtual void IlvTreeGadget::adjustScrollBarValue	(	IlvScrollBar *	scrollbar,
		IlvDirection	direction
	)

protectedvirtual

Is called to adjust the scroll bar values.

Is called by the member function adjustScrollBars() to adjust the values of the scroll bar scrollbar of direction direction. This member function must modify the scrollbar values to match the gadget scrolling mode. If you want to detect these events, you must redefine this member function in a subclass. The default implementation does nothing.

Parameters

scrollbar	The scroll bar object.
direction	The direction of the scroll bar. Valid values are: `IlvHorizontal` and `IlvVertical`.

See also: adjustFromScrollBar().

Reimplemented from IlvScrolledGadget.

◆ allowDragDrop() [1/2]

virtual IlBoolean IlvTreeGadget::allowDragDrop ( ) const

virtual

Indicates whether drag-and-drop operations are allowed for the tree gadget.

Returns: IlTrue if drag-and-drop operations are allowed and IlFalse otherwise.

See also: IlvGadgetItemHolder::startDragItem(), allowDragDrop(IlBoolean).

Reimplemented from IlvGadgetItemHolder.

◆ allowDragDrop() [2/2]

void IlvTreeGadget::allowDragDrop ( IlBoolean allow )

Specifies whether drag-and-drop operations should be allowed for the tree gadget.

Parameters

allow A Boolean value specifying whether drag-and-drop operations should be allowed (IlTrue).

See also: IlvGadgetItemHolder::startDragItem(), allowDragDrop().

◆ areButtonsVisible()

IlBoolean IlvTreeGadget::areButtonsVisible ( ) const

Indicates whether the buttons located to the left of parent items are displayed.

Returns: IlTrue if the buttons to the left of parent items are displayed.

See also: showButtons().

◆ areLinesVisible()

IlBoolean IlvTreeGadget::areLinesVisible ( ) const

Indicates whether the lines connecting tree items to their parent are visible.

Returns: IlTrue if the lines connecting tree items to their parent are visible.

See also: showLines().

◆ areRootsLinked()

IlBoolean IlvTreeGadget::areRootsLinked ( ) const

Indicates whether the children of the root item are linked by a connecting line.

Returns: IlTrue if the children of the root item are linked by a connecting line.

See also: linkRoots().

◆ beginPopulate()

virtual void IlvTreeGadget::beginPopulate ( )

virtual

Stops all scroll bar computing while populating the tree gadget.

Call this function to indicate to the tree gadget that all computing operations about scroll bar are stopped while populating the tree gadget.

◆ buttonBBox()

IlBoolean IlvTreeGadget::buttonBBox	(	IlvTreeGadgetItem *	item,
		IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

Returns the bounding box of the button associated with the specified item.

Parameters

item	The tree item.
bbox	The returned bounding box of the button associated with item when the tree is drawn with the transformer t.
t	The transformer applied to the tree gadget.

Returns: A Boolean value indicating whether the item button is visible. If IlFalse is returned, the value in bbox is not relevant.

◆ constantItemHeightAssumed()

virtual void IlvTreeGadget::constantItemHeightAssumed ( IlBoolean assumed )

virtual

Indicates that all items are assumed to be the same height.

You can override item height checking to enable faster tree gadget refreshes when you have a lot of items that are all the same height. Use this method to notify the tree gadget instance not to perform height checking. This override is not saved to the ilv file and so is not persistent.

Parameters

assumed If IlTrue, item height is not checked by the tree gadget instance. The default value is IlFalse.

◆ createItem()

virtual IlvGadgetItem* IlvTreeGadget::createItem	(	const char *	label,
		IlvGraphic *	graphic = `0`,
		IlvBitmap *	bitmap = `0`,
		IlvBitmap *	selbitmap = `0`,
		IlBoolean	copy = `IlTrue`
	)		const

virtual

Returns a new gadget item.

You can override this member function in a subclass to create your own items.

Parameters

label	The item label.
graphic	The `IlvGraphic` object representing the picture associated with the item.
bitmap	The `IlvBitmap` object representing the picture associated with the item.
selbitmap	The `IlvBitmap` object representing the picture of the item when it is selected.
copy	Specifies whether a label should be copied. If the value is `IlFalse`, then you must allocate some memory for the label because in any case the label characters are deleted from the memory by the IlvGadgetItem.

Note: If both the second and third parameters are not 0, only the second parameter is used.

Returns: The created gadget item.

Reimplemented from IlvTreeGadgetItemHolder.

Reimplemented in IlvFileChooserTree.

◆ deSelect()

virtual void IlvTreeGadget::deSelect ( IlvTreeGadgetItem * item )

protectedvirtual

Is called by the interactor when an item is deselected.

The default implementation calls the Select callback.

Parameters

item	The deselected item.

See also: SelectCallbackType.

◆ deSelectAll()

void IlvTreeGadget::deSelectAll ( IlBoolean redraw = IlTrue )

Deselects all the selected items.

Parameters

redraw A Boolean value specifying whether the tree gadget should be redrawn.

See also: IlvGadgetItem::isSelected(), IlvGadgetItem::select().

◆ drawBackground()

virtual void IlvTreeGadget::drawBackground	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget background.

Is called from the draw() method. This method is not called if the gadget is transparent.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawFrame(), drawScrollBar(), drawGadgetContents(), IlvGadget::isTransparent().

Reimplemented from IlvScrolledGadget.

◆ drawButton()

virtual void IlvTreeGadget::drawButton	(	IlvPort *	dst,
		const IlvTreeGadgetItem *	item,
		const IlvRect &	bbox,
		const IlvRegion *	clip = `0`
	)		const

virtual

Is called to draw the button of the specified item.

Parameters

dst	The drawing destination port.
item	The tree gadget item.
bbox	The rectangle where the button of item should be drawn.
clip	The clipping area.

See also: buttonBBox().

◆ drawFrame()

virtual void IlvTreeGadget::drawFrame	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget frame.

Is called from the draw() method. This method is not called if the method isShowingFrame() returns IlFalse.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawGadgetContents().

Reimplemented from IlvScrolledGadget.

◆ drawGadgetContents()

virtual void IlvTreeGadget::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

protectedvirtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented from IlvScrolledGadget.

◆ drawGadgetItem()

virtual void IlvTreeGadget::drawGadgetItem	(	const IlvGadgetItem *	item,
		IlvPort *	port,
		const IlvRect &	rect,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws a specific gadget item.

Redraws item in port at the location specified by rect using the clipping area clip. This method simply calls IlvGadgetItem::draw() using the item instance.

Parameters

item	The item to be redrawn.
port	The destination drawing port.
rect	The bounding box of the item.
t	The transformer used to draw the item. Not used.
clip	The clipping area.

See also: IlvGadgetItem::draw().

Reimplemented from IlvGadgetItemHolder.

◆ endPopulate()

virtual void IlvTreeGadget::endPopulate ( IlBoolean redraw = IlTrue )

virtual

Launches all scroll bar computing after the populating of tree. gadget.

Call this function to indicate to the tree gadget that all scroll bar computing can be done after the populating if necessary.

Parameters

redraw A Boolean value specifying whether the tree gadget should be redrawn.

◆ ensureVisible()

void IlvTreeGadget::ensureVisible	(	IlvTreeGadgetItem *	item,
		IlBoolean	horizontal = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Ensures that the specified tree gadget item is visible.

Parameters

item	The tree gadget item to be made visible.
horizontal	A Boolean value specifying whether the item visibility will be checked horizontally. If horizontal is set to `IlTrue`, the horizontal offset of the tree gadget item can be modified by this method.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: scrollToItem().

◆ expand()

virtual void IlvTreeGadget::expand ( IlvTreeGadgetItem * item )

protectedvirtual

Is called by the interactor when an item is expanded.

The default implementation calls the Expand callback.

Parameters

item	The expanded item.

See also: ExpandCallbackType, expandItem().

◆ ExpandCallbackType()

static IlSymbol* IlvTreeGadget::ExpandCallbackType ( )

static

Returns the callback type for the Expand callback.

The Expand callback is called when an item is expanded.

See also: IlvGraphic::setCallback(), IlvTreeGadgetItem::expand(), expandItem().

◆ expandItem()

void IlvTreeGadget::expandItem	(	IlvTreeGadgetItem *	item,
		IlBoolean	redraw = `IlTrue`,
		IlBoolean	all = `IlFalse`
	)

Expands the specified item so that its children become visible.

Parameters

item	The item to be expanded.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.
all	A Boolean value specifying whether the method should expand the children of item (`IlTrue`) recursively or not (`IlTrue`).

See also: IlvTreeGadgetItem::expand().

◆ getButtonSize()

virtual void IlvTreeGadget::getButtonSize	(	const IlvTreeGadgetItem *	item,
		IlvDim &	width,
		IlvDim &	height
	)		const

virtual

Returns the size of the button of the specified tree gadget item.

Note: The returned height must be smaller than the height of item.

Parameters

item	The tree gadget item.
width	The width of the buttons of the tree gadget.
height	The width of the buttons of the tree gadget.

See also: drawButton(), buttonBBox().

◆ getCallbackItem()

IlvTreeGadgetItem* IlvTreeGadget::getCallbackItem ( ) const

Returns the item that triggered the callback.

Returns: The item that triggered the callback. This method should be used only in the callback.

◆ getFirstVisibleItem()

IlvTreeGadgetItem* IlvTreeGadget::getFirstVisibleItem ( ) const

Returns the first visible item of the tree gadget.

Returns: The first visible item of the tree.

See also: scrollToItem(), getLastFullVisibleItem(), getLastVisibleItem().

◆ getIndent()

IlvDim IlvTreeGadget::getIndent ( ) const

virtual

Returns the number of pixels that children are indented relative to the parent.

Returns: The number of pixels that children are indented relative to the parent.

See also: setIndent().

Implements IlvTreeGadgetItemHolder.

◆ getLabelOrientation()

virtual void IlvTreeGadget::getLabelOrientation	(	IlvOrientation &	orientation,
		IlBoolean &	flip
	)		const

virtual

Returns the default orientation of the tree item labels.

Parameters

orientation	The default orientation of the labels.
flip	A Boolean value indicating whether the labels should be flipped or not.

See also: setLabelOrientation().

Reimplemented from IlvGadgetItemHolder.

◆ getLabelPosition()

virtual IlvPosition IlvTreeGadget::getLabelPosition ( ) const

virtual

Returns the default position of the tree item labels, relative to the picture.

Returns: The default position of the tree item labels, relative to the picture.

See also: setLabelPosition().

Reimplemented from IlvGadgetItemHolder.

◆ getLastFullVisibleItem()

IlvTreeGadgetItem* IlvTreeGadget::getLastFullVisibleItem ( const IlvTransformer * t = 0 ) const

Returns the last visible item that can be seen without scrolling the tree gadget.

Parameters

t	The transformer applied to the tree gadget.

Returns: The last visible item that can be seen without scrolling the tree gadget. If the first visible item is larger than the tree gadget height, the first visible item is returned.

See also: getFirstVisibleItem(), getLastVisibleItem().

◆ getLastVisibleItem()

IlvTreeGadgetItem* IlvTreeGadget::getLastVisibleItem ( const IlvTransformer * t = 0 ) const

Returns the last visible item of the tree gadget.

Parameters

t	The transformer applied to the tree gadget.

Returns: The last visible item when this tree gadget is displayed with the transformer t. Only part of the item can be visible.

See also: getLastFullVisibleItem(), getFirstVisibleItem().

◆ getLinesAtRoot()

IlBoolean IlvTreeGadget::getLinesAtRoot ( ) const

Indicates whether lines connecting the root item to its children are drawn.

Returns: IlTrue if lines connecting the root item to its children are drawn.

See also: setLinesAtRoot().

◆ getNormalTextPalette()

virtual IlvPalette* IlvTreeGadget::getNormalTextPalette ( ) const

virtual

Returns the default palette used to draw an item.

Returns: The default palette used to draw an item.

Implements IlvGadgetItemHolder.

◆ getOffset()

IlvDim IlvTreeGadget::getOffset ( ) const

Returns the horizontal offset defined for the tree gadget.

When the user moves the horizontal scroll bar, the tree gadget items are shifted to the left according to the defined offset value. The bigger the value, the further to the left the items will be displayed.

See also: setOffset().

◆ getOpaquePalette()

virtual IlvPalette* IlvTreeGadget::getOpaquePalette ( ) const

virtual

Returns the opaque palette used to draw opaque items.

Returns: The opaque palette used to draw opaque items.

Reimplemented from IlvGadgetItemHolder.

◆ getRoot()

IlvTreeGadgetItem* IlvTreeGadget::getRoot ( ) const

virtual

Returns the root item of the tree hierarchy.

Returns: The root item of the tree hierarchy.

See also: addItem(), removeItem(), detachItem().

Implements IlvTreeGadgetItemHolder.

◆ getSelectionMode()

IlvTreeSelectionMode IlvTreeGadget::getSelectionMode ( ) const

Returns the selection mode of the tree gadget.

Returns: The selection mode of the tree. The result may be either IlvTreeExtendedSelection or IlvTreeSingleSelection.

See also: setSelectionMode().

◆ handleGadgetEvent()

virtual IlBoolean IlvTreeGadget::handleGadgetEvent ( IlvEvent & event )

virtual

Handles the gadget events.

Is called by handleEvent() when the member function handleScrollBarsEvent() returns IlFalse. Its default implementation does nothing. You can override this member function to implement your own gadget behavior.

Parameters

event The event.

See also: handleScrollBarsEvent().

Reimplemented from IlvScrolledGadget.

◆ handleTreeEvent()

virtual IlBoolean IlvTreeGadget::handleTreeEvent ( IlvEvent & event )

virtual

Handles the events occurring to the tree.

You can override this member function to implement a new behavior for the tree gadget.

Parameters

event The event to be handled.

Returns: A Boolean value specifying whether the tree gadget handles the events.

◆ hasToolTips()

virtual IlBoolean IlvTreeGadget::hasToolTips ( ) const

virtual

Indicates whether the tree gadget displays tooltips.

Returns: IlTrue if the tree gadget displays tooltips. Otherwise, returns IlFalse.

See also: useToolTips().

Reimplemented from IlvGadgetItemHolder.

◆ isConstantItemHeightAssumed()

virtual IlBoolean IlvTreeGadget::isConstantItemHeightAssumed ( ) const

virtual

Returns IlTrue when all items are assumed to be the same height.

When you assume that all items are the same height, tree gadget refreshes are faster because the item height is not checked.

Returns: Returns IlTrue when all items are assumed to be the same height. The default value is IlFalse.

◆ isEditable()

virtual IlBoolean IlvTreeGadget::isEditable ( ) const

virtual

Indicates whether the tree items can be edited.

Returns: IlTrue if the tree gadget can be edited. Otherwise, returns IlFalse.

See also: setEditable(), IlvGadgetItem::isEditable().

Reimplemented from IlvGadgetItemHolder.

◆ isShowingLabel()

virtual IlBoolean IlvTreeGadget::isShowingLabel ( ) const

virtual

Indicates whether the tree item labels are displayed.

Returns: IlTrue if the tree item labels are displayed. Otherwise, returns IlFalse.

See also: showLabel(), isShowingPicture().

Reimplemented from IlvGadgetItemHolder.

◆ isShowingPicture()

virtual IlBoolean IlvTreeGadget::isShowingPicture ( ) const

virtual

Indicates whether the tree item pictures are displayed.

Returns: IlTrue if the tree item pictures are displayed. Otherwise, returns IlFalse.

See also: showPicture(), isShowingLabel().

Reimplemented from IlvGadgetItemHolder.

◆ itemActivated()

virtual void IlvTreeGadget::itemActivated ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is activated.

The default implementation calls the Activate callback.

Parameters

item	The activated gadget item.

See also: IlvGadgetItem::activate().

Reimplemented from IlvGadgetItemHolder.

◆ itemBBox()

IlBoolean IlvTreeGadget::itemBBox	(	IlvTreeGadgetItem *	item,
		IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

Returns the bounding box of the specified item.

Parameters

item	The tree item.
bbox	The returned bounding box of item when the tree is drawn with the transformer t.
t	The transformer applied to the tree gadget.

Returns: A Boolean value indicating whether the item is visible. If IlFalse is returned, the value in bbox is not relevant.

◆ itemDeSelected()

virtual void IlvTreeGadget::itemDeSelected ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is deselected.

The default implementation does nothing.

Parameters

item	The deselected gadget item.

See also: IlvGadgetItem::deSelect().

Reimplemented from IlvGadgetItemHolder.

◆ itemSelected()

virtual void IlvTreeGadget::itemSelected ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is selected.

The default implementation does nothing.

Parameters

item	The selected gadget item.

See also: IlvGadgetItem::select().

Reimplemented from IlvGadgetItemHolder.

◆ linkRoots()

void IlvTreeGadget::linkRoots	(	IlBoolean	value,
		IlBoolean	redraw = `IlTrue`
	)

Specifies whether the children of the root item should be linked by a connecting line.

Parameters

value	A Boolean value specifying whether the children of the root item should be linked by a connecting line (`IlTrue`) or not (`IlFalse`).
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: areRootsLinked().

◆ pointToItem()

IlvTreeGadgetItem* IlvTreeGadget::pointToItem	(	const IlvPoint &	point,
		IlBoolean &	button,
		const IlvTransformer *	t
	)		const

Returns the item located at the specified position.

Parameters

point	The position of the item to be retrieved.
button	A Boolean value indicating whether point is located inside the item button.
t	The transformer applied to the tree gadget.

Returns: The item located at the position specified by point when the tree gadget is drawn with the transformer t, or 0 if there is no item.

See also: pointToItemLine().

◆ pointToItemLine()

IlvTreeGadgetItem* IlvTreeGadget::pointToItemLine	(	const IlvPoint &	point,
		const IlvTransformer *	t
	)		const

Returns the item located at the specified point.

The point parameter represents the y coordinate of a point that is located between the top and bottom border of the item bounding box.

Parameters

point	The position of the item to be retrieved.
t	The transformer applied to the tree gadget.

Returns: The item located at the position specified by point when the tree gadget is drawn using the transformer t.

See also: pointToItem().

◆ recomputeAllItems()

virtual void IlvTreeGadget::recomputeAllItems ( )

virtual

Recomputes the size of all the items managed by the holder.

Calls the IlvGadgetItem::recomputeSize() member function for all the items managed by this holder.

See also: IlvGadgetItem::recomputeSize(), applyToItems().

Reimplemented from IlvGadgetItemHolder.

◆ removeAllItems()

void IlvTreeGadget::removeAllItems ( IlBoolean redraw = IlTrue )

Removes all the items from the tree gadget.

The root item is never deleted.

Parameters

redraw A Boolean value specifying whether the tree gadget should be redrawn.

See also: removeItem(), detachItem(), addItem().

◆ removeItem()

void IlvTreeGadget::removeItem	(	IlvTreeGadgetItem *	item,
		IlBoolean	redraw = `IlTrue`
	)

Removes and destroys the specified item.

item and all its children are removed and deleted.

Parameters

item	The item to remove.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

◆ scrollToItem()

void IlvTreeGadget::scrollToItem	(	IlvTreeGadgetItem *	item,
		IlBoolean	redraw = `IlTrue`
	)

Sets the specified item as the first visible item in the tree gadget.

Scrolls the tree gadget vertically so that item becomes the first visible item.

Parameters

item	The new first visible item.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: getFirstVisibleItem().

◆ select()

virtual void IlvTreeGadget::select ( IlvTreeGadgetItem * item )

protectedvirtual

Is called by the interactor when an item is selected.

The default implementation calls the Select callback.

Parameters

item	The selected item.

See also: SelectCallbackType.

◆ SelectCallbackType()

static IlSymbol* IlvTreeGadget::SelectCallbackType ( )

static

Returns the callback type for the Select callback.

The Select callback is called when an item is selected or deselected. The item that has been selected or deselected is returned by IlvTreeGadget::getCallbackItem(). If the item has just been selected, then IlvGadgetItem::isSelected() returns IlTrue for that item. If the item has just been deselected, then IlvGadgetItem::isSelected() returns IlFalse.

See also: IlvGraphic::setCallback(), IlvGadgetItem::select(), IlvGadgetItem::deSelect().

◆ selectItem()

void IlvTreeGadget::selectItem	(	IlvTreeGadgetItem *	item,
		IlBoolean	value,
		IlBoolean	deselectAll = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Selects or deselects the specified tree gadget item.

Parameters

item	The tree gadget item to be selected or deselected.
value	A Boolean value specifying whether item should be selected or deselected.
deselectAll	A Boolean value specifying whether all the tree gadget items should be deselected before the selection of item is modified.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: IlvGadgetItem::select(), IlvGadgetItem::deSelect().

◆ setEditable()

void IlvTreeGadget::setEditable ( IlBoolean value = IlTrue )

Specifies whether the tree gadget should be editable.

When this member function is set to IlTrue, you can edit a tree gadget item by clicking on it or by pressing the F2 key once it is selected.

Parameters

value A Boolean value specifying whether the tree gadget can be edited (IlTrue) or not (IlFalse).

See also: isEditable(), IlvGadgetItem::setEditable().

◆ setIndent()

void IlvTreeGadget::setIndent	(	IlvDim	indent,
		IlBoolean	redraw = `IlTrue`
	)

Sets the number of pixels that children are indented relative to the parent.

Parameters

indent	The new indentation value.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: getIndent().

◆ setLabelOrientation()

void IlvTreeGadget::setLabelOrientation	(	IlvOrientation	orientation,
		IlBoolean	flip = `IlFalse`,
		IlBoolean	redraw = `IlTrue`
	)

Sets the default orientation of the tree item labels.

When orientation is set to IlvHorizontal, labels are drawn from left to right. When orientation is set to IlvVertical, labels are drawn from top to the bottom if flip is IlFalse and from bottom to top if flip is IlTrue.

Parameters

orientation	The new orientation of the labels.
flip	A Boolean value specifying whether the labels are flipped or not.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: getLabelOrientation().

◆ setLabelPosition()

void IlvTreeGadget::setLabelPosition	(	IlvPosition	position,
		IlBoolean	redraw = `IlTrue`
	)

Sets the default position of the tree item labels, relative to the picture.

This setting is used to compute the geometry of each tree item. For more information, see the member function IlvGadgetItem::setLabelPosition().

Parameters

position	The new position of the tree item labels, relative to the picture.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

◆ setLinesAtRoot()

void IlvTreeGadget::setLinesAtRoot	(	IlBoolean	value,
		IlBoolean	redraw = `IlTrue`
	)

Specifies whether lines connecting the root item to its children should be drawn.

Parameters

value	A Boolean value specifying whether connecting lines should be drawn between the root item and its children.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

◆ setOffset()

void IlvTreeGadget::setOffset	(	IlvDim	offset,
		IlBoolean	redraw = `IlTrue`
	)

Sets the horizontal offset of the tree gadget.

When the user moves the horizontal scroll bar, the tree gadget items are shifted to the left according to the defined offset value. The bigger the value, the further to the left the items will be displayed.

Parameters

offset	The new horizontal offset.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: getOffset().

◆ setSelectionMode()

void IlvTreeGadget::setSelectionMode ( IlvTreeSelectionMode mode )

Specifies the selection mode of the tree gadget.

Parameters

mode	The new selection mode. Valid values are: `IlvTreeExtendedSelection` for the multiple selection mode, or `IlvTreeSingleSelection` for the single selection mode.

See also: getSelectionMode().

◆ showButtons()

void IlvTreeGadget::showButtons	(	IlBoolean	value,
		IlBoolean	redraw = `IlTrue`
	)

Shows or hides the buttons appearing to the left of each parent item.

Parameters

value	A Boolean value specifying whether the buttons located to the left of each parent item should be shown (`IlTrue`) or hidden (`IlFalse`).
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: areButtonsVisible().

◆ showLabel()

void IlvTreeGadget::showLabel	(	IlBoolean	value = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Indicates whether the tree item labels should be shown or hidden.

Parameters

value	A Boolean value specifying whether the tree item labels should be shown (`IlTrue`) or hidden (`IlFalse`).
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: isShowingLabel(), showPicture().

◆ showLines()

void IlvTreeGadget::showLines	(	IlBoolean	value,
		IlBoolean	redraw = `IlTrue`
	)

Shows or hides the lines connecting the tree items to their parent.

Parameters

value	A Boolean value specifying whether the lines connecting the tree items to their parent should be shown (`IlTrue`).
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: areLinesVisible().

◆ showPicture()

void IlvTreeGadget::showPicture	(	IlBoolean	value = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Specifies whether the tree item pictures should be shown or hidden.

Parameters

value	A Boolean value specifying whether the tree item pictures should be shown (`IlTrue`) or hidden (`IlFalse`).
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: isShowingPicture(), showLabel().

◆ shrink()

virtual void IlvTreeGadget::shrink ( IlvTreeGadgetItem * item )

protectedvirtual

Is called by the interactor when an item is shrunk.

The default implementation calls the Shrink callback.

Parameters

item	The shrunk item.

See also: ShrinkCallbackType, shrinkItem().

◆ ShrinkCallbackType()

static IlSymbol* IlvTreeGadget::ShrinkCallbackType ( )

static

Returns the callback type for the Shrink callback.

The Shrink callback is called when an item is shrunk.

See also: IlvGraphic::setCallback(), IlvTreeGadgetItem::shrink(), shrinkItem().

◆ shrinkItem()

void IlvTreeGadget::shrinkItem	(	IlvTreeGadgetItem *	item,
		IlBoolean	redraw = `IlTrue`
	)

Shrinks the specified item so that its children are no longer visible.

Parameters

item	The item to be shrunk.
redraw	A Boolean value specifying whether the tree gadget should be redrawn.

See also: IlvTreeGadgetItem::shrink().

◆ sort()

virtual void IlvTreeGadget::sort	(	IlvTreeGadgetItem *	item = `0`,
		IlUInt	levels = `(IlUInt) -1`,
		IlvTreeGadgetItemCompareFunction	func = `0`
	)

virtual

Sorts the children of the specified item.

Runs the sorting algorithm on all the children of item. If you provide a sorting function in the form of an IlvTreeGadgetItemCompareFunction, this function is called to compare each item pair. If you do not provide a sorting function, a default comparison function is used that sort items in the ascendant order using their labels.

Parameters

item	The item whose children are going to be sorted.
levels	An integer value specifying the depth of the sorting algorithm.
func	A sorting function.

See also: IlvTreeGadgetItem::sortChildren(), IlvTreeGadgetItemCompareFunction, compareItems().

Reimplemented from IlvTreeGadgetItemHolder.

◆ useToolTips()

void IlvTreeGadget::useToolTips ( IlBoolean value = IlTrue )

Specifies whether the tree gadget should display tooltips.

A tooltip is displayed when the cursor remains over a partially visible item for a short while.

Parameters

value A Boolean value specifying whether the tree gadget should display tooltips (IlTrue) or not (IlFalse).

See also: hasToolTips().

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Data accessors

Method accessors

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvTreeGadget()

Member Function Documentation

◆ activate()

◆ addItem()

◆ adjustFromScrollBar()

◆ adjustScrollBarValue()

◆ allowDragDrop() [1/2]

◆ allowDragDrop() [2/2]

◆ areButtonsVisible()

◆ areLinesVisible()

◆ areRootsLinked()

◆ beginPopulate()

◆ buttonBBox()

◆ constantItemHeightAssumed()

◆ createItem()

◆ deSelect()

◆ deSelectAll()

◆ drawBackground()

◆ drawButton()

◆ drawFrame()

◆ drawGadgetContents()

◆ drawGadgetItem()

◆ endPopulate()

◆ ensureVisible()

◆ expand()

◆ ExpandCallbackType()

◆ expandItem()

◆ getButtonSize()

◆ getCallbackItem()

◆ getFirstVisibleItem()

◆ getIndent()

◆ getLabelOrientation()

◆ getLabelPosition()

◆ getLastFullVisibleItem()

◆ getLastVisibleItem()

◆ getLinesAtRoot()

◆ getNormalTextPalette()

◆ getOffset()

◆ getOpaquePalette()

◆ getRoot()

◆ getSelectionMode()

◆ handleGadgetEvent()

◆ handleTreeEvent()

◆ hasToolTips()

◆ isConstantItemHeightAssumed()

◆ isEditable()

◆ isShowingLabel()

◆ isShowingPicture()

◆ itemActivated()

◆ itemBBox()

◆ itemDeSelected()

◆ itemSelected()

◆ linkRoots()

◆ pointToItem()

◆ pointToItemLine()

◆ recomputeAllItems()

◆ removeAllItems()

◆ removeItem()

◆ scrollToItem()

◆ select()

◆ SelectCallbackType()

◆ selectItem()

◆ setEditable()

◆ setIndent()

◆ setLabelOrientation()

◆ setLabelPosition()

◆ setLinesAtRoot()

◆ setOffset()

◆ setSelectionMode()

◆ showButtons()

◆ showLabel()
