Matrix class. More...

#include <ilviews/gadgets/sheet.h>

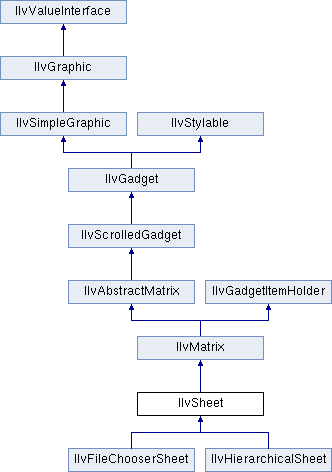

Inheritance diagram for IlvSheet:

Public Member Functions
	IlvSheet (IlvDisplay display, const IlvRect &rect, IlUShort nbcol, IlUShort nbrow, IlvDim xgrid=IlvDefaultMatrixWidth, IlvDim ygrid=IlvDefaultMatrixHeight, IlvDim thickness=IlvDefaultGadgetThickness, IlBoolean showVSB=IlTrue, IlBoolean showHSB=IlTrue, IlvPalette palette=0)
	Constructor. More...

virtual void	drawFrame (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget frame. More...

virtual void	drawGadgetContents (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the gadget contents. More...

virtual void	drawItem (IlvPort *dst, IlUShort colno, IlUShort rowno, const IlvRect &itembbox, const IlvRect &clip) const
	Is called by the matrix to draw an item. More...

virtual IlBoolean	handleMatrixEvent (IlvEvent &)
	Handles the events sent to the matrix. More...

virtual IlBoolean	handleResizeColumn (IlvEvent &event)
	Handles resizing events applying to fixed columns. More...

virtual IlBoolean	handleResizeRow (IlvEvent &event)
	Handles resizing events applying to fixed rows. More...

virtual void	itemBBox (IlUShort col, IlUShort row, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the item located in the specified cell. More...

virtual void	scrollTo (IlUShort, IlUShort)
	Changes the first visible column and row. More...

Public Member Functions inherited from IlvMatrix
	IlvMatrix (IlvDisplay display, const IlvRect &rect, IlUShort nbcol, IlUShort nbrow, IlvDim xgrid=60, IlvDim ygrid=30, IlvDim thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	activateMatrixItem (IlUShort col, IlUShort row)
	Is called by the interactor when an item is activated. More...

virtual void	add (IlvAbstractMatrixItem *item)
	Adds an item to the first empty cell in the matrix. More...

IlBoolean	adjustLast (IlBoolean value)
	Specifies whether only the last column and the last row should be resized. More...

IlBoolean	allowDragDrop () const
	Indicates whether the matrix allows drag-and-drop operations. More...

void	allowDragDrop (IlBoolean value)
	Specifies whether the matrix should allow drag-and-drop operations. More...

IlBoolean	allowEdit (IlBoolean value)
	Specifies whether editing should be allowed. More...

IlBoolean	allowEditOnDoubleClick () const
	Indicates whether the matrix allows item editing when a double-click event occurs. More...

void	allowEditOnDoubleClick (IlBoolean value)
	Indicates whether the matrix should allow item editing when a double-click event occurs. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem, IlAny)
	Applies the specified function to all the items of the holder. More...

IlBoolean	autoFitToSize (IlBoolean value)
	Specifies whether the automatic fitting to size mode should be on. More...

virtual void	changeSelectionTo (IlUShort col, IlUShort row)
	Clears the current selection and selects specified cell. More...

IlUShort	columns () const
	Returns the number of columns in the matrix. More...

IlBoolean	columnSameWidth () const
	Returns `IlTrue` if all the columns in the matrix have the same width. More...

virtual IlvTextField *	createEditionField (IlUShort col, IlUShort row)
	Returns a new text field for editing an item. More...

virtual IlvMatrixItemEditor *	createEditor (IlUShort col, IlUShort row)
	Returns a new editor for editing an item. More...

virtual void	deSelect ()
	Deselects all the items in the matrix. More...

virtual void	doIt ()
	Is called by the interactor when the selection changes in the matrix. More...

virtual void	drawBackground (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget background. More...

virtual void	drawRelief (IlUShort col, IlUShort row, IlvPort dst, const IlvRect &bbox, const IlvRect clip) const
	Is called to draw an item in relief. More...

virtual void	drawSelection (IlUShort col, IlUShort row, IlvPort dst, const IlvRect &bbox, const IlvRect clip) const
	Is called to draw a selected item. More...

virtual void	editItem (IlUShort col, IlUShort row)
	Activates the editing mode for the matrix. More...

virtual void	extendSelection (IlUShort col, IlUShort row)
	Extends the selection from the anchor to the specified cell. More...

virtual void	fitHeightToSize (IlUShort row=0)
	Computes a new size for the rows so that they fit the height of the matrix. More...

void	fitToSize ()
	Computes a new size for the columns and rows so that they fit the size of the matrix. More...

virtual void	fitWidthToSize (IlUShort col=0)
	Computes a new size for the columns so that they fit the width of the matrix. More...

IlvDim	getCardinal () const
	Returns the number of cells in the matrix. More...

IlvDim	getColumnFittingSize (IlUShort col) const
	Returns the width of the largest item in the specified column. More...

IlvDim	getColumnPosition (IlUShort) const
	Returns the position of a column. More...

IlvDim	getColumnsDistance (IlUShort, IlUShort) const
	Returns the distance between two columns. More...

IlvDim	getColumnWidth (IlUShort) const
	Returns the width of the specified column. More...

IlvDirection	getEditDirection () const
	Returns the editing direction of the matrix. More...

IlvTextField *	getEditedItem (IlUShort &col, IlUShort &row) const
	Returns the location of the item being edited. More...

IlvGraphic *	getEditorField () const
	Returns a pointer to the editing field. More...

IlvOrientation	getExtendedSelectionOrientation () const
	Returns the direction to which the selection will be extended. More...

IlBoolean	getFirstSelected (IlUShort &col, IlUShort &row) const
	Returns the first selected item in the matrix. More...

IlvGadgetMatrixItem *	getFocusItem () const
	Returns the gadget matrix item that has the focus. More...

IlvPalette *	getGridPalette () const
	Returns the palette used to draw the matrix grid. More...

virtual IlvPalette *	getInsensitivePalette () const
	Returns the palette used to draw an item that is not sensitive. More...

IlvAbstractMatrixItem *	getItem (IlUShort col, IlUShort row) const
	Returns the item located in the specified cell. More...

IlvAbstractMatrixItem *	getItem (IlvDim pos) const
	Returns the matrix item located at the specified position. More...

IlvPosition	getItemAlignment (IlUShort col, IlUShort row) const
	Returns the alignment of an item of the matrix. More...

IlAny	getItemData (IlUShort col, IlUShort row) const
	Returns the client data of the specified matrix item. More...

virtual void	getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
	Returns the default orientation of the matrix items labels. More...

virtual IlvPosition	getLabelPosition () const
	Returns the default position of the matrix item labels. More...

void	getLastSelectedItem (IlUShort &col, IlUShort &row) const
	Returns the location of the last selected item in the matrix. More...

virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

IlvDim	getRowFittingSize (IlUShort row) const
	Returns the height of the largest item in the specified row. More...

IlvDim	getRowHeight (IlUShort) const
	Returns the height of the specified row. More...

IlvDim	getRowPosition (IlUShort) const
	Returns the position of a row. More...

IlvDim	getRowsDistance (IlUShort, IlUShort) const
	Returns the distance between two rows. More...

virtual IlvPalette *	getSelectionPalette () const
	Returns the selection palette used to draw selected items. More...

virtual IlvPalette *	getSelectionTextPalette () const
	Returns the selection palette used to draw the label of selected items. More...

IlUShort	getSpacing () const
	Returns the spacing between two cells of the matrix. More...

IlvTextField *	getTextField () const
	Returns a pointer to the editing text field. More...

IlvDim	getXgrid () const
	Returns the default column width. More...

IlvDim	getYgrid () const
	Returns the default row height. More...

IlBoolean	hasToolTips () const
	Indicates whether the matrix handles internal tooltips. More...

void	hideEditorField ()
	Hides and destroys the matrix item editing field. More...

void	hideTextField ()
	Hides and destroys the editing text field. More...

virtual void	insertColumn (IlUShort col=0, IlUShort count=1)
	Inserts columns in the matrix. More...

virtual void	insertRow (IlUShort row=0, IlUShort count=1)
	Inserts rows in the matrix. More...

virtual void	internalBBox (IlvRect &, const IlvTransformer *) const
	Returns the internal bounding box of the gadget. More...

IlBoolean	isAdjustingLast () const
	Indicates whether only the last column and row are resized. More...

IlBoolean	isAutoColumnSelect () const
	Indicates whether the automatic column selection mode is on. More...

IlBoolean	isAutoFittingToSize () const
	Indicates whether the automatic fitting to size mode is on. More...

IlBoolean	isAutoLineSelect () const
	Indicates whether the automatic row selection mode is on. More...

IlBoolean	isBrowseMode () const
	Indicates whether the matrix is in browse selection mode. More...

IlBoolean	isDirectEditionMode () const
	Indicates whether the matrix is in direct editing mode. More...

IlBoolean	isEditAllowed () const
	Indicates whether editing is allowed. More...

IlBoolean	isExclusive () const
	Indicates whether the selection mode is set to exclusive. More...

IlBoolean	isItemFillingBackground (IlUShort col, IlUShort row) const
	Returns `IlTrue` if the specified item is filled. More...

IlBoolean	isItemGrayed (IlUShort col, IlUShort row) const
	Indicates whether the specified item is grayed. More...

IlBoolean	isItemReadOnly (IlUShort col, IlUShort row) const
	Indicates whether the specified matrix item is read-only. More...

IlBoolean	isItemRelief (IlUShort col, IlUShort row) const
	Indicates whether the specified matrix item appears in relief. More...

IlBoolean	isItemSelected (IlUShort col, IlUShort row) const
	Indicates whether the item located in the specified cell is selected. More...

IlBoolean	isItemSensitive (IlUShort col, IlUShort row) const
	Indicates whether the specified item is sensitive. More...

virtual IlBoolean	isShowingLabel () const
	Indicates whether the matrix item labels are displayed. More...

virtual IlBoolean	isShowingPicture () const
	Indicates whether the matrix item pictures are displayed. More...

virtual IlvAbstractMatrixItem *	pointToItem (const IlvPoint &point, IlUShort &col, IlUShort &row, const IlvTransformer *t=0) const
	Returns the item located at a specified point. More...

void	reDrawItem (IlUShort col, IlUShort row) const
	Redraws an item of the matrix. More...

virtual void	reinitialize (IlUShort cols, IlUShort rows)
	Resets the matrix dimensions. More...

virtual IlBoolean	remove (IlUShort col, IlUShort row, IlBoolean destroy=IlTrue)
	Removes an item from the matrix. More...

virtual void	removeColumn (IlUShort col, IlBoolean destroy=IlTrue)
	Removes a column from the matrix. More...

virtual void	removeRow (IlUShort row, IlBoolean destroy=IlTrue)
	Removes a row from the matrix. More...

virtual void	resizeColumn (IlUShort col, IlvDim size)
	Resizes a given column. More...

virtual void	resizeRow (IlUShort row, IlvDim size)
	Resizes a given row. More...

IlUShort	rows () const
	Returns the number of rows in the matrix. More...

IlBoolean	rowSameHeight () const
	Returns `IlTrue` if all the rows in the matrix have the same height. More...

void	sameHeight (IlBoolean value)
	Specifies whether all the rows in the matrix should have the same height. More...

void	sameWidth (IlBoolean value)
	Specifies whether all the columns in the matrix should have the same width. More...

virtual void	scrollBarVisibilityChanged (IlvDirection)
	Is called when an internal scroll bar is shown or hidden. More...

virtual void	set (IlUShort col, IlUShort row, IlvAbstractMatrixItem *item)
	Adds an item to the matrix at the specified location. More...

void	setAutoColumnSelect (IlBoolean value)
	Specifies whether the automatic column selection mode should be on. More...

void	setAutoLineSelect (IlBoolean value)
	Specifies whether the automatic row selection mode should be on. More...

void	setBrowseMode (IlBoolean value)
	Specifies whether the matrix should be in browse selection mode. More...

virtual void	setColumnSelected (IlUShort col, IlBoolean selected=IlTrue)
	Selects or deselects an entire column. More...

void	setDirectEditionMode (IlBoolean value)
	Specifies whether the matrix should be in direct editing mode. More...

void	setEditDirection (IlvDirection direction)
	Sets the editing direction of the matrix. More...

void	setEditedItem (IlUShort col, IlUShort row)
	Sets the item that is being edited. More...

void	setExclusive (IlBoolean value)
	Specifies whether the selection mode should be exclusive. More...

void	setExtendedSelectionOrientation (IlvOrientation dir)
	Sets the direction in which the selection in the matrix is extended. More...

void	setFocus (IlUShort col, IlUShort row)
	Specifies the gadget matrix item that has the focus. More...

void	setGridPalette (IlvPalette *palette)
	Sets the palette used to draw the matrix grid. More...

void	setItemAlignment (IlUShort col, IlUShort row, IlvPosition alignment)
	Sets the alignment of a matrix item. More...

void	setItemCallback (IlUShort col, IlUShort row, IlvMatrixItemCallback callback=0, IlAny data=0)
	Sets a callback to the specified matrix item. More...

void	setItemData (IlUShort col, IlUShort row, IlAny data)
	Sets the client data of the specified matrix item. More...

void	setItemFillingBackground (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified item should be filled with a background color. More...

void	setItemGrayed (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified item should be grayed. More...

void	setItemReadOnly (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified matrix item should be read-only. More...

void	setItemRelief (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified matrix item should be in relief. More...

virtual void	setItemSelected (IlUShort col, IlUShort row, IlBoolean selected=IlTrue)
	Specifies whether the item located in the specified cell should be selected. More...

void	setItemSensitive (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Sets the specified item to sensitive. More...

void	setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
	Sets the orientation of the matrix items labels. More...

void	setLabelPosition (IlvPosition position, IlBoolean redraw=IlTrue)
	Sets the default position of the matrix item labels. More...

virtual void	setRowSelected (IlUShort row, IlBoolean selected=IlTrue)
	Selects or deselects an entire row. More...

void	setSelectionAnchor (IlUShort col, IlUShort row)
	Sets the selection anchor to the specified cell. More...

void	setSpacing (IlUShort spacing)
	Sets the spacing between two cells of the matrix. More...

virtual void	setXgrid (IlvDim x)
	Sets the default column width. More...

virtual void	setYgrid (IlvDim y)
	Sets the default row height. More...

void	showEditorField ()
	Displays the matrix item editing field. More...

void	showLabel (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Shows or hides the matrix item labels. More...

void	showPicture (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Shows or hides the matrix items picture. More...

void	showTextField ()
	Displays the editing text field. More...

void	useToolTips (IlBoolean value=IlTrue)
	Specifies whether the matrix should use internal tooltips. More...

virtual void	validate ()
	Is called when the user validates its changes after editing a matrix item. More...

Public Member Functions inherited from IlvAbstractMatrix
IlBoolean	allowCellMode () const
	Indicates whether the matrix can draw items on several continuous cells. More...

virtual IlBoolean	cellBBox (IlUShort colno, IlUShort rowno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of a given cell. More...

virtual void	cellInfo (IlUShort colno, IlUShort rowno, IlUShort &startcol, IlUShort &startrow, IlUShort &nbcol, IlUShort &nbrow) const
	Returns cell information. More...

virtual IlBoolean	columnBBox (IlUShort colno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of a given column. More...

virtual void	ensureVisible (IlUShort colno, IlUShort rowno, IlBoolean redraw=IlTrue)
	Scrolls the matrix to make the specified item visible. More...

IlUShort	firstColumn () const
	Returns the index of the first visible column. More...

IlUShort	firstRow () const
	Returns the index of the first visible row. More...

IlUShort	getNbFixedColumn () const
	Returns the number of fixed columns. More...

IlUShort	getNbFixedRow () const
	Returns the number of fixed rows. More...

virtual void	getVisibleItems (IlUShort &fromcol, IlUShort &tocol, IlUShort &fromrow, IlUShort &torow, const IlvTransformer *t=0) const
	Computes the range of the items that are visible in the matrix. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &)
	Handles the gadget events. More...

virtual void	invalidateColumn (IlUShort colno) const
	Redraws a column. More...

virtual void	invalidateRect (const IlvRect &rect) const
	Redraws a portion of the matrix. More...

virtual void	invalidateRow (IlUShort rowno) const
	Redraws a row. More...

IlBoolean	isShowingGrid () const
	Returns `IlTrue` if the matrix grid is displayed. More...

virtual IlBoolean	pointToPosition (const IlvPoint &point, IlUShort &colno, IlUShort &rowno, const IlvTransformer *t=0) const
	Returns the location of the item located at the specified point. More...

virtual IlBoolean	rowBBox (IlUShort rowno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of the specified row. More...

virtual void	scrollBarBBox (IlvDirection dir, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

virtual void	scrollBarHasMoved (IlvDirection pos)
	Is called when an internal scroll bar has moved. More...

void	scrollToColumn (IlUShort colno)
	Changes the first visible column. More...

void	scrollToRow (IlUShort rowno)
	Changes the first visible row. More...

void	setNbFixedColumn (IlUShort count)
	Sets the number of fixed rows. More...

void	setNbFixedRow (IlUShort count)
	Sets the number of fixed rows. More...

IlBoolean	showGrid (IlBoolean value)
	Specifies whether the matrix grid should be displayed. More...

Public Member Functions inherited from IlvScrolledGadget
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustScrollBars (IlBoolean redraw=IlFalse)
	Recomputes the scroll bars. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollableSize (IlvDim &width, IlvDim &height) const
	Returns the size of the scrollable area of the gadget. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Public Member Functions inherited from IlvGadgetItemHolder
virtual IlvGadgetItem *	createItem (const char label, IlvGraphic graphic=0, IlvBitmap bitmap=0, IlvBitmap selbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...

virtual void	drawGadgetItem (const IlvGadgetItem item, IlvPort port, const IlvRect &rect, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws a specific gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvMatrix
static IlSymbol *	ActivateMatrixItemCallbackType ()
	Returns the callback type of the Activate Item callback. More...

Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions inherited from IlvMatrix
void	endEdit (IlvGadgetItem *)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *)
	Is called when an item is activated. More...

Protected Member Functions inherited from IlvAbstractMatrix
	IlvAbstractMatrix (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustFromScrollBar (const IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the gadget to the scroll bars values. More...

virtual void	adjustScrollBarValue (IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the scroll bar values. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &r, IlvDirection dir, IlUShort t, IlvPalette *p)
	Returns a new instance of the `IlvScrollBar` class. More...

Protected Member Functions inherited from IlvScrolledGadget
IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Detailed Description

Matrix class.

Library: ilvadvgdt

The IlvSheet class is a special kind of IlvMatrix that surrounds fixed rows and columns with a relief border to distinguish them from other cells. This class lets you resize rows and columns by using drag and drop.

- IlvSheet -

See also: IlvHierarchicalSheet.

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvSheet()

IlvSheet::IlvSheet	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	nbcol,
		IlUShort	nbrow,
		IlvDim	xgrid = `IlvDefaultMatrixWidth`,
		IlvDim	ygrid = `IlvDefaultMatrixHeight`,
		IlvDim	thickness = `IlvDefaultGadgetThickness`,
		IlBoolean	showVSB = `IlTrue`,
		IlBoolean	showHSB = `IlTrue`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the IlvSheet class.

Parameters

display	The connection to the display.
rect	The size and position of the sheet.
nbcol	The number of columns in the sheet.
nbrow	The number of rows in the sheet.
xgrid	The default column width.
ygrid	The default row height.
thickness	The thickness of the matrix.
showVSB	Specifies whether the vertical scroll bar should be shown (<`IlTrue`) or hidden (`IlFalse`).
showHSB	Specifies whether the horizontal scroll bar should be shown (`IlTrue`) or hidden (`IlFalse`).
palette	The palette used to draw the sheet.

Member Function Documentation

◆ drawFrame()

virtual void IlvSheet::drawFrame	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget frame.

Is called from the draw() method. This method is not called if the method isShowingFrame() returns IlFalse.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawGadgetContents().

Reimplemented from IlvMatrix.

◆ drawGadgetContents()

virtual void IlvSheet::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented from IlvMatrix.

◆ drawItem()

virtual void IlvSheet::drawItem	(	IlvPort *	dst,
		IlUShort	colno,
		IlUShort	rowno,
		const IlvRect &	itembbox,
		const IlvRect &	clip
	)		const

virtual

Is called by the matrix to draw an item.

This method does nothing and should be redefined in subclasses to draw items.

Parameters

dst	The destination drawing port.
colno	The column of the item to be drawn. If the item extends over several columns, colno specifies the left location of the item.
rowno	The row of the item to be drawn. If the item extends over several rows, rowno specifies the top location of the item.
itembbox	The rectangle inside which the item should be drawn. If the item extends over several cells, itembbox is the bounding box of the cells contained by the item.
clip	The clipping area.

Reimplemented from IlvMatrix.

◆ handleMatrixEvent()

virtual IlBoolean IlvSheet::handleMatrixEvent ( IlvEvent & event )

virtual

Handles the events sent to the matrix.

Is called by the member function handleEvent() to handle an event applying to the matrix. Scroll bar events are handled by the method IlvScrolledGadget::handleScrollBarsEvent(). The default implementation does nothing and must be redefined if necessary.

Parameters

event The event.

Returns: IlTrue if the matrix used the event, or IlFalse otherwise.

See also: IlvGadget::handleEvent, IlvScrolledGadget::handleScrollBarsEvent.

Reimplemented from IlvMatrix.

Reimplemented in IlvHierarchicalSheet, and IlvFileChooserSheet.

◆ handleResizeColumn()

virtual IlBoolean IlvSheet::handleResizeColumn ( IlvEvent & event )

virtual

Handles resizing events applying to fixed columns.

Handles the specified event and calls the IlvMatrix::resizeRow() member function.

Parameters

event The event to handle.

See also: IlvMatrix::resizeRow(), handleResizeRow().

Reimplemented in IlvHierarchicalSheet.

◆ handleResizeRow()

virtual IlBoolean IlvSheet::handleResizeRow ( IlvEvent & event )

virtual

Handles resizing events applying to fixed rows.

Handles the specified event and calls the IlvMatrix::resizeColumn() member function.

Parameters

event The event to handle.

See also: IlvMatrix::resizeColumn(), handleResizeColumn().

◆ itemBBox()

virtual void IlvSheet::itemBBox	(	IlUShort	col,
		IlUShort	row,
		IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the bounding box of the item located in the specified cell.

Uses bbox to return the bounding box of the item located in the matrix cell specified by col and row, when the matrix is displayed with the transformer t.

Parameters

col	The index of of the column containing the item.
row	The index of the row containing the item.
bbox	The returned bounding box.
t	The transformer applied to the matrix.

Reimplemented from IlvMatrix.

◆ scrollTo()

virtual void IlvSheet::scrollTo	(	IlUShort	colno,
		IlUShort	rowno
	)

virtual

Changes the first visible column and row.

Scrolls the matrix so that the first visible column becomes colno and the first visible row rowno. Calling this method with a row or column that is fixed has no effect. The matrix is redrawn only if it is scrolled.

Parameters

colno	The new first column.
rowno	The new first row.

See also: scrollToRow(), scrollToColumn(), ensureVisible().

Reimplemented from IlvAbstractMatrix.

Public Member Functions

Additional Inherited Members

Detailed Description

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvSheet()

Member Function Documentation

◆ drawFrame()

◆ drawGadgetContents()

◆ drawItem()

◆ handleMatrixEvent()

◆ handleResizeColumn()

◆ handleResizeRow()

◆ itemBBox()

◆ scrollTo()
