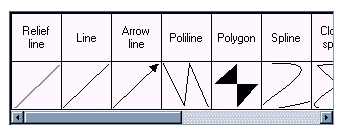

Gadget class. More...

#include <ilviews/gadgets/matrix.h>

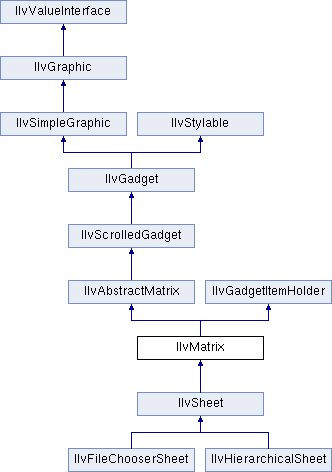

Inheritance diagram for IlvMatrix:

Public Member Functions
	IlvMatrix (IlvDisplay display, const IlvRect &rect, IlUShort nbcol, IlUShort nbrow, IlvDim xgrid=60, IlvDim ygrid=30, IlvDim thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	activateMatrixItem (IlUShort col, IlUShort row)
	Is called by the interactor when an item is activated. More...

virtual void	add (IlvAbstractMatrixItem *item)
	Adds an item to the first empty cell in the matrix. More...

IlBoolean	adjustLast (IlBoolean value)
	Specifies whether only the last column and the last row should be resized. More...

IlBoolean	allowDragDrop () const
	Indicates whether the matrix allows drag-and-drop operations. More...

void	allowDragDrop (IlBoolean value)
	Specifies whether the matrix should allow drag-and-drop operations. More...

IlBoolean	allowEdit (IlBoolean value)
	Specifies whether editing should be allowed. More...

IlBoolean	allowEditOnDoubleClick () const
	Indicates whether the matrix allows item editing when a double-click event occurs. More...

void	allowEditOnDoubleClick (IlBoolean value)
	Indicates whether the matrix should allow item editing when a double-click event occurs. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem, IlAny)
	Applies the specified function to all the items of the holder. More...

IlBoolean	autoFitToSize (IlBoolean value)
	Specifies whether the automatic fitting to size mode should be on. More...

virtual void	changeSelectionTo (IlUShort col, IlUShort row)
	Clears the current selection and selects specified cell. More...

IlUShort	columns () const
	Returns the number of columns in the matrix. More...

IlBoolean	columnSameWidth () const
	Returns `IlTrue` if all the columns in the matrix have the same width. More...

virtual IlvTextField *	createEditionField (IlUShort col, IlUShort row)
	Returns a new text field for editing an item. More...

virtual IlvMatrixItemEditor *	createEditor (IlUShort col, IlUShort row)
	Returns a new editor for editing an item. More...

virtual void	deSelect ()
	Deselects all the items in the matrix. More...

virtual void	doIt ()
	Is called by the interactor when the selection changes in the matrix. More...

virtual void	drawBackground (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget background. More...

virtual void	drawFrame (IlvPort , const IlvTransformer , const IlvRegion *) const
	Draws the gadget frame. More...

virtual void	drawGadgetContents (IlvPort , const IlvTransformer =0, const IlvRegion *=0) const
	Draws the gadget contents. More...

virtual void	drawItem (IlvPort *, IlUShort, IlUShort, const IlvRect &, const IlvRect &) const
	Is called by the matrix to draw an item. More...

virtual void	drawRelief (IlUShort col, IlUShort row, IlvPort dst, const IlvRect &bbox, const IlvRect clip) const
	Is called to draw an item in relief. More...

virtual void	drawSelection (IlUShort col, IlUShort row, IlvPort dst, const IlvRect &bbox, const IlvRect clip) const
	Is called to draw a selected item. More...

virtual void	editItem (IlUShort col, IlUShort row)
	Activates the editing mode for the matrix. More...

virtual void	extendSelection (IlUShort col, IlUShort row)
	Extends the selection from the anchor to the specified cell. More...

virtual void	fitHeightToSize (IlUShort row=0)
	Computes a new size for the rows so that they fit the height of the matrix. More...

void	fitToSize ()
	Computes a new size for the columns and rows so that they fit the size of the matrix. More...

virtual void	fitWidthToSize (IlUShort col=0)
	Computes a new size for the columns so that they fit the width of the matrix. More...

IlvDim	getCardinal () const
	Returns the number of cells in the matrix. More...

IlvDim	getColumnFittingSize (IlUShort col) const
	Returns the width of the largest item in the specified column. More...

IlvDim	getColumnPosition (IlUShort) const
	Returns the position of a column. More...

IlvDim	getColumnsDistance (IlUShort, IlUShort) const
	Returns the distance between two columns. More...

IlvDim	getColumnWidth (IlUShort) const
	Returns the width of the specified column. More...

IlvDirection	getEditDirection () const
	Returns the editing direction of the matrix. More...

IlvTextField *	getEditedItem (IlUShort &col, IlUShort &row) const
	Returns the location of the item being edited. More...

IlvGraphic *	getEditorField () const
	Returns a pointer to the editing field. More...

IlvOrientation	getExtendedSelectionOrientation () const
	Returns the direction to which the selection will be extended. More...

IlBoolean	getFirstSelected (IlUShort &col, IlUShort &row) const
	Returns the first selected item in the matrix. More...

IlvGadgetMatrixItem *	getFocusItem () const
	Returns the gadget matrix item that has the focus. More...

IlvPalette *	getGridPalette () const
	Returns the palette used to draw the matrix grid. More...

virtual IlvPalette *	getInsensitivePalette () const
	Returns the palette used to draw an item that is not sensitive. More...

IlvAbstractMatrixItem *	getItem (IlUShort col, IlUShort row) const
	Returns the item located in the specified cell. More...

IlvAbstractMatrixItem *	getItem (IlvDim pos) const
	Returns the matrix item located at the specified position. More...

IlvPosition	getItemAlignment (IlUShort col, IlUShort row) const
	Returns the alignment of an item of the matrix. More...

IlAny	getItemData (IlUShort col, IlUShort row) const
	Returns the client data of the specified matrix item. More...

virtual void	getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
	Returns the default orientation of the matrix items labels. More...

virtual IlvPosition	getLabelPosition () const
	Returns the default position of the matrix item labels. More...

void	getLastSelectedItem (IlUShort &col, IlUShort &row) const
	Returns the location of the last selected item in the matrix. More...

virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

IlvDim	getRowFittingSize (IlUShort row) const
	Returns the height of the largest item in the specified row. More...

IlvDim	getRowHeight (IlUShort) const
	Returns the height of the specified row. More...

IlvDim	getRowPosition (IlUShort) const
	Returns the position of a row. More...

IlvDim	getRowsDistance (IlUShort, IlUShort) const
	Returns the distance between two rows. More...

virtual IlvPalette *	getSelectionPalette () const
	Returns the selection palette used to draw selected items. More...

virtual IlvPalette *	getSelectionTextPalette () const
	Returns the selection palette used to draw the label of selected items. More...

IlUShort	getSpacing () const
	Returns the spacing between two cells of the matrix. More...

IlvTextField *	getTextField () const
	Returns a pointer to the editing text field. More...

IlvDim	getXgrid () const
	Returns the default column width. More...

IlvDim	getYgrid () const
	Returns the default row height. More...

virtual IlBoolean	handleMatrixEvent (IlvEvent &)
	Handles the events sent to the matrix. More...

IlBoolean	hasToolTips () const
	Indicates whether the matrix handles internal tooltips. More...

void	hideEditorField ()
	Hides and destroys the matrix item editing field. More...

void	hideTextField ()
	Hides and destroys the editing text field. More...

virtual void	insertColumn (IlUShort col=0, IlUShort count=1)
	Inserts columns in the matrix. More...

virtual void	insertRow (IlUShort row=0, IlUShort count=1)
	Inserts rows in the matrix. More...

virtual void	internalBBox (IlvRect &, const IlvTransformer *) const
	Returns the internal bounding box of the gadget. More...

IlBoolean	isAdjustingLast () const
	Indicates whether only the last column and row are resized. More...

IlBoolean	isAutoColumnSelect () const
	Indicates whether the automatic column selection mode is on. More...

IlBoolean	isAutoFittingToSize () const
	Indicates whether the automatic fitting to size mode is on. More...

IlBoolean	isAutoLineSelect () const
	Indicates whether the automatic row selection mode is on. More...

IlBoolean	isBrowseMode () const
	Indicates whether the matrix is in browse selection mode. More...

IlBoolean	isDirectEditionMode () const
	Indicates whether the matrix is in direct editing mode. More...

IlBoolean	isEditAllowed () const
	Indicates whether editing is allowed. More...

IlBoolean	isExclusive () const
	Indicates whether the selection mode is set to exclusive. More...

IlBoolean	isItemFillingBackground (IlUShort col, IlUShort row) const
	Returns `IlTrue` if the specified item is filled. More...

IlBoolean	isItemGrayed (IlUShort col, IlUShort row) const
	Indicates whether the specified item is grayed. More...

IlBoolean	isItemReadOnly (IlUShort col, IlUShort row) const
	Indicates whether the specified matrix item is read-only. More...

IlBoolean	isItemRelief (IlUShort col, IlUShort row) const
	Indicates whether the specified matrix item appears in relief. More...

IlBoolean	isItemSelected (IlUShort col, IlUShort row) const
	Indicates whether the item located in the specified cell is selected. More...

IlBoolean	isItemSensitive (IlUShort col, IlUShort row) const
	Indicates whether the specified item is sensitive. More...

virtual IlBoolean	isShowingLabel () const
	Indicates whether the matrix item labels are displayed. More...

virtual IlBoolean	isShowingPicture () const
	Indicates whether the matrix item pictures are displayed. More...

virtual void	itemBBox (IlUShort col, IlUShort row, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the item located in the specified cell. More...

virtual IlvAbstractMatrixItem *	pointToItem (const IlvPoint &point, IlUShort &col, IlUShort &row, const IlvTransformer *t=0) const
	Returns the item located at a specified point. More...

void	reDrawItem (IlUShort col, IlUShort row) const
	Redraws an item of the matrix. More...

virtual void	reinitialize (IlUShort cols, IlUShort rows)
	Resets the matrix dimensions. More...

virtual IlBoolean	remove (IlUShort col, IlUShort row, IlBoolean destroy=IlTrue)
	Removes an item from the matrix. More...

virtual void	removeColumn (IlUShort col, IlBoolean destroy=IlTrue)
	Removes a column from the matrix. More...

virtual void	removeRow (IlUShort row, IlBoolean destroy=IlTrue)
	Removes a row from the matrix. More...

virtual void	resizeColumn (IlUShort col, IlvDim size)
	Resizes a given column. More...

virtual void	resizeRow (IlUShort row, IlvDim size)
	Resizes a given row. More...

IlUShort	rows () const
	Returns the number of rows in the matrix. More...

IlBoolean	rowSameHeight () const
	Returns `IlTrue` if all the rows in the matrix have the same height. More...

void	sameHeight (IlBoolean value)
	Specifies whether all the rows in the matrix should have the same height. More...

void	sameWidth (IlBoolean value)
	Specifies whether all the columns in the matrix should have the same width. More...

virtual void	scrollBarVisibilityChanged (IlvDirection)
	Is called when an internal scroll bar is shown or hidden. More...

virtual void	set (IlUShort col, IlUShort row, IlvAbstractMatrixItem *item)
	Adds an item to the matrix at the specified location. More...

void	setAutoColumnSelect (IlBoolean value)
	Specifies whether the automatic column selection mode should be on. More...

void	setAutoLineSelect (IlBoolean value)
	Specifies whether the automatic row selection mode should be on. More...

void	setBrowseMode (IlBoolean value)
	Specifies whether the matrix should be in browse selection mode. More...

virtual void	setColumnSelected (IlUShort col, IlBoolean selected=IlTrue)
	Selects or deselects an entire column. More...

void	setDirectEditionMode (IlBoolean value)
	Specifies whether the matrix should be in direct editing mode. More...

void	setEditDirection (IlvDirection direction)
	Sets the editing direction of the matrix. More...

void	setEditedItem (IlUShort col, IlUShort row)
	Sets the item that is being edited. More...

void	setExclusive (IlBoolean value)
	Specifies whether the selection mode should be exclusive. More...

void	setExtendedSelectionOrientation (IlvOrientation dir)
	Sets the direction in which the selection in the matrix is extended. More...

void	setFocus (IlUShort col, IlUShort row)
	Specifies the gadget matrix item that has the focus. More...

void	setGridPalette (IlvPalette *palette)
	Sets the palette used to draw the matrix grid. More...

void	setItemAlignment (IlUShort col, IlUShort row, IlvPosition alignment)
	Sets the alignment of a matrix item. More...

void	setItemCallback (IlUShort col, IlUShort row, IlvMatrixItemCallback callback=0, IlAny data=0)
	Sets a callback to the specified matrix item. More...

void	setItemData (IlUShort col, IlUShort row, IlAny data)
	Sets the client data of the specified matrix item. More...

void	setItemFillingBackground (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified item should be filled with a background color. More...

void	setItemGrayed (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified item should be grayed. More...

void	setItemReadOnly (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified matrix item should be read-only. More...

void	setItemRelief (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Specifies whether the specified matrix item should be in relief. More...

virtual void	setItemSelected (IlUShort col, IlUShort row, IlBoolean selected=IlTrue)
	Specifies whether the item located in the specified cell should be selected. More...

void	setItemSensitive (IlUShort col, IlUShort row, IlBoolean value=IlTrue)
	Sets the specified item to sensitive. More...

void	setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
	Sets the orientation of the matrix items labels. More...

void	setLabelPosition (IlvPosition position, IlBoolean redraw=IlTrue)
	Sets the default position of the matrix item labels. More...

virtual void	setRowSelected (IlUShort row, IlBoolean selected=IlTrue)
	Selects or deselects an entire row. More...

void	setSelectionAnchor (IlUShort col, IlUShort row)
	Sets the selection anchor to the specified cell. More...

void	setSpacing (IlUShort spacing)
	Sets the spacing between two cells of the matrix. More...

virtual void	setXgrid (IlvDim x)
	Sets the default column width. More...

virtual void	setYgrid (IlvDim y)
	Sets the default row height. More...

void	showEditorField ()
	Displays the matrix item editing field. More...

void	showLabel (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Shows or hides the matrix item labels. More...

void	showPicture (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Shows or hides the matrix items picture. More...

void	showTextField ()
	Displays the editing text field. More...

void	useToolTips (IlBoolean value=IlTrue)
	Specifies whether the matrix should use internal tooltips. More...

virtual void	validate ()
	Is called when the user validates its changes after editing a matrix item. More...

Public Member Functions inherited from IlvAbstractMatrix
IlBoolean	allowCellMode () const
	Indicates whether the matrix can draw items on several continuous cells. More...

virtual IlBoolean	cellBBox (IlUShort colno, IlUShort rowno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of a given cell. More...

virtual void	cellInfo (IlUShort colno, IlUShort rowno, IlUShort &startcol, IlUShort &startrow, IlUShort &nbcol, IlUShort &nbrow) const
	Returns cell information. More...

virtual IlBoolean	columnBBox (IlUShort colno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of a given column. More...

virtual void	ensureVisible (IlUShort colno, IlUShort rowno, IlBoolean redraw=IlTrue)
	Scrolls the matrix to make the specified item visible. More...

IlUShort	firstColumn () const
	Returns the index of the first visible column. More...

IlUShort	firstRow () const
	Returns the index of the first visible row. More...

IlUShort	getNbFixedColumn () const
	Returns the number of fixed columns. More...

IlUShort	getNbFixedRow () const
	Returns the number of fixed rows. More...

virtual void	getVisibleItems (IlUShort &fromcol, IlUShort &tocol, IlUShort &fromrow, IlUShort &torow, const IlvTransformer *t=0) const
	Computes the range of the items that are visible in the matrix. More...

virtual IlBoolean	handleGadgetEvent (IlvEvent &)
	Handles the gadget events. More...

virtual void	invalidateColumn (IlUShort colno) const
	Redraws a column. More...

virtual void	invalidateRect (const IlvRect &rect) const
	Redraws a portion of the matrix. More...

virtual void	invalidateRow (IlUShort rowno) const
	Redraws a row. More...

IlBoolean	isShowingGrid () const
	Returns `IlTrue` if the matrix grid is displayed. More...

virtual IlBoolean	pointToPosition (const IlvPoint &point, IlUShort &colno, IlUShort &rowno, const IlvTransformer *t=0) const
	Returns the location of the item located at the specified point. More...

virtual IlBoolean	rowBBox (IlUShort rowno, IlvRect &rect, const IlvTransformer *t=0) const
	Computes the bounding box of the specified row. More...

virtual void	scrollBarBBox (IlvDirection dir, IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the bounding box of the specified internal scroll bar. More...

virtual void	scrollBarHasMoved (IlvDirection pos)
	Is called when an internal scroll bar has moved. More...

virtual void	scrollTo (IlUShort colno, IlUShort rowno)
	Changes the first visible column and row. More...

void	scrollToColumn (IlUShort colno)
	Changes the first visible column. More...

void	scrollToRow (IlUShort rowno)
	Changes the first visible row. More...

void	setNbFixedColumn (IlUShort count)
	Sets the number of fixed rows. More...

void	setNbFixedRow (IlUShort count)
	Sets the number of fixed rows. More...

IlBoolean	showGrid (IlBoolean value)
	Specifies whether the matrix grid should be displayed. More...

Public Member Functions inherited from IlvScrolledGadget
	IlvScrolledGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustScrollBars (IlBoolean redraw=IlFalse)
	Recomputes the scroll bars. More...

void	computeBBox (IlvRect &ibox, IlvRect &vbox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

void	computeBBox (IlvRect &ibox, IlvRect &vs, IlvRect &hs, const IlvTransformer *t=0) const
	Computes the bounding boxes of the elements that compose the gadget. More...

virtual void	drawScrollBar (IlvPort dst, IlvDirection direction, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the specified internal scroll bar. More...

void	fitToRect (const IlvRect &rect)
	Resizes the object so that the scrollable area fits the specified rectangle. More...

IlUShort	getBottomMargin () const
	Returns the bottom margin. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns a pointer to the internal horizontal scroll bar. More...

IlUShort	getLeftMargin () const
	Returns the left margin. More...

IlUShort	getRightMargin () const
	Returns the right margin. More...

IlvScrollBar *	getScrollBar (IlvDirection direction) const
	Returns a pointer to the specified internal scroll bar. More...

void	getScrollBarShowAsNeeded (IlBoolean &vert, IlBoolean &hor) const
	Returns the scroll bar mode of the internal scroll bars. More...

IlUShort	getTopMargin () const
	Returns the top margin. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns a pointer to the internal vertical scroll bar. More...

virtual IlBoolean	handleScrollBarsEvent (IlvEvent &event)
	Handles the internal scroll bars event. More...

void	hideScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Hides the specified internal scroll bar. More...

void	moveScrollBar (IlvDirection direction, IlvPosition where, IlBoolean redraw=IlTrue)
	Moves the specified internal scroll bar to a new position. More...

virtual void	scrollableSize (IlvDim &width, IlvDim &height) const
	Returns the size of the scrollable area of the gadget. More...

void	scrollBarShowAsNeeded (IlBoolean vertical, IlBoolean horizontal, IlBoolean redraw=IlTrue)
	Sets the scroll bar mode of the internal scroll bars. More...

void	setBottomMargin (IlUShort margin)
	Sets the bottom margin. More...

void	setLeftMargin (IlUShort margin)
	Sets the left margin. More...

void	setMargin (IlUShort val)
	Sets the left, right, top, and bottom margins. More...

void	setRightMargin (IlUShort margin)
	Sets the right margin. More...

void	setTopMargin (IlUShort margin)
	Sets the top margin. More...

void	showScrollBar (IlvDirection direction, IlBoolean redraw=IlTrue)
	Shows the specified internal scroll bar. More...

virtual void	visibleBBox (IlvRect &bbox, const IlvTransformer *t=0) const
	Returns the visible bounding box of the gadget. More...

IlvPosition	whereIsScrollBar (IlvDirection direction) const
	Returns the location of the specified internal scroll bar. More...

Public Member Functions inherited from IlvGadgetItemHolder
virtual IlvGadgetItem *	createItem (const char label, IlvGraphic graphic=0, IlvBitmap bitmap=0, IlvBitmap selbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...

virtual void	drawGadgetItem (const IlvGadgetItem item, IlvPort port, const IlvRect &rect, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws a specific gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Static Public Member Functions
static IlSymbol *	ActivateMatrixItemCallbackType ()
	Returns the callback type of the Activate Item callback. More...

Static Public Member Functions inherited from IlvScrolledGadget
static IlSymbol *	ScrollBarMovedSymbol ()
	Returns the callback type for the Scroll Bar Moved callback. More...

static IlSymbol *	ScrollBarVisibilitySymbol ()
	Returns the callback type for the Scroll Bar Visibility Changed callback. More...

Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions
void	endEdit (IlvGadgetItem *)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *)
	Is called when an item is activated. More...

Protected Member Functions inherited from IlvAbstractMatrix
	IlvAbstractMatrix (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Constructor. More...

virtual void	adjustFromScrollBar (const IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the gadget to the scroll bars values. More...

virtual void	adjustScrollBarValue (IlvScrollBar *sb, IlvDirection dir)
	Is called to adjust the scroll bar values. More...

virtual IlvScrollBar *	createScrollBar (const IlvRect &r, IlvDirection dir, IlUShort t, IlvPalette *p)
	Returns a new instance of the `IlvScrollBar` class. More...

Protected Member Functions inherited from IlvScrolledGadget
IlvDim	getLimitHeightValue () const
	Returns the limit value for the vertical scrolling. More...

IlvDim	getLimitWidthValue () const
	Returns the limit value for the horizontal scrolling. More...

IlvDim	getScrollableHeight () const
	Returns the height of the scrollable area. More...

IlvDim	getScrollableWidth () const
	Returns the width of the scrollable area. More...

void	setLimitHeightValue (IlvDim value)
	Sets the limit value for the vertical scrolling. More...

void	setLimitWidthValue (IlvDim value)
	Sets the limit value for the horizontal scrolling. More...

void	setScrollableHeight (IlvDim height)
	Sets the height of the scrollable area. More...

void	setScrollableWidth (IlvDim width)
	Sets the width of the scrollable area. More...

Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Friends
class	IlvDefaultMatrixLFHandler

Detailed Description

Gadget class.

Library: ilvadvgdt

The IlvMatrix class defines a rectangular grid, made up of rows and columns, which can contain many different types of objects, such as labels, graphic objects, and other gadgets.

A Matrix with different kinds of items

A matrix stores objects, called matrix items, that are defined by the following classes:

Note: In the member functions of the IlvMatrix class, the first column and the first row are located at the index 0, unless stated otherwise.

See also: IlvAbstractMatrixItem, IlvSheet, IlvTable.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvAbstractMatrix and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`adjustLast`	Boolean	`isAdjustingLast()`, `adjustLast()`
`spacing`	UInt	`getSpacing()`, `setSpacing()`
`exclusive`	Boolean	`isExclusive()`, `setExclusive()`
`autoFitToSize`	Boolean	`isAutoFittingToSize()`, `autoFitToSize()`
`allowEdition`	Boolean	`isEditAllowed()`, `allowEdit()`
`editedColumn`	UInt	`getEditedItem()`
`editedRow`	UInt	`getEditedItem()`
`browseSelect`	Boolean	`isBrowseMode()`, `setBrowseMode()`
`editionDirection`	Direction	`getEditDirection()`, `setEditDirection()`
`extendedSelectionOrientation`	Direction	`getExtendedSelectionOrientation()`, `setExtendedSelectionOrientation()`
`autoLineSelection`	Boolean	`isAutoLineSelect()`, `setAutoLineSelect()`
`autoColumnSelection`	Boolean	`isAutoColumnSelect()`, `setAutoColumnSelect()`
`directEdition`	Boolean	`isDirectEditionMode()`, `setDirectEditionMode()`
`editOnDoubleClick`	Boolean	`allowEditOnDoubleClick() const`, `allowEditOnDoubleClick(IlBoolean)`
`textField`	Object	`getTextField()`
`hasToolTips`	Boolean	`hasToolTips()`, `useToolTips()`
`showLabel`	Boolean	`isShowingLabel()`, `showLabel()`
`showPicture`	Boolean	`isShowingPicture()`, `showPicture()`
`labelPosition`	Direction	`getLabelPosition()`, `setLabelPosition()`
`labelOrientation`	Direction	`getLabelOrientation()`, `setLabelOrientation()`
`flipLabel`	Boolean	`getLabelOrientation()`, `setLabelOrientation()`
`dragdrop`	Boolean	`allowDragDrop() const`, `allowDragDrop(IlBoolean)`
`Xgrid`	UInt	`getXgrid()`, `setXgrid()`
`Ygrid`	UInt	`getYgrid()`, `setYgrid()`
`gridColor`	Color	`getGridPalette()`, `setGridPalette()`. See [1] below

[1]: The accessor is equivalent to the foreground color of the grid palette.

Get: getGridPalette()->getForeground();
Set: setGridPalette(display->getPalette(getGridPalette()->getBackground(), colorValue, getGridPalette()->getPattern(), ...));

Method accessors

Name	Return type	Equivalent methods
`set(UInt column, UInt row, IlvAbstractMatrixItem item)`	Void	`set(IlUShort column, IlUShort row, IlvAbstractMatrixItem* item)`
`add(IlvAbstractMatrixItem item)`	Void	`add(IlvAbstractMatrixItem* item)`
`remove(UInt col, UInt row, Boolean destroy)`	Boolean	`remove(IlUShort col, IlUShort row, IlBoolean destroy)`
`itemBBox(UInt col, UInt row)`	Object	`itemBBox(IlUShort col, IlUShort row, IlvRect& return, const IlvTransformer*) const`
`deSelect()`	Void	`deSelect()`
`columnPosition(UInt col)`	UInt	`getColumnPosition(IlUShort col) const`
`rowPosition(UInt row)`	UInt	`getRowPosition(IlUShort row) const`
`columnSize(UInt col)`	UInt	`getColumnWidth(IlUShort col) const`
`rowSize(UInt row)`	UInt	`getRowHeight(IlUShort row) const`
`resizeColumn(UInt col, UInt size)`	Void	`resizeColumn(IlUShort col, IlvDim size)`
`resizeRow(UInt row, UInt size)`	Void	`resizeRow(IlUShort row, IlvDim size)`
`selectColumn(UInt col, Boolean select)`	Void	`setColumnSelected(IlUShort col, IlBoolean select)`
`selectRow(UInt row, Boolean select)`	Void	`setRowSelected(IlUShort row, IlBoolean select)`
`selectItem(UInt col, UInt row, Boolean select)`	Void	`setItemSelected(IlUShort col, IlUShort row, IlBoolean select)`
`isItemSelected(UInt col, UInt row)`	Boolean	`isItemSelected(IlUShort col, IlUShort row) const)`
`getItem(UInt col, UInt row)`	Object	`getItem(IlUShort col, IlUShort row) const`
`getItemAlignment(UInt col, UInt row)`	Direction	`getItemAlignment(IlUShort col, IlUShort row) const`
`setItemAlignment(UInt col, UInt row, Direction align)`	Void	`setItemAlignment(IlUShort col, IlUShort row, IlvPosition align)`
`isItemSensitive(UInt col, UInt row)`	Boolean	`isItemSensitive(IlUShort col, IlUShort row) const`
`setItemSensitive(UInt col, UInt row, Boolean sensitive)`	Void	`setItemSensitive(IlUShort col, IlUShort row, IlBoolean sensitive)`
`isItemGrayed(UInt col, UInt row)`	Boolean	`isItemGrayed(IlUShort col, IlUShort row) const`
`setItemGrayed(UInt col, UInt row, Boolean grayed)`	Void	`setItemGrayed(IlUShort col, IlUShort row, IlBoolean grayed)`
`isItemFillingBackground(UInt col, UInt row)`	Boolean	`isItemFillingBackground(IlUShort col, IlUShort row) const`
`setItemFillingBackground(UInt col, UInt row, Boolean filling)`	Void	`setItemFillingBackground(IlUShort col, IlUShort row, IlBoolean filling)`
`isItemReadOnly(UInt col, UInt row)`	Boolean	`isItemReadOnly(IlUShort col, IlUShort row) const`
`setItemReadOnly(UInt col, UInt row, Boolean readOnly)`	Void	`setItemReadOnly(IlUShort col, IlUShort row, IlBoolean readOnly)`
`isItemRelief(UInt col, UInt row)`	Boolean	`isItemRelief(IlUShort col, IlUShort row) const`
`setItemRelief(UInt col, UInt row, Boolean relief)`	Void	`setItemRelief(IlUShort col, IlUShort row, IlBoolean relief)`
`fitToSize()`	Void	`fitToSize()`
`insertColumn(UInt col, UInt count)`	Void	`insertColumn(IlUShort col, IlUShort count)`
`insertRow(UInt row, UInt count)`	Void	`insertRow(IlUShort row, IlUShort count)`
`removeColumn(UInt col, Boolean destroy)`	Void	`removeColumn(IlUShort col, IlBoolean destroy)`
`removeRow(UInt row, Boolean destroy)`	Void	`removeRow(IlUShort row, IlBoolean destroy)`
`reinitialize(UInt col, UInt row)`	Void	`reinitialize(IlUShort col, IlUShort row)`
`setEditedItem(UInt col, UInt row)`	Void	`setEditedItem(IlUShort col, IlUShort row)`
`showTextField()`	Void	`showTextField()`
`hideTextField()`	Void	`hideTextField()`
`setFocus(UInt col, UInt row)`	Void	`setFocus(IlUShort col, IlUShort row)`

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvMatrix()

IlvMatrix::IlvMatrix	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	nbcol,
		IlUShort	nbrow,
		IlvDim	xgrid = `60`,
		IlvDim	ygrid = `30`,
		IlvDim	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Constructor.

Initializes a new instance of the class IlvMatrix. The parameters nbcol and nbrow specify the initial number of columns and rows. The parameters xgrid and ygrid indicate their initial dimensions. A matrix contains at least one row and one column.

Parameters

display	The connection to the display.
rect	The size and position of the matrix.
nbcol	The number of columns in the matrix.
nbrow	The number of rows in the matrix.
xgrid	The default column width.
ygrid	The default row height.
thickness	The thickness of the matrix.
palette	The palette used to draw the matrix.

Member Function Documentation

◆ activateMatrixItem()

virtual void IlvMatrix::activateMatrixItem	(	IlUShort	col,
		IlUShort	row
	)

virtual

Is called by the interactor when an item is activated.

An item is activated when the user double-clicks it or presses the Enter key. The default behavior calls the Activate Item callback.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: ActivateMatrixItemCallbackType.

◆ ActivateMatrixItemCallbackType()

static IlSymbol* IlvMatrix::ActivateMatrixItemCallbackType ( )

static

Returns the callback type of the Activate Item callback.

The Activate Item callback is invoked each time the user double-clicks on an item or presses the Enter key.

Returns: The callback type of the Activate Item callback.

See also: IlvGraphic::setCallback(), activateMatrixItem().

◆ add()

virtual void IlvMatrix::add ( IlvAbstractMatrixItem * item )

virtual

Adds an item to the first empty cell in the matrix.

Adds item to the first empty cell in the matrix. The first empty cell is the first cell that contains no item, starting from the top-left cell.

Parameters

item	The matrix item.

See also: set(), remove(), getCardinal(), getItem().

◆ adjustLast()

IlBoolean IlvMatrix::adjustLast ( IlBoolean value )

Specifies whether only the last column and the last row should be resized.

When the automatic fitting to size mode is on and the matrix is resized, only the last column and the last row are resized if value is set to IlTrue.

Parameters

value IlTrue if only the last column and row should be resized, and IlFalse otherwise.

See also: autoFitToSize(), isAdjustingLast(), fitToSize().

◆ allowDragDrop() [1/2]

IlBoolean IlvMatrix::allowDragDrop ( ) const

virtual

Indicates whether the matrix allows drag-and-drop operations.

Returns: IlTrue if the matrix allows drag-and-drop operations for matrix items of the type IlvGadgetItemMatrixItem, and IlFalse if it does not.

See also: allowDragDrop(IlBoolean), IlvGadgetItemHolder::startDragItem().

Reimplemented from IlvGadgetItemHolder.

◆ allowDragDrop() [2/2]

void IlvMatrix::allowDragDrop ( IlBoolean value )

Specifies whether the matrix should allow drag-and-drop operations.

Parameters

value Specifies whether the matrix should allow drag-and-drop operations for matrix items of the type IlvGadgetItemMatrixItem (IlTrue) or not (IlFalse).

See also: allowDragDrop(), IlvGadgetItemHolder::startDragItem(), IlvGadgetItemMatrixItem.

◆ allowEdit()

IlBoolean IlvMatrix::allowEdit ( IlBoolean value )

Specifies whether editing should be allowed.

Parameters

value Specifies whether editing should be allowed (IlTrue) or not (IlFalse).

See also: isEditAllowed().

◆ allowEditOnDoubleClick() [1/2]

IlBoolean IlvMatrix::allowEditOnDoubleClick ( ) const

Indicates whether the matrix allows item editing when a double-click event occurs.

Returns: IlTrue if the matrix allows item editing when a double-click event occurs and IlFalse if it does not.

See also: allowEditOnDoubleClick(IlBoolean).

◆ allowEditOnDoubleClick() [2/2]

void IlvMatrix::allowEditOnDoubleClick ( IlBoolean value )

Indicates whether the matrix should allow item editing when a double-click event occurs.

If value is set to IlFalse, an IlvDoubleClick event cancels any previous item editing request triggered by an IlvButtonDown event. This makes it possible to trigger item editing when an IlvButtonDown event takes place, and to invoke the Activate Item callback after an IlvDoubleClick event.

If value is set to IlTrue, both IlvButtonDown and IlvDoubleClick events trigger item editing.

Parameters

value Specifies whether the matrix should allow item editing when a double-click event occurs (IlTrue) or not (IlFalse).

See also: allowEditOnDoubleClick(), activateMatrixItem().

◆ applyToItems()

virtual IlvGadgetItem* IlvMatrix::applyToItems	(	IlvApplyGadgetItem	func,
		IlAny	arg
	)

virtual

Applies the specified function to all the items of the holder.

Parameters

func	The function to be applied.
arg	The argument that will be passed to the function func.

Returns: The item that stopped the operation.

See also: IlvApplyGadgetItem, recomputeAllItems(), getItemByName().

Reimplemented from IlvGadgetItemHolder.

◆ autoFitToSize()

IlBoolean IlvMatrix::autoFitToSize ( IlBoolean value )

Specifies whether the automatic fitting to size mode should be on.

When value is set to IlTrue, the matrix cells are resized automatically when the matrix is resized. Note that this does not work if the matrix has scroll bars.

Parameters

value Specifies whether the automatic fitting to size mode should be set (IlTrue) or not (IlFalse).

Returns: The parameter value.

◆ changeSelectionTo()

virtual void IlvMatrix::changeSelectionTo	(	IlUShort	col,
		IlUShort	row
	)

virtual

Clears the current selection and selects specified cell.

Clears the current selection, and selects the cell specified by col and row. It also sets the selection anchor to the specified cell.

This method is called by the matrix interactor when starting a multiple cell selection operation.

Parameters

col	The column index of the cell to select.
row	The row index of the cell to select.

See also: setSelectionAnchor(), extendSelection().

Reimplemented in IlvFileChooserSheet.

◆ columns()

IlUShort IlvMatrix::columns ( ) const

virtual

Returns the number of columns in the matrix.

Must be redefined in subclasses to return the number of columns in the matrix.

Returns: The number of columns of the matrix.

See also: rows().

Implements IlvAbstractMatrix.

◆ columnSameWidth()

IlBoolean IlvMatrix::columnSameWidth ( ) const

virtual

Returns IlTrue if all the columns in the matrix have the same width.

Must be defined in subclasses to return IlTrue if the columns of the matrix have the same width, and IlFalse if not. Drawings are optimized if IlTrue is returned.

Returns: IlTrue if all the columns in the matrix have the same width or IlFalse otherwise.

See also: rowSameHeight().

Implements IlvAbstractMatrix.

◆ createEditionField()

virtual IlvTextField* IlvMatrix::createEditionField	(	IlUShort	col,
		IlUShort	row
	)

virtual

Returns a new text field for editing an item.

Allows you to create your own type of text field for editing the matrix items. This method is called whenever you edit a new field.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: editItem().

◆ createEditor()

virtual IlvMatrixItemEditor* IlvMatrix::createEditor	(	IlUShort	col,
		IlUShort	row
	)

virtual

Returns a new editor for editing an item.

Allows you to create your own type of IlvMatrixItemEditor for editing the matrix items. This method is called whenever you edit a new field. The default implementation uses an IlvMatrixItemEditorFactory if any, or uses a default editor that creates an IlvTextField to edit items.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: editItem().

◆ deSelect()

virtual void IlvMatrix::deSelect ( )

virtual

Deselects all the items in the matrix.

The matrix is not redrawn.

See also: setItemSelected().

Reimplemented in IlvFileChooserSheet.

◆ doIt()

virtual void IlvMatrix::doIt ( )

virtual

Is called by the interactor when the selection changes in the matrix.

The default implementation invokes the main callback of the matrix.

See also: setItemSelected().

◆ drawBackground()

virtual void IlvMatrix::drawBackground	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget background.

Is called from the draw() method. This method is not called if the gadget is transparent.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawFrame(), drawScrollBar(), drawGadgetContents(), IlvGadget::isTransparent().

Reimplemented from IlvScrolledGadget.

◆ drawFrame()

virtual void IlvMatrix::drawFrame	(	IlvPort *	dst,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Draws the gadget frame.

Is called from the draw() method. This method is not called if the method isShowingFrame() returns IlFalse.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawGadgetContents().

Reimplemented from IlvScrolledGadget.

Reimplemented in IlvSheet.

◆ drawGadgetContents()

virtual void IlvMatrix::drawGadgetContents	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the gadget contents.

Is called from the draw() method. The default implementation does nothing.

Parameters

dst	The destination drawing port.
t	The transformer applied to the gadget.
clip	The clipping area.

See also: drawBackground(), drawScrollBar(), drawFrame().

Reimplemented from IlvAbstractMatrix.

Reimplemented in IlvSheet.

◆ drawItem()

virtual void IlvMatrix::drawItem	(	IlvPort *	dst,
		IlUShort	colno,
		IlUShort	rowno,
		const IlvRect &	itembbox,
		const IlvRect &	clip
	)		const

virtual

Is called by the matrix to draw an item.

This method does nothing and should be redefined in subclasses to draw items.

Parameters

dst	The destination drawing port.
colno	The column of the item to be drawn. If the item extends over several columns, colno specifies the left location of the item.
rowno	The row of the item to be drawn. If the item extends over several rows, rowno specifies the top location of the item.
itembbox	The rectangle inside which the item should be drawn. If the item extends over several cells, itembbox is the bounding box of the cells contained by the item.
clip	The clipping area.

Reimplemented from IlvAbstractMatrix.

Reimplemented in IlvSheet.

◆ drawRelief()

virtual void IlvMatrix::drawRelief	(	IlUShort	col,
		IlUShort	row,
		IlvPort *	dst,
		const IlvRect &	bbox,
		const IlvRect *	clip
	)		const

virtual

Is called to draw an item in relief.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
dst	The destination drawing port.
bbox	The bounding box of the item.
clip	The clipping area.

See also: setItemRelief().

◆ drawSelection()

virtual void IlvMatrix::drawSelection	(	IlUShort	col,
		IlUShort	row,
		IlvPort *	dst,
		const IlvRect &	bbox,
		const IlvRect *	clip
	)		const

virtual

Is called to draw a selected item.

The default implementation draws a filled rectangle behind the item. This method is called only if the item does not handle selection drawing.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
dst	The destination drawing port.
bbox	The bounding box of the item.
clip	The clipping area.

See also: setItemSelected(), IlvAbstractMatrixItem::handleSelectionDrawing().

◆ editItem()

virtual void IlvMatrix::editItem	(	IlUShort	col,
		IlUShort	row
	)

virtual

Activates the editing mode for the matrix.

Is called when the user attempts to edit the item located in the cell specifies by col and row.

Parameters

col	The index of the column containing the item to be edited.
row	The index of the row containing the item to be edited.

See also: setEditedItem(), validate().

◆ endEdit()

void IlvMatrix::endEdit ( IlvGadgetItem * item )

protectedvirtual

Is called after an item has been edited.

The default implementation calls the End Edit callback.

Parameters

item	The edited gadget item.

See also: startEdit(), abortEdit(), EndEditItemCallbackType().

Reimplemented from IlvGadgetItemHolder.

◆ extendSelection()

virtual void IlvMatrix::extendSelection	(	IlUShort	col,
		IlUShort	row
	)

virtual

Extends the selection from the anchor to the specified cell.

Extends the current matrix selection from the selection anchor to the cell specified by col and row. The way the selection is extended depends on the matrix selection policy.

Parameters

col	The column index of the cell to select.
row	The row index of the cell to select.

See also: setSelectionAnchor(), changeSelectionTo().

◆ fitHeightToSize()

virtual void IlvMatrix::fitHeightToSize ( IlUShort row = 0 )

virtual

Computes a new size for the rows so that they fit the height of the matrix.

Rows located before the row specified by row are not modified.

Parameters

row	The starting row.

See also: fitToSize(), fitWidthToSize().

Reimplemented in IlvHierarchicalSheet.

◆ fitToSize()

void IlvMatrix::fitToSize ( )

Computes a new size for the columns and rows so that they fit the size of the matrix.

See also: autoFitToSize(), fitWidthToSize(), fitHeightToSize().

◆ fitWidthToSize()

virtual void IlvMatrix::fitWidthToSize ( IlUShort col = 0 )

virtual

Computes a new size for the columns so that they fit the width of the matrix.

Columns located before the column specified by col are not modified.

Parameters

col	The starting column.

See also: fitToSize(), fitHeightToSize().

◆ getCardinal()

IlvDim IlvMatrix::getCardinal ( ) const

Returns the number of cells in the matrix.

Returns: The number of cells in the matrix.

See also: insertRow(), insertColumn(), removeRow(), removeColumn(), set().

◆ getColumnFittingSize()

IlvDim IlvMatrix::getColumnFittingSize ( IlUShort col ) const

Returns the width of the largest item in the specified column.

Parameters

col	The column index.

Returns: The width of the largest item in the column specified by col.

See also: getRowFittingSize().

◆ getColumnPosition()

IlvDim IlvMatrix::getColumnPosition ( IlUShort col ) const

virtual

Returns the position of a column.

Returns: The distance between the left side of the column specified by col and the left side of the first column. When col is equal to 0, it returns 0.

Parameters

col	The column index.

See also: getRowPosition(), getColumnWidth().

Reimplemented from IlvAbstractMatrix.

◆ getColumnsDistance()

IlvDim IlvMatrix::getColumnsDistance	(	IlUShort	fromcol,
		IlUShort	tocol
	)		const

virtual

Returns the distance between two columns.

Computes the distance between the columns fromcol and tocol. It is implemented as the sum of getColumnWidth(i) from fromcol to tocol -1. You can override this member function in a subclass to accelerate computing. Note that it is already optimized if the columns have the same width.

Parameters

fromcol	The starting column.
tocol	The ending column.

Returns: The distance in pixels between the columns fromcol and tocol.

See also: getRowsDistance(), getRowHeight().

Reimplemented from IlvAbstractMatrix.

◆ getColumnWidth()

IlvDim IlvMatrix::getColumnWidth ( IlUShort colno ) const

virtual

Returns the width of the specified column.

Must be redefined by subclasses to return the width of the column of index colno. The column numbering starts at 0. This member function must be redefined even if all the columns have the same width, in which case the IlvAbstractMatrix uses getColumnWidth(0). The code of this member function must be as efficient as possible to optimize the drawing.

Parameters

colno The column index.

Returns: The width of the column of index colno.

See also: getRowHeight(), columnSameWidth().

Implements IlvAbstractMatrix.

◆ getEditDirection()

IlvDirection IlvMatrix::getEditDirection ( ) const

Returns the editing direction of the matrix.

The editing direction is the direction in which the selection moves in the matrix when the user validates an item.

Returns: The editing direction. The default value is IlvBadPosition. In this case, the selection does not move when an item is validated.

See also: setEditDirection(), validate().

◆ getEditedItem()

IlvTextField* IlvMatrix::getEditedItem	(	IlUShort &	col,
		IlUShort &	row
	)		const

Returns the location of the item being edited.

Uses col and row to return the location of the matrix item that is currently being edited.

Returns: The text field used to edit the item. Note that when the edited item is a gadget item, or when the editor is not a text field the member function returns 0.

See also: setEditedItem(), editItem(), isEditAllowed().

◆ getEditorField()

IlvGraphic* IlvMatrix::getEditorField ( ) const

Returns a pointer to the editing field.

Returns: A pointer to the editing field object used for editing. Note that in the case of a gadget item editing, or if the matrix is not editing any item, 0 is returned.

See also: showEditorField(), hideEditorField(), editItem().

◆ getExtendedSelectionOrientation()

IlvOrientation IlvMatrix::getExtendedSelectionOrientation ( ) const

Returns the direction to which the selection will be extended.

Returns: The direction in which the selection will be extended. The default direction is IlvHorizontal, meaning that when the selection is extended it is extended along a row. Other possible directions are IlvVertical (column extension) and IlvBadPosition (square extension).

See also: setExtendedSelectionOrientation().

◆ getFirstSelected()

IlBoolean IlvMatrix::getFirstSelected	(	IlUShort &	col,
		IlUShort &	row
	)		const

Returns the first selected item in the matrix.

Uses col and row to return the location of the first selected item in the matrix, starting from the top-left cell.

Returns: IlFalse if there is no selected item in the matrix and IlTrue otherwise.

See also: setItemSelected().

◆ getFocusItem()

IlvGadgetMatrixItem* IlvMatrix::getFocusItem ( ) const

Returns the gadget matrix item that has the focus.

Returns: The matrix item that has the focus or 0 if no item has the focus.

See also: setFocus(IlUShort, IlUShort).

◆ getGridPalette()

IlvPalette* IlvMatrix::getGridPalette ( ) const

virtual

Returns the palette used to draw the matrix grid.

You must override this member function to modify the way the grid is drawn.

Returns: The palette used to draw the matrix grid.

See also: showGrid().

Reimplemented from IlvAbstractMatrix.

◆ getInsensitivePalette()

virtual IlvPalette* IlvMatrix::getInsensitivePalette ( ) const

virtual

Returns the palette used to draw an item that is not sensitive.

Returns: The palette used to draw an item that is not sensitive.

Implements IlvGadgetItemHolder.

◆ getItem() [1/2]

IlvAbstractMatrixItem* IlvMatrix::getItem	(	IlUShort	col,
		IlUShort	row
	)		const

Returns the item located in the specified cell.

Parameters

col	The column index.
row	The row index.

Returns: The item located in the cell specified by col and row or 0 if there is no item.

See also: set(), add(), removeItem().

◆ getItem() [2/2]

IlvAbstractMatrixItem* IlvMatrix::getItem ( IlvDim pos ) const

Returns the matrix item located at the specified position.

Parameters

pos	The position of the item in the matrix. Matrix items are numbered from left to right, and from top to bottom.

Returns: The matrix item located at the specified position.

See also: getItem(IlUShort, IlUShort), set(), add(), removeItem().

◆ getItemAlignment()

IlvPosition IlvMatrix::getItemAlignment	(	IlUShort	col,
		IlUShort	row
	)		const

Returns the alignment of an item of the matrix.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: The alignment of the item located in the cell specified by col and row.

See also: setItemAlignment().

◆ getItemData()

IlAny IlvMatrix::getItemData	(	IlUShort	col,
		IlUShort	row
	)		const

Returns the client data of the specified matrix item.

Returns: The client data of the matrix item located in the cell specified by col and row.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: setItemData().

◆ getLabelOrientation()

virtual void IlvMatrix::getLabelOrientation	(	IlvOrientation &	orientation,
		IlBoolean &	flip
	)		const

virtual

Returns the default orientation of the matrix items labels.

Parameters

orientation	The orientation of the labels.
flip	Specifies whether the labels are drawn from top to bottom (`IlTrue`), or from bottom to top (`IlFalse`).

See also: setLabelOrientation().

Reimplemented from IlvGadgetItemHolder.

◆ getLabelPosition()

virtual IlvPosition IlvMatrix::getLabelPosition ( ) const

virtual

Returns the default position of the matrix item labels.

Returns: The default position of the labels of the matrix items of the type IlvGadgetItemMatrixItem, relative to their picture.

See also: IlvGadgetItemMatrixItem, setLabelPosition().

Reimplemented from IlvGadgetItemHolder.

◆ getLastSelectedItem()

void IlvMatrix::getLastSelectedItem	(	IlUShort &	col,
		IlUShort &	row
	)		const

Returns the location of the last selected item in the matrix.

The last selected item is set by the calling the method IlvMatrix::setItemSelected() with the parameter selected set to IlTrue.

Parameters

col	The returned column of the last selected item.
row	The returned row of the last selected item.

See also: setItemSelected().

◆ getNormalTextPalette()

virtual IlvPalette* IlvMatrix::getNormalTextPalette ( ) const

virtual

Returns the default palette used to draw an item.

Returns: The default palette used to draw an item.

Implements IlvGadgetItemHolder.

◆ getOpaquePalette()

virtual IlvPalette* IlvMatrix::getOpaquePalette ( ) const

virtual

Returns the opaque palette used to draw opaque items.

Returns: The opaque palette used to draw opaque items.

Reimplemented from IlvGadgetItemHolder.

◆ getRowFittingSize()

IlvDim IlvMatrix::getRowFittingSize ( IlUShort row ) const

Returns the height of the largest item in the specified row.

Parameters

row	The row index.

Returns: The height of the largest item in the row specified by row.

See also: getColumnFittingSize().

◆ getRowHeight()

IlvDim IlvMatrix::getRowHeight ( IlUShort rowno ) const

virtual

Returns the height of the specified row.

Must be redefined in subclasses to return the height of the row of index rowno. The row numbering starts at 0. This member function must be redefined even if all the rows have the same height, in which case the IlvAbstractMatrix uses getRowHeight(0). The code of this member function must be as efficient as possible to optimize the drawing.

Parameters

rowno The row index.

Returns: The height of the row of index rowno.

See also: getColumnWidth(), rowSameHeight().

Implements IlvAbstractMatrix.

◆ getRowPosition()

IlvDim IlvMatrix::getRowPosition ( IlUShort row ) const

virtual

Returns the position of a row.

Returns: The distance between the upper side of the row specified by row and the upper side of the first row. When row is equal to 0, it returns 0.

Parameters

row	The row index.

See also: getColumnPosition(), getRowHeight().

Reimplemented from IlvAbstractMatrix.

◆ getRowsDistance()

IlvDim IlvMatrix::getRowsDistance	(	IlUShort	fromrow,
		IlUShort	torow
	)		const

virtual

Returns the distance between two rows.

Computes the distance between the rows fromrow and torow. It is implemented as the sum of getRowHeight(i) from fromrow to torow -1. You can override this member function in a subclass to accelerate computing. Note that it is already optimized if the rows have the same height.

Parameters

fromrow	The starting row.
torow	The ending row.

Returns: The distance in pixels between the rows fromrow and torow.

See also: getColumnsDistance(), getColumnWidth().

Reimplemented from IlvAbstractMatrix.

◆ getSelectionPalette()

virtual IlvPalette* IlvMatrix::getSelectionPalette ( ) const

virtual

Returns the selection palette used to draw selected items.

Returns: The selection palette used to draw selected items.

Implements IlvGadgetItemHolder.

◆ getSelectionTextPalette()

virtual IlvPalette* IlvMatrix::getSelectionTextPalette ( ) const

virtual

Returns the selection palette used to draw the label of selected items.

Returns: The selection palette used to draw the label of selected items.

Implements IlvGadgetItemHolder.

◆ getSpacing()

IlUShort IlvMatrix::getSpacing ( ) const

Returns the spacing between two cells of the matrix.

Returns: The spacing between two cells of the matrix.

See also: setSpacing().

◆ getTextField()

IlvTextField* IlvMatrix::getTextField ( ) const

Returns a pointer to the editing text field.

This method is obsolete. Use getEditorField().

See also: getEditorField().

◆ getXgrid()

IlvDim IlvMatrix::getXgrid ( ) const

Returns the default column width.

Returns: The default column width.

See also: setXgrid(), getYgrid().

◆ getYgrid()

IlvDim IlvMatrix::getYgrid ( ) const

Returns the default row height.

Returns: The default row height.

See also: setYgrid(), getXgrid().

◆ handleMatrixEvent()

virtual IlBoolean IlvMatrix::handleMatrixEvent ( IlvEvent & event )

virtual

Handles the events sent to the matrix.

Is called by the member function handleEvent() to handle an event applying to the matrix. Scroll bar events are handled by the method IlvScrolledGadget::handleScrollBarsEvent(). The default implementation does nothing and must be redefined if necessary.

Parameters

event The event.

Returns: IlTrue if the matrix used the event, or IlFalse otherwise.

See also: IlvGadget::handleEvent, IlvScrolledGadget::handleScrollBarsEvent.

Reimplemented from IlvAbstractMatrix.

Reimplemented in IlvSheet, IlvHierarchicalSheet, and IlvFileChooserSheet.

◆ hasToolTips()

IlBoolean IlvMatrix::hasToolTips ( ) const

virtual

Indicates whether the matrix handles internal tooltips.

Returns: IlTrue if the matrix handles internal tooltips, and IlFalse if it does not.

See also: useToolTips(), IlvToolTip.

Reimplemented from IlvGadgetItemHolder.

◆ hideEditorField()

void IlvMatrix::hideEditorField ( )

Hides and destroys the matrix item editing field.

See also: showEditorField().

◆ hideTextField()

void IlvMatrix::hideTextField ( )

Hides and destroys the editing text field.

This method is obsolete. Use hideEditor().

See also: hideEditor().

◆ insertColumn()

virtual void IlvMatrix::insertColumn	(	IlUShort	col = `0`,
		IlUShort	count = `1`
	)

virtual

Inserts columns in the matrix.

Parameters

col	The column before which the new columns will be added. If col is greater than the number of columns in the matrix, the new columns are added at the end of the matrix.
count	The number of columns to be inserted.

See also: removeColumn(), insertRow(), reinitialize().

Reimplemented in IlvFileChooserSheet.

◆ insertRow()

virtual void IlvMatrix::insertRow	(	IlUShort	row = `0`,
		IlUShort	count = `1`
	)

virtual

Inserts rows in the matrix.

Parameters

row	The row before which the new rows will be added. If row is greater that the number of rows in the matrix, the new rows are added at the end of the matrix.
count	The number of rows to be inserted.

See also: removeRow(), insertColumn(), reinitialize().

Reimplemented in IlvFileChooserSheet.

◆ internalBBox()

virtual void IlvMatrix::internalBBox	(	IlvRect &	bbox,
		const IlvTransformer *	t
	)		const

virtual

Returns the internal bounding box of the gadget.

Puts in bbox the internal bounding box of the scrolled gadget computed with the transformer t. The internal bounding box is used to draw the frame and to compute the scrollable area. If you want to change the internal bounding box, you can override this member function in a subclass.

Parameters

bbox	The returned internal bounding box.
t	The transformer applied to the gadget.

See also: visibleBBox(), scrollBarBBox().

Reimplemented from IlvScrolledGadget.

◆ isAdjustingLast()

IlBoolean IlvMatrix::isAdjustingLast ( ) const

Indicates whether only the last column and row are resized.

Returns: IlTrue if only the last column and row are resized when the matrix is resized and IlFalse (the default) otherwise.

See also: autoFitToSize(), adjustLast(), fitToSize().

◆ isAutoColumnSelect()

IlBoolean IlvMatrix::isAutoColumnSelect ( ) const

Indicates whether the automatic column selection mode is on.

Returns: IlTrue if the automatic column selection mode is on and IlFalse otherwise.

See also: setAutoColumnSelect(), isAutoLineSelect().

◆ isAutoFittingToSize()

IlBoolean IlvMatrix::isAutoFittingToSize ( ) const

Indicates whether the automatic fitting to size mode is on.

Returns: IlTrue if the automatic fitting to size mode is on, and IlFalse (the default) otherwise.

See also: autoFitToSize(), fitToSize().

◆ isAutoLineSelect()

IlBoolean IlvMatrix::isAutoLineSelect ( ) const

Indicates whether the automatic row selection mode is on.

Returns: IlTrue if the automatic row selection mode is on and IlFalse otherwise.

See also: setAutoLineSelect(), isAutoColumnSelect().

◆ isBrowseMode()

IlBoolean IlvMatrix::isBrowseMode ( ) const

Indicates whether the matrix is in browse selection mode.

Returns: IlTrue if the matrix is in browse selection mode.

See also: setBrowseMode(), isExclusive().

◆ isDirectEditionMode()

IlBoolean IlvMatrix::isDirectEditionMode ( ) const

Indicates whether the matrix is in direct editing mode.

Returns: IlTrue if the matrix is in direct editing mode and IlFalse otherwise.

◆ isEditAllowed()

IlBoolean IlvMatrix::isEditAllowed ( ) const

Indicates whether editing is allowed.

Returns: IlTrue if editing is allowed, and IlFalse otherwise.

See also: allowEdit(), editItem().

◆ isExclusive()

IlBoolean IlvMatrix::isExclusive ( ) const

Indicates whether the selection mode is set to exclusive.

When the selection mode is set to exclusive, the user cannot select more than one item at a time.

Returns: IlTrue if only one item can be selected at a time, and IlFalse otherwise.

See also: setExclusive(), isBrowseMode().

◆ isItemFillingBackground()

IlBoolean IlvMatrix::isItemFillingBackground	(	IlUShort	col,
		IlUShort	row
	)		const

Returns IlTrue if the specified item is filled.

Applies only to filled matrix items.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: IlTrue if the matrix item specified by col and row uses its palette for the text foreground (text color and font), and for the item background.

See also: IlvFilledDoubleMatrixItem, IlvFilledFloatMatrixItem, IlvFilledIntMatrixItem, IlvFilledLabelMatrixItem, setItemFillingBackground().

◆ isItemGrayed()

IlBoolean IlvMatrix::isItemGrayed	(	IlUShort	col,
		IlUShort	row
	)		const

Indicates whether the specified item is grayed.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: IlTrue if the item located in the cell specified by col and row is grayed.

See also: setItemGrayed(), isItemSensitive().

◆ isItemReadOnly()

IlBoolean IlvMatrix::isItemReadOnly	(	IlUShort	col,
		IlUShort	row
	)		const

Indicates whether the specified matrix item is read-only.

Read-only items can be selected, but cannot be edited.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: IlTrue if the matrix item located in the cell specified by col and row is read-only, and IlFalse otherwise.

See also: setItemReadOnly().

◆ isItemRelief()

IlBoolean IlvMatrix::isItemRelief	(	IlUShort	col,
		IlUShort	row
	)		const

Indicates whether the specified matrix item appears in relief.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: IlTrue if the matrix item located in the cell specified by col and row appears in relief and IlFalse otherwise.

See also: setItemRelief(), drawRelief().

◆ isItemSelected()

IlBoolean IlvMatrix::isItemSelected	(	IlUShort	col,
		IlUShort	row
	)		const

Indicates whether the item located in the specified cell is selected.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: Indicates whether the item located in the cell specified by col and row is selected (IlTrue) or not (IlFalse).

See also: setItemSelected().

◆ isItemSensitive()

IlBoolean IlvMatrix::isItemSensitive	(	IlUShort	col,
		IlUShort	row
	)		const

Indicates whether the specified item is sensitive.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

Returns: IlTrue if the item located in the cell specified by col and row is sensitive and IlFalse otherwise.

See also: setItemSensitive(), isItemGrayed().

◆ isShowingLabel()

virtual IlBoolean IlvMatrix::isShowingLabel ( ) const

virtual

Indicates whether the matrix item labels are displayed.

Returns: IlTrue if the labels of the matrix items of the type IlvGadgetItemMatrixItem are displayed and IlFalse otherwise.

See also: IlvGadgetItemMatrixItem, showLabel().

Reimplemented from IlvGadgetItemHolder.

◆ isShowingPicture()

virtual IlBoolean IlvMatrix::isShowingPicture ( ) const

virtual

Indicates whether the matrix item pictures are displayed.

Returns: IlTrue if the pictures of the matrix items of the type IlvGadgetItemMatrixItem are displayed and IlFalse otherwise.

See also: IlvGadgetItemMatrixItem, showPicture().

Reimplemented from IlvGadgetItemHolder.

◆ itemActivated()

virtual void IlvMatrix::itemActivated ( IlvGadgetItem * item )

protectedvirtual

Is called when an item is activated.

The default implementation calls the Activate callback.

Parameters

item	The activated gadget item.

See also: IlvGadgetItem::activate().

Reimplemented from IlvGadgetItemHolder.

◆ itemBBox()

virtual void IlvMatrix::itemBBox	(	IlUShort	col,
		IlUShort	row,
		IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the bounding box of the item located in the specified cell.

Uses bbox to return the bounding box of the item located in the matrix cell specified by col and row, when the matrix is displayed with the transformer t.

Parameters

col	The index of of the column containing the item.
row	The index of the row containing the item.
bbox	The returned bounding box.
t	The transformer applied to the matrix.

Reimplemented in IlvSheet.

◆ pointToItem()

virtual IlvAbstractMatrixItem* IlvMatrix::pointToItem	(	const IlvPoint &	point,
		IlUShort &	col,
		IlUShort &	row,
		const IlvTransformer *	t = `0`
	)		const

virtual

Returns the item located at a specified point.

Uses col and row to return the position of the item specified by point, when the matrix is displayed with the transformer t. Then the item is returned or 0 if there is no such item.

Parameters

point	The position where the item is located.
col	The index of the column that contains the item.
row	The index of the row that contains the item.
t	The transformer applied to the matrix.

See also: IlvAbstractMatrix::pointToPosition().

◆ reDrawItem()

void IlvMatrix::reDrawItem	(	IlUShort	col,
		IlUShort	row
	)		const

Redraws an item of the matrix.

Parameters

col	The index of the column that contains the item to be redrawn.
row	The index of the row that contains the item to be redrawn.

See also: IlvAbstractMatrix::drawItem(), drawSelection().

◆ reinitialize()

virtual void IlvMatrix::reinitialize	(	IlUShort	cols,
		IlUShort	rows
	)

virtual

Resets the matrix dimensions.

The items that are in the removed columns and rows are destroyed.

Parameters

cols	The new number of columns.
rows	The new number of rows.

See also: removeColumn(), removeRow().

Reimplemented in IlvHierarchicalSheet.

◆ remove()

virtual IlBoolean IlvMatrix::remove	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	destroy = `IlTrue`
	)

virtual

Removes an item from the matrix.

Removes the item located in the matrix cell specified by col and row.

Parameters

col	The index of the column containing the item to be removed.
row	The index of the row containing the item to be removed.
destroy	Specifies whether the removed item should be deleted.

Returns: IlTrue if the operation was successful, and IlFalse if there is no item at the specified location.

See also: add(), set(), getCardinal(), getItem().

Reimplemented in IlvFileChooserSheet.

◆ removeColumn()

virtual void IlvMatrix::removeColumn	(	IlUShort	col,
		IlBoolean	destroy = `IlTrue`
	)

virtual

Removes a column from the matrix.

Parameters

col	The index of the column to be removed.
destroy	Specifies whether the items that this column contains are deleted.

See also: insertColumn(), removeRow().

Reimplemented in IlvFileChooserSheet.

◆ removeRow()

virtual void IlvMatrix::removeRow	(	IlUShort	row,
		IlBoolean	destroy = `IlTrue`
	)

virtual

Removes a row from the matrix.

Parameters

row	The index of the row to be removed.
destroy	Specifies whether the items that this row contains are deleted.

See also: insertRow(), removeColumn().

Reimplemented in IlvFileChooserSheet, and IlvHierarchicalSheet.

◆ resizeColumn()

virtual void IlvMatrix::resizeColumn	(	IlUShort	col,
		IlvDim	size
	)

virtual

Resizes a given column.

Sets the width of the column col -1 to size. When col is equal to 0, this member function does nothing.

Parameters

col	The column index.
size	The new size of the column.

See also: resizeRow(), getColumnWidth().

◆ resizeRow()

virtual void IlvMatrix::resizeRow	(	IlUShort	row,
		IlvDim	size
	)

virtual

Resizes a given row.

Sets the height of the row row -1 to size. When row is equal to 0, this member function does nothing.

Parameters

row	The row index.
size	The new size of the row.

See also: resizeColumn(), getRowHeight().

◆ rows()

IlUShort IlvMatrix::rows ( ) const

virtual

Returns the number of rows in the matrix.

Must be redefined in subclasses to return the number of rows in the matrix.

Returns: The number of rows of the matrix.

See also: columns().

Implements IlvAbstractMatrix.

◆ rowSameHeight()

IlBoolean IlvMatrix::rowSameHeight ( ) const

virtual

Returns IlTrue if all the rows in the matrix have the same height.

Must be redefined in subclasses to return IlTrue if the rows in the matrix have the same height and IlFalse if not. Drawings are optimized if IlTrue is returned.

Returns: IlTrue if all the rows in the matrix have the same height or IlFalse otherwise.

See also: columnSameWidth().

Implements IlvAbstractMatrix.

◆ sameHeight()

void IlvMatrix::sameHeight ( IlBoolean value )

Specifies whether all the rows in the matrix should have the same height.

To give all the rows the same height, you must call this method with value set to IlTrue before invoking IlvMatrix::setYgrid().

Parameters

value Specifies whether all the rows have the same height (IlTrue).

See also: setYgrid(), sameWidth().

◆ sameWidth()

void IlvMatrix::sameWidth ( IlBoolean value )

Specifies whether all the columns in the matrix should have the same width.

To give all the columns the same width, you must call this method with value set to IlTrue before invoking IlvMatrix::setXgrid().

Parameters

value Specifies whether all the columns have the same width (IlTrue).

See also: setXgrid(), sameHeight().

◆ scrollBarVisibilityChanged()

virtual void IlvMatrix::scrollBarVisibilityChanged ( IlvDirection direction )

virtual

Is called when an internal scroll bar is shown or hidden.

Is called by handleEvent() each time the internal scroll bar specified by direction is shown or hidden. The default implementation invokes the Scroll Bar Visibility Changed callback.

Parameters

direction The direction of the internal scroll bar. Valid values are: IlvHorizontal and IlvVertical.

See also: ScrollBarVisibilitySymbol().

Reimplemented from IlvScrolledGadget.

◆ set()

virtual void IlvMatrix::set	(	IlUShort	col,
		IlUShort	row,
		IlvAbstractMatrixItem *	item
	)

virtual

Adds an item to the matrix at the specified location.

Adds item to the matrix at the location specified by col and row. If there is already a matrix item at this location, this item is deleted before item is inserted.

Parameters

col	The index of the column where item is inserted.
row	The index of the row where item is inserted.
item	The matrix item to be inserted.

See also: add(), remove(), getCardinal(), getItem().

Reimplemented in IlvFileChooserSheet.

◆ setAutoColumnSelect()

void IlvMatrix::setAutoColumnSelect ( IlBoolean value )

Specifies whether the automatic column selection mode should be on.

If value is set to IlTrue, each time an item is selected in a column, the entire column is selected.

Parameters

value Specifies whether the automatic column selection mode should be on (IlTrue) or not (IlFalse).

See also: isAutoColumnSelect(), setAutoLineSelect().

◆ setAutoLineSelect()

void IlvMatrix::setAutoLineSelect ( IlBoolean value )

Specifies whether the automatic row selection mode should be on.

If value is set to IlTrue, each time an item is selected in a row, the entire row is selected.

Parameters

value Specifies whether the automatic row selection mode should be on (IlTrue) or not (IlFalse).

See also: isAutoLineSelect(), setAutoColumnSelect().

◆ setBrowseMode()

void IlvMatrix::setBrowseMode ( IlBoolean value )

Specifies whether the matrix should be in browse selection mode.

In this mode, the user can add an item to the selection (non exclusive) simply by clicking on the item or by dragging the mouse. When the matrix is not in browse selection mode, clicking on an item deselects all other items before selecting the clicked item. In this case the user must use the Control key to add an item to the selection.

Parameters

value Specifies whether the matrix should be in browse selection mode (IlTrue) or not (IlFalse).

See also: isBrowseMode(), setExclusive().

◆ setColumnSelected()

virtual void IlvMatrix::setColumnSelected	(	IlUShort	col,
		IlBoolean	selected = `IlTrue`
	)

virtual

Selects or deselects an entire column.

Sets the selection state of col to selected. The column is not redrawn.

Parameters

col	The column index.
selected	Specifies whether the column should be selected (`IlTrue`) or not (`IlFalse`).

See also: setRowSelected(), setItemSelected(), IlvAbstractMatrix::invalidateColumn().

Reimplemented in IlvFileChooserSheet.

◆ setDirectEditionMode()

void IlvMatrix::setDirectEditionMode ( IlBoolean value )

Specifies whether the matrix should be in direct editing mode.

If value is IlFalse, the use must click a matrix item to edit it or press the F2 key. If value is IlTrue, the user can edit the last selected item by simply entering new text: The matrix will automatically switch to editing mode.

Parameters

value Specifies whether the matrix should be in direct editing mode (IlTrue) or not (IlFalse).

See also: isDirectEditionMode().

◆ setEditDirection()

void IlvMatrix::setEditDirection ( IlvDirection direction )

Sets the editing direction of the matrix.

For more information, see getEditDirection().

Parameters

direction The new editing direction.

See also: getEditDirection(), validate().

◆ setEditedItem()

void IlvMatrix::setEditedItem	(	IlUShort	col,
		IlUShort	row
	)

Sets the item that is being edited.

The item located in the cell specified by col and row becomes the current editable item, if editing is allowed in the matrix. Note that calling this method does not edit the item. Use the IlvMatrix::editItem() method instead.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: isEditAllowed(), getEditedItem(), editItem().

◆ setExclusive()

void IlvMatrix::setExclusive ( IlBoolean value )

Specifies whether the selection mode should be exclusive.

When the selection mode is set to exclusive, the user cannot select more than one item at a time.

Parameters

value Specifies whether the selection mode is exclusive (IlTrue) or not (IlFalse).

See also: isExclusive(), setBrowseMode().

◆ setExtendedSelectionOrientation()

void IlvMatrix::setExtendedSelectionOrientation ( IlvOrientation dir )

Sets the direction in which the selection in the matrix is extended.

This member function works only if the browse selection mode is not activated.

Parameters

dir	The new direction. Valid values are `IlvHorizontal`, `IlvVertical`, or `IlvBadPosition`.

See also: getExtendedSelectionOrientation().

◆ setFocus()

void IlvMatrix::setFocus	(	IlUShort	col,
		IlUShort	row
	)

Specifies the gadget matrix item that has the focus.

If the item located in the cell specified by col and row is not of the class IlvGadgetMatrixItem, this method does nothing.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.

See also: getFocusItem().

◆ setGridPalette()

void IlvMatrix::setGridPalette ( IlvPalette * palette )

Sets the palette used to draw the matrix grid.

Parameters

palette The palette to use.

See also: getGridPalette(), showGrid()

◆ setItemAlignment()

void IlvMatrix::setItemAlignment	(	IlUShort	col,
		IlUShort	row,
		IlvPosition	alignment
	)

Sets the alignment of a matrix item.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
alignment	The new item alignment. Valid values are: `IlvLeft`, `IlvCenter`, and `IlvRight`.

See also: getItemAlignment().

◆ setItemCallback()

void IlvMatrix::setItemCallback	(	IlUShort	col,
		IlUShort	row,
		IlvMatrixItemCallback	callback = `0`,
		IlAny	data = `0`
	)

Sets a callback to the specified matrix item.

The callback is invoked by the interactor with the matrix as its first parameter, the item location and the specified user data. If there is no item in the cell specified by col and row, this member function does nothing. By default, a matrix invokes an item callback once the item has been edited.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
callback	The item callback.
data	The data of the item callback.

See also: getItemCallback(), IlvMatrixItemCallback().

◆ setItemData()

void IlvMatrix::setItemData	(	IlUShort	col,
		IlUShort	row,
		IlAny	data
	)

Sets the client data of the specified matrix item.

This client data is the value that is sent to the item callback, if any. Therefore, it replaces the value set by IlvMatrix::setItemCallback().

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
data	The new item data.

See also: getItemData(), setItemCallback().

◆ setItemFillingBackground()

void IlvMatrix::setItemFillingBackground	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	value = `IlTrue`
	)

Specifies whether the specified item should be filled with a background color.

Applies only to filled matrix items.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
value	Specifies whether the item should be filled with a background color (`IlTrue`) or not (`IlFalse`).

See also: IlvFilledDoubleMatrixItem, IlvFilledFloatMatrixItem, IlvFilledIntMatrixItem, IlvFilledLabelMatrixItem, isItemFillingBackground().

◆ setItemGrayed()

void IlvMatrix::setItemGrayed	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	value = `IlTrue`
	)

Specifies whether the specified item should be grayed.

If value is set to IlFalse, the item is set to its original color. Note that this member function has no effect if the item is sensitive. This method is automatically called with value set to IlTrue when IlvMatrix::setItemSensitive() is called with IlFalse as its parameter, which results in an item that is grayed and nonsensitive. However, if you want the item to be nonsensitive but keep its original color, you must first call IlvMatrix::setItemSensitive() with IlFalse as the parameter, and then setItemGrayed() with value set to IlFalse.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
value	Specifies whether the specified item should be grayed (`IlTrue`) or not.

See also: isItemGrayed(), setItemSensitive().

◆ setItemReadOnly()

void IlvMatrix::setItemReadOnly	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	value = `IlTrue`
	)

Specifies whether the specified matrix item should be read-only.

Read-only items can be selected, but cannot be edited. This method has no effect on IlvGraphicMatrixItem objects.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
value	Specifies whether the item should be read-only (`IlTrue`) or not (`IlFalse`).

See also: isItemReadOnly().

◆ setItemRelief()

void IlvMatrix::setItemRelief	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	value = `IlTrue`
	)

Specifies whether the specified matrix item should be in relief.

If value is set to IlTrue, the item is drawn with a relief rectangle around it, making it look like a button. When the the item is selected, the relief is inverted, as if the item was a pushed button.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
value	Specifies whether the item should be in relief (`IlTrue`) or not (`IlFalse`).

See also: isItemRelief(), drawRelief().

◆ setItemSelected()

virtual void IlvMatrix::setItemSelected	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	selected = `IlTrue`
	)

virtual

Specifies whether the item located in the specified cell should be selected.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
selected	Specifies whether the item located in the cell specified by col and row should be selected (`IlTrue`) or not (`IlFalse`).

See also: isItemSelected(), setRowSelected(), setColumnSelected().

Reimplemented in IlvFileChooserSheet.

◆ setItemSensitive()

void IlvMatrix::setItemSensitive	(	IlUShort	col,
		IlUShort	row,
		IlBoolean	value = `IlTrue`
	)

Sets the specified item to sensitive.

If value is set to IlFalse, the item label appears dimmed and the item cannot be selected. If you want the item to appear dimmed, use the IlvMatrix::setItemGrayed() method.

Parameters

col	The index of the column containing the item.
row	The index of the row containing the item.
value	Specifies whether the item located in the cell specified by col and row should be sensitive (`IlTrue`) or not (`IlFalse`).

See also: isItemSensitive(), setItemGrayed().

◆ setLabelOrientation()

void IlvMatrix::setLabelOrientation	(	IlvOrientation	orientation,
		IlBoolean	flip = `IlFalse`,
		IlBoolean	redraw = `IlTrue`
	)

Sets the orientation of the matrix items labels.

This setting applies only to matrix items of the class IlvGadgetItemMatrixItem.

Parameters

orientation	The orientation of the labels. Valid values are: `IlvHorizontal` and `IlvVertical`.
flip	Specifies whether the labels are drawn from top to bottom, or bottom to top.
redraw	Specifies whether the gadget should be redrawn.

See also: getLabelOrientation(), IlvGadgetItemMatrixItem.

◆ setLabelPosition()

void IlvMatrix::setLabelPosition	(	IlvPosition	position,
		IlBoolean	redraw = `IlTrue`
	)

Sets the default position of the matrix item labels.

This setting is used to compute the geometry of each matrix item of the class IlvGadgetItemMatrixItem. For more information, see the member function IlvGadgetItem::setLabelPosition().

Parameters

position	The position of the labels of matrix items of the class `IlvGadgetItemMatrixItem`, relative to their picture.
redraw	Specifies whether the gadget should be redrawn.

See also: getLabelPosition(), IlvGadgetItem::setLabelPosition().

◆ setRowSelected()

virtual void IlvMatrix::setRowSelected	(	IlUShort	row,
		IlBoolean	selected = `IlTrue`
	)

virtual

Selects or deselects an entire row.

Sets the selection state of row to selected. The row is not redrawn.

Parameters

row	The row index.
selected	Specifies whether the row should be selected (`IlTrue`) or not (`IlFalse`).

See also: setColumnSelected(), setItemSelected(), IlvAbstractMatrix::invalidateRow().

Reimplemented in IlvFileChooserSheet.

◆ setSelectionAnchor()

void IlvMatrix::setSelectionAnchor	(	IlUShort	col,
		IlUShort	row
	)

Sets the selection anchor to the specified cell.

Sets the selection anchor to the cell specified by col and row. The selection anchor is used by the matrix interactor to locate the first selected cell during a multiple cell selection operation.

Parameters

col	The column index of the cell to select.
row	The row index of the cell to select.

See also: changeSelectionTo(), extendSelection().

◆ setSpacing()

void IlvMatrix::setSpacing ( IlUShort spacing )

Sets the spacing between two cells of the matrix.

Parameters

spacing The spacing between two cells of the matrix.

See also: getSpacing().

◆ setXgrid()

virtual void IlvMatrix::setXgrid ( IlvDim x )

virtual

Sets the default column width.

Sets the column width to x, if all the columns have the same dimensions.

Parameters

x	The new default column width.

See also: setYgrid(), sameWidth().

◆ setYgrid()

virtual void IlvMatrix::setYgrid ( IlvDim y )

virtual

Sets the default row height.

Sets the row height to y, if all the rows have the same dimensions.

Parameters

y	The new default row height.

See also: setXgrid(), sameHeight().

◆ showEditorField()

void IlvMatrix::showEditorField ( )

Displays the matrix item editing field.

Displays a matrix item editor at the location of the current editable item set by a call to setEditedItem(). IlvMatrix::showEditorField() creates the editor by using the editor factory set by calling setEditorFactory().

See also: setEditorFactory(), IlvMatrixItemEditorFactory, IlvMatrixItemEditor.

◆ showLabel()

void IlvMatrix::showLabel	(	IlBoolean	value = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Shows or hides the matrix item labels.

Parameters

value	Specifies whether the matrix should show the the labels of the matrix items of the type `IlvGadgetItemMatrixItem` (`IlTrue`) or not (`IlFalse`).
redraw	Specifies whether the gadget should be redrawn.

See also: isShowingLabel(), IlvGadgetItemMatrixItem, IlvGadgetItem::showLabel().

◆ showPicture()

void IlvMatrix::showPicture	(	IlBoolean	value = `IlTrue`,
		IlBoolean	redraw = `IlTrue`
	)

Shows or hides the matrix items picture.

Parameters

value	Specifies whether the matrix should show the pictures of the matrix items of the type `IlvGadgetItemMatrixItem` (`IlTrue`) or not (`IlFalse`).
redraw	Specifies whether the gadget should be redrawn.

See also: isShowingPicture(), IlvGadgetItemMatrixItem, IlvGadgetItem::showPicture().

◆ showTextField()

void IlvMatrix::showTextField ( )

Displays the editing text field.

This method is obsolete. Use showEditor().

See also: showEditor().

◆ useToolTips()

void IlvMatrix::useToolTips ( IlBoolean value = IlTrue )

Specifies whether the matrix should use internal tooltips.

Internal tooltips are tooltips set to matrix items of the type IlvGraphicMatrixItem(). Internal tooltips are also displayed for matrix items of the class IlvGadgetItemMatrixItem when the items are not fully visible.

Parameters

value Specifies whether the matrix should display internal tooltips (IlTrue) or not (IlFalse).

See also: hasToolTips(), IlvToolTip.

◆ validate()

virtual void IlvMatrix::validate ( )

virtual

Is called when the user validates its changes after editing a matrix item.

An IlvLabelMatrixItem is automatically created and inserted in the matrix if there is no matrix item where the user clicks. The matrix item label is replaced with the content of the editing field.

See also: editItem(), getEditorField(), getEditedItem()

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Data accessors

Method accessors

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvMatrix()

Member Function Documentation

◆ activateMatrixItem()

◆ ActivateMatrixItemCallbackType()

◆ add()

◆ adjustLast()

◆ allowDragDrop() [1/2]

◆ allowDragDrop() [2/2]

◆ allowEdit()

◆ allowEditOnDoubleClick() [1/2]

◆ allowEditOnDoubleClick() [2/2]

◆ applyToItems()

◆ autoFitToSize()

◆ changeSelectionTo()

◆ columns()

◆ columnSameWidth()

◆ createEditionField()

◆ createEditor()

◆ deSelect()

◆ doIt()

◆ drawBackground()

◆ drawFrame()

◆ drawGadgetContents()

◆ drawItem()

◆ drawRelief()

◆ drawSelection()

◆ editItem()

◆ endEdit()

◆ extendSelection()

◆ fitHeightToSize()

◆ fitToSize()

◆ fitWidthToSize()

◆ getCardinal()

◆ getColumnFittingSize()

◆ getColumnPosition()

◆ getColumnsDistance()

◆ getColumnWidth()

◆ getEditDirection()

◆ getEditedItem()

◆ getEditorField()

◆ getExtendedSelectionOrientation()

◆ getFirstSelected()

◆ getFocusItem()

◆ getGridPalette()

◆ getInsensitivePalette()

◆ getItem() [1/2]

◆ getItem() [2/2]

◆ getItemAlignment()

◆ getItemData()

◆ getLabelOrientation()

◆ getLabelPosition()

◆ getLastSelectedItem()

◆ getNormalTextPalette()

◆ getOpaquePalette()

◆ getRowFittingSize()

◆ getRowHeight()

◆ getRowPosition()

◆ getRowsDistance()

◆ getSelectionPalette()

◆ getSelectionTextPalette()

◆ getSpacing()

◆ getTextField()

◆ getXgrid()

◆ getYgrid()

◆ handleMatrixEvent()

◆ hasToolTips()

◆ hideEditorField()

◆ hideTextField()

◆ insertColumn()

◆ insertRow()

◆ internalBBox()
