Graphic class. More...

#include <ilviews/base/graphic.h>

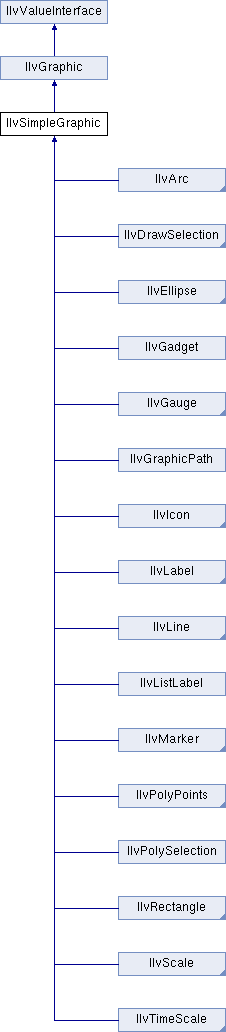

Inheritance diagram for IlvSimpleGraphic:

Public Member Functions
	IlvSimpleGraphic (IlvDisplay display, IlvPalette palette=0)
	Initializes a new `IlvSimpleGraphic`. More...

virtual	~IlvSimpleGraphic ()
	Destructor. More...

virtual void	applyResources (const char , const char , const char , const char , IlvDisplay *=0)
	Applies resources on a graphic object. More...

IlvIntensity	getAlpha () const
	Retrieves the alpha value. More...

IlvAntialiasingMode	getAntialiasingMode () const
	Retrieves the anti-aliasing mode. More...

IlvArcMode	getArcMode () const
	Retrieves the arc mode. More...

IlvColor *	getBackground () const
	Retrieves the background color. More...

IlvColorPattern *	getColorPattern () const
	Retrieves the color pattern. More...

virtual IlvDisplay *	getDisplay () const
	Retrieves the `IlvDisplay` instance. More...

IlvFillRule	getFillRule () const
	Retrieves the fill rule. More...

IlvFillStyle	getFillStyle () const
	Retrieves the fill style. More...

IlvFont *	getFont () const
	Retrieves the font. More...

IlvColor *	getForeground () const
	Retrieves the foreground color. More...

IlvGradientPattern *	getGradientPattern () const
	Retrieves the gradient pattern. More...

IlvLineStyle *	getLineStyle () const
	Retrieves the line style. More...

IlUShort	getLineWidth () const
	Retrieves the line width. More...

virtual IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look & feel handler used by this object. More...

virtual int	getLookupStringInputMethod (IlvEvent &event, char bufferReturn, int bytesBuffer, int statusReturn)
	Gets the preedit string from an input method. More...

IlvDrawMode	getMode () const
	Retrieves the draw mode. More...

IlBoolean	getOverwrite () const
	Retrieves the overwrite mode. More...

IlvPalette *	getPalette () const
	Retrieves the internal palette value. More...

IlvPattern *	getPattern () const
	Retrieves the pattern. More...

virtual void	invert (IlBoolean=IlFalse)
	Highlights the object. More...

virtual void	registerInputMethod () const
	Controls the connection of a graphic object to an input method. More...

virtual void	setAlpha (IlvIntensity)
	Sets the alpha value of the object. More...

virtual void	setAntialiasingMode (IlvAntialiasingMode)
	Sets the anti-aliasing mode of the object. More...

virtual void	setArcMode (IlvArcMode)
	Sets the arc mode of the object. More...

virtual void	setBackground (IlvColor *)
	Sets the background color of the object. More...

virtual void	setColorPattern (IlvColorPattern *)
	Sets the color pattern of the object. More...

virtual void	setFillRule (IlvFillRule)
	Sets the fill rule of the object. More...

virtual void	setFillStyle (IlvFillStyle)
	Sets the fill style of the object. More...

virtual void	setFocusValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a simple graphic object and an input method. More...

virtual void	setFont (IlvFont *)
	Sets the font of the object. More...

virtual void	setForeground (IlvColor *)
	Sets the foreground color of the object. More...

virtual void	setGradientPattern (IlvGradientPattern *)
	Sets the gradient pattern of the object. More...

virtual void	setHolder (IlvGraphicHolder *)
	Sets the object's holder. More...

virtual void	setLineStyle (IlvLineStyle *)
	Sets the line style of the object. More...

virtual void	setLineWidth (IlUShort)
	Sets the line width of the object. More...

virtual void	setMode (IlvDrawMode)
	Sets the drawing mode of the object temporarily. More...

virtual void	setOverwrite (IlBoolean)
	Sets an overwrite mode that modifies how the drawing member functions operate. More...

virtual void	setPalette (IlvPalette *palette)
	Sets the internal palette. More...

virtual void	setPattern (IlvPattern *)
	Sets the pattern of the object. More...

virtual void	setValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a graphic object and an input method. More...

virtual void	unRegisterInputMethod () const
	Controls the disconnection of a graphic object from an input method. More...

virtual void	unsetFocusInputMethod () const
	Controls the interaction between a graphic object and an input method. More...

Public Member Functions inherited from IlvGraphic
void	addCallback (const IlSymbol callbackType, const IlSymbol callbackName, const IlSymbol *script=0)
	Adds a callback function to a callback list. More...

void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Adds a callback function to a callback list. More...

void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Adds a callback function to a callback list. More...

void	addClassProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...

void	addProperty (const IlSymbol *key, IlAny value)
	Adds a specific property to the object. More...

void	addTag (const IlSymbol *tag)
	Adds a tag. More...

virtual void	apply (IlvApplyObject function, IlAny arg)
	Applies a function to objects that compose another object. More...

IlBoolean	applyAttribute (const char attributeClassName, const char value, IlAny checkData=0) const
	Applies attributes. More...

IlBoolean	applyAttribute (const char *attributeClassName, IlFloat value, IlAny checkData=0) const
	Applies attributes. More...

IlBoolean	applyAttribute (const char *attributeClassName, IlInt value, IlAny checkData=0) const
	Applies attributes. More...

virtual void	applyReferences (IlvApplyObject function, IlAny arg)
	Applies a function to objects that are referenced by another object. More...

virtual void	applyTransform (const IlvTransformer *t)=0
	Applies a transformation function to the graphic object. More...

virtual void	boundingBox (IlvRect &bbox, const IlvTransformer *t=0) const =0
	Retrieves the bounding box of the graphic object. More...

virtual void	callCallbacks (const IlSymbol *callbackType)
	Calls every callback of a given type. More...

const char *	className () const
	Returns the class name of an object. More...

virtual void	computeFocusRegion (IlvRegion &r, const IlvTransformer *t=0) const
	Computes the region needed for the drawing of the focus. More...

IlBoolean	contains (const IlvPoint &p) const
	Checks whether a point is in the object. More...

virtual IlBoolean	contains (const IlvPoint &p, const IlvPoint &tp, const IlvTransformer *t=0) const
	Checks whether a point is in the object. More...

virtual IlvGraphic *	copy () const =0
	Copies this object. More...

void	draw (IlvPort dst, const IlvTransformer t, const IlvRect *clip) const
	Draws a graphic object. More...

virtual void	draw (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const =0
	Draws the graphic object. More...

virtual void	drawFocus (IlvPort dst, const IlvPalette palette, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws additional drawings for an object that has the keyboard focus. More...

virtual void	getAccessors (const IlSymbol const , const IlvValueTypeClass const **, IlUInt &) const
	Retrieves the list of available accessors of an object. More...

IlvGraphicCallback	getCallback () const
	Gets the main callback function. More...

IlvGraphicCallback	getCallback (const IlSymbol *callbackType) const
	Gets a callback. More...

IlAny	getCallbackData (const IlSymbol callbackType, const IlSymbol callbackName) const
	Gets a callback user data. More...

IlAny	getCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Gets a callback user data. More...

IlSymbol *	getCallbackName () const
	Gets the symbol that identifies the main callback. More...

IlSymbol *	getCallbackName (const IlSymbol *callbackType) const
	Gets the name of a callback. More...

virtual IlUInt	getCallbackTypes (const char const names, const IlSymbol const **types) const
	Gets the number of register callback types for the object. More...

virtual IlvGraphic *	getChildAt (IlUInt index) const
	Returns the sub-object of the graphic object specified by index. More...

virtual IlvGraphic *	getChildByName (const char *name) const
	Returns the sub-object of the graphic object specified by a name. More...

virtual IlUInt	getChildCount () const
	Returns the number of children of this graphic object. More...

virtual IlInt	getChildIndex (const IlvGraphic *object) const
	Returns the index of the specified sub-object in this graphic object. More...

virtual IlvGraphic const	getChildren (IlUInt &count) const
	Returns an array containing the sub-objects of this graphic object. More...

virtual IlvClassInfo *	getClassInfo () const
	Gets class information. More...

IlAny	getClassProperty (const IlSymbol *key, IlBoolean checkParent=IlFalse) const
	Retrieves the indicated property value in the class of this object. More...

IlAny	getClientData () const
	Gets client data. More...

virtual const char *	getDefaultInteractor () const
	Gets the name of the default interactor for this object. More...

virtual IlvGraphicHolder *	getHolder () const
	Gets a pointer to an object's holder. More...

IlvInteractor *	getInteractor () const
	Returns the interactor associated with the current object. More...

const char *	getName () const
	Gets the name of the object. More...

IlvNamedProperty *	getNamedProperty (const IlSymbol *name) const
	Gets a named property. More...

IlSymbol *	getNextFocusGraphic () const
	Gets the next object in the focus chain. More...

IlSymbol *	getPreviousFocusGraphic () const
	Gets the previous object in the focus chain. More...

IlAny	getProperty (const IlSymbol *key) const
	Gets a property. More...

IlvSmartSet *	getSmartSet () const
	Gets the smart set object containing this graphic object. More...

const IlSymbol const	getTags (IlUInt &count) const
	Returns all the tags applied to this object. More...

IlvDim	h () const
	Gets the height value of the object. More...

void	h (IlvDim h)
	Sets the height value of the object. More...

IlBoolean	hasCallback (const IlSymbol callbackType, const IlSymbol callbackName) const
	Checks whether a callback function is in a callback list. More...

IlBoolean	hasCallback (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function is in a callback list. More...

IlBoolean	hasCallbackData (const IlSymbol callbackType, const IlSymbol callbackName) const
	Checks whether a callback function has user data. More...

IlBoolean	hasCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function has user data. More...

const IlvClassInfo *	hasClassProperty (const IlSymbol *key, IlBoolean s=IlFalse) const
	Checks for a class where the keyed property exists. More...

IlBoolean	hasProperty (const IlSymbol *key) const
	Checks whether the object has a particular property. More...

IlBoolean	hasTag (const IlSymbol *tag) const
	Checks whether the object has a specific tag. More...

IlBoolean	inside (const IlvRect &r) const
	Determines whether a rectangle is inside the bounding box. More...

IlBoolean	inside (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...

virtual IlBoolean	inside (const IlvRegion &r, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...

IlBoolean	intersects (const IlvRect &r) const
	Checks whether a rectangle intersects the bounding box. More...

IlBoolean	intersects (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Checks whether a rectangle intersects the bounding box with transformation applied. More...

virtual IlBoolean	intersects (const IlvRegion &r, const IlvTransformer *t=0) const
	Checks whether a region intersects the bounding box with transformation applied. More...

IlBoolean	isFirstFocusGraphic () const
	Checks whether the object is first in the focus chain. More...

IlBoolean	isFocusable () const
	Checks whether the object can receive the keyboard focus. More...

IlBoolean	isInSmartSet () const
	Checks whether a graphic object belongs to a smart set. More...

IlBoolean	isLastFocusGraphic () const
	Checks whether the object is last in the focus chain. More...

IlBoolean	isSensitive () const
	Checks whether the object is sensitive. More...

IlBoolean	isSubtypeOf (const char *parentClass) const
	Checks whether this object's class is a subclass of a given parent class. More...

IlBoolean	isSubtypeOf (const IlvClassInfo *classInfo) const
	Checks whether this object's class is a subclass. More...

void	move (const IlvPoint &p)
	Moves the graphic object. More...

virtual void	move (IlvPos x, IlvPos y)
	Moves the graphic object. More...

void	moveResize (const IlvRect &size)
	Moves and resizes a graphic object. More...

virtual IlBoolean	needsInputContext () const
	Indicates whether the graphic instance can connect to an input method for locale dependent input. More...

virtual void	print (std::ostream &out, int level=0) const
	Prints for debugging purposes. More...

void	removeCallback (const IlSymbol callbackType, const IlSymbol callbackName)
	Removes a callback function from a callback list. More...

void	removeCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Removes a callback function from a callback list. More...

IlBoolean	removeClassProperty (const IlSymbol *key)
	Removes a property from this object's class. More...

void	removeInteractor ()
	Removes the interactor from the current object. More...

IlvNamedProperty *	removeNamedProperty (IlSymbol *name)
	Removes a named property from the object. More...

IlBoolean	removeProperty (const IlSymbol *key)
	Removes a property from the object. More...

void	removeTag (const IlSymbol *tag)
	Removes a tag. More...

IlBoolean	replaceClassProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...

IlBoolean	replaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property. More...

virtual void	resize (IlvDim newW, IlvDim newH)
	Resizes a graphic object. More...

virtual void	rotate (const IlvPoint &center, IlFloat angle)
	Rotates a graphic object. More...

virtual void	scale (IlFloat zoomX, IlFloat zoomY)
	Scales the graphic object. More...

void	setCallback (const IlSymbol callbackType, const IlSymbol callbackName, const IlSymbol *script=0)
	Removes all previously set callbacks. More...

void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Sets a new callback. More...

void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Removes all previously set callbacks. More...

void	setCallback (IlvGraphicCallback callback, IlAny data)
	Sets the main callback function. More...

void	setCallbackData (const IlSymbol callbackType, const IlSymbol callbackName, IlAny data)
	Sets the callback user data for a callback function. More...

void	setCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback, IlAny data)
	Sets the callback user data for a callback function. More...

void	setCallbackName (const IlSymbol *callbackName)
	Sets the symbol that identifies the main callback. More...

void	setClientData (IlAny clientData)
	Sets client data. More...

void	setFirstFocusGraphic ()
	Sets the object to be first in the focus chain.

void	setFocusable (IlBoolean value)
	Set the focusable state of the object. More...

IlBoolean	setInteractor (const char *name)
	Attaches an interactor to this graphic object. More...

IlBoolean	setInteractor (IlvInteractor *inter)
	Attaches an interactor to the current object. More...

void	setLastFocusGraphic ()
	Sets the object to be last in the focus chain.

virtual void	setName (const char *name)
	Sets the name of the object. More...

IlvNamedProperty *	setNamedProperty (IlvNamedProperty *property)
	Sets a named property on the object. More...

virtual void	setNeedsInputContext (IlBoolean val)
	Specifies whether the graphic object should have locale dependent input. More...

void	setNextFocusGraphic (IlSymbol *name)
	Sets the object to be next in the focus chain. More...

void	setPreviousFocusGraphic (IlSymbol *name)
	Sets an object as previous in the focus chain. More...

void	setProperty (const IlSymbol *key, IlAny value)
	Sets a property of the object to a value. More...

virtual void	setSensitive (IlBoolean value)
	Sets the sensitivity of the object. More...

virtual void	symmetry (IlvDirection axis)
	Flips a graphic object. More...

virtual void	translate (IlvPos dx, IlvPos dy)
	Applies a transformation function on a graphic object. More...

IlvDim	w () const
	Gets the width value of the object. More...

void	w (IlvDim w)
	Sets the width value of the object. More...

virtual void	write (IlvOutputFile &output) const =0
	Writes an object description to a file. More...

IlvPos	x () const
	Gets the `x` coordinate value of the object. More...

void	x (IlvPos x)
	Sets the `x` coordinate value of the object. More...

IlvPos	y () const
	Gets the `y` coordinate value of the object. More...

void	y (IlvPos y)
	Sets the `y` coordinate value of the object. More...

virtual IlBoolean	zoomable () const
	Checks whether this object is zoomable. More...

Public Member Functions inherited from IlvValueInterface
virtual IlBoolean	applyValue (const IlvValue &value)
	Apply an accessor. More...

virtual IlBoolean	changeValue (const IlvValue &val)
	Changes the value of an accessor. More...

virtual IlBoolean	changeValues (const IlvValue *values, IlUShort count=0)
	Changes several accessor values simultaneously. More...

virtual IlvValue &	queryValue (IlvValue &val) const
	Retrieves an accessor value. More...

virtual void	queryValues (IlvValue *values, IlUShort count) const
	Retrieves multiple accessor values simultaneously. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvGraphic
static void	AddProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...

static void	AddToCallbackTypeList (IlUInt &count, const char const names, const IlSymbol const *types, const char newName, const IlSymbol *newType)
	Adds a callback to a list. More...

static void	AllowZoom (IlBoolean az)
	Sets or inhibits zooming. More...

static IlvClassInfo *	ClassInfo () const
	Gets class information. More...

static IlAny	GetProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Retrieves the property value associated with the key in this object's class. More...

static const IlvClassInfo *	HasProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Checks for the existence of a property for this object's class hierarchy. More...

static IlBoolean	IsZoomAllowed ()
	Checks whether zoomable objects can display themselves when zooming out. More...

static IlvGraphic *	read (IlvInputFile &file, IlvPalette *palette)
	Reads an object description from a file. More...

static IlBoolean	RemoveProperty (const IlSymbol *key)
	Removes a property from this object's class. More...

static IlBoolean	ReplaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...

Detailed Description

Graphic class.

Library: views

This class enables you to access palette attributes. Every IlvSimpleGraphic has an IlvPalette object, but these palettes are shared between objects. When you ask an IlvSimpleGraphic object to change a graphic property such as its foreground, the following operations are performed:

The getPalette() function is used to search for a new IlvPalette using the graphic properties of the object.
The lock() function is called for the new palette to increment its reference count (see IlvResource::lock()).
The member function unLock() is called for the old palette (see IlvResource::unLock()). li>The new palette is registered as the current palette for the object.

These operations guarantee the sharing of the IlvPalette. Users are encouraged to use the same mechanism in the case of IlvPalette objects. This is why member functions that can manipulate resources by changing the graphic attributes, such as IlvPalette::setForeground(), are defined as virtual functions.

See also: IlvDisplay, IlvPalette.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvGraphic and adds the following ones:

Name	Type	Equivalent methods
`foreground`	Color	`getForeground()`, `setForeground()`
`background`	Color	`getBackground()`, `setBackground()`
`font`	Font	`getFont()`, `setFont()`
`pattern`	Pattern	`getPattern()`, `setPattern()`
`colorPattern`	ColorPattern	`getColorPattern()`, `setColorPattern()`
`gradientPattern`	GradientPattern	`getGradientPattern()`, `setGradientPattern()`
`lineStyle`	LineStyle	`getLineStyle()`, `setLineStyle()`
`fillStyle`	FillStyle	`getFillStyle()`, `setFillStyle()`
`fillRule`	FillRule	`getFillRule()`, `setFillRule()`
`arcMode`	ArcMode	`getArcMode()`, `setArcMode()`

Constructor & Destructor Documentation

◆ IlvSimpleGraphic()

IlvSimpleGraphic::IlvSimpleGraphic	(	IlvDisplay *	display,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvSimpleGraphic.

The IlvSimpleGraphic constructor needs the IlvPalette object to which it is attached to obtain resources. The palette parameter can be set to a specific value or left unspecified where it takes the value 0. When the palette is set to 0, the default palette of the display object is used. This palette is the one returned by the member function IlvDisplay::defaultPalette() of the IlvDisplay class. The palette parameter is locked when the object is created.

Parameters

display	The display where this object is created.
palette	The palette of the display object.

◆ ~IlvSimpleGraphic()

virtual IlvSimpleGraphic::~IlvSimpleGraphic ( )

virtual

Destructor.

The destructor unlocks the palette.

Member Function Documentation

◆ applyResources()

virtual void IlvSimpleGraphic::applyResources	(	const char *	storageName,
		const char *	storageClassName,
		const char *	objectName,
		const char *	objectClassName,
		IlvDisplay *	display = `0`
	)

virtual

Applies resources on a graphic object.

Searches for resources that match storageName.objectName.resource, or storageName.objectClassName.resource, or storageClassName.objectName.resource, or storageClassName.objectClassName.resource, in this order, and applies these resources to the object.

The resources taken into account by the class IlvGraphic are only geometric:

x
y
h or height
w or width

The class IlvSimpleGraphic also applies the following graphic resources, if and only if the object has the default display palette:

foreground
background
font
pattern
colorPattern
lineStyle
lineWidth
fillStyle
arcMode
fillRule

Parameters

storageName	The storage name.
storageClassName	The generic name of the storage instance.
objectName	The object name.
objectClassName	The generic name of the object class.
display	The display where this object is created.

Reimplemented from IlvGraphic.

◆ getAlpha()

IlvIntensity IlvSimpleGraphic::getAlpha ( ) const

virtual

Retrieves the alpha value.

Returns: The IlvPalette::getAlpha() value of the palette.

Reimplemented from IlvGraphic.

◆ getAntialiasingMode()

IlvAntialiasingMode IlvSimpleGraphic::getAntialiasingMode ( ) const

virtual

Retrieves the anti-aliasing mode.

Returns: The IlvPalette::getAntialiasingMode() value of the palette.

Reimplemented from IlvGraphic.

◆ getArcMode()

IlvArcMode IlvSimpleGraphic::getArcMode ( ) const

Retrieves the arc mode.

Returns: The IlvPalette::getArcMode() value of the palette.

◆ getBackground()

IlvColor* IlvSimpleGraphic::getBackground ( ) const

Retrieves the background color.

Returns: The IlvPalette::getBackground() value of the palette.

◆ getColorPattern()

IlvColorPattern* IlvSimpleGraphic::getColorPattern ( ) const

Retrieves the color pattern.

Returns: The IlvPalette::getColorPattern() value of the palette.

◆ getDisplay()

virtual IlvDisplay* IlvSimpleGraphic::getDisplay ( ) const

virtual

Retrieves the IlvDisplay instance.

Returns: The value received from the method getDisplay() of the palette object associated with this object (see IlvResource::getDisplay()).

Reimplemented from IlvGraphic.

◆ getFillRule()

IlvFillRule IlvSimpleGraphic::getFillRule ( ) const

Retrieves the fill rule.

Returns: The IlvPalette::getFillRule() value of the palette.

◆ getFillStyle()

IlvFillStyle IlvSimpleGraphic::getFillStyle ( ) const

Retrieves the fill style.

Returns: The IlvPalette::getFillStyle() value of the palette.

◆ getFont()

IlvFont* IlvSimpleGraphic::getFont ( ) const

Retrieves the font.

Returns: The IlvPalette::getFont() value of the palette.

◆ getForeground()

IlvColor* IlvSimpleGraphic::getForeground ( ) const

Retrieves the foreground color.

Returns: The IlvPalette::getForeground() value of the palette.

◆ getGradientPattern()

IlvGradientPattern* IlvSimpleGraphic::getGradientPattern ( ) const

Retrieves the gradient pattern.

Returns: The IlvPalette::getGradientPattern() value of the palette.

◆ getLineStyle()

IlvLineStyle* IlvSimpleGraphic::getLineStyle ( ) const

Retrieves the line style.

Returns: The IlvPalette::getLineStyle() value of the palette.

◆ getLineWidth()

IlUShort IlvSimpleGraphic::getLineWidth ( ) const

virtual

Retrieves the line width.

Returns: The IlvPalette::getLineWidth() value of the palette.

Reimplemented from IlvGraphic.

◆ getLookFeelHandler()

virtual IlvLookFeelHandler* IlvSimpleGraphic::getLookFeelHandler ( ) const

virtual

Returns the look & feel handler used by this object.

The default implementation returns the look & feel handler of the display connected to this object.

Returns: The look & feel handler used by this object.

Reimplemented from IlvGraphic.

Reimplemented in IlvGadget.

◆ getLookupStringInputMethod()

virtual int IlvSimpleGraphic::getLookupStringInputMethod	(	IlvEvent &	event,
		char *	bufferReturn,
		int	bytesBuffer,
		int *	statusReturn
	)

virtual

Gets the preedit string from an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale. It returns the preedit string from an input method.

It should be called from the handleEvent() when getting a key press event (in the IlvKeyDown case).

Parameters

event	The key press event.
bufferReturn	The returned multibyte buffer containing the preedit string. You must pre-allocate this buffer so that it can be filled, and the actual size of the buffer can be enlarged using this same method (see statusReturn).
bytesBuffer	The size in bytes of the allocated buffer.
statusReturn	The return status of the operation. This can be: `0` for success. In that case the returned value represents the number of bytes. `1` for failure in case of an allocated buffer too small. In that case the returned value is the needed size. Others values for failure.

Returns: The number of returned bytes, if successful.

◆ getMode()

IlvDrawMode IlvSimpleGraphic::getMode ( ) const

Retrieves the draw mode.

Returns: The IlvPalette::getMode() value of the palette.

◆ getOverwrite()

IlBoolean IlvSimpleGraphic::getOverwrite ( ) const

Retrieves the overwrite mode.

Returns: The IlvPalette::getOverwrite() value of the palette.

◆ getPalette()

IlvPalette* IlvSimpleGraphic::getPalette ( ) const

Retrieves the internal palette value.

Returns: A pointer to the internal palette value.

◆ getPattern()

IlvPattern* IlvSimpleGraphic::getPattern ( ) const

Retrieves the pattern.

Returns: The IlvPalette::getPattern() value of the palette.

◆ invert()

virtual void IlvSimpleGraphic::invert ( IlBoolean temp = IlFalse )

virtual

Highlights the object.

Highlights the object. It is implemented as swapping the foreground and background colors of the object, but can have other implementations in derived subclasses. The parameter temp controls the way you toggle between the background and the foreground. If temp is omitted or is IlFalse, then a new palette is computed by calling the IlvDisplay::getPalette() method. If temp is IlTrue, the object palette is inverted, and thus all the objects referencing this palette will be affected.

Parameters

temp	If `IlTrue`, highlights the object.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, IlvReliefGauge, IlvGauge, IlvGadget, IlvReliefLine, and IlvOutlinePolygon.

◆ registerInputMethod()

virtual void IlvSimpleGraphic::registerInputMethod ( ) const

virtual

Controls the connection of a graphic object to an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale.

This method is used internally when an object is attached to its holder, as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext() returns IlTrue.

A developer could use it when its graphic object changes its editable state from non-editable to editable.

See also: IlvSetLocale(), IlvGraphic::needsInputContext().

◆ setAlpha()

virtual void IlvSimpleGraphic::setAlpha ( IlvIntensity alpha )

virtual

Sets the alpha value of the object.

Parameters

alpha The new alpha value.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvReliefRectangle, IlvReliefLine, IlvGraphicPath, IlvOutlinePolygon, IlvGadget, IlvReliefGauge, and IlvGauge.

◆ setAntialiasingMode()

virtual void IlvSimpleGraphic::setAntialiasingMode ( IlvAntialiasingMode mode )

virtual

Sets the anti-aliasing mode of the object.

Parameters

mode	The new anti-aliasing mode.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvReliefRectangle, IlvReliefLine, IlvGraphicPath, IlvOutlinePolygon, IlvGadget, IlvReliefGauge, and IlvGauge.

◆ setArcMode()

virtual void IlvSimpleGraphic::setArcMode ( IlvArcMode mode )

virtual

Sets the arc mode of the object.

Parameters

mode	The new arc mode.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, and IlvGadget.

◆ setBackground()

virtual void IlvSimpleGraphic::setBackground ( IlvColor * background )

virtual

Sets the background color of the object.

Parameters

background The new background color.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvReliefLine, IlvGraphicPath, IlvReliefRectangle, IlvViewRectangle, IlvOutlinePolygon, IlvGauge, and IlvGadget.

◆ setColorPattern()

virtual void IlvSimpleGraphic::setColorPattern ( IlvColorPattern * pattern )

virtual

Sets the color pattern of the object.

Parameters

pattern The new color pattern.

Reimplemented from IlvGraphic.

Reimplemented in IlvRectangularGauge, IlvReliefRectangle, and IlvGadget.

◆ setFillRule()

virtual void IlvSimpleGraphic::setFillRule ( IlvFillRule rule )

virtual

Sets the fill rule of the object.

Parameters

rule	The new fill rule.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, and IlvGadget.

◆ setFillStyle()

virtual void IlvSimpleGraphic::setFillStyle ( IlvFillStyle style )

virtual

Sets the fill style of the object.

Parameters

style The new fill style.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, IlvGadget, and IlvRectangularGauge.

◆ setFocusValuesInputMethod()

virtual void IlvSimpleGraphic::setFocusValuesInputMethod	(	IlUShort	count,
		const IlvImValue *	values
	)		const

virtual

Controls the interaction between a simple graphic object and an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale. It tells the input method that this object has now the input focus.

This method should be called when an object gets the keyboard focus (usually in the handleEvent() under the IlvKeyboardFocusIn), as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext() returns IlTrue.

Parameters

count	The number of values.
values	The attributes and values to be passed to an input method to update an input context. See detailed information in `setValuesInputMethod()`.

See also: setValuesInputMethod(), IlvSetLocale(), IlvGraphic::needsInputContext().

◆ setFont()

virtual void IlvSimpleGraphic::setFont ( IlvFont * font )

virtual

Sets the font of the object.

Parameters

font	The new font.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowLabel, IlvReliefLabel, IlvScale, IlvReliefRectangle, IlvListLabel, IlvLabel, and IlvGadget.

◆ setForeground()

virtual void IlvSimpleGraphic::setForeground ( IlvColor * foreground )

virtual

Sets the foreground color of the object.

Parameters

foreground The new foreground color.

Reimplemented from IlvGraphic.

Reimplemented in IlvGraphicPath, IlvShadowRectangle, IlvReliefLine, IlvReliefRectangle, IlvOutlinePolygon, IlvReliefGauge, IlvGauge, and IlvGadget.

◆ setGradientPattern()

virtual void IlvSimpleGraphic::setGradientPattern ( IlvGradientPattern * pattern )

virtual

Sets the gradient pattern of the object.

Parameters

pattern The new gradient pattern.

Reimplemented from IlvGraphic.

Reimplemented in IlvRectangularGauge, IlvReliefRectangle, and IlvGadget.

◆ setHolder()

virtual void IlvSimpleGraphic::setHolder ( IlvGraphicHolder * )

virtual

Sets the object's holder.

This default implementation has no real function.

Reimplemented from IlvGraphic.

Reimplemented in IlvGadget.

◆ setLineStyle()

virtual void IlvSimpleGraphic::setLineStyle ( IlvLineStyle * style )

virtual

Sets the line style of the object.

Parameters

style The new line style.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvReliefLine, IlvReliefRectangle, IlvOutlinePolygon, and IlvGadget.

◆ setLineWidth()

virtual void IlvSimpleGraphic::setLineWidth ( IlUShort width )

virtual

Sets the line width of the object.

Parameters

width The new line width.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, IlvOutlinePolygon, IlvGadget, IlvReliefLine, and IlvShadowRectangle.

◆ setMode()

virtual void IlvSimpleGraphic::setMode ( IlvDrawMode mode )

virtual

Sets the drawing mode of the object temporarily.

Changing the IlvDrawMode attribute of an object is considered a temporary operation. You have to set the mode to its default value when you no longer need another mode different from the value IlvModeSet. The drawing mode information is passed to the palette of the graphic object (see the IlvPalette::setOverwrite() method for more details).

Parameters

mode	The drawing mode to be set.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, IlvPolySelection, IlvOutlinePolygon, IlvReliefGauge, IlvGauge, IlvGadget, IlvGraphicPath, IlvShadowRectangle, IlvDrawSelection, and IlvReliefLine.

◆ setOverwrite()

virtual void IlvSimpleGraphic::setOverwrite ( IlBoolean over )

virtual

Sets an overwrite mode that modifies how the drawing member functions operate.

Modifies the way the drawing member functions operate. The information is passed to the palette of the graphic object (see the IlvPalette::setOverwrite() method for more details).

Parameters

over	If `IlFalse`, sets selective hidden drawing operations.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvReliefRectangle, IlvOutlinePolygon, IlvGadget, IlvReliefLine, IlvGauge, and IlvDrawSelection.

◆ setPalette()

virtual void IlvSimpleGraphic::setPalette ( IlvPalette * palette )

virtual

Sets the internal palette.

The previous palette is unlocked, and palette is locked.

Parameters

palette The new palette of this object.

Reimplemented from IlvGraphic.

Reimplemented in IlvShadowRectangle, IlvDrawSelection, IlvGraphicPath, IlvScale, IlvReliefRectangle, IlvReliefLine, IlvViewRectangle, IlvOutlinePolygon, IlvLabel, IlvReliefGauge, IlvGauge, and IlvGadget.

◆ setPattern()

virtual void IlvSimpleGraphic::setPattern ( IlvPattern * pattern )

virtual

Sets the pattern of the object.

Parameters

pattern The new pattern.

Reimplemented from IlvGraphic.

Reimplemented in IlvReliefRectangle, and IlvGadget.

◆ setValuesInputMethod()

virtual void IlvSimpleGraphic::setValuesInputMethod	(	IlUShort	count,
		const IlvImValue *	values
	)		const

virtual

Controls the interaction between a graphic object and an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale. It gives the input method attributes to update the input context.

This method should be called each time an object modifies its position or its appearance so that the input context can be updated, as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext() returns IlTrue.

It is automatically called from the following methods:

IlvSimpleGraphic::setPalette() to communicate the foreground and background colors.
IlvSimpleGraphic::setBackground() to communicate the background color.
IlvSimpleGraphic::setForeground() to communicate the foreground color.
IlvGadget::applyTransform() to communicate the rectangle size of the object.

as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext returns IlTrue.

Parameters

count	The number of values.
values	The attributes and values to be passed to an input method to update an input context. See the `IlvImValue` class for more information.

See also: IlvSetLocale(), IlvImValue, IlvGraphic::needsInputContext().

◆ unRegisterInputMethod()

virtual void IlvSimpleGraphic::unRegisterInputMethod ( ) const

virtual

Controls the disconnection of a graphic object from an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale.

This method is used internally when an object is removed from its holder, as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext() returns IlTrue.

A developer could use it when its graphic object changes its editable state from editable to non-editable.

See also: IlvSetLocale(), IlvGraphic::needsInputContext().

◆ unsetFocusInputMethod()

virtual void IlvSimpleGraphic::unsetFocusInputMethod ( ) const

virtual

Controls the interaction between a graphic object and an input method.

This method is offered to developers of subclasses of IlvSimpleGraphic wanted to control input and connection to an input method, so that input can be done in the current locale. It tells the input method that this object has lost the input focus.

This method should be called when an object looses the keyboard focus (usually in the handleEvent() in the IlvKeyboardFocusOut case), as long as IlvSetLocale() has been called, and IlvGraphic::needsInputContext() returns IlTrue.

See also: IlvSetLocale(), IlvGraphic::needsInputContext().

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IlvSimpleGraphic()

◆ ~IlvSimpleGraphic()

Member Function Documentation

◆ applyResources()

◆ getAlpha()

◆ getAntialiasingMode()

◆ getArcMode()

◆ getBackground()

◆ getColorPattern()

◆ getDisplay()

◆ getFillRule()

◆ getFillStyle()

◆ getFont()

◆ getForeground()

◆ getGradientPattern()

◆ getLineStyle()

◆ getLineWidth()

◆ getLookFeelHandler()

◆ getLookupStringInputMethod()

◆ getMode()

◆ getOverwrite()

◆ getPalette()

◆ getPattern()

◆ invert()

◆ registerInputMethod()

◆ setAlpha()

◆ setAntialiasingMode()

◆ setArcMode()

◆ setBackground()

◆ setColorPattern()

◆ setFillRule()

◆ setFillStyle()

◆ setFocusValuesInputMethod()

◆ setFont()

◆ setForeground()

◆ setGradientPattern()

◆ setHolder()

◆ setLineStyle()

◆ setLineWidth()

◆ setMode()

◆ setOverwrite()

◆ setPalette()

◆ setPattern()

◆ setValuesInputMethod()

◆ unRegisterInputMethod()

◆ unsetFocusInputMethod()
