IlvViewRectangle Class Reference

Graphic class. More...

#include <ilviews/graphics/rectview.h>

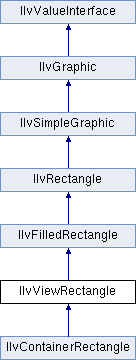

Inheritance diagram for IlvViewRectangle:
IlvFilledRectangle IlvRectangle IlvSimpleGraphic IlvGraphic IlvValueInterface IlvContainerRectangle

Public Member Functions

 IlvViewRectangle (IlvDisplay *display, const IlvRect &rect, IlvPalette *palette=0)
 Constructor. More...

virtual void applyTransform (const IlvTransformer *t)
 Applies a transformation function to the graphic object. More...

virtual IlvViewcreateView (IlvAbstractView *parent, const IlvRect &size)
 Creates the view. More...

virtual void draw (IlvPort *, const IlvTransformer *t=0, const IlvRegion *clip=0) const
 Draws the graphic object. More...

virtual IlvViewgetView () const
 Retrieves the view of this object. More...

void hide ()

void hideView ()
 Hides the stored view, but not the IlvViewRectangle (as IlvGraphic).

virtual IlBoolean isViewVisible () const
 Retrieves the visibility of the stored view. More...

virtual void makeView (IlvPort *dst, const IlvTransformer *t=0)
 Sets up the view. More...

virtual void setBackground (IlvColor *)
 Sets the background color of the object. More...

virtual void setPalette (IlvPalette *)
 Sets the internal palette. More...

virtual void setView (IlvView *view)
 Sets the view of this object. More...

virtual void setVisible (IlBoolean value)
 Sets the visibility of both this IlvViewRectangle (as IlvGraphic) and the stored view.

void show ()

void showView ()
 Shows the stored view, but not the IlvViewRectangle (as IlvGraphic).

- Public Member Functions inherited from IlvFilledRectangle
 IlvFilledRectangle (IlvDisplay *display, const IlvRect &drawrect, IlvPalette *palette=0)
 Constructor. More...

virtual IlBoolean contains (const IlvPoint &p, const IlvPoint &tp, const IlvTransformer *t=0) const
 Checks whether a point is in the object. More...

- Public Member Functions inherited from IlvRectangle
 IlvRectangle (IlvDisplay *display, const IlvRect &drawrect, IlvPalette *palette=0)
 Constructor. More...

virtual void boundingBox (IlvRect &rect, const IlvTransformer *t=0) const
 Retrieves the bounding box of the graphic object. More...

- Public Member Functions inherited from IlvSimpleGraphic
 IlvSimpleGraphic (IlvDisplay *display, IlvPalette *palette=0)
 Initializes a new IlvSimpleGraphic. More...

virtual ~IlvSimpleGraphic ()
 Destructor. More...

virtual void applyResources (const char *, const char *, const char *, const char *, IlvDisplay *=0)
 Applies resources on a graphic object. More...

IlvIntensity getAlpha () const
 Retrieves the alpha value. More...

IlvAntialiasingMode getAntialiasingMode () const
 Retrieves the anti-aliasing mode. More...

IlvArcMode getArcMode () const
 Retrieves the arc mode. More...

IlvColorgetBackground () const
 Retrieves the background color. More...

IlvColorPatterngetColorPattern () const
 Retrieves the color pattern. More...

virtual IlvDisplaygetDisplay () const
 Retrieves the IlvDisplay instance. More...

IlvFillRule getFillRule () const
 Retrieves the fill rule. More...

IlvFillStyle getFillStyle () const
 Retrieves the fill style. More...

IlvFontgetFont () const
 Retrieves the font. More...

IlvColorgetForeground () const
 Retrieves the foreground color. More...

IlvGradientPatterngetGradientPattern () const
 Retrieves the gradient pattern. More...

IlvLineStylegetLineStyle () const
 Retrieves the line style. More...

IlUShort getLineWidth () const
 Retrieves the line width. More...

virtual IlvLookFeelHandlergetLookFeelHandler () const
 Returns the look & feel handler used by this object. More...

virtual int getLookupStringInputMethod (IlvEvent &event, char *bufferReturn, int bytesBuffer, int *statusReturn)
 Gets the preedit string from an input method. More...

IlvDrawMode getMode () const
 Retrieves the draw mode. More...

IlBoolean getOverwrite () const
 Retrieves the overwrite mode. More...

IlvPalettegetPalette () const
 Retrieves the internal palette value. More...

IlvPatterngetPattern () const
 Retrieves the pattern. More...

virtual void invert (IlBoolean=IlFalse)
 Highlights the object. More...

virtual void registerInputMethod () const
 Controls the connection of a graphic object to an input method. More...

virtual void setAlpha (IlvIntensity)
 Sets the alpha value of the object. More...

virtual void setAntialiasingMode (IlvAntialiasingMode)
 Sets the anti-aliasing mode of the object. More...

virtual void setArcMode (IlvArcMode)
 Sets the arc mode of the object. More...

virtual void setColorPattern (IlvColorPattern *)
 Sets the color pattern of the object. More...

virtual void setFillRule (IlvFillRule)
 Sets the fill rule of the object. More...

virtual void setFillStyle (IlvFillStyle)
 Sets the fill style of the object. More...

virtual void setFocusValuesInputMethod (IlUShort count, const IlvImValue *values) const
 Controls the interaction between a simple graphic object and an input method. More...

virtual void setFont (IlvFont *)
 Sets the font of the object. More...

virtual void setForeground (IlvColor *)
 Sets the foreground color of the object. More...

virtual void setGradientPattern (IlvGradientPattern *)
 Sets the gradient pattern of the object. More...

virtual void setHolder (IlvGraphicHolder *)
 Sets the object's holder. More...

virtual void setLineStyle (IlvLineStyle *)
 Sets the line style of the object. More...

virtual void setLineWidth (IlUShort)
 Sets the line width of the object. More...

virtual void setMode (IlvDrawMode)
 Sets the drawing mode of the object temporarily. More...

virtual void setOverwrite (IlBoolean)
 Sets an overwrite mode that modifies how the drawing member functions operate. More...

virtual void setPattern (IlvPattern *)
 Sets the pattern of the object. More...

virtual void setValuesInputMethod (IlUShort count, const IlvImValue *values) const
 Controls the interaction between a graphic object and an input method. More...

virtual void unRegisterInputMethod () const
 Controls the disconnection of a graphic object from an input method. More...

virtual void unsetFocusInputMethod () const
 Controls the interaction between a graphic object and an input method. More...

- Public Member Functions inherited from IlvGraphic
void addCallback (const IlSymbol *callbackType, const IlSymbol *callbackName, const IlSymbol *script=0)
 Adds a callback function to a callback list. More...

void addCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
 Adds a callback function to a callback list. More...

void addCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
 Adds a callback function to a callback list. More...

void addClassProperty (const IlSymbol *key, IlAny value)
 Adds a property to this object's class. More...

void addProperty (const IlSymbol *key, IlAny value)
 Adds a specific property to the object. More...

void addTag (const IlSymbol *tag)
 Adds a tag. More...

virtual void apply (IlvApplyObject function, IlAny arg)
 Applies a function to objects that compose another object. More...

IlBoolean applyAttribute (const char *attributeClassName, const char *value, IlAny checkData=0) const
 Applies attributes. More...

IlBoolean applyAttribute (const char *attributeClassName, IlFloat value, IlAny checkData=0) const
 Applies attributes. More...

IlBoolean applyAttribute (const char *attributeClassName, IlInt value, IlAny checkData=0) const
 Applies attributes. More...

virtual void applyReferences (IlvApplyObject function, IlAny arg)
 Applies a function to objects that are referenced by another object. More...

virtual void callCallbacks (const IlSymbol *callbackType)
 Calls every callback of a given type. More...

const char * className () const
 Returns the class name of an object. More...

virtual void computeFocusRegion (IlvRegion &r, const IlvTransformer *t=0) const
 Computes the region needed for the drawing of the focus. More...

IlBoolean contains (const IlvPoint &p) const
 Checks whether a point is in the object. More...

virtual IlvGraphiccopy () const =0
 Copies this object. More...

void draw (IlvPort *dst, const IlvTransformer *t, const IlvRect *clip) const
 Draws a graphic object. More...

virtual void drawFocus (IlvPort *dst, const IlvPalette *palette, const IlvTransformer *t=0, const IlvRegion *clip=0) const
 Draws additional drawings for an object that has the keyboard focus. More...

virtual void getAccessors (const IlSymbol *const **, const IlvValueTypeClass *const **, IlUInt &) const
 Retrieves the list of available accessors of an object. More...

IlvGraphicCallback getCallback () const
 Gets the main callback function. More...

IlvGraphicCallback getCallback (const IlSymbol *callbackType) const
 Gets a callback. More...

IlAny getCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName) const
 Gets a callback user data. More...

IlAny getCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
 Gets a callback user data. More...

IlSymbolgetCallbackName () const
 Gets the symbol that identifies the main callback. More...

IlSymbolgetCallbackName (const IlSymbol *callbackType) const
 Gets the name of a callback. More...

virtual IlUInt getCallbackTypes (const char *const **names, const IlSymbol *const **types) const
 Gets the number of register callback types for the object. More...

virtual IlvGraphicgetChildAt (IlUInt index) const
 Returns the sub-object of the graphic object specified by index. More...

virtual IlvGraphicgetChildByName (const char *name) const
 Returns the sub-object of the graphic object specified by a name. More...

virtual IlUInt getChildCount () const
 Returns the number of children of this graphic object. More...

virtual IlInt getChildIndex (const IlvGraphic *object) const
 Returns the index of the specified sub-object in this graphic object. More...

virtual IlvGraphic *const * getChildren (IlUInt &count) const
 Returns an array containing the sub-objects of this graphic object. More...

virtual IlvClassInfogetClassInfo () const
 Gets class information. More...

IlAny getClassProperty (const IlSymbol *key, IlBoolean checkParent=IlFalse) const
 Retrieves the indicated property value in the class of this object. More...

IlAny getClientData () const
 Gets client data. More...

virtual const char * getDefaultInteractor () const
 Gets the name of the default interactor for this object. More...

virtual IlvGraphicHoldergetHolder () const
 Gets a pointer to an object's holder. More...

IlvInteractorgetInteractor () const
 Returns the interactor associated with the current object. More...

const char * getName () const
 Gets the name of the object. More...

IlvNamedPropertygetNamedProperty (const IlSymbol *name) const
 Gets a named property. More...

IlSymbolgetNextFocusGraphic () const
 Gets the next object in the focus chain. More...

IlSymbolgetPreviousFocusGraphic () const
 Gets the previous object in the focus chain. More...

IlAny getProperty (const IlSymbol *key) const
 Gets a property. More...

IlvSmartSetgetSmartSet () const
 Gets the smart set object containing this graphic object. More...

const IlSymbol *const * getTags (IlUInt &count) const
 Returns all the tags applied to this object. More...

IlvDim h () const
 Gets the height value of the object. More...

void h (IlvDim h)
 Sets the height value of the object. More...

IlBoolean hasCallback (const IlSymbol *callbackType, const IlSymbol *callbackName) const
 Checks whether a callback function is in a callback list. More...

IlBoolean hasCallback (const IlSymbol *callbackType, IlvGraphicCallback callback) const
 Checks whether a callback function is in a callback list. More...

IlBoolean hasCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName) const
 Checks whether a callback function has user data. More...

IlBoolean hasCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
 Checks whether a callback function has user data. More...

const IlvClassInfohasClassProperty (const IlSymbol *key, IlBoolean s=IlFalse) const
 Checks for a class where the keyed property exists. More...

IlBoolean hasProperty (const IlSymbol *key) const
 Checks whether the object has a particular property. More...

IlBoolean hasTag (const IlSymbol *tag) const
 Checks whether the object has a specific tag. More...

IlBoolean inside (const IlvRect &r) const
 Determines whether a rectangle is inside the bounding box. More...

IlBoolean inside (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
 Determines whether an object with transformation applied is inside the bounding box. More...

virtual IlBoolean inside (const IlvRegion &r, const IlvTransformer *t=0) const
 Determines whether an object with transformation applied is inside the bounding box. More...

IlBoolean intersects (const IlvRect &r) const
 Checks whether a rectangle intersects the bounding box. More...

IlBoolean intersects (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
 Checks whether a rectangle intersects the bounding box with transformation applied. More...

virtual IlBoolean intersects (const IlvRegion &r, const IlvTransformer *t=0) const
 Checks whether a region intersects the bounding box with transformation applied. More...

IlBoolean isFirstFocusGraphic () const
 Checks whether the object is first in the focus chain. More...

IlBoolean isFocusable () const
 Checks whether the object can receive the keyboard focus. More...

IlBoolean isInSmartSet () const
 Checks whether a graphic object belongs to a smart set. More...

IlBoolean isLastFocusGraphic () const
 Checks whether the object is last in the focus chain. More...

IlBoolean isSensitive () const
 Checks whether the object is sensitive. More...

IlBoolean isSubtypeOf (const char *parentClass) const
 Checks whether this object's class is a subclass of a given parent class. More...

IlBoolean isSubtypeOf (const IlvClassInfo *classInfo) const
 Checks whether this object's class is a subclass. More...

void move (const IlvPoint &p)
 Moves the graphic object. More...

virtual void move (IlvPos x, IlvPos y)
 Moves the graphic object. More...

void moveResize (const IlvRect &size)
 Moves and resizes a graphic object. More...

virtual IlBoolean needsInputContext () const
 Indicates whether the graphic instance can connect to an input method for locale dependent input. More...

virtual void print (std::ostream &out, int level=0) const
 Prints for debugging purposes. More...

void removeCallback (const IlSymbol *callbackType, const IlSymbol *callbackName)
 Removes a callback function from a callback list. More...

void removeCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
 Removes a callback function from a callback list. More...

IlBoolean removeClassProperty (const IlSymbol *key)
 Removes a property from this object's class. More...

void removeInteractor ()
 Removes the interactor from the current object. More...

IlvNamedPropertyremoveNamedProperty (IlSymbol *name)
 Removes a named property from the object. More...

IlBoolean removeProperty (const IlSymbol *key)
 Removes a property from the object. More...

void removeTag (const IlSymbol *tag)
 Removes a tag. More...

IlBoolean replaceClassProperty (const IlSymbol *key, IlAny value)
 Replaces a property in this object's class. More...

IlBoolean replaceProperty (const IlSymbol *key, IlAny value)
 Replaces a property. More...

virtual void resize (IlvDim newW, IlvDim newH)
 Resizes a graphic object. More...

virtual void rotate (const IlvPoint &center, IlFloat angle)
 Rotates a graphic object. More...

virtual void scale (IlFloat zoomX, IlFloat zoomY)
 Scales the graphic object. More...

void setCallback (const IlSymbol *callbackType, const IlSymbol *callbackName, const IlSymbol *script=0)
 Removes all previously set callbacks. More...

void setCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
 Sets a new callback. More...

void setCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
 Removes all previously set callbacks. More...

void setCallback (IlvGraphicCallback callback, IlAny data)
 Sets the main callback function. More...

void setCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName, IlAny data)
 Sets the callback user data for a callback function. More...

void setCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback, IlAny data)
 Sets the callback user data for a callback function. More...

void setCallbackName (const IlSymbol *callbackName)
 Sets the symbol that identifies the main callback. More...

void setClientData (IlAny clientData)
 Sets client data. More...

void setFirstFocusGraphic ()
 Sets the object to be first in the focus chain.

void setFocusable (IlBoolean value)
 Set the focusable state of the object. More...

IlBoolean setInteractor (const char *name)
 Attaches an interactor to this graphic object. More...

IlBoolean setInteractor (IlvInteractor *inter)
 Attaches an interactor to the current object. More...

void setLastFocusGraphic ()
 Sets the object to be last in the focus chain.

virtual void setName (const char *name)
 Sets the name of the object. More...

IlvNamedPropertysetNamedProperty (IlvNamedProperty *property)
 Sets a named property on the object. More...

virtual void setNeedsInputContext (IlBoolean val)
 Specifies whether the graphic object should have locale dependent input. More...

void setNextFocusGraphic (IlSymbol *name)
 Sets the object to be next in the focus chain. More...

void setPreviousFocusGraphic (IlSymbol *name)
 Sets an object as previous in the focus chain. More...

void setProperty (const IlSymbol *key, IlAny value)
 Sets a property of the object to a value. More...

virtual void setSensitive (IlBoolean value)
 Sets the sensitivity of the object. More...

virtual void symmetry (IlvDirection axis)
 Flips a graphic object. More...

virtual void translate (IlvPos dx, IlvPos dy)
 Applies a transformation function on a graphic object. More...

IlvDim w () const
 Gets the width value of the object. More...

void w (IlvDim w)
 Sets the width value of the object. More...

virtual void write (IlvOutputFile &output) const =0
 Writes an object description to a file. More...

IlvPos x () const
 Gets the x coordinate value of the object. More...

void x (IlvPos x)
 Sets the x coordinate value of the object. More...

IlvPos y () const
 Gets the y coordinate value of the object. More...

void y (IlvPos y)
 Sets the y coordinate value of the object. More...

virtual IlBoolean zoomable () const
 Checks whether this object is zoomable. More...

- Public Member Functions inherited from IlvValueInterface
virtual IlBoolean applyValue (const IlvValue &value)
 Apply an accessor. More...

virtual IlBoolean changeValue (const IlvValue &val)
 Changes the value of an accessor. More...

virtual IlBoolean changeValues (const IlvValue *values, IlUShort count=0)
 Changes several accessor values simultaneously. More...

virtual IlvValuequeryValue (IlvValue &val) const
 Retrieves an accessor value. More...

virtual void queryValues (IlvValue *values, IlUShort count) const
 Retrieves multiple accessor values simultaneously. More...


Additional Inherited Members

- Static Public Member Functions inherited from IlvGraphic
static void AddProperty (const IlSymbol *key, IlAny value)
 Adds a property to this object's class. More...

static void AddToCallbackTypeList (IlUInt &count, const char *const **names, const IlSymbol *const **types, const char *newName, const IlSymbol *newType)
 Adds a callback to a list. More...

static void AllowZoom (IlBoolean az)
 Sets or inhibits zooming. More...

static IlvClassInfoClassInfo () const
 Gets class information. More...

static IlAny GetProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
 Retrieves the property value associated with the key in this object's class. More...

static const IlvClassInfoHasProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
 Checks for the existence of a property for this object's class hierarchy. More...

static IlBoolean IsZoomAllowed ()
 Checks whether zoomable objects can display themselves when zooming out. More...

static IlvGraphicread (IlvInputFile &file, IlvPalette *palette)
 Reads an object description from a file. More...

static IlBoolean RemoveProperty (const IlSymbol *key)
 Removes a property from this object's class. More...

static IlBoolean ReplaceProperty (const IlSymbol *key, IlAny value)
 Replaces a property in this object's class. More...


Detailed Description

Graphic class.

Library: views

The IlvViewRectangle class lets the user create a special object that contains an actual instance of the class IlvView. This lets you create a graphic object that stores a view, and that can be connected with external objects.

This class is the most general, allowing you to associate any kind of view. Other classes are provided to treat specific kinds of views such as IlvGadgetContainer. There are also classes to associate a view with an instance of IlvManager (see the classes IlvManagerRectangle, IlvSCManagerRectangle, and IlvSCGrapherRectangle.

IlvViewRectangle and its subclasses are graphic objects (IlvGraphic subclasses). Graphic objects do not know where they will be stored when created and they can be displayed in different views simultaneously. To create its inner view object before actually being drawn the IlvViewRectangle object must know its parent view. IlvViewRectangle can also explicitly request a makeView call whose parameter is the port where the destination view must be.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvFilledRectangle and adds the following ones:

Name Type Equivalent methods
innerView Object getView(), setView()

Constructor & Destructor Documentation

◆ IlvViewRectangle()

IlvViewRectangle::IlvViewRectangle ( IlvDisplay display,
const IlvRect rect,
IlvPalette palette = 0
)

Constructor.

Although the object is ready to be used after the constructor is called, the actual view is not created until the first draw or makeView call.

Parameters
displayThe display instance.
rectSpecifies the geometry of the object.
paletteThe palette used to set the background color of the encapsulated view object.

Member Function Documentation

◆ applyTransform()

virtual void IlvViewRectangle::applyTransform ( const IlvTransformer t)
virtual

Applies a transformation function to the graphic object.

Applies the transformer t to the shape of the object. Unless the transformation is a scaling operation, the result of applying it to certain objects can be insignificant. For example, applying a non-scaling transformer to an IlvRectangle object is meaningless, since the rectangle remains a rectangle. On the other hand, meaningful transformations can be applied to objects that are instances of types such as IlvLine or IlvPolyPoints.

Note
applyTransform() is one of the most important method to be rewritten for classes derived from IlvGraphic, since it is called by the resize(), move(), moveResize(), scale(), etc., methods.
Parameters
tThe transformer value. If 0, no transformation is performed.

Reimplemented from IlvRectangle.

◆ createView()

virtual IlvView* IlvViewRectangle::createView ( IlvAbstractView parent,
const IlvRect size
)
virtual

Creates the view.

The new view object is created visible. This virtual member function lets you create graphic objects that store new types of IlvView objects. This member function is called by makeView.

Parameters
parentThe parent view of the created view.
sizeThe dimensions of the view that is created.
See also
makeView.

Reimplemented in IlvContainerRectangle.

◆ draw()

virtual void IlvViewRectangle::draw ( IlvPort dst,
const IlvTransformer t = 0,
const IlvRegion clip = 0
) const
virtual

Draws the graphic object.

Draws the object in the given IlvPort using the transformer t.

Parameters
dstThe destination port this object is drawn onto.
tThe transformer value. If 0, no transformation is performed.
clipThe clipping region, relative to the transformed object, or 0 if none.

Reimplemented from IlvFilledRectangle.

◆ getView()

virtual IlvView* IlvViewRectangle::getView ( ) const
virtual

Retrieves the view of this object.

Returns
A pointer to the view that has been created by this object. If the objects has not yet been displayed, this pointer can be 0.

◆ hide()

void IlvViewRectangle::hide ( )

Deprecated, replaced by hideView()`.

◆ isViewVisible()

virtual IlBoolean IlvViewRectangle::isViewVisible ( ) const
virtual

Retrieves the visibility of the stored view.

Returns
A value indicating whether the stored view is visible or not.

◆ makeView()

virtual void IlvViewRectangle::makeView ( IlvPort dst,
const IlvTransformer t = 0
)
virtual

Sets up the view.

Makes the IlvView object, meaning that is creates the view by calling the above createView member function, and sets the current background and the delete callback.

This function is called by draw when the view has not yet been created.

Parameters
dstThe destination port where the object is displayed.
tThe transformer applied to the object's drawing.

Reimplemented in IlvContainerRectangle.

◆ setBackground()

virtual void IlvViewRectangle::setBackground ( IlvColor background)
virtual

Sets the background color of the object.

Sets the background color of the object.

Parameters
backgroundThe new background color.

Reimplemented from IlvSimpleGraphic.

◆ setPalette()

virtual void IlvViewRectangle::setPalette ( IlvPalette palette)
virtual

Sets the internal palette.

The previous palette is unlocked, and palette is locked.

Parameters
paletteThe new palette of this object.

Reimplemented from IlvSimpleGraphic.

◆ setView()

virtual void IlvViewRectangle::setView ( IlvView view)
virtual

Sets the view of this object.

Parameters
viewThe new view encapsulated in this graphic object. This view must not be a top-window.

◆ show()

void IlvViewRectangle::show ( )

Deprecated, replaced by showView()`.
