IlvValueInterface Class Reference

Value interface class. More...

#include <ilviews/intrface/value.h>

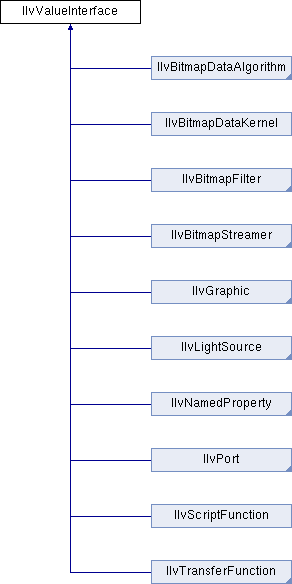

Inheritance diagram for IlvValueInterface:
IlvBitmapDataAlgorithm IlvBitmapDataKernel IlvBitmapFilter IlvBitmapStreamer IlvGraphic IlvLightSource IlvNamedProperty IlvPort IlvScriptFunction IlvTransferFunction

Public Member Functions

virtual IlBoolean applyValue (const IlvValue &value)
 Apply an accessor. More...

virtual IlBoolean changeValue (const IlvValue &val)
 Changes the value of an accessor. More...

virtual IlBoolean changeValues (const IlvValue *values, IlUShort count=0)
 Changes several accessor values simultaneously. More...

virtual void getAccessors (const IlSymbol *const **names, const IlvValueTypeClass *const **types, IlUInt &count) const
 Retrieves the list of available accessors of an object. More...

virtual const char * getName () const
 Returns the name of the instance. The semantic and implementation of this method are defined by concrete subclasses. The default implementation returns 0. More...

virtual IlvValuequeryValue (IlvValue &val) const
 Retrieves an accessor value. More...

virtual void queryValues (IlvValue *values, IlUShort count) const
 Retrieves multiple accessor values simultaneously. More...


Detailed Description

Value interface class.

Library: xviews or winviews or mviews (mutually exclusive)

IlvValueInterface is an abstract class defining the programming interface for subclasses wishing to expose their properties and methods through a generic and uniform mechanism similar to introspection.

An application can manipulate an instance of IlvValueInterface, or more precisely an instance of a subclass, by using its methods queryValue() and changeValue(), and without explicit knowledge of the concrete subclass.

Although applications seldom need this feature directly, it is extremely useful when defining a binding between Views libraries and a scripting language. The IlvValueInterface mechanism then becomes the invisible layer by which the scripting language is able to manipulate C++ objects.

Many predefined classes derive from IlvValueInterface, in particular IlvGraphic, IlvView, IlvGadgetItem, IlvManager, and of course all their subclasses.

IlvValueInterface implementation is based on the class IlvValue, which is basically a triplet [ name, type, value ] and a set of operators.

In order to expose a property, a subclass of IlvValueInterface defines an accessor. An accessor can be seen as an association between a name, a type identifier, and a data member with functions to get and set this data member value.

To define new accessors, a subclass must override the method getAccessors() and declare a name and a type for each accessor. The name must be unique.

Then, the subclass must override queryValue() if the subclass allows to get the data members values, and applyValue() if it allows to set these values.

Accessors

This class defines the following accessors:

Name Type Equivalent methods
name String getName()
See also
IlvValue.

Member Function Documentation

◆ applyValue()

virtual IlBoolean IlvValueInterface::applyValue ( const IlvValue value)
virtual

Apply an accessor.

This member function is called by changeValue() and changeValues() methods.

It must not be called directly.

This method must be overriden by subclasses wishing to add a new accessor modifiable by changeValue().

Parameters
valueThe new value of the accessor.
Returns
IlTrue on success, otherwise IlFalse.

Reimplemented in IlvGraphicCOMAdapter, IlvScriptFunction, IlvGraphicInstance, and IlvSystemPort.

◆ changeValue()

virtual IlBoolean IlvValueInterface::changeValue ( const IlvValue val)
virtual

Changes the value of an accessor.

The changeValue() method can be used in the following way:

IlvValue arg("x", 340);
object->changeValue(arg);
Parameters
valThe new value of the accessor.
Returns
IlTrue if the accessor value is changed successfuly.
See also
IlvValue.

◆ changeValues()

virtual IlBoolean IlvValueInterface::changeValues ( const IlvValue values,
IlUShort  count = 0
)
virtual

Changes several accessor values simultaneously.

This method iterates through the array values and calls applyValue() for each of them.

It can be used in the following way:

IlvValue args[2] = {
IlvValue("label", "hello"),
IlvValue("x", 100)
};
object->changeValues(args, 2);
Parameters
valuesThe array of new values.
countThe number of item in the array.
Returns
IlTrue if all calls to applyValue() return IlTrue. Otherwise, it returns IlFalse.
See also
IlvValue.

◆ getAccessors()

virtual void IlvValueInterface::getAccessors ( const IlSymbol *const **  names,
const IlvValueTypeClass *const **  types,
IlUInt count
) const
virtual

Retrieves the list of available accessors of an object.

Retrieves the list of accessors of an object. names is the resulting array of symbols. Each symbol is the name of an accessor. types is the array of the types of accessors, count is the number of accessors. The existing types for accessors are the following:

  • IlvValueBooleanType
  • IlvValueIntType
  • IlvValueUIntType
  • IlvValueFloatType
  • IlvValueDoubleType
  • IlvValueStringType
  • IlvValueDirectionType
  • IlvValueColorType
  • IlvValueFontType
  • IlvValuePatternType
  • IlvValueColorPatternType
  • IlvValueGradientPatternType
  • IlvValueLineStyleType
  • IlvValueFillStyleType
  • IlvValueFillRuleType
  • IlvValueArcModeType
  • IlvValueBitmapType
  • IlvValueStringArrayType
  • IlvValueUIntArrayType
  • IlvValueMenuItemArrayType
  • IlvValueMatrixItemArrayType
  • IlvValueNotebookPageArrayType

The possible accessors for an object are described in the corresponding class.

Parameters
namesThe array of symbols returned by the method. Each symbol is the name of an accessor.
typesThe array of types returned by the method. Each value is the type of an accessor.
countThe number of items in the arrays names and types.

Reimplemented in IlvGraphicCOMAdapter, IlvGraphicHandle, and IlvGraphic.

◆ getName()

virtual const char* IlvValueInterface::getName ( ) const
virtual

Returns the name of the instance. The semantic and implementation of this method are defined by concrete subclasses. The default implementation returns 0.

Returns
The name of the instance.

Reimplemented in IlvNamedProperty, IlvBitmapStreamer, IlvBitmapFilter, IlvView, IlvBitmap, and IlvGraphic.

◆ queryValue()

virtual IlvValue& IlvValueInterface::queryValue ( IlvValue val) const
virtual

Retrieves an accessor value.

The queryValue() method can be used in the following way:

IlvValue arg("label");
char* label = (char*)labelObject->queryValue(arg);

This method must be overriden by subclasses wishing to add a new readable accessor.

Parameters
valThe IlvValue used both to identify the accessor and to store the return value.
Returns
A reference to val, which contains the resulting value.
See also
IlvValue.

Reimplemented in IlvScriptFunction, IlvGraphicCOMAdapter, and IlvGraphicInstance.

◆ queryValues()

virtual void IlvValueInterface::queryValues ( IlvValue values,
IlUShort  count
) const
virtual

Retrieves multiple accessor values simultaneously.

All the accessor values are returned in the array.

The method iterates through the array values and calls queryValue() for each of them.

The queryValues() method can be used in the following way:

IlvValue args[2] = { "label", "x" };
object->queryValues(args, 2);
IlvPrint((char*)arg[0]);
Parameters
valuesAn array of IlvValue used both to identify the accessors and to store their return values.
countThe number of items in the array.
See also
IlvValue.
