IlvContainerRectangle Class Reference

View rectangle class. More...

#include <ilviews/contain/rectangl.h>

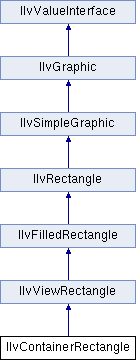

Inheritance diagram for IlvContainerRectangle:

Public Member Functions
	IlvContainerRectangle (IlvDisplay *display, const IlvRect &rect, IlvPalette *palette=0)
	Constructor. More...
virtual IlvView *	createView (IlvAbstractView *parent, const IlvRect &size)
	Creates the view. More...
virtual IlvContainer *	getContainer () const
	Returns a pointer to the encapsulated container object. More...
const char *	getFilename () const
	Returns the file name associated with this object. More...
virtual void	makeView (IlvPort *dst, const IlvTransformer *t=0)
	Sets up the view. More...
void	setFilename (const char *name, IlBoolean redraw=IlFalse)
	Sets the name of the file associated with the container. More...
Public Member Functions inherited from IlvViewRectangle
	IlvViewRectangle (IlvDisplay *display, const IlvRect &rect, IlvPalette *palette=0)
	Constructor. More...
virtual void	applyTransform (const IlvTransformer *t)
	Applies a transformation function to the graphic object. More...
virtual void	draw (IlvPort *, const IlvTransformer *t=0, const IlvRegion *clip=0) const
	Draws the graphic object. More...
virtual IlvView *	getView () const
	Retrieves the view of this object. More...
void	hide ()
void	hideView ()
	Hides the stored view, but not the IlvViewRectangle (as IlvGraphic).
virtual IlBoolean	isViewVisible () const
	Retrieves the visibility of the stored view. More...
virtual void	setBackground (IlvColor *)
	Sets the background color of the object. More...
virtual void	setPalette (IlvPalette *)
	Sets the internal palette. More...
virtual void	setView (IlvView *view)
	Sets the view of this object. More...
virtual void	setVisible (IlBoolean value)
	Sets the visibility of both this IlvViewRectangle (as IlvGraphic) and the stored view.
void	show ()
void	showView ()
	Shows the stored view, but not the IlvViewRectangle (as IlvGraphic).
Public Member Functions inherited from IlvFilledRectangle
	IlvFilledRectangle (IlvDisplay *display, const IlvRect &drawrect, IlvPalette *palette=0)
	Constructor. More...
virtual IlBoolean	contains (const IlvPoint &p, const IlvPoint &tp, const IlvTransformer *t=0) const
	Checks whether a point is in the object. More...
Public Member Functions inherited from IlvRectangle
	IlvRectangle (IlvDisplay *display, const IlvRect &drawrect, IlvPalette *palette=0)
	Constructor. More...
virtual void	boundingBox (IlvRect &rect, const IlvTransformer *t=0) const
	Retrieves the bounding box of the graphic object. More...
Public Member Functions inherited from IlvSimpleGraphic
	IlvSimpleGraphic (IlvDisplay *display, IlvPalette *palette=0)
	Initializes a new IlvSimpleGraphic. More...
virtual	~IlvSimpleGraphic ()
	Destructor. More...
virtual void	applyResources (const char *, const char *, const char *, const char *, IlvDisplay *=0)
	Applies resources on a graphic object. More...
IlvIntensity	getAlpha () const
	Retrieves the alpha value. More...
IlvAntialiasingMode	getAntialiasingMode () const
	Retrieves the anti-aliasing mode. More...
IlvArcMode	getArcMode () const
	Retrieves the arc mode. More...
IlvColor *	getBackground () const
	Retrieves the background color. More...
IlvColorPattern *	getColorPattern () const
	Retrieves the color pattern. More...
virtual IlvDisplay *	getDisplay () const
	Retrieves the IlvDisplay instance. More...
IlvFillRule	getFillRule () const
	Retrieves the fill rule. More...
IlvFillStyle	getFillStyle () const
	Retrieves the fill style. More...
IlvFont *	getFont () const
	Retrieves the font. More...
IlvColor *	getForeground () const
	Retrieves the foreground color. More...
IlvGradientPattern *	getGradientPattern () const
	Retrieves the gradient pattern. More...
IlvLineStyle *	getLineStyle () const
	Retrieves the line style. More...
IlUShort	getLineWidth () const
	Retrieves the line width. More...
virtual IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look & feel handler used by this object. More...
virtual int	getLookupStringInputMethod (IlvEvent &event, char *bufferReturn, int bytesBuffer, int *statusReturn)
	Gets the preedit string from an input method. More...
IlvDrawMode	getMode () const
	Retrieves the draw mode. More...
IlBoolean	getOverwrite () const
	Retrieves the overwrite mode. More...
IlvPalette *	getPalette () const
	Retrieves the internal palette value. More...
IlvPattern *	getPattern () const
	Retrieves the pattern. More...
virtual void	invert (IlBoolean=IlFalse)
	Highlights the object. More...
virtual void	registerInputMethod () const
	Controls the connection of a graphic object to an input method. More...
virtual void	setAlpha (IlvIntensity)
	Sets the alpha value of the object. More...
virtual void	setAntialiasingMode (IlvAntialiasingMode)
	Sets the anti-aliasing mode of the object. More...
virtual void	setArcMode (IlvArcMode)
	Sets the arc mode of the object. More...
virtual void	setColorPattern (IlvColorPattern *)
	Sets the color pattern of the object. More...
virtual void	setFillRule (IlvFillRule)
	Sets the fill rule of the object. More...
virtual void	setFillStyle (IlvFillStyle)
	Sets the fill style of the object. More...
virtual void	setFocusValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a simple graphic object and an input method. More...
virtual void	setFont (IlvFont *)
	Sets the font of the object. More...
virtual void	setForeground (IlvColor *)
	Sets the foreground color of the object. More...
virtual void	setGradientPattern (IlvGradientPattern *)
	Sets the gradient pattern of the object. More...
virtual void	setHolder (IlvGraphicHolder *)
	Sets the object's holder. More...
virtual void	setLineStyle (IlvLineStyle *)
	Sets the line style of the object. More...
virtual void	setLineWidth (IlUShort)
	Sets the line width of the object. More...
virtual void	setMode (IlvDrawMode)
	Sets the drawing mode of the object temporarily. More...
virtual void	setOverwrite (IlBoolean)
	Sets an overwrite mode that modifies how the drawing member functions operate. More...
virtual void	setPattern (IlvPattern *)
	Sets the pattern of the object. More...
virtual void	setValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a graphic object and an input method. More...
virtual void	unRegisterInputMethod () const
	Controls the disconnection of a graphic object from an input method. More...
virtual void	unsetFocusInputMethod () const
	Controls the interaction between a graphic object and an input method. More...
Public Member Functions inherited from IlvGraphic
void	addCallback (const IlSymbol *callbackType, const IlSymbol *callbackName, const IlSymbol *script=0)
	Adds a callback function to a callback list. More...
void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Adds a callback function to a callback list. More...
void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Adds a callback function to a callback list. More...
void	addClassProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...
void	addProperty (const IlSymbol *key, IlAny value)
	Adds a specific property to the object. More...
void	addTag (const IlSymbol *tag)
	Adds a tag. More...
virtual void	apply (IlvApplyObject function, IlAny arg)
	Applies a function to objects that compose another object. More...
IlBoolean	applyAttribute (const char *attributeClassName, const char *value, IlAny checkData=0) const
	Applies attributes. More...
IlBoolean	applyAttribute (const char *attributeClassName, IlFloat value, IlAny checkData=0) const
	Applies attributes. More...
IlBoolean	applyAttribute (const char *attributeClassName, IlInt value, IlAny checkData=0) const
	Applies attributes. More...
virtual void	applyReferences (IlvApplyObject function, IlAny arg)
	Applies a function to objects that are referenced by another object. More...
virtual void	callCallbacks (const IlSymbol *callbackType)
	Calls every callback of a given type. More...
const char *	className () const
	Returns the class name of an object. More...
virtual void	computeFocusRegion (IlvRegion &r, const IlvTransformer *t=0) const
	Computes the region needed for the drawing of the focus. More...
IlBoolean	contains (const IlvPoint &p) const
	Checks whether a point is in the object. More...
virtual IlvGraphic *	copy () const =0
	Copies this object. More...
void	draw (IlvPort *dst, const IlvTransformer *t, const IlvRect *clip) const
	Draws a graphic object. More...
virtual void	drawFocus (IlvPort *dst, const IlvPalette *palette, const IlvTransformer *t=0, const IlvRegion *clip=0) const
	Draws additional drawings for an object that has the keyboard focus. More...
virtual void	getAccessors (const IlSymbol *const **, const IlvValueTypeClass *const **, IlUInt &) const
	Retrieves the list of available accessors of an object. More...
IlvGraphicCallback	getCallback () const
	Gets the main callback function. More...
IlvGraphicCallback	getCallback (const IlSymbol *callbackType) const
	Gets a callback. More...
IlAny	getCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName) const
	Gets a callback user data. More...
IlAny	getCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Gets a callback user data. More...
IlSymbol *	getCallbackName () const
	Gets the symbol that identifies the main callback. More...
IlSymbol *	getCallbackName (const IlSymbol *callbackType) const
	Gets the name of a callback. More...
virtual IlUInt	getCallbackTypes (const char *const **names, const IlSymbol *const **types) const
	Gets the number of register callback types for the object. More...
virtual IlvGraphic *	getChildAt (IlUInt index) const
	Returns the sub-object of the graphic object specified by index. More...
virtual IlvGraphic *	getChildByName (const char *name) const
	Returns the sub-object of the graphic object specified by a name. More...
virtual IlUInt	getChildCount () const
	Returns the number of children of this graphic object. More...
virtual IlInt	getChildIndex (const IlvGraphic *object) const
	Returns the index of the specified sub-object in this graphic object. More...
virtual IlvGraphic *const *	getChildren (IlUInt &count) const
	Returns an array containing the sub-objects of this graphic object. More...
virtual IlvClassInfo *	getClassInfo () const
	Gets class information. More...
IlAny	getClassProperty (const IlSymbol *key, IlBoolean checkParent=IlFalse) const
	Retrieves the indicated property value in the class of this object. More...
IlAny	getClientData () const
	Gets client data. More...
virtual const char *	getDefaultInteractor () const
	Gets the name of the default interactor for this object. More...
virtual IlvGraphicHolder *	getHolder () const
	Gets a pointer to an object's holder. More...
IlvInteractor *	getInteractor () const
	Returns the interactor associated with the current object. More...
const char *	getName () const
	Gets the name of the object. More...
IlvNamedProperty *	getNamedProperty (const IlSymbol *name) const
	Gets a named property. More...
IlSymbol *	getNextFocusGraphic () const
	Gets the next object in the focus chain. More...
IlSymbol *	getPreviousFocusGraphic () const
	Gets the previous object in the focus chain. More...
IlAny	getProperty (const IlSymbol *key) const
	Gets a property. More...
IlvSmartSet *	getSmartSet () const
	Gets the smart set object containing this graphic object. More...
const IlSymbol *const *	getTags (IlUInt &count) const
	Returns all the tags applied to this object. More...
IlvDim	h () const
	Gets the height value of the object. More...
void	h (IlvDim h)
	Sets the height value of the object. More...
IlBoolean	hasCallback (const IlSymbol *callbackType, const IlSymbol *callbackName) const
	Checks whether a callback function is in a callback list. More...
IlBoolean	hasCallback (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function is in a callback list. More...
IlBoolean	hasCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName) const
	Checks whether a callback function has user data. More...
IlBoolean	hasCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function has user data. More...
const IlvClassInfo *	hasClassProperty (const IlSymbol *key, IlBoolean s=IlFalse) const
	Checks for a class where the keyed property exists. More...
IlBoolean	hasProperty (const IlSymbol *key) const
	Checks whether the object has a particular property. More...
IlBoolean	hasTag (const IlSymbol *tag) const
	Checks whether the object has a specific tag. More...
IlBoolean	inside (const IlvRect &r) const
	Determines whether a rectangle is inside the bounding box. More...
IlBoolean	inside (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...
virtual IlBoolean	inside (const IlvRegion &r, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...
IlBoolean	intersects (const IlvRect &r) const
	Checks whether a rectangle intersects the bounding box. More...
IlBoolean	intersects (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Checks whether a rectangle intersects the bounding box with transformation applied. More...
virtual IlBoolean	intersects (const IlvRegion &r, const IlvTransformer *t=0) const
	Checks whether a region intersects the bounding box with transformation applied. More...
IlBoolean	isFirstFocusGraphic () const
	Checks whether the object is first in the focus chain. More...
IlBoolean	isFocusable () const
	Checks whether the object can receive the keyboard focus. More...
IlBoolean	isInSmartSet () const
	Checks whether a graphic object belongs to a smart set. More...
IlBoolean	isLastFocusGraphic () const
	Checks whether the object is last in the focus chain. More...
IlBoolean	isSensitive () const
	Checks whether the object is sensitive. More...
IlBoolean	isSubtypeOf (const char *parentClass) const
	Checks whether this object's class is a subclass of a given parent class. More...
IlBoolean	isSubtypeOf (const IlvClassInfo *classInfo) const
	Checks whether this object's class is a subclass. More...
void	move (const IlvPoint &p)
	Moves the graphic object. More...
virtual void	move (IlvPos x, IlvPos y)
	Moves the graphic object. More...
void	moveResize (const IlvRect &size)
	Moves and resizes a graphic object. More...
virtual IlBoolean	needsInputContext () const
	Indicates whether the graphic instance can connect to an input method for locale dependent input. More...
virtual void	print (std::ostream &out, int level=0) const
	Prints for debugging purposes. More...
void	removeCallback (const IlSymbol *callbackType, const IlSymbol *callbackName)
	Removes a callback function from a callback list. More...
void	removeCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Removes a callback function from a callback list. More...
IlBoolean	removeClassProperty (const IlSymbol *key)
	Removes a property from this object's class. More...
void	removeInteractor ()
	Removes the interactor from the current object. More...
IlvNamedProperty *	removeNamedProperty (IlSymbol *name)
	Removes a named property from the object. More...
IlBoolean	removeProperty (const IlSymbol *key)
	Removes a property from the object. More...
void	removeTag (const IlSymbol *tag)
	Removes a tag. More...
IlBoolean	replaceClassProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...
IlBoolean	replaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property. More...
virtual void	resize (IlvDim newW, IlvDim newH)
	Resizes a graphic object. More...
virtual void	rotate (const IlvPoint &center, IlFloat angle)
	Rotates a graphic object. More...
virtual void	scale (IlFloat zoomX, IlFloat zoomY)
	Scales the graphic object. More...
void	setCallback (const IlSymbol *callbackType, const IlSymbol *callbackName, const IlSymbol *script=0)
	Removes all previously set callbacks. More...
void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Sets a new callback. More...
void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Removes all previously set callbacks. More...
void	setCallback (IlvGraphicCallback callback, IlAny data)
	Sets the main callback function. More...
void	setCallbackData (const IlSymbol *callbackType, const IlSymbol *callbackName, IlAny data)
	Sets the callback user data for a callback function. More...
void	setCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback, IlAny data)
	Sets the callback user data for a callback function. More...
void	setCallbackName (const IlSymbol *callbackName)
	Sets the symbol that identifies the main callback. More...
void	setClientData (IlAny clientData)
	Sets client data. More...
void	setFirstFocusGraphic ()
	Sets the object to be first in the focus chain.
void	setFocusable (IlBoolean value)
	Set the focusable state of the object. More...
IlBoolean	setInteractor (const char *name)
	Attaches an interactor to this graphic object. More...
IlBoolean	setInteractor (IlvInteractor *inter)
	Attaches an interactor to the current object. More...
void	setLastFocusGraphic ()
	Sets the object to be last in the focus chain.
virtual void	setName (const char *name)
	Sets the name of the object. More...
IlvNamedProperty *	setNamedProperty (IlvNamedProperty *property)
	Sets a named property on the object. More...
virtual void	setNeedsInputContext (IlBoolean val)
	Specifies whether the graphic object should have locale dependent input. More...
void	setNextFocusGraphic (IlSymbol *name)
	Sets the object to be next in the focus chain. More...
void	setPreviousFocusGraphic (IlSymbol *name)
	Sets an object as previous in the focus chain. More...
void	setProperty (const IlSymbol *key, IlAny value)
	Sets a property of the object to a value. More...
virtual void	setSensitive (IlBoolean value)
	Sets the sensitivity of the object. More...
virtual void	symmetry (IlvDirection axis)
	Flips a graphic object. More...
virtual void	translate (IlvPos dx, IlvPos dy)
	Applies a transformation function on a graphic object. More...
IlvDim	w () const
	Gets the width value of the object. More...
void	w (IlvDim w)
	Sets the width value of the object. More...
virtual void	write (IlvOutputFile &output) const =0
	Writes an object description to a file. More...
IlvPos	x () const
	Gets the x coordinate value of the object. More...
void	x (IlvPos x)
	Sets the x coordinate value of the object. More...
IlvPos	y () const
	Gets the y coordinate value of the object. More...
void	y (IlvPos y)
	Sets the y coordinate value of the object. More...
virtual IlBoolean	zoomable () const
	Checks whether this object is zoomable. More...
Public Member Functions inherited from IlvValueInterface
virtual IlBoolean	applyValue (const IlvValue &value)
	Apply an accessor. More...
virtual IlBoolean	changeValue (const IlvValue &val)
	Changes the value of an accessor. More...
virtual IlBoolean	changeValues (const IlvValue *values, IlUShort count=0)
	Changes several accessor values simultaneously. More...
virtual IlvValue &	queryValue (IlvValue &val) const
	Retrieves an accessor value. More...
virtual void	queryValues (IlvValue *values, IlUShort count) const
	Retrieves multiple accessor values simultaneously. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvGraphic
static void	AddProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...
static void	AddToCallbackTypeList (IlUInt &count, const char *const **names, const IlSymbol *const **types, const char *newName, const IlSymbol *newType)
	Adds a callback to a list. More...
static void	AllowZoom (IlBoolean az)
	Sets or inhibits zooming. More...
static IlvClassInfo *	ClassInfo () const
	Gets class information. More...
static IlAny	GetProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Retrieves the property value associated with the key in this object's class. More...
static const IlvClassInfo *	HasProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Checks for the existence of a property for this object's class hierarchy. More...
static IlBoolean	IsZoomAllowed ()
	Checks whether zoomable objects can display themselves when zooming out. More...
static IlvGraphic *	read (IlvInputFile &file, IlvPalette *palette)
	Reads an object description from a file. More...
static IlBoolean	RemoveProperty (const IlSymbol *key)
	Removes a property from this object's class. More...
static IlBoolean	ReplaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...

Detailed Description

View rectangle class.

Library: views

The IlvContainerRectangle class defines a graphic object that encapsulates an instance of IlvContainer. This instance can be associated with a file name. When the container is created, it reads the corresponding file.

See also

IlvContainer.

Constructor & Destructor Documentation

IlvContainerRectangle()

IlvContainerRectangle::IlvContainerRectangle	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlvPalette *	palette = 0
	)

Constructor.

Initializes a new instance of the IlvContainerRectangle class.

Parameters

display	The connection to the display.
rect	The size and position of the object.
palette	The palette used to draw the object. The palette background color is set to the background color of the encapsulated container.

Member Function Documentation

createView()

virtual IlvView* IlvContainerRectangle::createView ( IlvAbstractView *  parent, const IlvRect &  size  )

virtual

Creates the view.

The new view object is created visible. This virtual member function lets you create graphic objects that store new types of IlvView objects. This member function is called by makeView.

Parameters

parent	The parent view of the created view.
size	The dimensions of the view that is created.

See also

makeView.

Reimplemented from IlvViewRectangle.

getContainer()

virtual IlvContainer* IlvContainerRectangle::getContainer ( ) const

virtual

Returns a pointer to the encapsulated container object.

Returns

A pointer to the container encapsulated by this object.

getFilename()

const char* IlvContainerRectangle::getFilename

(

)

const

Returns the file name associated with this object.

This file is read by the container upon its creation.

Returns

The file name associated with this object, or 0 if there is none.

makeView()

virtual void IlvContainerRectangle::makeView ( IlvPort *  dst, const IlvTransformer *  t = 0  )

virtual

Sets up the view.

Makes the IlvView object, meaning that is creates the view by calling the above createView member function, and sets the current background and the delete callback.

This function is called by draw when the view has not yet been created.

Parameters

dst	The destination port where the object is displayed.
t	The transformer applied to the object's drawing.

Reimplemented from IlvViewRectangle.

setFilename()

void IlvContainerRectangle::setFilename	(	const char *	name,
		IlBoolean	redraw = IlFalse
	)

Sets the name of the file associated with the container.

This file is read by the container upon its creation.

Parameters

name	The name of the file to load.
redraw	A Boolean value indicating whether to redraw the container or not.
