View class. More...

#include <ilviews/base/view.h>

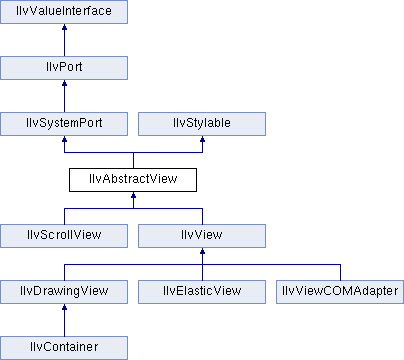

Inheritance diagram for IlvAbstractView:

Public Member Functions
virtual void	boundingBox (IlvRect &bbox) const
	Retrieves the relative dimensions of the view. More...

IlBoolean	enableMultitouch (IlBoolean enable)
	Allows the view to receive multi-touch events. More...

void	ensureVisible (const IlvPoint &point)
	Ensures that a point remains visible. More...

void	ensureVisible (const IlvRect &rect)
	Ensures that a rectangle remains visible. More...

virtual void	erase (const IlvRect &rect, IlBoolean reDraw=IlFalse)
	Erases an area of this view. More...

virtual void	erase (IlBoolean reDraw=IlFalse)
	Entirely erases the view. More...

virtual void	frameBBox (IlvRect &bbox) const
	Retrieves the dimension of the view frame. More...

IlvColor *	getBackground () const
	Retrieves the background color of this view. More...

IlvBitmap *	getBackgroundBitmap () const
	Gets the background bitmap of this view. More...

IlBoolean	getCompressButtonDragged () const
	Indicates if `IlvButtonDragged` compression is enabled or not. More...

IlBoolean	getCompressPointerMoved () const
	Indicates if `IlvPointerMoved` compression is enabled or not. More...

IlvCursor *	getCursor () const
	Retrieves the cursor currently set on this view. More...

IlvIntensity	getOpacity () const
	Returns the opacity level of the view. More...

virtual void	getOuterStylableSize (IlvDim &, IlvDim &) const
	Returns the size of the outer stylable if any. More...

IlvAbstractView *	getParent () const
	Gets the parent of this view. More...

IlvSystemView	getShellSystemView () const
	Gets the system-dependent identifier of the top shell of this view. More...

virtual const char *	getStylableClassName () const
	Returns the class name of this object. More...

virtual IlvDisplay *	getStylableDisplay () const
	Returns the display for this object. More...

virtual void	getStylableSize (IlvDim &, IlvDim &) const
	Returns the size of this object. More...

virtual IlvStylist *	getStylist () const
	Returns the stylist for this object. More...

IlvSystemView	getSystemView () const
	Gets the system-dependent identifier of this view. More...

void	getTransparentColorKey (IlvIntensity &r, IlvIntensity &g, IlvIntensity &b) const
	Returns the color used as a key for transparency. More...

virtual void	globalBBox (IlvRect &bbox) const
	Retrieves the absolute dimensions of the view. More...

IlBoolean	hasGrab () const
	Queries if this view has the display grab. More...

virtual void	hide ()
	Hides the view. More...

IlBoolean	isLayered () const
	Returns whether the view is layered or not. More...

IlBoolean	isMultitouchEnabled ()
	Queries if the view is set to receive multi-touch events. More...

virtual IlBoolean	isScrolled () const
	Indicates if the view is a scrolling window subview. More...

IlBoolean	isSensitive () const
	Retrieves the sensitivity of this view to input events. More...

virtual void	lower ()
	Pushes this view below the others. More...

virtual void	move (const IlvPoint &position)
	Moves the view. More...

virtual void	moveResize (const IlvRect &newSize)
	Moves and resizes the view. More...

virtual void	position (IlvPoint &position) const
	Retrieves the position of the view. More...

virtual void	raise ()
	Brings this view on top. More...

void	removeWindowProc (IlvWindowProc windowProc, IlAny procArgument=0)
	Removes a user-defined window procedure. More...

virtual void	resize (IlvDim w, IlvDim h)
	Resizes the view. More...

virtual void	setBackground (IlvColor *c)
	Sets the background color of this view. More...

virtual void	setBackgroundBitmap (IlvBitmap *b)
	Sets the background bitmap of this view. More...

virtual void	setCompressButtonDragged (IlBoolean val)
	Enables or disables `IlvButtonDragged` event compression. More...

virtual void	setCompressPointerMoved (IlBoolean val)
	Enables or disables `IlvPointerMoved` event compression. More...

void	setCursor (IlvCursor *cursor)
	Sets the cursor for this view. More...

IlBoolean	setFocus ()
	Sets the input focus to this view. More...

void	setLayered (IlBoolean layered)
	Sets whether the window is layered or not. More...

void	setOpacity (IlvIntensity level)
	Sets the opacity value of the view. More...

void	setSensitive (IlBoolean sensitivity)
	Sets the sensitivity of this view to input events. More...

IlBoolean	setShapeMask (const IlvBitmap *mask, IlBoolean addTitle=IlFalse)
	Sets a non-rectangular shape on the view according to a bitmap mask. More...

void	setTransparentColorKey (IlvIntensity r, IlvIntensity g, IlvIntensity b)
	Sets the transparency color key value. More...

void	setWindowProc (IlvWindowProc windowProc, IlAny procArgument=0)
	Sets a Windows window procedure. More...

virtual void	show ()
	Shows the view. More...

virtual void	sizeVisible (IlvRect &rect) const
	Retrieves the visible part of the view. More...

Public Member Functions inherited from IlvSystemPort
	IlvSystemPort (IlvDisplay *display, IlvWindowsHandle HDC, IlvDim width=0, IlvDim height=0)
	Windows-specific constructor. More...

virtual IlBoolean	applyValue (const IlvValue &)
	Apply an accessor. More...

virtual void	clearArea (const IlvRect &, IlBoolean=IlFalse) const
	Clears a rectangular area of the screen. More...

virtual void	clearArea (const IlvRegion &, IlBoolean=IlFalse) const
	Clears a region of the screen. More...

virtual void	clip (const IlvRect *) const
	Limits the drawing to the given rectangular area. More...

virtual void	clip (const IlvRegion *) const
	Limits the drawing to the given region. More...

virtual IlUShort	depth () const
	Gives the depth of the port. More...

virtual void	drawArc (const IlvPalette *, const IlvRect &, IlFloat, IlFloat) const
	Draws an arc. More...

virtual void	drawBitmap (const IlvPalette , const IlvBitmap , const IlvRect &, const IlvRegion *=0, IlvPosition=IlvCenter, IlBoolean=IlFalse) const
	Draws an image. More...

virtual void	drawBitmap (const IlvPalette , const IlvSystemPort , const IlvRect &, const IlvPoint &) const
	Draws an image. More...

virtual void	drawIString (const IlvPalette , const IlvPoint &, const char , int, IlvPosition=IlvLeft) const
	Draws a string at the given position. More...

virtual void	drawLine (const IlvPalette *, const IlvPoint &, const IlvPoint &) const
	Draws a line between 2 points. More...

virtual void	drawPoint (const IlvPalette *, const IlvPoint &) const
	Draws a point at the given position. More...

virtual void	drawPoints (const IlvPalette , IlUInt, const IlvPoint ) const
	Draws a series of points. More...

virtual void	drawPolyLine (const IlvPalette , const IlvPoint &, IlUInt, const IlvDeltaPoint ) const
	Draws a series of connected lines relatively to a reference. More...

virtual void	drawPolyLine (const IlvPalette , IlUInt, const IlvPoint ) const
	Draws a series of connected lines. More...

virtual void	drawRectangle (const IlvPalette *, const IlvRect &) const
	Draws the given rectangle. More...

virtual void	drawRoundRectangle (const IlvPalette *, const IlvRect &, IlUShort) const
	Draws a round rectangle. More...

virtual void	drawSegments (const IlvPalette , IlUInt, const IlvPoint , const IlvPoint *) const
	Draws a set of segments. More...

virtual void	drawString (const IlvPalette , const IlvPoint &, const char , int, IlvPosition=IlvLeft) const
	Draws a string at the given position. More...

virtual void	drawTransformedString (const IlvPalette , const char , int, const IlvTransformer &, const IlvRegion *=0) const
	Draws a transformed string. More...

virtual void	drawTransparentBitmap (const IlvPalette , const IlvSystemPort , const IlvRect &, const IlvPoint &) const
	Draws a transparent bitmap. More...

virtual void	end ()
	Closed the dump device. More...

virtual void	fillArc (const IlvPalette *, const IlvRect &, IlFloat, IlFloat) const
	Fills the arc. More...

virtual void	fillPaths (const IlvPalette , IlUInt, const IlvPointArray ) const
	Fills the shape defined by the given paths. More...

virtual void	fillPolyLine (const IlvPalette , const IlvPoint &, IlUInt, const IlvDeltaPoint , IlBoolean=IlFalse) const
	Fills a polygon. More...

virtual void	fillPolyLine (const IlvPalette , IlUInt, const IlvPoint , IlBoolean=IlFalse) const
	Fills a polygon. More...

virtual void	fillRectangle (const IlvPalette *, const IlvRect &) const
	Fills the given rectangle. More...

virtual void	fillRoundRectangle (const IlvPalette *, const IlvRect &, IlUShort) const
	Fills a round rectangle. More...

IlvWindowsHandle	getDC () const
	Gets the Windows Handle Device Context. More...

virtual IlBoolean	initDevice (const char , IlvRect =0)
	Initializes the dump device. More...

virtual IlBoolean	isABitmap () const
	Indicates that this port is a bitmap (not a view or a dump device). More...

virtual IlBoolean	isASystemPort () const
	Indicates that this port is a true system port (not a dump device). More...

virtual IlBoolean	isBad () const
	Indicates whether this port is valid. More...

virtual IlBoolean	newPage () const
	Produces an output page and prepares for a new page. More...

void	releaseDC ()
	Releases the Windows Handle Device Context. More...

virtual void	send (const char *) const
	Sends character strings to an output device. More...

virtual void	setTransformer (const IlvTransformer &)
	Applies another transformer to the coordinates provided for the drawing functions. More...

virtual void	stretchBitmap (const IlvPalette , const IlvPoint &, const IlvBitmap , const IlvTransformer &, const IlvRect *=0) const
	Stretches a bitmap. More...

virtual void	stretchBitmap (const IlvPalette , const IlvRect &, const IlvBitmap , const IlvRect *=0) const
	Stretches a bitmap. More...

virtual void	stretchBitmapData (const IlvPalette palette, const IlvBitmapData src, const IlvRect &from, const IlvRect &to, IlBoolean opaque=IlFalse) const
	Draws a bitmap data. More...

virtual void	stretchTransparentBitmap (const IlvPalette , const IlvPoint &, const IlvBitmap , const IlvTransformer &, const IlvRect *=0) const
	Stretches a transparent bitmap. More...

virtual void	stretchTransparentBitmap (const IlvPalette , const IlvRect &, const IlvBitmap , const IlvRect *=0) const
	Stretches a transparent bitmap. More...

Public Member Functions inherited from IlvPort
	IlvPort (IlvDisplay *display=0)
	Constructor. More...

void	composeAlpha (IlvIntensity alpha)
	Composes the current alpha value of the port. More...

virtual void	drawArrow (const IlvPalette *palette, const IlvPoint &from, const IlvPoint &to, IlFloat position) const
	Draws an arrow. More...

virtual void	drawBezier (const IlvPalette palette, IlUInt count, const IlvPoint points) const
	Draws a set of Bézier curves. More...

virtual void	drawClosedBezier (const IlvPalette palette, IlUInt count, const IlvPoint points) const
	Appends a closing curve to a set of Bézier curves. More...

virtual void	drawILabel (const IlvPalette palette, const char label, int length, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter) const
	Draws a label in a rectangle. More...

virtual void	drawLabel (const IlvPalette palette, const char label, int length, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter) const
	Draws a label in a rectangle. More...

virtual void	drawMarker (const IlvPalette *palette, const IlvPoint &location, IlvMarkerType type=IlvMarkerSquare, IlUShort size=IlvDefaultMarkerSize) const
	Draws a marker. More...

virtual void	drawMnemonicLabel (const IlvPalette palette, const char label, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter, IlBoolean underline=IlTrue) const
	Draws an underlined letter in a label. More...

virtual void	drawOutlineRectangle (const IlvPalette outlinePalette, const IlvPalette fillPalette, const IlvRect &rect, const IlvRegion *clip=0) const
	Draws a rectangle with border effects. More...

virtual void	drawPaths (const IlvPalette palette, IlUInt count, const IlvPointArray paths) const
	Draws an array of paths as polylines. More...

virtual void	drawReliefDiamond (const IlvPalette , const IlvPalette invertedPalette, const IlvPalette topShade, const IlvPalette bottomShade, const IlvRect &bbox, IlUShort thickness, const IlvRegion *clip=0) const
	Draws a diamond with depth effects. More...

virtual void	drawReliefRectangle (const IlvPalette palette, const IlvPalette invertedPalette, const IlvPalette topShade, const IlvPalette bottomShade, const IlvRect &bbox, IlUShort thickness, const IlvRegion *clip=0) const
	Draws a filled rectangle with depth effects. More...

virtual void	drawShadowRectangle (const IlvPalette palette, const IlvPalette invertedPalette, const IlvRect &bbox, IlUShort thickness, IlvPosition shadowPosition, const IlvRegion *clip=0) const
	Draws a filled rectangle with its shadow. More...

virtual void	fillBezier (const IlvPalette palette, IlUInt count, const IlvPoint points) const
	Fills an area specified by a set of Bézier curves. More...

IlvIntensity	getAlpha () const
	Provides the alpha value of the port. More...

IlvAntialiasingMode	getAntialiasingMode () const
	Provides the anti-aliasing mode of the port. More...

IlvDisplay *	getDisplay () const
	Returns a pointer to the `IlvDisplay` of this port. More...

IlvDim	height () const
	Provides the height of the port. More...

virtual IlBoolean	isADevice () const
	Indicates that this port is a dump device. More...

void	setAlpha (IlvIntensity alpha)
	Sets the alpha value of the port. More...

void	setAntialiasingMode (IlvAntialiasingMode mode)
	Sets the anti-aliasing mode of the port. More...

void	size (IlvDim &w, IlvDim &h) const
	Gives the dimensions of the port. More...

IlvDim	width () const
	Provides the width of the port. More...

Public Member Functions inherited from IlvValueInterface
virtual IlBoolean	changeValue (const IlvValue &val)
	Changes the value of an accessor. More...

virtual IlBoolean	changeValues (const IlvValue *values, IlUShort count=0)
	Changes several accessor values simultaneously. More...

virtual void	getAccessors (const IlSymbol const names, const IlvValueTypeClass const **types, IlUInt &count) const
	Retrieves the list of available accessors of an object. More...

virtual const char *	getName () const
	Returns the name of the instance. The semantic and implementation of this method are defined by concrete subclasses. The default implementation returns `0`. More...

virtual IlvValue &	queryValue (IlvValue &val) const
	Retrieves an accessor value. More...

virtual void	queryValues (IlvValue *values, IlUShort count) const
	Retrieves multiple accessor values simultaneously. More...

Public Member Functions inherited from IlvStylable
	IlvStylable ()
	Constructor.

virtual const char *	getStylableName () const
	Returns the name of this object. More...

virtual const IlvStylable *	getStylableParent () const
	Returns the parent of this object in the style hierarchy. More...

virtual const IlSymbol const	getStylableTags (IlUInt &nTags) const
	Returns the tags of this object. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvSystemPort
static IlvBitmapData *	GetBitmapData (IlvSystemPort port, const IlvRect rect=0)
	Creates an `IlvBitmapData` from a rectangular area in an `IlvSystemPort`. More...

Detailed Description

View class.

Library: xviews or winviews or mviews (mutually exclusive)

This is an abstract class without any constructor. Thus, instances can only be created from subtypes of this class. Objects of the IlvAbstractView class and its subclasses represent actual windows displayed on your screen. A view is a rectangular place holder on the screen to display elements of an application. A window on the screen is an associated set of one or several views.

Every view is distinguished by its location (x, y coordinates), size (height and width), and visibility (that is, an existing view can be visible or not visible).

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvSystemPort and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`x`	Int	`globalBBox()`, `move()`
`y`	Int	`globalBBox()`, `move()`
`width`	UInt	`globalBBox()`, `resize()`
`height`	UInt	`globalBBox()`, `resize()`
`background`	Color	`getBackground()`, `setBackground()`
`backgroundBitmap`	Bitmap	`getBackgroundBitmap()`, `setBackgroundBitmap()`
`boundingBox`	IlvRect	`boundingBox()`
`globalBBox`	IlvRect	`globalBBox()`
`sizeVisible`	IlvRect	`sizeVisible()`
`grab`	Boolean	`hasGrab()`
`scrolled`	Boolean	`isScrolled()`
`sensitive`	Boolean	`isSensitive()`, `setSensitive()`

Method accessors

Name	Return type	Equivalent methods
`move(IlvPoint position)`	Void	`move(const IlvPoint& position)`
`resize(UInt width, UInt height)`	Void	`resize(IlvDim width, IlvDim height)`
`raise()`	Void	`raise()`
`lower()`	Void	`lower()`
`ensurePointVisible(IlvPoint position)`	Void	`ensureVisible(const IlvPoint& position)`
`ensureRectVisible(IlvRect area)`	Void	`ensureVisible(const IlvRect& area)`

Member Function Documentation

◆ boundingBox()

virtual void IlvAbstractView::boundingBox ( IlvRect & bbox ) const

virtual

Retrieves the relative dimensions of the view.

Parameters

bbox	Is set to the geometry of this window, that is, its position and size relative to the parent view.

◆ enableMultitouch()

IlBoolean IlvAbstractView::enableMultitouch ( IlBoolean enable )

Allows the view to receive multi-touch events.

Parameters

enable If IlTrue, the view will receive multi-touch events, if IlFalse, it will only receive usual events and multi-touch events will be translated into usual events.

Returns: IlTrue if the view receives multi-touch events, IlFalse otherwise.

◆ ensureVisible() [1/2]

void IlvAbstractView::ensureVisible ( const IlvPoint & point )

Ensures that a point remains visible.

This member function makes sure the given point p is visible to the user. This is meaningful only if isScrolled() returns IlTrue, that is, if this object is scrolled in a system scrolling view. The parent scrolling view takes care of its subwindow displacement to guarantee the visibility of p.

Parameters

point The point that is requested to remain visible.

◆ ensureVisible() [2/2]

void IlvAbstractView::ensureVisible ( const IlvRect & rect )

Ensures that a rectangle remains visible.

This member function makes sure the given rectangle rect is visible to the user. This is meaningful only if isScrolled() returns IlTrue, that is, if this object is scrolled in a system scrolling view. The parent scrolling view takes care of its subwindow displacement to guarantee the visibility of rect.

If rect represents a bigger rectangle than the scrolling window is able to display, then the subwindow is centered in the scrolling region on the center of rect. That is, the center of rect is moved to the center of the scrolling window, but the boundaries of rect are not visible.

Parameters

rect	The rectangle that is requested to remain visible.

◆ erase() [1/2]

virtual void IlvAbstractView::erase	(	const IlvRect &	rect,
		IlBoolean	reDraw = `IlFalse`
	)

virtual

Erases an area of this view.

Erases the indicated part of this view, using the background color of the background bitmap.

Parameters

rect	The area that must be erased.
reDraw	Can be set to `IlTrue` to trigger a refresh of the indicated area.

◆ erase() [2/2]

virtual void IlvAbstractView::erase ( IlBoolean reDraw = IlFalse )

virtual

Entirely erases the view.

Erases the entire view, using the background color of background bitmap.

Parameters

reDraw Can be set to IlTrue to trigger a refresh of the entire view.

◆ frameBBox()

virtual void IlvAbstractView::frameBBox ( IlvRect & bbox ) const

virtual

Retrieves the dimension of the view frame.

Parameters

bbox	Is set to the absolute geometry of this view, including the title bar and the frame if the window is a top-level window. The coordinates returned in bbox correspond to the upper left corner of the window, in screen coordinates.

◆ getBackground()

IlvColor* IlvAbstractView::getBackground ( ) const

Retrieves the background color of this view.

Returns: The background color of this window.

◆ getBackgroundBitmap()

IlvBitmap* IlvAbstractView::getBackgroundBitmap ( ) const

Gets the background bitmap of this view.

Returns: The background bitmap currently set in this view.

◆ getCompressButtonDragged()

IlBoolean IlvAbstractView::getCompressButtonDragged ( ) const

Indicates if IlvButtonDragged compression is enabled or not.

Returns: IlTrue if the compression is enabled and IlFalse if it is disabled.

See also: getCompressPointerMoved(), setCompressPointerMoved(), setCompressButtonDragged().

◆ getCompressPointerMoved()

IlBoolean IlvAbstractView::getCompressPointerMoved ( ) const

Indicates if IlvPointerMoved compression is enabled or not.

Returns: IlTrue if the compression is enabled and IlFalse if it is disabled.

See also: setCompressPointerMoved(), getCompressButtonDragged(), setCompressButtonDragged().

◆ getCursor()

IlvCursor* IlvAbstractView::getCursor ( ) const

Retrieves the cursor currently set on this view.

Returns: The cursor currently set on this view. This cursor should not be deleted. If you want to use it, you should lock it beforehand and unlock it when you are done.

See also: IlvResource::lock(), IlvResource::unLock().

◆ getOpacity()

IlvIntensity IlvAbstractView::getOpacity ( ) const

Returns the opacity level of the view.

Returns: An IlvIntensity value. 0 means that the view is completely transparent and IlvFullIntensity means that it is completely opaque.

◆ getOuterStylableSize()

virtual void IlvAbstractView::getOuterStylableSize	(	IlvDim &	w,
		IlvDim &	h
	)		const

virtual

Returns the size of the outer stylable if any.

When a stylable is part of another one, this information allows for instance to compute relative sizes or placement.

If the stylable is not part of another one, this function returns the same results than getStylableSize().

Parameters

w	The width of the container stylable.
h	The height of the container stylable.

Reimplemented from IlvStylable.

◆ getParent()

IlvAbstractView* IlvAbstractView::getParent ( ) const

Gets the parent of this view.

Returns: The parent IlvAbstractView of the view, or 0 if this view doesn't have an IlvAbstractView parent.

Note: The parent is 0 if this view was built using an IlvSystemView.

◆ getShellSystemView()

IlvSystemView IlvAbstractView::getShellSystemView ( ) const

Gets the system-dependent identifier of the top shell of this view.

Returns: The top shell system view. Returns 0 in every case but a Motif top window.

◆ getStylableClassName()

virtual const char* IlvAbstractView::getStylableClassName ( ) const

virtual

Returns the class name of this object.

Returns: The class name of this object.

Reimplemented from IlvStylable.

◆ getStylableDisplay()

virtual IlvDisplay* IlvAbstractView::getStylableDisplay ( ) const

virtual

Returns the display for this object.

Returns: The display instance of this object.

Implements IlvStylable.

◆ getStylableSize()

virtual void IlvAbstractView::getStylableSize	(	IlvDim &	w,
		IlvDim &	h
	)		const

virtual

Returns the size of this object.

It can be used for computing sizes relative to the object (image position, borders,...).

Parameters

w	The width of the stylable.
h	The height of the stylable.

Reimplemented from IlvStylable.

◆ getStylist()

virtual IlvStylist* IlvAbstractView::getStylist ( ) const

virtual

Returns the stylist for this object.

Returns: The stylist of this object or 0 if there is none.

Implements IlvStylable.

◆ getSystemView()

IlvSystemView IlvAbstractView::getSystemView ( ) const

Gets the system-dependent identifier of this view.

An IlvAbstractView object encapsulates a real interface object of your display system (sometimes referred to as a widget). The member function getSystemView() returns this object.

The IlvSystemView type is the basic type of your display system widgets, and is thus platform-dependent.

Returns: The system-dependent identifier of this view.

◆ getTransparentColorKey()

void IlvAbstractView::getTransparentColorKey	(	IlvIntensity &	r,
		IlvIntensity &	g,
		IlvIntensity &	b
	)		const

Returns the color used as a key for transparency.

Parameters

r	Will contain the red component value of the color key.
g	Will contain the green component value of the color key.
b	Will contain the blue component value of the color key.

◆ globalBBox()

virtual void IlvAbstractView::globalBBox ( IlvRect & bbox ) const

virtual

Retrieves the absolute dimensions of the view.

Parameters

bbox	The geometry of this window relative to the upper left corner of the whole screen.

◆ hasGrab()

IlBoolean IlvAbstractView::hasGrab ( ) const

Queries if this view has the display grab.

Returns: IlTrue if this view has the display grab.

◆ hide()

virtual void IlvAbstractView::hide ( )

virtual

Hides the view.

Removes the window from the visible windows on your screen.

Reimplemented in IlvContainer, and IlvView.

◆ isLayered()

IlBoolean IlvAbstractView::isLayered ( ) const

Returns whether the view is layered or not.

Returns: IlTrue if the window is layered, IlFalse if not.

◆ isMultitouchEnabled()

IlBoolean IlvAbstractView::isMultitouchEnabled ( )

Queries if the view is set to receive multi-touch events.

Returns: Returns IlTrue if the view receives multi-touch events, IlFalse otherwise.

◆ isScrolled()

virtual IlBoolean IlvAbstractView::isScrolled ( ) const

virtual

Indicates if the view is a scrolling window subview.

A scrolling window owns a single subwindow (generally larger) and displays only a rectangular portion of it. This allows you to manipulate and visualize windows larger than your screen.

Returns: IlTrue if this window is the subwindow of a system scrolling window.

See also: IlvScrollView.

◆ isSensitive()

IlBoolean IlvAbstractView::isSensitive ( ) const

Retrieves the sensitivity of this view to input events.

Returns: The current behavior of this window concerning the event that may occur within its frame. If IlFalse is returned, no keyboard or pointing device events are received by this object. The window is said to be sensitive if it can receive these events and isSensitive returns IlTrue.

◆ lower()

virtual void IlvAbstractView::lower ( )

virtual

Pushes this view below the others.

Puts this view object below any other view on the screen. This is meaningful only if this view is a top window.

◆ move()

virtual void IlvAbstractView::move ( const IlvPoint & position )

virtual

Moves the view.

Moves the upper left corner of the window to the indicated position in the parent window of this object, or the root window in the case of a top window.

Parameters

position The new position of the window.

Reimplemented in IlvView.

◆ moveResize()

virtual void IlvAbstractView::moveResize ( const IlvRect & newSize )

virtual

Moves and resizes the view.

Moves and changes the size of the window in the parent window.

Parameters

newSize The new position and dimensions of the window.

Reimplemented in IlvElasticView, and IlvView.

◆ position()

virtual void IlvAbstractView::position ( IlvPoint & position ) const

virtual

Retrieves the position of the view.

Parameters

position Is set to the position of the upper left corner of the window.

◆ raise()

virtual void IlvAbstractView::raise ( )

virtual

Brings this view on top.

Puts this view object on top of any other view on the screen. This is meaningful only if this view is a top window.

◆ removeWindowProc()

void IlvAbstractView::removeWindowProc	(	IlvWindowProc	windowProc,
		IlAny	procArgument = `0`
	)

Removes a user-defined window procedure.

Parameters

windowProc	The window procedure that must be removed.
procArgument	The user-defined argument that was used when setting this window procedure.

See also: setWindowProc().

◆ resize()

virtual void IlvAbstractView::resize	(	IlvDim	w,
		IlvDim	h
	)

virtual

Resizes the view.

Parameters

w	The new width of the view.
h	The new height of the view.

Reimplemented in IlvElasticView, and IlvView.

◆ setBackground()

virtual void IlvAbstractView::setBackground ( IlvColor * c )

virtual

Sets the background color of this view.

The color is used when erasing is required. Thus, a call to setBackground() is effective only when regions are erased.

Parameters

c	The new background color of this view. This color is locked, and the previous color is unlocked.

Reimplemented in IlvContainer.

◆ setBackgroundBitmap()

virtual void IlvAbstractView::setBackgroundBitmap ( IlvBitmap * b )

virtual

Sets the background bitmap of this view.

The bitmap provided (if it is not 0) is locked. The previous bitmap, if there was one, is unlocked. If the bitmap provided is 0, the background color is used to erase the view.

To remove properly a background bitmap that was previously set, you must do the following:

view->setBackgroundBitmap(0); // Remove the background bitmap
manager->setBackground(view, view->getBackground()); // Update manager
manager->draw(view, IlTrue); // Redraw the view

This code must be used also for containers (replaces manager by container in code).

Note: There is a limitation on Windows 95, because Windows 95 can only handle bitmaps with a size of 8x8.

Reimplemented in IlvContainer.

◆ setCompressButtonDragged()

virtual void IlvAbstractView::setCompressButtonDragged ( IlBoolean val )

virtual

Enables or disables IlvButtonDragged event compression.

The IlvButtonDragged compression is similar to IlvPointerMoved compression. The difference is only in the event type: IlvButtonDragged events occur when the pointer moves while one or more mouse buttons are kept pressed.

By default, IlvButtonDragged event compression is enabled.
Applications that want to monitor every single IlvButtonDragged event should disable this compression.

Note: This mechanism is not implemented on Windows platforms.

Parameters

val	If `IlTrue`, the compression is enabled, otherwise it is disabled.

See also: getCompressPointerMoved(), setCompressPointerMoved(), getCompressButtonDragged().

◆ setCompressPointerMoved()

virtual void IlvAbstractView::setCompressPointerMoved ( IlBoolean val )

virtual

Enables or disables IlvPointerMoved event compression.

The IlvPointerMoved event compression is a mechanism to filter events in order to ignore pointer motion events that are redundant. This allows applications to be more reactive to fast successions of pointer motion events.

The event compression works iteratively. When the event loop handles an IlvPointerMoved event in a window with compression enabled, it skips all similar events (same type and same window) that IMMEDIATELY follow in the event queue, only keeping the last one.

By default, pointer motion event compression is disabled.
Applications that want to monitor every single pointer motion event should disable this compression.

Note: This mechanism is not implemented on Windows platforms.

Parameters

val	If `IlTrue`, the compression is enabled, otherwise it is disabled.

See also: getCompressPointerMoved(), getCompressButtonDragged(), setCompressButtonDragged().

◆ setCursor()

void IlvAbstractView::setCursor ( IlvCursor * cursor )

Sets the cursor for this view.

Sets the given cursor pattern for your pointing device whenever it enters this window. This member function calls lock() on the cursor provided as an argument, then unLock() on the old cursor to release a reference to it.

Parameters

cursor The new cursor that is used in this view.

See also: IlvResource::lock(), IlvResource::unLock().

◆ setFocus()

IlBoolean IlvAbstractView::setFocus ( )

Sets the input focus to this view.

Gives this window entire control of keyboard events, that is it "gets the focus." When you call this function, all keyboard events are sent to this object. The only way to let another window receive keyboard events is by giving the focus to another window.

Warning: Each windowing system has its own policy of setting the focus in one window or another. Check that setFocus() does not lock your system permanently.

◆ setLayered()

void IlvAbstractView::setLayered ( IlBoolean layered )

Sets whether the window is layered or not.

Layered windows only work in Windows 2000 or higher systems. Layered windows are rendered in an offscreen bitmap by the system, and then blended to the screen using various attributes such as partial translucency. This attribute allows improved performance for shaped windows.

Parameters

layered The new layered value of this view. The view becomes layered if the layered argument is IlTrue.

◆ setOpacity()

void IlvAbstractView::setOpacity ( IlvIntensity level )

Sets the opacity value of the view.

This method has only an effect on Windows 2000 and higher systems. The view must be a top window. The method setLayered(IlTrue) is called to set the layered attribute.

Parameters

level The opacity level of the view. 0 means that the view is completely transparent and IlvFullIntensity means that it is completely opaque.

◆ setSensitive()

void IlvAbstractView::setSensitive ( IlBoolean sensitivity )

Sets the sensitivity of this view to input events.

Parameters

sensitivity The new sensitivity of this view. The view becomes sensitive if the sensitivity argument is IlTrue. If sensitivity is set to IlFalse, none of the input events can reach the window.

◆ setShapeMask()

IlBoolean IlvAbstractView::setShapeMask	(	const IlvBitmap *	mask,
		IlBoolean	addTitle = `IlFalse`
	)

Sets a non-rectangular shape on the view according to a bitmap mask.

The bitmap defining the shape must be either a one-bit deep bitmap or a transparent bitmap with a transparency mask. If the bitmap is 0 or has no transparency mask, the method removes any existing shape on the view and restores its initial rectangular shape.

The bitmap (or its mask) is interpreted as a shape where bits set to 1 are included and bits set to 0 are excluded.

The origin of the bitmap corresponds to the origin of the view.

An additional parameter can be used to specify whether the region should be enlarged to include the window title or not. This value is only meaningful for top-level views (sub-views do not have a title area) on Windows platforms (on X Window, the title area is not accessible to the client).

The defined shape has a fixed size and will not be modified when the view is resized. It is up to the caller to update the shape according to changes in the view geometry. For this matter, one might consider using IlvView::setShape() instead, as it allows to handle resize events.

Parameters

mask	A one-bit deep bitmap or a transparent bitmap with a mask. The bitmap can be deleted after the call.
addTitle	Specifies whether to add the window title area to the shape.

Returns: IlTrue if the operation succeeds and IlFalse if it does not.

◆ setTransparentColorKey()

void IlvAbstractView::setTransparentColorKey	(	IlvIntensity	r,
		IlvIntensity	g,
		IlvIntensity	b
	)

Sets the transparency color key value.

This method has only an effect on Windows 2000 and higher systems. The view must be a top window. All pixels painted in the window using this color will be transparent. The method setLayered(IlTrue) is called to set the layered attribute.

Parameters

r	The red component value of the color.
g	The green component value of the color.
b	The blue component value of the color.

◆ setWindowProc()

void IlvAbstractView::setWindowProc	(	IlvWindowProc	windowProc,
		IlAny	procArgument = `0`
	)

Sets a Windows window procedure.

This member function is available only for Windows ports of Rogue Wave Views.

It sets a window procedure for processing events that should not be handled by Rogue Wave Views but by Windows.

Note: Using a specific window procedure you can force Rogue Wave Views not to process certain messages. However, you should be aware that doing so might produce unpredictable behavior.

Parameters

windowProc	The new window procedure that is used for this view.
procArgument	The user-defined argument that the window procedure will receive.

See also: IlvWindowProc, removeWindowProc().

◆ show()

virtual void IlvAbstractView::show ( )

virtual

Shows the view.

Displays the window on the screen. A window can be created in such a way that you cannot see it upon creation, which allows you to draw on that window before it is displayed.

Reimplemented in IlvContainer, and IlvView.

◆ sizeVisible()

virtual void IlvAbstractView::sizeVisible ( IlvRect & rect ) const

virtual

Retrieves the visible part of the view.

Parameters

rect	Is set to the visible rectangle of this window. This return value is meaningful only if this object is the subwindow of a scrolling window (that is, has a hidden area because of the view hierarchy). If this is not the case, `sizeVisible()` has the same meaning as `boundingBox()`.

Public Member Functions

Additional Inherited Members

Detailed Description

Data accessors

Method accessors

Member Function Documentation

◆ boundingBox()

◆ enableMultitouch()

◆ ensureVisible() [1/2]

◆ ensureVisible() [2/2]

◆ erase() [1/2]

◆ erase() [2/2]

◆ frameBBox()

◆ getBackground()

◆ getBackgroundBitmap()

◆ getCompressButtonDragged()

◆ getCompressPointerMoved()

◆ getCursor()

◆ getOpacity()

◆ getOuterStylableSize()

◆ getParent()

◆ getShellSystemView()

◆ getStylableClassName()

◆ getStylableDisplay()

◆ getStylableSize()

◆ getStylist()

◆ getSystemView()

◆ getTransparentColorKey()

◆ globalBBox()

◆ hasGrab()

◆ hide()

◆ isLayered()

◆ isMultitouchEnabled()

◆ isScrolled()

◆ isSensitive()

◆ lower()

◆ move()

◆ moveResize()

◆ position()

◆ raise()

◆ removeWindowProc()

◆ resize()

◆ setBackground()

◆ setBackgroundBitmap()

◆ setCompressButtonDragged()

◆ setCompressPointerMoved()

◆ setCursor()

◆ setFocus()

◆ setLayered()

◆ setOpacity()

◆ setSensitive()

◆ setShapeMask()

◆ setTransparentColorKey()

◆ setWindowProc()

◆ show()

◆ sizeVisible()
