File selector dialog class. More...

#include <ilviews/gadgets/filechoo.h>

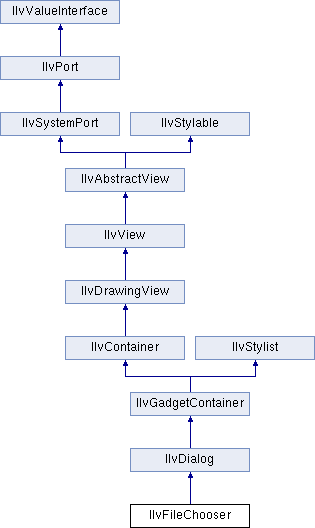

Inheritance diagram for IlvFileChooser:

Public Member Functions
	IlvFileChooser (IlvDisplay display, const char dir=0, const char title=0, IlvFileChooserOptions options=0, IlvSystemView transientFor=0, IlUInt properties=0)
	Constructor. More...

virtual void	addFileInListMode (const IlPathName &file, IlvPathGadgetItem *item)
	Adds an item to the sheet in List mode. More...

virtual void	addFileInMatrixMode (const IlPathName &file, IlvPathGadgetItem *item)
	Adds an item to the sheet in Matrix mode. More...

virtual void	addFileToSheet (const IlPathName &file)
	Adds an item to the sheet. More...

virtual void	adjustSheetForMatrixMode ()
	Updates the sheet when the dialog is resized. More...

virtual void	changePath (const IlPathName &path)
	Called when the user selects a new path. More...

virtual void	convertSizeToLabel (IlUInt size, IlString &label) const
	Converts a file size to a string. More...

virtual IlvButton *	createApplyButton (const IlvRect &rect, const IlString &label) const
	Creates a dialog Apply button. More...

virtual IlvButton *	createCancelButton (const IlvRect &rect, const IlString &label) const
	Creates a dialog Cancel button. More...

virtual IlvButton *	createCreateButton (const IlvRect &rect) const
	Creates a Create directory dialog button. More...

virtual IlvTreePathGadgetItem *	createDeviceItem (const IlPathName &filepath, IlInt genre) const
	Creates a tree gadget item for a device. More...

virtual void	createDirectoryButtonClicked ()
	Called when the Create directory button has been clicked. More...

virtual IlvComboBox *	createFilterComboBox (const IlvRect &rect) const
	Creates a dialog combobox. More...

virtual IlvButton *	createHiddenButton (const IlvRect &rect) const
	Creates a Hide hidden files dialog button. More...

virtual IlvButton *	createListButton (const IlvRect &rect) const
	Creates a List mode dialog button. More...

virtual IlvButton *	createMatrixButton (const IlvRect &rect) const
	Creates a Matrix mode dialog button. More...

virtual IlvMessageLabel *	createMsgLabel (const IlvRect &rect, const IlString &label) const
	Creates a dialog message label. More...

virtual IlvFileChooserSheet *	createSheet (const IlvRect &rect) const
	Creates a dialog sheet. More...

virtual IlvPathGadgetItem *	createSheetItem (const IlPathName &filepath, IlvFileChooserDisplayMode mode) const
	Creates a gadget item for the sheet. More...

virtual IlvButton *	createShowAllButton (const IlvRect &rect) const
	Creates a Show all files dialog button. More...

virtual IlvTextField *	createTextField (const IlvRect &rect) const
	Creates a dialog textfield. More...

virtual IlvToolBarPath *	createToolBar (const IlvRect &rect) const
	Creates a dialog toolbar. More...

virtual IlvFileChooserTree *	createTreeGadget (const IlvRect &rect) const
	Creates a dialog tree gadget. More...

virtual IlvTreePathGadgetItem *	createTreeItem (const IlPathName &path) const
	Creates a tree gadget item for a directory. More...

virtual IlvButton *	createUpButton (const IlvRect &rect) const
	Creates an Up directory dialog button. More...

virtual IlvTreePathGadgetItem *	fillTree (IlPathName &path, IlvTreePathGadgetItem parent, IlPathName ref=0)
	Expands a directory of the tree gadget. More...

virtual void	filterChanged ()
	Called when the filter has changed. More...

IlInt	get (IlBoolean grab=IlFalse, IlvCursor *cursor=0)
	Displays the dialog as a modal dialog. More...

IlvButton *	getCreateButton () const
	Returns the Create directory dialog button. More...

IlvComboBox *	getFilterComboBox () const
	Returns the dialog combobox. More...

virtual const IlString &	getFilterExtension () const
	Returns the current filter extension. More...

IlvButton *	getListButton () const
	Returns the List mode dialog button. More...

IlvButton *	getMatrixButton () const
	Returns the Matrix mode dialog button. More...

virtual IlBoolean	getNewDirectoryName (IlString &name)
	Called when the user has clicked the Create directory button. More...

IlvFileChooserOptions *	getOptions () const
	Returns the object which describes the dialog. More...

const IlString &	getResult (IlInt index=0) const
	Returns a selected path name. More...

IlInt	getResultCount () const
	Returns the result count. More...

IlvFileChooserSheet *	getSheet () const
	Returns the dialog sheet. More...

IlvFileChooserDisplayMode	getSheetMode () const
	Returns the display mode of the sheet. More...

IlvButton *	getShowAllButton () const
	Returns the Show all files dialog button. More...

IlvTextField *	getTextField () const
	Returns the dialog textfield. More...

IlvToolBarPath *	getToolBar () const
	Returns the dialog toolbar. More...

IlvFileChooserTree *	getTreeGadget () const
	Returns the dialog tree gadget. More...

IlvButton *	getUpButton () const
	Returns the Up directory dialog button. More...

virtual void	handleSheetDoubleClick (IlvEvent &evt)
	Handles double-clicking in the sheet. More...

virtual void	initSheet ()
	Initializes the sheet. More...

virtual void	initSheetForListMode ()
	Initializes the sheet for List mode. More...

virtual void	initSheetForMatrixMode ()
	Initializes the sheet for Matrix mode. More...

virtual void	listModeButtonClicked ()
	Called when the List mode button has been clicked. More...

virtual void	matrixModeButtonClicked ()
	Called when the Matrix mode button has been clicked. More...

virtual void	newShowAllMode (IlBoolean show)
	Changes the status of the Show files buttons. More...

virtual void	processApply ()
	Called when the Apply button has been clicked. More...

virtual void	refreshSheet ()
	Updates the sheet with the current path. More...

virtual void	rewindPath (const IlPathName &path)
	Called when the user selects a directory of the path. More...

virtual void	selectionChanged ()
	Called when the sheet selection has been changed. More...

void	setCurrentPath (const IlPathName &path)
	Sets the current path. More...

void	setFilterExtension (const IlString &ext)
	Sets the current filter extension. More...

void	setSortMode (IlPathName::SortMode mode)
	Sets the sort method for entries in the sheet. More...

virtual void	setTreePath (const IlPathName &path)
	Sets the path of the tree gadget. More...

virtual void	updateDisplayButtons ()
	Updates the status of the display mode buttons. More...

virtual void	updateSheet (IlPathName &path)
	Updates the sheet for a path. More...

virtual void	updateShowAllButton ()
	Updates the status of the Show files buttons. More...

virtual void	updateToolBar (IlPathName &path)
	Updates the toolbar. More...

virtual void	updateTree (IlPathName &path, IlvTreePathGadgetItem *item)
	Updates a part of the tree gadget. More...

virtual void	upDirectoryButtonClicked ()
	Called when the Up directory button has been clicked. More...

Public Member Functions inherited from IlvDialog
	IlvDialog (IlvDisplay display, const char name, const char title, const char filename, const IlvRect *rect=0)
	Constructor. More...

	IlvDialog (IlvDisplay display, const char name, const char title, const char filename, IlUInt properties, const IlvRect *rect=0, IlvSystemView transientFor=0)
	Constructor. More...

	IlvDialog (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties=0, IlvSystemView transientFor=0)
	Constructor. More...

virtual void	apply ()
	Is called when the callback associated with the `apply` symbol is triggered. More...

virtual void	cancel ()
	Is called when the callback associated with the `cancel` symbol is triggered. More...

virtual void	wait (IlBoolean grab=IlFalse, IlvCursor *cursor=0)
	Displays a modal dialog. More...

IlBoolean	wasCanceled () const
	Returns the status of the dialog after closing it. More...

Public Member Functions inherited from IlvGadgetContainer
	IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of another view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of a system view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse)
	Initializes a new instance of the `IlvGadgetContainer` class using an existing system view. More...

virtual IlBoolean	allowFocus (IlBoolean value)
	Specifies whether the container manages the focus. More...

virtual void	applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue)
	Is called to carry out the resize events applying to the gadget container. More...

IlBoolean	autoResize (IlBoolean a)
	Sets the auto resize mode of the gadget container. More...

IlvButton *	getDefaultButton () const
	Returns the default button of the gadget container. More...

virtual IlvGraphic *	getFirstFocusGraphic () const
	Returns the first object that receives the focus in this container. More...

virtual IlvGraphic *	getFocus () const
	Returns the object that has the keyboard focus in the gadget container. More...

virtual IlvGraphic *	getGrab () const
	Returns the object that is currently grabbing events in the container. More...

virtual IlvGraphic *	getLastFocusGraphic () const
	Returns the last object that receives the focus in this container. More...

IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look and feel handler associated with this container. More...

virtual IlvGraphic *	getNextFocusGraphic (IlvGraphic *object) const
	Returns the next object that will receive the focus after the specified object. More...

IlvGraphic *	getOverriddenFocus () const
	Returns the object that will receive the focus after calling `setFocus()`. More...

virtual IlvGraphic *	getPreviousFocusGraphic (IlvGraphic *object) const
	Returns the previous object that received the focus before the specified object. More...

IlBoolean	isAutoResizing () const
	Indicates whether the gadget container gets resized when loading a file. More...

virtual IlBoolean	isFocusAllowed () const
	Indicates whether the focus is allowed in the container. More...

virtual void	moveFocusAfter (IlBoolean redraw=IlTrue)
	Is called to find the next focusable object. More...

virtual void	moveFocusBefore (IlBoolean redraw=IlTrue)
	Is called to find the previous focusable object. More...

void	overrideFocus (IlvGraphic *obj)
	Sets the object that will receive the focus after calling `setFocus()`. More...

virtual void	removeGrab ()
	Cancels the grabbing settings defined with `setGrab()`. More...

void	setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue)
	Sets the default button of the gadget container. More...

virtual void	setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue)
	Sets the focus to the specified object of the gadget container. More...

virtual void	setGrab (IlvGraphic *object)
	Sets the specified object as the grabbing object. More...

void	setLookFeelHandler (IlvLookFeelHandler *lfh)
	Sets the look and feel handler of this container. More...

Detailed Description

File selector dialog class.

Library: ilvadvgdt

The IlvFileChooser class enables you to browse through a directory hierarchy and select a file name or directory. To modify this dialog, create an IlvFileChooserOptions object with the options you wish to change.

Warning: Note that by default, all the bitmaps that are used by this class are PNG bitmaps. If you plan to statically link an application that uses IlvFileChooser, you will have to explicitly include the header file <ilviews/bitmaps/png.h> in one of your application source file and add the ilvpng library to your link command.
Similarly, if you replace the default bitmaps by your own and wish to link statically, you will have to make sure the appropriate bitmap format header files are included in one of your object files, and that the corresponding libraries are added to the link command for your application.

See also: IlvDialog, IlvFileChooserOptions.

Constructor & Destructor Documentation

◆ IlvFileChooser()

IlvFileChooser::IlvFileChooser	(	IlvDisplay *	display,
		const char *	dir = `0`,
		const char *	title = `0`,
		IlvFileChooserOptions *	options = `0`,
		IlvSystemView	transientFor = `0`,
		IlUInt	properties = `0`
	)

Constructor.

Initializes a new instance of the IlvIFileChooser class.

Parameters

display	The connection to the display.
dir	The initial directory that will be scanned.
title	The dialog title. If the value is null then the title from the `IlvFileChooserOptions` object is used.
options	The object which defines the look and behaviour of the dialog.
transientFor	The system view for which the dialog is transient.
properties	The view properties, as defined in `IlvView` class.

See also: IlvView constructors.

Member Function Documentation

◆ addFileInListMode()

virtual void IlvFileChooser::addFileInListMode	(	const IlPathName &	file,
		IlvPathGadgetItem *	item
	)

virtual

Adds an item to the sheet in List mode.

Adds a file or directory to the sheet in List mode.

Parameters

file	The full path for a file or a directory.
item	The gadget item associated with the file or directory.

◆ addFileInMatrixMode()

virtual void IlvFileChooser::addFileInMatrixMode	(	const IlPathName &	file,
		IlvPathGadgetItem *	item
	)

virtual

Adds an item to the sheet in Matrix mode.

Adds a file or directory to the sheet in Matrix mode.

Parameters

file	The full path for a file or a directory.
item	The gadget item associated with the file or directory.

◆ addFileToSheet()

virtual void IlvFileChooser::addFileToSheet ( const IlPathName & file )

virtual

Adds an item to the sheet.

Adds a file or directory to the sheet. This method creates a gadget item before calling the addFileInMatrixMode() or addFileInListMode() method to add it.

Parameters

file	The full path for a file or a directory.

◆ adjustSheetForMatrixMode()

virtual void IlvFileChooser::adjustSheetForMatrixMode ( )

virtual

Updates the sheet when the dialog is resized.

Updates the sheet when the dialog is resized. It is not necessary to call this method if the display mode is List mode as the number of columns does not change.

◆ changePath()

virtual void IlvFileChooser::changePath ( const IlPathName & path )

virtual

Called when the user selects a new path.

Called when the user selects a new path from a pop-up menu on the toolbar.

Parameters

path	The path which corresponds to the selection.

◆ convertSizeToLabel()

virtual void IlvFileChooser::convertSizeToLabel	(	IlUInt	size,
		IlString &	label
	)		const

virtual

Converts a file size to a string.

Parameters

size	The file size.
label	The conversion result.

◆ createApplyButton()

virtual IlvButton* IlvFileChooser::createApplyButton	(	const IlvRect &	rect,
		const IlString &	label
	)		const

virtual

Creates a dialog Apply button.

Creates the Apply button.

Parameters

rect	The bounding box of the button.
label	The button label.

Returns: The created button.

◆ createCancelButton()

virtual IlvButton* IlvFileChooser::createCancelButton	(	const IlvRect &	rect,
		const IlString &	label
	)		const

virtual

Creates a dialog Cancel button.

Creates the Cancel button.

Parameters

rect	The bounding box of the button.
label	The button label.

Returns: The created button.

◆ createCreateButton()

virtual IlvButton* IlvFileChooser::createCreateButton ( const IlvRect & rect ) const

virtual

Creates a Create directory dialog button.

Creates the Create directory button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ createDeviceItem()

virtual IlvTreePathGadgetItem* IlvFileChooser::createDeviceItem	(	const IlPathName &	filepath,
		IlInt	genre
	)		const

virtual

Creates a tree gadget item for a device.

Creates a tree gadget item for a device. This method is called only under Windows. A device has a name (a letter) and a type. Type can take one of the following values:

0 for Unknown
1 for Error
2 for Removable
3 for Fixed
4 for Network
5 for CDRom
6 for Ram disk

Parameters

filepath	The full path name of the device.
genre	The device type.

Returns: A tree gadget item.

◆ createDirectoryButtonClicked()

virtual void IlvFileChooser::createDirectoryButtonClicked ( )

virtual

Called when the Create directory button has been clicked.

◆ createFilterComboBox()

virtual IlvComboBox* IlvFileChooser::createFilterComboBox ( const IlvRect & rect ) const

virtual

Creates a dialog combobox.

Creates the combobox which contains the filter list. If no filter is defined, this method is not called.

Parameters

rect	The bounding box of the combobox.

Returns: The created combobox.

◆ createHiddenButton()

virtual IlvButton* IlvFileChooser::createHiddenButton ( const IlvRect & rect ) const

virtual

Creates a Hide hidden files dialog button.

Creates the Hide hidden files button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ createListButton()

virtual IlvButton* IlvFileChooser::createListButton ( const IlvRect & rect ) const

virtual

Creates a List mode dialog button.

Creates the List mode button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ createMatrixButton()

virtual IlvButton* IlvFileChooser::createMatrixButton ( const IlvRect & rect ) const

virtual

Creates a Matrix mode dialog button.

Creates the Matrix mode button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ createMsgLabel()

virtual IlvMessageLabel* IlvFileChooser::createMsgLabel	(	const IlvRect &	rect,
		const IlString &	label
	)		const

virtual

Creates a dialog message label.

Creates a message label such as Filename or Filter.

Parameters

rect	The bounding box of the message label.
label	The text of the message label.

Returns: The created message label.

◆ createSheet()

virtual IlvFileChooserSheet* IlvFileChooser::createSheet ( const IlvRect & rect ) const

virtual

Creates a dialog sheet.

Creates the sheet which displays the directories and files of the current path.

Parameters

rect	The bounding box of the sheet.

Returns: The created sheet.

◆ createSheetItem()

virtual IlvPathGadgetItem* IlvFileChooser::createSheetItem	(	const IlPathName &	filepath,
		IlvFileChooserDisplayMode	mode
	)		const

virtual

Creates a gadget item for the sheet.

Creates a gadget item for the list of directories and files.

Parameters

filepath	The full path name of the directory or file.
mode	The display mode of the sheet which can be List or Matrix mode.

Returns: A gadget item.

◆ createShowAllButton()

virtual IlvButton* IlvFileChooser::createShowAllButton ( const IlvRect & rect ) const

virtual

Creates a Show all files dialog button.

Creates the Show all files button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ createTextField()

virtual IlvTextField* IlvFileChooser::createTextField ( const IlvRect & rect ) const

virtual

Creates a dialog textfield.

Creates the textfield which contains the selection.

Parameters

rect	The bounding box of the textfield.

Returns: The created textfield.

◆ createToolBar()

virtual IlvToolBarPath* IlvFileChooser::createToolBar ( const IlvRect & rect ) const

virtual

Creates a dialog toolbar.

Creates the toolbar which displays the current path.

Parameters

rect	The bounding box of the toolbar.

Returns: The created toolbar.

◆ createTreeGadget()

virtual IlvFileChooserTree* IlvFileChooser::createTreeGadget ( const IlvRect & rect ) const

virtual

Creates a dialog tree gadget.

Creates the tree gadget which displays the directory tree.

Parameters

rect	The bounding box of the tree gadget.

Returns: The created tree gadget.

◆ createTreeItem()

virtual IlvTreePathGadgetItem* IlvFileChooser::createTreeItem ( const IlPathName & path ) const

virtual

Creates a tree gadget item for a directory.

Parameters

path	The full path name of the directory.

Returns: A tree gadget item.

◆ createUpButton()

virtual IlvButton* IlvFileChooser::createUpButton ( const IlvRect & rect ) const

virtual

Creates an Up directory dialog button.

Creates the Up directory button which is displayed at the right of the toolbar to display the current path.

Parameters

rect	The bounding box of the button.

Returns: The created button.

◆ fillTree()

virtual IlvTreePathGadgetItem* IlvFileChooser::fillTree	(	IlPathName &	path,
		IlvTreePathGadgetItem *	parent,
		IlPathName *	ref = `0`
	)

virtual

Expands a directory of the tree gadget.

Parameters

path	The full path of the directory.
parent	The tree gadget item associated with the path.
ref	The current path of the dialog.

Returns: The new tree gadget item corresponding to the current path of the dialog, otherwise null.

◆ filterChanged()

virtual void IlvFileChooser::filterChanged ( )

virtual

Called when the filter has changed.

Called when the user selects a new filter in the filter combobox.

◆ get()

IlInt IlvFileChooser::get	(	IlBoolean	grab = `IlFalse`,
		IlvCursor *	cursor = `0`
	)

Displays the dialog as a modal dialog.

Parameters

grab Specifies whether the dialog should be system modal. A system modal dialog grabs input events occurring on the entire system so that other applications cannot get any keyboard or mouse events until the member function returns. You can specify the cursor to be displayed with the cursor parameter. If grab is set to IlFalse, the dialog is application modal. In this case, the application does not receive input events in other windows. This is the default value.

cursor The cursor used to make the selection.

Returns: The number of the selected path.

Note: Some operating systems, such as Windows NT and Windows 95, do not allow system modal dialogs. On these operating system dialogs are always application modal.

See also: getResult(), getResultCount().

◆ getCreateButton()

IlvButton* IlvFileChooser::getCreateButton ( ) const

Returns the Create directory dialog button.

Returns: The Create directory button, or 0 if the button is not visible.

◆ getFilterComboBox()

IlvComboBox* IlvFileChooser::getFilterComboBox ( ) const

Returns the dialog combobox.

Returns: The combobox which contains the list of file types.

◆ getFilterExtension()

virtual const IlString& IlvFileChooser::getFilterExtension ( ) const

virtual

Returns the current filter extension.

Returns: The current filter extension. The default value is an empty string which means no filter or all files.

◆ getListButton()

IlvButton* IlvFileChooser::getListButton ( ) const

Returns the List mode dialog button.

Returns: The List mode button, or 0 if the button is not visible.

◆ getMatrixButton()

IlvButton* IlvFileChooser::getMatrixButton ( ) const

Returns the Matrix mode dialog button.

Returns: The Matrix mode button, or 0 if the button is not visible.

◆ getNewDirectoryName()

virtual IlBoolean IlvFileChooser::getNewDirectoryName ( IlString & name )

virtual

Called when the user has clicked the Create directory button.

Called when the user has clicked the Create directory button. By default this method creates a dialog to ask for a directory name. This directory name is not checked.

Parameters

name	The name of the new directory.

Returns: IlTrue if the user clicked the Apply button and name is not empty.

◆ getOptions()

IlvFileChooserOptions* IlvFileChooser::getOptions ( ) const

Returns the object which describes the dialog.

Returns: The object which describes the dialog.

◆ getResult()

const IlString& IlvFileChooser::getResult ( IlInt index = 0 ) const

Returns a selected path name.

Returns a path name from the list of selected path names.

Parameters

index The index of the selected path name in the list. The index value starts at 0.

Returns: The selected path name.

◆ getResultCount()

IlInt IlvFileChooser::getResultCount ( ) const

Returns the result count.

Returns the result count. A result is a selected path name. It can be a file or a directory.

Returns: The number of selected path names.

◆ getSheet()

IlvFileChooserSheet* IlvFileChooser::getSheet ( ) const

Returns the dialog sheet.

Returns: The sheet which displays the directories and files of the current path.

◆ getSheetMode()

IlvFileChooserDisplayMode IlvFileChooser::getSheetMode ( ) const

Returns the display mode of the sheet.

Returns: The display mode of the sheet.

◆ getShowAllButton()

IlvButton* IlvFileChooser::getShowAllButton ( ) const

Returns the Show all files dialog button.

Returns: The Show all files button, or 0 if the button is not visible.

◆ getTextField()

IlvTextField* IlvFileChooser::getTextField ( ) const

Returns the dialog textfield.

Returns: The textfield which contains the selection.

◆ getToolBar()

IlvToolBarPath* IlvFileChooser::getToolBar ( ) const

Returns the dialog toolbar.

Returns: The toolbar which displays the current path.

◆ getTreeGadget()

IlvFileChooserTree* IlvFileChooser::getTreeGadget ( ) const

Returns the dialog tree gadget.

Returns: The tree gadget which displays the directory tree.

◆ getUpButton()

IlvButton* IlvFileChooser::getUpButton ( ) const

Returns the Up directory dialog button.

Returns: The Up directory button, or 0 if the button is not visible.

◆ handleSheetDoubleClick()

virtual void IlvFileChooser::handleSheetDoubleClick ( IlvEvent & evt )

virtual

Handles double-clicking in the sheet.

Handles double-clicking in the sheet. By default this method calls the processApply() method. param evt The double-click event.

◆ initSheet()

virtual void IlvFileChooser::initSheet ( )

virtual

Initializes the sheet.

Initializes the common features of the sheet before calling the initSheetForMatrixMode() or initSheetForListMode() methods to finalize.

◆ initSheetForListMode()

virtual void IlvFileChooser::initSheetForListMode ( )

virtual

Initializes the sheet for List mode.

Initializes the sheet for List mode. In List mode, each matrix row is a file or a directory.

◆ initSheetForMatrixMode()

virtual void IlvFileChooser::initSheetForMatrixMode ( )

virtual

Initializes the sheet for Matrix mode.

Initializes the sheet for Matrix mode. In Matrix mode, each matrix item is a file or directory.

◆ listModeButtonClicked()

virtual void IlvFileChooser::listModeButtonClicked ( )

virtual

Called when the List mode button has been clicked.

◆ matrixModeButtonClicked()

virtual void IlvFileChooser::matrixModeButtonClicked ( )

virtual

Called when the Matrix mode button has been clicked.

◆ newShowAllMode()

virtual void IlvFileChooser::newShowAllMode ( IlBoolean show )

virtual

Changes the status of the Show files buttons.

Parameters

show	The Show all files button will be visible if the value is `IlTrue`, otherwise it will be hidden. The Hide hidden files button will be hidden if the value is `IlTrue`.

◆ processApply()

virtual void IlvFileChooser::processApply ( )

virtual

Called when the Apply button has been clicked.

Called when the Apply button has been clicked. If the dialog selection type is file only and the selection is a directory, the current path of the dialog is set to the selected directory. If the selection is a file, the result is built and the dialog is closed.

◆ refreshSheet()

virtual void IlvFileChooser::refreshSheet ( )

virtual

Updates the sheet with the current path.

Updates the sheet data with the current path.

◆ rewindPath()

virtual void IlvFileChooser::rewindPath ( const IlPathName & path )

virtual

Called when the user selects a directory of the path.

Called when the user selects a directory or the device of the current path of the toolbar.

Parameters

path	The path which corresponds to the selection.

◆ selectionChanged()

virtual void IlvFileChooser::selectionChanged ( )

virtual

Called when the sheet selection has been changed.

Called when the sheet selection has been changed to update the textfield containing the user selection.

◆ setCurrentPath()

void IlvFileChooser::setCurrentPath ( const IlPathName & path )

Sets the current path.

Sets the current path. This method does not update the different gadgets of the dialog.

Parameters

path	The new current path.

◆ setFilterExtension()

void IlvFileChooser::setFilterExtension ( const IlString & ext )

Sets the current filter extension.

Parameters

ext	The new filter extension.

◆ setSortMode()

void IlvFileChooser::setSortMode ( IlPathName::SortMode mode )

Sets the sort method for entries in the sheet.

Specifies how file and directory names are sorted in the file chooser. The sort mode can be any combinaison of the values of the IlPathName::SortMode enumeration.

If IlPathName::GroupDirectories is specified, files are listed afted the directories.

Parameters

mode	The sort method that must be used.

◆ setTreePath()

virtual void IlvFileChooser::setTreePath ( const IlPathName & path )

virtual

Sets the path of the tree gadget.

Removes all tree gadget items before rebuilding the directory tree and expanding the tree gadget items to show the new current path. To finalize, the tree gadget item of the directory is selected.

Parameters

path	The new current path.

◆ updateDisplayButtons()

virtual void IlvFileChooser::updateDisplayButtons ( )

virtual

Updates the status of the display mode buttons.

Updates the status of the display mode buttons. The display mode buttons are: Matrix mode and List mode.

◆ updateSheet()

virtual void IlvFileChooser::updateSheet ( IlPathName & path )

virtual

Updates the sheet for a path.

Initializes the sheet before updating the sheet data for a path. See the setSortMode() method to choose the sort algorithm.

Parameters

path The path.

◆ updateShowAllButton()

virtual void IlvFileChooser::updateShowAllButton ( )

virtual

Updates the status of the Show files buttons.

Updates the status of the Show files buttons. The Show files buttons are: Show all files and Hide hidden files.

◆ updateToolBar()

virtual void IlvFileChooser::updateToolBar ( IlPathName & path )

virtual

Updates the toolbar.

Updates the toolbar which displays the current path.

Parameters

path	The new path.

◆ updateTree()

virtual void IlvFileChooser::updateTree	(	IlPathName &	path,
		IlvTreePathGadgetItem *	item
	)

virtual

Updates a part of the tree gadget.

Manages the drawing operations of the tree gadget before calling the fillTree() method to update a part of the tree gadget.

Parameters

path	The path.
item	The tree gadget item associated with the path.

◆ upDirectoryButtonClicked()

virtual void IlvFileChooser::upDirectoryButtonClicked ( )

virtual

Called when the Up directory button has been clicked.

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ IlvFileChooser()

Member Function Documentation

◆ addFileInListMode()

◆ addFileInMatrixMode()

◆ addFileToSheet()

◆ adjustSheetForMatrixMode()

◆ changePath()

◆ convertSizeToLabel()

◆ createApplyButton()

◆ createCancelButton()

◆ createCreateButton()

◆ createDeviceItem()

◆ createDirectoryButtonClicked()

◆ createFilterComboBox()

◆ createHiddenButton()

◆ createListButton()

◆ createMatrixButton()

◆ createMsgLabel()

◆ createSheet()

◆ createSheetItem()

◆ createShowAllButton()

◆ createTextField()

◆ createToolBar()

◆ createTreeGadget()

◆ createTreeItem()

◆ createUpButton()

◆ fillTree()

◆ filterChanged()

◆ get()

◆ getCreateButton()

◆ getFilterComboBox()

◆ getFilterExtension()

◆ getListButton()

◆ getMatrixButton()

◆ getNewDirectoryName()

◆ getOptions()

◆ getResult()

◆ getResultCount()

◆ getSheet()

◆ getSheetMode()

◆ getShowAllButton()

◆ getTextField()

◆ getToolBar()

◆ getTreeGadget()

◆ getUpButton()

◆ handleSheetDoubleClick()

◆ initSheet()

◆ initSheetForListMode()

◆ initSheetForMatrixMode()

◆ listModeButtonClicked()

◆ matrixModeButtonClicked()

◆ newShowAllMode()

◆ processApply()

◆ refreshSheet()

◆ rewindPath()

◆ selectionChanged()

◆ setCurrentPath()

◆ setFilterExtension()

◆ setSortMode()

◆ setTreePath()

◆ updateDisplayButtons()

◆ updateSheet()

◆ updateShowAllButton()

◆ updateToolBar()

◆ updateTree()

◆ upDirectoryButtonClicked()
