Gadget class. More...

#include <ilviews/gadgets/combo.h>

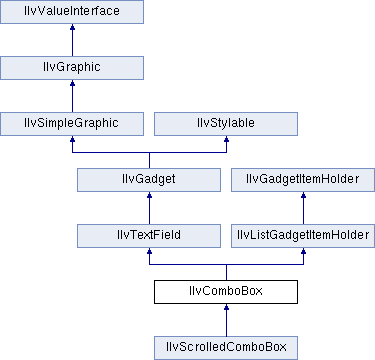

Inheritance diagram for IlvComboBox:

Classes
class	PopupMenu
	A subclass of `IlvPopupMenu` defined specifically for the `IlvComboBox`. More...

class	PopupMenuFactory

Public Member Functions
	IlvComboBox (IlvDisplay display, const IlvPoint &point, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IlvComboBox` instance. More...

	IlvComboBox (IlvDisplay display, const IlvRect &rect, const char label, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IlvComboBox` instance. More...

virtual IlvGadgetItem *	createItem (const char , IlvGraphic =0, IlvBitmap =0, IlvBitmap =0, IlBoolean=IlTrue) const
	Returns a new gadget item. More...

virtual void	empty ()
	Empties the list. More...

virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

const char *	getSelection () const
	Returns the string displayed in the combo box. More...

IlvPopupMenu *	getSubMenu () const
	Returns a pointer to the pop-up menu attached to the combo box. More...

virtual IlBoolean	isListVisible () const
	Indicates whether the list of items of the combo box is visible. More...

void	itemsBBox (IlvRect &labelRect, IlvRect &arrowRect, const IlvTransformer *t=0) const
	The bounding boxes of the main two components of the combo box. More...

virtual void	labelChanged ()
	Is called by the interactor whenever the label of the text field changes. More...

virtual void	setItems (IlvGadgetItem const , IlUShort)
	Replaces the entire list of items. More...

virtual void	setLabel (const char *, IlBoolean=IlFalse)
	Sets the label of the text field. More...

void	setSelected (IlUShort i, IlBoolean redraw=IlTrue)
	Sets the selected item in the combo box. More...

IlShort	whichSelected () const
	Returns the index of the selected item. More...

Public Member Functions inherited from IlvTextField
	IlvTextField (IlvDisplay display, const char label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

	IlvTextField (IlvDisplay display, const IlvPoint &point, const char label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...

void	addChangeCallback (IlSymbol *callbackName)
	Adds a named Label Changed callback. More...

void	addChangeCallback (IlSymbol *callbackName, IlAny arg)
	Adds a named Label Changed callback. More...

void	addChangeCallback (IlvGraphicCallback callback)
	Adds a Label Changed callback. More...

void	addChangeCallback (IlvGraphicCallback callback, IlAny arg)
	Adds a Label Changed callback. More...

virtual const char *	check (IlUShort character)
	Is called by the interactor for each key down event that corresponds to a regular character. More...

void	ensureVisible (IlShort position, const IlvTransformer *t=0)
	Ensures that the character located at the specified position is visible. More...

IlvPosition	getAlignment () const
	Returns the alignment of the text field. More...

IlvGraphicCallback	getChangeCallback () const
	Returns a pointer to the first unnamed callback in the Label Changed callback list. More...

IlSymbol *	getChangeCallbackName () const
	Returns the name of the first named callback in the Label Changed callback list. More...

IlBoolean	getChangeFocusOnValidation () const
	Indicates whether the text field moves the keyboard focus to the next gadget once validated. More...

IlShort	getCursorPosition () const
	Returns the cursor position. More...

IlShort	getEndSelection () const
	Returns the index of the last selected character. More...

IlFloat	getFloatValue () const
	Converts the text field contents to a floating point value and returns the result of the conversion. More...

IlInt	getIntValue () const
	Converts the text field contents to an integer and returns the result of the conversion. More...

const char *	getLabel () const
	Returns the label displayed by the text field. More...

IlShort	getMaxChar () const
	Returns the maximum number of characters that the user can type in the text field. More...

virtual const char *	getMessage () const
	Returns the message displayed by this text field. More...

IlShort	getStartSelection () const
	Returns the index of the first selected character. More...

IlShort	getTextPosition () const
	Returns the index of the first visible character of the text field. More...

virtual IlBoolean	handleControl (IlUShort character)
	Is called by the interactor to handle control keys. More...

IlBoolean	isCursorShown () const
	Indicates whether the cursor is visible. More...

IlBoolean	isEditable () const
	Indicates whether the text field can be edited. More...

IlShort	pointToPosition (const IlvPoint &point, const IlvTransformer *t=0) const
	Returns the index of the character located at the specified point. More...

virtual void	removeSelection ()
	Removes the selected label from the text field. More...

void	setAlignment (IlvPosition alignment)
	Sets the alignment of the text field. More...

void	setChangeCallback (IlSymbol *callbackName)
	Sets a named Label Changed callback. More...

void	setChangeCallback (IlSymbol *callbackName, IlAny arg)
	Sets a named Label Changed callback. More...

void	setChangeCallback (IlvGraphicCallback callback)
	Sets a Label Changed callback. More...

void	setChangeCallback (IlvGraphicCallback callback, IlAny arg)
	Sets a Label Changed callback. More...

void	setChangeFocusOnValidation (IlBoolean value)
	Specifies whether the text field should move the keyboard focus to the next gadget once validated. More...

void	setCursorPosition (IlShort position)
	Sets the cursor position. More...

void	setEditable (IlBoolean value)
	Specifies whether the text field can be edited. More...

void	setEndSelection (IlShort position)
	Sets the index of the last selected character. More...

void	setMaxChar (IlShort count)
	Sets the maximum number of characters that the user can type in the text field. More...

void	setSelection (IlShort start, IlShort end)
	Selects a portion of the text field content. More...

void	setStartSelection (IlShort position)
	Sets the index of the first selected character. More...

void	setTextPosition (IlShort position)
	Sets the index of the first visible character of the text field. More...

void	setValue (IlFloat value, const char *format=0, IlBoolean redraw=IlFalse)
	Sets the text field label to a floating-point value. More...

void	setValue (IlInt value, IlBoolean redraw=IlFalse)
	Sets the text field label to an integer value. More...

void	showCursor (IlBoolean value, IlBoolean redraw=IlFalse)
	Specifies whether the cursor should be visible. More...

virtual void	validate ()
	Is called by the interactor when the user presses the Return or the Enter key. More...

Public Member Functions inherited from IlvListGadgetItemHolder
virtual void	addLabel (const char *label, IlAny data=0)
	Adds an item with a label to the holder list. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem, IlAny)
	Applies the specified function to all the items of the holder. More...

virtual int	compareItems (const char string1, const char string2, IlAny value1, IlAny value2)
	Compares a pair of items. More...

virtual void	deSelectAll ()
	Deselects all the items. More...

IlUShort	getCardinal () const
	Returns the number of items stored in this holder. More...

IlShort	getFirstSelectedItem () const
	Returns the index of the first selected item. More...

IlShort	getIndex (const IlvGadgetItem *item, IlUShort start=0, IlUShort stop=(IlUShort) -1) const
	Returns the index of the specified item in the holder list. More...

IlvGadgetItem *	getItem (IlUShort index) const
	Returns an item from its position in the holder. More...

IlAny	getItemData (IlUShort index) const
	Returns an item user data. More...

IlvGadgetItem const	getItems (IlUShort &count) const
	Returns the array of all the items. More...

const char *	getLabel (IlUShort index) const
	Returns the indicated label of the list. More...

const char const	getLabels (IlUShort &count) const
	Returns an array of all the items labels. More...

IlShort	getPosition (const char *label, IlUShort start=0) const
	Returns the position of an item using its label. More...

IlUShort const *	getSelectionIndices (IlUShort &count) const
	Returns an array containing the indexes of the selected item. More...

const char const	getSelections (IlUShort &count) const
	Returns an array of the selected items. More...

IlAny const *	getUserDataArray (IlUShort &count) const
	Returns an array of all the user data for the items. More...

IlUShort	insertBitmap (IlvBitmap *bitmap, IlShort pos=-1)
	Inserts an item with a bitmap at the given position in the holder list. More...

IlUShort	insertGraphic (IlvGraphic *graphic, IlShort pos=-1)
	Inserts an item with a graphic as picture at a given position in the holder list. More...

IlUShort	insertItem (IlvGadgetItem *item, IlShort index=-1)
	Inserts an item at a given position in the holder's list. More...

virtual void	insertLabel (IlUShort pos, const char *label, IlAny data=0)
	Inserts an item with a label at a given position in the holder list. More...

IlBoolean	isSelected (IlUShort index) const
	Specifies whether the item whose position is specified is selected. More...

void	removeItem (IlUShort index, IlBoolean destroy=IlTrue)
	Removes an item from the holder. More...

void	removeLabel (IlUShort index)
	Removes and destroys an item. More...

void	setItemData (IlUShort index, IlAny itemData)
	Sets an item user data. More...

void	setLabel (IlUShort index, const char *label, IlBoolean copy)
	Modifies the label of an item. More...

virtual void	setLabels (const char const labels, IlAny const *itemData, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...

virtual void	setLabels (const char const labels, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...

virtual void	sort (IlvListCompareFunction func=0)
	Sorts the items. More...

Public Member Functions inherited from IlvGadgetItemHolder
virtual void	drawGadgetItem (const IlvGadgetItem item, IlvPort port, const IlvRect &rect, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws a specific gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Static Public Member Functions
static PopupMenuFactory *	GetPopupMenuFactory ()
	Returns the current popup menu factory. More...

static IlSymbol *	OpenListSymbol ()
	Returns the symbol of the Open List callback. More...

static PopupMenuFactory *	SetPopupMenuFactory (PopupMenuFactory *f)
	Sets the popup menu factory. More...

Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Friends
class	IlvComboBoxWLFHandler

class	IlvDefaultComboBoxLFHandler

Additional Inherited Members
Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *item)
	Is called when an item is activated. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Detailed Description

Gadget class.

Library: ilvgadgt

The IlvComboBox class combines a text field (IlvTextField class) with a pop-up menu displaying a set of predefined entries from which the user can choose.

- A Combo Box -

The user can enter a character string in the text field, or click on the arrow appearing on the right side of the field and select one of the choices from the menu that is displayed. The method getSubMenu() gives access the pop-up menu attached to the combo box to modify its behavior.

The IlvCombBox defines its own subclass of IlvPopupMenu. It also provides a factory mechanism allowing to redefine the way to create and populate the popup menu with menu items.

See also: IlvScrolledComboBox, IlvOptionMenu.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvTextField and adds the following ones:

Name	Type	Equivalent methods
`count`	UInt	`getCardinal()`
`selected`	UInt	`whichSelected()`, `setSelected()`
`subMenu`	Object	`getSubMenu()`

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvComboBox() [1/2]

IlvComboBox::IlvComboBox	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char *	label,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvComboBox instance.

The size of the combo box is computed from the label parameter. If you want to specify the size, use the other constructor.

Parameters

display	The connection to the display.
point	The position of the combo box.
label	The label of the combo box.
labels	An array containing the predefined labels of the combo box.
count	The number of elements in the labels array.
thickness	The thickness of the combo box.
palette	The palette used by the combo box.

See also: IlvComboBox::PopupMenu, IlvComboBox::PopupMenuFactory

◆ IlvComboBox() [2/2]

IlvComboBox::IlvComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char *	label,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IlvComboBox instance.

Parameters

display	The connection to the display.
rect	The size and position of the combo box.
label	The label of the combo box.
labels	An array containing the predefined labels of the combo box.
count	The number of elements in the labels array.
thickness	The thickness of the combo box.
palette	The palette used by the combo box.

See also: IlvComboBox::PopupMenu, IlvComboBox::PopupMenuFactory

Member Function Documentation

◆ createItem()

virtual IlvGadgetItem* IlvComboBox::createItem	(	const char *	label,
		IlvGraphic *	graphic = `0`,
		IlvBitmap *	bitmap = `0`,
		IlvBitmap *	selbitmap = `0`,
		IlBoolean	copy = `IlTrue`
	)		const

virtual

Returns a new gadget item.

You can override this member function in a subclass to create your own items.

Parameters

label	The item label.
graphic	The `IlvGraphic` object representing the picture associated with the item.
bitmap	The `IlvBitmap` object representing the picture associated with the item.
selbitmap	The `IlvBitmap` object representing the picture of the item when it is selected.
copy	Specifies whether a label should be copied. If the value is `IlFalse`, then you must allocate some memory for the label because in any case the label characters are deleted from the memory by the IlvGadgetItem.

Note: If both the second and third parameters are not 0, only the second parameter is used.

Returns: The created gadget item.

Reimplemented from IlvGadgetItemHolder.

◆ empty()

virtual void IlvComboBox::empty ( )

virtual

Empties the list.

See also: setItems(), removeItem().

Implements IlvListGadgetItemHolder.

◆ getNormalTextPalette()

virtual IlvPalette* IlvComboBox::getNormalTextPalette ( ) const

virtual

Returns the default palette used to draw an item.

Returns: The default palette used to draw an item.

Implements IlvGadgetItemHolder.

◆ getOpaquePalette()

virtual IlvPalette* IlvComboBox::getOpaquePalette ( ) const

virtual

Returns the opaque palette used to draw opaque items.

Returns: The opaque palette used to draw opaque items.

Reimplemented from IlvGadgetItemHolder.

◆ GetPopupMenuFactory()

static PopupMenuFactory* IlvComboBox::GetPopupMenuFactory ( )

static

Returns the current popup menu factory.

By default, no factory is set.

Returns: The popup menu factory currently set, or 0 if there is none.

◆ getSelection()

const char* IlvComboBox::getSelection ( ) const

virtual

Returns the string displayed in the combo box.

Returns: The string displayed in the combo box.

Reimplemented from IlvListGadgetItemHolder.

◆ getSubMenu()

IlvPopupMenu* IlvComboBox::getSubMenu ( ) const

Returns a pointer to the pop-up menu attached to the combo box.

Returns: A pointer to the pop-up menu attached to the combo box.

Note: The IlvScrolledComboBox subclass has no associated submenu. Therefore, the IlvComboBox::getSubMenu() member function always returns 0. To get the IlvStringList of an IlvScrolledComboBox object, use IlvScrolledComboBox::getStringList() instead.

See also: IlvScrolledComboBox::getStringList().

◆ isListVisible()

virtual IlBoolean IlvComboBox::isListVisible ( ) const

virtual

Indicates whether the list of items of the combo box is visible.

Returns: IlTrue if the list of items of the combo box is visible and IlFalse if it is not.

See also: showList, hideList

Reimplemented in IlvScrolledComboBox.

◆ itemsBBox()

void IlvComboBox::itemsBBox	(	IlvRect &	labelRect,
		IlvRect &	arrowRect,
		const IlvTransformer *	t = `0`
	)		const

The bounding boxes of the main two components of the combo box.

Parameters

labelRect	The bounding box of the text field.
arrowRect	The bounding box of the arrow.
t	The transformer applied to the combo box.

◆ labelChanged()

virtual void IlvComboBox::labelChanged ( )

virtual

Is called by the interactor whenever the label of the text field changes.

The default implementation calls the Label Changed callback.

See also: setChangeCallback().

Reimplemented from IlvTextField.

◆ OpenListSymbol()

static IlSymbol* IlvComboBox::OpenListSymbol ( )

static

Returns the symbol of the Open List callback.

The Open List callback is invoked when the user opens the combo box list.

Returns: The symbol of the Open List callback.

See also: IlvGraphic::setCallback

◆ setItems()

virtual void IlvComboBox::setItems	(	IlvGadgetItem const	items,
		IlUShort	count
	)

virtual

Replaces the entire list of items.

Sets the items of the holder to items, which must be an array of count IlvGadgetItem objects. Items are not copied, but the deletion of the array items is the responsibility of the caller.

Parameters

items	The new items.
count	The number of items in items.

See also: getItems(), insertItem(), removeItem().

Reimplemented from IlvListGadgetItemHolder.

◆ setLabel()

virtual void IlvComboBox::setLabel	(	const char *	label,
		IlBoolean	redraw = `IlFalse`
	)

virtual

Sets the label of the text field.

Parameters

label	The new label of the text field. The old label is deleted and the new one is copied.
redraw	Specifies whether the text field should be redrawn.

See also: getLabel(), getIntValue(), getFloatValue().

Reimplemented from IlvTextField.

◆ SetPopupMenuFactory()

static PopupMenuFactory* IlvComboBox::SetPopupMenuFactory ( PopupMenuFactory * f )

static

Sets the popup menu factory.

Parameters

f	The factory to set.

Returns: The factory that was previously set, or 0 if there was none.

◆ setSelected()

void IlvComboBox::setSelected	(	IlUShort	i,
		IlBoolean	redraw = `IlTrue`
	)

Sets the selected item in the combo box.

Parameters

i	The index of the selected item.
redraw	A Boolean value specifying whether the combo box should be redrawn.

See also: whichSelected, getSelection

◆ whichSelected()

IlShort IlvComboBox::whichSelected ( ) const

Returns the index of the selected item.

Returns: The index of the item in the combo box list that matches the combo box selection. If no match is found, it returns -1.

See also: setSelected

Classes

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Styling\nThis class supports the following CSS properties:

Constructor & Destructor Documentation

◆ IlvComboBox() [1/2]

◆ IlvComboBox() [2/2]

Member Function Documentation

◆ createItem()

◆ empty()

◆ getNormalTextPalette()

◆ getOpaquePalette()

◆ GetPopupMenuFactory()

◆ getSelection()

◆ getSubMenu()

◆ isListVisible()

◆ itemsBBox()

◆ labelChanged()

◆ OpenListSymbol()

◆ setItems()

◆ setLabel()

◆ SetPopupMenuFactory()

◆ setSelected()

◆ whichSelected()
