IlvMenuBar Class Reference

Gadget class. More...

#include <ilviews/gadgets/menubar.h>

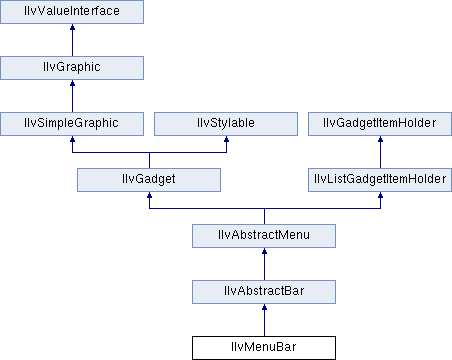

Inheritance diagram for IlvMenuBar:

Public Member Functions
	IlvMenuBar (IlvDisplay *display, const IlvPoint &point, const char *const *labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvMenuBar (IlvDisplay *display, const IlvPoint &point, IlvMenuItem *items, IlUShort count, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvMenuBar (IlvDisplay *display, const IlvRect &rect, const char *const *labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvMenuBar (IlvDisplay *display, const IlvRect &rect, IlvMenuItem *items, IlUShort count, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
virtual void	drawGadgetItem (const IlvGadgetItem *, IlvPort *port, const IlvRect &rect, const IlvTransformer *t=0, const IlvRegion *clip=0) const
	Draws a specific gadget item. More...
void	internalBBox (IlvRect &, const IlvTransformer *t=0) const
	Returns the internal bounding box of the bar. More...
Public Member Functions inherited from IlvAbstractBar
	IlvAbstractBar (IlvDisplay *display, const IlvPoint &point, const char *const *labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvAbstractBar (IlvDisplay *display, const IlvPoint &point, IlvMenuItem *items, IlUShort count, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvAbstractBar (IlvDisplay *display, const IlvRect &rect, const char *const *labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvAbstractBar (IlvDisplay *display, const IlvRect &rect, IlvMenuItem *items, IlUShort count, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
virtual void	geometryChanged (const IlvRect &rect)
	Is called when the bar geometry has changed. More...
void	getDefaultItemSize (IlvDim &width, IlvDim &height) const
	Returns the default item size. More...
virtual IlvDirection	getOrientation () const
	Returns the orientation of the bar. More...
IlvDim	getSpacing () const
	Returns the spacing between two items. More...
IlBoolean	isFlushingRight () const
	Indicates whether the bar is flush-right. More...
virtual void	itemBBox (IlUShort item, IlvRect &rect, const IlvTransformer *t=0) const
	Returns the bounding box of a menu item in the menu. More...
virtual void	orientationChanged ()
	Is called when the bar orientation has changed. More...
virtual void	select (IlUShort pos)
	Is called when an item has been selected. More...
void	setConstraintMode (IlBoolean value)
	Sets the constraint mode of the bar. More...
void	setDefaultItemSize (IlvDim width, IlvDim height, IlBoolean redraw=IlTrue)
	Sets the default item size. More...
void	setFlushingRight (IlBoolean value)
	Specifies whether the bar should be flush-right. More...
void	setHeight (IlvDim height)
	Sets the height of the bar. More...
void	setOrientation (IlvDirection orientation)
	Sets the orientation of the bar. More...
void	setSpacing (IlvDim spacing)
	Sets the spacing between two items. More...
void	setWidth (IlvDim width)
	Sets the bar width. More...
virtual void	unSelect (IlUShort pos)
	Is called when an item has been deselected. More...
IlBoolean	useConstraintMode () const
	Indicates whether the bar is in constraint mode. More...
Public Member Functions inherited from IlvAbstractMenu
void	addHighlightCallback (const IlSymbol *callbackName, IlBoolean submenus=IlTrue)
	Adds a named "Highlight" callback to the menu. More...
void	addHighlightCallback (IlvGraphicCallback callback, IlBoolean submenus=IlTrue)
	Adds a "Highlight" callback to the menu. More...
void	addItem (const IlvMenuItem &item, IlShort index=-1)
	Inserts a copy of a menu item at the specified index. More...
virtual IlvGadgetItem *	createItem (const char *label, IlvGraphic *graphic=0, IlvBitmap *bitmap=0, IlvBitmap *selbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...
void	deSelectAll ()
	Deselects all the items. More...
virtual void	empty ()
	Empties the list. More...
IlvMenuItem *	getItem (IlUShort index) const
	Returns the menu item at the specified index. More...
virtual IlvGadgetItem *	getItemByName (const char *str) const
	Returns the item whose name is specified. More...
IlvMenuItem *const *	getItems (IlUShort &count) const
	Returns an array of all the items in the menu. More...
virtual void	getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
	Returns the default orientation of the labels associated with the menu items. More...
virtual IlvPosition	getLabelPosition () const
	Returns the default position of the labels associated with the menu items, relative to their picture. More...
virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...
virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...
IlvPopupMenu *	getSubMenu (IlUShort pos) const
	Returns the IlvPopupMenu associated with the menu item at the specified index. More...
IlUShort	insertItem (IlUShort pos, const char *label, const IlvPopupMenu *menu=0, IlBoolean copy=IlTrue)
	Inserts a menu item that has a label. More...
IlUShort	insertItem (IlvMenuItem *item, IlShort pos=-1)
	Inserts a menu item at the specified position. More...
virtual IlBoolean	isSelectable (const IlvMenuItem *item) const
	Indicates whether the specified item can be selected. More...
virtual IlBoolean	isShowingLabel () const
	Returns IlTrue if the labels associated with the menu items are displayed. More...
virtual IlBoolean	isShowingPicture () const
	Indicates if the pictures associated with the menu items are displayed. More...
virtual IlShort	pointToPosition (const IlvPoint &point, const IlvTransformer *t=0) const
	Returns the index of the menu item located at the indicated position. More...
virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...
virtual IlShort	selectNext ()
	Is called when the user tries to select the next menu item using the keyboard. More...
virtual IlShort	selectPrevious ()
	Is called when the user tries to select the previous menu item using the keyboard. More...
void	setHighlightCallback (const IlSymbol *callbackName, IlBoolean submenus=IlTrue)
	Sets a named "Highlight" callback to the menu. More...
void	setHighlightCallback (IlvGraphicCallback callback, IlBoolean submenus=IlTrue)
	Sets a "Highlight" callback to the menu. More...
virtual void	setItems (IlvGadgetItem *const *items, IlUShort count)
	Replaces the entire list of items. More...
void	setItems (IlvMenuItem *const *items, IlUShort count)
	Replaces the entire list of items in the menu. More...
void	setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
	Sets the default orientation of the labels associated with the menu items. More...
void	setLabelPosition (IlvPosition position, IlBoolean redraw=IlTrue)
	Sets the default position of the menu item labels, relative to their picture. More...
void	setSubMenu (IlUShort pos, IlvPopupMenu *popup, IlBoolean copy=IlTrue)
	Sets the IlvPopupMenu associated with the menu item at the specified index. More...
void	showLabel (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Specifies whether the menu item labels should be shown or hidden. More...
void	showPicture (IlBoolean value=IlTrue, IlBoolean redraw=IlTrue)
	Specifies whether the menu item pictures should be shown or hidden. More...
IlShort	whichSelected () const
	Returns the index of the selected item. More...
Public Member Functions inherited from IlvListGadgetItemHolder
virtual void	addLabel (const char *label, IlAny data=0)
	Adds an item with a label to the holder list. More...
virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem, IlAny)
	Applies the specified function to all the items of the holder. More...
virtual int	compareItems (const char *string1, const char *string2, IlAny value1, IlAny value2)
	Compares a pair of items. More...
IlUShort	getCardinal () const
	Returns the number of items stored in this holder. More...
IlShort	getFirstSelectedItem () const
	Returns the index of the first selected item. More...
IlShort	getIndex (const IlvGadgetItem *item, IlUShort start=0, IlUShort stop=(IlUShort) -1) const
	Returns the index of the specified item in the holder list. More...
IlvGadgetItem *	getItem (IlUShort index) const
	Returns an item from its position in the holder. More...
IlAny	getItemData (IlUShort index) const
	Returns an item user data. More...
IlvGadgetItem *const *	getItems (IlUShort &count) const
	Returns the array of all the items. More...
const char *	getLabel (IlUShort index) const
	Returns the indicated label of the list. More...
const char *const *	getLabels (IlUShort &count) const
	Returns an array of all the items labels. More...
IlShort	getPosition (const char *label, IlUShort start=0) const
	Returns the position of an item using its label. More...
virtual const char *	getSelection () const
	Returns the first selected item label. More...
IlUShort const *	getSelectionIndices (IlUShort &count) const
	Returns an array containing the indexes of the selected item. More...
const char *const *	getSelections (IlUShort &count) const
	Returns an array of the selected items. More...
IlAny const *	getUserDataArray (IlUShort &count) const
	Returns an array of all the user data for the items. More...
IlUShort	insertBitmap (IlvBitmap *bitmap, IlShort pos=-1)
	Inserts an item with a bitmap at the given position in the holder list. More...
IlUShort	insertGraphic (IlvGraphic *graphic, IlShort pos=-1)
	Inserts an item with a graphic as picture at a given position in the holder list. More...
IlUShort	insertItem (IlvGadgetItem *item, IlShort index=-1)
	Inserts an item at a given position in the holder's list. More...
virtual void	insertLabel (IlUShort pos, const char *label, IlAny data=0)
	Inserts an item with a label at a given position in the holder list. More...
IlBoolean	isSelected (IlUShort index) const
	Specifies whether the item whose position is specified is selected. More...
void	removeItem (IlUShort index, IlBoolean destroy=IlTrue)
	Removes an item from the holder. More...
void	removeLabel (IlUShort index)
	Removes and destroys an item. More...
void	setItemData (IlUShort index, IlAny itemData)
	Sets an item user data. More...
void	setLabel (IlUShort index, const char *label, IlBoolean copy)
	Modifies the label of an item. More...
virtual void	setLabels (const char *const *labels, IlAny const *itemData, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...
virtual void	setLabels (const char *const *labels, IlUShort count, IlBoolean copy=IlTrue)
	Replaces the entire list of items. More...
virtual void	sort (IlvListCompareFunction func=0)
	Sorts the items. More...
Public Member Functions inherited from IlvGadgetItemHolder
IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...
IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...
IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...
IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...
IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...
virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...
IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...
virtual void	initReDrawItems ()
	Begins a redraw session. More...
virtual void	reDrawItems ()
	Ends a redraw session. More...
void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...
void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...
void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Friends
class	IlvDefaultMenuBarLFHandler

Additional Inherited Members
Static Public Member Functions inherited from IlvAbstractBar
static IlSymbol *	GeometryChangedCallbackType ()
	Returns the callback type for the Geometry Changed callback. More...
static IlSymbol *	OrientationChangedCallbackType ()
	Returns the callback type for the Orientation Changed callback. More...
Static Public Member Functions inherited from IlvAbstractMenu
static IlSymbol *	HighlightCBSymbol ()
	Returns the callback type for the Highlight callback. More...
Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...
static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...
static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...
static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...
static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...
static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...
static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...
static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...
Protected Member Functions inherited from IlvAbstractMenu
	IlvAbstractMenu (IlvDisplay *display, IlUShort count, IlvMenuItem *items, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
	IlvAbstractMenu (IlvDisplay *display, IlUShort count=0, const char *const *labels=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Constructor. More...
virtual void	itemActivated (IlvGadgetItem *)
	Is called when an item is activated. More...
Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...
virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...
virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...
virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...
virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...
virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...
virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...
virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...
virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...
virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...
virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Detailed Description

Gadget class.

Library: ilvgadgt

The IlvMenuBar class defines a typical menu bar.

- IlvMenuBar -

A menu bar is composed of a number of items that provide access to menus from which the user can select a command.

See also

IlvMenuItem, IlvPopupMenu, IlvToolBar.

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	background-color	Color
Text color	color	Color

Constructor & Destructor Documentation

IlvMenuBar() [1/4]

IlvMenuBar::IlvMenuBar	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char *const *	labels = 0,
		IlUShort	count = 0,
		IlUShort	thickness = IlvDefaultGadgetThickness,
		IlvPalette *	palette = 0
	)

Constructor.

Initializes a new instance of the IlvMenuBar class. The size of the object is computed by calling the IlvGadget::fitToContents() method. If you want the menu bar to have a specific size, use a constructor that takes an IlvRect reference instead of an IlvPoint object as parameter. The labels are copied.

Parameters

display	The connection to the display.
point	The position of the menu bar.
labels	An array of predefined labels.
count	The number of elements in the labels array.
thickness	The thickness of the menu bar.
palette	The palette used to draw the menu bar.

IlvMenuBar() [2/4]

IlvMenuBar::IlvMenuBar	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char *const *	labels = 0,
		IlUShort	count = 0,
		IlUShort	thickness = IlvDefaultGadgetThickness,
		IlvPalette *	palette = 0
	)

Constructor.

Initializes a new instance of the IlvMenuBar class. The labels are copied.

Parameters

display	The connection to the display.
rect	The size and position of the menu bar.
labels	An array of predefined labels.
count	The number of elements in the labels array.
thickness	The thickness of the menu bar.
palette	The palette used to draw the menu bar.

IlvMenuBar() [3/4]

IlvMenuBar::IlvMenuBar	(	IlvDisplay *	display,
		const IlvPoint &	point,
		IlvMenuItem *	items,
		IlUShort	count,
		IlUShort	thickness = IlvDefaultGadgetThickness,
		IlvPalette *	palette = 0
	)

Constructor.

Initializes a new instance of the IlvMenuBar class. The size of the object is computed by calling the IlvGadget::fitToContents() method. If you want to give the menu bar a specific size, use a constructor that takes an IlvRect reference instead of an IlvPoint object as parameter.

Parameters

display	The connection to the display.
point	The position of the menu bar.
items	An array of predefined items. The items are copied.
count	The number of elements in the items array.
thickness	The thickness of the menu bar.
palette	The palette used to draw the menu bar.

IlvMenuBar() [4/4]

IlvMenuBar::IlvMenuBar	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlvMenuItem *	items,
		IlUShort	count,
		IlUShort	thickness = IlvDefaultGadgetThickness,
		IlvPalette *	palette = 0
	)

Constructor.

Initializes a new instance of the IlvMenuBar class.

Parameters

display	The display connection.
rect	The size and position of the menu bar.
items	An array of predefined items. The items are copied.
count	The number of elements in the items array.
thickness	The thickness of the menu bar.
palette	The palette used by the menu bar.

Member Function Documentation

drawGadgetItem()

virtual void IlvMenuBar::drawGadgetItem ( const IlvGadgetItem *  item, IlvPort *  port, const IlvRect &  rect, const IlvTransformer *  t = 0, const IlvRegion *  clip = 0  ) const

virtual

Draws a specific gadget item.

Redraws item in port at the location specified by rect using the clipping area clip. This method simply calls IlvGadgetItem::draw() using the item instance.

Parameters

item	The item to be redrawn.
port	The destination drawing port.
rect	The bounding box of the item.
t	The transformer used to draw the item. Not used.
clip	The clipping area.

See also

IlvGadgetItem::draw().

Reimplemented from IlvAbstractBar.

internalBBox()

void IlvMenuBar::internalBBox ( IlvRect &  rect, const IlvTransformer *  t = 0  ) const

virtual

Returns the internal bounding box of the bar.

Uses rect to return the internal bounding box of the bar when the object is computed with the transformer t. The internal bounding box delimits the area within which the bar items are drawn. You can override this member function in a subclass to change the internal bounding box.

Parameters

rect	The internal bounding box of the bar.
t	The transformer used to compute the internal bounding box.

Reimplemented from IlvAbstractBar.
