Gadget class. More...

#include <ilviews/gadgets/frame.h>

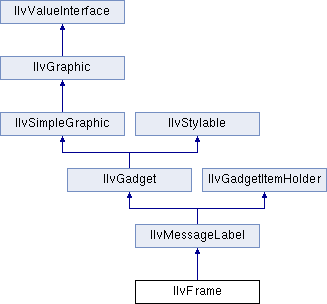

Inheritance diagram for IlvFrame:

Public Member Functions
	IlvFrame (IlvDisplay display, const char message, const IlvRect &size, IlUShort thickness=0, IlvPalette *palette=0, IlBoolean copy=IlTrue)
	Constructor. More...

	IlvFrame (IlvDisplay display, const IlvPoint &point, const char message, IlUShort thickness=0, IlvPalette *palette=0, IlBoolean copy=IlTrue)
	Constructor. More...

virtual void	drawGadgetItem (const IlvGadgetItem , IlvPort , const IlvRect &, const IlvTransformer =0, const IlvRegion =0) const
	Draws a specific gadget item. More...

Public Member Functions inherited from IlvMessageLabel
	IlvMessageLabel (IlvDisplay display, const char message, const IlvRect &rect, IlvAlignment alignment=IlvLeft, IlUShort thickness=0, IlvPalette *palette=0, IlBoolean copy=IlTrue)
	Constructor. More...

	IlvMessageLabel (IlvDisplay display, const IlvPoint &at, const char message, IlvAlignment alignment=IlvLeft, IlUShort thickness=0, IlvPalette *palette=0, IlBoolean copy=IlTrue)
	Constructor. More...

virtual IlvGadgetItem *	applyToItems (IlvApplyGadgetItem f, IlAny arg)
	Applies the specified function to all the items of the holder. More...

IlvAlignment	getAlignment () const
	Returns the alignment of the message label. More...

IlvBitmap *	getBitmap () const
	Returns the bitmap associated with the message label. More...

IlvBitmap *	getInsensitiveBitmap () const
	Returns the insensitive bitmap of the message label. More...

const char *	getLabel () const
	Returns the label stored in the message label. More...

virtual void	getLabelOrientation (IlvOrientation &orientation, IlBoolean &flip) const
	Returns the orientation of the label. More...

virtual IlvPosition	getLabelPosition () const
	Returns the position of the label relative to the bitmap of the message label. More...

const char *	getMessage () const
	Returns the translated message of the message label. More...

char	getMnemonic () const
	Returns the mnemonic associated with the message label. More...

virtual IlvPalette *	getNormalTextPalette () const
	Returns the default palette used to draw an item. More...

virtual IlvPalette *	getOpaquePalette () const
	Returns the opaque palette used to draw opaque items. More...

IlUShort	getSpacing () const
	Returns the spacing between the label and the bitmap of the message label. More...

void	setAlignment (IlvAlignment alignment)
	Sets the alignment of this message label. More...

void	setBitmap (IlvBitmap *bitmap)
	Sets the bitmap of the message label. More...

void	setInsensitiveBitmap (IlvBitmap *bitmap)
	Sets the insensitive bitmap of the message label. More...

void	setLabel (const char *label, IlBoolean copy=IlTrue)
	Sets the label of the message label. More...

void	setLabelOrientation (IlvOrientation orientation, IlBoolean flip=IlFalse, IlBoolean redraw=IlTrue)
	Sets the orientation of the label. More...

void	setLabelPosition (IlvPosition pos, IlBoolean redraw=IlTrue)
	Sets the position of the label relative to the bitmap of the message label. More...

void	setSpacing (IlUShort spacing, IlBoolean redraw=IlTrue)
	Sets the spacing between the label and the bitmap of the message label. More...

Public Member Functions inherited from IlvGadgetItemHolder
virtual IlvGadgetItem *	createItem (const char label, IlvGraphic graphic=0, IlvBitmap bitmap=0, IlvBitmap selbitmap=0, IlBoolean copy=IlTrue) const
	Returns a new gadget item. More...

IlvGadgetItem *	getCallbackItem () const
	Returns the item that triggered a callback. More...

IlvGadgetItem *	getDragDropTarget () const
	Returns the target item of a drag-and-drop operation. More...

IlvGraphic *	getDraggedImage () const
	Returns the graphic object used to draw the ghost image during a drag-and-drop operation. More...

IlvGadgetItem *	getDraggedItem () const
	Returns the item that is being dragged during a drag-and-drop operation. More...

IlvGadgetItem *	getEditedItem () const
	Returns the item that is being edited. More...

virtual IlvPalette *	getHighlightTextPalette () const
	Returns the highlight palette used to draw the label of highlighted items. More...

virtual IlvGadgetItem *	getItemByName (const char *name) const
	Returns the item whose name is specified. More...

IlvGadgetItem *	getToolTipItem () const
	Returns the item that is displaying a tooltip. More...

virtual void	initReDrawItems ()
	Begins a redraw session. More...

virtual void	recomputeAllItems ()
	Recomputes the size of all the items managed by the holder. More...

virtual void	reDrawItems ()
	Ends a redraw session. More...

void	setDragDropTarget (IlvGadgetItem *item)
	Sets the target item of a drag-and-drop operation. More...

void	setDraggedImage (IlvGraphic *graphic)
	Sets the graphic object used to draw the ghost image during a drag-and-drop operation. More...

void	setDraggedItem (IlvGadgetItem *item)
	Sets the dragged item. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvGadgetItemHolder
static IlSymbol *	AbortDragItemCallbackType ()
	Returns the callback type of the Abort Drag callback. More...

static IlSymbol *	AbortEditItemCallbackType ()
	Returns the callback type of the Abort Edit callback. More...

static IlSymbol *	ActivateCallbackType ()
	Returns the callback type of the Activate callback. More...

static IlSymbol *	DragItemCallbackType ()
	Returns the callback type of the Drag Item callback. More...

static IlSymbol *	EndDragItemCallbackType ()
	Returns the callback type of the End Drag callback. More...

static IlSymbol *	EndEditItemCallbackType ()
	Returns the callback type of the End Edit callback. More...

static IlSymbol *	StartDragItemCallbackType ()
	Returns the callback type of the Start Drag callback. More...

static IlSymbol *	StartEditItemCallbackType ()
	Returns the callback type of the Start Edit callback. More...

Protected Member Functions inherited from IlvGadgetItemHolder
virtual void	abortDragItem ()
	Is called when a drag-and-drop operation is aborted. More...

virtual void	abortEdit (IlvGadgetItem *item)
	Is called when the editing of the specified item is aborted. More...

virtual void	drawDraggedImage (const IlvPoint &point, const IlvTransformer *t)
	Is called to draw the ghost image during a drag-and-drop operation. More...

virtual void	endDragItem (const IlvPoint &point)
	Is called when a drag-and-drop operation is finished. More...

virtual void	endEdit (IlvGadgetItem *item)
	Is called after an item has been edited. More...

virtual void	itemActivated (IlvGadgetItem *item)
	Is called when an item is activated. More...

virtual void	itemDeSelected (IlvGadgetItem *item)
	Is called when an item is deselected. More...

virtual void	itemDragged (const IlvPoint &point)
	Is called each time the user moves the mouse during a drag-and-drop operation. More...

virtual void	itemHighlighted (IlvGadgetItem *item)
	Is called when an item is highlighted or unhighlighted. More...

virtual void	itemSelected (IlvGadgetItem *item)
	Is called when an item is selected. More...

virtual void	startDragItem (IlvGadgetItem *item)
	Is called when a drag-and-drop operation begins. More...

virtual void	startEdit (IlvGadgetItem *item)
	Is called when an item is edited. More...

Detailed Description

Gadget class.

Library: ilvgadgt

The IlvFrame class is a gadget class that draws a frame with a label. The label of the frame is drawn using the main palette of the gadget and the frame is drawn using its top shadow and bottom shadow palettes.

- IlvFrame -

Styling\nThis class supports the following CSS properties:

Graphic property	CSS property	Type
Background color	`background-color`	Color
Text color	`color`	Color

Constructor & Destructor Documentation

◆ IlvFrame() [1/2]

IlvFrame::IlvFrame	(	IlvDisplay *	display,
		const char *	message,
		const IlvRect &	size,
		IlUShort	thickness = `0`,
		IlvPalette *	palette = `0`,
		IlBoolean	copy = `IlTrue`
	)

Constructor.

Initializes a new instance of the IlvFrame class.

Parameters

display	The connection to the display.
message	The label of the frame.
size	The size and position of the frame.
thickness	The thickness of the frame.
palette	The palette used by the frame.
copy	Specifies whether a message should be copied. If the value is `IlFalse`, then you must allocate some memory for the message because in any case the message characters are deleted from the memory by the IlvFrame.

◆ IlvFrame() [2/2]

IlvFrame::IlvFrame	(	IlvDisplay *	display,
		const IlvPoint &	point,
		const char *	message,
		IlUShort	thickness = `0`,
		IlvPalette *	palette = `0`,
		IlBoolean	copy = `IlTrue`
	)

Constructor.

Initializes a new instance of the IlvFrame class. The size of the frame is computed using the message parameter.

Parameters

display	The connection to the display.
point	The position of the frame.
message	The label of the frame.
thickness	The thickness of the frame.
palette	The palette used by the frame.
copy	Specifies whether a message should be copied. If the value is `IlFalse`, then you must allocate some memory for the message because in any case the message characters are deleted by the `IlvFrame`.

Member Function Documentation

◆ drawGadgetItem()

virtual void IlvFrame::drawGadgetItem	(	const IlvGadgetItem *	item,
		IlvPort *	port,
		const IlvRect &	rect,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws a specific gadget item.

Redraws item in port at the location specified by rect using the clipping area clip. This method simply calls IlvGadgetItem::draw() using the item instance.

Parameters

item	The item to be redrawn.
port	The destination drawing port.
rect	The bounding box of the item.
t	The transformer used to draw the item. Not used.
clip	The clipping area.

See also: IlvGadgetItem::draw().

Reimplemented from IlvGadgetItemHolder.
