Gadget-related class. More...

#include <ilviews/gadgets/notebook.h>

Inheritance diagram for IlvNotebookPage:

Public Member Functions
	IlvNotebookPage (IlvNotebook notebook, const char label, IlvBitmap bitmap, IlBoolean transparent, const char filename)
	Constructor. More...

virtual IlvView *	createView (IlvAbstractView *parent, const IlvRect &rect)
	Is called to create the view associated with the page. More...

virtual void	deleteView ()
	Is called when the view associated with the page is deleted. More...

virtual void	deSelect ()
	Is called by the notebook when the page is deselected. More...

virtual void	draw (IlvPort dst, const IlvRect &pageRect, const IlvTransformer t, const IlvRegion *clip) const
	Called by the notebook to draw the contents of the page. More...

virtual void	drawTab (IlvPort dst, const IlvRect &rect, const IlvRegion clip) const
	Draws the content of the tab. More...

IlvBitmap *	getBitmap () const
	Returns the page bitmap. More...

const char *	getFileName () const
	Returns the filename of the page. More...

IlvBitmap *	getInsensitiveBitmap () const
	Returns the insensitive bitmap of the page. More...

const char *	getLabel () const
	Returns the page label. More...

const char *	getName () const
	Returns the page name. More...

IlvNamedProperty *	getNamedProperty (const IlSymbol *name) const
	Returns a named property of the object. More...

IlvNotebook *	getNotebook () const
	Returns the notebook associated with this page. More...

IlAny	getProperty (const IlSymbol *key) const
	Returns a given property of the object. More...

virtual void	getTabSize (IlvDim &width, IlvDim &height) const
	Computes the size of the tab. More...

virtual IlvView *	getView ()
	Returns the view associated with the page. More...

IlBoolean	hasProperty (const IlSymbol *key) const
	Checks that the object has a given property. More...

IlBoolean	isSensitive () const
	Returns a Boolean indicating the page sensitivity. More...

IlvNamedProperty *	removeNamedProperty (IlSymbol *name)
	Removes a named property from the object. More...

IlBoolean	removeProperty (const IlSymbol *key)
	Removes a property of the object. More...

virtual void	resized ()
	Is called when the page is resized. More...

virtual void	select ()
	Is called by the notebook when the page is selected. More...

void	setBackground (IlvColor *color)
	Changes the background color of the notebook page. More...

void	setBitmap (IlvBitmap *bitmap)
	Changes the page bitmap. More...

virtual void	setFileName (const char *filename)
	Sets the filename of the page. More...

void	setInsensitiveBitmap (IlvBitmap *bitmap)
	Sets the insensitive bitmap of the page. More...

void	setLabel (const char *label)
	Changes the page label. More...

void	setName (const char *name)
	Changes the page name. More...

IlvNamedProperty *	setNamedProperty (IlvNamedProperty *property)
	Sets a named property of the object. More...

void	setProperty (const IlSymbol *key, IlAny value)
	Sets a property to the object. More...

void	setSensitive (IlBoolean value)
	Changes the sensitivity of the page. More...

void	setView (IlvView *view)
	Changes the view associated with the page. More...

virtual void	write (IlvOutputFile &file) const
	Writes an object description to a file. More...

Static Public Member Functions
static IlvNotebookPage *	read (IlvInputFile &file, IlvNotebook *notebook)
	Reads an object description from a file. More...

Friends
class	IlvNotebook

Detailed Description

Gadget-related class.

Library: ilvadvgdt

IlvNotebookPage is the implementation of the page of a notebook (see the class IlvNotebook).

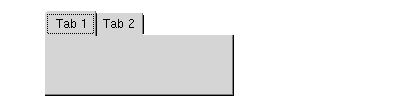

- IlvNotebook and IlvNotebookPage -

The notebook page is composed of a rectangular usable area and a tab that can contain a label, a bitmap or both. The class IlvNotebookPage creates an IlvGadgetContainer to display the contents of the page.

See also: IlvNotebook.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvValueInterface and adds the following ones:

Name	Type	Equivalent methods
`label`	String	`getLabel()`, `setLabel()`
`name`	String	`getName()`, `setName()`
`bitmap`	Bitmap	`getBitmap()`, `setBitmap()`
`insensitiveBitmap`	Bitmap	`getInsensitiveBitmap()`, `setInsensitiveBitmap()`
`sensitive`	Boolean	`isSensitive()`, `setSensitive()`
`fileName`	String	`getFileName()`, `setFileName()`
`view`	Object	`getView()`, `setView()`
`background`	Color	`setBackground()`
`notebook`	Object	`getNotebook()`

Constructor & Destructor Documentation

◆ IlvNotebookPage()

IlvNotebookPage::IlvNotebookPage	(	IlvNotebook *	notebook,
		const char *	label,
		IlvBitmap *	bitmap,
		IlBoolean	transparent,
		const char *	filename
	)

Constructor.

Initializes a new instance of the IlvNotebookPage class.

Parameters

notebook	The notebook that will contain the page.
label	The label displayed by the tab of the page.
bitmap	The bitmap displayed by the tab of the page.
transparent	Obsolete.
filename	The name of the `.ilv` file to be loaded onto the page.

Member Function Documentation

◆ createView()

virtual IlvView* IlvNotebookPage::createView	(	IlvAbstractView *	parent,
		const IlvRect &	rect
	)

virtual

Is called to create the view associated with the page.

Creates the view associated with the page. You can overload this method to create any kind of view. This method also reads the .ilv file. The default implementation creates and returns an IlvGadgetContainer.

Parameters

parent	The parent view of the created view.
rect	The size and position of the created view.

See also: deleteView().

◆ deleteView()

virtual void IlvNotebookPage::deleteView ( )

virtual

Is called when the view associated with the page is deleted.

See also: createView().

◆ deSelect()

virtual void IlvNotebookPage::deSelect ( )

virtual

Is called by the notebook when the page is deselected.

Is called by the IlvNotebook::pageDeselected() method when the page is deselected. The default implementation hides the view associated with this page.

See also: IlvNotebook::pageDeselected(), select().

◆ draw()

virtual void IlvNotebookPage::draw	(	IlvPort *	dst,
		const IlvRect &	pageRect,
		const IlvTransformer *	t,
		const IlvRegion *	clip
	)		const

virtual

Called by the notebook to draw the contents of the page.

If the page has no associated view, the method tries to create the view by calling the IlvNotebook::createView() method. You can overload this method to do your own drawing.

Parameters

dst	The drawing destination port.
pageRect	The rectangle of the page, with the margin defined in the notebook taken into account.
t	The transformer through which the notebook is drawn.
clip	The clipping area.

See also: drawTab().

◆ drawTab()

virtual void IlvNotebookPage::drawTab	(	IlvPort *	dst,
		const IlvRect &	rect,
		const IlvRegion *	clip
	)		const

virtual

Draws the content of the tab.

Draws the content of the tab. You can overload this method to draw whatever you need.

Parameters

dst	The drawing destination port.
rect	The bounding box of the tab.
clip	The clipping area.

See also: draw().

◆ getBitmap()

IlvBitmap* IlvNotebookPage::getBitmap ( ) const

Returns the page bitmap.

Returns: The page bitmap.

See also: setBitmap(), getInsensitiveBitmap(), IlvBitmap.

◆ getFileName()

const char* IlvNotebookPage::getFileName ( ) const

Returns the filename of the page.

Returns: the filename (the name of the .ilv file) associated with the page.

See also: setFileName().

◆ getInsensitiveBitmap()

IlvBitmap* IlvNotebookPage::getInsensitiveBitmap ( ) const

Returns the insensitive bitmap of the page.

The insensitive bitmap is displayed by the page when it's set insensitive (see IlvNotebookPage::setSensitive()). If only a sensitive bitmap is provided, and if the notebook page is set insensitive, a default insensitive bitmap is automatically computed using the sensitive bitmap.

Returns: The bitmap used by this notebook page when insensitive, or 0 if there is none.

See also: setInsensitiveBitmap(), setBitmap().

◆ getLabel()

const char* IlvNotebookPage::getLabel ( ) const

Returns the page label.

Returns: The page label. The label can be a reference to the language database. The result can be 0 if the tab has no label.

See also: setLabel().

◆ getName()

const char* IlvNotebookPage::getName ( ) const

virtual

Returns the page name.

Returns: The page name or 0 if there is none. Do not modify or delete the returned string.

See also: setName(), IlvNotebook::getPage(const char*).

Reimplemented from IlvValueInterface.

◆ getNamedProperty()

IlvNamedProperty* IlvNotebookPage::getNamedProperty ( const IlSymbol * name ) const

Returns a named property of the object.

Parameters

name	The property name.

Returns: A pointer to the named property object associated with the current object having the name name. Returns null if no named property matches the name name.

See also: setNamedProperty(), removeNamedProperty().

◆ getNotebook()

IlvNotebook* IlvNotebookPage::getNotebook ( ) const

Returns the notebook associated with this page.

Returns: The notebook associated with this page.

See also: IlvNotebook::addPage().

◆ getProperty()

IlAny IlvNotebookPage::getProperty ( const IlSymbol * key ) const

Returns a given property of the object.

Parameters

key	The symbol that specifies the property.

Returns: The given property value when it can be found. Returns 0 when no property name matches the key parameter.

See also: setProperty(), removeProperty(), hasProperty().

◆ getTabSize()

virtual void IlvNotebookPage::getTabSize	(	IlvDim &	width,
		IlvDim &	height
	)		const

virtual

Computes the size of the tab.

Overload this method to change the size of the tab.

Parameters

width	The width of the tab.
height	The height of the tab.

◆ getView()

virtual IlvView* IlvNotebookPage::getView ( )

virtual

Returns the view associated with the page.

If no such view exists, the method creates the views by calling the IlvNotebook::createView() method.

Returns: The view associated with the page.

See also: IlvNotebook::createView(), IlvNotebookPage::createView().

◆ hasProperty()

IlBoolean IlvNotebookPage::hasProperty ( const IlSymbol * key ) const

Checks that the object has a given property.

Parameters

key	The symbol that specifies the property.

Returns: IlTrue if the key property was found, or IlFalse if the key property was not found.

See also: setProperty(), removeProperty(), getProperty().

◆ isSensitive()

IlBoolean IlvNotebookPage::isSensitive ( ) const

Returns a Boolean indicating the page sensitivity.

Returns: IlTrue if the page is sensitive, that is, it can be selected.

See also: setSensitive().

◆ read()

static IlvNotebookPage* IlvNotebookPage::read	(	IlvInputFile &	file,
		IlvNotebook *	notebook
	)

static

Reads an object description from a file.

Reads an object description from the file input. It reads the information that was saved by the member function write() to be able to create a new instance of this object. Usually, because of the availability of the constructor that expects an IlvInputFile, readItem() should be equivalent to:

IlvNotebookPage*
MyClass::read(IlvInputFile& file, IlvNotebook* notebook)
{
    return new MyClass(file, notebook);
}

Parameters

file	The file to be read from.
notebook	The notebook that contains the page.

See also: DeclareNotebookPageInfoRO(), DeclareNotebookPageInfo(), IlvPredefinedNotebookPageIOMembers().

Note: The read() method is not capitalized like other static methods so that it is consistent with the write() method.

◆ removeNamedProperty()

IlvNamedProperty* IlvNotebookPage::removeNamedProperty ( IlSymbol * name )

Removes a named property from the object.

Parameters

name	The property name.

Returns: The named property that was previously associated with this object having the same name, so that you can delete it or keep it for further handling. If no previous named property was associated with this object having the name property, this function returns 0.

See also: getNamedProperty(), setNamedProperty().

◆ removeProperty()

IlBoolean IlvNotebookPage::removeProperty ( const IlSymbol * key )

Removes a property of the object.

Parameters

key	The symbol that specifies the property.

Returns: IlTrue if the key property was found, or IlFalse if the key property was not found.

See also: setProperty(), getProperty(), hasProperty().

◆ resized()

virtual void IlvNotebookPage::resized ( )

virtual

Is called when the page is resized.

The default implementation resizes the view associated with this page.

See also: IlvNotebook::pageResized().

◆ select()

virtual void IlvNotebookPage::select ( )

virtual

Is called by the notebook when the page is selected.

Is called by the IlvNotebook::pageSelected() method when the page is selected. The default implementation shows the view associated with this page.

See also: IlvNotebook::pageSelected(), deSelect().

◆ setBackground()

void IlvNotebookPage::setBackground ( IlvColor * color )

Changes the background color of the notebook page.

By default, a notebook page has no background, and thus it uses the one of its associated notebook.

Parameters

color The new color for this page. color is locked. The previous color is unlocked. If this parameter is 0, then the notebook page inherits its color from its associated notebook.

◆ setBitmap()

void IlvNotebookPage::setBitmap ( IlvBitmap * bitmap )

Changes the page bitmap.

Parameters

bitmap The new page bitmap. The new bitmap is locked, and the previous bitmap is unlocked. Giving a value of 0 removes the bitmap from the tab.

See also: getBitmap(), setInsensitiveBitmap(), IlvBitmap.

◆ setFileName()

virtual void IlvNotebookPage::setFileName ( const char * filename )

virtual

Sets the filename of the page.

The .ilv file corresponding to filename is loaded into the page. Note that this method assumes that the encapsulated view is a subclass of the IlvGadgetContainer class.

Parameters

filename The file name of the .ilv file to load into the page. if filename is 0, all the objects of the encapsulated gadget container are removed.

See also: getFileName().

◆ setInsensitiveBitmap()

void IlvNotebookPage::setInsensitiveBitmap ( IlvBitmap * bitmap )

Sets the insensitive bitmap of the page.

Allows you to set an insensitive bitmap for this notebook page. If the notebook page already owns an insensitive bitmap, it's unlocked. The new bitmap is locked.

Parameters

bitmap The new insensitive bitmap.

See also: getInsensitiveBitmap(), getBitmap().

◆ setLabel()

void IlvNotebookPage::setLabel ( const char * label )

Changes the page label.

Parameters

label The new page label. Giving a value of 0 removes the label from the tab.

◆ setName()

void IlvNotebookPage::setName ( const char * name )

Changes the page name.

To find a page from its name, you can use the member function IlvNotebook::getPage().

Parameters

name	The new page name. The string is copied.

See also: getName(), IlvNotebook::getPage().

◆ setNamedProperty()

IlvNamedProperty* IlvNotebookPage::setNamedProperty ( IlvNamedProperty * property )

Sets a named property of the object.

Parameters

property The named property.

Returns: The named property that was previously associated with this object having the same name, so that you can delete it or keep it for further handling. If no previous named property was associated with this object having the name property, this function returns 0.

See also: getNamedProperty(), removeNamedProperty().

◆ setProperty()

void IlvNotebookPage::setProperty	(	const IlSymbol *	key,
		IlAny	value
	)

Sets a property to the object.

Parameters

key	The symbol that specifies the property.
value	The new value for the property. If value is `0`, the property is removed.

See also: removeProperty(), getProperty(), hasProperty().

◆ setSensitive()

void IlvNotebookPage::setSensitive ( IlBoolean value )

Changes the sensitivity of the page.

A page that is not sensitive cannot be selected.

Parameters

value A Boolean specifying whether the page should be sensitive.

See also: isSensitive().

◆ setView()

void IlvNotebookPage::setView ( IlvView * view )

Changes the view associated with the page.

The view passed to setView() must be a subview.

Parameters

view	The new view associated with this page. The previous view is deleted

See also: getView().

◆ write()

virtual void IlvNotebookPage::write ( IlvOutputFile & file ) const

virtual

Writes an object description to a file.

Writes out, in a file, the object description. This description contains all the information necessary to create an exact copy of this object by means of the member function read().

Parameters

file	The name of the file to be written to.

See also: DeclareNotebookPageInfoRO(), DeclareNotebookPageInfo(), IlvPredefinedNotebookPageIOMembers().

Public Member Functions

Static Public Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ IlvNotebookPage()

Member Function Documentation

◆ createView()

◆ deleteView()

◆ deSelect()

◆ draw()

◆ drawTab()

◆ getBitmap()

◆ getFileName()

◆ getInsensitiveBitmap()

◆ getLabel()

◆ getName()

◆ getNamedProperty()

◆ getNotebook()

◆ getProperty()

◆ getTabSize()

◆ getView()

◆ hasProperty()

◆ isSensitive()

◆ read()

◆ removeNamedProperty()

◆ removeProperty()

◆ resized()

◆ select()

◆ setBackground()

◆ setBitmap()

◆ setFileName()

◆ setInsensitiveBitmap()

◆ setLabel()

◆ setName()

◆ setNamedProperty()

◆ setProperty()

◆ setSensitive()

◆ setView()

◆ write()
