Dockable container class. More...
#include <ilviews/gadgets/dockutil.h>
Public Member Functions | |
| IlvDockableMainWindow (IlvAbstractView *parent, const IlvRect &rect, IlBoolean visible=IlTrue) | |
| Constructor. More... | |
| IlvDockableMainWindow (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlUInt properties=0, IlBoolean visible=IlTrue, IlvSystemView transientFor=0) | |
| Constructor. More... | |
| IlvDockableMainWindow (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean visible=IlTrue) | |
| Constructor. More... | |
| IlvDockableMainWindow (IlvDisplay *display, IlvSystemView window) | |
| Constructor. More... | |
| IlvDockable * | addRelativeDockingPane (IlvPane *pane, const char *relativePaneName, IlvPosition relativePanePosition) |
| Adds the specified pane to the dockable container using a position relative to another pane. More... | |
| IlvViewPane * | getMainWorkspaceViewPane () const |
| Returns the main workspace view pane. More... | |
 Public Member Functions inherited from IlvDockableContainer | |
| IlvDockableContainer (IlvAbstractView *parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue) | |
| Constructor. More... | |
| IlvDockableContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlvDirection direction, IlUInt properties=0, IlBoolean visible=IlTrue, IlvSystemView transientFor=0) | |
| Constructor. More... | |
| IlvDockableContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue) | |
| Constructor. More... | |
| IlvDockableContainer (IlvDisplay *display, IlvSystemView window, IlvDirection direction) | |
| Constructor. More... | |
| virtual IlBoolean | acceptDocking (const IlvPane *pane, IlUInt index) const |
| Indicates whether the dockable container allows that the specified pane be docked. More... | |
| IlvDockable * | addDockingPane (IlvPane *pane, IlUInt index=(IlUInt) -1) |
| Adds a docking pane to the dockable container. More... | |
| virtual IlvDockable * | createDockable (IlvPane *pane) const |
| Returns a new instance of the IlvDockable class. More... | |
| IlBoolean | createOrthogonalDockableContainer () const |
| Indicates whether an orthogonal dockable container is created before a pane is docked. More... | |
| void | createOrthogonalDockableContainer (IlBoolean enable) |
| Specifies whether an orthogonal dockable container should be created before docking a pane. More... | |
| IlvPane *const * | getAllDockingPanes (IlUInt &count, IlBoolean visible=IlTrue, int mode=-1) const |
| Returns an array of the panes docked to the dockable container. More... | |
| IlvPane *const * | getDockingPanes (IlUInt &count, IlBoolean visible=IlTrue, int mode=-1) const |
| Returns an array of the panes docked to the dockable container. More... | |
| IlBoolean | isDockable () const |
| Indicates whether the dockable container allows docking. More... | |
| virtual void | removePane (IlUInt rank, IlBoolean destroy=IlFalse) |
| Removes the pane whose index is specified from the paned container. More... | |
| void | setDockable (IlBoolean enable) |
| Specifies whether the dockable container should allow docking. More... | |
| Public Member Functions inherited from IlvPanedContainer | |
| IlvPanedContainer (IlvAbstractView *parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvPanedContainer class as a child view of a view. More... | |
| IlvPanedContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlvDirection direction, IlUInt properties=0, IlBoolean visible=IlTrue, IlvSystemView transientFor=0) | |
Initializes a new instance of the IlvPanedContainer class as a top window. More... | |
| IlvPanedContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvPanedContainer class as a child view of a system view. More... | |
| IlvPanedContainer (IlvDisplay *display, IlvSystemView window, IlvDirection direction) | |
Initializes a new instance of the IlvPanedContainer class mapped to an existing system view. More... | |
| virtual void | addPane (IlvPane *pane, IlUInt index=(IlUInt) -1) |
| Adds a pane to the paned container at the specified index. More... | |
| IlAny | applyUntil (IlvApplyPane func, IlAny arg=0) |
| Applies the specified function to all the panes of the paned container. More... | |
| IlUInt | getCardinal () const |
| Returns the number of panes managed by the paned container. More... | |
| IlvDirection | getDirection () const |
| Returns the direction of the paned container. More... | |
| IlUInt | getIndex (const IlvPane *pane) const |
| Returns the index of the specified pane. More... | |
| IlvPane * | getPane (const char *name, IlBoolean all=IlFalse) const |
| Searches the pane whose name is specified. More... | |
| IlvPane * | getPane (IlUInt index) const |
| Returns the pane whose index is specified. More... | |
| IlvViewPane * | getViewPane () const |
| Returns the view pane that encapsulates the paned container. More... | |
| IlBoolean | isManagingSliders () const |
Returns IlTrue if the paned container manages automatic sliders. More... | |
| void | manageSliders (IlBoolean value) |
| Specifies whether the paned container manages sliders automatically. More... | |
| void | paneBBox (const IlvPane *pane, IlvRect &bbox) const |
| Returns the bounding box of the specified pane. More... | |
| virtual void | paneGeometryChanged (IlvPane *pane) |
| Is called when the geometry of the specified pane changes. More... | |
| virtual void | paneVisibilityChanged (IlvPane *pane) |
| Is called when the specified pane is hidden or shown. More... | |
| IlUInt | pointToPane (const IlvPoint &point) const |
| Returns the index of the pane located at the position specified by point. More... | |
| virtual IlBoolean | read (istream &stream) |
| Prevents reading data files. More... | |
| virtual IlBoolean | readFile (const char *filename) |
| Prevents reading data files. More... | |
| void | setDirection (IlvDirection direction) |
| Sets the direction of the paned container. More... | |
| virtual void | updatePanes (IlBoolean all=IlFalse) |
| Updates the position and size of all the panes. More... | |
| Public Member Functions inherited from IlvGadgetContainer | |
| IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a child view of another view. More... | |
| IlvGadgetContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a top view. More... | |
| IlvGadgetContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0) | |
Initializes a new instance of the IlvGadgetContainer class as a top view. More... | |
| IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a child view of a system view. More... | |
| IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse) | |
Initializes a new instance of the IlvGadgetContainer class using an existing system view. More... | |
| virtual IlBoolean | allowFocus (IlBoolean value) |
| Specifies whether the container manages the focus. More... | |
| virtual void | applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue) |
| Is called to carry out the resize events applying to the gadget container. More... | |
| IlBoolean | autoResize (IlBoolean a) |
| Sets the auto resize mode of the gadget container. More... | |
| IlvButton * | getDefaultButton () const |
| Returns the default button of the gadget container. More... | |
| virtual IlvGraphic * | getFirstFocusGraphic () const |
| Returns the first object that receives the focus in this container. More... | |
| virtual IlvGraphic * | getFocus () const |
| Returns the object that has the keyboard focus in the gadget container. More... | |
| virtual IlvGraphic * | getGrab () const |
| Returns the object that is currently grabbing events in the container. More... | |
| virtual IlvGraphic * | getLastFocusGraphic () const |
| Returns the last object that receives the focus in this container. More... | |
| IlvLookFeelHandler * | getLookFeelHandler () const |
| Returns the look and feel handler associated with this container. More... | |
| virtual IlvGraphic * | getNextFocusGraphic (IlvGraphic *object) const |
| Returns the next object that will receive the focus after the specified object. More... | |
| IlvGraphic * | getOverriddenFocus () const |
Returns the object that will receive the focus after calling setFocus(). More... | |
| virtual IlvGraphic * | getPreviousFocusGraphic (IlvGraphic *object) const |
| Returns the previous object that received the focus before the specified object. More... | |
| IlBoolean | isAutoResizing () const |
| Indicates whether the gadget container gets resized when loading a file. More... | |
| virtual IlBoolean | isFocusAllowed () const |
| Indicates whether the focus is allowed in the container. More... | |
| virtual void | moveFocusAfter (IlBoolean redraw=IlTrue) |
| Is called to find the next focusable object. More... | |
| virtual void | moveFocusBefore (IlBoolean redraw=IlTrue) |
| Is called to find the previous focusable object. More... | |
| void | overrideFocus (IlvGraphic *obj) |
Sets the object that will receive the focus after calling setFocus(). More... | |
| virtual void | removeGrab () |
Cancels the grabbing settings defined with setGrab(). More... | |
| void | setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue) |
| Sets the default button of the gadget container. More... | |
| virtual void | setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue) |
| Sets the focus to the specified object of the gadget container. More... | |
| virtual void | setGrab (IlvGraphic *object) |
| Sets the specified object as the grabbing object. More... | |
| void | setLookFeelHandler (IlvLookFeelHandler *lfh) |
| Sets the look and feel handler of this container. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from IlvPanedContainer | |
| virtual IlvSliderPane * | createSliderPane (const char *) const |
| Creates and returns a new slider pane. More... | |
Dockable container class.
Library: ilvadvgdt
The IlvDockableMainWindow class is a subclass of IlvDockableContainer for managing the main window of a standard application that use docking panes. An IlvDockableMainWindow object is a vertical dockable container that defines a default layout that makes it possible to add docking panes by specifying a position relative to other docking panes. Using this class, you don't have to know the complete hierarchy of the dockable containers, which can be complex to understand and manage. Instead, you can think of your application main window as a simple list of docking panes.

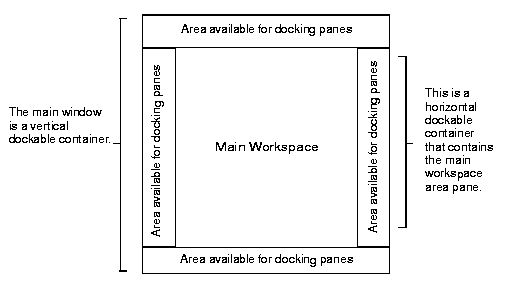

- Layout of an IlvDockableMainWindow object -
IlvDockable, addRelativeDockingPane. | IlvDockableMainWindow::IlvDockableMainWindow | ( | IlvDisplay * | display, |
| const char * | name, | ||
| const char * | title, | ||
| const IlvRect & | rect, | ||
| IlUInt | properties = 0, |
||
| IlBoolean | visible = IlTrue, |
||
| IlvSystemView | transientFor = 0 |
||
| ) |
Constructor.
Initializes a new instance of the IlvDockableMainWindow class.
| display | The connection to the display. |
| name | The name of the dockable container. |
| title | The title of the dockable container. |
| rect | The size and position of the dockable container. |
| properties | The properties of the dockable container. For details, see the IlvView constructors. |
| visible | A Boolean value specifying whether the dockable container is visible. |
| transientFor | The system view for which the dockable container is transient. For more details, see the IlvView constructors. |
| IlvDockableMainWindow::IlvDockableMainWindow | ( | IlvAbstractView * | parent, |
| const IlvRect & | rect, | ||
| IlBoolean | visible = IlTrue |
||
| ) |
Constructor.
Initializes a new instance of the IlvDockableMainWindow class as a child view of parent.
| parent | Parent view of the dockable container. |
| rect | Size and position of the dockable container. |
| visible | A Boolean value specifying whether the dockable container is visible. |
| IlvDockableMainWindow::IlvDockableMainWindow | ( | IlvDisplay * | display, |
| IlvSystemView | parent, | ||
| const IlvRect & | rect, | ||
| IlBoolean | visible = IlTrue |
||
| ) |
Constructor.
Initializes a new instance of the IlvDockableMainWindow class as a child view of the system view specified by parent.
| display | Connection to the display. |
| parent | Parent view of the dockable container. |
| rect | Size and position of the dockable container. |
| visible | A Boolean value specifying whether the dockable container is visible. |
| IlvDockableMainWindow::IlvDockableMainWindow | ( | IlvDisplay * | display, |
| IlvSystemView | window | ||
| ) |
Constructor.
Initializes a new instance of the IlvDockableMainWindow class mapped to the existing system view specified by parent.
| display | Connection to the display. |
| window | System view to which the dockable container will be mapped. |
| IlvDockable* IlvDockableMainWindow::addRelativeDockingPane | ( | IlvPane * | pane, |
| const char * | relativePaneName, | ||
| IlvPosition | relativePanePosition | ||
| ) |
Adds the specified pane to the dockable container using a position relative to another pane.
This methods use relativePaneName and relativePanePosition to find the dockable container and the index in this container where pane must be added. Then it calls IlvDockableContainer::addDockingPane() on this container.
| pane | The pane to be added. |
| relativePaneName | The name of the pane to which pane will be relative. |
| relativePanePosition | The relative position of pane compared to the pane whose name is given by relativePaneName. Valid values are: IlvLeft, IlvRight, IlvBottom, IlvTop. |
IlvDockable connected to pane. getMainWorkspaceViewPane(), getRelativePane(). | IlvViewPane* IlvDockableMainWindow::getMainWorkspaceViewPane | ( | ) | const |
Returns the main workspace view pane.
This view pane is created by the constructor of IlvDockableMainWindow and should never be removed nor deleted. On the other hand, you can change the view managed by this view pane using the IlvViewPane::setView() method. The main feature of this view pane is that it's elastic (see IlvPane::getResizeMode()).
|
Copyright 2022 Rogue Wave Software, Inc., a Perforce company. All Rights Reserved. |
|
