Pane container class. More...

#include <ilviews/gadgets/panecont.h>

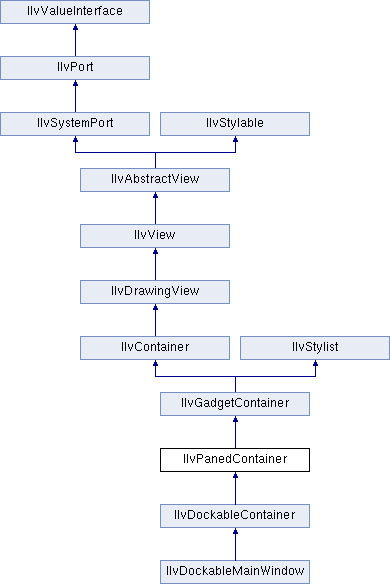

Inheritance diagram for IlvPanedContainer:

Public Member Functions
	IlvPanedContainer (IlvAbstractView *parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvPanedContainer` class as a child view of a view. More...

	IlvPanedContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlvDirection direction, IlUInt properties=0, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new instance of the `IlvPanedContainer` class as a top window. More...

	IlvPanedContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlvDirection direction, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvPanedContainer` class as a child view of a system view. More...

	IlvPanedContainer (IlvDisplay *display, IlvSystemView window, IlvDirection direction)
	Initializes a new instance of the `IlvPanedContainer` class mapped to an existing system view. More...

virtual void	addPane (IlvPane *pane, IlUInt index=(IlUInt) -1)
	Adds a pane to the paned container at the specified index. More...

IlAny	applyUntil (IlvApplyPane func, IlAny arg=0)
	Applies the specified function to all the panes of the paned container. More...

IlUInt	getCardinal () const
	Returns the number of panes managed by the paned container. More...

IlvDirection	getDirection () const
	Returns the direction of the paned container. More...

IlUInt	getIndex (const IlvPane *pane) const
	Returns the index of the specified pane. More...

IlvPane *	getPane (const char *name, IlBoolean all=IlFalse) const
	Searches the pane whose name is specified. More...

IlvPane *	getPane (IlUInt index) const
	Returns the pane whose index is specified. More...

IlvViewPane *	getViewPane () const
	Returns the view pane that encapsulates the paned container. More...

IlBoolean	isManagingSliders () const
	Returns `IlTrue` if the paned container manages automatic sliders. More...

void	manageSliders (IlBoolean value)
	Specifies whether the paned container manages sliders automatically. More...

void	paneBBox (const IlvPane *pane, IlvRect &bbox) const
	Returns the bounding box of the specified pane. More...

virtual void	paneGeometryChanged (IlvPane *pane)
	Is called when the geometry of the specified pane changes. More...

virtual void	paneVisibilityChanged (IlvPane *pane)
	Is called when the specified pane is hidden or shown. More...

IlUInt	pointToPane (const IlvPoint &point) const
	Returns the index of the pane located at the position specified by point. More...

virtual IlBoolean	read (istream &stream)
	Prevents reading data files. More...

virtual IlBoolean	readFile (const char *filename)
	Prevents reading data files. More...

virtual void	removePane (IlUInt index, IlBoolean destroy=IlFalse)
	Removes the pane whose index is specified from the paned container. More...

void	setDirection (IlvDirection direction)
	Sets the direction of the paned container. More...

virtual void	updatePanes (IlBoolean all=IlFalse)
	Updates the position and size of all the panes. More...

Public Member Functions inherited from IlvGadgetContainer
	IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of another view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of a system view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse)
	Initializes a new instance of the `IlvGadgetContainer` class using an existing system view. More...

virtual IlBoolean	allowFocus (IlBoolean value)
	Specifies whether the container manages the focus. More...

virtual void	applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue)
	Is called to carry out the resize events applying to the gadget container. More...

IlBoolean	autoResize (IlBoolean a)
	Sets the auto resize mode of the gadget container. More...

IlvButton *	getDefaultButton () const
	Returns the default button of the gadget container. More...

virtual IlvGraphic *	getFirstFocusGraphic () const
	Returns the first object that receives the focus in this container. More...

virtual IlvGraphic *	getFocus () const
	Returns the object that has the keyboard focus in the gadget container. More...

virtual IlvGraphic *	getGrab () const
	Returns the object that is currently grabbing events in the container. More...

virtual IlvGraphic *	getLastFocusGraphic () const
	Returns the last object that receives the focus in this container. More...

IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look and feel handler associated with this container. More...

virtual IlvGraphic *	getNextFocusGraphic (IlvGraphic *object) const
	Returns the next object that will receive the focus after the specified object. More...

IlvGraphic *	getOverriddenFocus () const
	Returns the object that will receive the focus after calling `setFocus()`. More...

virtual IlvGraphic *	getPreviousFocusGraphic (IlvGraphic *object) const
	Returns the previous object that received the focus before the specified object. More...

IlBoolean	isAutoResizing () const
	Indicates whether the gadget container gets resized when loading a file. More...

virtual IlBoolean	isFocusAllowed () const
	Indicates whether the focus is allowed in the container. More...

virtual void	moveFocusAfter (IlBoolean redraw=IlTrue)
	Is called to find the next focusable object. More...

virtual void	moveFocusBefore (IlBoolean redraw=IlTrue)
	Is called to find the previous focusable object. More...

void	overrideFocus (IlvGraphic *obj)
	Sets the object that will receive the focus after calling `setFocus()`. More...

virtual void	removeGrab ()
	Cancels the grabbing settings defined with `setGrab()`. More...

void	setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue)
	Sets the default button of the gadget container. More...

virtual void	setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue)
	Sets the focus to the specified object of the gadget container. More...

virtual void	setGrab (IlvGraphic *object)
	Sets the specified object as the grabbing object. More...

void	setLookFeelHandler (IlvLookFeelHandler *lfh)
	Sets the look and feel handler of this container. More...

Protected Member Functions
virtual IlvSliderPane *	createSliderPane (const char *) const
	Creates and returns a new slider pane. More...

Detailed Description

Pane container class.

Library: ilvadvgdt

The IlvPanedContainer class is a high-level class that lets you arrange IlvPane instances, called panes, either horizontally (from top to bottom) or vertically (from left to right).

Since an IlvPane object encapsulates a view (by means of the IlvViewPane class), you can build complex structures composed of nested paned containers.

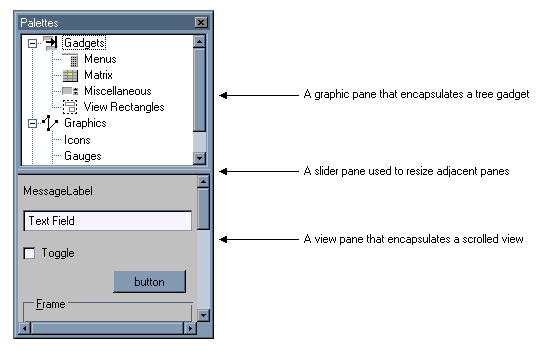

A Vertical Paned Container with Two Panes Separated by a slider

Note that although IlvPanedContainer inherits IlvGadgetContainer, it is not meant to be used as a general purpose container of regular graphic objects. You should therefore not directly use addObject() or read() on a IlvPanedContainer.

See also: IlvDockableContainer, IlvGraphicPane, IlvPane, IlvSliderPane, IlvViewPane.

Constructor & Destructor Documentation

◆ IlvPanedContainer() [1/4]

IlvPanedContainer::IlvPanedContainer	(	IlvDisplay *	display,
		const char *	name,
		const char *	title,
		const IlvRect &	rect,
		IlvDirection	direction,
		IlUInt	properties = `0`,
		IlBoolean	visible = `IlTrue`,
		IlvSystemView	transientFor = `0`
	)

Initializes a new instance of the IlvPanedContainer class as a top window.

Parameters

display	The connection to the display.
name	The name of the paned container.
title	The title of the paned container.
rect	The size and position of the paned container.
direction	The direction of the paned container. Valid values are: `IlvVertical` (panes are arranged from top to bottom), and `IlvHorizontal` (panes are arranged from left to right).
properties	Properties of the paned container. See the `IlvView` constructors for more details.
visible	Specifies whether the paned container should be visible (`IlTrue`).
transientFor	The system view for which the dockable container is transient. See the `IlvView` constructors for more details.

◆ IlvPanedContainer() [2/4]

IlvPanedContainer::IlvPanedContainer	(	IlvAbstractView *	parent,
		const IlvRect &	rect,
		IlvDirection	direction,
		IlBoolean	visible = `IlTrue`
	)

Initializes a new instance of the IlvPanedContainer class as a child view of a view.

Parameters

parent	The parent view of the new paned container.
rect	The size and position of the paned container.
direction	The direction of the paned container. Valid values are: `IlvVertical` (panes are arranged from top to bottom), and `IlvHorizontal` (panes are arranged from left to right). See `IlvPanedContainer` constructors for more details.
visible	Specifies whether the dockable container should be visible (`IlTrue`).

◆ IlvPanedContainer() [3/4]

IlvPanedContainer::IlvPanedContainer	(	IlvDisplay *	display,
		IlvSystemView	parent,
		const IlvRect &	rect,
		IlvDirection	direction,
		IlBoolean	visible = `IlTrue`
	)

Initializes a new instance of the IlvPanedContainer class as a child view of a system view.

Parameters

display	The connection to the display.
parent	The parent view of the new paned container.
rect	The size and position of the paned container.
direction	The direction of the paned container. Valid values are: `IlvVertical` (panes are arranged from top to bottom), and `IlvHorizontal` (panes are arranged from left to right).
visible	Specifies whether the paned container should be visible (`IlTrue`).

◆ IlvPanedContainer() [4/4]

IlvPanedContainer::IlvPanedContainer	(	IlvDisplay *	display,
		IlvSystemView	window,
		IlvDirection	direction
	)

Initializes a new instance of the IlvPanedContainer class mapped to an existing system view.

Parameters

display	The connection to the display.
window	The system view to which the paned container will be mapped.
direction	The direction of the paned container. Valid values are: `IlvVertical` (panes are arranged from top to bottom), and `IlvHorizontal` (panes are arranged from left to right).

Member Function Documentation

◆ addPane()

virtual void IlvPanedContainer::addPane	(	IlvPane *	pane,
		IlUInt	index = `(IlUInt) -1`
	)

virtual

Adds a pane to the paned container at the specified index.

Parameters

pane	The pane to be added.
index	The position where the pane should be inserted. If index is `-1`, the pane is added at the last position.

See also: removePane(), getPane().

◆ applyUntil()

IlAny IlvPanedContainer::applyUntil	(	IlvApplyPane	func,
		IlAny	arg = `0`
	)

Applies the specified function to all the panes of the paned container.

This member function is recursive, and thus, all the panes contained into sub-paned containers will also be crossed. Note that if the function func returns a non-zero value, the process will be stopped, and applyUntil() will return.

Parameters

func	The function to be applied.
arg	The argument that will be passed to the function func.

Returns: The result of the function that stopped the operation, or 0 if nothing stopped the operation.

See also: IlvApplyPane.

◆ createSliderPane()

virtual IlvSliderPane* IlvPanedContainer::createSliderPane ( const char * ) const

protectedvirtual

Creates and returns a new slider pane.

Returns: The instance of the IlvSliderPane class that is inserted between two resizable panes when the paned container is set to manage sliders automatically. You may want to override this method to create your subclass of IlvSliderPane.

See also: manageSliders().

◆ getCardinal()

IlUInt IlvPanedContainer::getCardinal ( ) const

Returns the number of panes managed by the paned container.

Returns: The number of panes managed by this paned container.

See also: addPane(), removePane(), getPane().

◆ getDirection()

IlvDirection IlvPanedContainer::getDirection ( ) const

Returns the direction of the paned container.

Returns: The direction of the paned container.

See also: setDirection().

◆ getIndex()

IlUInt IlvPanedContainer::getIndex ( const IlvPane * pane ) const

Returns the index of the specified pane.

Parameters

pane	The pane whose index is searched for.

Returns: The index of the specified pane in this paned container or -1 if the specified pane does not belong to the paned container.

See also: getPane().

◆ getPane() [1/2]

IlvPane* IlvPanedContainer::getPane	(	const char *	name,
		IlBoolean	all = `IlFalse`
	)		const

Searches the pane whose name is specified.

Parameters

name	The name of the pane.
all	Specifies whether the search should be recursive. If all is set to `IlTrue`, the pane is searched for recursively in each view pane of the paned container that encapsulates an `IlvPanedContainer` object.

Returns: The specified pane or 0 if this pane does not exist.

See also: IlvPane::setName().

◆ getPane() [2/2]

IlvPane* IlvPanedContainer::getPane ( IlUInt index ) const

Returns the pane whose index is specified.

Parameters

index The index of the pane. The index should be a valid value.

Returns: The pane whose index is specified.

See also: addPane(), removePane().

◆ getViewPane()

IlvViewPane* IlvPanedContainer::getViewPane ( ) const

Returns the view pane that encapsulates the paned container.

Returns: The view pane that encapsulates the paned container or 0 if there is none.

See also: IlvViewPane, IlvViewPane::Get().

◆ isManagingSliders()

IlBoolean IlvPanedContainer::isManagingSliders ( ) const

Returns IlTrue if the paned container manages automatic sliders.

Returns: IlTrue if the paned container creates sliders between two resizable panes automatically.

See also: manageSliders().

◆ manageSliders()

void IlvPanedContainer::manageSliders ( IlBoolean value )

Specifies whether the paned container manages sliders automatically.

A slider is a special IlvPane object that you can use to resize panes that are located on both sides of it. For details, see the class IlvSliderPane. When the manage sliders mode is enabled (the default), calling IlvPanedContainer::updatePanes() automatically creates a slider between two resizable panes. A resizable pane is a pane whose resize mode is IlvPane::Resizable or IlvPane::Elastic.

Parameters

value Specifies whether the paned container should creates sliders between two resizable panes automatically.

See also: isManagingSliders(), ResizeMode.

◆ paneBBox()

void IlvPanedContainer::paneBBox	(	const IlvPane *	pane,
		IlvRect &	bbox
	)		const

Returns the bounding box of the specified pane.

Parameters

pane	The pane.
bbox	The returned bounding box of the pane, including the pane margins.

See also: pointToPane(), IlvPane::setMargin().

◆ paneGeometryChanged()

virtual void IlvPanedContainer::paneGeometryChanged ( IlvPane * pane )

virtual

Is called when the geometry of the specified pane changes.

The default implementation does nothing.

Parameters

pane	The modified pane.

See also: IlvPaneListener::paneGeometryChanged().

◆ paneVisibilityChanged()

virtual void IlvPanedContainer::paneVisibilityChanged ( IlvPane * pane )

virtual

Is called when the specified pane is hidden or shown.

The default implementation does nothing.

Parameters

pane	The modified pane.

See also: IlvPaneListener::paneVisibilityChanged().

◆ pointToPane()

IlUInt IlvPanedContainer::pointToPane ( const IlvPoint & point ) const

Returns the index of the pane located at the position specified by point.

Parameters

point The point where the pane is located.

Returns: The index of the pane located at the position specified by point.

See also: IlvPane::moveResize(), IlvPane::boundingBox(), paneBBox().

◆ read()

virtual IlBoolean IlvPanedContainer::read ( istream & stream )

virtual

Prevents reading data files.

IlvPanedContainer encapsulates specific objects, and cannot handle regular file read as IlvContainer does. Therefore, the local implementation does nothing.

Parameters

stream Not used in this class.

Returns: Always IlFalse.

Reads a set of IlvGraphic objects from the input stream specified in stream.

Parameters

stream The input stream.

Reimplemented from IlvContainer.

◆ readFile()

virtual IlBoolean IlvPanedContainer::readFile ( const char * filename )

virtual

Prevents reading data files.

IlvPanedContainer encapsulates specific objects, and cannot handle regular file read as IlvContainer does. Therefore, the local implementation does nothing.

Parameters

filename Not used in this class.

Returns: Always IlFalse.

Reimplemented from IlvContainer.

◆ removePane()

virtual void IlvPanedContainer::removePane	(	IlUInt	index,
		IlBoolean	destroy = `IlFalse`
	)

virtual

Removes the pane whose index is specified from the paned container.

Parameters

index	The index of the pane to be removed.
destroy	Specifies whether the removed pane should be destroyed.

See also: addPane(), getPane().

Reimplemented in IlvDockableContainer.

◆ setDirection()

void IlvPanedContainer::setDirection ( IlvDirection direction )

Sets the direction of the paned container.

Parameters

direction The new direction of the paned container. Valid values are IlvVertical and IlvHorizontal. When a paned container is vertical, panes are arranged from top to bottom. When it is horizontal, panes are arranged from left to right.

See also: getDirection().

◆ updatePanes()

virtual void IlvPanedContainer::updatePanes ( IlBoolean all = IlFalse )

virtual

Updates the position and size of all the panes.

This member function must be called after the content of the paned container is modified, that is, after panes are added, removed, hidden, or shown.

Parameters

all	Specifies whether the method should be recursive. If all is `IlTrue`, each paned container that is encapsulated in a view pane of this paned container is also updated recursively.

See also: addPane(), removePane(), IlvPane::show(), IlvPane::hide().

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ IlvPanedContainer() [1/4]

◆ IlvPanedContainer() [2/4]

◆ IlvPanedContainer() [3/4]

◆ IlvPanedContainer() [4/4]

Member Function Documentation

◆ addPane()

◆ applyUntil()

◆ createSliderPane()

◆ getCardinal()

◆ getDirection()

◆ getIndex()

◆ getPane() [1/2]

◆ getPane() [2/2]

◆ getViewPane()

◆ isManagingSliders()

◆ manageSliders()

◆ paneBBox()

◆ paneGeometryChanged()

◆ paneVisibilityChanged()

◆ pointToPane()

◆ read()

◆ readFile()

◆ removePane()

◆ setDirection()

◆ updatePanes()
