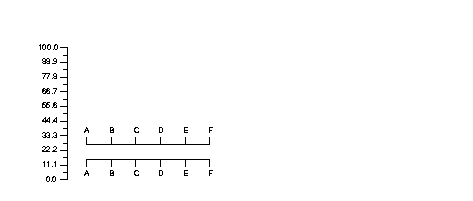

Graphic class. More...

#include <ilviews/graphics/scale.h>

Inheritance diagram for IlvRectangularScale:

Public Member Functions
	IlvRectangularScale (IlvDisplay display, const IlvPoint &orig, IlvDim size, char labels[], IlvDirection direction=IlvVertical, IlvPosition position=IlvLeft, IlUShort steps=2, IlUShort substeps=0, IlUShort stepsize=10, IlUShort substepsize=5, IlvPalette *palette=0)
	Constructor. More...

	IlvRectangularScale (IlvDisplay display, const IlvPoint &orig, IlvDim size, const char format, IlFloat min, IlFloat max, IlvDirection direction=IlvVertical, IlvPosition position=IlvLeft, IlUShort steps=0, IlUShort substeps=0, IlUShort stepsize=10, IlUShort substepsize=5, IlvPalette *palette=0)
	Constructor. More...

virtual void	applyTransform (const IlvTransformer *t)
	Applies a transformation function to the graphic object. More...

IlBoolean	areLabelsCentered () const
	Gets the 'centered labels' flag. More...

virtual void	boundingBox (IlvRect &, const IlvTransformer *t=0) const
	Retrieves the bounding box of the graphic object. More...

void	centerLabels (IlBoolean flag)
	Sets the 'centered labels' flag. More...

IlBoolean	doesDrawOverlappingLabels () const
	Gets the 'draw overlapping labels' flag. More...

virtual void	draw (IlvPort , const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the graphic object. More...

virtual void	drawBaseLine (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws the base line. More...

virtual void	drawLabel (IlvPort dst, IlUShort idx, const IlvPoint &orig, const IlvFloatPoint &offset, const IlvPoint &tickoffset, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws a label. More...

virtual void	drawLabels (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws all labels. More...

void	drawOverlappingLabels (IlBoolean val)
	Sets the 'draw overlapping labels' flag. More...

virtual void	drawTick (IlvPort dst, IlUShort idx, const IlvPoint &orig, const IlvFloatPoint &offset, const IlvFloatPoint &suboffset, const IlvPoint &tickoffset, const IlvPoint &subtickoffset, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws a tick mark. More...

virtual void	drawTicks (IlvPort dst, const IlvTransformer t=0, const IlvRegion *clip=0) const
	Draws all tick marks. More...

IlvDirection	getDirection () const
	Gets the direction of this scale. More...

virtual IlUShort	getNumberOfSkippedSteps (const IlvPoint &orig, IlvDim size, IlUShort steps, const IlvFloatPoint &offset, const IlvPoint &tickoffset, const IlvTransformer *t=0) const
	Gets the number of skipped steps. More...

void	getOrigin (IlvPoint &p) const
	Gets the origin of this scale. More...

IlvPosition	getPosition () const
	Gets the position of the ticks of this scale. More...

IlvDim	getSize () const
	Gets the size of this scale. More...

IlBoolean	hasVerticalLabels () const
	Gets the 'vertical labels' flag. More...

IlBoolean	isStepSizeFixed () const
	Gets the 'fixed step size' flag. More...

virtual void	labelBBox (IlvRect &rect, IlUShort idx, const IlvPoint &orig, const IlvFloatPoint &offset, const IlvPoint &tickoffset, const IlvTransformer *t=0) const
	Gets a label bounding box. More...

virtual void	labelsBBox (IlvRect &rect, const IlvFloatPoint &offset, const IlvPoint &tickoffset, const IlvTransformer *t=0) const
	Gets the bounding box of all labels. More...

void	setDirection (IlvDirection direction)
	Sets the direction of this scale. More...

void	setOrigin (const IlvPoint &origin)
	Sets the origin of this scale. More...

void	setPosition (IlvPosition position)
	Sets the position of the ticks of this scale. More...

void	setSize (IlvDim size)
	Sets the size of this scale. More...

void	setStepSizeFixed (IlBoolean flag)
	Sets the 'fixed step size' flag. More...

virtual void	ticksBBox (IlvRect &rect, const IlvFloatPoint &offset, const IlvPoint &tickoffset, const IlvTransformer *t=0) const
	Gets the bounding box of all ticks. More...

void	useVerticalLabels (IlBoolean flag)
	Sets the 'vertical labels' flag. More...

Public Member Functions inherited from IlvScale
	IlvScale (IlvDisplay display, const IlvRect &drawrect, char labels[], IlUShort steps=2, IlUShort substeps=0, IlUShort stepsize=10, IlUShort substepsize=5, IlvPalette *palette=0)
	Constructor. More...

	IlvScale (IlvDisplay display, const IlvRect &drawrect, const char format=0, IlFloat min=0, IlFloat max=100, IlUShort steps=0, IlUShort substeps=0, IlUShort stepsize=10, IlUShort substepsize=5, IlvPalette *palette=0)
	Constructor. More...

const char *	getFormat () const
	Gets the format of the step labels. More...

const char *	getLabel (IlUShort idx) const
	Gets a label. More...

char const	getLabels () const
	Gets the labels. More...

void	getLabelSizes (IlUShort idx, IlvDim &w, IlvDim &h, IlvDim &d) const
	Gets a label's sizes. More...

IlFloat	getMax () const
	Gets the maximum value of the scale. More...

IlFloat	getMin () const
	Gets the minimum value of the scale. More...

IlUShort	getSteps () const
	Gets the number of steps. More...

IlUShort	getStepSize () const
	Gets the step size. More...

IlUShort	getSubSteps () const
	Gets the number of substeps. More...

IlUShort	getSubStepSize () const
	Gets the substep size. More...

virtual void	setFont (IlvFont *)
	Sets the font of the object. More...

void	setFormat (const char *format)
	Sets the format of the step labels. More...

void	setLabel (IlUShort idx, const char *label)
	Sets a label. More...

void	setLabels (IlUShort count, const char const labels=0)
	Sets the labels. More...

void	setLabels (IlUShort count, IlFloat min, IlFloat max, const char *format)
	Sets the labels. More...

void	setMax (IlFloat max)
	Sets the maximum value of the scale. More...

void	setMin (IlFloat min)
	Sets the minimum value of the scale. More...

virtual void	setPalette (IlvPalette *)
	Sets the internal palette. More...

void	setSteps (IlUShort steps)
	Sets the number of steps. More...

void	setStepSize (IlUShort stepsize)
	Sets the step size. More...

void	setSubSteps (IlUShort substeps)
	Sets the number of substeps. More...

void	setSubStepSize (IlUShort substepsize)
	Sets the substep size. More...

Public Member Functions inherited from IlvSimpleGraphic
	IlvSimpleGraphic (IlvDisplay display, IlvPalette palette=0)
	Initializes a new `IlvSimpleGraphic`. More...

virtual	~IlvSimpleGraphic ()
	Destructor. More...

virtual void	applyResources (const char , const char , const char , const char , IlvDisplay *=0)
	Applies resources on a graphic object. More...

IlvIntensity	getAlpha () const
	Retrieves the alpha value. More...

IlvAntialiasingMode	getAntialiasingMode () const
	Retrieves the anti-aliasing mode. More...

IlvArcMode	getArcMode () const
	Retrieves the arc mode. More...

IlvColor *	getBackground () const
	Retrieves the background color. More...

IlvColorPattern *	getColorPattern () const
	Retrieves the color pattern. More...

virtual IlvDisplay *	getDisplay () const
	Retrieves the `IlvDisplay` instance. More...

IlvFillRule	getFillRule () const
	Retrieves the fill rule. More...

IlvFillStyle	getFillStyle () const
	Retrieves the fill style. More...

IlvFont *	getFont () const
	Retrieves the font. More...

IlvColor *	getForeground () const
	Retrieves the foreground color. More...

IlvGradientPattern *	getGradientPattern () const
	Retrieves the gradient pattern. More...

IlvLineStyle *	getLineStyle () const
	Retrieves the line style. More...

IlUShort	getLineWidth () const
	Retrieves the line width. More...

virtual IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look & feel handler used by this object. More...

virtual int	getLookupStringInputMethod (IlvEvent &event, char bufferReturn, int bytesBuffer, int statusReturn)
	Gets the preedit string from an input method. More...

IlvDrawMode	getMode () const
	Retrieves the draw mode. More...

IlBoolean	getOverwrite () const
	Retrieves the overwrite mode. More...

IlvPalette *	getPalette () const
	Retrieves the internal palette value. More...

IlvPattern *	getPattern () const
	Retrieves the pattern. More...

virtual void	invert (IlBoolean=IlFalse)
	Highlights the object. More...

virtual void	registerInputMethod () const
	Controls the connection of a graphic object to an input method. More...

virtual void	setAlpha (IlvIntensity)
	Sets the alpha value of the object. More...

virtual void	setAntialiasingMode (IlvAntialiasingMode)
	Sets the anti-aliasing mode of the object. More...

virtual void	setArcMode (IlvArcMode)
	Sets the arc mode of the object. More...

virtual void	setBackground (IlvColor *)
	Sets the background color of the object. More...

virtual void	setColorPattern (IlvColorPattern *)
	Sets the color pattern of the object. More...

virtual void	setFillRule (IlvFillRule)
	Sets the fill rule of the object. More...

virtual void	setFillStyle (IlvFillStyle)
	Sets the fill style of the object. More...

virtual void	setFocusValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a simple graphic object and an input method. More...

virtual void	setForeground (IlvColor *)
	Sets the foreground color of the object. More...

virtual void	setGradientPattern (IlvGradientPattern *)
	Sets the gradient pattern of the object. More...

virtual void	setHolder (IlvGraphicHolder *)
	Sets the object's holder. More...

virtual void	setLineStyle (IlvLineStyle *)
	Sets the line style of the object. More...

virtual void	setLineWidth (IlUShort)
	Sets the line width of the object. More...

virtual void	setMode (IlvDrawMode)
	Sets the drawing mode of the object temporarily. More...

virtual void	setOverwrite (IlBoolean)
	Sets an overwrite mode that modifies how the drawing member functions operate. More...

virtual void	setPattern (IlvPattern *)
	Sets the pattern of the object. More...

virtual void	setValuesInputMethod (IlUShort count, const IlvImValue *values) const
	Controls the interaction between a graphic object and an input method. More...

virtual void	unRegisterInputMethod () const
	Controls the disconnection of a graphic object from an input method. More...

virtual void	unsetFocusInputMethod () const
	Controls the interaction between a graphic object and an input method. More...

Public Member Functions inherited from IlvGraphic
void	addCallback (const IlSymbol callbackType, const IlSymbol callbackName, const IlSymbol *script=0)
	Adds a callback function to a callback list. More...

void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Adds a callback function to a callback list. More...

void	addCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Adds a callback function to a callback list. More...

void	addClassProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...

void	addProperty (const IlSymbol *key, IlAny value)
	Adds a specific property to the object. More...

void	addTag (const IlSymbol *tag)
	Adds a tag. More...

virtual void	apply (IlvApplyObject function, IlAny arg)
	Applies a function to objects that compose another object. More...

IlBoolean	applyAttribute (const char attributeClassName, const char value, IlAny checkData=0) const
	Applies attributes. More...

IlBoolean	applyAttribute (const char *attributeClassName, IlFloat value, IlAny checkData=0) const
	Applies attributes. More...

IlBoolean	applyAttribute (const char *attributeClassName, IlInt value, IlAny checkData=0) const
	Applies attributes. More...

virtual void	applyReferences (IlvApplyObject function, IlAny arg)
	Applies a function to objects that are referenced by another object. More...

virtual void	callCallbacks (const IlSymbol *callbackType)
	Calls every callback of a given type. More...

const char *	className () const
	Returns the class name of an object. More...

virtual void	computeFocusRegion (IlvRegion &r, const IlvTransformer *t=0) const
	Computes the region needed for the drawing of the focus. More...

IlBoolean	contains (const IlvPoint &p) const
	Checks whether a point is in the object. More...

virtual IlBoolean	contains (const IlvPoint &p, const IlvPoint &tp, const IlvTransformer *t=0) const
	Checks whether a point is in the object. More...

virtual IlvGraphic *	copy () const =0
	Copies this object. More...

void	draw (IlvPort dst, const IlvTransformer t, const IlvRect *clip) const
	Draws a graphic object. More...

virtual void	drawFocus (IlvPort dst, const IlvPalette palette, const IlvTransformer t=0, const IlvRegion clip=0) const
	Draws additional drawings for an object that has the keyboard focus. More...

virtual void	getAccessors (const IlSymbol const , const IlvValueTypeClass const **, IlUInt &) const
	Retrieves the list of available accessors of an object. More...

IlvGraphicCallback	getCallback () const
	Gets the main callback function. More...

IlvGraphicCallback	getCallback (const IlSymbol *callbackType) const
	Gets a callback. More...

IlAny	getCallbackData (const IlSymbol callbackType, const IlSymbol callbackName) const
	Gets a callback user data. More...

IlAny	getCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Gets a callback user data. More...

IlSymbol *	getCallbackName () const
	Gets the symbol that identifies the main callback. More...

IlSymbol *	getCallbackName (const IlSymbol *callbackType) const
	Gets the name of a callback. More...

virtual IlUInt	getCallbackTypes (const char const names, const IlSymbol const **types) const
	Gets the number of register callback types for the object. More...

virtual IlvGraphic *	getChildAt (IlUInt index) const
	Returns the sub-object of the graphic object specified by index. More...

virtual IlvGraphic *	getChildByName (const char *name) const
	Returns the sub-object of the graphic object specified by a name. More...

virtual IlUInt	getChildCount () const
	Returns the number of children of this graphic object. More...

virtual IlInt	getChildIndex (const IlvGraphic *object) const
	Returns the index of the specified sub-object in this graphic object. More...

virtual IlvGraphic const	getChildren (IlUInt &count) const
	Returns an array containing the sub-objects of this graphic object. More...

virtual IlvClassInfo *	getClassInfo () const
	Gets class information. More...

IlAny	getClassProperty (const IlSymbol *key, IlBoolean checkParent=IlFalse) const
	Retrieves the indicated property value in the class of this object. More...

IlAny	getClientData () const
	Gets client data. More...

virtual const char *	getDefaultInteractor () const
	Gets the name of the default interactor for this object. More...

virtual IlvGraphicHolder *	getHolder () const
	Gets a pointer to an object's holder. More...

IlvInteractor *	getInteractor () const
	Returns the interactor associated with the current object. More...

const char *	getName () const
	Gets the name of the object. More...

IlvNamedProperty *	getNamedProperty (const IlSymbol *name) const
	Gets a named property. More...

IlSymbol *	getNextFocusGraphic () const
	Gets the next object in the focus chain. More...

IlSymbol *	getPreviousFocusGraphic () const
	Gets the previous object in the focus chain. More...

IlAny	getProperty (const IlSymbol *key) const
	Gets a property. More...

IlvSmartSet *	getSmartSet () const
	Gets the smart set object containing this graphic object. More...

const IlSymbol const	getTags (IlUInt &count) const
	Returns all the tags applied to this object. More...

IlvDim	h () const
	Gets the height value of the object. More...

void	h (IlvDim h)
	Sets the height value of the object. More...

IlBoolean	hasCallback (const IlSymbol callbackType, const IlSymbol callbackName) const
	Checks whether a callback function is in a callback list. More...

IlBoolean	hasCallback (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function is in a callback list. More...

IlBoolean	hasCallbackData (const IlSymbol callbackType, const IlSymbol callbackName) const
	Checks whether a callback function has user data. More...

IlBoolean	hasCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback) const
	Checks whether a callback function has user data. More...

const IlvClassInfo *	hasClassProperty (const IlSymbol *key, IlBoolean s=IlFalse) const
	Checks for a class where the keyed property exists. More...

IlBoolean	hasProperty (const IlSymbol *key) const
	Checks whether the object has a particular property. More...

IlBoolean	hasTag (const IlSymbol *tag) const
	Checks whether the object has a specific tag. More...

IlBoolean	inside (const IlvRect &r) const
	Determines whether a rectangle is inside the bounding box. More...

IlBoolean	inside (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...

virtual IlBoolean	inside (const IlvRegion &r, const IlvTransformer *t=0) const
	Determines whether an object with transformation applied is inside the bounding box. More...

IlBoolean	intersects (const IlvRect &r) const
	Checks whether a rectangle intersects the bounding box. More...

IlBoolean	intersects (const IlvRect &r, const IlvRect &tr, const IlvTransformer *t=0) const
	Checks whether a rectangle intersects the bounding box with transformation applied. More...

virtual IlBoolean	intersects (const IlvRegion &r, const IlvTransformer *t=0) const
	Checks whether a region intersects the bounding box with transformation applied. More...

IlBoolean	isFirstFocusGraphic () const
	Checks whether the object is first in the focus chain. More...

IlBoolean	isFocusable () const
	Checks whether the object can receive the keyboard focus. More...

IlBoolean	isInSmartSet () const
	Checks whether a graphic object belongs to a smart set. More...

IlBoolean	isLastFocusGraphic () const
	Checks whether the object is last in the focus chain. More...

IlBoolean	isSensitive () const
	Checks whether the object is sensitive. More...

IlBoolean	isSubtypeOf (const char *parentClass) const
	Checks whether this object's class is a subclass of a given parent class. More...

IlBoolean	isSubtypeOf (const IlvClassInfo *classInfo) const
	Checks whether this object's class is a subclass. More...

void	move (const IlvPoint &p)
	Moves the graphic object. More...

virtual void	move (IlvPos x, IlvPos y)
	Moves the graphic object. More...

void	moveResize (const IlvRect &size)
	Moves and resizes a graphic object. More...

virtual IlBoolean	needsInputContext () const
	Indicates whether the graphic instance can connect to an input method for locale dependent input. More...

virtual void	print (std::ostream &out, int level=0) const
	Prints for debugging purposes. More...

void	removeCallback (const IlSymbol callbackType, const IlSymbol callbackName)
	Removes a callback function from a callback list. More...

void	removeCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Removes a callback function from a callback list. More...

IlBoolean	removeClassProperty (const IlSymbol *key)
	Removes a property from this object's class. More...

void	removeInteractor ()
	Removes the interactor from the current object. More...

IlvNamedProperty *	removeNamedProperty (IlSymbol *name)
	Removes a named property from the object. More...

IlBoolean	removeProperty (const IlSymbol *key)
	Removes a property from the object. More...

void	removeTag (const IlSymbol *tag)
	Removes a tag. More...

IlBoolean	replaceClassProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...

IlBoolean	replaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property. More...

virtual void	resize (IlvDim newW, IlvDim newH)
	Resizes a graphic object. More...

virtual void	rotate (const IlvPoint &center, IlFloat angle)
	Rotates a graphic object. More...

virtual void	scale (IlFloat zoomX, IlFloat zoomY)
	Scales the graphic object. More...

void	setCallback (const IlSymbol callbackType, const IlSymbol callbackName, const IlSymbol *script=0)
	Removes all previously set callbacks. More...

void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callback)
	Sets a new callback. More...

void	setCallback (const IlSymbol *callbackType, IlvGraphicCallback callbackName, IlAny data)
	Removes all previously set callbacks. More...

void	setCallback (IlvGraphicCallback callback, IlAny data)
	Sets the main callback function. More...

void	setCallbackData (const IlSymbol callbackType, const IlSymbol callbackName, IlAny data)
	Sets the callback user data for a callback function. More...

void	setCallbackData (const IlSymbol *callbackType, IlvGraphicCallback callback, IlAny data)
	Sets the callback user data for a callback function. More...

void	setCallbackName (const IlSymbol *callbackName)
	Sets the symbol that identifies the main callback. More...

void	setClientData (IlAny clientData)
	Sets client data. More...

void	setFirstFocusGraphic ()
	Sets the object to be first in the focus chain.

void	setFocusable (IlBoolean value)
	Set the focusable state of the object. More...

IlBoolean	setInteractor (const char *name)
	Attaches an interactor to this graphic object. More...

IlBoolean	setInteractor (IlvInteractor *inter)
	Attaches an interactor to the current object. More...

void	setLastFocusGraphic ()
	Sets the object to be last in the focus chain.

virtual void	setName (const char *name)
	Sets the name of the object. More...

IlvNamedProperty *	setNamedProperty (IlvNamedProperty *property)
	Sets a named property on the object. More...

virtual void	setNeedsInputContext (IlBoolean val)
	Specifies whether the graphic object should have locale dependent input. More...

void	setNextFocusGraphic (IlSymbol *name)
	Sets the object to be next in the focus chain. More...

void	setPreviousFocusGraphic (IlSymbol *name)
	Sets an object as previous in the focus chain. More...

void	setProperty (const IlSymbol *key, IlAny value)
	Sets a property of the object to a value. More...

virtual void	setSensitive (IlBoolean value)
	Sets the sensitivity of the object. More...

virtual void	symmetry (IlvDirection axis)
	Flips a graphic object. More...

virtual void	translate (IlvPos dx, IlvPos dy)
	Applies a transformation function on a graphic object. More...

IlvDim	w () const
	Gets the width value of the object. More...

void	w (IlvDim w)
	Sets the width value of the object. More...

virtual void	write (IlvOutputFile &output) const =0
	Writes an object description to a file. More...

IlvPos	x () const
	Gets the `x` coordinate value of the object. More...

void	x (IlvPos x)
	Sets the `x` coordinate value of the object. More...

IlvPos	y () const
	Gets the `y` coordinate value of the object. More...

void	y (IlvPos y)
	Sets the `y` coordinate value of the object. More...

virtual IlBoolean	zoomable () const
	Checks whether this object is zoomable. More...

Public Member Functions inherited from IlvValueInterface
virtual IlBoolean	applyValue (const IlvValue &value)
	Apply an accessor. More...

virtual IlBoolean	changeValue (const IlvValue &val)
	Changes the value of an accessor. More...

virtual IlBoolean	changeValues (const IlvValue *values, IlUShort count=0)
	Changes several accessor values simultaneously. More...

virtual IlvValue &	queryValue (IlvValue &val) const
	Retrieves an accessor value. More...

virtual void	queryValues (IlvValue *values, IlUShort count) const
	Retrieves multiple accessor values simultaneously. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvGraphic
static void	AddProperty (const IlSymbol *key, IlAny value)
	Adds a property to this object's class. More...

static void	AddToCallbackTypeList (IlUInt &count, const char const names, const IlSymbol const *types, const char newName, const IlSymbol *newType)
	Adds a callback to a list. More...

static void	AllowZoom (IlBoolean az)
	Sets or inhibits zooming. More...

static IlvClassInfo *	ClassInfo () const
	Gets class information. More...

static IlAny	GetProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Retrieves the property value associated with the key in this object's class. More...

static const IlvClassInfo *	HasProperty (const IlSymbol *key, IlBoolean checkSuperClass=IlFalse)
	Checks for the existence of a property for this object's class hierarchy. More...

static IlBoolean	IsZoomAllowed ()
	Checks whether zoomable objects can display themselves when zooming out. More...

static IlvGraphic *	read (IlvInputFile &file, IlvPalette *palette)
	Reads an object description from a file. More...

static IlBoolean	RemoveProperty (const IlSymbol *key)
	Removes a property from this object's class. More...

static IlBoolean	ReplaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property in this object's class. More...

Detailed Description

Graphic class.

Library: views

Use this class to create horizontal and vertical scales like those shown in the following figure:

- IlvRectangularScale -

See also: IlvCircularScale, IlvGauge.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvScale and adds the following ones:

Name	Type	Equivalent methods
`originX`	Int	`getOrigin()`, `setOrigin()`
`originY`	Int	`getOrigin()`, `setOrigin()`
`size`	UInt	`getSize()`, `setSize()`
`direction`	Direction	`getDirection()`, `setDirection()`
`position`	Direction	`getPosition()`, `setPosition()`
`stepSizeFixed`	Boolean	`isStepSizeFixed()`, `setStepSizeFixed()`
`verticalLabels`	Boolean	`hasVerticalLabels()`, `useVerticalLabels()`
`centerLabels`	Boolean	`areLabelsCentered()`, `centerLabels()`
`drawOverlappingLabels`	Boolean	`doesDrawOverlappingLabels()`, `drawOverlappingLabels()`

Constructor & Destructor Documentation

◆ IlvRectangularScale() [1/2]

IlvRectangularScale::IlvRectangularScale	(	IlvDisplay *	display,
		const IlvPoint &	orig,
		IlvDim	size,
		const char *	format,
		IlFloat	min,
		IlFloat	max,
		IlvDirection	direction = `IlvVertical`,
		IlvPosition	position = `IlvLeft`,
		IlUShort	steps = `0`,
		IlUShort	substeps = `0`,
		IlUShort	stepsize = `10`,
		IlUShort	substepsize = `5`,
		IlvPalette *	palette = `0`
	)

Constructor.

The bounding box of the new scale depends on its origin and size, but also on the direction and position parameters. The origin of the scale must not be confused with the origin of the rectangle that contains it, which is located at the upper-left corner of its bounding box.

Parameters

display	The display where this object is created.
orig	The origin of the scale.
size	The dimension of the scale's main axis: the width of the scale if it is horizontal, and its height if it is vertical.
format	The `printf()` format of the step labels.
min	The minimum value of the scale.
max	The maximum value of the scale.
direction	The direction of the scale. Valid values are `IlvVertical` (bottom to top) and `IlvHorizontal` (left to right).
position	The position of the scale. Valid values depend on direction: `IlvLeft` and `IlvRight` for a vertical scale, `IlvTop` and `IlvBottom` for a horizontal scale.
steps	The number of major ticks to be drawn, which can be `0` for no scales.
substeps	The number of minor ticks displayed between major ones.
stepsize	The major tick mark size.
substepsize	The minor tick mark size.
palette	The palette associated with this object.

◆ IlvRectangularScale() [2/2]

IlvRectangularScale::IlvRectangularScale	(	IlvDisplay *	display,
		const IlvPoint &	orig,
		IlvDim	size,
		char *	labels[],
		IlvDirection	direction = `IlvVertical`,
		IlvPosition	position = `IlvLeft`,
		IlUShort	steps = `2`,
		IlUShort	substeps = `0`,
		IlUShort	stepsize = `10`,
		IlUShort	substepsize = `5`,
		IlvPalette *	palette = `0`
	)

Constructor.

The point orig specifies the origin of the scale. Its position varies depending on the direction and position parameters. The origin of the scale should not be confused with the origin of the rectangle that contains it, which is located at the upper-left corner. The parameter size specifies the dimension of the scale in its main axis (width for horizontal scale and height for a vertical scale). The direction of the scale is indicated by direction: valid values are IlvVertical (bottom to top) and IlvHorizontal (left to right). The position of the scale is specified by position. Valid values depend on direction: IlvLeft and IlvRight for a vertical scale, IlvTop and IlvBottom for a horizontal scale.

Parameters

display	The display where this object is created.
orig	The origin of the scale.
size	The dimension of the scale's main axis.
labels[]	The array of text strings.
direction	The direction of the scale.
position	The position of the scale.
steps	The number of major ticks to be drawn, which can be `0` for no scales.
substeps	The number of minor ticks displayed between major ones.
stepsize	The major tick mark size.
substepsize	The minor tick mark size.
palette	The palette associated with this object.

Member Function Documentation

◆ applyTransform()

virtual void IlvRectangularScale::applyTransform ( const IlvTransformer * t )

virtual

Applies a transformation function to the graphic object.

Applies the transformer t to the shape of the object. Unless the transformation is a scaling operation, the result of applying it to certain objects can be insignificant. For example, applying a non-scaling transformer to an IlvRectangle object is meaningless, since the rectangle remains a rectangle. On the other hand, meaningful transformations can be applied to objects that are instances of types such as IlvLine or IlvPolyPoints.

Note: applyTransform() is one of the most important method to be rewritten for classes derived from IlvGraphic, since it is called by the resize(), move(), moveResize(), scale(), etc., methods.

Parameters

t	The transformer value. If `0`, no transformation is performed.

Reimplemented from IlvScale.

◆ areLabelsCentered()

IlBoolean IlvRectangularScale::areLabelsCentered ( ) const

Gets the 'centered labels' flag.

Returns: IlTrue if the scale draws its labels between the markers, or IlFalse if it draws each label with its corresponding marker.

See also: centerLabels().

◆ boundingBox()

virtual void IlvRectangularScale::boundingBox	(	IlvRect &	bbox,
		const IlvTransformer *	t = `0`
	)		const

virtual

Retrieves the bounding box of the graphic object.

Sets bbox, the rectangle reference parameter, to be the bounding box of the object. Since the object can appear within a transformed environment (for example, in a multiview editor), an IlvTransformer object occurs as an optional parameter in order to compute the bounding box in the coordinate system of the transformed environment.

Parameters

bbox	The bounding box to be set.
t	A transformer value or `0` if there is no transformation.

Implements IlvScale.

◆ centerLabels()

void IlvRectangularScale::centerLabels ( IlBoolean flag )

Sets the 'centered labels' flag.

Parameters

flag	The new value of the the 'centered labels' flag of this scale object.

See also: areLabelsCentered().

◆ doesDrawOverlappingLabels()

IlBoolean IlvRectangularScale::doesDrawOverlappingLabels ( ) const

Gets the 'draw overlapping labels' flag.

Returns: IlTrue if the scale allows labels to overlap, and IlFalse otherwise.

See also: drawOverlappingLabels().

◆ draw()

virtual void IlvRectangularScale::draw	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the graphic object.

Draws the object in the given IlvPort using the transformer t.

Parameters

dst	The destination port this object is drawn onto.
t	The transformer value. If `0`, no transformation is performed.
clip	The clipping region, relative to the transformed object, or `0` if none.

Implements IlvScale.

◆ drawBaseLine()

virtual void IlvRectangularScale::drawBaseLine	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws the base line.

Draws a line from the origin to the last scale marker.

Parameters

dst	The drawing port.
t	The transformer to apply.
clip	The clipping region to respect.

◆ drawLabel()

virtual void IlvRectangularScale::drawLabel	(	IlvPort *	dst,
		IlUShort	idx,
		const IlvPoint &	orig,
		const IlvFloatPoint &	offset,
		const IlvPoint &	tickoffset,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws a label.

Draws a scale label at the position indicated by index, in the dst port. origin indicates the location of the minimum value representation on the scale.
The offset values allow the dimensions to be handled, without considering whether the values are positive or negative (this is handled elsewhere). offset is the offset of the origin of two major ticks. tickoffset is the absolute offset of the extremity of a tick to its origin.

Parameters

dst	The drawing port.
idx	The label position to draw.
orig	The location of the minimum value representation on the scale.
offset	The offset of the origin of two major ticks.
tickoffset	The absolute tick offset to the origin.
t	A transformation.
clip	The clipping region to respect.

◆ drawLabels()

virtual void IlvRectangularScale::drawLabels	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws all labels.

Draws the scale labels, computing the two different offsets and calls the drawLabel() member function for each label in the scale. See drawLabel().

Parameters

dst	The drawing port.
t	A transformation.
clip	The clipping region to respect.

◆ drawOverlappingLabels()

void IlvRectangularScale::drawOverlappingLabels ( IlBoolean val )

Sets the 'draw overlapping labels' flag.

Allows or disallows labels from overlapping.

Parameters

val	The new value of the the 'draw overlapping labels' flag of this scale object.

See also: doesDrawOverlappingLabels().

◆ drawTick()

virtual void IlvRectangularScale::drawTick	(	IlvPort *	dst,
		IlUShort	idx,
		const IlvPoint &	orig,
		const IlvFloatPoint &	offset,
		const IlvFloatPoint &	suboffset,
		const IlvPoint &	tickoffset,
		const IlvPoint &	subtickoffset,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws a tick mark.

Draws a scale marker at the position indicated by index, in the dst port. origin indicates the location of the minimum value representation on the scale.
The offset values allow the dimensions to be handled, without considering whether the values are positive or negative (this is handled elsewhere). offset is the offset between the origins of two major ticks, suboffset is the offset between the origins of two minor ticks, tickoffset is the offset from the major tick line origin to its extremity, and subtickoffset is the offset from the origin of the minor tick line to its extremity.

Parameters

dst	The drawing port.
idx	The label position to draw.
orig	The location of the minimum value representation on the scale.
offset	The offset of the origin of two major ticks.
suboffset	The offset of the origin of two minor ticks.
tickoffset	The absolute major tick offset to the origin.
subtickoffset	The absolute minor tick offset to the origin.
t	A transformation.
clip	The clipping region to respect.

◆ drawTicks()

virtual void IlvRectangularScale::drawTicks	(	IlvPort *	dst,
		const IlvTransformer *	t = `0`,
		const IlvRegion *	clip = `0`
	)		const

virtual

Draws all tick marks.

Draws the scale markers, computing the four different offsets and calls the drawTick member function for each tick in the scale. See drawTick().

Parameters

dst	The drawing port.
t	The transformer that applies.
clip	The clipping region to respect.

◆ getDirection()

IlvDirection IlvRectangularScale::getDirection ( ) const

Gets the direction of this scale.

Returns: The direction of this scale.

See also: setDirection().

◆ getNumberOfSkippedSteps()

virtual IlUShort IlvRectangularScale::getNumberOfSkippedSteps	(	const IlvPoint &	orig,
		IlvDim	size,
		IlUShort	steps,
		const IlvFloatPoint &	offset,
		const IlvPoint &	tickoffset,
		const IlvTransformer *	t = `0`
	)		const

virtual

Gets the number of skipped steps.

Returns: The number of steps to skip when drawing the scale labels and tick marks. The return value is 1 if the draw overlapping labels flag is set to IlTrue. Overload this function if you want to control the display of scale labels on the screen (Show only odd or even numbers.)

◆ getOrigin()

void IlvRectangularScale::getOrigin ( IlvPoint & p ) const

Gets the origin of this scale.

Returns: The location of origin of this scale.

See also: setOrigin().

◆ getPosition()

IlvPosition IlvRectangularScale::getPosition ( ) const

Gets the position of the ticks of this scale.

Returns: The position of the ticks of this scale.

See also: setPosition().

◆ getSize()

IlvDim IlvRectangularScale::getSize ( ) const

Gets the size of this scale.

Returns: The size (the width or the height) of this scale. The size is the distance from the minimum to maximum tick marks on the scale.

See also: setSize().

◆ hasVerticalLabels()

IlBoolean IlvRectangularScale::hasVerticalLabels ( ) const

Gets the 'vertical labels' flag.

Returns: IlTrue if the scale draws its labels in a vertical direction, or IlFalse if it draws them in a horizontal direction.

See also: useVerticalLabels().

◆ isStepSizeFixed()

IlBoolean IlvRectangularScale::isStepSizeFixed ( ) const

Gets the 'fixed step size' flag.

Returns: IlTrue if the scale has a fixed step size (i.e., distance between two markers), or IlFalse if this distance varies to make the scale fit its size.

See also: setStepSizeFixed().

◆ labelBBox()

virtual void IlvRectangularScale::labelBBox	(	IlvRect &	rect,
		IlUShort	idx,
		const IlvPoint &	orig,
		const IlvFloatPoint &	offset,
		const IlvPoint &	tickoffset,
		const IlvTransformer *	t = `0`
	)		const

virtual

Gets a label bounding box.

Uses the rect parameter to return the bounding box of the label of the scale at the position indicated by idx.

Parameters

rect	Return value holding the bounding box coordinates.
idx	The index position of the label.
orig	Is set to the location of the scale origin.
offset	The offset of the major ticks, from the origin.
tickoffset	The offset of the major ticks, from the origin.
t	The transformer that applies.

◆ labelsBBox()

virtual void IlvRectangularScale::labelsBBox	(	IlvRect &	rect,
		const IlvFloatPoint &	offset,
		const IlvPoint &	tickoffset,
		const IlvTransformer *	t = `0`
	)		const

virtual

Gets the bounding box of all labels.

Parameters

rect	Return value holding the bounding box containing all the labels of this scale.
offset	The offset of the first major tick origin, relative to this scale's origin.
tickoffset	The location of the first major tick end, relative to this scale's origin.
t	The transformer to apply.

◆ setDirection()

void IlvRectangularScale::setDirection ( IlvDirection direction )

Sets the direction of this scale.

Parameters

direction The new direction of this scale. This can be IlvBottom, IlvTop, IlvLeft or IlvRight, indicating where the minimum value of the scale is positioned. This can also be IlvHorizontal, indicating that the scale goes from left to right (equivalent to IlvLeft), or IlvVertical, indicating that the scale goes from bottom to top (equivalent to IlvBottom).

See also: getDirection().

◆ setOrigin()

void IlvRectangularScale::setOrigin ( const IlvPoint & origin )

Sets the origin of this scale.

Sets the origin of the scale (the location of the minimum value representation) to the value of the origin parameter.

Parameters

origin The new origin of this scale.

See also: getOrigin().

◆ setPosition()

void IlvRectangularScale::setPosition ( IlvPosition position )

Sets the position of the ticks of this scale.

The position indicate where the scale is drawn in relation to its bounding rectangle.

Parameters

position The position of the scale. If the scale is horizontal, valid values for are IlvTop and IlvBottom. If the scale is vertical, then the possible values are IlvLeft and IlvRight.

See also: getPosition().

◆ setSize()

void IlvRectangularScale::setSize ( IlvDim size )

Sets the size of this scale.

Sets the size of the scale (the width or the height) of the scale to the value of the size parameter. The size is the distance from the minimum to maximum tick marks on the scale.

Parameters

size	The new dimension of this scale's main axis.

See also: getSize().

◆ setStepSizeFixed()

void IlvRectangularScale::setStepSizeFixed ( IlBoolean flag )

Sets the 'fixed step size' flag.

Parameters

flag	The new value of the the 'fixed step size' flag of this scale object.

See also: isStepSizeFixed().

◆ ticksBBox()

virtual void IlvRectangularScale::ticksBBox	(	IlvRect &	rect,
		const IlvFloatPoint &	offset,
		const IlvPoint &	tickoffset,
		const IlvTransformer *	t = `0`
	)		const

virtual

Gets the bounding box of all ticks.

Uses the rect parameter to return the bounding box containing all the scale markers.

Returns: In rect the bounding box containing all ticks.

◆ useVerticalLabels()

void IlvRectangularScale::useVerticalLabels ( IlBoolean flag )

Sets the 'vertical labels' flag.

Parameters

flag	The new value of the the 'vertical labels' flag of this scale object.

See also: hasVerticalLabels().

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IlvRectangularScale() [1/2]

◆ IlvRectangularScale() [2/2]

Member Function Documentation

◆ applyTransform()

◆ areLabelsCentered()

◆ boundingBox()

◆ centerLabels()

◆ doesDrawOverlappingLabels()

◆ draw()

◆ drawBaseLine()

◆ drawLabel()

◆ drawLabels()

◆ drawOverlappingLabels()

◆ drawTick()

◆ drawTicks()

◆ getDirection()

◆ getNumberOfSkippedSteps()

◆ getOrigin()

◆ getPosition()

◆ getSize()

◆ hasVerticalLabels()

◆ isStepSizeFixed()

◆ labelBBox()

◆ labelsBBox()

◆ setDirection()

◆ setOrigin()

◆ setPosition()

◆ setSize()

◆ setStepSizeFixed()

◆ ticksBBox()

◆ useVerticalLabels()
