Field gadget class. More...

#include <ilviews/dataccess/gadgets/tblcombo.h>

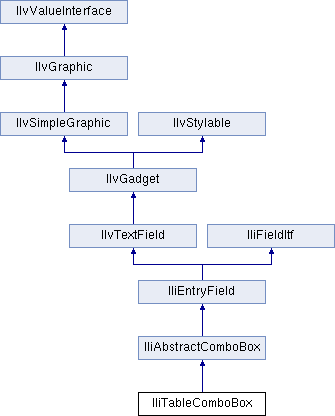

Inheritance diagram for IliTableComboBox:

Public Member Functions
	IliTableComboBox (IlvDisplay display, const IlvRect &rect, const IliMapEntry map, IlBoolean owner, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a table combo box, where the foreign table is an `IliMapTable`. More...

	IliTableComboBox (IlvDisplay display, const IlvRect &rect, IliTable table, IlBoolean owner, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a table combo box, where the foreign table to be used is specified. More...

	IliTableComboBox (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a table combo box. More...

virtual void	close ()
	Hides the pull-down menu or dialog box. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual void	f_setAutoFitPullDown (IlBoolean)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setForeignDisplayColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *, IlBoolean=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

IliAbstractTablePopupView *	getComboBoxWindow ()
	Returns the default dialog(a pull-down menu) of the combo box. More...

IliAbstractTablePopupView *	getComboBoxWindow () const
	Returns the default dialog (a pull-down menu) of the combo box. More...

IlInt	getDisplayColumns (IlInt *) const
	Returns the index of each column displayed by the pull-down menu. More...

IlInt	getDisplayColumnsCount () const
	Returns the number of columns displayed by the pull-down menu. More...

IlInt	getPullDownWidth () const
	Returns the width of the pull-down menu. More...

const char *	getTableColumns () const
	Returns the list of column names displayed by the pull-down menu. More...

IliAbstractTablePopupView *	getUserComboBoxWindow ()
	Returns the dialog displayed when the user clicks to display the pull-down menu. More...

IliAbstractTablePopupView *	getUserComboBoxWindow () const
	The dialog displayed when the user clicks to display the pull-down menu. More...

IlBoolean	isAutoFitting () const
	`IlTrue` if the table combo box is in auto-fitting mode. More...

IlBoolean	isMultiColumnsMode () const
	Returns `IlTrue` if the pull-down menu displays several columns. More...

virtual IlBoolean	isOpen () const
	Returns `IlTrue` if the pull-down menu or the dialog box is currently displayed. More...

IlBoolean	selectNextRow ()
	Changes the value of the combo box to the value, contained in the value column, of the next row in the foreign table. More...

IlBoolean	selectPreviousRow ()
	Changes the value of the combo box to the value, contained in the value column, of the previous row in the foreign table. More...

IlBoolean	selectRow (IlInt rowno)
	Changes the value of the combo box to the value contained in the value column, in the foreign table. More...

void	setAutoFitting (IlBoolean flag)
	Turns on or off the table combo box in auto-fitting mode. More...

void	setPullDownWidth (IlInt width)
	Sets the width of the pull-down menu. More...

void	setTableColumns (const char *list)
	Sets the list of column names displayed by the pull-down menu. More...

void	setUserComboBoxWindow (IliAbstractTablePopupView *dlg)
	Defines the dialog displayed when the user clicks to display the pull-down menu. More...

Public Member Functions inherited from IliAbstractComboBox
void	allowEdit (IlBoolean enable)
	Specifies whether editing is allowed for the abstract combo box. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

IlBoolean	isArrowShown () const
	Returns `IlTrue` if the button is shown. More...

IlBoolean	isEditAllowed () const
	Returns `IlTrue` if editing is allowed for the abstract combo box. More...

virtual void	onClose ()
	Called just after the pull-down menu or the dialog box is dismissed. More...

virtual void	onOpen ()
	Called just before the pull-down menu or the dialog box is displayed. More...

virtual void	open (IlBoolean grab)
	Causes a pull-down menu or dialog box to be displayed. More...

void	showArrow (IlBoolean show)
	Shows or hides the arrow button. More...

Public Member Functions inherited from IliEntryField
	IliEntryField (IlvDisplay display, const char label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvPoint &at, const char label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new `IliEntryField` instance. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment)
	Sets the text alignment of the field. More...

virtual void	f_setFormat (const IliFormat &)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean)
	Sets the input-modified attribute of the field. More...

virtual void	f_setMask (const IliInputMask &)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort)
	Sets the maximum length allowed for the external representation of the field. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Protected Member Functions
virtual void	valueToLabel (const IliValue &)
	Sets the value to the label of the entry field. More...

Protected Member Functions inherited from IliAbstractComboBox
	IliAbstractComboBox (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new abstract combo box. More...

Protected Member Functions inherited from IliEntryField
const char *	formatValue (IliString &dest, const IliValue &val)
	Returns a character string which contains the formatted value. More...

void	setLabelSilently (const char *label)
	Sets a new label and launches the drawing of the new label. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Additional Inherited Members
Static Public Member Functions inherited from IliAbstractComboBox
static IlvSymbol *	CloseSymbol ()
	Returns the symbol name of the Close callback. More...

static void	GetOpenShortCut (IlUShort &modifiers, IlUShort &key)
	Returns the definition of the shortcut key that causes the pull-down menu or dialog box to be displayed. More...

static IlvSymbol *	OpenSymbol ()
	Returns the symbol name of the Open callback. More...

static void	SetOpenShortCut (IlUShort modifiers, IlUShort key)
	Defines the shortcut key that causes the pull-down menu or dialog box to be displayed. More...

Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Detailed Description

Field gadget class.

Library: dbgadget

The IliTableComboBox class defines a combo box gadget that opens a pull-down menu when the user clicks on the combo button. The pull-down menu displays a column of the foreign table of the field. A IliTableComboBox gadget inherits the following properties from the IliFieldItf class:

a value (that may be connected to a data source)
a foreign table
a column of the foreign table known as the value column
a column of the foreign table known as the display column

When a table combo box receives a new value, it looks in the foreign table for a row that has this value in what is referred to as its value column. If such a row is found, the table combo box displays the value contained in what is referred to as the display column of this row. Therefore, a table combo box does not display the new value, but a value which is derived from the initial value through the foreign table. The foreign table serves as a value converter. In addition, if the user edits the value displayed in the table combo box, the edited value is converted back in a reversed version of the procedure described above. A row that contains the newly edited value in its display column is searched for in the foreign table. If such a row is found, the value of the combo box changes to the value contained in the value column of the row. Moreover, the pull-down menu can display several columns of the foreign table. See the function setTablesColumns(). However, if you display another dialog, use the IliAbstractTablePopupView class to define your dialog class and replace the pull-down menu by this class. Note: This gadget does not support XP look&feel. If you need a support of the XP look&feel see IliScrolledComboBox class.

See also: IliMapTable, IliTable, IliScrolledComboBox.

Constructor & Destructor Documentation

◆ IliTableComboBox() [1/3]

IliTableComboBox::IliTableComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a table combo box.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

◆ IliTableComboBox() [2/3]

IliTableComboBox::IliTableComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IliTable *	table,
		IlBoolean	owner,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a table combo box, where the foreign table to be used is specified.

Parameters

display	The display.
rect	The location.
table	The foreign table.
owner	The table owner, if `IlTrue`, the combo box becomes the owner of the foreign table.
thickness	The border thickness.
palette	The palette.

◆ IliTableComboBox() [3/3]

IliTableComboBox::IliTableComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const IliMapEntry *	map,
		IlBoolean	owner,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a table combo box, where the foreign table is an IliMapTable.

Parameters

display	The display.
rect	The location.
map	The rows of the foreign table.
owner	The table owner, if `IlTrue`, the combo box becomes the owner of the rows of the foreign table.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ close()

virtual void IliTableComboBox::close ( )

virtual

Hides the pull-down menu or dialog box.

The type of object that is hidden depends on the subclass of IliAbstractComboBox being used.

Reimplemented from IliAbstractComboBox.

◆ f_complete()

virtual IlBoolean IliTableComboBox::f_complete ( )

virtual

Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field.

For more information on completion, see the f_iscompletionEnabled() member function.

Returns: IlTrue if successful.

Reimplemented from IliFieldItf.

◆ f_externalToInternal()

virtual IlBoolean IliTableComboBox::f_externalToInternal ( )

virtual

Updates the internal value of a field according to its current external representation.

Returns: IlTrue if successful and IlFalse otherwise. Note that this may fail due to the fact that not all external representations can be converted to a value object. For example, this is especially true for text fields that are used to edit numeric or date values.

Reimplemented from IliEntryField.

◆ f_isAutoFitPullDown()

virtual IlBoolean IliTableComboBox::f_isAutoFitPullDown ( ) const

virtual

Returns IlTrue if the width of the pull-down menu is automatically computed so that its contents fit.

Returns

IlTrue if the width of the pull-down menu is automatically computed so that its contents fit. The value returned by this virtual member function is currently meaningful only when the field gadget is one of the following:

IliTableComboBox
IliTableGadget

For a table gadget, this property applies to all table combo boxes contained in the table gadget.

Reimplemented from IliFieldItf.

◆ f_isConsistent()

virtual IlBoolean IliTableComboBox::f_isConsistent ( ) const

virtual

Returns IlTrue if the internal value of the field corresponds to its current external representation.

A return value of IlFalse means that the external representation of the field has been edited by the end-user since the last time one of the member functions, f_setValue(), f_externalToInternal(), f_internalToExternal() or f_complete() was successfully called.

Returns: IlTrue if the internal value of the field corresponds to its current external representation.

Reimplemented from IliEntryField.

◆ f_setAutoFitPullDown()

virtual void IliTableComboBox::f_setAutoFitPullDown ( IlBoolean flag )

virtual

Enables/disables the automatic width computing of the pull-down menu.

Parameters

flag	If `IlTrue`, the width of the pull-down menu is automatically computed so that its contents fit. See the description of `f_isAutoFitPullDown()` for more information on this property.

Reimplemented from IliFieldItf.

◆ f_setForeignDisplayColumnName()

virtual void IliTableComboBox::f_setForeignDisplayColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setForeignTable()

virtual void IliTableComboBox::f_setForeignTable	(	IliTable *	tbl,
		IlBoolean	owner = `IlFalse`
	)

virtual

Sets the foreign table of the field.

Parameters

tbl	The table.
owner	Determines whether the field will own the table.

Reimplemented from IliFieldItf.

◆ f_setForeignValueColumnName()

virtual void IliTableComboBox::f_setForeignValueColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setValue()

virtual IlBoolean IliTableComboBox::f_setValue	(	const IliValue &	val,
		IlBoolean	internal = `IlFalse`
	)

virtual

Sets the value of the field.

Parameters

val	The value.
internal	If `IlFalse`, then the external representation and the display of the field are automatically updated.

Returns: IlTrue if successful, and IlFalse otherwise.

Reimplemented from IliEntryField.

◆ getComboBoxWindow() [1/2]

IliAbstractTablePopupView* IliTableComboBox::getComboBoxWindow ( )

Returns the default dialog(a pull-down menu) of the combo box.

Returns: The dialog.

◆ getComboBoxWindow() [2/2]

IliAbstractTablePopupView* IliTableComboBox::getComboBoxWindow ( ) const

Returns the default dialog (a pull-down menu) of the combo box.

Returns: The dialog.

◆ getDisplayColumns()

IlInt IliTableComboBox::getDisplayColumns ( IlInt * ) const

Returns the index of each column displayed by the pull-down menu.

Returns: The index of each column displayed by the pull-down menu. It also returns the number of columns displayed by the pull-down menu.

◆ getDisplayColumnsCount()

IlInt IliTableComboBox::getDisplayColumnsCount ( ) const

Returns the number of columns displayed by the pull-down menu.

Returns: The count.

◆ getPullDownWidth()

IlInt IliTableComboBox::getPullDownWidth ( ) const

Returns the width of the pull-down menu.

Returns: The width of the pull-down menu. It is either -1, the default, or a positive integer. See the setPullDownWidth() member function for more information.

◆ getTableColumns()

const char* IliTableComboBox::getTableColumns ( ) const

Returns the list of column names displayed by the pull-down menu.

These columns are from the foreign data source. The column names are separated by a ‘;’ .

Returns: The columns list.

◆ getUserComboBoxWindow() [1/2]

IliAbstractTablePopupView* IliTableComboBox::getUserComboBoxWindow ( )

Returns the dialog displayed when the user clicks to display the pull-down menu.

Returns: The dialog.

◆ getUserComboBoxWindow() [2/2]

IliAbstractTablePopupView* IliTableComboBox::getUserComboBoxWindow ( ) const

The dialog displayed when the user clicks to display the pull-down menu.

Returns: The dialog.

◆ isAutoFitting()

IlBoolean IliTableComboBox::isAutoFitting ( ) const

IlTrue if the table combo box is in auto-fitting mode.

In auto-fitting mode, the width of the pull-down menu is automatically adjusted to the contents of the data it contains. Initially, this property is IlFalse.

Returns: IlTrue if the table combo box is in auto-fitting mode.

◆ isMultiColumnsMode()

IlBoolean IliTableComboBox::isMultiColumnsMode ( ) const

Returns IlTrue if the pull-down menu displays several columns.

Returns: IlTrue if the pull-down menu displays several columns.

◆ isOpen()

virtual IlBoolean IliTableComboBox::isOpen ( ) const

virtual

Returns IlTrue if the pull-down menu or the dialog box is currently displayed.

Returns: The pull-down menu (or dialog box) visibility.

Reimplemented from IliAbstractComboBox.

◆ selectNextRow()

IlBoolean IliTableComboBox::selectNextRow ( )

Changes the value of the combo box to the value, contained in the value column, of the next row in the foreign table.

Returns: IlTrue if successful.

◆ selectPreviousRow()

IlBoolean IliTableComboBox::selectPreviousRow ( )

Changes the value of the combo box to the value, contained in the value column, of the previous row in the foreign table.

Returns: IlTrue if successful.

◆ selectRow()

IlBoolean IliTableComboBox::selectRow ( IlInt rowno )

Changes the value of the combo box to the value contained in the value column, in the foreign table.

Parameters

rowno The row position.

Returns: IlTrue if successful.

◆ setAutoFitting()

void IliTableComboBox::setAutoFitting ( IlBoolean flag )

Turns on or off the table combo box in auto-fitting mode.

Parameters

flag	If `IlTrue`, the auto-fitting mode is on.

◆ setPullDownWidth()

void IliTableComboBox::setPullDownWidth ( IlInt width )

Sets the width of the pull-down menu.

Parameters

width The width, which must be either -1 or a positive integer. When the pull-down menu is opened, it will have a width equal to the maximum of the given value and the width of the gadget itself. This property can be used to specify that the actual width of the pull-down menu is not less than the given value.

◆ setTableColumns()

void IliTableComboBox::setTableColumns ( const char * list )

Sets the list of column names displayed by the pull-down menu.

These columns are from the foreign data source. The column names are separated by a ‘;’ .

Parameters

list	The columns list.

◆ setUserComboBoxWindow()

void IliTableComboBox::setUserComboBoxWindow ( IliAbstractTablePopupView * dlg )

Defines the dialog displayed when the user clicks to display the pull-down menu.

Parameters

dlg	The dialog.

◆ valueToLabel()

virtual void IliTableComboBox::valueToLabel ( const IliValue & value )

protectedvirtual

Sets the value to the label of the entry field.

However if a format is defined the function formatValue() is called to format the value. If there is no format but there is a mask, the value is formatted with the mask.

At the end the function setLabelSilently() is called to set the value to the label and to launch the drawing of the label.

Parameters

value The value.

Reimplemented from IliEntryField.

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IliTableComboBox() [1/3]

◆ IliTableComboBox() [2/3]

◆ IliTableComboBox() [3/3]

Member Function Documentation

◆ close()

◆ f_complete()

◆ f_externalToInternal()

◆ f_isAutoFitPullDown()

◆ f_isConsistent()

◆ f_setAutoFitPullDown()

◆ f_setForeignDisplayColumnName()

◆ f_setForeignTable()

◆ f_setForeignValueColumnName()

◆ f_setValue()

◆ getComboBoxWindow() [1/2]

◆ getComboBoxWindow() [2/2]

◆ getDisplayColumns()

◆ getDisplayColumnsCount()

◆ getPullDownWidth()

◆ getTableColumns()

◆ getUserComboBoxWindow() [1/2]

◆ getUserComboBoxWindow() [2/2]

◆ isAutoFitting()

◆ isMultiColumnsMode()

◆ isOpen()

◆ selectNextRow()

◆ selectPreviousRow()

◆ selectRow()

◆ setAutoFitting()

◆ setPullDownWidth()

◆ setTableColumns()

◆ setUserComboBoxWindow()

◆ valueToLabel()
