Field gadget class. More...

#include <ilviews/dataccess/gadgets/abscombo.h>

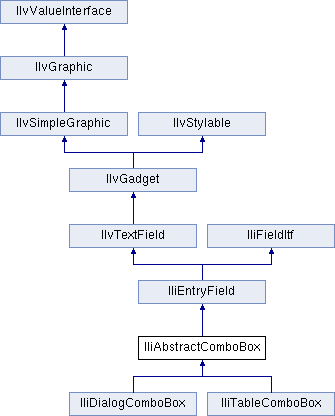

Inheritance diagram for IliAbstractComboBox:

Public Member Functions
void	allowEdit (IlBoolean enable)
	Specifies whether editing is allowed for the abstract combo box. More...

virtual void	close ()
	Hides the pull-down menu or dialog box. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

IlBoolean	isArrowShown () const
	Returns `IlTrue` if the button is shown. More...

IlBoolean	isEditAllowed () const
	Returns `IlTrue` if editing is allowed for the abstract combo box. More...

virtual IlBoolean	isOpen () const
	Returns `IlTrue` if the pull-down menu or the dialog box is currently displayed. More...

virtual void	onClose ()
	Called just after the pull-down menu or the dialog box is dismissed. More...

virtual void	onOpen ()
	Called just before the pull-down menu or the dialog box is displayed. More...

virtual void	open (IlBoolean grab)
	Causes a pull-down menu or dialog box to be displayed. More...

void	showArrow (IlBoolean show)
	Shows or hides the arrow button. More...

Public Member Functions inherited from IliEntryField
	IliEntryField (IlvDisplay display, const char label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvPoint &at, const char label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new `IliEntryField` instance. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment)
	Sets the text alignment of the field. More...

virtual void	f_setFormat (const IliFormat &)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean)
	Sets the input-modified attribute of the field. More...

virtual void	f_setMask (const IliInputMask &)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort)
	Sets the maximum length allowed for the external representation of the field. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setForeignDisplayColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *tbl, IlBoolean owner=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Static Public Member Functions
static IlvSymbol *	CloseSymbol ()
	Returns the symbol name of the Close callback. More...

static void	GetOpenShortCut (IlUShort &modifiers, IlUShort &key)
	Returns the definition of the shortcut key that causes the pull-down menu or dialog box to be displayed. More...

static IlvSymbol *	OpenSymbol ()
	Returns the symbol name of the Open callback. More...

static void	SetOpenShortCut (IlUShort modifiers, IlUShort key)
	Defines the shortcut key that causes the pull-down menu or dialog box to be displayed. More...

Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Protected Member Functions
	IliAbstractComboBox (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new abstract combo box. More...

Protected Member Functions inherited from IliEntryField
const char *	formatValue (IliString &dest, const IliValue &val)
	Returns a character string which contains the formatted value. More...

void	setLabelSilently (const char *label)
	Sets a new label and launches the drawing of the new label. More...

virtual void	valueToLabel (const IliValue &value)
	Sets the value to the label of the entry field. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Detailed Description

Field gadget class.

Library: dbgadget

The IliAbstractComboBox abstract class is intended to serve as a base class for combo box fields such as IliTableComboBox. An IliAbstractComboBox consists of a text field with a button immediately to its right. If editing is allowed, you can edit the value directly in the text field. Alternatively, the button may be used to access either a pull-down menu of multiple choices, or a dialog box to edit the value in a more structured way. A shortcut key also allows you to rapidly activate the button (by default F4).

Note that this class does not define what happens when the user clicks on the button. It is assumed that each subclass of IliAbstractComboBox will behave in a specific manner. For instance, when you click on the button in the IliTableComboBox class, a pull-down menu, containing the foreign table of the field, is opened.

See also: liDialogComboBox, IliTableComboBox.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IliEntryField.

Constructor & Destructor Documentation

◆ IliAbstractComboBox()

IliAbstractComboBox::IliAbstractComboBox	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

protected

Initializes a new abstract combo box.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ allowEdit()

void IliAbstractComboBox::allowEdit ( IlBoolean enable )

Specifies whether editing is allowed for the abstract combo box.

Parameters

enable The editing state: enable (IlTrue)/disable (IlFalse).

◆ close()

virtual void IliAbstractComboBox::close ( )

virtual

Hides the pull-down menu or dialog box.

The type of object that is hidden depends on the subclass of IliAbstractComboBox being used.

Reimplemented in IliTableComboBox, and IliDialogComboBox.

◆ CloseSymbol()

static IlvSymbol* IliAbstractComboBox::CloseSymbol ( )

static

Returns the symbol name of the Close callback.

Returns: The symbol.

◆ f_isReadOnly()

virtual IlBoolean IliAbstractComboBox::f_isReadOnly ( ) const

virtual

Returns IlTrue if the field is read-only.

Returns: IlTrue if the field is read-only.

Reimplemented from IliEntryField.

◆ f_setReadOnly()

virtual void IliAbstractComboBox::f_setReadOnly ( IlBoolean flag )

virtual

Sets the read-only property for the field.

Parameters

flag	The read-only flag.

Reimplemented from IliEntryField.

◆ GetOpenShortCut()

static void IliAbstractComboBox::GetOpenShortCut	(	IlUShort &	modifiers,
		IlUShort &	key
	)

static

Returns the definition of the shortcut key that causes the pull-down menu or dialog box to be displayed.

The default for this property is the F4 key.

Parameters

modifiers	The modifiers.
key	The key

Returns: The shortcut key.

◆ isArrowShown()

IlBoolean IliAbstractComboBox::isArrowShown ( ) const

Returns IlTrue if the button is shown.

Initially, this property is IlTrue. When the button is not shown, the gadget looks like a text field.

Returns: The visibility.

◆ isEditAllowed()

IlBoolean IliAbstractComboBox::isEditAllowed ( ) const

Returns IlTrue if editing is allowed for the abstract combo box.

This property should not be confused with the read-only property obtained with the f_isReadOnly() member function. An abstract combo box may inhibit editing without being read-only. This is because editing, in this situation, only refers to the text field part of the abstract combo box. Therefore, though editing may be inhibited, you are still able to change the value for the gadget using the pull-down menu or dialog box.

Returns: The editing rights flag.

◆ isOpen()

virtual IlBoolean IliAbstractComboBox::isOpen ( ) const

virtual

Returns IlTrue if the pull-down menu or the dialog box is currently displayed.

Returns: The pull-down menu (or dialog box) visibility.

Reimplemented in IliTableComboBox, and IliDialogComboBox.

◆ onClose()

virtual void IliAbstractComboBox::onClose ( )

virtual

Called just after the pull-down menu or the dialog box is dismissed.

By default, the Close callback is called.

◆ onOpen()

virtual void IliAbstractComboBox::onOpen ( )

virtual

Called just before the pull-down menu or the dialog box is displayed.

By default, the Open callback is called.

◆ open()

virtual void IliAbstractComboBox::open ( IlBoolean grab )

virtual

Causes a pull-down menu or dialog box to be displayed.

Whether the object displayed is a pull-down menu or a dialog box depends on the subclass of IliAbstractComboBox being used.

Parameters

grab	Reserved for future use and its value must always be `IlFalse`.

Reimplemented in IliDialogComboBox.

◆ OpenSymbol()

static IlvSymbol* IliAbstractComboBox::OpenSymbol ( )

static

Returns the symbol name of the Open callback.

Returns: The symbol.

◆ SetOpenShortCut()

static void IliAbstractComboBox::SetOpenShortCut	(	IlUShort	modifiers,
		IlUShort	key
	)

static

Defines the shortcut key that causes the pull-down menu or dialog box to be displayed.

If key has a value of 0, no shortcut key is defined.

Parameters

modifiers	The modifiers.
key	The key.

◆ showArrow()

void IliAbstractComboBox::showArrow ( IlBoolean show )

Shows or hides the arrow button.

Parameters

show	If `IlTrue`, the button is visible otherwise (`IlFalse`) the button is not visible.

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ IliAbstractComboBox()

Member Function Documentation

◆ allowEdit()

◆ close()

◆ CloseSymbol()

◆ f_isReadOnly()

◆ f_setReadOnly()

◆ GetOpenShortCut()

◆ isArrowShown()

◆ isEditAllowed()

◆ isOpen()

◆ onClose()

◆ onOpen()

◆ open()

◆ OpenSymbol()

◆ SetOpenShortCut()

◆ showArrow()
