Gadget class. More...

#include <ilviews/dataccess/gadgets/entryfld.h>

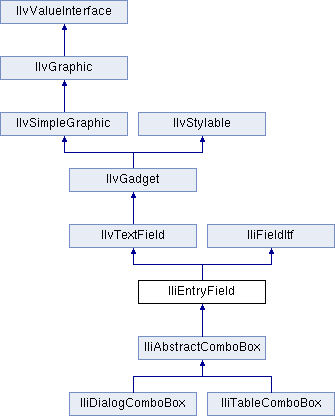

Inheritance diagram for IliEntryField:

Public Member Functions
	IliEntryField (IlvDisplay display, const char label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvPoint &at, const char label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a new `IliEntryField` instance. More...

	IliEntryField (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new `IliEntryField` instance. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment)
	Sets the text alignment of the field. More...

virtual void	f_setFormat (const IliFormat &)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean)
	Sets the input-modified attribute of the field. More...

virtual void	f_setMask (const IliInputMask &)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort)
	Sets the maximum length allowed for the external representation of the field. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setForeignDisplayColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *tbl, IlBoolean owner=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Protected Member Functions
const char *	formatValue (IliString &dest, const IliValue &val)
	Returns a character string which contains the formatted value. More...

void	setLabelSilently (const char *label)
	Sets a new label and launches the drawing of the new label. More...

virtual void	valueToLabel (const IliValue &value)
	Sets the value to the label of the entry field. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Additional Inherited Members
Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Detailed Description

Gadget class.

Library: dbgadget

The IliEntryField class defines a text field gadget that can be connected to a data source.

An entry field can be connected to a data source column. Whenever the value of this column changes in the data source, the entry-field value property is updated accordingly.

An entry field has both a value and a label. The label, inherited from IlvTextField, contains a character string representation of the value. So, for instance, if the value is set to the integer 10, the label will become the character string "10".

The end user can edit the label through the entry field. In this case, the value can become temporarily out of synch with the label. The data source to which the entry field is connected will detect that the input has been modified, parse the label to produce a corresponding value, and store it both in the data source column and in the entry field value property.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclasses \c IlvTextField and \c IliFieldItf.

Constructor & Destructor Documentation

◆ IliEntryField() [1/3]

IliEntryField::IliEntryField	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IliEntryField instance.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

◆ IliEntryField() [2/3]

IliEntryField::IliEntryField	(	IlvDisplay *	display,
		const char *	label,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IliEntryField instance.

Parameters

display	The display.
label	The label.
rect	The location.
thickness	The border thickness.
palette	The palette.

◆ IliEntryField() [3/3]

IliEntryField::IliEntryField	(	IlvDisplay *	display,
		const IlvPoint &	at,
		const char *	label,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a new IliEntryField instance.

Parameters

display	The display.
at	The position.
label	The label.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ f_externalToInternal()

virtual IlBoolean IliEntryField::f_externalToInternal ( )

virtual

Updates the internal value of a field according to its current external representation.

Returns: IlTrue if successful and IlFalse otherwise. Note that this may fail due to the fact that not all external representations can be converted to a value object. For example, this is especially true for text fields that are used to edit numeric or date values.

Reimplemented from IliFieldItf.

Reimplemented in IliTableComboBox.

◆ f_getAlignment()

virtual IlvAlignment IliEntryField::f_getAlignment ( ) const

virtual

Returns the text alignment of the field.

Returns: The alignment.

Reimplemented from IliFieldItf.

◆ f_getFormat()

virtual const IliFormat& IliEntryField::f_getFormat ( ) const

virtual

Returns the format used to derive the external representation of the field from its internal value.

Returns: The format.

Reimplemented from IliFieldItf.

◆ f_getMask()

virtual const IliInputMask& IliEntryField::f_getMask ( ) const

virtual

Returns the input mask used to edit values in the field.

Currently, the classes that take into account the input mask are: IliEntryField and its subclasses.

Returns: The mask.

Reimplemented from IliFieldItf.

◆ f_getMaxLength()

virtual IlShort IliEntryField::f_getMaxLength ( ) const

virtual

Returns the maximum length allowed for the external representation of the field.

Returns: The maximum.

Reimplemented from IliFieldItf.

◆ f_getValue()

virtual const IliValue& IliEntryField::f_getValue ( IlBoolean internal = IlFalse ) const

virtual

Returns the value of the field.

Parameters

internal If IlTrue, the returned value does not necessarily reflect the state of the field as the user sees it.

Returns: The value.

Reimplemented from IliFieldItf.

◆ f_isConsistent()

virtual IlBoolean IliEntryField::f_isConsistent ( ) const

virtual

Returns IlTrue if the internal value of the field corresponds to its current external representation.

A return value of IlFalse means that the external representation of the field has been edited by the end-user since the last time one of the member functions, f_setValue(), f_externalToInternal(), f_internalToExternal() or f_complete() was successfully called.

Returns: IlTrue if the internal value of the field corresponds to its current external representation.

Reimplemented from IliFieldItf.

Reimplemented in IliTableComboBox.

◆ f_isReadOnly()

virtual IlBoolean IliEntryField::f_isReadOnly ( ) const

virtual

Returns IlTrue if the field is read-only.

Returns: IlTrue if the field is read-only.

Reimplemented from IliFieldItf.

Reimplemented in IliAbstractComboBox.

◆ f_setAlignment()

virtual void IliEntryField::f_setAlignment ( IlvAlignment align )

virtual

Sets the text alignment of the field.

Parameters

align The alignment.

Reimplemented from IliFieldItf.

◆ f_setFormat()

virtual void IliEntryField::f_setFormat ( const IliFormat & fmt )

virtual

Sets the format used to derive the external representation of the field from its internal value.

Parameters

fmt	The format.

Reimplemented from IliFieldItf.

◆ f_setInputModified()

virtual void IliEntryField::f_setInputModified ( IlBoolean flag )

virtual

Sets the input-modified attribute of the field.

This member function is presented here for completeness. However, it should be used with care since it may cause the field, and other related components, to be in error with regard to the current state of the field.

Parameters

flag	The input-modified attribute.

Reimplemented from IliFieldItf.

◆ f_setMask()

virtual void IliEntryField::f_setMask ( const IliInputMask & msk )

virtual

Sets the input mask.

Parameters

msk The mask.

Reimplemented from IliFieldItf.

◆ f_setMaxLength()

virtual void IliEntryField::f_setMaxLength ( IlShort vmax )

virtual

Sets the maximum length allowed for the external representation of the field.

Parameters

vmax	The maximum length.

Reimplemented from IliFieldItf.

◆ f_setReadOnly()

virtual void IliEntryField::f_setReadOnly ( IlBoolean flag )

virtual

Sets the read-only property for the field.

Parameters

flag	The read-only flag.

Reimplemented from IliFieldItf.

Reimplemented in IliAbstractComboBox.

◆ f_setValue()

virtual IlBoolean IliEntryField::f_setValue	(	const IliValue &	val,
		IlBoolean	internal = `IlFalse`
	)

virtual

Sets the value of the field.

Parameters

val	The value.
internal	If `IlFalse`, then the external representation and the display of the field are automatically updated.

Returns: IlTrue if successful, and IlFalse otherwise.

Reimplemented from IliFieldItf.

Reimplemented in IliTableComboBox.

◆ formatValue()

const char* IliEntryField::formatValue	(	IliString &	dest,
		const IliValue &	val
	)

protected

Returns a character string which contains the formatted value.

Parameters

dest	The string which contains the formatted value.
val	The value.

Returns: A character string which contains the formatted value.

◆ setLabelSilently()

void IliEntryField::setLabelSilently ( const char * label )

protected

Sets a new label and launches the drawing of the new label.

Parameters

label The label.

◆ valueToLabel()

virtual void IliEntryField::valueToLabel ( const IliValue & value )

protectedvirtual

Sets the value to the label of the entry field.

However if a format is defined the function formatValue() is called to format the value. If there is no format but there is a mask, the value is formatted with the mask.

At the end the function setLabelSilently() is called to set the value to the label and to launch the drawing of the label.

Parameters

value The value.

Reimplemented in IliTableComboBox.

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IliEntryField() [1/3]

◆ IliEntryField() [2/3]

◆ IliEntryField() [3/3]

Member Function Documentation

◆ f_externalToInternal()

◆ f_getAlignment()

◆ f_getFormat()

◆ f_getMask()

◆ f_getMaxLength()

◆ f_getValue()

◆ f_isConsistent()

◆ f_isReadOnly()

◆ f_setAlignment()

◆ f_setFormat()

◆ f_setInputModified()

◆ f_setMask()

◆ f_setMaxLength()

◆ f_setReadOnly()

◆ f_setValue()

◆ formatValue()

◆ setLabelSilently()

◆ valueToLabel()
