Gadget class. More...

#include <ilviews/dataccess/inspect/inspgad.h>

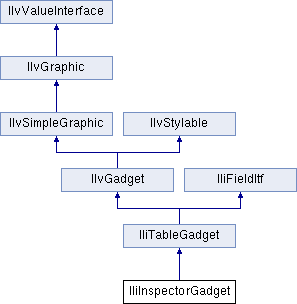

Inheritance diagram for IliInspectorGadget:

Public Member Functions
	IliInspectorGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	This constructor initializes an inspector gadget. More...

IliValue &	at (IlInt tag)
	Returns a property value. More...

const IliValue &	at (IlInt tag) const
	Returns a property value. More...

void	defineBooleanProp (IlInt tag, const char *label)
	Defines a Boolean property. More...

void	defineProp (IlInt tag, const char label, const IliDatatype type)
	Defines a property. More...

void	defineProp (IlInt tag, const char label, const IliDatatype type, const IliMapEntry *tbl, IlBoolean owner=IlFalse)
	Defines a property. More...

void	defineProp (IlInt tag, const char label, const IliDatatype type, IliFieldItf *fld, IlBoolean owner=IlFalse)
	Defines a property. More...

void	defineProp (IlInt tag, const char label, const IliDatatype type, IliTable *tbl, IlBoolean owner=IlFalse)
	Defines a property. More...

virtual void	drawMarker (IlvPort dst, IlInt rowno, IlBoolean selected, IlBoolean current, const IlvRect &bbox, const IlvRegion clip) const
	Draws a marker. More...

virtual IliFieldItf *	getCustomEditor (IlInt, IlInt, IliFieldItf *fld) const
	Returns the field to use as an editor for a cell. More...

IlBoolean	isModified () const
	Returns `IlTrue` if a property value has been changed. More...

IlBoolean	isPropDefined (IlInt tag) const
	Returns `IlTrue` if the property identified by tag is defined. More...

void	setModified (IlBoolean f)
	Changes the `modified` state of the inspector gadget. More...

IlBoolean	setSelection (const IliTableSelection &)
	Attempts to set the table gadget selection. More...

void	undefineAllProps ()
	Removes all properties.

void	undefineProp (IlInt tag)
	Removes a property. More...

Public Member Functions inherited from IliTableGadget
	IliTableGadget (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	This constructor initializes a table gadget that is connected to a default table. More...

	IliTableGadget (IlvDisplay display, IliTable table, IlBoolean owner, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	This constructor initializes a table gadget that is connected to a table. More...

void	addErrorMessage (const char *msg)
	Forwards an application error message to all the error sinks that have been added with the `addErrorSink()` member function. More...

void	addErrorMessage (const IliErrorMessage &msg)
	Forwards an error message to all the error sinks that have been added with the `addErrorSink()` member function. More...

void	addErrorSink (IliErrorSink *sink)
	All errors that occur on the table-gadget table or on the table-gadget data source (if it is bound to a data source) and all errors that are thrown by one of the `addErrorMessage()` member functions, will be forwarded to this error sink. More...

void	allowColumnMove (IlBoolean flag)
	Allows or not the column moving by the end-user. More...

void	allowColumnResize (IlBoolean flag)
	Enables/disables the column resizing by the end-user. More...

void	allowRowMove (IlBoolean flag)
	Enables/disables the row moving by the end-user. More...

void	allowRowResize (IlBoolean flag)
	Enables/disables the end-user to resize rows. More...

IlBoolean	areToolTipsEnabled () const
	Returns `IlTrue` if tooltip display is enabled. More...

IliValue	at (IlInt rowno, const char *colname) const
	Returns a value. More...

IliValue	at (IlInt rowno, IlInt colno) const
	Returns a value. More...

void	bindToDataSource (IlBoolean flag)
	Enables/Disables the bind data source option. More...

virtual void	cancel ()
	Cancels any user input awaiting validation. More...

IlBoolean	cellBBox (const IliTableSelection &sel, IlvRect &rect, const IlvTransformer *t=0) const
	Returns the bounding box of a selection, according to one (optional) transformer. More...

void	copyToClipboard () const
	Copies the contents of the current selection to the clipboard.

void	copyToClipboard (const IliTableSelection &sel) const
	Copies the contents of one selection to the clipboard. More...

void	defaultDrawCell () const
	This member function may be called from the `onDrawCell()` virtual member function or from the corresponding callback.

void	disableImmediateRefresh (IlBoolean disable)
	Disables the immediate refreshes of the gadget. More...

void	dontDeleteRow ()
	Cancels the row deletion. More...

void	dontValidateCell ()
	Called from the `onValidateCell()` virtual member function, or from its corresponding callback.

void	dontValidateRow ()
	Cancels the row validation. More...

virtual void	drawCell (IlvPort dst, IlInt rowno, IlInt colno, const char label, IlvAlignment align, IlBoolean selected, const IlvRect &bbox, IlvPalette palette, const IlvRegion clip) const
	Draws a cell. More...

virtual void	drawCorner (IlvPort dst, IlBoolean selected, const IlvRect &bbox, const IlvRegion clip) const
	Draws the upper left corner of the table gadget. More...

virtual void	drawHeader (IlvPort dst, IlInt colno, const char label, IlBoolean selected, const IlvRect &bbox, const IlvRegion *clip) const
	Draws a header. More...

void	enableKeyboardDeleteRow (IlBoolean flag)
	Enables/disables the user to delete the current row using the delete key. More...

void	enableKeyboardRefresh (IlBoolean flag)
	Enables/disables the refresh key by the user. More...

void	enableMultiSelection (IlBoolean flag)
	Enables/disables multi-selection mode. More...

void	enableRowSelect (IlBoolean flag)
	Enables/disables row selection mode. More...

void	enableSort (IlBoolean flag)
	Enables/disables the row sorting. More...

void	enableToolTips (IlBoolean flag)
	Enables or disables the display of the tooltips. More...

void	endOfBatch ()
	Used in conjunction with the `startOfBatch()` member function to terminate a series of modifications on the table gadget. Calls to `startOfBatch()` and `endOfBatch()` can be nested.

void	ensureSelectionVisible ()
	Scrolls the table gadget so that its current selection becomes visible in the bounding box of the table gadget.

void	ensureVisible (IliTableSelection sel)
	Scrolls the table gadget so that the selection becomes visible in the bounding box of the table gadget. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_setAutoFitPullDown (IlBoolean)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setInputModified (IlBoolean)
	Sets the input-modified attribute of the field. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

virtual void	f_setTablePropertyManagerName (const char *)
	Sets the name of the table property manager to use. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

virtual void	f_useTableProperties (IlBoolean)
	Enables/Disables the use of the table properties. More...

IliTableFittingMode	getAutoFittingMode () const
	Returns the auto-fitting mode. More...

IlInt	getBatchCount () const
	Returns the current number of nested calls to `startOfBatch()`. More...

IlvColor *	getCellBackground () const
	Returns the background color used to draw cells. More...

IlvFont *	getCellFont () const
	Returns the font used to draw cells. More...

IlvColor *	getCellForeground () const
	Returns the foreground color used to draw cells. More...

IliCellPaletteStruct *	getCellPaletteStruct () const
	Returns the description of the cell for which text and fill palettes are currently required, as well as the default values for these palettes. More...

IlInt	getColumnDisplayWidth (IlInt colno) const
	Returns the column width, in pixels. More...

IliFieldItf *	getColumnEditor (IlInt colno) const
	Returns the field that is used as an editor for a column. More...

IlInt	getColumnsCount () const
	Returns the number of columns in the underlying table. More...

IlAny	getCompareData () const
	Returns the user data that can be used to compare two rows. More...

IliCompareFunction	getCompareFunction () const
	Returns the function that is used to compare two rows. More...

IlInt	getCurrentColumn () const
	Returns current column. More...

IlInt	getCurrentRow () const
	Returns current row. More...

IlInt	getDeletedRow () const
	Returns the deleted row position. More...

IliDrawCellStruct *	getDrawCellStruct () const
	Returns the description of the cell that is currently being drawn. More...

IliErrorReporter *	getErrorReporter () const
	Returns the error reporter that is used by the `reportErrors()` member functions. More...

IlInt	getExtendedRowsCount () const
	Returns the number of rows in the underlying table (plus one if the insert row is currently shown). More...

IlInt	getFetchedRow () const
	Returns the fetched row position. More...

IlInt	getFirstColumn () const
	Returns the position of the first column shown (from left to right). More...

IlInt	getFirstRow () const
	Returns the position in the underlying table of the first row shown (from top to bottom). More...

IlInt	getFixedColumnsCount () const
	Returns the number of columns that do not scroll. These are the left-most columns. More...

IlvDim	getHeaderHeight () const
	Returns header height, in pixels, of the column headers. More...

virtual IlvPalette *	getHeaderTextPalette (IlInt colno) const
	Returns the header text palette. More...

IlvDim	getMarkerWidth () const
	Returns the marker width, in pixels, of the row markers. More...

IlInt	getRealIndex (IlInt colno) const
	Returns the position, in the underlying table, of the column in the table gadget. More...

virtual IlvPalette *	getReliefPalette () const
	Returns the relief palette. More...

IlvDim	getRowHeight () const
	Returns the height, in pixels, of the rows in the table gadget. More...

IlInt	getRowsCount () const
	Returns the number of rows in the underlying table. More...

IlvScrollBar *	getScrollBar (IlvPosition which) const
	Returns a scroll bar. More...

IliShowMode	getScrollBarShowMode (IlvPosition which) const
	Returns the show mode for a scroll bar. More...

void	getSelection (IliTableSelection &sel) const
	Returns the current selection in the table gadget. More...

IliTable *	getTable ()
	Returns the underlying table of the table gadget. More...

const IliTable *	getTable () const
	Returns the underlying table of the table gadget. More...

IliTablePropertyManager *	getTablePropertyManager ()
	Returns the table property manager used. More...

const IliTablePropertyManager *	getTablePropertyManager () const
	Returns the table property manager used. More...

const char *	getTablePropertyManagerName () const
	Returns the table property manager name. More...

virtual void	getToolTipsText (const IlvPoint &pt, IliString &s)
	Returns the tooltip text that must be displayed. More...

const IliValue &	getValue (IliName colname) const
	Returns the value at the column named colname in the row buffer of the table gadget. More...

const IliValue &	getValue (IlInt colno) const
	Returns the value at column colno in the row buffer of the table gadget. More...

IlInt	getVisibleRowsCount (IlBoolean &lastRowClipped) const
	Returns the maximum row count that are shown in the table gadget. More...

IlInt	getVisualIndex (IlInt colno) const
	Returns the position, in the table gadget, of the column in the underlying table. More...

IlBoolean	gotoInsertRow ()
	Attempts to move the current row to the insert row. More...

virtual IlBoolean	gotoNextColumn ()
	Attempts to move the current column to the next shown column. More...

virtual IlBoolean	gotoNextRow ()
	Attempts to move the current row to the next row. More...

virtual IlBoolean	gotoPreviousColumn ()
	Attempts to move the current column to the previous shown column. More...

virtual IlBoolean	gotoPreviousRow ()
	Attempts to move the current row to the previous row. More...

IlBoolean	hasCustomCellPalettes () const
	Returns `IlTrue` if the table gadget calls the `onGetCellPalette()` virtual member function for each cell being drawn. More...

IlBoolean	isBoundToDataSource () const
	Returns `IlTrue` if the table gadget is bound to its data source. More...

IlBoolean	isCellEditorShown () const
	Returns `IlTrue` if the cell editor is shown in the selected cell when the cell is read-only. More...

IlBoolean	isColumnGeometryLocal () const
	Returns `IlTrue` if the end-user is able to change the order of the columns. More...

IlBoolean	isColumnMoveAllowed () const
	Returns `IlTrue` if the end-user is able to change the order of the columns. More...

IlBoolean	isColumnResizeAllowed () const
	Returns `IlTrue` if the end-user is able to resize columns. More...

IlBoolean	isColumnVisible (IlInt colno) const
	Returns the column visibility. More...

IlBoolean	isConfirmOnDeleteRequired () const
	Returns `IlTrue` if the user is prompted for a confirmation before row deletion. More...

IlBoolean	isImmediateRefreshDisabled () const
	Returns `IlTrue` if the immediate refreshes are disabled. More...

IlBoolean	isInInsertMode () const
	Returns `IlTrue` if the current row is the insert row and if the current row buffer is modified. More...

IlBoolean	isInsertRow (IlInt rowno) const
	Returns `IlTrue` if a row designates the insert row. More...

IlBoolean	isInUpdateMode () const
	Returns `IlTrue` if the current row corresponds to an existing table row (that is, it is not the insert row), and if the current row buffer is modified. More...

IlBoolean	isKeyboardDeleteRowEnabled () const
	Returns `IlTrue` if the user can use the delete key to delete the current row. More...

IlBoolean	isKeyboardRefreshEnabled () const
	Returns `IlTrue` if the user can use the refresh key. More...

IlBoolean	isMultiSelectionEnabled () const
	Returns `IlTrue` if the table gadget event handler allows the end-user to select more than one row or column. More...

IlBoolean	isOnInsertRow () const
	Returns `IlTrue` if the current row is the insert row. More...

IlBoolean	isReadOnly () const
	Returns `IlTrue` if the table gadget is read-only. More...

IlBoolean	isRowMoveAllowed () const
	Returns `IlTrue` if the end-user is able to change the order of the rows. More...

IlBoolean	isRowResizeAllowed () const
	Returns `IlTrue` if the end-user is able to resize rows. More...

IlBoolean	isRowSelectEnabled () const
	Returns `IlTrue` if the row select mode is enabled. More...

IlBoolean	isSelectionAlwaysShown () const
	Returns `IlTrue` if the selection of the table gadget is always highlighted. More...

IlBoolean	isShowingGrid () const
	Returns `IlTrue` if the table gadget is drawn with a grid. More...

IlBoolean	isShowingHeaders () const
	Returns `IlTrue` if the column headers are shown. More...

IlBoolean	isShowingInsertRow () const
	Returns `IlTrue` if the insert row is shown. More...

IlBoolean	isShowingMarkers () const
	Returns `IlTrue` if the row markers are shown. More...

IlBoolean	isSortEnabled () const
	Returns `IlTrue` if the table gadget event handler will sort the rows according to the column header on which the user clicks. More...

IlBoolean	isTableOwner () const
	Returns `IlTrue` if the table gadget owns its table. More...

IlBoolean	isUsingRelief () const
	Returns `IlTrue` if the table gadget is drawn with a relief border. More...

IlBoolean	isUsingTableProperties () const
	Returns `IlTrue` if the table gadget is sensitive to table properties. More...

IlBoolean	moveColumn (IlInt from, IlInt to)
	Attempts to move the column from a position to another position. More...

virtual void	onCancelEdits ()
	Called just after the edits in the current row have been canceled. More...

virtual void	onDeleteRow ()
	Called just before a row in the underlying table is deleted. More...

virtual void	onDoubleClick ()
	Called just after a double-click on the table gadget. More...

virtual void	onDrawCell ()
	Called to draw a cell in the table gadget. More...

virtual void	onEnterCell ()
	Called just after a new cell is entered. More...

virtual void	onEnterInsertMode ()
	Called just after the current row buffer becomes modified, when the current row is the insert row. More...

virtual void	onEnterRow ()
	Called just after a new row is entered. More...

virtual void	onEnterUpdateMode ()
	Called just after the current row buffer becomes modified (when the current row is not the insert row). More...

virtual void	onFetchRow ()
	Called just after a new row has been retrieved from a remote database and cached in the underlying table. More...

virtual void	onGetCellPalette ()
	Called when the text and fill palettes of a cell are required (either to draw the cell or to configure the cell editor). More...

virtual void	onPrepareDeleteRow ()
	Called when the user attempts to delete a row through this table gadget. More...

virtual void	onPrepareInsert ()
	Called when an attempt is made to validate the current row, when the current row is the insert row. More...

virtual void	onPrepareUpdate ()
	Called when an attempt is made to validate the current row (when the current row is not the insert row). More...

virtual void	onQuitCell ()
	Called just before the selection moves out of a cell. More...

virtual void	onQuitInsertMode ()
	Called just after the current row has been successfully validated, when the current row is the insert row. More...

virtual void	onQuitRow ()
	Called just before the selection moves out of a row. More...

virtual void	onQuitUpdateMode ()
	Called just after the current (non insert) row has been successfully validated. More...

virtual void	onSelectionChange ()
	Called just after the selection has changed (whatever the change). More...

virtual void	onValidateCell ()
	Called when an attempt is made to move the selection out of a cell. More...

virtual void	onValidateRow ()
	Called when an attempt is made to validate the current row. More...

void	pasteFromClipboard ()
	Pastes the contents of the clipboard into the current selection.

void	pasteFromClipboard (const IliTableSelection &sel)
	Pastes the contents of the clipboard into the selection. More...

IlBoolean	pointToSelection (const IlvPoint &pt, IliTableSelection &sel, const IlvTransformer *t=0) const
	Returns the selection pointed by a point. More...

void	refreshAll ()
	Redraws the table gadget in its entirety.

void	refreshCell (IlInt rowno, IlInt colno)
	Redraws a cell. More...

void	refreshColumn (IlInt colno)
	Redraws a column. More...

void	refreshRow (IlInt rowno)
	Redraws a row. More...

void	removeErrorSink (IliErrorSink *sink)
	Removes an error sink from this table gadget. More...

void	reportErrors (const IliErrorList &errorList) const
	Reports the errors that are contained in a error list. More...

void	requireConfirmOnDelete (IlBoolean flag)
	Enables/disables confirmation before row deletion. More...

virtual void	scrollTo (IlInt rowno, IlInt colno)
	Scrolls to a cell. More...

void	scrollToColumn (IlInt colno)
	Scrolls to a column. More...

void	scrollToRow (IlInt rowno)
	Scrolls to a row. More...

IlBoolean	selectAll ()
	Attempts to select all rows and columns. More...

IlBoolean	selectCell (IlInt rowno, IlInt colno)
	Attempts to select the cell at a row and a column. More...

IlBoolean	selectColumn (IlInt colno)
	Attempts to select a column. More...

IlBoolean	selectNone ()
	Attempts to deselect the current selection. More...

IlBoolean	selectRow (IlInt rowno)
	Attempts to select a row. More...

void	setAutoFittingMode (IliTableFittingMode mode)
	Sets the auto-fitting mode. More...

virtual void	setCellBackground (IlvColor *color)
	Sets the background color used to draw cells. More...

virtual void	setCellFont (IlvFont *font)
	Sets the font used to draw cells. More...

virtual void	setCellForeground (IlvColor *color)
	Sets the foreground color used to draw cells. More...

void	setColumnDisplayWidth (IlInt colno, IlInt width)
	Sets column width, in pixels. More...

IlBoolean	setColumnEditor (IlInt colno, IliFieldItf *fld, IlBoolean owner=IlTrue)
	Sets the field that is used as an editor for column. More...

void	setColumnGeometryLocal (IlBoolean flag)
	Enables/disables the column moving. More...

void	setColumnVisible (IlInt colno, IlBoolean flag)
	Sets column visibility. More...

void	setCompareFunction (IliCompareFunction fct, IlAny arg=0)
	Defines the function fct and user data that must be used to compare two rows. More...

void	setCustomCellPalettes (IlBoolean flag)
	Enables/disables the use of specific palettes for a cell. More...

void	setErrorReporter (IliErrorReporter *reporter)
	Sets the error reporter. More...

IlBoolean	setFixedColumnsCount (IlInt count)
	Sets the number of columns that do not scroll. More...

void	setHeaderHeight (IlvDim h)
	Sets header height. More...

void	setMarkerWidth (IlvDim w)
	Sets the marker width. More...

IlBoolean	setReadOnly (IlBoolean flag)
	Sets the table gadget as read-only or not. More...

void	setReliefPalette (IlvPalette *pal)
	Sets the relief palette. More...

void	setRowHeight (IlvDim h)
	Sets the height of the rows in a table gadget. More...

virtual void	setTable (IliTable *table, IlBoolean owner=IlTrue)
	Connects the table gadget to a table. More...

void	setTablePropertyManager (IliTablePropertyManager *pMgr)
	Sets the table property manager. More...

void	setTablePropertyManagerName (const char *name)
	Sets the table property manager name. More...

IlBoolean	setValue (IliName colname, const IliValue &value)
	Sets the value at the column named colname, in the row buffer of the table gadget, to value. More...

IlBoolean	setValue (IlInt colno, const IliValue &value)
	Sets the value at column colno, in the row buffer of the table gadget, to value. More...

void	setVisibleRowsCount (IlInt count)
	Changes the height of the table gadget so that the maximum number of rows can be shown. More...

void	showCellEditor (IlBoolean flag)
	Specifies that the cell editor is shown in read-only cells. More...

void	showGrid (IlBoolean flag)
	Shows/Hides grid. More...

void	showHeaders (IlBoolean flag)
	Shows/Hides the column headers. More...

IlBoolean	showInsertRow (IlBoolean flag)
	Shows/Hides insert row. More...

void	showMarkers (IlBoolean flag)
	Shows/Hides row markers. More...

void	showScrollBar (IlvPosition which, IliShowMode mode)
	Sets the show mode for a scroll bar. More...

void	showSelectionAlways (IlBoolean flag)
	Shows/hides the selection. More...

void	sortColumn (IlInt colno)
	Sorts the rows according to ascending or descending order of column. More...

void	startOfBatch ()
	Used to start a series of modifications to the table gadget. It allows the table gadget to significantly reduce the time needed to reformat itself.

void	useRelief (IlBoolean flag)
	Shows/Hides relief border. More...

void	useTableProperties (IlBoolean flag)
	Sets the table gadget sensitivity about table properties. More...

virtual IlBoolean	validate (IlBoolean interactive=IlFalse)
	Validates the current row. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment align)
	Sets the text alignment of the field. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setForeignDisplayColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *tbl, IlBoolean owner=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setFormat (const IliFormat &fmt)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setMask (const IliInputMask &msk)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort vmax)
	Sets the maximum length allowed for the external representation of the field. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

Protected Member Functions
virtual void	drawHorzRule (IlvPort dst, IlvPos x1, IlvPos x2, IlvPos y, IlInt rowno, IlInt colnoLeft, IlInt colnoRight, IlvPalette palette, const IlvRegion *clip) const
	Draws a horizontal rule of the table gadget grid. More...

virtual void	drawVertRule (IlvPort dst, IlvPos y1, IlvPos y2, IlvPos x, IlInt colno, IlInt rownoTop, IlInt rownoBot, IlvPalette palette, const IlvRegion *clip) const
	Draws a vertical rule of the table gadget grid. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Additional Inherited Members
Static Public Member Functions inherited from IliTableGadget
static IlvSymbol *	CancelEditsSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	DeleteRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	DoubleClickSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	DrawCellSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	EnterCellSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	EnterInsertModeSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	EnterRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	EnterUpdateModeSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	FetchRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	GetCellPaletteSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static void	GetRefreshShortCut (IlUShort &modifiers, IlUShort &key)
	Returns the definition of the shortcut key that refreshes all. More...

static IlvSymbol *	PrepareDeleteRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	PrepareInsertSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	PrepareUpdateSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	QuitCellSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	QuitInsertModeSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	QuitRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	QuitUpdateModeSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	SelectionChangeSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static void	SetRefreshShortCut (IlUShort modifiers, IlUShort key)
	Sets the definition of the shortcut key that refreshes all. More...

static IlvSymbol *	ValidateCellSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ValidateRowSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Detailed Description

Gadget class.

Library: dbstudio

The IliInspectorGadget class implements a property-sheet style gadget. It has a set of defineProp member functions that are typically called at configuration time to define a set of properties. Each property is identified by an integer tag and it has a label and a type.

Then the at member function can be used to access the values of these properties.

See also: IliEntryField, IliTableComboBox.

Constructor & Destructor Documentation

◆ IliInspectorGadget()

IliInspectorGadget::IliInspectorGadget	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

This constructor initializes an inspector gadget.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ at() [1/2]

IliValue& IliInspectorGadget::at ( IlInt tag )

Returns a property value.

Parameters

tag	The property identification tag.

Returns: The value.

◆ at() [2/2]

const IliValue& IliInspectorGadget::at ( IlInt tag ) const

Returns a property value.

Parameters

tag	The property identification tag.

Returns: The value.

◆ defineBooleanProp()

void IliInspectorGadget::defineBooleanProp	(	IlInt	tag,
		const char *	label
	)

Defines a Boolean property.

The given editor gadget will be used as an editor for this property.

Parameters

tag	The property identification tag.
label	The property label.

◆ defineProp() [1/4]

void IliInspectorGadget::defineProp	(	IlInt	tag,
		const char *	label,
		const IliDatatype *	type
	)

Defines a property.

An IliEntryField gadget will be used as an editor for this property.

Parameters

tag	The property identification tag.
label	The property label.
type	The property type.

◆ defineProp() [2/4]

void IliInspectorGadget::defineProp	(	IlInt	tag,
		const char *	label,
		const IliDatatype *	type,
		const IliMapEntry *	tbl,
		IlBoolean	owner = `IlFalse`
	)

Defines a property.

An IliTableComboBox gadget will be used as an editor for this property.

Parameters

tag	The property identification tag.
label	The property label.
type	The property type.
tbl	The array of IliMapEntry items which contains the description of the `IliTableComboBox` items. The last of which must have its label member set to NULL.
owner	The table owner, if `IlTrue` then the given mapping array will be deleted (along with the labels it contains) when the property is undefined (or when the inspector gadget is deleted).

◆ defineProp() [3/4]

void IliInspectorGadget::defineProp	(	IlInt	tag,
		const char *	label,
		const IliDatatype *	type,
		IliFieldItf *	fld,
		IlBoolean	owner = `IlFalse`
	)

Defines a property.

The given editor gadget will be used as an editor for this property.

Parameters

tag	The property identification tag.
label	The property label.
type	The property type.
fld	The editor.
owner	The editor owner, if `IlTrue` then the given editor will be deleted when the property is undefined (or when the inspector gadget is deleted).

◆ defineProp() [4/4]

void IliInspectorGadget::defineProp	(	IlInt	tag,
		const char *	label,
		const IliDatatype *	type,
		IliTable *	tbl,
		IlBoolean	owner = `IlFalse`
	)

Defines a property.

An IliTableComboBox gadget will be used as an editor for this property. It will have its foreign table set to the value of the mapping parameter which should have two columns: the first column serves as a "value column" and the second as a "display column". Note that the data type of the first column should match the type parameter.

Parameters

tag	The property identification tag.
label	The property label.
type	The property type.
tbl	The foreign table.
owner	The table owner, it must be `IlFalse`.

◆ drawHorzRule()

virtual void IliInspectorGadget::drawHorzRule	(	IlvPort *	dst,
		IlvPos	x1,
		IlvPos	x2,
		IlvPos	y,
		IlInt	rowno,
		IlInt	colnoLeft,
		IlInt	colnoRight,
		IlvPalette *	palette,
		const IlvRegion *	clip
	)		const

protectedvirtual

Draws a horizontal rule of the table gadget grid.

Draws a horizontal rule of the table gadget grid in the dst port.

Parameters

dst	The port.
x1	The x start position.
x2	The x last position.
y	The y position.
rowno	The row position.
colnoLeft	The first column position.
colnoRight	The last column position.
palette	The palette.
clip	The region of clipping.

Reimplemented from IliTableGadget.

◆ drawMarker()

virtual void IliInspectorGadget::drawMarker	(	IlvPort *	dst,
		IlInt	rowno,
		IlBoolean	selected,
		IlBoolean	current,
		const IlvRect &	bbox,
		const IlvRegion *	clip
	)		const

virtual

Draws a marker.

Parameters

dst	The port.
rowno	The row position.
selected	If `IlTrue`, it is selected.
current	If `IlTrue`, it is the marker of the current row.
bbox	The bounding box.
clip	The region of clipping.

Reimplemented from IliTableGadget.

◆ drawVertRule()

virtual void IliInspectorGadget::drawVertRule	(	IlvPort *	dst,
		IlvPos	y1,
		IlvPos	y2,
		IlvPos	x,
		IlInt	colno,
		IlInt	rownoTop,
		IlInt	rownoBot,
		IlvPalette *	palette,
		const IlvRegion *	clip
	)		const

protectedvirtual

Draws a vertical rule of the table gadget grid.

Parameters

dst	The port.
y1	The y start position.
y2	The y last position.
x	The x position.
colno	The column position.
rownoTop	The first row position.
rownoBot	The last row position.
palette	The palette.
clip	The region of clipping.

Reimplemented from IliTableGadget.

◆ getCustomEditor()

virtual IliFieldItf* IliInspectorGadget::getCustomEditor	(	IlInt	rowno,
		IlInt	colno,
		IliFieldItf *	fld
	)		const

virtual

Returns the field to use as an editor for a cell.

This virtual member function is called, with the fld parameter set to the column editor, each time a new cell is entered. The default implementation returns the fld parameter. However, it is possible to return any other editor in a subclass of IliTableGadget.

Parameters

rowno	The row position.
colno	The column position.
fld	The default editor.

Returns: The field.

Reimplemented from IliTableGadget.

◆ isModified()

IlBoolean IliInspectorGadget::isModified ( ) const

Returns IlTrue if a property value has been changed.

Returns: IlTrue if a property value has been changed.

◆ isPropDefined()

IlBoolean IliInspectorGadget::isPropDefined ( IlInt tag ) const

Returns IlTrue if the property identified by tag is defined.

Parameters

tag	The property identification tag.

Returns: IlTrue if the property is defined.

◆ setModified()

void IliInspectorGadget::setModified ( IlBoolean f )

Changes the modified state of the inspector gadget.

Parameters

f	The new state.

◆ setSelection()

IlBoolean IliInspectorGadget::setSelection ( const IliTableSelection & sel )

virtual

Attempts to set the table gadget selection.

Parameters

sel	The new selection.

Returns: IlTrue if successful.

Reimplemented from IliTableGadget.

◆ undefineProp()

void IliInspectorGadget::undefineProp ( IlInt tag )

Removes a property.

Parameters

tag	The property identification tag.

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IliInspectorGadget()

Member Function Documentation

◆ at() [1/2]

◆ at() [2/2]

◆ defineBooleanProp()

◆ defineProp() [1/4]

◆ defineProp() [2/4]

◆ defineProp() [3/4]

◆ defineProp() [4/4]

◆ drawHorzRule()

◆ drawMarker()

◆ drawVertRule()

◆ getCustomEditor()

◆ isModified()

◆ isPropDefined()

◆ setModified()

◆ setSelection()

◆ undefineProp()
