Gantt chart form class. More...

#include <ilviews/gantt/ganttfrm.h>

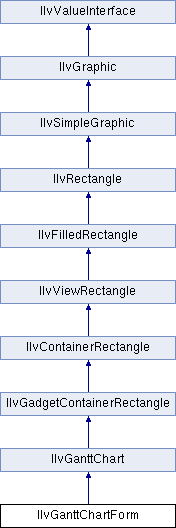

Inheritance diagram for IlvGanttChartForm:

Public Member Functions
	IlvGanttChartForm (IlvDisplay display, const IlvRect &rect, IlInt start, IlInt end, IlInt shownStart, IlInt shownEnd, IlUShort step, IlvDim rowSize, IlvDim lineInfoSize=0, IlvDim unitSize=20, IlvDim scaleH=32, IlvDim sbSize=16, IlUShort spacing=4, IlUShort vwSpacing=20, IlUShort margin=0, IlvDim separSize=6, IlvPosition hasScale=IlvTop, IlvPosition hasHSB=IlvBottom, IlvPosition hasVSB=IlvRight, int numLayers=5, IlBoolean useAcc=IlTrue, IlvPalette palette=0)
	Constructor. More...

virtual void	deleteAll (IlBoolean destroy, IlBoolean redraw=IlTrue)
	Removes all the objects stored in the chart. More...

IlvGraphic *	getCompositeGrid () const
	Gets the composite grid currently being used. More...

IlvGraphic *	getCompositeScale () const
	Gets the composite scale currently being used. More...

virtual IlvRect &	getLineArea (IlvRect &area) const
	Returns the bounds of the Gantt lines. More...

IlvGanttResourceHeader *	getResourceHeader () const
	Gets the resource header. More...

IlvScrollBar *	getResourceScrollBar () const
	Gets the resource table scroll bar. More...

IlvView *	getScaleView (IlUShort viewIndex) const
	Gets the scale view. More...

IlvSplitterGadget *	horizontalSplitter (IlInt index) const
	Gets the horizontal splitter. More...

virtual void	insertLine (IlvGanttLine *, IlUShort row, IlBoolean redraw=IlTrue, int layer=-1)
	Inserts a line before a row. More...

virtual void	makeView (IlvPort dst, const IlvTransformer t)
	Creates the views. More...

virtual void	moveSplitter (IlvDirection dir, IlUInt index, IlvPos pos)
	Moves a splitter to a given position. More...

IlvGraphic *	setCompositeGrid (IlvGraphic *compoGrid, IlBoolean redraw=IlTrue)
	Sets the composite grid for the Gantt chart form. More...

IlvGraphic *	setCompositeScale (IlvGraphic *compoScale, IlBoolean redraw=IlTrue, IlBoolean reshape=IlFalse)
	Sets the composite scale for the Gantt chart form. More...

virtual void	setDoubleBuffering (IlBoolean doubleBuffer)
	Enables or disables double buffering. More...

virtual void	updateScale (IlvScale *scale, IlBoolean redraw=IlTrue) const
	Updates the scale. More...

IlvSplitterGadget *	verticalSplitter (IlInt index) const
	Gets the vertical splitter. More...

Public Member Functions inherited from IlvGanttChart
	IlvGanttChart (IlvDisplay display, const IlvRect &rect, IlInt start, IlInt end, IlInt shownStart, IlInt shownEnd, IlUShort step, IlvDim rowSize, IlvDim lineInfoSize=0, IlvDim unitSize=20, IlvDim scaleH=32, IlvDim sbSize=16, IlUShort spacing=4, IlUShort vwSpacing=20, IlUShort margin=0, IlvDim handleSize=8, IlvPosition hasScale=IlvTop, IlvPosition hasHSB=IlvBottom, IlvPosition hasVSB=IlvRight, int numLayers=5, IlBoolean useAcc=IlTrue, IlvPalette palette=0)
	Initializes a new Gantt chart object. More...

virtual	~IlvGanttChart ()
	Destructor. More...

void	addLine (IlvGanttLine *line, IlBoolean redraw=IlTrue, int layer=1)
	Appends a line to the Gantt chart. More...

virtual void	addLink (IlvGanttLink *link, IlBoolean redraw=IlTrue, int layer=2)
	Adds a link to the Gantt chart. More...

virtual void	addNode (IlvGanttNode *node, IlBoolean redraw=IlTrue, int layer=3)
	Adds a node to the Gantt chart. More...

virtual IlBoolean	addSubNode (IlvGanttNode node, IlvGanttSubNode subNode, IlBoolean redraw=IlTrue, int layer=3)
	Adds a subnode to the Gantt chart node. More...

void	addSubNodeToHiliteList (IlvGanttSubNode *subnode)
	Adds a subnode to the highlight list. More...

void	allowDragDrop (IlBoolean flag)
	Specifies whether drag-and-drop operations are allowed. More...

virtual IlvPos	compactRow (IlUShort row, IlBoolean redraw=IlTrue)
	Compresses the height of a given row. More...

void	computeGridPoints (IlUShort index)
	Computes the grid points. More...

virtual IlvGanttGridViewHook *	createGridHook (IlvGrapher grapher, IlvView view)
	Creates the grid hook connected to the view of the grapher. More...

virtual IlvScale *	createScale (IlvDisplay *display, const IlvPoint &origin, IlvDim size, IlInt start, IlInt end, IlUShort step, IlvPosition p=IlvTop) const
	Creates a scale object. More...

virtual IlvGanttScrollViewHook *	createScrollHook (IlvGrapher grapher, IlvView view)
	Creates the scroll hook connected to the view. More...

virtual void	deleteNodes (IlBoolean destroy, IlBoolean redraw=IlTrue)
	Deletes the Gantt nodes and links stored in the Gantt chart. More...

virtual void	drawGrid (IlvPort dst, IlUShort index, IlBoolean skipCompute=IlFalse, const IlvRegion clip=0, IlvTransformer *trans=0, IlvDirection direction=(IlvDirection)(IlvHorizontal\|IlvVertical))
	Draws the grid in the given port. More...

void	emptyHiliteList ()
	Resets the highlight list to empty. More...

virtual void	ensureVisible (IlvManager manager, IlvView view, const IlvPoint &point, IlBoolean redraw=IlTrue)
	Translates the working view according to the mouse position. More...

IlUShort	firstVisibleRow (IlUShort index) const
	Gets the first visible row of the manager view. More...

virtual void	fitViewsTransformerToContents (IlUShort index, IlvDirection dir, IlBoolean redraw=IlTrue)
	Computes the transformer so it shows every object stored in all the visible layers. More...

IlvGraphic *	getBreakGraphicModel () const
	Gets the break graphic model currently used. More...

IlInt	getEnd () const
	Gets the end time managed by the chart. More...

IlvGrapher *	getGrapher () const
	Gets the grapher stored in the chart. More...

IlvView *	getGrapherView (IlUShort index) const
	Returns the grapher view indicated by index. More...

IlvGanttGridViewHook *	getGridHook (IlUShort index) const
	Returns the grid hook connected to the view indicated by index. More...

IlvPalette *	getGridPalette () const
	Returns the palette used to draw the grid. More...

IlvFilledRectangle *	getHandle () const
	Gets the handle box that controls the size of the views. More...

IlvPalette *	getHiliteBackGroundPalette () const
	Gets the highlight background palette. More...

IlBoolean	getHiliteState () const
	Gets the highlight state. More...

IlvScrollBar *	getHorizontalScrollBar (IlUShort index) const
	Gets the horizontal scroll bar. More...

IlvGanttLine *	getLine (IlUShort row) const
	Gets a Gantt line. More...

IlvGraphic *	getLineGraphicModel () const
	Gets the line graphic model of the Gantt chart. More...

IlvGraphic *	getLineGrid () const
	Gets the line grid currently being used. More...

IlInt	getLineLoad (IlUShort row, IlInt time) const
	Gets the difference between the capacity of a line and the sum of the capacities of all subnodes intersecting with a vertical axis. More...

IlUShort	getLineRow (const IlvGanttLine *line) const
	Gets the row where the given Gantt line is located. More...

IlvGanttLine **	getLines (IlUShort &count) const
	Gets lines managed by the Gantt chart. More...

IlvGanttSubNode **	getLineSubNodes (IlUInt &count, IlUShort row) const
	Gets the subnodes associated with the Gantt line. More...

IlvGraphic *	getLinkGraphicModel () const
	Gets the graphic model of the links. More...

IlvManager *	getManager () const
	Gets the manager stored in the chart. More...

IlvView *	getManagerView (IlUShort index) const
	Returns the manager view indicated by index. More...

IlvGanttNodeDrawMode	getNodeDrawMode () const
	Gets the node presentation mode. More...

IlvGanttNode **	getNodes (IlUInt &count) const
	Gets the nodes managed by the chart. More...

IlvGanttAbstractObject *	getObject (const char *name) const
	Gets the Gantt object with the given name. More...

IlvGanttAbstractObject *	getObject (const IlvGraphic *graphic) const
	Gets the Gantt object. More...

const char *	getObjectName (const IlvGanttAbstractObject *obj) const
	Gets the name of the Gantt object. More...

IlvGraphic *	getRowGrid () const
	Gets the row grid currently being used. More...

IlvScale *	getScale (IlUShort index) const
	Gets a scale object. More...

IlvGanttScrollViewHook *	getScrollHook (IlUShort index) const
	Gets the scroll hook connected to the view. More...

IlInt	getShownEnd (IlUShort index) const
	Gets the current shown end time for the grapher views. More...

IlInt	getShownStart (IlUShort index) const
	Gets the current shown start time for the grapher views. More...

IlInt	getStart () const
	Gets the start time managed by the chart. More...

IlUShort	getStep (IlUShort index) const
	Gets the graduation step in the grapher views of the Gantt chart. More...

IlvGanttSubNode *	getSubNode (const IlvGraphic *graphic) const
	Returns the Gantt subnode associated with the graphic object graphic in the Gantt chart. More...

void	getSubNodeDrawnStartEnd (const IlvGanttNode *node, IlUShort index, IlInt &start, IlInt &end) const
	Gets the positions of the given subnode. More...

IlvGraphic *	getSubNodeGraphicModel () const
	Gets the graphic model of the subnodes. More...

IlvGanttSubNodeHook *	getSubNodeHook ()
	Gets the subnode hook installed in a Gantt chart. More...

IlInt	getSubNodeMinimumSize () const
	Gets the minimum size of subnodes. More...

IlvScrollBar *	getVerticalScrollBar (IlUShort index) const
	Gets the vertical scroll bar. More...

IlvRect &	getWorkArea (IlvRect &area) const
	Returns the work area. More...

void	grapherViewsBBox (IlvRect &bbox) const
	Gets the bounding box of the four grapher views. More...

virtual void	handleReshape (const IlvPoint &handlePosition)
	Handles the resizing of views. More...

virtual void	handleResize (const IlvRect &newsize)
	Handles the resizing of Gantt chart components. More...

virtual void	installAccelerators ()
	Adds default accelerators to the manager and the grapher event handlers. More...

IlBoolean	isDoubleBuffering () const
	Returns whether double buffering is enabled.

IlBoolean	isManaged (const IlvGanttAbstractObject *object) const
	Indicates whether the given object is managed by the Gantt chart. More...

IlBoolean	isShowingFreeNodes () const
	Indicates whether the chart shows free nodes. More...

IlBoolean	isShowingGrapherViewBorders () const
	Indicates whether the borders of the grapher views are drawn. More...

IlBoolean	isShowingGrid () const
	Indicates whether a grid is drawn in the grapher views. More...

IlUShort	lastVisibleRow (IlUShort index) const
	Gets the last visible row of the manager view. More...

virtual void	lineBBox (IlUShort row, IlvRect &bbox) const
	Gets the bounding box of a graphic object associated with a Gantt line. More...

virtual void	loadObjects (IlvInputFile &file)
	Loads a set of objects from the input file. More...

void	moveHandle (const IlvPoint &position)
	Moves the handle box to a new position. More...

virtual IlBoolean	moveLine (IlvGanttLine *line, IlUShort row, IlBoolean redraw=IlTrue)
	Moves the line to the given row. More...

virtual IlBoolean	prettyRowBBox (IlUShort &row, IlvRect &prettyBox, IlBoolean redraw=IlTrue)
	Compresses the height of a given row. More...

virtual void	prettySubNodeBBox (IlvGanttNode *node, IlUShort index, IlvRect &bbox, IlBoolean redraw=IlTrue)
	Gets the prettied bounding box of a subnode. More...

virtual void	psDump (const char *filename, IlUInt xmargin=20, IlUInt ymargin=20, IlBoolean rotate=IlTrue) const
	Creates a dump file for PostScript printing. More...

void	readObjectFile (IlBoolean redraw=IlTrue)
	Reads a set of `IlvGraphic`, `IlvGanttLine`, `IlvGanttNode`, and `IlvGanttLink` objects from the file associated with the Gantt chart. More...

virtual void	removeHooks ()
	Removes the hooks from the grapher. More...

virtual IlBoolean	removeLine (IlUShort row, IlBoolean redraw=IlTrue, IlBoolean destroy=IlTrue)
	Removes a line located at a row from the Gantt chart object set. More...

virtual IlBoolean	removeLink (IlvGanttLink *link, IlBoolean redraw=IlTrue, IlBoolean destroy=IlTrue)
	Removes a link from the Gantt chart object set. More...

virtual IlBoolean	removeNode (IlvGanttNode *node, IlBoolean redraw=IlTrue, IlBoolean destroy=IlTrue)
	Removes a node from the Gantt chart object set. More...

virtual IlBoolean	removeSubNodes (IlvGanttNode node, IlUShort indexArray, IlUShort num, IlBoolean redraw=IlTrue, IlBoolean destroy=IlTrue)
	Removes subnodes from the Gantt chart node. More...

virtual void	resetViewsTransformer (IlUShort index, IlBoolean redraw=IlTrue)
	Resets the transformer so that the initial transformer can be applied. More...

void	rowBBox (IlUShort row, IlvRect &bbox) const
	Gets the bounding box of a region that contains the graphic object associated with a Gantt line. More...

virtual void	rowResized (IlUShort row, IlvPos dh) const
	Used to indicate that a Gantt row has been resized. More...

IlUShort	rows () const
	Gets the number of rows in the Gantt chart. More...

virtual void	saveObjects (IlvOutputFile &file) const
	Writes the descriptions of the objects stored in the manager to the output file. More...

void	setBreakGraphicModel (IlvGraphic *model, IlBoolean destroyOld=IlTrue)
	Sets the break graphic model. More...

void	setGridPalette (IlvPalette *palette)
	Sets the palette used to draw the grid. More...

void	setHiliteBackGroundPalette (IlvPalette *bgPal)
	Sets the highlight background palette. More...

void	setHiliteState (IlBoolean hilite=IlTrue)
	Sets the highlight state. More...

IlvGraphic *	setLineGraphicModel (IlvGraphic *model, IlBoolean deleteOld=IlTrue)
	Sets the line graphic model for the Gantt chart. More...

IlvGraphic *	setLineGrid (IlvGraphic *compoGrid, IlBoolean redraw=IlTrue, IlInt layer=0)
	Sets the grid for the Gantt lines. More...

void	setLinkGraphicModel (IlvGraphic *model, IlBoolean deleteOld=IlTrue)
	Sets the graphic model for links. More...

virtual void	setNodeDrawMode (IlvGanttNode *node, IlvGanttNodeDrawMode mode, IlBoolean redraw=IlTrue)
	Sets the node presentation mode. More...

void	setNodeDrawMode (IlvGanttNodeDrawMode mode, IlBoolean redraw=IlTrue)
	Sets the node presentation mode. More...

void	setObjectFileName (const char *name)
	Sets the name of the file associated with the chart. More...

IlBoolean	setObjectName (IlvGanttAbstractObject object, const char name, IlBoolean redraw=IlTrue)
	Sets the name of the Gantt object. More...

IlvGraphic *	setRowGrid (IlvGraphic *compoGrid, IlBoolean redraw=IlTrue, IlInt layer=0)
	Sets the grid for the Gantt rows. More...

void	setShowingGrapherViewBorders (IlBoolean flag, IlBoolean redraw=IlTrue)
	Sets the visibility of the borders of the grapher views. More...

IlBoolean	setStep (IlUShort index, IlUShort step, IlBoolean redraw=IlTrue)
	Sets the graduation step. More...

IlvGraphic *	setSubNodeGraphicModel (IlvGraphic *model, IlBoolean deleteOld=IlTrue)
	Sets the graphic model for subnodes. More...

IlvGanttSubNodeHook *	setSubNodeHook (IlvGanttSubNodeHook *hook)
	Installs a subnode hook. More...

void	setSubNodeMinimumSize (IlInt size)
	Sets the minimum size of subnodes. More...

virtual void	setSubNodeValues (IlvGanttNode node, IlUShort index, IlInt startMin, IlInt startMax, IlInt endMin, IlInt endMax, IlvGanttLine line, IlUShort capacity, IlBoolean redraw=IlTrue)
	Sets the values of the subnodes. More...

void	showFreeNodes (IlBoolean flag, IlBoolean redraw=IlTrue)
	Sets the display flag of the free nodes. More...

void	showGrid (IlBoolean flag, IlBoolean redraw=IlTrue)
	Sets the grid display. More...

void	showInterval (IlUShort index, IlInt shownStart, IlInt shownEnd, IlBoolean redraw=IlTrue)
	Modifies the shown start and end times in the grapher views. More...

virtual void	subNodeBBox (const IlvGanttNode *node, IlUShort index, IlvRect &bbox) const
	Gets the bounding box of a subnode. More...

virtual IlBoolean	swapLines (IlvGanttLine line1, IlvGanttLine line2, IlBoolean redraw=IlTrue)
	Swaps two Gantt lines. More...

virtual void	translateViews (IlUShort index, IlvPos deltaCol, IlvPos deltaRow, IlBoolean redraw=IlTrue)
	Translates the given view. More...

IlUShort	yToClosestRow (IlvPos y) const
	Gets the closest row to a given location. More...

IlBoolean	yToRow (IlvPos y, IlUShort &row) const
	Gets the row located at a given location. More...

virtual IlBoolean	zoomViews (IlUShort index, IlvDirection dir, IlUShort fromCol, IlUShort toCol, IlUShort fromRow, IlUShort toRow, IlBoolean redraw=IlTrue)
	Zooms in or out of the given view. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvGanttChart
static IlSymbol *	WorkAreaCallbackType ()
	Returns the callback type for the "Work Area" callback. More...

Detailed Description

Gantt chart form class.

Library: ilvgantt

IlvGanttChartForm is a subclass of IlvGanttChart. It has the following additional features:

<align="center">

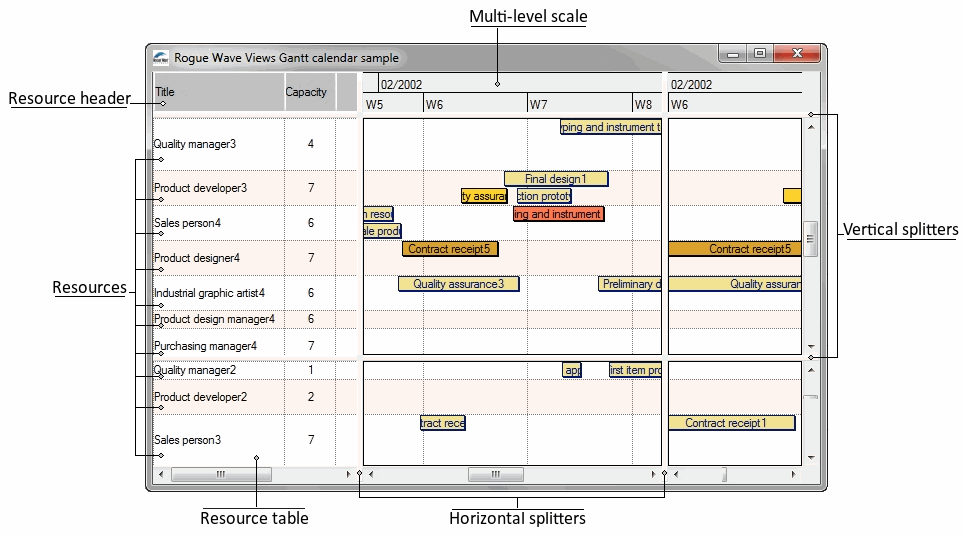

An IlvGanttChartForm

The Gantt chart form is divided into several separate viewing areas, which are referred to as panes. There are three vertical panes split by two horizontal splitters, and three horizontal panes split by two vertical splitters.
The first vertical pane (on the left) is used to show resources. This pane is called a resource table.
There are two scale views on the top of the Gantt chart form. They are used to show a multilevel scale. The construction of a multilevel scale is shown in the sample.
The handle box of IlvGanttChart is not accessible by users of the Gantt. It is replaced by the splitters. The size of the panes can be adjusted by dragging the splitters. You can even collapse a pane by dragging a splitter and dropping it on another splitter. Similarly you can do the opposite to expand a collapsed pane.

The resource table has three parts:

The resource header is at the top of the table. It is mainly used to show the titles of each column of the resource table. In addition, you can adjust the widths of the columns in the same way as you would resize the columns of an IlvSheet. The resource header is an object of the class IlvGanttResourceHeader, which is a subclass of IlvSheet. An IlvGanttResourceHeader is a single row IlvSheet that can be used in exactly the same way as an IlvSheet.
The resources are listed in the main part of the table. Each line displays a resource and is a separate object of the class IlvGanttResourceLine. An IlvGanttResourceLine is a single row IlvScrolledMatrix.
At the bottom of the table is a horizontal scroll bar.

After an IlvGanttChartForm is created, you must create an IlvGanttResourceLine and call the setLineGraphicModel() method in order to specify the IlvGanttResourceLine as the line graphic mode of the IlvGanttChartForm.

For more information on the Gantt chart form, read the $ILVHOME/samples/gantt/calendar/readme.txt file.

See also: IlvGanttChart.

Constructor & Destructor Documentation

◆ IlvGanttChartForm()

IlvGanttChartForm::IlvGanttChartForm	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlInt	start,
		IlInt	end,
		IlInt	shownStart,
		IlInt	shownEnd,
		IlUShort	step,
		IlvDim	rowSize,
		IlvDim	lineInfoSize = `0`,
		IlvDim	unitSize = `20`,
		IlvDim	scaleH = `32`,
		IlvDim	sbSize = `16`,
		IlUShort	spacing = `4`,
		IlUShort	vwSpacing = `20`,
		IlUShort	margin = `0`,
		IlvDim	separSize = `6`,
		IlvPosition	hasScale = `IlvTop`,
		IlvPosition	hasHSB = `IlvBottom`,
		IlvPosition	hasVSB = `IlvRight`,
		int	numLayers = `5`,
		IlBoolean	useAcc = `IlTrue`,
		IlvPalette *	palette = `0`
	)

Constructor.

The constructor initializes a new IlvGanttChartForm object. The scales and scroll bars are positioned by default.

Parameters

display	The display.
rect	The size of the Gantt chart.
start	The start time in the interval managed by the Gantt chart, given as an integer.
end	The end time in the interval managed by the Gantt chart, given as an integer.
shownStart	The shown start time, given as an integer.
shownEnd	The shown end time, given as an integer.
step	The graduation step on all the Gantt chart views.
rowSize	The initial width of the manager views.
lineInfoSize	The width of user-defined regions.
unitSize	Specifies the line-unit height and subnode height.
scaleH	Indicates the scale height.
sbSize	Specifies the height of the horizontal scroll bars and the width of the vertical scroll bars.
spacing	Indicates the spacing between Gantt lines and the left, top, right, and bottom sides of the manager views.
vwSpacing	Indicates the grapher view spacing.
margin	Specifies the spacing in pixels between the left, right, top, or bottom edge of Gantt chart and any scale, scroll bar, or view.
separSize	Specifies the width or height in pixels of a square box positioned on the middle of the grapher views. This box allows users to adjust the size of the manager and the grapher views by using the mouse.
hasScale	This parameter is ignored. The scales are always on the top.
hasHSB	This parameter is ignored. The horizontal scroll bars are always at the bottom.
hasVSB	This parameter is ignored. The vertical scroll bars are always on the right.
numLayers	Indicates the number of layers to be handled by the grapher.
useAcc	An `IlBoolean` indicating whether the default accelerators are to be set (for a list of the default accelerators, see Table "Default manager and grapher accelerators").
palette	Specifies the graphic resources of different Gantt chart components (views, scales, scroll bars, handle box). An inverted palette is computed from the given palette and used to draw the lines and nodes added to the Gantt chart.

Member Function Documentation

◆ deleteAll()

virtual void IlvGanttChartForm::deleteAll	(	IlBoolean	destroy,
		IlBoolean	redraw = `IlTrue`
	)

virtual

Removes all the objects stored in the chart.

If the destroy parameter is set to IlTrue, the objects are destroyed. If this parameter is set to IlFalse, the objects are removed but not destroyed. In both cases, graphic objects are destroyed.

Parameters

destroy	Specifies whether objects are destroyed after they are removed.
redraw	Specifies whether you want the manager and the grapher to redraw their views.

Reimplemented from IlvGanttChart.

◆ getCompositeGrid()

IlvGraphic* IlvGanttChartForm::getCompositeGrid ( ) const

Gets the composite grid currently being used.

Returns the composite grid currently used in the Gantt chart form.

Note: This method is deprecated. Use IlvGanttChart::getRowGrid() instead.

Returns: The composite grid currently used. It returns 0 if no composite grid has been set.

◆ getCompositeScale()

IlvGraphic* IlvGanttChartForm::getCompositeScale ( ) const

Gets the composite scale currently being used.

Returns the composite scale currently used in the Gantt chart form.

Returns: The composite scale currently used. It returns 0 if no composite scale has been set.

◆ getLineArea()

virtual IlvRect& IlvGanttChartForm::getLineArea ( IlvRect & area ) const

virtual

Returns the bounds of the Gantt lines.

This function computes the bounding box of the Gantt lines.

Parameters

area	The bounds of the Gantt lines.

Returns: The reference to area.

Reimplemented from IlvGanttChart.

◆ getResourceHeader()

IlvGanttResourceHeader* IlvGanttChartForm::getResourceHeader ( ) const

Gets the resource header.

Returns the resource header that is on the top left of the Gantt chart form.

Returns: The resource header. It returns null if the makeView method has not been called.

◆ getResourceScrollBar()

IlvScrollBar* IlvGanttChartForm::getResourceScrollBar ( ) const

Gets the resource table scroll bar.

Returns the resource table scroll bar that is on the bottom left of the Gantt chart form.

Returns: The resource table scroll bar. It returns null if the makeView method has not been called.

◆ getScaleView()

IlvView* IlvGanttChartForm::getScaleView ( IlUShort viewIndex ) const

Gets the scale view.

Returns the scale view that is on the top right of the Gantt chart form.

Parameters

viewIndex Valid values are 0 and 1.

Returns: The scale view. It returns null if the makeView method has not been called.

◆ horizontalSplitter()

IlvSplitterGadget* IlvGanttChartForm::horizontalSplitter ( IlInt index ) const

Gets the horizontal splitter.

Returns the horizontal splitter of the Gantt chart form.

Parameters

index Valid values are 0 and 1.

Returns: The horizontal splitter of the Gantt chart form. It returns null if the makeView method has not been called.

◆ insertLine()

virtual void IlvGanttChartForm::insertLine	(	IlvGanttLine *	line,
		IlUShort	row,
		IlBoolean	redraw = `IlTrue`,
		int	layer = `-1`
	)

virtual

Inserts a line before a row.

If this line already encapsulates a graphic object, this object is added to the Gantt manager. Otherwise, the Gantt chart creates a default graphic object, either by copying a graphic model provided by the user (if any), or by using the IlvMessageLabel constructor, and then adds it to the manager.

If row is greater than the actual number of lines in the chart, the line is added after the last row if the chart does not have a hidden line containing free nodes (see showFreeNodes()), or before the last row if there is such a line.

Parameters

line	The line to insert.
row	The row to insert the line into.
redraw	Indicates whether you want the manager and the grapher to redraw the invalidated area of the display.
layer	Specifies, if necessary, the layer where this object is to be inserted.

Reimplemented from IlvGanttChart.

◆ makeView()

virtual void IlvGanttChartForm::makeView	(	IlvPort *	dst,
		const IlvTransformer *	t
	)

virtual

Creates the views.

Creates the gadget container, the manager and the grapher, the two manager views, the four grapher views, and the scale objects.

Parameters

dst	The port.
t	The transformer.

Reimplemented from IlvGanttChart.

◆ moveSplitter()

virtual void IlvGanttChartForm::moveSplitter	(	IlvDirection	dir,
		IlUInt	index,
		IlvPos	pos
	)

virtual

Moves a splitter to a given position.

Moves the given splitter of the Gantt chart form to the position pos. It should not be called if the makeView method has not been called.

This function is used to adjust the size of a pane. It can also be used to collapse or expand a pane.

Parameters

dir	Specifies in which direction the splitter will be moved (`IlvHorizontal` or `IlvVertical`).
index	Valid values are `0` and `1`.
pos	The new position for the splitter.

◆ setCompositeGrid()

IlvGraphic* IlvGanttChartForm::setCompositeGrid	(	IlvGraphic *	compoGrid,
		IlBoolean	redraw = `IlTrue`
	)

Sets the composite grid for the Gantt chart form.

The composite grid is an IlvGraphic displayed in the grapher views to the right of the Gantt chart form.

The IlvGanttChart::makeView() member function will add this composite grid to the grapher of the Gantt chart form.

Note: This method is deprecated. Use IlvGanttChart::setRowGrid() instead.

Parameters

compoGrid	The composite grid.
redraw	`IlTrue` to redraw after setting the composite grid.

Returns: The old scale object.

◆ setCompositeScale()

IlvGraphic* IlvGanttChartForm::setCompositeScale	(	IlvGraphic *	compoScale,
		IlBoolean	redraw = `IlTrue`,
		IlBoolean	reshape = `IlFalse`
	)

Sets the composite scale for the Gantt chart form.

The composite scale is an IlvGraphic displayed in the scale views at the top of the Gantt chart form. This function does not delete the composite scale of the IlvGanttChart.

See the [ILVHOME]/samples/gantt/calendar sample for more information on the composite scale.

Parameters

compoScale	The composite scale.
redraw	`IlTrue` to redraw after setting the composite scale.
reshape	Indicates whether the scale should be reshaped to fit into the total range (start, end) of the Gantt chart.

Returns: The old scale object.

◆ setDoubleBuffering()

virtual void IlvGanttChartForm::setDoubleBuffering ( IlBoolean doubleBuffer )

virtual

Enables or disables double buffering.

When double buffering is enabled, the manager views and the grapher views of the Gantt chart use double buffering to refresh themselves.

Parameters

doubleBuffer Indicates whether double buffering should be enabled.

Reimplemented from IlvGanttChart.

◆ updateScale()

virtual void IlvGanttChartForm::updateScale	(	IlvScale *	scale,
		IlBoolean	redraw = `IlTrue`
	)		const

virtual

Updates the scale.

This function is called when a new transformation is applied to the corresponding grapher views. You can set the parameter redraw to IlFalse if you do not want to refresh the view contents.

Parameters

scale	The scale to update.
redraw	`IlTrue` to refresh the view contents.

Reimplemented from IlvGanttChart.

◆ verticalSplitter()

IlvSplitterGadget* IlvGanttChartForm::verticalSplitter ( IlInt index ) const

Gets the vertical splitter.

Returns the horizontal splitter of the Gantt chart form.

Parameters

index Valid values are 0 and 1.

Returns: The vertical splitter of the Gantt chart form. It returns null if the makeView method has not been called.

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IlvGanttChartForm()

Member Function Documentation

◆ deleteAll()

◆ getCompositeGrid()

◆ getCompositeScale()

◆ getLineArea()

◆ getResourceHeader()

◆ getResourceScrollBar()

◆ getScaleView()

◆ horizontalSplitter()

◆ insertLine()

◆ makeView()

◆ moveSplitter()

◆ setCompositeGrid()

◆ setCompositeScale()

◆ setDoubleBuffering()

◆ updateScale()

◆ verticalSplitter()
