View container class. More...

#include <ilviews/gadgets/scview.h>

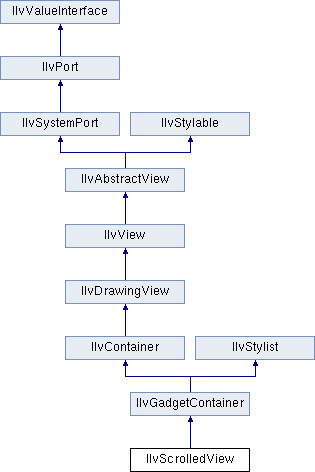

Inheritance diagram for IlvScrolledView:

Public Member Functions
	IlvScrolledView (IlvAbstractView *parent, const IlvRect &rect, IlBoolean visible=IlTrue)
	Constructor. More...

	IlvScrolledView (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlBoolean visible=IlTrue)
	Constructor. More...

	IlvScrolledView (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Constructor. More...

	IlvScrolledView (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean visible=IlTrue)
	Constructor. More...

	IlvScrolledView (IlvDisplay *display, IlvSystemView window)
	Constructor. More...

IlvView *	getClipView () const
	Returns the clipping view. More...

IlvScrollBar *	getHorizontalScrollBar () const
	Returns the horizontal scroll bar. More...

IlvAbstractView *	getScrolledView () const
	Returns the view that is being scrolled. More...

IlvScrollBar *	getVerticalScrollBar () const
	Returns the vertical scroll bar. More...

void	hideScrollBar (IlvOrientation direction)
	Hides the specified scroll bar. More...

void	moveScrollBar (IlvOrientation direction, IlvPosition where)
	Moves the specified scroll bar to a new position. More...

void	showScrollBar (IlvOrientation direction)
	Shows the specified scroll bar. More...

IlvPosition	whereIsScrollBar (IlvOrientation direction) const
	Indicates the position of the specified scroll bar. More...

Public Member Functions inherited from IlvGadgetContainer
	IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of another view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of a system view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse)
	Initializes a new instance of the `IlvGadgetContainer` class using an existing system view. More...

virtual IlBoolean	allowFocus (IlBoolean value)
	Specifies whether the container manages the focus. More...

virtual void	applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue)
	Is called to carry out the resize events applying to the gadget container. More...

IlBoolean	autoResize (IlBoolean a)
	Sets the auto resize mode of the gadget container. More...

IlvButton *	getDefaultButton () const
	Returns the default button of the gadget container. More...

virtual IlvGraphic *	getFirstFocusGraphic () const
	Returns the first object that receives the focus in this container. More...

virtual IlvGraphic *	getFocus () const
	Returns the object that has the keyboard focus in the gadget container. More...

virtual IlvGraphic *	getGrab () const
	Returns the object that is currently grabbing events in the container. More...

virtual IlvGraphic *	getLastFocusGraphic () const
	Returns the last object that receives the focus in this container. More...

IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look and feel handler associated with this container. More...

virtual IlvGraphic *	getNextFocusGraphic (IlvGraphic *object) const
	Returns the next object that will receive the focus after the specified object. More...

IlvGraphic *	getOverriddenFocus () const
	Returns the object that will receive the focus after calling `setFocus()`. More...

virtual IlvGraphic *	getPreviousFocusGraphic (IlvGraphic *object) const
	Returns the previous object that received the focus before the specified object. More...

IlBoolean	isAutoResizing () const
	Indicates whether the gadget container gets resized when loading a file. More...

virtual IlBoolean	isFocusAllowed () const
	Indicates whether the focus is allowed in the container. More...

virtual void	moveFocusAfter (IlBoolean redraw=IlTrue)
	Is called to find the next focusable object. More...

virtual void	moveFocusBefore (IlBoolean redraw=IlTrue)
	Is called to find the previous focusable object. More...

void	overrideFocus (IlvGraphic *obj)
	Sets the object that will receive the focus after calling `setFocus()`. More...

virtual void	removeGrab ()
	Cancels the grabbing settings defined with `setGrab()`. More...

void	setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue)
	Sets the default button of the gadget container. More...

virtual void	setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue)
	Sets the focus to the specified object of the gadget container. More...

virtual void	setGrab (IlvGraphic *object)
	Sets the specified object as the grabbing object. More...

void	setLookFeelHandler (IlvLookFeelHandler *lfh)
	Sets the look and feel handler of this container. More...

Detailed Description

View container class.

Library: ilvadvgdt

The IlvScrolledView class is a predefined gadget container class that lets you create scrolled views. This class builds the necessary view hierarchy to create a window with scroll bars. Once you have created an IlvScrolledView, you add the scrollable view as a subview of the clipping view of this object. The logical representation of the hierarchy looks like this:

Layout Of A Scrolled View

See also: IlvScrollView, IlvSCGadgetContainerRectangle

Constructor & Destructor Documentation

◆ IlvScrolledView() [1/5]

IlvScrolledView::IlvScrolledView	(	IlvAbstractView *	parent,
		const IlvRect &	rect,
		IlBoolean	visible = `IlTrue`
	)

Constructor.

Initializes a new instance of the IlvScrolledView class as a child view of parent.

Parameters

parent	The parent view of the scrolled view.
rect	The size and position of the scrolled view.
visible	A Boolean value specifying whether the view should be visible.

◆ IlvScrolledView() [2/5]

IlvScrolledView::IlvScrolledView	(	IlvDisplay *	display,
		IlvSystemView	parent,
		const IlvRect &	rect,
		IlBoolean	visible = `IlTrue`
	)

Constructor.

Initializes a new instance of the IlvScrolledView class as a child view of the system view specified by parent.

Parameters

display	The connection to the display.
parent	The parent view of the scrolled view.
rect	The size and position of the scrolled view.
visible	A Boolean value specifying whether the view should be visible.

◆ IlvScrolledView() [3/5]

IlvScrolledView::IlvScrolledView	(	IlvDisplay *	display,
		IlvSystemView	window
	)

Constructor.

Initializes a new instance of the IlvScrolledView class mapped to the existing system view specified by window.

Parameters

display	The connection to the display.
window	The system view to which the scrolled view is mapped.

◆ IlvScrolledView() [4/5]

IlvScrolledView::IlvScrolledView	(	IlvDisplay *	display,
		const char *	name,
		const char *	title,
		const IlvRect &	rect,
		IlBoolean	visible = `IlTrue`
	)

Constructor.

Initializes a new instance of the IlvScrolledView class as a top view.

Parameters

display	The connection to the display.
name	The name of the scrolled view.
title	The title of the scrolled view.
rect	The size and position of the scrolled view.
visible	A Boolean value specifying whether the view should be visible.

◆ IlvScrolledView() [5/5]

IlvScrolledView::IlvScrolledView	(	IlvDisplay *	display,
		const char *	name,
		const char *	title,
		const IlvRect &	rect,
		IlUInt	properties,
		IlBoolean	visible = `IlTrue`,
		IlvSystemView	transientFor = `0`
	)

Constructor.

Initializes a new instance of the IlvScrolledView class as a top view.

Parameters

display	The connection to the display.
name	The name of the scrolled view.
title	The title of the scrolled view.
rect	The size and position of the scrolled view.
properties	The properties of the scrolled view. For details, see the `IlvView` constructors.
visible	A Boolean value specifying whether the view should be visible.
transientFor	The system view for which the scrolled view is transient. For details, see the `IlvView` constructors.

Member Function Documentation

◆ getClipView()

IlvView* IlvScrolledView::getClipView ( ) const

Returns the clipping view.

This view must be the parent of the view to be scrolled.

Returns: The clipping view.

See also: getScrolledView

◆ getHorizontalScrollBar()

IlvScrollBar* IlvScrolledView::getHorizontalScrollBar ( ) const

Returns the horizontal scroll bar.

Returns: The horizontal scroll bar.

See also: getVerticalScrollBar

◆ getScrolledView()

IlvAbstractView* IlvScrolledView::getScrolledView ( ) const

Returns the view that is being scrolled.

Returns: The view that is being scrolled.

See also: getClipView

◆ getVerticalScrollBar()

IlvScrollBar* IlvScrolledView::getVerticalScrollBar ( ) const

Returns the vertical scroll bar.

Returns: The vertical scroll bar.

See also: getHorizontalScrollBar

◆ hideScrollBar()

void IlvScrolledView::hideScrollBar ( IlvOrientation direction )

Hides the specified scroll bar.

Hides the scroll bar that has the specified direction and deactivates it.

Parameters

direction The scroll bar direction. Valid values are: IlvHorizontal and IlvVertical.

See also: showScrollBar, getHorizontalScrollBar, getVerticalScrollBar

◆ moveScrollBar()

void IlvScrolledView::moveScrollBar	(	IlvOrientation	direction,
		IlvPosition	where
	)

Moves the specified scroll bar to a new position.

Parameters

direction	The direction of the scroll bar to be moved to a new position. Valid values are: `IlvHorizontal` and `IlvVertical`.
where	The new position of the scroll bar. Valid values are: `IlvLeft` and `IlvRight` for horizontal scroll bars, and `IlvTop` and `IlvBottom` for vertical scroll bars.

See also: showScrollBar, hideScrollBar, whereIsScrollBar

◆ showScrollBar()

void IlvScrolledView::showScrollBar ( IlvOrientation direction )

Shows the specified scroll bar.

Displays the scroll bar that has the specified direction and activates it.

Parameters

direction The scroll bar direction. Valid values are: IlvHorizontal and IlvVertical.

See also: hideScrollBar, getHorizontalScrollBar, getVerticalScrollBar

◆ whereIsScrollBar()

IlvPosition IlvScrolledView::whereIsScrollBar ( IlvOrientation direction ) const

Indicates the position of the specified scroll bar.

Parameters

direction The direction of the scroll bar to be located. Valid values are: IlvHorizontal and IlvVertical.

Returns: The position of the scroll bar indicated by direction.

See also: moveScrollBar
