Dialog class. More...

#include <ilviews/gadgets/iprompt.h>

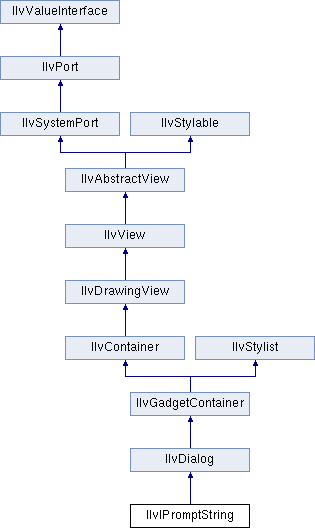

Inheritance diagram for IlvIPromptString:

Public Member Functions
	IlvIPromptString (IlvDisplay display, const char string=0, const char const strings=0, IlUShort count=0, IlBoolean copy=IlTrue, IlBoolean showtextf=IlTrue, const char *fileordata=0, IlvSystemView transientFor=0, IlUInt properties=0)
	Constructor. More...

const char *	get (IlBoolean grab=IlFalse, IlvCursor *cursor=0)
	Displays the dialog as a modal dialog. More...

const char *	getResult ()
	Returns the current selection. More...

void	setLabels (const char const strings, IlUShort count, IlBoolean copy=IlTrue, IlBoolean showtextf=IlTrue)
	Reloads the default components of the dialog and initializes it with the specified parameters. More...

void	setResult (const char *string)
	Sets the string of the current selection. More...

void	setString (const char *string)
	Sets the string displayed in the `IlvMessageLabel` object named "title". More...

Public Member Functions inherited from IlvDialog
	IlvDialog (IlvDisplay display, const char name, const char title, const char filename, const IlvRect *rect=0)
	Constructor. More...

	IlvDialog (IlvDisplay display, const char name, const char title, const char filename, IlUInt properties, const IlvRect *rect=0, IlvSystemView transientFor=0)
	Constructor. More...

	IlvDialog (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties=0, IlvSystemView transientFor=0)
	Constructor. More...

virtual void	apply ()
	Is called when the callback associated with the `apply` symbol is triggered. More...

virtual void	cancel ()
	Is called when the callback associated with the `cancel` symbol is triggered. More...

virtual void	wait (IlBoolean grab=IlFalse, IlvCursor *cursor=0)
	Displays a modal dialog. More...

IlBoolean	wasCanceled () const
	Returns the status of the dialog after closing it. More...

Public Member Functions inherited from IlvGadgetContainer
	IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of another view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay display, const char name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new instance of the `IlvGadgetContainer` class as a top view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue)
	Initializes a new instance of the `IlvGadgetContainer` class as a child view of a system view. More...

	IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse)
	Initializes a new instance of the `IlvGadgetContainer` class using an existing system view. More...

virtual IlBoolean	allowFocus (IlBoolean value)
	Specifies whether the container manages the focus. More...

virtual void	applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue)
	Is called to carry out the resize events applying to the gadget container. More...

IlBoolean	autoResize (IlBoolean a)
	Sets the auto resize mode of the gadget container. More...

IlvButton *	getDefaultButton () const
	Returns the default button of the gadget container. More...

virtual IlvGraphic *	getFirstFocusGraphic () const
	Returns the first object that receives the focus in this container. More...

virtual IlvGraphic *	getFocus () const
	Returns the object that has the keyboard focus in the gadget container. More...

virtual IlvGraphic *	getGrab () const
	Returns the object that is currently grabbing events in the container. More...

virtual IlvGraphic *	getLastFocusGraphic () const
	Returns the last object that receives the focus in this container. More...

IlvLookFeelHandler *	getLookFeelHandler () const
	Returns the look and feel handler associated with this container. More...

virtual IlvGraphic *	getNextFocusGraphic (IlvGraphic *object) const
	Returns the next object that will receive the focus after the specified object. More...

IlvGraphic *	getOverriddenFocus () const
	Returns the object that will receive the focus after calling `setFocus()`. More...

virtual IlvGraphic *	getPreviousFocusGraphic (IlvGraphic *object) const
	Returns the previous object that received the focus before the specified object. More...

IlBoolean	isAutoResizing () const
	Indicates whether the gadget container gets resized when loading a file. More...

virtual IlBoolean	isFocusAllowed () const
	Indicates whether the focus is allowed in the container. More...

virtual void	moveFocusAfter (IlBoolean redraw=IlTrue)
	Is called to find the next focusable object. More...

virtual void	moveFocusBefore (IlBoolean redraw=IlTrue)
	Is called to find the previous focusable object. More...

void	overrideFocus (IlvGraphic *obj)
	Sets the object that will receive the focus after calling `setFocus()`. More...

virtual void	removeGrab ()
	Cancels the grabbing settings defined with `setGrab()`. More...

void	setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue)
	Sets the default button of the gadget container. More...

virtual void	setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue)
	Sets the focus to the specified object of the gadget container. More...

virtual void	setGrab (IlvGraphic *object)
	Sets the specified object as the grabbing object. More...

void	setLookFeelHandler (IlvLookFeelHandler *lfh)
	Sets the look and feel handler of this container. More...

Detailed Description

Dialog class.

Library: ilvadvgdt

The IlvIPromptString class defines a dialog that lets the user choose among a list of strings. The names of the graphic objects are displayed to let you change the default look of the dialog.

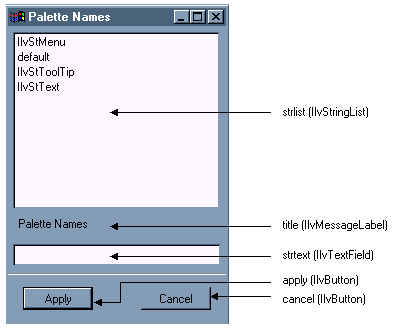

A prompt string dialog

See also: IlvPromptDialog.

Constructor & Destructor Documentation

◆ IlvIPromptString()

IlvIPromptString::IlvIPromptString	(	IlvDisplay *	display,
		const char *	string = `0`,
		const char const	strings = `0`,
		IlUShort	count = `0`,
		IlBoolean	copy = `IlTrue`,
		IlBoolean	showtextf = `IlTrue`,
		const char *	fileordata = `0`,
		IlvSystemView	transientFor = `0`,
		IlUInt	properties = `0`
	)

Constructor.

Initializes a new instance of the IlvIPromptString class.

Parameters

display	The connection to the display.
string	The initial selection.
strings	The array of strings from which the user can choose.
count	The number of elements in strings. If count is set to `0`, the string list is not displayed.
copy	A Boolean value specifying whether strings should be copied.
showtextf	A Boolean value specifying whether the text field should be shown or hidden.
fileordata	Specifies an alternative source of Rogue Wave Views data defining the user interface of this dialog. This data can be stored in a file, in which case fileordata represents the name of the file, or in a C++ string, in which case fileordata stands for the string itself. If fileordata is not specified, the default dialog is used.
transientFor	The system view for which the dialog is transient. For details, see the `IlvView` constructors.
properties	The properties of the dialog. For details, see the `IlvView` constructors.

Member Function Documentation

◆ get()

const char* IlvIPromptString::get	(	IlBoolean	grab = `IlFalse`,
		IlvCursor *	cursor = `0`
	)

Displays the dialog as a modal dialog.

Parameters

grab Specifies whether the dialog should be system modal. The system modal dialog grabs input events occurring on the entire system so that other applications are not able to catch any keyboard or mouse event until the member function returns. In this case, you can specify the cursor to be used with the cursor parameter. If grab is set to IlFalse (the default), the dialog is application modal, which means that the application does not receive input events in other windows.

Note: Some operating systems, such as Windows NT and Windows 95, do not allow system modal dialogs. On these operating system dialogs are always application modal.

Parameters

cursor The cursor used to make the selection.

Returns: The selected string.

See also: getResult.

◆ getResult()

const char* IlvIPromptString::getResult ( )

Returns the current selection.

Returns: The current selection.

See also: setResult.

◆ setLabels()

void IlvIPromptString::setLabels	(	const char const	strings,
		IlUShort	count,
		IlBoolean	copy = `IlTrue`,
		IlBoolean	showtextf = `IlTrue`
	)

Reloads the default components of the dialog and initializes it with the specified parameters.

If you have customized the dialog, your modifications will be lost.

Parameters

strings	The array of strings from which the user can choose.
count	The number of elements in strings. If count is `0`, the dialog does not display the string list.
copy	A Boolean value specifying whether strings should be copied.
showtextf	A Boolean value specifying whether the text field should be shown or hidden.

◆ setResult()

void IlvIPromptString::setResult ( const char * string )

Sets the string of the current selection.

Parameters

string The new selection.

See also: getResult.

◆ setString()

void IlvIPromptString::setString ( const char * string )

Sets the string displayed in the IlvMessageLabel object named "title".

Parameters

string The new label for the IlvMessageLabel object named "title".
