Gadgets Package API Reference Guide
Product Documentation:
Views Documentation Home
List of all members | Public Member Functions
IlvComboBoxWLFHandler Class Reference

Object Look-and-Feel class. More...

#include <ilviews/gadgets/windows/combo.h>

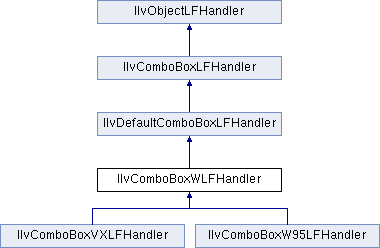

Inheritance diagram for IlvComboBoxWLFHandler:
IlvDefaultComboBoxLFHandler IlvComboBoxLFHandler IlvObjectLFHandler IlvComboBoxVXLFHandler IlvComboBoxW95LFHandler

Public Member Functions

 IlvComboBoxWLFHandler (IlvLookFeelHandler *lfh)
 Constructor. More...

virtual void drawArrow (const IlvComboBox *, IlvPort *, const IlvRect &, const IlvRegion *) const
 Is called to draw the arrow of a combo box. More...

virtual void drawBackground (const IlvComboBox *, IlvPort *, const IlvTransformer *, const IlvRegion *) const
 Is called to draw the background of a combo box. More...

virtual void drawContents (const IlvComboBox *, IlvPort *, const IlvTransformer *, const IlvRegion *) const
 Is called to draw the contents of a combo box. More...

virtual void drawFrame (const IlvComboBox *, IlvPort *, const IlvTransformer *, const IlvRegion *) const
 Is called to draw the frame of a combo box. More...

- Public Member Functions inherited from IlvDefaultComboBoxLFHandler
virtual IlBoolean handleEvent (IlvComboBox *, IlvEvent &) const
 Is called to handle the events of a combo box. More...

- Public Member Functions inherited from IlvComboBoxLFHandler
 IlvComboBoxLFHandler (IlvLookFeelHandler *lfh)
 Initializes a new IlvComboBoxLFHandler instance. More...


Detailed Description

Object Look-and-Feel class.

Library: ilvwlook

The class for the Microsoft Windows object look-and-feel handler of the combo box.

Constructor & Destructor Documentation

◆ IlvComboBoxWLFHandler()

IlvComboBoxWLFHandler::IlvComboBoxWLFHandler ( IlvLookFeelHandler lfh)

Constructor.

Creates a new IlvComboBoxWLFHandler instance and initializes it with lfh.

Parameters
lfhThe look-and-feel handler which this handler will be associated to.

Member Function Documentation

◆ drawArrow()

virtual void IlvComboBoxWLFHandler::drawArrow ( const IlvComboBox combo,
IlvPort dst,
const IlvRect rect,
const IlvRegion clip
) const
virtual

Is called to draw the arrow of a combo box.

Parameters
comboThe combo box.
dstThe destination port.
rectThe rectangle where to draw the arrow.
clipThe clipping region.

Implements IlvComboBoxLFHandler.

Reimplemented in IlvComboBoxW95LFHandler, and IlvComboBoxVXLFHandler.

◆ drawBackground()

virtual void IlvComboBoxWLFHandler::drawBackground ( const IlvComboBox combo,
IlvPort dst,
const IlvTransformer t,
const IlvRegion clip
) const
virtual

Is called to draw the background of a combo box.

Parameters
comboThe combo box.
dstThe destination port.
tThe transformer.
clipThe clipping region.

Reimplemented from IlvDefaultComboBoxLFHandler.

Reimplemented in IlvComboBoxW95LFHandler, and IlvComboBoxVXLFHandler.

◆ drawContents()

virtual void IlvComboBoxWLFHandler::drawContents ( const IlvComboBox combo,
IlvPort dst,
const IlvTransformer t,
const IlvRegion clip
) const
virtual

Is called to draw the contents of a combo box.

Parameters
comboThe combo box.
dstThe destination port.
tThe transformer.
clipThe clipping region.

Implements IlvComboBoxLFHandler.

◆ drawFrame()

virtual void IlvComboBoxWLFHandler::drawFrame ( const IlvComboBox combo,
IlvPort dst,
const IlvTransformer t,
const IlvRegion clip
) const
virtual

Is called to draw the frame of a combo box.

Parameters
comboThe combo box.
dstThe destination port.
tThe transformer.
clipThe clipping region.

Reimplemented from IlvDefaultComboBoxLFHandler.

Reimplemented in IlvComboBoxW95LFHandler, and IlvComboBoxVXLFHandler.
