Dialog class. More...

#include <ilviews/dataccess/gadgets/tblcombo.h>

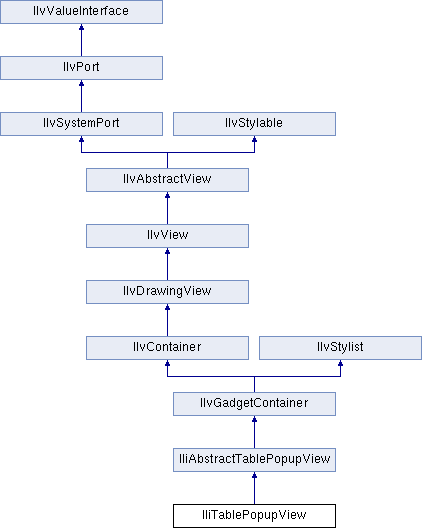

Inheritance diagram for IliTablePopupView:

Public Member Functions
	IliTablePopupView (IlvDisplay *display, IlvSystemView transient=0)
	This constructor initializes a dialog, which is the default pull-down menu of the combobox. More...

virtual void	closeDone ()
	Called immediately after the dialog is closed.

virtual IliTable *	getTableForDisplay ()
	Returns the table used by table gadget. More...

IliTableGadget *	getTableGadget () const
	Returns the dialog table gadget. More...

virtual IlvDim	getWindowHeight () const
	Returns the height of the dialog. More...

virtual IlvDim	getWindowWidth () const
	Returns the width of the dialog. More...

virtual void	makeTable ()
	Builds dialog gadgets.

virtual void	makeWindowResize (IlvDim, IlvDim)
	Called when the dialog must be resized. More...

virtual void	prepareOpen (IlInt *, IlInt, IlInt)
	Called just before the dialog is opened. More...

virtual void	processEvent (IlvEvent &, const IlvRect &)
	Called to handle events such as button, key up, and key down. More...

virtual IlBoolean	processInputEvent (IlvEvent &)
	Called to handle the input events that are not handled by `handleInput()` function. More...

virtual void	select ()
	Called when a value has been selected.

virtual void	selectInitialRow (IlInt)
	Called to select the data corresponding to the current row. More...

Public Member Functions inherited from IliAbstractTablePopupView
	IliAbstractTablePopupView (IlvDisplay *display, IlvSystemView transient=0)
	This constructor initializes a dialog to replace the pull-down menu of the combo box. More...

IliTableComboBox *	getComboBox () const
	Returns the combo box associated with the dialog. More...

virtual IlvCursor *	getWindowCursor ()
	Returns the cursor of the dialog. More...

virtual void	handleInput (IlvEvent &event)
	Called to handle the input events. More...

IlBoolean	isGrabbed () const
	Returns `IlTrue` if a grab operation is defined. Otherwise, returns `IlFalse`. More...

IlBoolean	isOpen () const
	Returns `IlTrue` if the dialog is opened. Otherwise, returns `IlFalse`. More...

IlBoolean	isOpenOn (const IliTableComboBox *combo) const
	Returns `IlTrue` if the open combo box dialog is associated with the combo box. Otherwise, returns `IlFalse`. More...

IlBoolean	isWindowsLook () const
	Returns `IlTrue` if the current look is Windows 95 or Windows NT. Otherwise, returns `IlFalse`. More...

void	setComboBox (IliTableComboBox *combo)
	Associates the dialog with a combo box. More...

Detailed Description

Dialog class.

Library: dbgadget

This class defines the default pull-down menu for the IliTableComboBox class. This pull-down menu is a dialog with a table gadget which displays one or several columns of the foreign table. The foreign table and the table of the pull-down menu can be different, but the tables must have the same column names. (The function getTableForDisplay() returns the table used to display the data of the pull-down menu.)

See also: IliAbstractTablePopupView, IliTableComboBox.

Constructor & Destructor Documentation

◆ IliTablePopupView()

IliTablePopupView::IliTablePopupView	(	IlvDisplay *	display,
		IlvSystemView	transient = `0`
	)

This constructor initializes a dialog, which is the default pull-down menu of the combobox.

Parameters

display	The display.
transient	A system view for which the gadget container is transient. For more details, see the IlvView constructors.

Member Function Documentation

◆ getTableForDisplay()

virtual IliTable* IliTablePopupView::getTableForDisplay ( )

virtual

Returns the table used by table gadget.

Returns: The table used by table gadget, which by default is the foreign table.

◆ getTableGadget()

IliTableGadget* IliTablePopupView::getTableGadget ( ) const

Returns the dialog table gadget.

Returns: The dialog.

◆ getWindowHeight()

virtual IlvDim IliTablePopupView::getWindowHeight ( ) const

virtual

Returns the height of the dialog.

Dialog and combo box heights can differ.

Returns: The height.

Reimplemented from IliAbstractTablePopupView.

◆ getWindowWidth()

virtual IlvDim IliTablePopupView::getWindowWidth ( ) const

virtual

Returns the width of the dialog.

Dialog and combo box widths can differ.

Returns: The width.

Reimplemented from IliAbstractTablePopupView.

◆ makeWindowResize()

virtual void IliTablePopupView::makeWindowResize	(	IlvDim	w,
		IlvDim	h
	)

virtual

Called when the dialog must be resized.

Parameters

w	The new dialog width.
h	The new dialog height.

Reimplemented from IliAbstractTablePopupView.

◆ prepareOpen()

virtual void IliTablePopupView::prepareOpen	(	IlInt *	dispcol,
		IlInt	count,
		IlInt	rowno
	)

virtual

Called just before the dialog is opened.

Parameters

dispcol	The list of columns that must be displayed.
count	The number of columns to be displayed.
rowno	The current row position.

Reimplemented from IliAbstractTablePopupView.

◆ processEvent()

virtual void IliTablePopupView::processEvent	(	IlvEvent &	event,
		const IlvRect &	bbox
	)

virtual

Called to handle events such as button, key up, and key down.

Parameters

event	The event.
bbox	The event location.

Reimplemented from IliAbstractTablePopupView.

◆ processInputEvent()

virtual IlBoolean IliTablePopupView::processInputEvent ( IlvEvent & event )

virtual

Called to handle the input events that are not handled by handleInput() function.

Parameters

event The event. return IlTrue if the event is processed.

Reimplemented from IliAbstractTablePopupView.

◆ selectInitialRow()

virtual void IliTablePopupView::selectInitialRow ( IlInt rowno )

virtual

Called to select the data corresponding to the current row.

Parameters

rowno The row position.

Reimplemented from IliAbstractTablePopupView.
