Field Gadget. More...

#include <ilviews/dataccess/gadgets/dboptmnu.h>

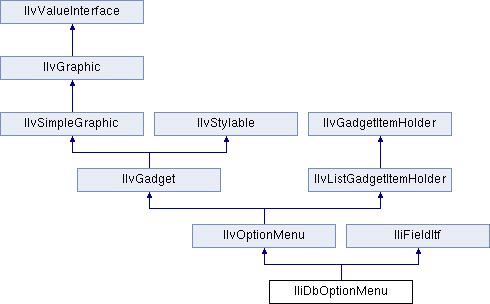

Inheritance diagram for IliDbOptionMenu:

Public Member Functions
	IliDbOptionMenu (IlvDisplay display, const IlvRect &rect, const char const labels=0, IlUShort count=0, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	This constructor creates an option menu. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_setForeignDisplayColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *, IlBoolean=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment align)
	Sets the text alignment of the field. More...

virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setFormat (const IliFormat &fmt)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean flag)
	Sets the input-modified attribute of the field. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setMask (const IliInputMask &msk)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort vmax)
	Sets the maximum length allowed for the external representation of the field. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Additional Inherited Members
Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Detailed Description

Field Gadget.

Library: dbgadget

The IliDbOptionMenu class defines an option menu gadget that opens a pull-down menu when the user clicks on the option menu and can be connected to a data source. The pull-down menu displays a column of the foreign table of the field.

See also: IliFieldItf, IliTableComboBox.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclasses \c IlvOptionMenu and \c IliFieldItf, and adds the following ones:

Method accessors

Name	Return type	Equivalent methods
`startOfBatch()`	Void	See [startOfBatch] below.
`endOfBatch()`	Void	See [endOfBatch] below.

[startOfBatch] Called to start a series of modifications of properties. A call to this method must be followed by a call to the endOfBatch() method.

[endOfBatch] Called to terminate a series of modifications of properties. A call to this method must be preceded by a call to the startOfBatch() method. Calls to startOfBatch() and endOfBatch() can be nested.

Constructor & Destructor Documentation

◆ IliDbOptionMenu()

IliDbOptionMenu::IliDbOptionMenu	(	IlvDisplay *	display,
		const IlvRect &	rect,
		const char const	labels = `0`,
		IlUShort	count = `0`,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

This constructor creates an option menu.

Parameters

display	The display.
rect	The location.
labels	The labels.
count	The label count.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ f_externalToInternal()

virtual IlBoolean IliDbOptionMenu::f_externalToInternal ( )

virtual

Updates the internal value of a field according to its current external representation.

Returns: IlTrue if successful and IlFalse otherwise. Note that this may fail due to the fact that not all external representations can be converted to a value object. For example, this is especially true for text fields that are used to edit numeric or date values.

Reimplemented from IliFieldItf.

◆ f_getValue()

virtual const IliValue& IliDbOptionMenu::f_getValue ( IlBoolean internal = IlFalse ) const

virtual

Returns the value of the field.

Parameters

internal If IlTrue, the returned value does not necessarily reflect the state of the field as the user sees it.

Returns: The value.

Reimplemented from IliFieldItf.

◆ f_isConsistent()

virtual IlBoolean IliDbOptionMenu::f_isConsistent ( ) const

virtual

Returns IlTrue if the internal value of the field corresponds to its current external representation.

A return value of IlFalse means that the external representation of the field has been edited by the end-user since the last time one of the member functions, f_setValue(), f_externalToInternal(), f_internalToExternal() or f_complete() was successfully called.

Returns: IlTrue if the internal value of the field corresponds to its current external representation.

Reimplemented from IliFieldItf.

◆ f_isReadOnly()

virtual IlBoolean IliDbOptionMenu::f_isReadOnly ( ) const

virtual

Returns IlTrue if the field is read-only.

Returns: IlTrue if the field is read-only.

Reimplemented from IliFieldItf.

◆ f_setForeignDisplayColumnName()

virtual void IliDbOptionMenu::f_setForeignDisplayColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setForeignTable()

virtual void IliDbOptionMenu::f_setForeignTable	(	IliTable *	tbl,
		IlBoolean	owner = `IlFalse`
	)

virtual

Sets the foreign table of the field.

Parameters

tbl	The table.
owner	Determines whether the field will own the table.

Reimplemented from IliFieldItf.

◆ f_setForeignValueColumnName()

virtual void IliDbOptionMenu::f_setForeignValueColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setReadOnly()

virtual void IliDbOptionMenu::f_setReadOnly ( IlBoolean flag )

virtual

Sets the read-only property for the field.

Parameters

flag	The read-only flag.

Reimplemented from IliFieldItf.

◆ f_setValue()

virtual IlBoolean IliDbOptionMenu::f_setValue	(	const IliValue &	val,
		IlBoolean	internal = `IlFalse`
	)

virtual

Sets the value of the field.

Parameters

val	The value.
internal	If `IlFalse`, then the external representation and the display of the field are automatically updated.

Returns: IlTrue if successful, and IlFalse otherwise.

Reimplemented from IliFieldItf.

Public Member Functions

Additional Inherited Members

Detailed Description

Method accessors

Constructor & Destructor Documentation

◆ IliDbOptionMenu()

Member Function Documentation

◆ f_externalToInternal()

◆ f_getValue()

◆ f_isConsistent()

◆ f_isReadOnly()

◆ f_setForeignDisplayColumnName()

◆ f_setForeignTable()

◆ f_setForeignValueColumnName()

◆ f_setReadOnly()

◆ f_setValue()
