Runtime dependencies

In order to successfully install, configure, and deploy Swarm, the following dependencies are required:

Optional dependencies:

  • LibreOffice: required to view office-type documents. For more information, see LibreOffice.
  • zip: command-line archiving tool: Required to download zip archives of files and folders. For more information, see Zip.
  • Helix Authentication Service SSO: enables Swarm to authenticate with SSO when the Helix Core Server is configured for Helix Authentication Service, see Helix Authentication Service SSO.
  • Sendmail or equivalent: required to use Swarm email notifications. For more information, see Swarm email notifications.

Recommended operating systems

Perforce recommend that Swarm is installed on one of the following operating systems:

  • Ubuntu 20.04 LTS, 22.04 LTS, and 24.04 LTS latest stable release should be used.
  • RHEL 8 and 9 latest stable release with PHP libraries installed from the Remi repository. See PHP.
  • Rocky Linux 8 and 9 latest stable release with PHP libraries installed from the Remi repository. See PHP.
  • Amazon Linux 2: latest stable release with PHP libraries installed from Amazon Linux Extras. See PHP.

Note

You cannot install Swarm on a Windows machine.

Other Linux distributions

Important

Swarm has not be tested on Linux distributions that are not on our recommended list. Because of this, our Support team may not be able to help you to the same extent as they would for the recommended operating systems.

Swarm will probably run on any Linux distribution based on RHEL 8 or 9. Swarm includes binary versions of P4PHP, the Perforce extension for PHP. This P4PHP dependency typically sets the limit to what Linux distributions you can install Swarm on.

You might be able to get Swarm running on another platform if you build P4PHP yourself and satisfy the other runtime dependencies. Instructions on how to obtain and build P4PHP from source can be found in the P4PHP Release notes.

Important

P4PHP does not support threaded operation. If you compile P4PHP from source, ensure that the version of PHP you compile for is non-threaded.

Apache web server

Swarm requires Apache HTTP Server 2.4 or newer:

Important

The following notes are applicable for RHEL 8 and RHEL 9:

  • RHEL 8: Use the Remi repository configuration package (remi-release-8.rpm) to give Swarm access to PHP 8 and to LibreOffice which is part of the optional package install. Use the epel-release-latest-8.noarch.rpm repository configuration package to give Swarm access to EPEL packages.

  • RHEL 9: Use the Remi repository configuration packages (remi-release-8.rpm and remi-release-9.rpm) to give Swarm access to PHP 8 and to LibreOffice which is part of the optional package install. Use the epel-release-latest-8.noarch.rpm and epel-release-latest-9.noarch.rpm repository configuration package to give Swarm access to EPEL packages.

  • Swarm 2020.2 and later: these versions of Swarm uses the Remi repository for RHEL 8 and RHEL 9. This provides PHP 8.x installed in the standard file system structure. This means that the old httpd24-httpd version of Apache is no longer needed, and the standard system version of Apache is being used again.

    The SCL Apache site configuration file was installed at this location for Swarm 2019.1 to 2020.1:

    /opt/rh/httpd24/root/etc/httpd/conf.d/perforce-swarm-site.conf

    If this exists when Swarm is upgraded to 2020.2 and later, this file is copied to /etc/httpd/conf.d/perforce-swarm-site.conf if there is no file at the destination. It is also re-written to change references from /var/log/httpd24 to /var/log/httpd

    If a site configuration file for Swarm already exists in /etc/httpd, the copy and re-write is not performed.

    After upgrade, httpd24-httpd is disabled.

  • To avoid seeing the Apache HTTP server Linux test page when you start the Apache server, comment out the content of the welcome.conf file located in the /etc/httpd/conf.d/ directory.

  • To avoid loading the Apache HTTP server example configuration instead of the Swarm configuration when the Apache server starts, rename the autoindex.conf file located in the /etc/httpd/conf.d/ directory to z-autoindex.conf or similar. This is required because Apache runs the first conf file it finds in the /etc/httpd/conf.d/ directory (alphabetical order) and that must be the perforce-swarm-site.conf file.

Swarm also requires the following Apache modules:

  • Ubuntu: mod_phpx for interacting with PHP (usually installed with PHP)

    • Where x is the version of PHP you are running, for example 8. For supported versions of PHP, see PHP.

  • RHEL: php-fpm for interacting with PHP (usually installed with PHP)

  • mod_rewrite URL rewriting engine

    For more information, see Apache Module mod_rewrite.

Important

Only the prefork MPMClosed Multi-Processing Module, a component of the Apache web server that is responsible for binding to network ports, accepting requests, and dispatch operations to handle the request. is supported. Use of the worker or event MPMs is not supported and is likely to cause problems because P4PHP does not support threaded operation.

For more information on the prefork MPM, see Apache MPM prefork.

PHP

Swarm requires PHP 8.1, 8.2 or 8.3. For more information about PHP, see PHP.

Important
  • PHP must be non-threaded because P4PHP does not support threaded operation.

  • RHEL 8: Use the Remi repository configuration package (remi-release-8.rpm) to give Swarm access to PHP 8 and to LibreOffice which is part of the optional package install. Use the epel-release-latest-8.noarch.rpm repository configuration package to give Swarm access to EPEL packages.

  • RHEL 9: Use the Remi repository configuration packages (remi-release-8.rpm and remi-release-9.rpm) to give Swarm access to PHP 8 and to LibreOffice which is part of the optional package install. Use the epel-release-latest-8.noarch.rpm and epel-release-latest-9.noarch.rpm repository configuration package to give Swarm access to EPEL packages.

Required PHP extensions

Swarm requires the following PHP extensions:

Tip

If you install Swarm from a package, all of these PHP extensions are automatically pulled in as dependencies on all platforms.

  • iconv (character encoding converter)
    For more information, see iconv.

    This is typically enabled by default with most PHP distributions

  • JSON (JavaScript Object Notation)
    For more information, see JavaScript Object Notation.

    This is typically enabled by default with most PHP distributions, although recent distributions are making this optional.

  • Session (session handling)

    This is typically enabled by default with most PHP distributions

  • P4PHP version 2019.1 or later (the Perforce PHP Extension)

    This release of Swarm contains P4PHP 2024.2 with the Swarm package and tarball installations.

    Note

    Swarm package and tarball installations: two versions of P4PHP are supplied for PHP 8 version supported by Swarm. They are located in the p4-bin/bin.linux26x86_64 directory.

    • perforce-php8x.so compatible with systems using SSL 1.0.2
    • perforce-php8x-ssl1.1.1.so compatible with systems using SSL 1.1.1 (by default, Ubuntu 20.04 uses SSL 1.1.1)
    • perforce-php8x-ssl3.so compatible with systems using SSL 3.0.0 (by default, Ubuntu 22.04 and 24.04 uses SSL 3.0.0)

    Where x is the version of PHP 8.

    If the perforce.ini file is not pointing at the correct version of P4PHP and you connect to an SSL enabled Helix Core Server:

    • The Swarm web-page will not load and you might see a Connection Reset error.
    • There might be an undefined symbol: SSLeay message in the Apache error log

    Upgrading Swarm:

    • Swarm package: the latest P4PHP version is installed automatically.
    • Swarm tarball installation: you must configure Swarm to use the version of P4PHP in the new Swarm tarball. For swarm tarball upgrade instructions, see Upgrading a tarball installation.

  • php-xml (DOM API for XML manipulation, the Swarm RSS feed will not work if it is not installed)

  • php-mbstring (multi-byte character strings, the Swarm RSS feed will not work if it is not installed)

  • php-redis (PHP extension for Redis, the Swarm cache will not work if it is not installed)

  • php-gd (PHP extension for creating the blur images used for image icons on comments. If php-gd is not installed, images attached to comments display the file extension name instead of a blur or thumbnail image.)

Recommended PHP extension

Swarm greatly benefits from the following PHP extension:

  • Imagick (integrates ImageMagick into PHP to improve Swarm's ability to preview graphics formats that web browsers typically cannot display and create to comment attachment thumbnails)

    • For more information about Imagick, see Image Processing (ImageMagick).

    Installation instructions for Imagick.

    Note

    If you see an error similar to the one below for PS, PS2, EPS, PDF, or XPS files, the imagick policy.xml file needs to be edited. For example, the error for a PDF file will be similar to:

    convert-im6.q16: attempt to perform an operation not allowed by the security policy `PDF' @ error/constitute.c/IsCoderAuthorized/408

    If you see the error above:

    1. Open the ImageMagick policy.xml file for editing:

      2. /etc/ImageMagick-6/policy.xml

    2. Disable lines with the pattern below for the following <filetype>s: PS, PS2, EPS, PDF, or XPS:

      3. <policy domain="coder" rights="none" pattern="<filetype>" />

    3. Save the policy.xml file.

    4. Restart Apache for the changes to become active.

Building PHP from source (not recommended)

If you build PHP from source, the following dependencies are required:

  • openssl
  • mcrypt
  • zlib
  • gettext
  • curl
  • apxs (Apache extension tool)

See the source PHP documentation for details on how to include these modules in your PHP build. There is normally a --with-xxxx option that defines where the dependency is loaded from.

For example for apxs, zlib, and openssl:

./configure --with-apxs2=<path_to_apxs> --with-zlib=<path_to_zlib_library> --with-openssl

Helix Core Server requirements

Note

Helix Core Server 2020.2 and later: any new file being shelved that has the same content as an existing shelved file refers to the existing archive file instead of creating a duplicate archive file. No Helix Core Server or Swarm configuration is required for this feature.

This Helix Core Server feature automatically reduces the space required for the Swarm-managed shelved review changelists. Swarm creates these changelists for its own internal use. Helix Core Server only updates new shelves, it does not retrospectively update your existing shelves.

For more information on the Swarm-managed changelists, see Internal representation.

Tip

Swarm should work with newer versions of the Helix Core Server, but this is not tested.

Swarm works with any supported versions of the Helix Core Server (Standard Maintenance). This release of Swarm is tested against and supports the following Helix Core Server versions:

  • 2023.1
  • 2023.2
  • 2024.1
  • 2024.2

Download Helix Core Server from the Perforce website.

Important

Helix Core Server automated user requirements for Swarm

Swarm requires an automated user with at least admin privileges in the Helix Core Server to enable Swarm to run against the Helix Core Server. The Swarm admin user also needs to be a standard user type. This can be an existing user, or a new user created specifically to support Swarm.

Swarm does take up a license but if you are paying for the licenses you can request a background user for Swarm. This is a normal user that is provided so you can use Swarm without consuming one of your paid licenses. To access the request form for the background user, see Helix Core Request for Background User.

Important

If Helix Authentication Service is configured for your Helix Core Server, the user account running Swarm must not use the Helix Authentication Service.

For more information about setting up Helix Core Server, see Install the server and Upgrade the server in Helix Core Server Administrator Guide.

Swarm and Helix Core Server installation considerations

Before installing Swarm and Helix Core Server you should consider the following:

  • To ensure that all characters, including Unicode characters, are displayed and handled correctly by Swarm, configure your Helix Core Server in Unicode mode. For information on configuring your Helix Core Server in Unicode mode, see Set up and manage Unicode installations in the Helix Core Server Administrator Guide.

  • For a small system, you can run Swarm and Helix Core Server on the same machine.

  • For larger systems, we recommend that Swarm and Helix Core Server are run on separate machines. The machines should be close to each other to maximize network performance.

    • Swarm needs to know about a number of Helix Core Server events to operate correctly. To enable this to happen, Helix Core Server Extensions (recommended) or Helix Core Server Triggers are installed on the Helix Core Server machine and they need to talk to Swarm. In either case, performance can be negatively affected if network lag between Swarm and the Helix Core Server is high.

  • The Swarm and Helix Core Server machines do not need to have the same operating system. For example, Helix Core Server could be on a Windows server and Swarm could be on a RHEL server.

    • Note

    You cannot install Swarm on a Windows machine.

Helix Core Server event notification

Swarm needs to know about a number of Helix Core Server events to operate correctly, this can be done by using Helix Core Server Extensions (recommended) or Helix Core Server Triggers. Swarm installs include the Swarm Helix Core Server extension file and trigger scripts required for Swarm to get the events it needs from your Helix Core Server.

Triggers are still supported, but we recommend you use Helix Core Server Extensions. Helix Core Server Extensions are easier to install and maintain than Triggers.

Use one of the following:

Helix Core Server Extensions dependencies

Warning

If you are using the Swarm Helix Core Server extension, Swarm Helix Core Server Triggers must not be installed.

Helix Core Server Extensions must be installed on your Helix Core Server to complete your Swarm installation. The Swarm Extensions script is included with the Swarm product download and is copied to your Helix Core Server during configuration.

To install the Swarm Helix Core Server extension you need:

A compatible version of Helix Core Server for Helix Core Server Extensions:

  • Linux: Helix Core Server 2021.2 and later. If you are using an earlier version of Helix Core Server, you must use triggers.

  • Windows: Helix Core Server 2021.2 and later. If you are using an earlier version of Helix Core Server, you must use triggers.

Trigger dependencies

Warning

If you are using Swarm Helix Core Server Triggers, the Swarm Helix Core Server extension must not be installed.

Tip

We recommend you use Helix Core Server Extensions, Helix Core Server Extensions are easier to install and maintain than triggers. See Helix Core Server Extensions dependencies.

Swarm triggers must be installed on the Helix Core Server to complete the Swarm installation.

The Swarm triggers require perl 5.08+. To download Perl, see the Perl Download page.

On the Windows platform, we have tested Swarm against Strawberry Perl. There are two Perl modules that are also required which may not be part of a minimal Perl installation.

  • HTTP::Tiny is required to make calls to the Swarm server. If this is not present, then the trigger will attempt to use the command line curl program. This module is standard on Strawberry Perl on Windows, and available as a package with the version of Perl provided on Ubuntu 20.04.

    • IO::Socket::SSL is required if the Swarm server is configured to use SSL and HTTP::Tiny is present. This is provided as standard by Strawberry Perl, and available on Linux.

    Warning

    If the HTTP::Tiny module is not available the triggers require the use of curl. This must be installed for the triggers to function. On RHEL, for example, this can be done using the yum package installer using yum install curl.

Swarm triggers also require the following perl modules to be installed:

  • Windows:
    • JSON is required to exchange data between the browser and the server and is included by default with Strawberry Perl.
  • Ubuntu:
    • JSON is required to exchange data between the browser and the server and must be installed.
    • libjson-perl is required to manipulate JSON formatted data and must be installed.
  • RHEL:
    • JSON is required to exchange data between the browser and the server and must be installed.
    • perl-JSON is required to manipulate JSON formatted data and must be installed.

Swarm package installation on the same machine as P4D

If Swarm is installed from a package on the same machine as P4D, the triggers require the following perl modules to be installed:

  • Ubuntu:
    • Perl 5.08+
    • libio-socket-ssl-perl is required if the Swarm server is configured to use SSL.
    • libjson-perl is required to manipulate JSON formatted data and must be installed.
  • RHEL:
    • Perl 5.08+
    • perl-IO-Socket-SSL is required if the Swarm server is configured to use SSL.
    • perl-JSON is required to manipulate JSON formatted data and must be installed.

Worker dependencies

Swarm uses short-lived workers to process the Swarm queue, new workers are regularly spawned by a recurring task.

One of the following must be installed to ensure new workers are regularly spawned:

For more information about Swarm workers, see Set up a recurring task to spawn workers.

Redis server

Swarm requires Redis to manage its caches. Swarm caches data from the Helix Core Server to improve the performance of common searches in Swarm and to reduce the load on the Helix Core Server.

Redis is included with the Swarm package and Tarball installations:

  • Swarm package: Redis is automatically installed on the Swarm machine and Swarm is automatically configured to use Redis.
  • Swarm Tarball installation: see the Redis installation and configuration section for instructions about installing Redis.
Tip

When Swarm starts it verifies the Redis cache, during this time you cannot log in to Swarm. The time taken to verify the Redis cache depends on the number of users, groups, and projects Swarm has. Start-up time can be improved by persisting the memory cache. You can persist the memory cache by disabling background saves and enabling append saves in the redis-server.conf file, see Redis server configuration file.

Optional:

If you prefer to use your own Redis server, you must edit the Redis server connection configurable in Swarm. For information on setting your Redis server connection, see Use your own Redis server.

Supported Helix Core Visual Client (P4V)

Helix Swarm 2022.3 or later only works with Helix Core Visual Client (P4V) 2021.3 or later.

Supported Helix Authentication Service (HAS)

Helix Swarm works with any supported versions of Helix Authentication Service (Standard Maintenance).

Supported web browsers

The following browsers are supported for use with Swarm:

  • Apple Safari, latest stable version
  • Google Chrome, latest stable version
  • Mozilla Firefox, latest stable version
  • Microsoft Edge, latest stable version

Other web browsers might also work, including prior, development or beta builds of the above web browsers, but are not officially supported.

Note
  • JavaScript and cookies must be enabled in the web browser for Swarm to operate.
  • Mobile web browsers are not supported by Swarm.

Workflow prerequisites

For Swarm 2019.2 and later, the workflow feature is enabled by default.

Tip

If you are upgrading from an earlier version you will need to update your triggers, see Upgrading Swarm.

The workflow feature requires:

Optional dependencies

LibreOffice

Swarm can display previews of office-type documents when LibreOffice is installed on the Swarm server. Installation is not required, but when LibreOffice is installed Swarm automatically detects its presence.

For more information about LibreOffice, see LibreOffice.

Zip

You can download a ZIP archive of files/folders when the zip command-line tool is installed on the Swarm server.

For more information about installing and configuring Zip, see Zip archive.

Helix Authentication Service SSO

Swarm support for SSO using Helix Authentication Service with Helix Core Server requires Helix Core Server 2019.1 or later

For more information about configuring Swarm to authenticate with Helix Authentication Service, see Single Sign-On PHP configuration.

Swarm email notifications

Sendmail or an equivalent is required to use Swarm email notifications. By default, the configuration in php.ini relies on SendMail being installed. For more information about configuring email for Swarm, see Email configuration.

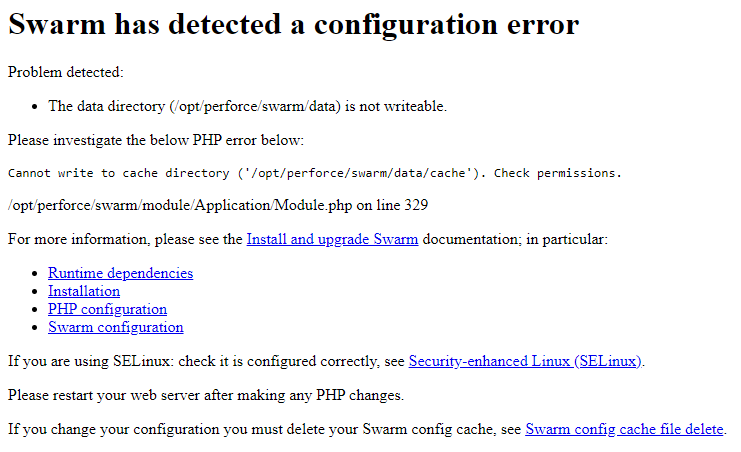

Security-enhanced Linux (SELinux)

Swarm supports SELinux on RHEL and Amazon Linux 2. SELinux is an advanced access control mechanism that improves security for Linux distributions.

SELinux operates in one of three modes:

  • enforcing: this mode blocks and logs any actions that do not match the defined security policy.
  • permissive: this mode logs actions that do not match the defined security policy but these actions are not blocked.
  • disabled: in this mode SELinux is off, actions are not blocked and are not logged.
Tip

To check the mode SELinux is operating in, view the /etc/selinux/config file with vi or a similar editor:

root $ vi /etc/selinux/config

For instructions on configuring SELinux:

If you see a Swarm configuration error similar to the error shown below, SELinux has not been correctly configured for Swarm. Check you have configured SELinux on REHL or Amazon Linux 2 correctly.

Choose the installation process

Once you have reviewed the Runtime dependencies and know that you can satisfy them, there are a number of ways to install Swarm.

Note

We recommend the package installation method to install Swarm whenever possible, see Install and configure Swarm from a package (recommended). Package installs ensure that all of the Swarm dependencies are installed and this is the easiest way to install Swarm. For a list of recommended operating systems for Swarm, see Recommended operating systems.

Choose one of the following installation methods (we recommend the package installation method whenever possible):
