IlvSpinBoxLFHandler Class Reference

Object Look-and-Feel class. More...

#include <ilviews/gadgets/spinbox.h>

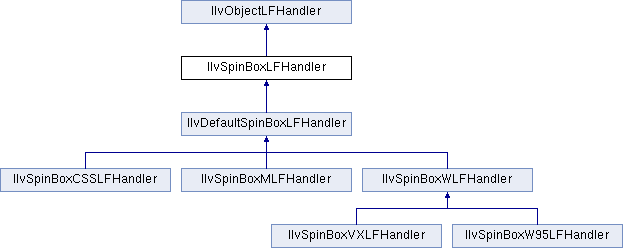

Inheritance diagram for IlvSpinBoxLFHandler:

Public Member Functions
	IlvSpinBoxLFHandler (IlvLookFeelHandler *lfh)
	Constructor. More...
virtual void	computeArrowRects (const IlvSpinBox *spin, IlvRect &decrArrow, IlvRect &incrArrow, IlvRect &internal, const IlvTransformer *t) const =0
	Is called to compute the bounding boxes of spin box items. More...
virtual void	drawArrow (const IlvSpinBox *spin, const IlvArrowButton *arrow, IlvPort *dst, const IlvTransformer *t, const IlvRegion *clip) const =0
	Is called to draw the arrow of a spin box. More...
virtual void	drawBackground (const IlvSpinBox *spin, IlvPort *dst, const IlvTransformer *t, const IlvRegion *clip) const =0
	Is called to draw the background of a spin box. More...
virtual void	drawContents (const IlvSpinBox *spin, IlvPort *dst, const IlvTransformer *t, const IlvRegion *clip) const =0
	Is called to draw the contents of a spin box. More...
virtual void	drawFrame (const IlvSpinBox *spin, IlvPort *dst, const IlvTransformer *t, const IlvRegion *clip) const =0
	Is called to draw the frame of a spin box. More...
virtual IlBoolean	handleEvent (IlvSpinBox *spin, IlvEvent &event) const =0
	Is called to handle the events of a spin box. More...

Detailed Description

Object Look-and-Feel class.

Library: ilvadvgdt

The base class for the object look-and-feel handlers of the spin box.

Constructor & Destructor Documentation

IlvSpinBoxLFHandler()

IlvSpinBoxLFHandler::IlvSpinBoxLFHandler

(

IlvLookFeelHandler *

lfh

)

Constructor.

Initializes a new IlvSpinBoxLFHandler instance.

Parameters

lfh	The look-and-feel handler which this handler will be associated to.

Member Function Documentation

computeArrowRects()

virtual void IlvSpinBoxLFHandler::computeArrowRects ( const IlvSpinBox *  spin, IlvRect &  decrArrow, IlvRect &  incrArrow, IlvRect &  internal, const IlvTransformer *  t  ) const

pure virtual

Is called to compute the bounding boxes of spin box items.

Parameters

spin	The spin box.
decrArrow	The returned bounding box of the decrement arrow.
incrArrow	The returned bounding box of the increment arrow.
internal	The internal bounding box where to draw the objects of the spin box.
t	The transformer.

Implemented in IlvSpinBoxWLFHandler, IlvSpinBoxW95LFHandler, IlvSpinBoxVXLFHandler, IlvSpinBoxMLFHandler, and IlvSpinBoxCSSLFHandler.

drawArrow()

virtual void IlvSpinBoxLFHandler::drawArrow ( const IlvSpinBox *  spin, const IlvArrowButton *  arrow, IlvPort *  dst, const IlvTransformer *  t, const IlvRegion *  clip  ) const

pure virtual

Is called to draw the arrow of a spin box.

Parameters

spin	The spin box.
arrow	The arrow button.
dst	The destination port.
t	The transformer.
clip	The clipping region.

Implemented in IlvDefaultSpinBoxLFHandler.

drawBackground()

virtual void IlvSpinBoxLFHandler::drawBackground ( const IlvSpinBox *  spin, IlvPort *  dst, const IlvTransformer *  t, const IlvRegion *  clip  ) const

pure virtual

Is called to draw the background of a spin box.

Parameters

spin	The spin box.
dst	The destination port.
t	The transformer.
clip	The clipping region.

Implemented in IlvDefaultSpinBoxLFHandler.

drawContents()

virtual void IlvSpinBoxLFHandler::drawContents ( const IlvSpinBox *  spin, IlvPort *  dst, const IlvTransformer *  t, const IlvRegion *  clip  ) const

pure virtual

Is called to draw the contents of a spin box.

Parameters

spin	The spin box.
dst	The destination port.
t	The transformer.
clip	The clipping region.

Implemented in IlvDefaultSpinBoxLFHandler.

drawFrame()

virtual void IlvSpinBoxLFHandler::drawFrame ( const IlvSpinBox *  spin, IlvPort *  dst, const IlvTransformer *  t, const IlvRegion *  clip  ) const

pure virtual

Is called to draw the frame of a spin box.

Parameters

spin	The spin box.
dst	The destination port.
t	The transformer.
clip	The clipping region.

Implemented in IlvSpinBoxWLFHandler, IlvSpinBoxW95LFHandler, IlvSpinBoxVXLFHandler, IlvSpinBoxMLFHandler, and IlvSpinBoxCSSLFHandler.

handleEvent()

virtual IlBoolean IlvSpinBoxLFHandler::handleEvent ( IlvSpinBox *  spin, IlvEvent &  event  ) const

pure virtual

Is called to handle the events of a spin box.

Parameters

spin	The spin box.
event	The event to handle.

Returns

IlTrue if the event has been consumed.

Implemented in IlvDefaultSpinBoxLFHandler.
