Gadgets Package API Reference Guide
Product Documentation:
Views Documentation Home
List of all members | Public Member Functions
IlvPasswordTextField Class Reference

Empty brief comment. More...

#include <ilviews/gadgets/passwded.h>

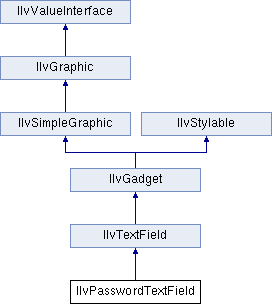

Inheritance diagram for IlvPasswordTextField:
IlvTextField IlvGadget IlvSimpleGraphic IlvStylable IlvGraphic IlvValueInterface

Public Member Functions

 IlvPasswordTextField (IlvDisplay *display, const char *label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Verbose: More...

 IlvPasswordTextField (IlvDisplay *display, const IlvPoint &point, const char *label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Verbose: More...

void changeMaskChar (char character, IlBoolean redraw=IlTrue)
 Sets the character that will replace the letters of the password. More...

char getMaskChar () const
 Returns the character that will replace the letters of the password. More...

virtual const char * getMessage () const
 Returns the message displayed by this text field. More...

void setMaskChar (char character)
 Sets the character that will replace the letters of the password. More...

- Public Member Functions inherited from IlvTextField
 IlvTextField (IlvDisplay *display, const char *label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Constructor. More...

 IlvTextField (IlvDisplay *display, const IlvPoint &point, const char *label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
 Constructor. More...

void addChangeCallback (IlSymbol *callbackName)
 Adds a named Label Changed callback. More...

void addChangeCallback (IlSymbol *callbackName, IlAny arg)
 Adds a named Label Changed callback. More...

void addChangeCallback (IlvGraphicCallback callback)
 Adds a Label Changed callback. More...

void addChangeCallback (IlvGraphicCallback callback, IlAny arg)
 Adds a Label Changed callback. More...

virtual const char * check (IlUShort character)
 Is called by the interactor for each key down event that corresponds to a regular character. More...

void ensureVisible (IlShort position, const IlvTransformer *t=0)
 Ensures that the character located at the specified position is visible. More...

IlvPosition getAlignment () const
 Returns the alignment of the text field. More...

IlvGraphicCallback getChangeCallback () const
 Returns a pointer to the first unnamed callback in the Label Changed callback list. More...

IlSymbolgetChangeCallbackName () const
 Returns the name of the first named callback in the Label Changed callback list. More...

IlBoolean getChangeFocusOnValidation () const
 Indicates whether the text field moves the keyboard focus to the next gadget once validated. More...

IlShort getCursorPosition () const
 Returns the cursor position. More...

IlShort getEndSelection () const
 Returns the index of the last selected character. More...

IlFloat getFloatValue () const
 Converts the text field contents to a floating point value and returns the result of the conversion. More...

IlInt getIntValue () const
 Converts the text field contents to an integer and returns the result of the conversion. More...

const char * getLabel () const
 Returns the label displayed by the text field. More...

IlShort getMaxChar () const
 Returns the maximum number of characters that the user can type in the text field. More...

IlShort getStartSelection () const
 Returns the index of the first selected character. More...

IlShort getTextPosition () const
 Returns the index of the first visible character of the text field. More...

virtual IlBoolean handleControl (IlUShort character)
 Is called by the interactor to handle control keys. More...

IlBoolean isCursorShown () const
 Indicates whether the cursor is visible. More...

IlBoolean isEditable () const
 Indicates whether the text field can be edited. More...

virtual void labelChanged ()
 Is called by the interactor whenever the label of the text field changes. More...

IlShort pointToPosition (const IlvPoint &point, const IlvTransformer *t=0) const
 Returns the index of the character located at the specified point. More...

virtual void removeSelection ()
 Removes the selected label from the text field. More...

void setAlignment (IlvPosition alignment)
 Sets the alignment of the text field. More...

void setChangeCallback (IlSymbol *callbackName)
 Sets a named Label Changed callback. More...

void setChangeCallback (IlSymbol *callbackName, IlAny arg)
 Sets a named Label Changed callback. More...

void setChangeCallback (IlvGraphicCallback callback)
 Sets a Label Changed callback. More...

void setChangeCallback (IlvGraphicCallback callback, IlAny arg)
 Sets a Label Changed callback. More...

void setChangeFocusOnValidation (IlBoolean value)
 Specifies whether the text field should move the keyboard focus to the next gadget once validated. More...

void setCursorPosition (IlShort position)
 Sets the cursor position. More...

void setEditable (IlBoolean value)
 Specifies whether the text field can be edited. More...

void setEndSelection (IlShort position)
 Sets the index of the last selected character. More...

virtual void setLabel (const char *label, IlBoolean redraw=IlFalse)
 Sets the label of the text field. More...

void setMaxChar (IlShort count)
 Sets the maximum number of characters that the user can type in the text field. More...

void setSelection (IlShort start, IlShort end)
 Selects a portion of the text field content. More...

void setStartSelection (IlShort position)
 Sets the index of the first selected character. More...

void setTextPosition (IlShort position)
 Sets the index of the first visible character of the text field. More...

void setValue (IlFloat value, const char *format=0, IlBoolean redraw=IlFalse)
 Sets the text field label to a floating-point value. More...

void setValue (IlInt value, IlBoolean redraw=IlFalse)
 Sets the text field label to an integer value. More...

void showCursor (IlBoolean value, IlBoolean redraw=IlFalse)
 Specifies whether the cursor should be visible. More...

virtual void validate ()
 Is called by the interactor when the user presses the Return or the Enter key. More...


Detailed Description

Empty brief comment.

Library: ilvgadgt

This class is a specialized text field gadget that allows the user to enter a password by displaying the same special character instead of the characters the user types.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvTextField and adds the following ones:

Name Type Equivalent methods
maskChar String getMaskChar(), changeMaskChar()

Constructor & Destructor Documentation

◆ IlvPasswordTextField() [1/2]

IlvPasswordTextField::IlvPasswordTextField ( IlvDisplay display,
const char *  label,
const IlvRect rect,
IlUShort  thickness = IlvDefaultGadgetThickness,
IlvPalette palette = 0
)

Verbose:

Initializes a new instance of the IlvPasswordTextField class.

Parameters
displayThe display connection.
labelThe label of the password field.
rectThe size and position of the password field.
thicknessThe thickness of the password field.
paletteThe palette used by the password field.

◆ IlvPasswordTextField() [2/2]

IlvPasswordTextField::IlvPasswordTextField ( IlvDisplay display,
const IlvPoint point,
const char *  label,
IlUShort  thickness = IlvDefaultGadgetThickness,
IlvPalette palette = 0
)

Verbose:

Initializes a new instance of the IlvPasswordTextField class. The size of the object is computed by using the label parameter. If you want to specify the size, use the other constructor.

Parameters
displayThe display connection.
pointThe position of the password field.
labelThe label of the password field.
thicknessThe thickness of the password field.
paletteThe palette used by the password field.

Member Function Documentation

◆ changeMaskChar()

void IlvPasswordTextField::changeMaskChar ( char  character,
IlBoolean  redraw = IlTrue
)

Sets the character that will replace the letters of the password.

This method recomputes the label currently being displayed.

Parameters
characterThe new mask character.
redrawA Boolean specifying whether the gadget should be redrawn.
See also
getMaskChar, setMaskChar

◆ getMaskChar()

char IlvPasswordTextField::getMaskChar ( ) const

Returns the character that will replace the letters of the password.

The default value is ‘*’.

Returns
the character that will replace the letters of the password.
See also
setMaskChar

◆ getMessage()

virtual const char* IlvPasswordTextField::getMessage ( ) const
virtual

Returns the message displayed by this text field.

If the text field cannot be edited, the message database is used to find the translation of the text field contents to the current language. If the text field can be edited, the method returns the result of IlvTextField::getLabel().

Returns
The message displayed by this text field.
See also
getLabel(), IlvMessageDatabase, IlvDisplay::getCurrentLanguage().

Reimplemented from IlvTextField.

◆ setMaskChar()

void IlvPasswordTextField::setMaskChar ( char  character)

Sets the character that will replace the letters of the password.

The default value is ‘*’. This method doesn't recompute the label currently being displayed, which is done by the changeMaskChar method.

Parameters
characterThe new mask character.
See also
getMaskChar, changeMaskChar
