IliTreeClassesGadget Class Reference

Gadget class. More...

#include <ilviews/dataccess/gadgets/repview.h>

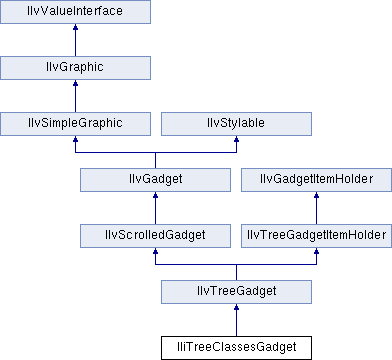

Inheritance diagram for IliTreeClassesGadget:

Public Member Functions
	IliTreeClassesGadget (IlvDisplay *display, const IlvRect &rect, IlBoolean enableExpand=IlFalse, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	Initializes a tree gadget to display a list of classes with their data if the parameter enableExpand is IlTrue. More...
virtual void	build ()
	Builds the tree, then displays it. More...
void	enableExpand (IlBoolean enable)
	Enables or disables the display of data for the classes. More...
virtual char **	getClassesList (IlInt &count)
	Returns the class names list. More...
IliGetClassesListCallback	getClassesListCallback () const
	Returns the callback used to get the list of classes. More...
IlAny	getClassesListCallbackData () const
	Returns the user data used to get the list of classes. More...
virtual char **	getDataList (const char *cl, IlInt &count)
	Returns the list of data for a class. More...
IliGetDataListCallback	getDataListCallback () const
	Returns the callback used to get the list of data for a class. More...
IlAny	getDataListCallbackData () const
	Returns the user data used to get the list of data for a class. More...
IliTreeEventCallback	getDragDropCallback ()
	Returns the callback used to handle the drag-and-drop event. More...
IlAny	getDragDropCallbackData ()
	Returns the user data used to handle the drag-and-drop event. More...
IlBoolean	isExpandEnabled () const
	Returns the display status of data for the classes. More...
void	setClassesListCallback (IliGetClassesListCallback cb, IlAny any=0)
	Sets the callback used to get the list of classes. More...
void	setDataListCallback (IliGetDataListCallback cb, IlAny any=0)
	Sets the callback used to get the list of data for a class. More...
void	setDragDropCallback (IliTreeEventCallback cb, IlAny any=0)
	Sets the callback to handle the drag-and-drop event. More...

Detailed Description

Gadget class.

Library: dbgadget

The IliTreeClassesGadget class defines a tree gadget that displays the list of classes. For each class, the tree gadget can display the list of data. This class is a generic class. For example, it can be used to display a list of SQL tables (classes) and for each table, the list of columns with their type (data).

See also

IliRepositoryService.

Constructor & Destructor Documentation

IliTreeClassesGadget()

IliTreeClassesGadget::IliTreeClassesGadget	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlBoolean	enableExpand = IlFalse,
		IlUShort	thickness = IlvDefaultGadgetThickness,
		IlvPalette *	palette = 0
	)

Initializes a tree gadget to display a list of classes with their data if the parameter enableExpand is IlTrue.

Parameters

display	The display.
rect	The location.
enableExpand	The enable-expand flag.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

build()

virtual void IliTreeClassesGadget::build ( )

virtual

Builds the tree, then displays it.

If your list of classes or the data of a class changes, you must call this function to rebuild the tree. This function calls the function getClassesList to build the list of classes.

enableExpand()

void IliTreeClassesGadget::enableExpand

(

IlBoolean

enable

)

Enables or disables the display of data for the classes.

Parameters

enable

The display is enabled if the value is IlTrue.

getClassesList()

virtual char** IliTreeClassesGadget::getClassesList ( IlInt &  count )

virtual

Returns the class names list.

By default, this function calls the defined callback if there is one.

Parameters

count

Contains the number of classes.

Returns

The list of class names.

getClassesListCallback()

IliGetClassesListCallback IliTreeClassesGadget::getClassesListCallback

(

)

const

Returns the callback used to get the list of classes.

Returns

The callback.

getClassesListCallbackData()

IlAny IliTreeClassesGadget::getClassesListCallbackData

(

)

const

Returns the user data used to get the list of classes.

Returns

The user data.

getDataList()

virtual char** IliTreeClassesGadget::getDataList ( const char *  cl, IlInt &  count  )

virtual

Returns the list of data for a class.

By default, this function calls the defined callback if there is one. This function is called when you expand a class for the first time.

Parameters

cl	The class name
count	Contains the number of data.

Returns

The list of data.

getDataListCallback()

IliGetDataListCallback IliTreeClassesGadget::getDataListCallback

(

)

const

Returns the callback used to get the list of data for a class.

Returns

The callback.

getDataListCallbackData()

IlAny IliTreeClassesGadget::getDataListCallbackData

(

)

const

Returns the user data used to get the list of data for a class.

Returns

The user data.

getDragDropCallback()

IliTreeEventCallback IliTreeClassesGadget::getDragDropCallback

(

)

Returns the callback used to handle the drag-and-drop event.

Returns

The callback.

getDragDropCallbackData()

IlAny IliTreeClassesGadget::getDragDropCallbackData

(

)

Returns the user data used to handle the drag-and-drop event.

Returns

The user data.

isExpandEnabled()

IlBoolean IliTreeClassesGadget::isExpandEnabled

(

)

const

Returns the display status of data for the classes.

The default value is IlTrue.

Returns

The display status.

setClassesListCallback()

void IliTreeClassesGadget::setClassesListCallback	(	IliGetClassesListCallback	cb,
		IlAny	any = 0
	)

Sets the callback used to get the list of classes.

Parameters

cb	The callback.
any	The user data.

setDataListCallback()

void IliTreeClassesGadget::setDataListCallback	(	IliGetDataListCallback	cb,
		IlAny	any = 0
	)

Sets the callback used to get the list of data for a class.

Parameters

cb	The callback.
any	The user data.

setDragDropCallback()

void IliTreeClassesGadget::setDragDropCallback	(	IliTreeEventCallback	cb,
		IlAny	any = 0
	)

Sets the callback to handle the drag-and-drop event.

Parameters

cb	The callback.
any	The user data.
