Field gadget class. More...

#include <ilviews/dataccess/gadgets/toggsel.h>

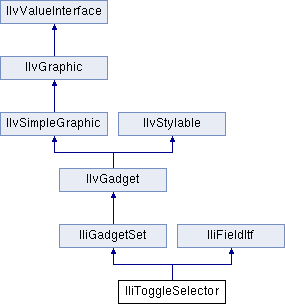

Inheritance diagram for IliToggleSelector:

Public Member Functions
	IliToggleSelector (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	This constructor creates a toggle selector gadget. Initially, it is empty. More...

IlBoolean	appendLabel (const char *label)
	Appends a new toggle after all existing toggles. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

virtual void	f_setForeignDisplayColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *, IlBoolean=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setLabel (const char *)
	Sets the label of the field gadget. More...

virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...

virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...

const char *	getLabel (IlInt index) const
	Returns a label. More...

IlInt	getLabelIndex (const char *label, IlInt from=0) const
	Returns a label index. More...

const char const	getLabels (IlInt &count) const
	Returns the toggle labels. More...

IlInt	getLabelsCount () const
	Returns the number of toggles in the toggle selector. More...

IlBoolean	insertLabel (IlInt index, const char *label)
	Inserts a new toggle. More...

IlBoolean	removeLabel (IlInt index)
	Removes a toggle. More...

virtual IlBoolean	setFocusObject (IlvGadget *)
	Sets the focus gadget. More...

IlBoolean	setLabel (IlInt index, const char *label)
	Sets a label. More...

void	setLabels (const char const strings, IlInt count)
	Sets labels. More...

void	setSelected (IlInt which)
	Selects a toggle. More...

IlInt	whichSelected () const
	Returns the selected toggle position. More...

Public Member Functions inherited from IliGadgetSet
	IliGadgetSet (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes an empty gadget set. More...

virtual void	addObject (IlvGadget *obj, IlBoolean visible=IlTrue)
	Adds a gadget to the gadget set. More...

void	disableToolTip ()
	Disables tooltip display.

void	enableToolTip ()
	Enables tooltip display. More...

IlUInt	getCardinal () const
	Returns the number of gadgets in the gadget set. More...

IlvGadget *	getFocusObject () const
	Returns the focus gadget of the gadget set or `0` if no focus gadget is defined. More...

IlInt	getIndex (IlvGadget *g) const
	Returns the position of a gadget in the gadget set. More...

IlvGadget *	getObject (const char *name) const
	Returns a gadget. More...

IlvGadget *	getObject (IlUInt index) const
	Returns a gadget. More...

IlBoolean	isObjectSensitive (IlvGadget *obj) const
	Returns `IlTrue` if gadget is sensitive to user interaction. More...

IlBoolean	isVisible (const IlvGadget *) const
	Returns `IlTrue` if the gadget parameter belongs to the gadget set and if it is visible. More...

virtual void	objectReceivedEvent (IlvGadget *obj)
	Called when a gadget received an event. More...

virtual void	removeObject (IlvGadget *obj, IlBoolean deleteIt=IlTrue)
	Removes a gadget from the gadget set. More...

void	setObjectSensitive (IlvGadget *obj, IlBoolean active)
	Enables/disables user interaction. More...

void	setVisible (IlvGadget *obj, IlBoolean visible)
	Shows/Hides a gadget. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment align)
	Sets the text alignment of the field. More...

virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setFormat (const IliFormat &fmt)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean flag)
	Sets the input-modified attribute of the field. More...

virtual void	f_setMask (const IliInputMask &msk)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort vmax)
	Sets the maximum length allowed for the external representation of the field. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Additional Inherited Members
Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Detailed Description

Field gadget class.

Library: dbgadget

The IliToggleSelector class defines a gadget that contains a set of toggle gadgets. Each toggle gadget corresponds to a row of the foreign table. A maximum of one toggle can be checked. The value of the toggle selector is closely related to which toggle is checked. A IliToggleSelector gadget inherits the following properties from the IliFieldItf class:

a value (which may be connected to a data source),
a foreign table,
a column of the foreign table known as the value column,
a column of the foreign table known as the display column,
a label (see IliFieldItf::f_getLabel() and IliFieldItf::f_setLabel()).

When a toggle selector receives a new value, it checks the foreign table to find a row that contains this value in its value column. If such a row is found, the toggle selector checks the toggle that has the value of the display column of this row, as a label. Any other previously checked toggle is unchecked. Therefore, a toggle selector does not display its actual value. Instead, it displays another value that is derived from the original value, through the foreign table. The foreign table serves as a value converter. In addition, if the user edits the value displayed by the toggle selector, the edited value is converted back in a reversal of the procedure described above. A row that contains this value in its display column is searched for in the foreign table. If such a row is found, the value of the combo box changes to the value contained in the value column of the row. As an alternative to using a foreign table, it is possible to alter the toggles and their labels directly, using one of the member functions, setLabels(), setLabel(), insertLabel(), appendLabel(), or removeLabel(). Note that these member functions may not be used in conjunction with a foreign table. When the toggle selector has no foreign table, its value is an integer ranging from 0 to one less than the number of toggles.

See also: IliTable, IlvToggle.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclasses \c IliGadgetSet and \c IliFieldItf, and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`selected`	Int	`whichSelected()`, `setSelected()`

Constructor & Destructor Documentation

◆ IliToggleSelector()

IliToggleSelector::IliToggleSelector	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

This constructor creates a toggle selector gadget. Initially, it is empty.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ appendLabel()

IlBoolean IliToggleSelector::appendLabel ( const char * label )

Appends a new toggle after all existing toggles.

Parameters

label The label. It is copied.

Returns: IlTrue if successful.

◆ f_externalToInternal()

virtual IlBoolean IliToggleSelector::f_externalToInternal ( )

virtual

Updates the internal value of a field according to its current external representation.

Returns: IlTrue if successful and IlFalse otherwise. Note that this may fail due to the fact that not all external representations can be converted to a value object. For example, this is especially true for text fields that are used to edit numeric or date values.

Reimplemented from IliFieldItf.

◆ f_getLabel()

virtual const char* IliToggleSelector::f_getLabel ( ) const

virtual

Returns the label displayed by the field gadget.

Returns: The label.

Reimplemented from IliFieldItf.

◆ f_getValue()

virtual const IliValue& IliToggleSelector::f_getValue ( IlBoolean internal = IlFalse ) const

virtual

Returns the value of the field.

Parameters

internal If IlTrue, the returned value does not necessarily reflect the state of the field as the user sees it.

Returns: The value.

Reimplemented from IliFieldItf.

◆ f_hasLabel()

virtual IlBoolean IliToggleSelector::f_hasLabel ( ) const

virtual

Returns IlTrue if the field gadget can display a label.

Returns: IlTrue if the field gadget can display a label.

Reimplemented from IliFieldItf.

◆ f_isConsistent()

virtual IlBoolean IliToggleSelector::f_isConsistent ( ) const

virtual

Returns IlTrue if the internal value of the field corresponds to its current external representation.

A return value of IlFalse means that the external representation of the field has been edited by the end-user since the last time one of the member functions, f_setValue(), f_externalToInternal(), f_internalToExternal() or f_complete() was successfully called.

Returns: IlTrue if the internal value of the field corresponds to its current external representation.

Reimplemented from IliFieldItf.

◆ f_isReadOnly()

virtual IlBoolean IliToggleSelector::f_isReadOnly ( ) const

virtual

Returns IlTrue if the field is read-only.

Returns: IlTrue if the field is read-only.

Reimplemented from IliFieldItf.

◆ f_setForeignDisplayColumnName()

virtual void IliToggleSelector::f_setForeignDisplayColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setForeignTable()

virtual void IliToggleSelector::f_setForeignTable	(	IliTable *	tbl,
		IlBoolean	owner = `IlFalse`
	)

virtual

Sets the foreign table of the field.

Parameters

tbl	The table.
owner	Determines whether the field will own the table.

Reimplemented from IliFieldItf.

◆ f_setForeignValueColumnName()

virtual void IliToggleSelector::f_setForeignValueColumnName ( const char * name )

virtual

Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations.

Parameters

name	The column name.

Reimplemented from IliFieldItf.

◆ f_setLabel()

virtual void IliToggleSelector::f_setLabel ( const char * label )

virtual

Sets the label of the field gadget.

Parameters

label The label.

Reimplemented from IliFieldItf.

◆ f_setReadOnly()

virtual void IliToggleSelector::f_setReadOnly ( IlBoolean flag )

virtual

Sets the read-only property for the field.

Parameters

flag	The read-only flag.

Reimplemented from IliFieldItf.

◆ f_setValue()

virtual IlBoolean IliToggleSelector::f_setValue	(	const IliValue &	val,
		IlBoolean	internal = `IlFalse`
	)

virtual

Sets the value of the field.

Parameters

val	The value.
internal	If `IlFalse`, then the external representation and the display of the field are automatically updated.

Returns: IlTrue if successful, and IlFalse otherwise.

Reimplemented from IliFieldItf.

◆ getLabel()

const char* IliToggleSelector::getLabel ( IlInt index ) const

Returns a label.

Parameters

index The label position.

Returns: The label of the toggle at position index. This member function returns 0 if index is out of bounds.

◆ getLabelIndex()

IlInt IliToggleSelector::getLabelIndex	(	const char *	label,
		IlInt	from = `0`
	)		const

Returns a label index.

Parameters

label	The label.
from	The search start position.

Returns: The position of the first toggle with the given label. The search starts at position from. This member function returns -1 if no such toggle is found.

◆ getLabels()

const char* const* IliToggleSelector::getLabels ( IlInt & count ) const

Returns the toggle labels.

Parameters

count The label count.

Returns: An array of character strings containing the labels of all the toggles in the toggle selector. The number of strings in this array is returned through the count parameter. The returned array should be used as soon as possible, since it may be overwritten without warning by a later call to an API function.

◆ getLabelsCount()

IlInt IliToggleSelector::getLabelsCount ( ) const

Returns the number of toggles in the toggle selector.

Returns: The count.

◆ insertLabel()

IlBoolean IliToggleSelector::insertLabel	(	IlInt	index,
		const char *	label
	)

Inserts a new toggle.

Parameters

index	The insertion position.
label	The label is copied.

Returns: IlTrue if successful.

◆ removeLabel()

IlBoolean IliToggleSelector::removeLabel ( IlInt index )

Removes a toggle.

Parameters

index The label position.

Returns: IlTrue if successful.

◆ setFocusObject()

virtual IlBoolean IliToggleSelector::setFocusObject ( IlvGadget * obj )

virtual

Sets the focus gadget.

Parameters

obj	The gadget.

Reimplemented from IliGadgetSet.

◆ setLabel()

IlBoolean IliToggleSelector::setLabel	(	IlInt	index,
		const char *	label
	)

Sets a label.

Changes the label of the toggle at position index to a copy of label. This member function returns IlTrue if successful.

Parameters

index	The label position.
label	The label.

◆ setLabels()

void IliToggleSelector::setLabels	(	const char const	strings,
		IlInt	count
	)

Sets labels.

Replaces the current set of toggles with a new set containing count new toggles. The labels of the new toggles are given by the strings parameter, which must be an array of count character strings. No pointer is kept to the strings array or to any of the strings it contains.

Parameters

strings	The labels.
count	The label count.

◆ setSelected()

void IliToggleSelector::setSelected ( IlInt which )

Selects a toggle.

Checks the toggle at position which, and unchecks all other toggles. If which equals -1, all toggles are unchecked.

Parameters

which The toggle position.

◆ whichSelected()

IlInt IliToggleSelector::whichSelected ( ) const

Returns the selected toggle position.

Returns: The position of the currently checked toggle. This member function returns -1 if all toggles are unchecked.

Public Member Functions

Additional Inherited Members

Detailed Description

Data accessors

Constructor & Destructor Documentation

◆ IliToggleSelector()

Member Function Documentation

◆ appendLabel()

◆ f_externalToInternal()

◆ f_getLabel()

◆ f_getValue()

◆ f_hasLabel()

◆ f_isConsistent()

◆ f_isReadOnly()

◆ f_setForeignDisplayColumnName()

◆ f_setForeignTable()

◆ f_setForeignValueColumnName()

◆ f_setLabel()

◆ f_setReadOnly()

◆ f_setValue()

◆ getLabel()

◆ getLabelIndex()

◆ getLabels()

◆ getLabelsCount()

◆ insertLabel()

◆ removeLabel()

◆ setFocusObject()

◆ setLabel()

◆ setLabels()

◆ setSelected()

◆ whichSelected()
