IliSimpleToggle Class Reference

Field gadget class. More...

#include <ilviews/dataccess/gadgets/dbsimtog.h>

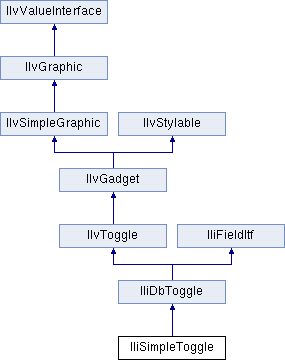

Inheritance diagram for IliSimpleToggle:

Public Member Functions
	IliSimpleToggle (IlvDisplay *display, const IlvPoint &at)
	Initializes a toggle. More...
virtual IlBoolean	f_isConsistent () const
	Returns IlTrue if the internal value of the field corresponds to its current external representation. More...
Public Member Functions inherited from IliDbToggle
	IliDbToggle (IlvDisplay *display, const char *label, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	This constructor initializes a new IliDbToggle instance. More...
	IliDbToggle (IlvDisplay *display, const IlvPoint &at, const char *label, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	This constructor initializes a new IliDbToggle instance. More...
	IliDbToggle (IlvDisplay *display, const IlvPoint &at, IlvBitmap *bitmap, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	This constructor initializes a new IliDbToggle instance. More...
	IliDbToggle (IlvDisplay *display, IlvBitmap *bitmap, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette *palette=0)
	This constructor initializes a new IliDbToggle instance. More...
virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...
virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...
virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...
virtual const IliValue &	f_getValue (IlBoolean=IlFalse) const
	Returns the value of the field. More...
virtual IlBoolean	f_hasLabel () const
	Returns IlTrue if the field gadget can display a label. More...
virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.
virtual IlBoolean	f_isReadOnly () const
	Returns IlTrue if the field is read-only. More...
virtual void	f_setForeignDisplayColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...
virtual void	f_setForeignTable (IliTable *, IlBoolean=IlFalse)
	Sets the foreign table of the field. More...
virtual void	f_setForeignValueColumnName (const char *)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...
virtual void	f_setLabel (const char *)
	Sets the label of the field gadget. More...
virtual void	f_setReadOnly (IlBoolean)
	Sets the read-only property for the field. More...
virtual IlBoolean	f_setValue (const IliValue &, IlBoolean=IlFalse)
	Sets the value of the field. More...
virtual IlBoolean	is3StatesMode () const
	Returns IlTrue if the IliDbToggle handles the 0 value in addition to the two Boolean values. More...
virtual void	set3StatesMode (IlBoolean flag)
	Enables/disables the handling of 0 values. More...
Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the applyReferences() member function, of the gadget class, is called. More...
virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...
virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...
IliDataSource *	f_getDataSource ()
	Returns the data source. More...
const IliDataSource *	f_getDataSource () const
	Returns the data source. More...
const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...
const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...
virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...
virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...
const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...
const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...
IliTable *	f_getForeignTable ()
	Returns the foreign table. More...
const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...
const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...
virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...
IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...
const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...
IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...
const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...
virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...
virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...
const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...
IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...
virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...
virtual IlBoolean	f_isAutoFitPullDown () const
	Returns IlTrue if the width of the pull-down menu is automatically computed so that its contents fit. More...
IlBoolean	f_isCompletionEnabled () const
	Returns IlTrue if completion is enabled. More...
IlBoolean	f_isConnectedToDataSource () const
	Returns IlTrue if the field is currently connected to a column of a data source. More...
IlBoolean	f_isConstrained () const
	Returns IlTrue if the foreign table limits the set of possible internal values for this field. More...
IlBoolean	f_isDataSourceOwner () const
	Returns IlTrue if the field owns the data source. More...
IlBoolean	f_isForeignTableOwner () const
	Returns IlTrue if the field owns its foreign table. More...
virtual IlBoolean	f_isInputModified () const
	Returns IlTrue if the external representation has been edited by the end-user. More...
virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns IlTrue if the modified states are ignored when the f_setValue() function is called. More...
IlBoolean	f_isUsingTableProperties () const
	Returns IlTrue if the field uses table properties. More...
void	f_killFocus ()
	Should be called when the gadget loses the focus.
virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.
virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.
virtual void	f_setAlignment (IlvAlignment align)
	Sets the text alignment of the field. More...
virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...
virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...
virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...
virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...
void	f_setFocus ()
	Should be called when the gadget receives the focus.
virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...
virtual void	f_setFormat (const IliFormat &fmt)
	Sets the format used to derive the external representation of the field from its internal value. More...
virtual void	f_setInputModified (IlBoolean flag)
	Sets the input-modified attribute of the field. More...
virtual void	f_setMask (const IliInputMask &msk)
	Sets the input mask. More...
virtual void	f_setMaxLength (IlShort vmax)
	Sets the maximum length allowed for the external representation of the field. More...
virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...
virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...
virtual IlBoolean	f_supportsTableProperties () const
	Returns IlTrue if this gadget supports table properties. More...
virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Additional Inherited Members
Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from IlFalse to IlTrue. More...
Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...
void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...
void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...
void	f_subscribe ()
	Should be called after the setHolder() member function of the gadget class.
void	f_unsubscribe ()
	Should be called before the setHolder() member function of the gadget class. More...
void	f_write (IlvOutputFile &output) const
	Should be called by the write() member function of the gadget class. More...

Detailed Description

Field gadget class.

Library: dbgadget

The IliSimpleToggle class defines toggle gadgets that can be used to display and to edit a Boolean value into an IliTableGadget object. To use this gadget, you should use the setColumnEditor function of the IliTableGadget class.

See also

IliDbToggle, IliTableGadget.

Constructor & Destructor Documentation

IliSimpleToggle()

IliSimpleToggle::IliSimpleToggle	(	IlvDisplay *	display,
		const IlvPoint &	at
	)

Initializes a toggle.

Parameters

display	The display.
at	The position.

Member Function Documentation

f_isConsistent()

virtual IlBoolean IliSimpleToggle::f_isConsistent ( ) const

virtual

Returns IlTrue if the internal value of the field corresponds to its current external representation.

A return value of IlFalse means that the external representation of the field has been edited by the end-user since the last time one of the member functions, f_setValue(), f_externalToInternal(), f_internalToExternal() or f_complete() was successfully called.

Returns

IlTrue if the internal value of the field corresponds to its current external representation.

Reimplemented from IliDbToggle.
