Field gadget class. More...

#include <ilviews/dataccess/gadgets/dbnavig.h>

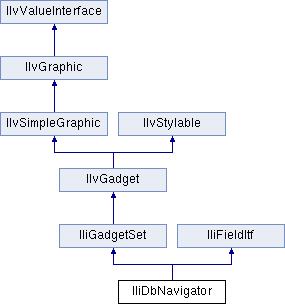

Inheritance diagram for IliDbNavigator:

Public Member Functions
	IliDbNavigator (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a navigator gadget. More...

void	addButton (const char name, IlvGraphicCallback cb, const char tooltip=0, IlInt width=1)
	Adds a button at the end of the navigator. More...

virtual void	adjustButtonsSize ()
	Computes the position and the width for each button. More...

IlBoolean	areNavigationButtonsShown () const
	Returns `IlTrue` if the navigation buttons are shown. More...

IlBoolean	areValidationButtonsShown () const
	Returns `IlTrue` if the Validate and Cancel buttons are shown. More...

void	cancel ()
	Cancels the data source in regular mode and cancels query mode in query mode.

void	clear ()
	Clears the data source table.

void	deleteRow ()
	Deletes the current row of the data source. More...

void	gotoFirst ()
	Changes the current row of the data source to the first row.

void	gotoLast ()
	Changes the current row of the data source to the last row.

void	gotoNext ()
	Changes the current row of the data source to the next row.

void	gotoPrevious ()
	Changes the current row of the data source to the previous row.

IlBoolean	isClearButtonShown () const
	Returns `IlTrue` if the Clear button is shown. More...

IlBoolean	isConfirmOnDeleteRequired () const
	Returns `IlTrue` if a confirmation dialog box is required. More...

IlBoolean	isDeleteButtonShown () const
	Returns `IlTrue` if the DeleteRow button is shown. More...

IlBoolean	isInsertButtonShown () const
	Returns `IlTrue` if the StartInsert button is shown. More...

IlBoolean	isPositionTextShown () const
	Returns `IlTrue` if the Position text field is shown. More...

IlBoolean	isQueryModeButtonShown () const
	Returns `IlTrue` if the QueryMode button is shown. More...

IlBoolean	isRowsCountTextShown () const
	Returns `IlTrue` if the RowsCount text field is shown. More...

IlBoolean	isSelectButtonShown () const
	Returns `IlTrue` if the Select button is shown. More...

virtual void	objectReceivedEvent (IlvGadget *)
	Called when a gadget received an event. More...

void	queryMode ()
	Switches to query mode. More...

void	removeButtons (IlBoolean gadgets=IlFalse)
	Deletes the definition of the user buttons. More...

void	requireConfirmOnDelete (IlBoolean flag)
	Specifies whether the `deleteRow()` member function uses a confirmation dialog box. More...

void	select ()
	Selects the data source table.

void	showClearButton (IlBoolean flag)
	Shows/Hides the Clear button. More...

void	showDeleteButton (IlBoolean flag)
	Shows/Hides the DeleteRow button. More...

void	showInsertButton (IlBoolean flag)
	Shows/Hides the StartInsert button. More...

void	showNavigationButtons (IlBoolean flag)
	Shows/Hides the navigation buttons. More...

void	showPositionText (IlBoolean flag)
	Shows/Hides the Position text field. More...

void	showQueryModeButton (IlBoolean flag)
	Shows/Hides the QueryMode button. More...

void	showRowsCountText (IlBoolean flag)
	Shows/Hides the RowsCount text field. More...

void	showSelectButton (IlBoolean flag)
	Shows/Hides the Select button if flag. More...

void	showValidationButtons (IlBoolean flag)
	Shows/hides the Validate and Cancel buttons. More...

void	startInsert ()
	Changes the current row of the data source to the insert row.

void	validate ()
	Validates the data source in regular mode and applies the query in query mode.

Public Member Functions inherited from IliGadgetSet
	IliGadgetSet (IlvDisplay display, const IlvRect &rect, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes an empty gadget set. More...

virtual void	addObject (IlvGadget *obj, IlBoolean visible=IlTrue)
	Adds a gadget to the gadget set. More...

void	disableToolTip ()
	Disables tooltip display.

void	enableToolTip ()
	Enables tooltip display. More...

IlUInt	getCardinal () const
	Returns the number of gadgets in the gadget set. More...

IlvGadget *	getFocusObject () const
	Returns the focus gadget of the gadget set or `0` if no focus gadget is defined. More...

IlInt	getIndex (IlvGadget *g) const
	Returns the position of a gadget in the gadget set. More...

IlvGadget *	getObject (const char *name) const
	Returns a gadget. More...

IlvGadget *	getObject (IlUInt index) const
	Returns a gadget. More...

IlBoolean	isObjectSensitive (IlvGadget *obj) const
	Returns `IlTrue` if gadget is sensitive to user interaction. More...

IlBoolean	isVisible (const IlvGadget *) const
	Returns `IlTrue` if the gadget parameter belongs to the gadget set and if it is visible. More...

virtual void	removeObject (IlvGadget *obj, IlBoolean deleteIt=IlTrue)
	Removes a gadget from the gadget set. More...

virtual IlBoolean	setFocusObject (IlvGadget *obj)
	Sets the focus gadget. More...

void	setObjectSensitive (IlvGadget *obj, IlBoolean active)
	Enables/disables user interaction. More...

void	setVisible (IlvGadget *obj, IlBoolean visible)
	Shows/Hides a gadget. More...

Public Member Functions inherited from IliFieldItf
void	f_applyReferences (IlvApplyObject f, IlAny a)
	Should be called when the `applyReferences()` member function, of the gadget class, is called. More...

virtual IlBoolean	f_complete ()
	Updates the internal value of the field, according to its current external representation and its foreign table, provided completion is enabled for the field. More...

virtual void	f_enableCompletion (IlBoolean flag)
	Sets the completion property of the field. More...

virtual IlBoolean	f_externalToInternal ()
	Updates the internal value of a field according to its current external representation. More...

virtual IlvAlignment	f_getAlignment () const
	Returns the text alignment of the field. More...

IliDataSource *	f_getDataSource ()
	Returns the data source. More...

const IliDataSource *	f_getDataSource () const
	Returns the data source. More...

const char *	f_getDataSourceColumnName () const
	Returns the name of the column. More...

const char *	f_getDataSourceName () const
	Returns the name of the data source, which this field is (or must be) connected to. More...

virtual IliTablePropertyManager *	f_getEffectiveTablePropertyManager ()
	Returns the effective table property manager. More...

virtual const IliTablePropertyManager *	f_getEffectiveTablePropertyManager () const
	Returns the effective table property manager. More...

const char *	f_getForeignDataSourceName () const
	Returns the name of the foreign data source. More...

const char *	f_getForeignDisplayColumnName () const
	Returns the name of the column of the foreign table that will serve as a result. More...

IliTable *	f_getForeignTable ()
	Returns the foreign table. More...

const IliTable *	f_getForeignTable () const
	Returns the foreign table. More...

const char *	f_getForeignValueColumnName () const
	Returns the name of the column of the foreign table that will serve as a key. More...

virtual const IliFormat &	f_getFormat () const
	Returns the format used to derive the external representation of the field from its internal value. More...

IlvGadget *	f_getGadget ()
	Returns the gadget associated with this field through multiple inheritance. More...

const IlvGadget *	f_getGadget () const
	Returns the constant gadget associated with this field through multiple inheritance. More...

IlvGraphic *	f_getGraphic ()
	Returns the graphic associated with this field through multiple inheritance. More...

const IlvGraphic *	f_getGraphic () const
	Returns the constant graphic associated with this field through multiple inheritance. More...

virtual const char *	f_getLabel () const
	Returns the label displayed by the field gadget. More...

virtual const IliInputMask &	f_getMask () const
	Returns the input mask used to edit values in the field. More...

virtual IlShort	f_getMaxLength () const
	Returns the maximum length allowed for the external representation of the field. More...

const char *	f_getTablePropertyManagerName () const
	Returns the name of the table property manager used by this field. More...

virtual const IliValue &	f_getValue (IlBoolean internal=IlFalse) const
	Returns the value of the field. More...

IlInt	f_getVisibleRowsCount () const
	Returns the number of rows that will be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_hasLabel () const
	Returns `IlTrue` if the field gadget can display a label. More...

virtual void	f_ignoreModifiedState (IlBoolean ignore)
	Sets the ignore modified state attribute of the field. More...

virtual void	f_internalToExternal ()
	Updates the external representation of the field and its display according to its current internal value.

virtual IlBoolean	f_isAutoFitPullDown () const
	Returns `IlTrue` if the width of the pull-down menu is automatically computed so that its contents fit. More...

IlBoolean	f_isCompletionEnabled () const
	Returns `IlTrue` if completion is enabled. More...

IlBoolean	f_isConnectedToDataSource () const
	Returns `IlTrue` if the field is currently connected to a column of a data source. More...

virtual IlBoolean	f_isConsistent () const
	Returns `IlTrue` if the internal value of the field corresponds to its current external representation. More...

IlBoolean	f_isConstrained () const
	Returns `IlTrue` if the foreign table limits the set of possible internal values for this field. More...

IlBoolean	f_isDataSourceOwner () const
	Returns `IlTrue` if the field owns the data source. More...

IlBoolean	f_isForeignTableOwner () const
	Returns `IlTrue` if the field owns its foreign table. More...

virtual IlBoolean	f_isInputModified () const
	Returns `IlTrue` if the external representation has been edited by the end-user. More...

virtual IlBoolean	f_isModifiedStateIgnored () const
	Returns `IlTrue` if the modified states are ignored when the `f_setValue()` function is called. More...

virtual IlBoolean	f_isReadOnly () const
	Returns `IlTrue` if the field is read-only. More...

IlBoolean	f_isUsingTableProperties () const
	Returns `IlTrue` if the field uses table properties. More...

void	f_killFocus ()
	Should be called when the gadget loses the focus.

virtual void	f_selectTextForAppend ()
	Deselects all the text and positions the editing caret at the end of the text, provided the field gadget supports text selection.

virtual void	f_selectTextForOverwrite ()
	Selects all the text, provided the field gadget supports text selection.

virtual void	f_setAlignment (IlvAlignment align)
	Sets the text alignment of the field. More...

virtual void	f_setAutoFitPullDown (IlBoolean flag)
	Enables/disables the automatic width computing of the pull-down menu. More...

virtual void	f_setConstrained (IlBoolean flag)
	Sets the constrained property of the field. More...

virtual void	f_setDataSourceColumnName (const char *name)
	Sets the name of the column. More...

virtual void	f_setDataSourceName (const char *name)
	Sets the name of the data source. More...

void	f_setFocus ()
	Should be called when the gadget receives the focus.

virtual void	f_setForeignDataSourceName (const char *name)
	Sets the name of the foreign data source. More...

virtual void	f_setForeignDisplayColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a result, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setForeignTable (IliTable *tbl, IlBoolean owner=IlFalse)
	Sets the foreign table of the field. More...

virtual void	f_setForeignValueColumnName (const char *name)
	Sets the name of the column of the foreign table that will serve as a key, when the table is used as a map to convert internal values into external representations. More...

virtual void	f_setFormat (const IliFormat &fmt)
	Sets the format used to derive the external representation of the field from its internal value. More...

virtual void	f_setInputModified (IlBoolean flag)
	Sets the input-modified attribute of the field. More...

virtual void	f_setLabel (const char *label)
	Sets the label of the field gadget. More...

virtual void	f_setMask (const IliInputMask &msk)
	Sets the input mask. More...

virtual void	f_setMaxLength (IlShort vmax)
	Sets the maximum length allowed for the external representation of the field. More...

virtual void	f_setReadOnly (IlBoolean flag)
	Sets the read-only property for the field. More...

virtual void	f_setTablePropertyManagerName (const char *name)
	Sets the name of the table property manager to use. More...

virtual IlBoolean	f_setValue (const IliValue &val, IlBoolean internal=IlFalse)
	Sets the value of the field. More...

virtual void	f_setVisibleRowsCount (IlInt count)
	Sets the number of rows to be displayed when the foreign table is displayed. More...

virtual IlBoolean	f_supportsTableProperties () const
	Returns `IlTrue` if this gadget supports table properties. More...

virtual void	f_useTableProperties (IlBoolean flag)
	Enables/Disables the use of the table properties. More...

Additional Inherited Members
Static Public Member Functions inherited from IliFieldItf
static IlvSymbol *	InputModifiedSymbol ()
	Returns the name of the callback that the field gadget will invoke every time the field input-modified property changes from `IlFalse` to `IlTrue`. More...

Protected Member Functions inherited from IliFieldItf
void	f_read (IlvInputFile &input)
	Should be called by the stream-based constructor of the gadget. More...

void	f_set (IlvGraphic *g, const IliFieldItf &other)
	Should be called by the copy constructor of the graphic class that is passed. More...

void	f_setGraphic (IlvGraphic *g)
	Should be called by all constructors of the graphic class (except the copy constructor). More...

void	f_subscribe ()
	Should be called after the `setHolder()` member function of the gadget class.

void	f_unsubscribe ()
	Should be called before the `setHolder()` member function of the gadget class. More...

void	f_write (IlvOutputFile &output) const
	Should be called by the `write()` member function of the gadget class. More...

Detailed Description

Field gadget class.

Library: dbgadget

An IliDbNavigator gadget contains a set of buttons that can be used to act on the data source that the gadget is connected to. The data source is specified by one of the following member functions: IliFieldItf::f_setDataSourceName() or IliFieldItf::f_setDataSource().

The gadget contains the following buttons:

GotoFirst
GotoPrevious
GotoNext
GotoLast
StartInsert
DeleteRow
Validate
Cancel
Select
Clear
QueryMode

The two read-only text fields are:

Position
RowsCount

See also: IliDataSource.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclasses \c IliGadgetSet and \c IliFieldItf, and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`clearButtonShown`	Boolean	`isClearButtonShown()`, `showClearButton()`
`confirmDeletes`	Boolean	`isConfirmOnDeleteRequired()`, `requireConfirmOnDelete()`
`deleteButtonShown`	Boolean	`isDeleteButtonShown()`, `showDeleteButton()`
`insertButtonShown`	Boolean	`isInsertButtonShown()`, `showInsertButton()`
`navigationButtonsShown`	Boolean	`areNavigationButtonsShown()`, `showNavigationButtons()`
`positionTextShown`	Boolean	`isPositionTextShown()`, `showPositionText()`
`queryModeButtonShown`	Boolean	`isQueryModeButtonShown()`, `showQueryModeButton()`
`rowsCountTextShown`	Boolean	`isRowsCountTextShown()`, `showRowsCountText()`
`selectButtonShown`	Boolean	`isSelectButtonShown()`, `showSelectButton()`
`validationButtonsShown`	Boolean	`areValidationButtonsShown()`, `showValidationButtons()`

Method accessors

Name	Return type	Equivalent methods
`getObject(String name)`	`IlvGadget`	`getObject(name)`

Constructor & Destructor Documentation

◆ IliDbNavigator()

IliDbNavigator::IliDbNavigator	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

Initializes a navigator gadget.

Parameters

display	The display.
rect	The location.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ addButton()

void IliDbNavigator::addButton	(	const char *	name,
		IlvGraphicCallback	cb,
		const char *	tooltip = `0`,
		IlInt	width = `1`
	)

Adds a button at the end of the navigator.

The function adjustButtonsSize() must be called after this one.

Parameters

name	The button label.
cb	The callback which is called when the user clicks the button. The `IlvGraphic` object of the callback is the button and the `IlAny` user argument is this object (`IliDbNavigator`).
tooltip	The tooltip text displayed when the cursor mouse is above the button.
width	The button width. The unit for the width is the width of the navigator buttons. For example, if you want a button that is two times larger than the standard buttons of the navigator, the value is `2`.

◆ adjustButtonsSize()

virtual void IliDbNavigator::adjustButtonsSize ( )

virtual

Computes the position and the width for each button.

This function must be called after the function calls for addButton() and removeButtons().

◆ areNavigationButtonsShown()

IlBoolean IliDbNavigator::areNavigationButtonsShown ( ) const

Returns IlTrue if the navigation buttons are shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the navigation buttons are shown.

◆ areValidationButtonsShown()

IlBoolean IliDbNavigator::areValidationButtonsShown ( ) const

Returns IlTrue if the Validate and Cancel buttons are shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the Validate and Cancel buttons are shown.

◆ deleteRow()

void IliDbNavigator::deleteRow ( )

Deletes the current row of the data source.

If the "confirm on delete" property is set to IlTrue, a dialog box is used to request confirmation from the user before deletion.

◆ isClearButtonShown()

IlBoolean IliDbNavigator::isClearButtonShown ( ) const

Returns IlTrue if the Clear button is shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the Clear button is shown.

◆ isConfirmOnDeleteRequired()

IlBoolean IliDbNavigator::isConfirmOnDeleteRequired ( ) const

Returns IlTrue if a confirmation dialog box is required.

Initially, this property is set to IlTrue.

Returns: IlTrue if a confirmation dialog box is to be used whenever the deleteRow() member function is called.

◆ isDeleteButtonShown()

IlBoolean IliDbNavigator::isDeleteButtonShown ( ) const

Returns IlTrue if the DeleteRow button is shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the DeleteRow button is shown.

◆ isInsertButtonShown()

IlBoolean IliDbNavigator::isInsertButtonShown ( ) const

Returns IlTrue if the StartInsert button is shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the StartInsert button is shown.

◆ isPositionTextShown()

IlBoolean IliDbNavigator::isPositionTextShown ( ) const

Returns IlTrue if the Position text field is shown.

Returns: IlTrue if the Position text field is shown.

◆ isQueryModeButtonShown()

IlBoolean IliDbNavigator::isQueryModeButtonShown ( ) const

Returns IlTrue if the QueryMode button is shown.

Initially, this property is set to IlFalse.

Returns: IlTrue if the QueryMode button is shown.

◆ isRowsCountTextShown()

IlBoolean IliDbNavigator::isRowsCountTextShown ( ) const

Returns IlTrue if the RowsCount text field is shown.

Returns: IlTrue if the RowsCount text field is shown.

◆ isSelectButtonShown()

IlBoolean IliDbNavigator::isSelectButtonShown ( ) const

Returns IlTrue if the Select button is shown.

Initially, this property is set to IlTrue.

Returns: IlTrue if the Select button is shown.

◆ objectReceivedEvent()

virtual void IliDbNavigator::objectReceivedEvent ( IlvGadget * obj )

virtual

Called when a gadget received an event.

The callbacks of the gadget are called before this function. For example, if the gadget is a button, the callback of the button is called before this function. By default this function do nothing. In the IliDbNavigator class, this function calls the main callback.

Parameters

obj	The gadget.

Reimplemented from IliGadgetSet.

◆ queryMode()

void IliDbNavigator::queryMode ( )

Switches to query mode.

Note that while in query mode, the validate() and cancel() member functions behave differently than when in regular mode.

◆ removeButtons()

void IliDbNavigator::removeButtons ( IlBoolean gadgets = IlFalse )

Deletes the definition of the user buttons.

The function adjustButtonsSize() must be called after this one.

Parameters

gadgets If IlTrue, the buttons are removed from the navigator.

◆ requireConfirmOnDelete()

void IliDbNavigator::requireConfirmOnDelete ( IlBoolean flag )

Specifies whether the deleteRow() member function uses a confirmation dialog box.

Parameters

flag	If `IlTrue`, a confirmation is required.

◆ showClearButton()

void IliDbNavigator::showClearButton ( IlBoolean flag )

Shows/Hides the Clear button.

Parameters

flag	If `IlTrue`, shows the Clear button.

◆ showDeleteButton()

void IliDbNavigator::showDeleteButton ( IlBoolean flag )

Shows/Hides the DeleteRow button.

Parameters

flag	If `IlTrue`, shows the DeleteRow button.

◆ showInsertButton()

void IliDbNavigator::showInsertButton ( IlBoolean flag )

Shows/Hides the StartInsert button.

Parameters

flag	If `IlTrue`, shows the StartInsert button.

◆ showNavigationButtons()

void IliDbNavigator::showNavigationButtons ( IlBoolean flag )

Shows/Hides the navigation buttons.

Parameters

flag	If `IlTrue`, shows the navigation buttons.

◆ showPositionText()

void IliDbNavigator::showPositionText ( IlBoolean flag )

Shows/Hides the Position text field.

Parameters

flag	If `IlTrue`, shows the Position text field.

◆ showQueryModeButton()

void IliDbNavigator::showQueryModeButton ( IlBoolean flag )

Shows/Hides the QueryMode button.

Parameters

flag	If `IlTrue`, shows the QueryMode button.

◆ showRowsCountText()

void IliDbNavigator::showRowsCountText ( IlBoolean flag )

Shows/Hides the RowsCount text field.

Parameters

flag	If `IlTrue`, shows the RowsCount text field.

◆ showSelectButton()

void IliDbNavigator::showSelectButton ( IlBoolean flag )

Shows/Hides the Select button if flag.

Parameters

flag	If `IlTrue`, shows the Select button.

◆ showValidationButtons()

void IliDbNavigator::showValidationButtons ( IlBoolean flag )

Shows/hides the Validate and Cancel buttons.

Parameters

flag	If `IlTrue`, shows the Validate and Cancel buttons.

Public Member Functions

Additional Inherited Members

Detailed Description

Data accessors

Method accessors

Constructor & Destructor Documentation

◆ IliDbNavigator()

Member Function Documentation

◆ addButton()

◆ adjustButtonsSize()

◆ areNavigationButtonsShown()

◆ areValidationButtonsShown()

◆ deleteRow()

◆ isClearButtonShown()

◆ isConfirmOnDeleteRequired()

◆ isDeleteButtonShown()

◆ isInsertButtonShown()

◆ isPositionTextShown()

◆ isQueryModeButtonShown()

◆ isRowsCountTextShown()

◆ isSelectButtonShown()

◆ objectReceivedEvent()

◆ queryMode()

◆ removeButtons()

◆ requireConfirmOnDelete()

◆ showClearButton()

◆ showDeleteButton()

◆ showInsertButton()

◆ showNavigationButtons()

◆ showPositionText()

◆ showQueryModeButton()

◆ showRowsCountText()

◆ showSelectButton()

◆ showValidationButtons()
