#include <ilviews/dataccess/gadgets/dbgraphe.h>

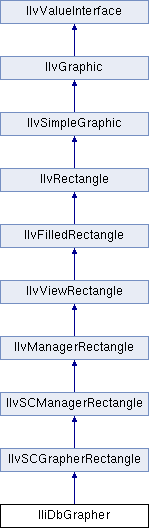

Inheritance diagram for IliDbGrapher:

Public Member Functions
	IliDbGrapher (IlvDisplay display, const IlvRect &rect, IlvPalette palette=0)
	Initializes an `IliDbGrapher` object. More...

void	addErrorSink (IliErrorSink *sink, IlBoolean forNode)
	Adds an error sink. More...

IlBoolean	areOutOfOrderEventsSupported () const
	Returns `IlTrue` if the out of order events are supported. More...

IlvLinkImage *	createDefaultObjectLink (IliTableBuffer *buff)
	Returns the default object created for a link. More...

IlvGraphic *	createDefaultObjectNode (IliTableBuffer *buff)
	Returns the default object created for a node. More...

void	dontDeleteObject ()
	Call this member function from the `onPrepareDeleteObject()` virtual member function or from the corresponding callback to cancel the object deletion.

const char *	getBackgroundPictureName () const
	Returns the background picture name. More...

const char *	getBitmapName ()
	Returns the default bitmap name for nodes. More...

IlvColor *	getColor (IliGrapherColor tag) const
	Returns a grapher color. More...

IlInt	getColumnIndex (IliGrapherColumn tag) const
	Returns the column index for a grapher column. More...

const char *	getColumnName (IliGrapherColumn tag) const
	Returns the column name for a grapher column. More...

IliCreateObjectCallback	getCreateObjectCallback (IlBoolean forNode=IlTrue) const
	Returns the callback to create an object. More...

IlAny	getCreateObjectData (IlBoolean forNode=IlTrue) const
	Returns the user data to create an object. More...

IliDefineObjectCallback	getDefineObjectCallback (IlBoolean forNode=IlTrue) const
	Returns the callback to define the object parameter just before appending into the data source. More...

IlAny	getDefineObjectData (IlBoolean forNode=IlTrue) const
	Returns the user data to define an object. More...

IliErrorReporter *	getErrorReporter () const
	Returns the error reporter that is used by the `reportErrors()` member functions. More...

IliDataSource *	getLinkDataSource () const
	Returns the data source for links. More...

const char *	getLinkDataSourceName () const
	Returns the data source name for links. More...

IliGrapherLinkType	getLinkType () const
	Returns the link type. More...

IliDataSource *	getNodeDataSource () const
	Returns the data source for nodes. More...

const char *	getNodeDataSourceName () const
	Returns the data source name for nodes. More...

const char *	getObjectNameDoubleClicked () const
	Returns the object name that has been double-clicked. More...

const char *	getObjectNameMoved () const
	Returns the object name that has been moved. More...

const char *	getObjectNamePrepareDeleted () const
	Returns the object name that will be deleted. More...

IliUpdateObjectCallback	getUpdateObjectCallback (IlBoolean forNode=IlTrue) const
	Returns the callback to update an object. More...

IlAny	getUpdateObjectData (IlBoolean forNode=IlTrue) const
	Returns the user data to update an object. More...

IlBoolean	isLinkOriented () const
	Returns `IlTrue` if the links are oriented. More...

IlBoolean	isNameDisplayed () const
	Returns `IlTrue` if the name display of nodes is on. More...

IlBoolean	isNodeDeletetionPropagated () const
	Returns `IlTrue` if the node deletion events are propagated. More...

IlBoolean	isNodeRenamePropagated () const
	Returns `IlTrue` if the node rename events are propagated. More...

virtual IlvLinkImage *	onCreateObjectLink (IliTableBuffer *buff)
	Called to create a node. More...

virtual IlvGraphic *	onCreateObjectNode (IliTableBuffer *buff)
	Called to create a node. More...

virtual IlBoolean	onDefineLink (IliTableBuffer buff, IlvGraphic g=0)
	Called to define the parameter of the link just before appending into the data source. More...

virtual IlBoolean	onDefineNode (IliTableBuffer buff, IlvGraphic g=0)
	Called to define the parameter of the node just before appending into the data source. More...

virtual void	onLinkDoubleClicked ()
	Called just after a link has been double-clicked. More...

virtual void	onNodeDoubleClicked ()
	Called just after a node has been double-clicked. More...

virtual void	onNodeMoved ()
	Called just after a node has been moved. More...

virtual void	onPrepareDeleteObject ()
	Called just before the deletion of an object. More...

virtual IlvGraphic *	onUpdateObjectLink (IlvGraphic g, IliTableBuffer buff)
	Called to update a link. More...

virtual IlvGraphic *	onUpdateObjectNode (IlvGraphic g, IliTableBuffer buff)
	Called to update a node. More...

void	propagateNodeDeletion (IlBoolean propagate)
	Enables or disables the option to propagate node deletion events. More...

void	propagateNodeRename (IlBoolean propagate)
	Enables or disables the option to propagate node rename events. More...

void	refreshAll ()
	Refreshes the display of all nodes and all links.

void	refreshAllLinks (IlBoolean del=IlFalse)
	Refreshes the display of all links. More...

void	refreshAllNodes ()
	Refreshes the display of all nodes.

void	removeErrorSink (IliErrorSink *sink, IlBoolean forNode)
	Removes an error sink from this grapher. More...

void	reportErrors (const IliErrorList &list) const
	Reports the errors that are contained in a list error. More...

void	setBackgroundPictureName (const char *name, IlBoolean reload=IlFalse)
	Sets the background picture name. More...

void	setBitmapName (const char *name)
	Sets the default bitmap name for nodes. More...

void	setColor (IliGrapherColor tag, IlvColor *color)
	Sets a grapher color. More...

void	setColumnName (IliGrapherColumn tag, const char *col)
	Sets the column name for a grapher column. More...

void	setCreateObjectCallback (IliCreateObjectCallback cb, IlAny arg, IlBoolean forNode=IlTrue)
	Sets a callback to create a node or a link. More...

void	setDefineObjectCallback (IliDefineObjectCallback cb, IlAny arg, IlBoolean forNode=IlTrue)
	Sets a callback to define the node (or link) parameter just before appending into the data source. More...

void	setDisplayName (IlBoolean flag)
	Enables or disables the name display of nodes. More...

void	setErrorReporter (IliErrorReporter *reporter)
	Sets the error reporter. More...

void	setLinkDataSource (IliDataSource *ds)
	Sets the data source for links. More...

void	setLinkDataSourceName (const char *name)
	Sets the data source name for links. More...

void	setLinkType (IliGrapherLinkType type, IlBoolean oriented=IlFalse)
	Sets the link type and indicates if the links are oriented or not. More...

void	setNodeDataSource (IliDataSource *ds)
	Sets the data source for nodes. More...

void	setNodeDataSourceName (const char *name)
	Sets the data source name for nodes. More...

void	setUpdateObjectCallback (IliUpdateObjectCallback cb, IlAny arg, IlBoolean forNode=IlTrue)
	Sets a callback to update a node or link. More...

void	supportsOutOfOrderEvents (IlBoolean support)
	Enables or disables the option to support out of order events (creating a link before a node). More...

Static Public Member Functions
static IlvSymbol *	LinkDoubleClickedSymbol ()
	Returns the callback name that will be called by the corresponding virtual member functions. More...

static IlvSymbol *	NodeDoubleClickedSymbol ()
	Returns the callback name that will be called by the corresponding virtual member functions. More...

static IlvSymbol *	NodeMovedSymbol ()
	Returns the callback name that will be called by the corresponding virtual member functions. More...

static IlvSymbol *	PrepareDeleteObjectSymbol ()
	Returns the callback name that will be called by the corresponding virtual member functions. More...

Detailed Description

Gadget.

Library: dbgraphe

The IliDbGrapher class defines a grapher gadget connected to two data sources (one for nodes and one for links). The following function keys are predefined:

The F9 key refreshes all nodes and links.
The Insert key adds a new node.
The Delete key deletes the selected node or selected link.
A drag between two nodes creates a link.

See also: IliGrapher.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\n\nThis class inherits the accessors of its superclass \c IlvSCGrapherRectangle and adds the following ones:

Data accessors

Name	Type	Equivalent methods
`backgroundPictureName`	String	`getBackgroundPictureName()`, `setBackgroundPictureName(., IlFalse)`
`defaultBackgroundLabelColor`	Color	`getColor(IliGrapherBackgroundLabelColor)`, `setColor(IliGrapherBackgroundLabelColor, .)`
`defaultBitmapName`	String	`setBitmapName()`. See [defaultBitmapName] below.
`defaultForegroundLabelColor`	Color	`getColor(IliGrapherForegroundLabelColor)`, `setColor(IliGrapherForegroundLabelColor, .)`
`defaultLinkColor`	Color	`getColor(IliGrapherLinkColor)`, `setColor(IliGrapherLinkColor, .)`
`defaultLinkType`	Object	`getLinkType()`, `setLinkType()`
`displayName`	String	`isNameDisplayed()`, `setDisplayName()`
`linkColorColumnName`	String	`getColumnName(IliGrapherLinkColorColumn)`, `setColumnName(IliGrapherLinkColor, .)`
`linkDataSourceName`	String	`getLinkDataSourceName()`, `setLinkDataSourceName()`
`linkFromColumnName`	String	`getColumnName(IliGrapherLinkFromColumn)`, `setColumnName(IliGrapherLinkFromColumn)`
`linkOriented`	Boolean	`isLinkOriented()`, `setLinkType(getLinkType(), .)`
`linkOrientedColumnName`	String	`getColumnName(IliGrapherLinkOrientedColumn)`, `setColumnName(IliGrapherLinkOrientedColumn)`
`linkToColumnName`	String	`getColumnName(IliGrapherLinkToColumn)`, `setColumnName(IliGrapherLinkToColumn)`
`linkTypeColumnName`	String	`getColumnName(IliGrapherLinkTypeColumn)`, `setColumnName(IliGrapherLinkTypeColumn)`
`nodeBackgroundColumnName`	String	`getColumnName(IliGrapherNodeBackgroundColumn)`, `setColumnName(IliGrapherNodeBackgroundColumn)`
`nodeBitmapColumnName`	String	`getColumnName(IliGrapherNodeBitmapColumn)`, `setColumnName(IliGrapherNodeBitmapColumn)`
`nodeDataSourceName`	String	`getNodeDataSourceName()`, `setNodeDataSourceName()`
`nodeForegroundColumnName`	String	`getColumnName(IliGrapherNodeForegroundColumn)`, `setColumnName(IliGrapherNodeForegroundColumn)`
`nodeIdColumnName`	String	`getColumnName(IliGrapherNodeIdColumn)`, `setColumnName(IliGrapherNodeIdColumn)`
`nodeLabelColumnName`	String	`getColumnName(IliGrapherNodeLabelColumn)`, `setColumnName(IliGrapherNodeLabelColumn)`
`nodeXColumnName`	String	`getColumnName(IliGrapherNodeXColumn)`, `setColumnName(IliGrapherNodeXColumn)`
`nodeYColumnName`	String	`getColumnName(IliGrapherNodeYColumn)`, `setColumnName(IliGrapherNodeYColumn)`
`propagateNodeDeletion`	Boolean	`isNodeDeletetionPropagated()`, `propagateNodeDeletion()`
`propagateNodeRename`	Boolean	`isNodeRenamePropagated()`, `propagateNodeRename()`
`supportsOutOfOrderEvents`	Boolean	`areOutOfOrderEventsSupported()`, `supportsOutOfOrderEvents()`

[defaultBitmapName] The default bitmap of the node. The default value is null. This value is used when the property nodeBitmapColumnName is null.

Method accessors

Name	Return type	Equivalent methods
`refreshAll()`	Void	`refreshAll()`

Constructor & Destructor Documentation

◆ IliDbGrapher()

IliDbGrapher::IliDbGrapher	(	IlvDisplay *	display,
		const IlvRect &	rect,
		IlvPalette *	palette = `0`
	)

Initializes an IliDbGrapher object.

Parameters

display	The display.
rect	The location.
palette	The palette.

Member Function Documentation

◆ addErrorSink()

void IliDbGrapher::addErrorSink	(	IliErrorSink *	sink,
		IlBoolean	forNode
	)

Adds an error sink.

All errors that occur on the grapher will be forwarded to this error sink. Note that the grapher will not delete the error sink at destruction time, so the same error sink can be safely shared by many graphers.

Parameters

sink	The error sink.
forNode	If `IlTrue`, the error sink is for nodes, otherwise it is for links.

◆ areOutOfOrderEventsSupported()

IlBoolean IliDbGrapher::areOutOfOrderEventsSupported ( ) const

Returns IlTrue if the out of order events are supported.

The default value is IlTrue.

Returns: IlTrue if the out of order events are supported.

◆ createDefaultObjectLink()

IlvLinkImage* IliDbGrapher::createDefaultObjectLink ( IliTableBuffer * buff )

Returns the default object created for a link.

Parameters

buff	The link parameters.

Returns: The object.

◆ createDefaultObjectNode()

IlvGraphic* IliDbGrapher::createDefaultObjectNode ( IliTableBuffer * buff )

Returns the default object created for a node.

Parameters

buff	The node parameters.

Returns: The object.

◆ getBackgroundPictureName()

const char* IliDbGrapher::getBackgroundPictureName ( ) const

Returns the background picture name.

Returns: The picture name.

◆ getBitmapName()

const char* IliDbGrapher::getBitmapName ( )

Returns the default bitmap name for nodes.

Returns: The bitmap name.

◆ getColor()

IlvColor* IliDbGrapher::getColor ( IliGrapherColor tag ) const

Returns a grapher color.

Parameters

tag	The color tag.

Returns: The color.

◆ getColumnIndex()

IlInt IliDbGrapher::getColumnIndex ( IliGrapherColumn tag ) const

Returns the column index for a grapher column.

Parameters

tag	The column tag.

Returns: The column index.

◆ getColumnName()

const char* IliDbGrapher::getColumnName ( IliGrapherColumn tag ) const

Returns the column name for a grapher column.

Parameters

tag	The column tag.

Returns: The column name.

◆ getCreateObjectCallback()

IliCreateObjectCallback IliDbGrapher::getCreateObjectCallback ( IlBoolean forNode = IlTrue ) const

Returns the callback to create an object.

Parameters

forNode If IlTrue, the callback is used for a node, otherwise for a link.

Returns: The callback.

◆ getCreateObjectData()

IlAny IliDbGrapher::getCreateObjectData ( IlBoolean forNode = IlTrue ) const

Returns the user data to create an object.

Parameters

forNode If IlTrue, the user data are used for a node, otherwise for a link.

Returns: The user data.

◆ getDefineObjectCallback()

IliDefineObjectCallback IliDbGrapher::getDefineObjectCallback ( IlBoolean forNode = IlTrue ) const

Returns the callback to define the object parameter just before appending into the data source.

Parameters

forNode If IlTrue, the callback is used for a node, otherwise for a link.

Returns: The callback.

◆ getDefineObjectData()

IlAny IliDbGrapher::getDefineObjectData ( IlBoolean forNode = IlTrue ) const

Returns the user data to define an object.

Parameters

forNode If IlTrue, the user data are used for a node, otherwise for a link.

Returns: The user data.

◆ getErrorReporter()

IliErrorReporter* IliDbGrapher::getErrorReporter ( ) const

Returns the error reporter that is used by the reportErrors() member functions.

When this property is 0, a default error reporter is used. Initially, this property is 0.

Returns: The error reporter.

◆ getLinkDataSource()

IliDataSource* IliDbGrapher::getLinkDataSource ( ) const

Returns the data source for links.

Returns: The data source.

◆ getLinkDataSourceName()

const char* IliDbGrapher::getLinkDataSourceName ( ) const

Returns the data source name for links.

Returns: The data source name.

◆ getLinkType()

IliGrapherLinkType IliDbGrapher::getLinkType ( ) const

Returns the link type.

Returns: The link type.

◆ getNodeDataSource()

IliDataSource* IliDbGrapher::getNodeDataSource ( ) const

Returns the data source for nodes.

Returns: The data source.

◆ getNodeDataSourceName()

const char* IliDbGrapher::getNodeDataSourceName ( ) const

Returns the data source name for nodes.

Returns: The data source name.

◆ getObjectNameDoubleClicked()

const char* IliDbGrapher::getObjectNameDoubleClicked ( ) const

Returns the object name that has been double-clicked.

Returns: The name.

◆ getObjectNameMoved()

const char* IliDbGrapher::getObjectNameMoved ( ) const

Returns the object name that has been moved.

Returns: The name.

◆ getObjectNamePrepareDeleted()

const char* IliDbGrapher::getObjectNamePrepareDeleted ( ) const

Returns the object name that will be deleted.

Returns: The name.

◆ getUpdateObjectCallback()

IliUpdateObjectCallback IliDbGrapher::getUpdateObjectCallback ( IlBoolean forNode = IlTrue ) const

Returns the callback to update an object.

Parameters

forNode If IlTrue, the callback is used for a node, otherwise for a link.

Returns: The callback.

◆ getUpdateObjectData()

IlAny IliDbGrapher::getUpdateObjectData ( IlBoolean forNode = IlTrue ) const

Returns the user data to update an object.

Parameters

forNode If IlTrue, the user data are used for a node, otherwise for a link.

Returns: The user data.

◆ isLinkOriented()

IlBoolean IliDbGrapher::isLinkOriented ( ) const

Returns IlTrue if the links are oriented.

Returns: IlTrue if the links are oriented.

◆ isNameDisplayed()

IlBoolean IliDbGrapher::isNameDisplayed ( ) const

Returns IlTrue if the name display of nodes is on.

The default value is IlTrue.

Returns: IlTrue if the name display of nodes is on.

◆ isNodeDeletetionPropagated()

IlBoolean IliDbGrapher::isNodeDeletetionPropagated ( ) const

Returns IlTrue if the node deletion events are propagated.

The default value is IlTrue.

Returns: IlTrue if the node deletion events are propagated.

◆ isNodeRenamePropagated()

IlBoolean IliDbGrapher::isNodeRenamePropagated ( ) const

Returns IlTrue if the node rename events are propagated.

The default value is IlTrue.

Returns: IlTrue if the node rename events are propagated.

◆ LinkDoubleClickedSymbol()

static IlvSymbol* IliDbGrapher::LinkDoubleClickedSymbol ( )

static

Returns the callback name that will be called by the corresponding virtual member functions.

Returns: The callback name.

◆ NodeDoubleClickedSymbol()

static IlvSymbol* IliDbGrapher::NodeDoubleClickedSymbol ( )

static

Returns the callback name that will be called by the corresponding virtual member functions.

Returns: The callback name.

◆ NodeMovedSymbol()

static IlvSymbol* IliDbGrapher::NodeMovedSymbol ( )

static

Returns the callback name that will be called by the corresponding virtual member functions.

Returns: The callback name.

◆ onCreateObjectLink()

virtual IlvLinkImage* IliDbGrapher::onCreateObjectLink ( IliTableBuffer * buff )

virtual

Called to create a node.

Parameters

buff	The parameters of the link.

◆ onCreateObjectNode()

virtual IlvGraphic* IliDbGrapher::onCreateObjectNode ( IliTableBuffer * buff )

virtual

Called to create a node.

Parameters

buff	The parameters of the node.

Returns: The node.

◆ onDefineLink()

virtual IlBoolean IliDbGrapher::onDefineLink	(	IliTableBuffer *	buff,
		IlvGraphic *	g = `0`
	)

virtual

Called to define the parameter of the link just before appending into the data source.

Parameters

buff	The parameters of the link.
g	Not `0` if the link is already created in the grapher.

Returns: IlTrue if successful.

◆ onDefineNode()

virtual IlBoolean IliDbGrapher::onDefineNode	(	IliTableBuffer *	buff,
		IlvGraphic *	g = `0`
	)

virtual

Called to define the parameter of the node just before appending into the data source.

Parameters

buff	The parameters of the node.
g	Not `0` if the node is already created in the grapher.

Returns: IlTrue if successful.

◆ onLinkDoubleClicked()

virtual void IliDbGrapher::onLinkDoubleClicked ( )

virtual

Called just after a link has been double-clicked.

The name of the link can be retrieved with the getObjectNameDoubleClicked() member function.

◆ onNodeDoubleClicked()

virtual void IliDbGrapher::onNodeDoubleClicked ( )

virtual

Called just after a node has been double-clicked.

The name of the node can be retrieved with the getObjectNameDoubleClicked() member function.

◆ onNodeMoved()

virtual void IliDbGrapher::onNodeMoved ( )

virtual

Called just after a node has been moved.

The name of the moved node can be retrieved with the getObjectNameMoved() member function.

◆ onPrepareDeleteObject()

virtual void IliDbGrapher::onPrepareDeleteObject ( )

virtual

Called just before the deletion of an object.

The getObjectNamePrepareDeleted() can be used to get the object name.

◆ onUpdateObjectLink()

virtual IlvGraphic* IliDbGrapher::onUpdateObjectLink	(	IlvGraphic *	g,
		IliTableBuffer *	buff
	)

virtual

Called to update a link.

Parameters

g	The link that must updated.
buff	The new definition of the link.

Returns: The result of the call of the defined callback with the setUpdateObjectCallback() function if the callback exists. Otherwise, returns a new link object to replace the previous object that will be deleted.

◆ onUpdateObjectNode()

virtual IlvGraphic* IliDbGrapher::onUpdateObjectNode	(	IlvGraphic *	g,
		IliTableBuffer *	buff
	)

virtual

Called to update a node.

Parameters

g	The node that must be updated.
buff	The new definition of the node.

Returns: The result of the call of the defined callback with the setUpdateObjectCallback() function if the callback exists. Otherwise, returns a new node object to replace the previous object that will be deleted.

◆ PrepareDeleteObjectSymbol()

static IlvSymbol* IliDbGrapher::PrepareDeleteObjectSymbol ( )

static

Returns the callback name that will be called by the corresponding virtual member functions.

Returns: The callback name.

◆ propagateNodeDeletion()

void IliDbGrapher::propagateNodeDeletion ( IlBoolean propagate )

Enables or disables the option to propagate node deletion events.

Parameters

propagate If IlTrue, the deletion events are propagated.

◆ propagateNodeRename()

void IliDbGrapher::propagateNodeRename ( IlBoolean propagate )

Enables or disables the option to propagate node rename events.

Parameters

propagate If IlTrue, the rename events are propagated.

◆ refreshAllLinks()

void IliDbGrapher::refreshAllLinks ( IlBoolean del = IlFalse )

Refreshes the display of all links.

Parameters

del	If `IlTrue`, all links of the grapher are deleted.

◆ removeErrorSink()

void IliDbGrapher::removeErrorSink	(	IliErrorSink *	sink,
		IlBoolean	forNode
	)

Removes an error sink from this grapher.

Parameters

sink	The error sink.
forNode	If `IlTrue`, the error sink is for nodes, otherwise it is for links.

◆ reportErrors()

void IliDbGrapher::reportErrors ( const IliErrorList & list ) const

Reports the errors that are contained in a list error.

This member function makes use of the error reporter returned by getErrorReporter(), if any. Otherwise, it uses a default error reporter.

Parameters

list	The error list.

◆ setBackgroundPictureName()

void IliDbGrapher::setBackgroundPictureName	(	const char *	name,
		IlBoolean	reload = `IlFalse`
	)

Sets the background picture name.

The file must be an ILV file. The picture is loaded if the previous file name is different or if the parameter reload is IlTrue.

Parameters

name	The picture file name.
reload	If `IlTrue` the picture is loaded even if it is the same picture file name.

◆ setBitmapName()

void IliDbGrapher::setBitmapName ( const char * name )

Sets the default bitmap name for nodes.

Parameters

name	The bitmap name.

◆ setColor()

void IliDbGrapher::setColor	(	IliGrapherColor	tag,
		IlvColor *	color
	)

Sets a grapher color.

Parameters

tag	The color tag.
color	The color.

◆ setColumnName()

void IliDbGrapher::setColumnName	(	IliGrapherColumn	tag,
		const char *	col
	)

Sets the column name for a grapher column.

Parameters

tag	The column tag.
col	The column name.

◆ setCreateObjectCallback()

void IliDbGrapher::setCreateObjectCallback	(	IliCreateObjectCallback	cb,
		IlAny	arg,
		IlBoolean	forNode = `IlTrue`
	)

Sets a callback to create a node or a link.

Parameters

cb	The callback.
arg	The user data.
forNode	If `IlTrue`, the callback is used for a node, otherwise for a link.

◆ setDefineObjectCallback()

void IliDbGrapher::setDefineObjectCallback	(	IliDefineObjectCallback	cb,
		IlAny	arg,
		IlBoolean	forNode = `IlTrue`
	)

Sets a callback to define the node (or link) parameter just before appending into the data source.

Parameters

cb	The callback.
arg	The user data.
forNode	If `IlTrue`, the callback is used for a node, otherwise for a link.

◆ setDisplayName()

void IliDbGrapher::setDisplayName ( IlBoolean flag )

Enables or disables the name display of nodes.

Parameters

flag	If `IlTrue`, the names are displayed.

◆ setErrorReporter()

void IliDbGrapher::setErrorReporter ( IliErrorReporter * reporter )

Sets the error reporter.

Note that the grapher will not delete the error reporter at destruction time, so the same error reporter can be safely shared by many graphers.

Parameters

reporter The error reporter.

◆ setLinkDataSource()

void IliDbGrapher::setLinkDataSource ( IliDataSource * ds )

Sets the data source for links.

Parameters

ds	The data source.

◆ setLinkDataSourceName()

void IliDbGrapher::setLinkDataSourceName ( const char * name )

Sets the data source name for links.

Parameters

name	The data source name.

◆ setLinkType()

void IliDbGrapher::setLinkType	(	IliGrapherLinkType	type,
		IlBoolean	oriented = `IlFalse`
	)

Sets the link type and indicates if the links are oriented or not.

Parameters

type	The link type.
oriented	If `IlTrue`, the link is oriented.

◆ setNodeDataSource()

void IliDbGrapher::setNodeDataSource ( IliDataSource * ds )

Sets the data source for nodes.

Parameters

ds	The data source.

◆ setNodeDataSourceName()

void IliDbGrapher::setNodeDataSourceName ( const char * name )

Sets the data source name for nodes.

Parameters

name	The data source name.

◆ setUpdateObjectCallback()

void IliDbGrapher::setUpdateObjectCallback	(	IliUpdateObjectCallback	cb,
		IlAny	arg,
		IlBoolean	forNode = `IlTrue`
	)

Sets a callback to update a node or link.

Parameters

cb	The callback.
arg	The user data.
forNode	If `IlTrue`, the callback is used for a node, otherwise for a link.

◆ supportsOutOfOrderEvents()

void IliDbGrapher::supportsOutOfOrderEvents ( IlBoolean support )

Enables or disables the option to support out of order events (creating a link before a node).

Parameters

support If IlTrue, the out of order events are supported.

Public Member Functions

Static Public Member Functions

Detailed Description

Data accessors

Method accessors

Constructor & Destructor Documentation

◆ IliDbGrapher()

Member Function Documentation

◆ addErrorSink()

◆ areOutOfOrderEventsSupported()

◆ createDefaultObjectLink()

◆ createDefaultObjectNode()

◆ getBackgroundPictureName()

◆ getBitmapName()

◆ getColor()

◆ getColumnIndex()

◆ getColumnName()

◆ getCreateObjectCallback()

◆ getCreateObjectData()

◆ getDefineObjectCallback()

◆ getDefineObjectData()

◆ getErrorReporter()

◆ getLinkDataSource()

◆ getLinkDataSourceName()

◆ getLinkType()

◆ getNodeDataSource()

◆ getNodeDataSourceName()

◆ getObjectNameDoubleClicked()

◆ getObjectNameMoved()

◆ getObjectNamePrepareDeleted()

◆ getUpdateObjectCallback()

◆ getUpdateObjectData()

◆ isLinkOriented()

◆ isNameDisplayed()

◆ isNodeDeletetionPropagated()

◆ isNodeRenamePropagated()

◆ LinkDoubleClickedSymbol()

◆ NodeDoubleClickedSymbol()

◆ NodeMovedSymbol()

◆ onCreateObjectLink()

◆ onCreateObjectNode()

◆ onDefineLink()

◆ onDefineNode()

◆ onLinkDoubleClicked()

◆ onNodeDoubleClicked()

◆ onNodeMoved()

◆ onPrepareDeleteObject()

◆ onUpdateObjectLink()

◆ onUpdateObjectNode()

◆ PrepareDeleteObjectSymbol()

◆ propagateNodeDeletion()

◆ propagateNodeRename()

◆ refreshAllLinks()

◆ removeErrorSink()

◆ reportErrors()

◆ setBackgroundPictureName()

◆ setBitmapName()

◆ setColor()

◆ setColumnName()

◆ setCreateObjectCallback()

◆ setDefineObjectCallback()

◆ setDisplayName()

◆ setErrorReporter()

◆ setLinkDataSource()

◆ setLinkDataSourceName()

◆ setLinkType()

◆ setNodeDataSource()

◆ setNodeDataSourceName()

◆ setUpdateObjectCallback()

◆ supportsOutOfOrderEvents()
