java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.IlvBidiGraphic
  - - ilog.views.graphic.IlvGraphicSet
    - - ilog.views.graphic.composite.decoration.IlvAssociation

All Implemented Interfaces:: GraphicBagHierarchyEventReceiver, ManagerViewsHierarchyEventReceiver, IlvGraphicBag, IlvPersistentObject, IlvBlinkingObject, IlvBaseTextDirectionInterface, Transferable, Serializable

public class IlvAssociation
extends IlvGraphicSet
implements IlvPersistentObject

An IlvAssociation contains an IlvLine that connects to the center point of two graphic objects. The connection point for the anchor and callout nodes can be either of the following:

The center of an IlvGraphic instance.
The point of an IlvLinkImage instance that is closest to the center of the segment lengths.

The default values for an IlvAssociation instance are as follows:

Line: an instance of IlvLine.
Foreground/Line style/Line width: the settings of the IlvLine instance in the IlvAssociation object.

Example

The following code example shows how to use IlvAssociation in a simple Java application:

  IlvGrapher grapher = new IlvGrapher();

  // Creates the origin and the destination nodes
  IlvRectangle origin = new IlvReliefRectangle(new IlvRect(50,80,40,40));
  origin.setBackground(Color.lightGray);
  grapher.addNode(origin,false);

  IlvRectangle dest = new IlvReliefRectangle(new IlvRect(250,80,40,40));
  dest.setBackground(Color.lightGray);
  grapher.addNode(dest,false);

  // Creates the link between the nodes
  IlvLinkImage link = new IlvPolylineLinkImage(origin,dest,false,null);
  link.setLineWidth(5);
  link.setForeground(Color.decode("#40BFBD"));
  grapher.addLink(link,false);

  // Creates a composite which groups a label and a left bracket
  IlvCompositeGraphic callout = new IlvCompositeGraphic();
  IlvCenteredLayout cl = new IlvCenteredLayout();
  cl.setInsets(new Insets(5,5,5,5));
  callout.setLayout(cl);

  // Creates the bracket
  IlvBracket bracket = new IlvBracket();
  bracket.move(10,10);
  bracket.setFillOn(true);
  bracket.setBackground(Color.white);
  bracket.setWidthRatio(0.5);
  callout.setChildren(0,bracket);

  // Creates the text
  IlvText text = new IlvText(new IlvPoint(),"This is a link annotation");
  text.setFont(Font.decode("sansserif-BOLD-10"));
  callout.setChildren(1,text);

  grapher.addNode(callout,false);

  // Creates the association which links the bracket to the link
  IlvAssociation association = new IlvAssociation();
  association.setAnchor(link);
  association.setCallout(callout);
  association.setLineWidth(1);
  association.setForeground(Color.black);
  association.setLineStyle(new float[]{2.0f,4.0f});
  grapher.addNode(association,false);

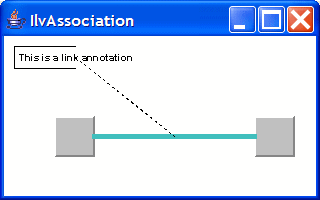

The following image shows the graphic objects created in the code example:

About Graphic Objects

IlvAssociation is a custom graphic object, that is, a subclass of IlvGraphic. Graphic objects are controlled using an IlvManager instance and displayed using one or more IlvManagerView instances in a Java Swing application. For information about generic features for graphic objects, see IlvGraphic.

Since:: JViews 6.0
See Also:: IlvCompositeGraphic, IlvCenteredLayout, IlvManager, IlvManagerView, Serialized Form

Nested Class Summary
- Nested classes/interfaces inherited from class ilog.views.graphic.IlvGraphicSet
  IlvGraphicSet.DelegateObjectInteractor

Field Summary
- Fields inherited from class ilog.views.graphic.IlvGraphicSet
  list

Constructor Summary

Constructors
Constructor and Description
`IlvAssociation()` Creates an `IlvAssociation` with the default values.
`IlvAssociation(IlvAssociation source)` Creates a new `IlvAssociation` by copying an existing one.
`IlvAssociation(IlvGraphic anchor)` Creates an `IlvAssociation` with the supplied anchor.
`IlvAssociation(IlvInputStream stream)` Reads the object from an `IlvInputStream`.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`IlvGraphic`	`copy()` Copies this object.
`IlvGraphic`	`getAnchor()` Returns the `IlvGraphic` which defines the anchor point of the association.
`IlvGraphic`	`getCallout()` Returns the callout of this association.
`Color`	`getForeground()` Returns the color of the line.
`IlvLine`	`getLine()` Returns the line that represents the association.
`float[]`	`getLineStyle()` Returns the array representing the lengths of the dash segments.
`double`	`getLineWidth()` Returns the line width of the object.
`double`	`getMaximumLineWidth()` Returns the maximum line width of the line.
`IlvSelection`	`makeSelection()` Creates a selection object for this object.
`void`	`setAnchor(IlvGraphic anchor)` Sets the `IlvGraphic` which defines the anchor point of the association.
`void`	`setCallout(IlvGraphic graphic)` Defines the callout of this association.
`void`	`setForeground(Color color)` Changes the color of the line.
`void`	`setGraphicBag(IlvGraphicBag bag)` Changes the bag that contains the object.
`void`	`setLine(IlvLine line)` Sets the line that associates the anchor callout and the callout callout
`void`	`setLineStyle(float[] lineStyle)` Changes the array representing the lengths of the dash segments.
`void`	`setLineWidth(double lineWidth)` Changes the line width of the object.
`void`	`setMaximumLineWidth(double maximumLineWidth)` Changes the maximum line width of the line.
`void`	`write(IlvOutputStream stream)` Writes the attributes of a persistent object.
`boolean`	`zoomable()` Returns always `false`, because this object is not zoomable.

Methods inherited from class ilog.views.graphic.IlvGraphicSet
addGraphicBagHierarchyListener, addManagerViewsHierarchyListener, addObject, addObjectAt, applyToObject, applyToObjectImpl, applyTransform, baseTextDirectionChanged, boundingBox, componentOrientationChanged, contains, contains, draw, drawCore, enableGraphicBagHierarchyEventForwarding, enableManagerViewsHierarchyEventForwarding, fireGraphicBagHierarchyEvent, fireManagerViewsHierarchyEvent, firstContains, getAlpha, getCardinal, getClip, getIndex, getIntersectionWithOutline, getObject, getObject, getObjectName, getObjects, getOriginalPopupMenu, getPopupMenu, getToolTipText, invalidateAndApplyToObject, invalidateBBoxCache, isBaseTextDirectionSensitive, isComponentOrientationSensitive, isLocaleSensitive, isPersistent, moveObject, needsGraphicBagHierarchyEvent, needsManagerViewsHierarchyEvent, reDrawObj, reDrawRegion, removeAll, removeGraphicBagHierarchyListener, removeManagerViewsHierarchyListener, removeObject, removeObjectAt, reshapeObject, setAlpha, setBaseTextDirection, setClip, setInsideApply, setObjectName

Methods inherited from class ilog.views.IlvBidiGraphic
calcResolvedBaseTextDirection, getBaseTextDirection, getComponentOrientation, getResolvedBaseTextDirection, getULocale, invalidateBidiCache, setBaseTextDirection, setBaseTextDirectionDuringConstruction

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, blinkingStateOn, boundingBox, callDraw, getAndAssociateObjectInteractor, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getCenter, getDefaultInteractor, getGraphicBag, GetGraphicObject, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenuName, getProperty, getToolTipBaseTextDirection, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getZOrderIndex, hasProperty, inside, intersects, isDataFlavorSupported, isEditable, isInApplyToObject, isMovable, isSelectable, isVisible, localeChanged, move, move, moveResize, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, reDraw, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, removeProperty, replaceProperty, resize, rotate, scale, setBackground, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setFillOn, setInApplyToObject, setMovable, setName, setNamedProperty, setNameImpl, setObjectInteractor, setPopupMenu, setPopupMenuName, setProperty, setSelectable, setStrokeOn, setToolTipBaseTextDirection, setToolTipText, setVisible, setZOrderIndex, toString, translate, updateNeedsViewNotification, usesBidiMarkers, viewAddedOrRemoved

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface ilog.views.IlvGraphicBag
getGraphicBag

- Constructor Detail
  - IlvAssociation
```
public IlvAssociation()
```
    Creates an IlvAssociation with the default values.
  - IlvAssociation
```
public IlvAssociation(IlvInputStream stream)
               throws IlvReadFileException
```
    Reads the object from an IlvInputStream.

    Parameters:

    stream - The input stream.

    Throws:

    IlvReadFileException - if the format is not correct.
  - IlvAssociation
```
public IlvAssociation(IlvGraphic anchor)
```
    Creates an IlvAssociation with the supplied anchor.
  - IlvAssociation
```
public IlvAssociation(IlvAssociation source)
```
    Creates a new IlvAssociation by copying an existing one.
- Method Detail
  - copy
```
public IlvGraphic copy()
```
    Copies this object.

    Overrides:

    copy in class IlvGraphicSet

    Returns:

    A copy of this object.

    See Also:

    IlvGraphic
  - getLine
```
public IlvLine getLine()
```
    Returns the line that represents the association.
  - setLine
```
public void setLine(IlvLine line)
```
    Sets the line that associates the anchor callout and the callout callout
  - getAnchor
```
public IlvGraphic getAnchor()
```
    Returns the IlvGraphic which defines the anchor point of the association.
  - setAnchor
```
public void setAnchor(IlvGraphic anchor)
```
    Sets the IlvGraphic which defines the anchor point of the association. The anchor can be either:
    - IlvGraphic The anchor point is the center of the bounding box of the supplied callout.
    - IlvLinkImage The anchor point is the middle of the segment which is the closest to the middle of the segment lengths.
  - getCallout
```
public IlvGraphic getCallout()
```
    Returns the callout of this association.
  - setCallout
```
public void setCallout(IlvGraphic graphic)
```
    Defines the callout of this association.
  - setGraphicBag
```
public void setGraphicBag(IlvGraphicBag bag)
```
    Changes the bag that contains the object.

    Overrides:

    setGraphicBag in class IlvGraphicSet

    Parameters:

    bag - The graphic bag to contain this graphic object.

    See Also:

    IlvGraphic
  - makeSelection
```
public IlvSelection makeSelection()
```
    Creates a selection object for this object. The default implementation creates an instance of IlvDrawSelection.
    Override this method in your custom graphic object to use a different selection object.
    You should normally not call this method directly.

    Overrides:

    makeSelection in class IlvGraphic

    See Also:

    IlvDrawSelection
  - zoomable
```
public boolean zoomable()
```
    Returns always false, because this object is not zoomable.

    Overrides:

    zoomable in class IlvGraphicSet

    See Also:

    IlvGraphic, IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvManager
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Writes the attributes of a persistent object.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvGraphicSet

    Parameters:

    stream - the output stream

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.
  - getLineStyle
```
public float[] getLineStyle()
```
    Returns the array representing the lengths of the dash segments. Alternate entries in the array represent the user space lengths of the opaque and transparent segments of the dashes.
  - setLineStyle
```
public void setLineStyle(float[] lineStyle)
```
    Changes the array representing the lengths of the dash segments. Alternate entries in the array represent the user space lengths of the opaque and transparent segments of the dashes.

    Parameters:

    lineStyle - The new line style.
  - getLineWidth
```
public double getLineWidth()
```
    Returns the line width of the object. The default value is 0.
  - setLineWidth
```
public void setLineWidth(double lineWidth)
```
    Changes the line width of the object.

    Parameters:

    lineWidth - The new line width.
  - setForeground
```
public void setForeground(Color color)
```
    Changes the color of the line. This property supports IlvBlinkingColor.

    Overrides:

    setForeground in class IlvGraphic

    Parameters:

    color - The new color.

    See Also:

    IlvGraphic.draw(Graphics, IlvTransformer), IlvGraphic.setBackground(Color), IlvGraphic.setFillOn(boolean), IlvGraphic.setStrokeOn(boolean), IlvGraphic
  - getForeground
```
public Color getForeground()
```
    Returns the color of the line.

    Returns:

    The color of the object.
  - getMaximumLineWidth
```
public double getMaximumLineWidth()
```
    Returns the maximum line width of the line. If the maximum line width is specified and not equal to zero, the width of the line will stop zooming when the maximum line width is reached. The default value is zero (no limit).
  - setMaximumLineWidth
```
public void setMaximumLineWidth(double maximumLineWidth)
```
    Changes the maximum line width of the line. If the maximum line width is specified and not equal to zero, then the width of the line will stop zooming when the maximum line width is reached. A value of zero means that there is no limit.

    Parameters:

    maximumLineWidth - The new maximum line width.
