IlvGraphicSet (Rogue Wave JViews 9.0 API)

java.lang.Object
- ilog.views.IlvGraphic
- - ilog.views.IlvBidiGraphic
  - - ilog.views.graphic.IlvGraphicSet

All Implemented Interfaces:

GraphicBagHierarchyEventReceiver, ManagerViewsHierarchyEventReceiver, IlvGraphicBag, IlvPersistentObject, IlvBlinkingObject, IlvBaseTextDirectionInterface, Transferable, Serializable

Direct Known Subclasses:

IlvAssociation, IlvCompositeGraphic, IlvGeneralNode, IlvGraphicGroup, IlvMapGraphicSet, IlvSVGGraphicSet, IlvURLGraphic
```
public class IlvGraphicSet
extends IlvBidiGraphic
implements IlvGraphicBag, GraphicBagHierarchyEventReceiver, ManagerViewsHierarchyEventReceiver
```
An IlvGraphicSet instance is used to group several graphic objects together.
For an IlvGraphicSet object contained inside an IlvGraphicBag instance (for instance inside IlvManager, the following methods must be called from the applyToObject method of the IlvGraphicBag instance holding this IlvGraphicSet object.
- applyTransform
- setVisible
Example

The following code example shows how to use IlvGraphicSet in a simple Java application:
```
  IlvManager manager = new IlvManager();

  IlvGraphicSet graphicSet = new IlvGraphicSet();
  // Set an object interactor that makes the graphic objects sensitive to events.
  graphicSet.setObjectInteractor(new IlvGraphicSet.DelegateObjectInteractor());

  // Create the graphic objects and add them to the graphic set.
  IlvReliefRectangle border = new IlvReliefRectangle(new IlvRect(10,10,60,90));
  border.setBackground(new Color(228,225,224));
  graphicSet.addObject(border, false);

  IlvText label1 = new IlvText(new IlvPoint(27,40), "ILOG");
  Font font = new Font(label1.getFont().getName(), Font.BOLD,
                       label1.getFont().getSize());
  label1.setFont(font);
  graphicSet.addObject(label1, false);

  IlvText label2 = new IlvText(new IlvPoint(20,60), "JViews");
  label2.setFont(font);
  graphicSet.addObject(label2, false);

  // Add the graphic set containing all the graphic objects to the manager.
  manager.addObject(graphicSet, true);

```

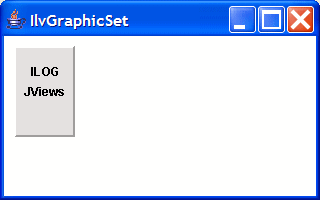

The following image shows the graphic objects created in the code example:

The following code example shows how to remove an object from the graphic set, even when the graphic set is already inside a manager:
```
 graphicSet.removeObject(label2, false);

```
About Graphic Objects

IlvGraphicSet is a custom graphic object, that is, a subclass of IlvGraphic. Graphic objects are controlled using an instance of IlvManager or one of its subclasses, and displayed using one or more IlvManagerView instances in a Java Swing application. For information about generic features for graphic objects, see IlvGraphic.
See Also:

IlvManager, IlvManagerView, IlvRect, Serialized Form

Nested Class Summary

Nested Classes
Modifier and Type Class and Description

static class IlvGraphicSet.DelegateObjectInteractor
A delegating interactor for IlvGraphicSet objects.

Nested Classes
Modifier and Type	Class and Description
`static class`	`IlvGraphicSet.DelegateObjectInteractor` A delegating interactor for `IlvGraphicSet` objects.

Field Summary

Fields
Modifier and Type Field and Description

protected IlvGraphicVector list
The internal IlvGraphicVector storing the IlvGraphic instances for this IlvGraphicSet.

Fields
Modifier and Type	Field and Description
`protected IlvGraphicVector`	`list` The internal `IlvGraphicVector` storing the `IlvGraphic` instances for this `IlvGraphicSet`.

Constructor Summary

Constructors
Constructor and Description
`IlvGraphicSet()` Creates a new empty graphic set.
`IlvGraphicSet(IlvGraphicSet source)` Creates a new `IlvGraphicSet` by copying an existing one.
`IlvGraphicSet(IlvGraphicSet source, boolean copyChildren)` Creates a new `IlvGraphicSet` by copying an existing one.
`IlvGraphicSet(IlvInputStream stream)` Reads the object from an `IlvInputStream`.

Method Summary

All Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`void`	`addGraphicBagHierarchyListener(GraphicBagHierarchyListener listener)` Adds the specified listener to receive events from the ancestor managers and ancestor graphic sets and from this graphic set when the hierarchy of graphic bags has changed.
`void`	`addManagerViewsHierarchyListener(ManagerViewsChangedListener listener)` Adds the specified listener to receive events from the owning manager of this object and from its ancestors when a manager view was added or removed.
`void`	`addObject(IlvGraphic obj, boolean redraw)` Adds a graphic object at the end of the set.
`void`	`addObjectAt(IlvGraphic obj, int index, boolean redraw)` Adds a graphic object at the specified index in the set.
`void`	`applyToObject(IlvGraphic obj, IlvApplyObject f, Object arg, boolean redraw)` Applies a method to an object of the bag.
`protected void`	`applyToObjectImpl(IlvGraphic obj, IlvApplyObject f, Object arg, boolean redraw)` Implementation to apply a method to an object of the bag.
`void`	`applyTransform(IlvTransformer t)` Applies a transformation to the shape of contained objects.
`void`	`baseTextDirectionChanged(int oldBaseTextDirection, int newBaseTextDirection)` Called when the object is base text direction sensitive and the resolved base text direction has changed.
`IlvRect`	`boundingBox(IlvTransformer t)` Returns the bounding rectangle of the object.
`void`	`componentOrientationChanged(ComponentOrientation oldOri, ComponentOrientation newOri)` Called when the object is component orientation sensitive and the component orientation has changed.
`boolean`	`contains(IlvGraphic obj)` Returns `true` if the object is in the graphic set.
`boolean`	`contains(IlvPoint p, IlvPoint tp, IlvTransformer t)` Tests if a point lies within the outline of the object.
`IlvGraphic`	`copy()` Copies the object.
`void`	`draw(Graphics dst, IlvTransformer t)` Draws the object.
`protected void`	`drawCore(Graphics2D dst, IlvTransformer t)` Draws the object.
`void`	`enableGraphicBagHierarchyEventForwarding()` Enables forwarding of `GraphicBagHierarchyEvent` events, since the objects contained in this graphic set need to receive the events.
`void`	`enableManagerViewsHierarchyEventForwarding()` Enables forwarding of `ManagerViewsChangedEvent` events through the nesting hierarchy, since the objects contained in this graphic set need to receive the events.
`void`	`fireGraphicBagHierarchyEvent(GraphicBagHierarchyEvent event)` Fires a graphic bag hierarchy event to this graphic set and all contained objects.
`void`	`fireManagerViewsHierarchyEvent(ManagerViewsChangedEvent event)` Fires a `ManagerViewsChangedEvent` event to all listeners installed via `addManagerViewsHierarchyListener(ilog.views.event.ManagerViewsChangedListener)` on this graphic set or contained objects.
`IlvGraphic`	`firstContains(IlvPoint p, IlvPoint tp, IlvTransformer t)` Searches for the first graphic object in the set that contains the specified point.
`float`	`getAlpha()` Returns the alpha value of this graphic object.
`int`	`getCardinal()` Returns the number of objects.
`Shape`	`getClip()` Returns the shape that will clip the object.
`int`	`getIndex(IlvGraphic obj)` Searches for the specified graphic object in the set and returns an index to it.
`IlvPoint`	`getIntersectionWithOutline(IlvPoint innerPoint, IlvPoint outerPoint, IlvTransformer t)` Returns the intersection of the line segment from inner point to outer point with the shape of the graphic object.
`IlvGraphic`	`getObject(int index)` Returns the graphic object at the specified index.
`IlvGraphic`	`getObject(String name)` Returns the object with the specified name.
`String`	`getObjectName(IlvGraphic obj)` Returns the name of the object.
`IlvGraphicEnumeration`	`getObjects()` Returns an enumeration of all the objects in the graphic set.
`protected JPopupMenu`	`getOriginalPopupMenu(IlvPoint p, IlvTransformer t, IlvManagerView view, IlvPopupMenuManager popupManager)` This is the original implementation of `getPopupMenu` from the super class to retrieve the pop-up menu.
`JPopupMenu`	`getPopupMenu(IlvPoint p, IlvTransformer t, IlvManagerView view, IlvPopupMenuManager popupManager)` Returns the Swing pop-up menu to display when the pop-up is triggered while the mouse pointer is at a specified location inside the graphic object.
`String`	`getToolTipText(IlvPoint p, IlvTransformer t)` Returns the tooltip text to display when the mouse pointer is at a specified location inside the graphic object.
`protected IlvRect`	`invalidateAndApplyToObject(IlvGraphic obj, IlvApplyObject f, Object arg, IlvRect objBBoxOld, IlvRect objBBoxNew)` Invalidate the layout of this object when doing `applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean)` to the input object.
`protected void`	`invalidateBBoxCache()` Invalidates the bounding box cache.
`boolean`	`isBaseTextDirectionSensitive()` Returns `true` if the bounding box of this object depends on the base text direction of this object.
`boolean`	`isComponentOrientationSensitive()` Returns `true` if the bounding box of this object depends on the component orientation of this object.
`boolean`	`isLocaleSensitive()` Returns `true` if the bounding box of this object depends on the locale of this object.
`boolean`	`isPersistent()` If this method returns `true` the `IlvGraphic` instance will be saved in IVL files.
`void`	`moveObject(IlvGraphic obj, double x, double y, boolean redraw)` Changes the location of a graphic object.
`boolean`	`needsGraphicBagHierarchyEvent()` Returns whether this object needs to receive `GraphicBagHierarchyEvent` events, either from itself or from its ancestors.
`boolean`	`needsManagerViewsHierarchyEvent()` Returns whether the graphic set needs to receive `ManagerViewsChangedEvent` events, either from its owning manager or from its ancestors.
`void`	`reDrawObj(IlvGraphic obj)` Redraws a graphic object contained in the set.
`void`	`reDrawRegion(IlvRegion region)` Redraws a region of the set.
`void`	`removeAll(boolean redraw)` Removes all the graphic objects from this bag.
`void`	`removeGraphicBagHierarchyListener(GraphicBagHierarchyListener listener)` Removes the specified listener so that it no longer receives events from ancestor manager and ancestor graphic sets and from this graphic set when the hierarchy of graphic bags has changed.
`void`	`removeManagerViewsHierarchyListener(ManagerViewsChangedListener listener)` Removes the specified listener so that it no longer receives events from the owning manager of this object and from its ancestors when a manager view was added or removed.
`void`	`removeObject(IlvGraphic obj, boolean redraw)` Removes a graphic object from this bag.
`void`	`removeObjectAt(int index, boolean redraw)` Removes the graphic object located at the specified index from this bag.
`void`	`reshapeObject(IlvGraphic obj, IlvRect newrect, boolean redraw)` Changes the size of a graphic object located in the set.
`void`	`setAlpha(float alpha)` Changes the alpha value of this graphic object.
`void`	`setBaseTextDirection(int baseTextDirection, boolean redraw)` Changes the base direction of the text.
`void`	`setClip(Shape clip)` Changes the shape that will clip the object.
`void`	`setGraphicBag(IlvGraphicBag bag)` Changes the bag that contains the object.
`protected void`	`setInsideApply(boolean set)` This method is for internal purposes, do not use.
`boolean`	`setObjectName(IlvGraphic obj, String name)` Changes the name of a graphic object.
`void`	`write(IlvOutputStream stream)` Writes the object to an `IlvOutputStream`.
`boolean`	`zoomable()` Tests if the graphic set is zoomable.

Methods inherited from class ilog.views.IlvBidiGraphic
calcResolvedBaseTextDirection, getBaseTextDirection, getComponentOrientation, getResolvedBaseTextDirection, getULocale, invalidateBidiCache, setBaseTextDirection, setBaseTextDirectionDuringConstruction

Methods inherited from class ilog.views.IlvGraphic
addActionListener, addNamedPropertyListener, allViewsRemoved, blinkingStateOn, boundingBox, callDraw, getAndAssociateObjectInteractor, getBlinkingAction, getBlinkingObjectOwner, getBlinkingOffPeriod, getBlinkingOnPeriod, getCenter, getDefaultInteractor, getGraphicBag, GetGraphicObject, getLocale, getName, getNamedProperty, getObjectInteractor, getPopupMenu, getPopupMenuName, getProperty, getToolTipBaseTextDirection, getToolTipText, getTopLevelGraphicBag, getTransferData, getTransferDataFlavors, getZOrderIndex, hasProperty, inside, intersects, isDataFlavorSupported, isEditable, isInApplyToObject, isMovable, isSelectable, isVisible, localeChanged, makeSelection, move, move, moveResize, needsViewNotification, notifyObjectInteractorToManager, processActionEvent, reDraw, registerBlinkingResource, removeActionListener, removeNamedProperty, removeNamedPropertyListener, removeProperty, replaceProperty, resize, rotate, scale, setBackground, setBlinkingAction, setBlinkingOffPeriod, setBlinkingOnPeriod, setEditable, setFillOn, setForeground, setInApplyToObject, setMovable, setName, setNamedProperty, setNameImpl, setObjectInteractor, setPopupMenu, setPopupMenuName, setProperty, setSelectable, setStrokeOn, setToolTipBaseTextDirection, setToolTipText, setVisible, setZOrderIndex, toString, translate, updateNeedsViewNotification, usesBidiMarkers, viewAddedOrRemoved

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface ilog.views.IlvGraphicBag
getGraphicBag

- Field Detail
  - list
```
protected IlvGraphicVector list
```
    The internal IlvGraphicVector storing the IlvGraphic instances for this IlvGraphicSet. Warning:: This field is protected for implementation reasons and should not be modified by third-party.

    Since:

    JViews 6.0
- Constructor Detail
  - IlvGraphicSet
```
public IlvGraphicSet()
```
    Creates a new empty graphic set.
  - IlvGraphicSet
```
public IlvGraphicSet(IlvGraphicSet source)
```
    Creates a new IlvGraphicSet by copying an existing one. Note that objects in the graphic set are copied too.

    Parameters:

    source - The origin object for the copy.
  - IlvGraphicSet
```
public IlvGraphicSet(IlvGraphicSet source,
                     boolean copyChildren)
```
    Creates a new IlvGraphicSet by copying an existing one. The objects in the graphic set are copied too if the parameter copyChildren is true.

    Parameters:

    source - The origin object for the copy.

    copyChildren - If true, the objects in the graphic set are copied too. If false, they are not copied.

    Since:

    JViews 8.5
  - IlvGraphicSet
```
public IlvGraphicSet(IlvInputStream stream)
              throws IlvReadFileException
```
    Reads the object from an IlvInputStream.

    Parameters:

    stream - The input stream.

    Throws:

    IlvReadFileException - if the format is not correct.
- Method Detail
  - setGraphicBag
```
public void setGraphicBag(IlvGraphicBag bag)
```
    Changes the bag that contains the object.
    Note: do not call this method directly unless you are creating a custom graphics bag.

    Overrides:

    setGraphicBag in class IlvGraphic

    Parameters:

    bag - The graphic bag to contain this graphic object.

    See Also:

    IlvGraphic
  - addObject
```
public void addObject(IlvGraphic obj,
                      boolean redraw)
```
    Adds a graphic object at the end of the set. Note that an object can be contained in only one bag, and the object cannot be contained by a manager and an IlvGraphicSet at the same time.

    Specified by:

    addObject in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    redraw - If true, the object is redrawn.
  - addObjectAt
```
public void addObjectAt(IlvGraphic obj,
                        int index,
                        boolean redraw)
```
    Adds a graphic object at the specified index in the set. Note that an object can be contained in only one bag, and the object cannot be contained by a manager and a IlvGraphicSet at the same time.

    Parameters:

    obj - The graphic object.

    index - The desired index or -1 to add the object to the end.

    redraw - If true, the object is redrawn.

    Throws:

    ArrayIndexOutOfBoundsException - if the index was not valid.
  - removeObject
```
public void removeObject(IlvGraphic obj,
                         boolean redraw)
```
    Removes a graphic object from this bag.

    Specified by:

    removeObject in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    redraw - If true the object is redrawn.
  - removeObjectAt
```
public void removeObjectAt(int index,
                           boolean redraw)
```
    Removes the graphic object located at the specified index from this bag.

    Parameters:

    index - The desired index.

    redraw - If true, the object is redrawn.

    Throws:

    ArrayIndexOutOfBoundsException - if the index supplied was not valid.
  - removeAll
```
public void removeAll(boolean redraw)
```
    Removes all the graphic objects from this bag.

    Parameters:

    redraw - If true, the object is redrawn.

    Since:

    JViews 7.5
  - getObject
```
public final IlvGraphic getObject(int index)
```
    Returns the graphic object at the specified index.

    Parameters:

    index - The desired index.

    Throws:

    ArrayIndexOutOfBoundsException - if the index supplied was not valid.
  - getIndex
```
public final int getIndex(IlvGraphic obj)
```
    Searches for the specified graphic object in the set and returns an index to it.

    Parameters:

    obj - The desired graphic object.

    Returns:

    The index of the object in the set or -1 if it is not found.
  - contains
```
public final boolean contains(IlvGraphic obj)
```
    Returns true if the object is in the graphic set.
  - getObjects
```
public final IlvGraphicEnumeration getObjects()
```
    Returns an enumeration of all the objects in the graphic set. Note that, when using this enumeration, you must not add or remove any object in the set; otherwise, going through this enumeration may return incorrect values or throw a ConcurrentModificationException. For multithread safety, it is useful to lock the manager's tree lock for the duration of the use of this enumeration.

    Specified by:

    getObjects in interface IlvGraphicBag

    Returns:

    An enumeration of IlvGraphic objects, or null.
  - getCardinal
```
public final int getCardinal()
```
    Returns the number of objects.
  - reDrawObj
```
public void reDrawObj(IlvGraphic obj)
```
    Redraws a graphic object contained in the set.

    Specified by:

    reDrawObj in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.
  - reDrawRegion
```
public void reDrawRegion(IlvRegion region)
```
    Redraws a region of the set.

    Specified by:

    reDrawRegion in interface IlvGraphicBag

    Parameters:

    region - The region to redraw in the IlvGraphicSet coordinate system.
  - reshapeObject
```
public void reshapeObject(IlvGraphic obj,
                          IlvRect newrect,
                          boolean redraw)
```
    Changes the size of a graphic object located in the set.

    Specified by:

    reshapeObject in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    newrect - The new desired bounding rectangle.

    redraw - If true, the object is redrawn.
  - moveObject
```
public void moveObject(IlvGraphic obj,
                       double x,
                       double y,
                       boolean redraw)
```
    Changes the location of a graphic object.

    Specified by:

    moveObject in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    x - The new desired x.

    y - The new desired y.

    redraw - If true, the object is redrawn.
  - applyToObject
```
public void applyToObject(IlvGraphic obj,
                          IlvApplyObject f,
                          Object arg,
                          boolean redraw)
```
    Applies a method to an object of the bag. Any operation that changes the bounding box of obj must be encapsulated into applyToObject.

    Specified by:

    applyToObject in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    f - The method to apply.

    arg - The arguments passed to f.

    redraw - If true, the object is redrawn.
  - applyToObjectImpl
```
protected void applyToObjectImpl(IlvGraphic obj,
                                 IlvApplyObject f,
                                 Object arg,
                                 boolean redraw)
```
    Implementation to apply a method to an object of the bag. Called from applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean). This method is for internal purposes, do not use.

    Since:

    JViews 8.7

    Internal: do not use!
  - invalidateAndApplyToObject
```
protected IlvRect invalidateAndApplyToObject(IlvGraphic obj,
                                             IlvApplyObject f,
                                             Object arg,
                                             IlvRect objBBoxOld,
                                             IlvRect objBBoxNew)
```
    Invalidate the layout of this object when doing applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean) to the input object.

    Parameters:

    obj - The object that changes.

    f - The method to apply.

    arg - The arguments passed to f.

    objBBoxOld - The old bounding box of the input object, if it is already calculated, or null.

    objBBoxNew - The new bounding box of the input object, if it is already calculated, or null.

    Returns:

    The new bounding box of the input object if it was needed to calculate it, or null.

    Since:

    JViews 8.8

    Internal: do not use!
  - copy
```
public IlvGraphic copy()
```
    Copies the object. This method copies the object by calling the copy constructor.

    Specified by:

    copy in class IlvGraphic

    Returns:

    A copy of the object.

    See Also:

    IlvGraphic
  - getObject
```
public IlvGraphic getObject(String name)
```
    Returns the object with the specified name.

    Specified by:

    getObject in interface IlvGraphicBag

    Parameters:

    name - The name.

    See Also:

    getObjectName(ilog.views.IlvGraphic), setObjectName(ilog.views.IlvGraphic, java.lang.String)
  - getObjectName
```
public String getObjectName(IlvGraphic obj)
```
    Returns the name of the object.

    Parameters:

    obj - The graphic object.

    See Also:

    setObjectName(ilog.views.IlvGraphic, java.lang.String), getObject(int)
  - setObjectName
```
public boolean setObjectName(IlvGraphic obj,
                             String name)
```
    Changes the name of a graphic object.

    Specified by:

    setObjectName in interface IlvGraphicBag

    Parameters:

    obj - The graphic object.

    name - The new name.

    Returns:

    true if the name can be changed.
  - setClip
```
public void setClip(Shape clip)
```
    Changes the shape that will clip the object. The value may be null if no clip is applied.

    Parameters:

    clip - The new clip.

    Since:

    JViews 3.5
  - getClip
```
public Shape getClip()
```
    Returns the shape that will clip the object. The value may be null if no clip is applied. The shape is modified when a transformation is applied to the object.

    Since:

    JViews 3.5
  - setAlpha
```
public void setAlpha(float alpha)
```
    Changes the alpha value of this graphic object. The alpha composition value is used to render the graphic object in a transparent way. The value must be in the range of [0.0, 1.0], the value of 1 meaning that the graphic object is not transparent.
    If the containers of the graphic object (manager layer, graphic set) have their own alpha value, the object draws with a composed alpha value.
    The default value is 1.

    Parameters:

    alpha - The new transparency level in the range [0.0, 1.0].

    Since:

    JViews 8.0

    See Also:

    getAlpha(), IlvManagerLayer.setAlpha(float)
  - getAlpha
```
public float getAlpha()
```
    Returns the alpha value of this graphic object. The alpha composition value is used to render this graphic object in a transparent way. The value is in the range of [0.0, 1.0], the value of 1 meaning that the graphic object is not transparent.

    Since:

    JViews 8.0

    See Also:

    setAlpha(float), IlvManagerLayer.getAlpha()
  - draw
```
public void draw(Graphics dst,
                 IlvTransformer t)
```
    Draws the object. This method simply calls the draw methods of contained objects. Objects not in the clip area are not drawn.

    Specified by:

    draw in class IlvGraphic

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    See Also:

    IlvGraphic.callDraw(Graphics,IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - drawCore
```
protected void drawCore(Graphics2D dst,
                        IlvTransformer t)
```
    Draws the object. This method is called from draw(java.awt.Graphics, ilog.views.IlvTransformer) after processing the alpha transparency. It can be overridden in subclasses.

    Parameters:

    dst - The destination Graphics.

    t - The transformation used to draw the object.

    Since:

    JViews 8.1

    See Also:

    setAlpha(float)
  - applyTransform
```
public void applyTransform(IlvTransformer t)
```
    Applies a transformation to the shape of contained objects.
    Note that a call to this method can modify the bounding box of the graphic set. For this reason, if the graphic set is contained inside an IlvManager, this method can be called only using the method IlvManager.applyToObject(ilog.views.IlvGraphic, ilog.views.IlvApplyObject, java.lang.Object, boolean) of the manager.

    Specified by:

    applyTransform in class IlvGraphic

    Parameters:

    t - The transformer to be applied.

    See Also:

    IlvGraphic
  - boundingBox
```
public IlvRect boundingBox(IlvTransformer t)
```
    Returns the bounding rectangle of the object. The bounding rectangle is the smallest rectangle enclosing all contained objects. Only visible objects are taken into account (see IlvGraphic.setVisible(boolean)).

    Specified by:

    boundingBox in class IlvGraphic

    Parameters:

    t - The transformer used to draw the object.

    See Also:

    IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.zoomable(), IlvGraphic
  - zoomable
```
public boolean zoomable()
```
    Tests if the graphic set is zoomable. This object is zoomable if all contained objects are zoomable.
    For details about the purpose of this method, see IlvGraphic.zoomable().

    Overrides:

    zoomable in class IlvGraphic

    See Also:

    IlvGraphic, IlvGraphic.draw(java.awt.Graphics, ilog.views.IlvTransformer), IlvGraphic.boundingBox(IlvTransformer), IlvManager
  - contains
```
public boolean contains(IlvPoint p,
                        IlvPoint tp,
                        IlvTransformer t)
```
    Tests if a point lies within the outline of the object. Calls firstContains to find the first object that contains the point.

    Overrides:

    contains in class IlvGraphic

    Parameters:

    p - The point to be tested.

    tp - The point p transformed by the transformer t.

    t - The transformation that was applied to the object when it was drawn.

    Returns:

    true if the point lies inside this graphic object.

    See Also:

    firstContains(ilog.views.IlvPoint, ilog.views.IlvPoint, ilog.views.IlvTransformer)
  - firstContains
```
public IlvGraphic firstContains(IlvPoint p,
                                IlvPoint tp,
                                IlvTransformer t)
```
    Searches for the first graphic object in the set that contains the specified point.

    Parameters:

    p - The point.

    tp - The transformed point.

    t - The transformer used to draw the set.
  - getIntersectionWithOutline
```
public IlvPoint getIntersectionWithOutline(IlvPoint innerPoint,
                                           IlvPoint outerPoint,
                                           IlvTransformer t)
```
    Returns the intersection of the line segment from inner point to outer point with the shape of the graphic object. This method is used the clip links against the shape of the node. The implementation of this method must be robust with respect to the input points: Even if innerPoint is not inside the graphic object, or if outerPoint is not outside the graphic object, it must return a valid point. For instance, if there is no intersection, it can return the start point.
    This implementation works well if no clip is set on this object, by choosing the best intersection with a subobject contained in the graphic set. If a clip is set on the object, it checks whether this intersection is inside the clip area. If it is outside the clip area, it returns the intersection with the clip area. This works well only if subobjects are not entirely outside the clip area.

    Overrides:

    getIntersectionWithOutline in class IlvGraphic

    Parameters:

    innerPoint - A point usually inside the graphic object, given in manager view coordinates.

    outerPoint - A point usually outside of the graphic object, given in manager view coordinates.

    t - The transformation used to draw the object.

    Since:

    JViews 8.1

    See Also:

    IlvClippingLinkConnector
  - write
```
public void write(IlvOutputStream stream)
           throws IOException
```
    Writes the object to an IlvOutputStream. You should not call this method directly; instead, you should use the write methods of the manager.

    Specified by:

    write in interface IlvPersistentObject

    Overrides:

    write in class IlvGraphic

    Parameters:

    stream - The output stream.

    Throws:

    IOException - thrown when an exception occurs during the write operation for this object.
  - isPersistent
```
public boolean isPersistent()
```
    If this method returns true the IlvGraphic instance will be saved in IVL files. The method returns true if all subobjects are persistent.

    Overrides:

    isPersistent in class IlvGraphic

    Since:

    JViews 8.0
  - getToolTipText
```
public String getToolTipText(IlvPoint p,
                             IlvTransformer t)
```
    Returns the tooltip text to display when the mouse pointer is at a specified location inside the graphic object. It tries to retrieve the tooltip from one of the elements in this graphic set. If this fails, it tries to retrieve the tooltip of the entire graphic set.
    Note that you must enable the tooltip mechanism for the manager view by calling the static method IlvToolTipManager.registerView(ilog.views.IlvManagerView).

    Overrides:

    getToolTipText in class IlvGraphic

    Parameters:

    p - The location of the mouse (in view coordinates).

    t - The transformer that converts the coordinate system of this object (the manager coordinates) into the coordinate system of the manager view in which the tooltip is about to be displayed (the view coordinates).

    Returns:

    The tooltip at point p for transformation t, or null if no tooltip should be displayed.

    Since:

    JViews 8.0

    See Also:

    IlvGraphic, IlvGraphic.getToolTipText(), IlvGraphic.setToolTipText(String)
  - getPopupMenu
```
public JPopupMenu getPopupMenu(IlvPoint p,
                               IlvTransformer t,
                               IlvManagerView view,
                               IlvPopupMenuManager popupManager)
```
    Returns the Swing pop-up menu to display when the pop-up is triggered while the mouse pointer is at a specified location inside the graphic object. It tries to retrieve the pop-up menu from one of the elements in this graphic set. If this fails, it tries to retrieve the pop-up menu of the entire graphic set.
    Note that you must enable the pop-up menu mechanism for the manager view by calling the static method IlvPopupMenuManager.registerView(ilog.views.IlvManagerView).

    Overrides:

    getPopupMenu in class IlvGraphic

    Parameters:

    p - The location of the mouse (in view coordinates).

    t - The transformer that converts the coordinate system of this object (the manager coordinates) into the coordinate system of the manager view in which the tooltip is about to be displayed (the view coordinates).

    view - The manager view that triggered the pop-up menu.

    popupManager - The pop-up menu manager.

    Returns:

    The Swing pop-up menu, which can be null.

    Since:

    JViews 8.0

    See Also:

    IlvGraphic, IlvPopupMenuManager.registerView(ilog.views.IlvManagerView), IlvGraphic.getPopupMenu()
  - getOriginalPopupMenu
```
protected JPopupMenu getOriginalPopupMenu(IlvPoint p,
                                          IlvTransformer t,
                                          IlvManagerView view,
                                          IlvPopupMenuManager popupManager)
```
    This is the original implementation of getPopupMenu from the super class to retrieve the pop-up menu. Subclasses of this class might need access to the original implementation.

    Parameters:

    p - The location of the mouse (in view coordinates).

    t - The transformer that converts the coordinate system of this object (the manager coordinates) into the coordinate system of the manager view in which the tooltip is about to be displayed (the view coordinates).

    view - The manager view that triggered the pop-up menu.

    popupManager - The pop-up menu manager.

    Returns:

    The Swing pop-up menu as retrieved by the super class.

    Since:

    JViews 8.0
  - addGraphicBagHierarchyListener
```
public void addGraphicBagHierarchyListener(GraphicBagHierarchyListener listener)
```
    Adds the specified listener to receive events from the ancestor managers and ancestor graphic sets and from this graphic set when the hierarchy of graphic bags has changed. The hierarchy event is generated by a manager or graphic set when it is added to or removed from another manager or graphic set, and passed down the hierarchy. The event is dispatched to every graphic set that is contained in the manager or graphic set whose graphic bag has changed.

    Specified by:

    addGraphicBagHierarchyListener in interface GraphicBagHierarchyEventReceiver

    Parameters:

    listener - The listener.

    Since:

    JViews 8.1

    See Also:

    removeGraphicBagHierarchyListener(ilog.views.event.GraphicBagHierarchyListener)
  - removeGraphicBagHierarchyListener
```
public void removeGraphicBagHierarchyListener(GraphicBagHierarchyListener listener)
```
    Removes the specified listener so that it no longer receives events from ancestor manager and ancestor graphic sets and from this graphic set when the hierarchy of graphic bags has changed.

    Specified by:

    removeGraphicBagHierarchyListener in interface GraphicBagHierarchyEventReceiver

    Parameters:

    listener - The listener.

    Since:

    JViews 8.1

    See Also:

    addGraphicBagHierarchyListener(ilog.views.event.GraphicBagHierarchyListener)
  - enableGraphicBagHierarchyEventForwarding
```
public void enableGraphicBagHierarchyEventForwarding()
```
    Enables forwarding of GraphicBagHierarchyEvent events, since the objects contained in this graphic set need to receive the events.

    Specified by:

    enableGraphicBagHierarchyEventForwarding in interface GraphicBagHierarchyEventReceiver

    Since:

    JViews 8.1
  - needsGraphicBagHierarchyEvent
```
public boolean needsGraphicBagHierarchyEvent()
```
    Returns whether this object needs to receive GraphicBagHierarchyEvent events, either from itself or from its ancestors.

    Specified by:

    needsGraphicBagHierarchyEvent in interface GraphicBagHierarchyEventReceiver

    Since:

    JViews 8.1
  - fireGraphicBagHierarchyEvent
```
public void fireGraphicBagHierarchyEvent(GraphicBagHierarchyEvent event)
```
    Fires a graphic bag hierarchy event to this graphic set and all contained objects.

    Specified by:

    fireGraphicBagHierarchyEvent in interface GraphicBagHierarchyEventReceiver

    Since:

    JViews 8.1
  - addManagerViewsHierarchyListener
```
public void addManagerViewsHierarchyListener(ManagerViewsChangedListener listener)
```
    Adds the specified listener to receive events from the owning manager of this object and from its ancestors when a manager view was added or removed.
    The hierarchy event mechanism is comparable to java.awt.event.HierarchyEvent on swing components. The view changed event is generated by a manager when a view is added or removed, and passed down the nesting hierarchy. The event is dispatched to every graphic set that is contained in the manager whose view has changed.

    Specified by:

    addManagerViewsHierarchyListener in interface ManagerViewsHierarchyEventReceiver

    Parameters:

    listener - The listener.

    Since:

    JViews 8.1

    See Also:

    removeManagerViewsHierarchyListener(ilog.views.event.ManagerViewsChangedListener)
  - removeManagerViewsHierarchyListener
```
public void removeManagerViewsHierarchyListener(ManagerViewsChangedListener listener)
```
    Removes the specified listener so that it no longer receives events from the owning manager of this object and from its ancestors when a manager view was added or removed.

    Specified by:

    removeManagerViewsHierarchyListener in interface ManagerViewsHierarchyEventReceiver

    Parameters:

    listener - The listener.

    Since:

    JViews 8.1

    See Also:

    addManagerViewsHierarchyListener(ilog.views.event.ManagerViewsChangedListener)
  - enableManagerViewsHierarchyEventForwarding
```
public void enableManagerViewsHierarchyEventForwarding()
```
    Enables forwarding of ManagerViewsChangedEvent events through the nesting hierarchy, since the objects contained in this graphic set need to receive the events.

    Specified by:

    enableManagerViewsHierarchyEventForwarding in interface ManagerViewsHierarchyEventReceiver

    Since:

    JViews 8.1
  - needsManagerViewsHierarchyEvent
```
public boolean needsManagerViewsHierarchyEvent()
```
    Returns whether the graphic set needs to receive ManagerViewsChangedEvent events, either from its owning manager or from its ancestors. It returns true, if a listener was installed through addManagerViewsHierarchyListener(ilog.views.event.ManagerViewsChangedListener) on this graphic set or on any object contained in this graphic set.

    Specified by:

    needsManagerViewsHierarchyEvent in interface ManagerViewsHierarchyEventReceiver

    Since:

    JViews 8.1
  - fireManagerViewsHierarchyEvent
```
public void fireManagerViewsHierarchyEvent(ManagerViewsChangedEvent event)
```
    Fires a ManagerViewsChangedEvent event to all listeners installed via addManagerViewsHierarchyListener(ilog.views.event.ManagerViewsChangedListener) on this graphic set or contained objects.

    Specified by:

    fireManagerViewsHierarchyEvent in interface ManagerViewsHierarchyEventReceiver

    Since:

    JViews 8.1
  - invalidateBBoxCache
```
protected void invalidateBBoxCache()
```
    Invalidates the bounding box cache.

    Overrides:

    invalidateBBoxCache in class IlvGraphic

    Since:

    JViews 8.5
  - setInsideApply
```
protected void setInsideApply(boolean set)
```
    This method is for internal purposes, do not use.

    Since:

    JViews 8.5

    Internal: do not use!
  - isLocaleSensitive
```
public boolean isLocaleSensitive()
```
    Returns true if the bounding box of this object depends on the locale of this object.

    Overrides:

    isLocaleSensitive in class IlvGraphic

    Returns:

    Whether the bounding box of this object depends on the locale.

    Since:

    JViews 8.8
  - isComponentOrientationSensitive
```
public boolean isComponentOrientationSensitive()
```
    Returns true if the bounding box of this object depends on the component orientation of this object.

    Overrides:

    isComponentOrientationSensitive in class IlvGraphic

    Returns:

    Whether the bounding box depends on the component orientation.

    Since:

    JViews 8.8
  - isBaseTextDirectionSensitive
```
public boolean isBaseTextDirectionSensitive()
```
    Returns true if the bounding box of this object depends on the base text direction of this object.

    Overrides:

    isBaseTextDirectionSensitive in class IlvGraphic

    Returns:

    Whether the bounding box of this object depends on the base text direction.

    Since:

    JViews 8.8
  - setBaseTextDirection
```
public void setBaseTextDirection(int baseTextDirection,
                                 boolean redraw)
```
    Changes the base direction of the text. See IlvBidiGraphic.setBaseTextDirection(int).

    Overrides:

    setBaseTextDirection in class IlvBidiGraphic

    Parameters:

    baseTextDirection - The base text direction

    redraw - Whether to redraw the object after the change.

    Since:

    JViews 8.8
  - baseTextDirectionChanged
```
public void baseTextDirectionChanged(int oldBaseTextDirection,
                                     int newBaseTextDirection)
```
    Called when the object is base text direction sensitive and the resolved base text direction has changed.

    Overrides:

    baseTextDirectionChanged in class IlvGraphic

    Parameters:

    oldBaseTextDirection - Resolved base text direction of this object before the change.

    newBaseTextDirection - Resolved base text direction of this object after the change.

    Since:

    JViews 8.8

    See Also:

    isBaseTextDirectionSensitive()
  - componentOrientationChanged
```
public void componentOrientationChanged(ComponentOrientation oldOri,
                                        ComponentOrientation newOri)
```
    Called when the object is component orientation sensitive and the component orientation has changed.

    Overrides:

    componentOrientationChanged in class IlvGraphic

    Parameters:

    oldOri - Orientation of this object before the orientation change.

    newOri - Orientation of this object after the orientation change.

    Since:

    JViews 8.8

    See Also:

    isComponentOrientationSensitive()

Class IlvGraphicSet

Example

About Graphic Objects

Nested Class Summary

Field Summary

Constructor Summary

Method Summary

Methods inherited from class ilog.views.IlvBidiGraphic

Methods inherited from class ilog.views.IlvGraphic

Methods inherited from class java.lang.Object

Methods inherited from interface ilog.views.IlvGraphicBag

Field Detail

list

Constructor Detail

IlvGraphicSet

IlvGraphicSet

IlvGraphicSet

IlvGraphicSet

Method Detail

setGraphicBag

addObject

addObjectAt

removeObject

removeObjectAt

removeAll

getObject

getIndex

contains

getObjects

getCardinal

reDrawObj

reDrawRegion

reshapeObject

moveObject

applyToObject

applyToObjectImpl

invalidateAndApplyToObject

copy

getObject

getObjectName

setObjectName

setClip

getClip

setAlpha

getAlpha

draw

drawCore

applyTransform

boundingBox

zoomable

contains

firstContains

getIntersectionWithOutline

write

isPersistent

getToolTipText

getPopupMenu

getOriginalPopupMenu

addGraphicBagHierarchyListener

removeGraphicBagHierarchyListener

enableGraphicBagHierarchyEventForwarding

needsGraphicBagHierarchyEvent

fireGraphicBagHierarchyEvent

addManagerViewsHierarchyListener

removeManagerViewsHierarchyListener

enableManagerViewsHierarchyEventForwarding

needsManagerViewsHierarchyEvent

fireManagerViewsHierarchyEvent

invalidateBBoxCache

setInsideApply

isLocaleSensitive

isComponentOrientationSensitive

isBaseTextDirectionSensitive

setBaseTextDirection

baseTextDirectionChanged

componentOrientationChanged
