ilog.views.chart.renderer

Class IlvTreemapChartRenderer

java.lang.Object

ilog.views.chart.IlvChartRenderer

ilog.views.chart.renderer.IlvSimpleChartRenderer

ilog.views.chart.renderer.IlvTreemapChartRenderer

public class IlvTreemapChartRenderer
extends IlvSimpleChartRenderer

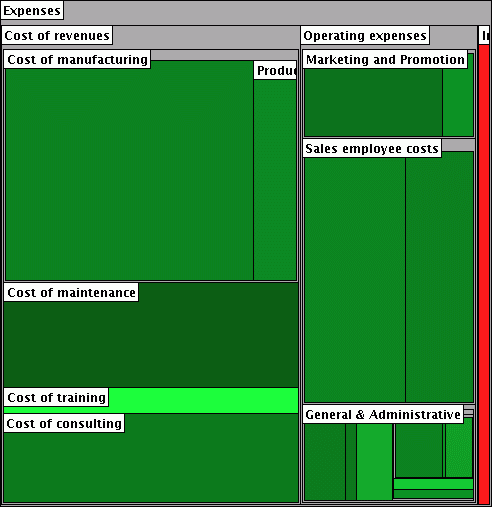

A renderer displaying treemap charts.

CSS example:

ilvTreemapChartRenderer {
class : "ilog.views.chart.renderer.IlvTreemapChartRenderer";
annotation : "@#ilvDataLabelAnnotation";
annotationClipping : "false";
annotationVisibility : "ALL";
areaColumnName : "<value>";
bottomMarginProportion : "3.0";
clippedAnnotationVisibility : "false";
colorColumnName : "<value>";
colorForNaN : "green";
colorScheme : "CONSTANT";
CSSClassesColumnName : "<value>";
focusParentMarginProportion : "3.0";
labelAlignmentX : "LEFT";
labelAlignmentY : "BOTTOM";
labelColumnName : "<value>";
labelFormat : "@#dateFormat";
leadingMarginProportion : "3.0";
legendLabelFormat : "@#dateFormat";
marginReductionFactor : "3.0";
maximumBottomMargin : "3.0";
maximumFocusParentMargin : "3.0";
maximumLeadingMargin : "3.0";
maximumTopMargin : "3.0";
maximumTrailingMargin : "3.0";
name : "<value>";
packing : "ALTERNATING";
primaryDirection : "RIGHT";
secondaryDirection : "RIGHT";
strokeThreshold : "2";
style : "@#ilvStyle";
styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";
topMarginProportion : "3.0";
trailingMarginProportion : "3.0";
useMarginsOnRoot : "false";
visible : "false";
visibleInLegend : "false";
YAxisIdx : "2";
}

Property Summary

Properties

Modifier and Type	Property and Description
IlvDataAnnotation	annotation Specifies a global annotation for all the data sets displayed by this renderer.
boolean	annotationClipping Determines whether annotations are clipped to fit in their corresponding rectangle.
int	annotationVisibility Sets the visibility mode for annotations.
java.lang.String	areaColumnName Determines the column chosen to determine the area of every object, through its name.
double	bottomMarginProportion Sets the bottom margin proportion.
java.lang.String	class Creates a new treemap chart renderer.
boolean	clippedAnnotationVisibility Determines whether annotations that do not fit in their corresponding rectangle can be visible.
java.lang.String	colorColumnName Determines the column chosen to determine the color of every rectangle, through its name.
java.awt.Color	colorForNaN Assigns the color used when a value in the color column is NaN.
ilog.views.chart.renderer.IlvColorScheme	colorScheme Assigns the color scheme.
java.lang.String	CSSClassesColumnName Determines the column chosen to determine the CSS classes of every object, through its name.
double	focusParentMarginProportion Sets the proportion for the margin that represents the parent of the focused node.
int	labelAlignmentX Sets the horizontal alignment of each label within the rectangle to which it belongs.
int	labelAlignmentY Sets the vertical alignment of each label within the rectangle to which it belongs.
java.lang.String	labelColumnName Determines the column chosen to determine the label of every object, as shown by IlvDataLabelAnnotation, through its name.
java.text.Format	labelFormat Sets the format for labels associated with rectangles.
double	leadingMarginProportion Sets the leading margin proportion.
java.text.Format	legendLabelFormat Sets the format of labels associated with colors, in the legend.
double	marginReductionFactor Sets the margin reduction factor.
double	maximumBottomMargin Sets the maximum bottom margin, in pixels.
double	maximumFocusParentMargin Sets the maximum width of the margin that represents the parent of the focused node, in pixels.
double	maximumLeadingMargin Sets the maximum leading margin, in pixels.
double	maximumTopMargin Sets the maximum top margin, in pixels.
double	maximumTrailingMargin Sets the maximum trailing margin, in pixels.
java.lang.String	name Sets the name of this renderer.
ilog.views.chart.renderer.IlvTreemapPacking	packing Sets the rectangle packing.
int	primaryDirection Sets the primary direction of arrangement of the rectangles.
int	secondaryDirection Sets the secondary direction of arrangement of the rectangles.
int	strokeThreshold Specifies the minimum size of a rectangle, under which the stroke of a rendering style is not used.
IlvStyle	style Sets the main style used by this renderer.
IlvStyle[]	styles Sets the styles used by this renderer.
double	topMarginProportion Sets the top margin proportion.
double	trailingMarginProportion Sets the trailing margin proportion.
boolean	useMarginsOnRoot Specifies whether the margins also apply to the outermost rectangle, that is, the root of the displayed tree of rectangles.
boolean	visible Toggles the visibility of this renderer.
boolean	visibleInLegend Indicates whether the renderer appears in the legend.
int	YAxisIdx Connects the specified renderer to the specified ordinate axis.

This setting has an effect only when data annotations of type IlvDataLabelAnnotation are used.

CSS example: labelAlignmentX : "LEFT";

Allowed values:
LEFT		Box-orientation constant used to specify the left side of a box.
CENTER		The central position in an area. Used for both compass-direction constants (NORTH, etc.) and box-orientation constants (TOP, etc.).
RIGHT		Box-orientation constant used to specify the right side of a box.
LEADING		Identifies the leading edge of text for use with left-to-right and right-to-left languages. Used by buttons and labels.
TRAILING		Identifies the trailing edge of text for use with left-to-right and right-to-left languages. Used by buttons and labels.

labelAlignmentY

public int labelAlignmentY

Sets the vertical alignment of each label within the rectangle to which it belongs. The possible values are:

• SwingConstants.BOTTOM, means bottom-adjusted within the rectangle,
• SwingConstants.CENTER, means centered vertically within the rectangle,
• SwingConstants.TOP, means top-adjusted within the rectangle.

This setting has an effect only when data annotations of type IlvDataLabelAnnotation are used.

CSS example: labelAlignmentY : "BOTTOM";

Allowed values:
BOTTOM		Box-orientation constant used to specify the bottom of a box.
CENTER		The central position in an area. Used for both compass-direction constants (NORTH, etc.) and box-orientation constants (TOP, etc.).
TOP		Box-orientation constant used to specify the top of a box.

labelColumnName

public java.lang.String labelColumnName

Determines the column chosen to determine the label of every object, as shown by IlvDataLabelAnnotation, through its name.

CSS example: labelColumnName : "<value>";

labelFormat

public java.text.Format labelFormat

Sets the format for labels associated with rectangles.

It specifies how objects or numbers, that are retrieved as values from the label column, are converted to strings.

This setting has an effect only when data annotations of type IlvDataLabelAnnotation are used.

CSS example: labelFormat : "@#dateFormat";

See implementing class DateFormat for an example of implementing a labelFormat.

leadingMarginProportion

public double leadingMarginProportion

Sets the leading margin proportion.

The leading margin is either the left margin or the right margin: it is the right margin if the chart orientation is right-to-left and the primary direction is TRAILING; otherwise it is the left margin.

The value is the proportion relative to a rectangle width. It must be between 0 and 1. Typical values are between 0.01 (1 percent) and 0.05 (5 percent).

CSS example: leadingMarginProportion : "3.0";

See Also:

primaryDirection

legendLabelFormat

public java.text.Format legendLabelFormat

Sets the format of labels associated with colors, in the legend.

It specifies how objects or numbers, that correspond to values of the color column, are converted to strings.

CSS example: legendLabelFormat : "@#dateFormat";

See implementing class DateFormat for an example of implementing a legendLabelFormat.

marginReductionFactor

public double marginReductionFactor

Sets the margin reduction factor.

It describes the margin proportions of a nested rectangle, compared to the margin proportions of the rectangle that contains it.

The value must be >=0. The value 1 (the default) specifies that the margin proportions are independent of the nesting depth. A value between 0 and 1 will make the margins of inner, nested rectangles thinner.

CSS example: marginReductionFactor : "3.0";

maximumBottomMargin

public double maximumBottomMargin

Sets the maximum bottom margin, in pixels.

CSS example: maximumBottomMargin : "3.0";

maximumFocusParentMargin

public double maximumFocusParentMargin

Sets the maximum width of the margin that represents the parent of the focused node, in pixels.

CSS example: maximumFocusParentMargin : "3.0";

maximumLeadingMargin

public double maximumLeadingMargin

Sets the maximum leading margin, in pixels.

The leading margin is either the left margin or the right margin: it is the right margin if the chart's orientation is right-to-left and the primary direction is TRAILING; otherwise it is the left margin.

CSS example: maximumLeadingMargin : "3.0";

See Also:

primaryDirection

maximumTopMargin

public double maximumTopMargin

Sets the maximum top margin, in pixels.

CSS example: maximumTopMargin : "3.0";

maximumTrailingMargin

public double maximumTrailingMargin

Sets the maximum trailing margin, in pixels.

The trailing margin is either the right margin or the left margin: it's the left margin if the chart's orientation is right-to-left and the primary direction is TRAILING; otherwise it is the right margin.

CSS example: maximumTrailingMargin : "3.0";

See Also:

primaryDirection

name

public java.lang.String name

Sets the name of this renderer.

CSS example: name : "<value>";

packing

public ilog.views.chart.renderer.IlvTreemapPacking packing

Sets the rectangle packing.

CSS example: packing : "ALTERNATING";

Allowed values:
ALTERNATING		The default type of packing: The rectangles are arranged according to the sort order given by the model, and in alternating directions at the different levels.
SQUARIFIED_CORNER		Type of packing: The rectangles are arranged to be near-squares. Big rectangles are in one corner, the small rectangles are in the opposite corner. This type of packing is suitable when, at the lowest level, there are many small rectangles.
BAR		Type of packing: The rectangles are arranged to have all the same width but different heights. The result resembles a bar chart.

primaryDirection

public int primaryDirection

Sets the primary direction of arrangement of the rectangles. The possible values are:

• SwingConstants.RIGHT, means left-to-right arrangement,
• SwingConstants.LEFT, means right-to-left arrangement,
• SwingConstants.TRAILING, means left-to-right or right-to-left arrangement, according to the locale,
• SwingConstants.TOP, means bottom-to-top arrangement,
• SwingConstants.BOTTOM, means top-to-bottom arrangement.

CSS example: primaryDirection : "RIGHT";

Allowed values:
RIGHT		Box-orientation constant used to specify the right side of a box.
LEFT		Box-orientation constant used to specify the left side of a box.
TRAILING		Identifies the trailing edge of text for use with left-to-right and right-to-left languages. Used by buttons and labels.
TOP		Box-orientation constant used to specify the top of a box.
BOTTOM		Box-orientation constant used to specify the bottom of a box.

secondaryDirection

public int secondaryDirection

Sets the secondary direction of arrangement of the rectangles. The possible values are:

• SwingConstants.RIGHT, means left-to-right arrangement,
• SwingConstants.LEFT, means right-to-left arrangement,
• SwingConstants.TRAILING, means left-to-right or right-to-left arrangement, according to the locale,
• SwingConstants.TOP, means bottom-to-top arrangement,
• SwingConstants.BOTTOM, means top-to-bottom arrangement.

CSS example: secondaryDirection : "RIGHT";

Allowed values:
RIGHT		Box-orientation constant used to specify the right side of a box.
LEFT		Box-orientation constant used to specify the left side of a box.
TRAILING		Identifies the trailing edge of text for use with left-to-right and right-to-left languages. Used by buttons and labels.
TOP		Box-orientation constant used to specify the top of a box.
BOTTOM		Box-orientation constant used to specify the bottom of a box.

strokeThreshold

public int strokeThreshold

Specifies the minimum size of a rectangle, under which the stroke of a rendering style is not used.

The default value is 0.

CSS example: strokeThreshold : "2";

style

public IlvStyle style

Sets the main style used by this renderer. By default, the IlvTreemapChartRenderer class makes use of a single style. If the parameter is null and the renderer has been attached to a chart, sets a default style.

Note: The Bean property style must not be specified together with the Bean property styles.

CSS example: style : "@#ilvStyle";

See implementing class IlvStyle for an example of implementing a style.

styles

public IlvStyle[] styles

Sets the styles used by this renderer.

CSS example:

styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";

See implementing class IlvStyle for an example of implementing a styles.

topMarginProportion

public double topMarginProportion

Sets the top margin proportion.

The value is the proportion relative to a rectangle height. It must be between 0 and 1. Typical values are between 0.01 (1 percent) and 0.05 (5 percent).

CSS example: topMarginProportion : "3.0";

trailingMarginProportion

public double trailingMarginProportion

Sets the trailing margin proportion.

The trailing margin is either the right margin or the left margin: it's the left margin if the chart orientation is right-to-left and the primary direction is TRAILING; otherwise it is the right margin.

The value is the proportion relative to a rectangle width. It must be between 0 and 1. Typical values are between 0.01 (1 percent) and 0.05 (5 percent).

CSS example: trailingMarginProportion : "3.0";

See Also:

primaryDirection

useMarginsOnRoot

public boolean useMarginsOnRoot

Specifies whether the margins also apply to the outermost rectangle, that is, the root of the displayed tree of rectangles. The default is true.

CSS example: useMarginsOnRoot : "false";

visible

public boolean visible

Toggles the visibility of this renderer.

CSS example: visible : "false";

visibleInLegend

public boolean visibleInLegend

Indicates whether the renderer appears in the legend.

The default value of this property is true, which means that the renderer will automatically create and add items to the legend.

CSS example: visibleInLegend : "false";

YAxisIdx

public int YAxisIdx

Connects the specified renderer to the specified ordinate axis.

CSS example: YAxisIdx : "2";
