ilog.views.chart.renderer

Class IlvStairChartRenderer

java.lang.Object

ilog.views.chart.IlvChartRenderer

ilog.views.chart.renderer.IlvCompositeChartRenderer

ilog.views.chart.renderer.IlvSimpleCompositeChartRenderer

ilog.views.chart.renderer.IlvPolylineChartRenderer

ilog.views.chart.renderer.IlvStairChartRenderer

public class IlvStairChartRenderer
extends IlvPolylineChartRenderer

A renderer displaying stairs. This renderer creates an instance of IlvSingleStairRenderer for every data set in the connected data source.

For a stair chart, the displayed value at a point x₀ within the data range is computed by looking up the data set point with the largest x <= x₀ and taking its value.

Note: This renderer only works with data sets whose x-series are sorted in ascending order (see IlvDataSet#isXValuesSorted). To sort a data set into ascending x order, you can use the class IlvXSortedDataSet.

Note: This renderer does not work in 3-D mode in the STACKED or SUMMED modes. This is a limitation.

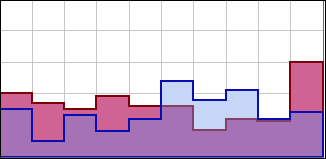

The following figure shows an example of an IlvStairChartRenderer.

CSS example:

ilvStairChartRenderer {
class : "ilog.views.chart.renderer.IlvStairChartRenderer";
annotation : "@#ilvDataLabelAnnotation";
autoTransparency : "false";
marker : "CIRCLE";
markerSize : "2";
mode : "SUPERIMPOSED";
name : "<value>";
stacked100Percent : "false";
stackedByIndex : "false";
styles[0] : "@#ilvStyle1";
styles[1] : "@#ilvStyle2";
visible : "false";
visibleInLegend : "false";
YAxisIdx : "2";
}

Property Summary

Properties

Modifier and Type	Property and Description
IlvDataAnnotation	annotation Specifies a global annotation for all the data sets displayed by this renderer.
boolean	autoTransparency Sets whether this renderer should use transparent default colors.
java.lang.String	class Creates a new stair chart renderer.
ilog.views.chart.graphic.IlvMarker	marker Specifies a marker for the child polyline renderers.
int	markerSize Specifies a marker size for the child polyline renderers.
int	mode Sets the mode of this renderer.
java.lang.String	name Sets the name of this renderer.
boolean	stacked100Percent Specifies whether the stacking is scaled to 100.
boolean	stackedByIndex Specifies whether the stacking is based on data set indices rather than on X values.
IlvStyle[]	styles Sets the styles used by the child renderers.
boolean	visible Toggles the visibility of this renderer.
boolean	visibleInLegend Indicates whether the renderer appears in the legend.
int	YAxisIdx Connects the specified renderer to the specified ordinate axis.

The default value of this property is true, which means that the renderer will automatically create and add items to the legend.

CSS example: visibleInLegend : "false";

YAxisIdx

public int YAxisIdx

Connects the specified renderer to the specified ordinate axis.

CSS example: YAxisIdx : "2";
