IlvElasticView Class Reference

View class. More...

#include <ilviews/base/view.h>

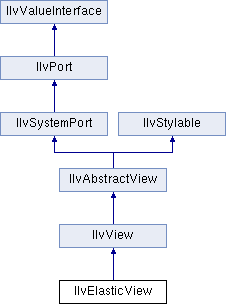

Inheritance diagram for IlvElasticView:

Public Member Functions
	IlvElasticView (IlvAbstractView *parent, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes a new view object that is a child of another view. More...
	IlvElasticView (IlvDisplay *display, const char *name, const char *title, const IlvRect &dims, IlUInt properties, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes initializes a new view object that is a new top window with specific top-window properties. More...
	IlvElasticView (IlvDisplay *display, const char *name, const char *title, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes initializes a new view object that is a new top window. More...
	IlvElasticView (IlvDisplay *display, IlvSystemView available)
	Initializes a new new view object by actually using an existing system view. More...
	IlvElasticView (IlvDisplay *display, IlvSystemView parent, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes a new view that is a child of an existing system view. More...
virtual void	moveResize (const IlvRect &rect)
	Moves and resizes the view. More...
virtual void	resize (IlvDim w, IlvDim h)
	Resizes the view. More...
Public Member Functions inherited from IlvView
	IlvView (IlvAbstractView *parent, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes a new view object that is a child of another view. More...
	IlvView (IlvDisplay *display, const char *name, const char *title, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes a new view object that is a new top window. More...
	IlvView (IlvDisplay *display, const char *name, const char *title, const IlvRect &size, IlUInt properties, IlBoolean visible=IlTrue, IlvSystemView transientFor=0)
	Initializes a new view object that is a new top window with specific top-window properties. More...
	IlvView (IlvDisplay *display, IlvSystemView available)
	Initializes a new view object by actually using an existing system view. More...
	IlvView (IlvDisplay *display, IlvSystemView parent, const IlvRect &size, IlBoolean visible=IlTrue)
	Initializes a new view that is a child of an existing system view. More...
void	addProperty (const IlSymbol *key, IlAny value)
	Adds a property to the view. More...
void	ensureInScreen (IlvPos xMargin=0, IlvPos yMargin=0)
	Ensures that the view remains visible. More...
const char *	getName () const
	Retrieves the name. More...
IlAny	getProperty (const IlSymbol *key) const
	Retrieves a property. More...
Shape *	getShape () const
	Returns the view shape. More...
virtual const char *	getStylableName () const
	Returns the name of this object. More...
const char *	getTitle () const
	Retrieves the title of this view. More...
IlBoolean	hasProperty (const IlSymbol *key) const
	Checks the existence of a property. More...
virtual void	hide ()
	Hides the view. More...
void	iconBitmap (IlvBitmap *image, IlvBitmap *mask=0)
	Sets the icon aspect. More...
void	iconify ()
	Requests this window to iconify itself. More...
virtual IlBoolean	isIconified () const
	Retrieves the iconified state. More...
IlBoolean	isModal () const
	Queries the modality of this view. More...
IlBoolean	isVisible () const
	Retrieves the visibility. More...
virtual void	move (const IlvPoint &point)
	Moves the view. More...
void	moveToMouse (IlvDirection alignment=IlvCenter, IlvPos dx=0, IlvPos dy=0, IlBoolean ensureInScreen=IlTrue)
	Moves the view relative to the location of the mouse. More...
void	moveToScreen (IlvDirection alignment=IlvCenter, IlvPos dx=0, IlvPos dy=0, IlBoolean ensureInScreen=IlTrue)
	Moves the view relative to the root window. More...
void	moveToView (const IlvView *view, IlvDirection alignment=IlvCenter, IlvPos dx=0, IlvPos dy=0, IlBoolean ensureInScreen=IlTrue)
	Moves the view relative to another view. More...
virtual void	removeDeleteCallback (IlvDestroyCallback del=0, IlAny userArg=0)
	Removes a Delete callback. More...
virtual void	removeDestroyCallback (IlvDestroyCallback destroy=0, IlAny userArg=0)
	Removes a Destroy callback. More...
virtual void	removeExposeCallback (IlvExposeCallback expose=0, IlAny userArg=0)
	Removes an Expose callback. More...
virtual void	removeInputCallback (IlvInputCallback input=0, IlAny userArg=0)
	Removes an Input callback. More...
virtual void	removePostResizeCallback (IlvResizeCallback resize, IlAny userArg=0)
	Removes a post Resize callback. More...
IlBoolean	removeProperty (const IlSymbol *key)
	Removes a property. More...
virtual void	removeResizeCallback (IlvResizeCallback resize=0, IlAny userArg=0)
	Removes a Resize callback. More...
IlBoolean	replaceProperty (const IlSymbol *key, IlAny value)
	Replaces a property. More...
virtual void	setDeleteCallback (IlvDestroyCallback del, IlAny userArg=0)
	Sets a callback that watches for destruction. More...
virtual void	setDestroyCallback (IlvDestroyCallback destroy, IlAny userArg=0)
	Sets a callback for Destroy events. More...
virtual void	setExposeCallback (IlvExposeCallback expose, IlAny userArg=0)
	Sets a callback for Expose events. More...
void	setIconTitle (const char *title)
	Sets the iconified title of this view. More...
virtual void	setInputCallback (IlvInputCallback input, IlAny userArg=0)
	Sets a callback for Input events. More...
void	setMaximumSize (IlvDim w, IlvDim h)
	Sets the maximum size of this view. More...
void	setMinimumSize (IlvDim w, IlvDim h)
	Sets the minimum size of this view. More...
virtual void	setName (const char *name)
	Sets the name. More...
virtual void	setPostResizeCallback (IlvResizeCallback resize, IlAny userArg=0)
	Sets a callback for Resize events. More...
void	setProperty (const IlSymbol *key, IlAny value)
	Sets or removes a property. More...
virtual void	setResizeCallback (IlvResizeCallback resize, IlAny userArg=0)
	Sets a callback for Resize events. More...
IlBoolean	setShape (Shape *newShape)
	Sets a shape on the view. More...
virtual void	setTitle (const char *title)
	Sets the title of the view. More...
virtual void	show ()
	Shows the view. More...
virtual IlBoolean	showModal (IlBoolean doesGrab=IlFalse, IlvCursor *cursor=0)
	Shows the window in a modal mode. More...
Public Member Functions inherited from IlvAbstractView
virtual void	boundingBox (IlvRect &bbox) const
	Retrieves the relative dimensions of the view. More...
IlBoolean	enableMultitouch (IlBoolean enable)
	Allows the view to receive multi-touch events. More...
void	ensureVisible (const IlvPoint &point)
	Ensures that a point remains visible. More...
void	ensureVisible (const IlvRect &rect)
	Ensures that a rectangle remains visible. More...
virtual void	erase (const IlvRect &rect, IlBoolean reDraw=IlFalse)
	Erases an area of this view. More...
virtual void	erase (IlBoolean reDraw=IlFalse)
	Entirely erases the view. More...
virtual void	frameBBox (IlvRect &bbox) const
	Retrieves the dimension of the view frame. More...
IlvColor *	getBackground () const
	Retrieves the background color of this view. More...
IlvBitmap *	getBackgroundBitmap () const
	Gets the background bitmap of this view. More...
IlBoolean	getCompressButtonDragged () const
	Indicates if IlvButtonDragged compression is enabled or not. More...
IlBoolean	getCompressPointerMoved () const
	Indicates if IlvPointerMoved compression is enabled or not. More...
IlvCursor *	getCursor () const
	Retrieves the cursor currently set on this view. More...
IlvIntensity	getOpacity () const
	Returns the opacity level of the view. More...
virtual void	getOuterStylableSize (IlvDim &, IlvDim &) const
	Returns the size of the outer stylable if any. More...
IlvAbstractView *	getParent () const
	Gets the parent of this view. More...
IlvSystemView	getShellSystemView () const
	Gets the system-dependent identifier of the top shell of this view. More...
virtual const char *	getStylableClassName () const
	Returns the class name of this object. More...
virtual IlvDisplay *	getStylableDisplay () const
	Returns the display for this object. More...
virtual void	getStylableSize (IlvDim &, IlvDim &) const
	Returns the size of this object. More...
virtual IlvStylist *	getStylist () const
	Returns the stylist for this object. More...
IlvSystemView	getSystemView () const
	Gets the system-dependent identifier of this view. More...
void	getTransparentColorKey (IlvIntensity &r, IlvIntensity &g, IlvIntensity &b) const
	Returns the color used as a key for transparency. More...
virtual void	globalBBox (IlvRect &bbox) const
	Retrieves the absolute dimensions of the view. More...
IlBoolean	hasGrab () const
	Queries if this view has the display grab. More...
IlBoolean	isLayered () const
	Returns whether the view is layered or not. More...
IlBoolean	isMultitouchEnabled ()
	Queries if the view is set to receive multi-touch events. More...
virtual IlBoolean	isScrolled () const
	Indicates if the view is a scrolling window subview. More...
IlBoolean	isSensitive () const
	Retrieves the sensitivity of this view to input events. More...
virtual void	lower ()
	Pushes this view below the others. More...
virtual void	position (IlvPoint &position) const
	Retrieves the position of the view. More...
virtual void	raise ()
	Brings this view on top. More...
void	removeWindowProc (IlvWindowProc windowProc, IlAny procArgument=0)
	Removes a user-defined window procedure. More...
virtual void	setBackground (IlvColor *c)
	Sets the background color of this view. More...
virtual void	setBackgroundBitmap (IlvBitmap *b)
	Sets the background bitmap of this view. More...
virtual void	setCompressButtonDragged (IlBoolean val)
	Enables or disables IlvButtonDragged event compression. More...
virtual void	setCompressPointerMoved (IlBoolean val)
	Enables or disables IlvPointerMoved event compression. More...
void	setCursor (IlvCursor *cursor)
	Sets the cursor for this view. More...
IlBoolean	setFocus ()
	Sets the input focus to this view. More...
void	setLayered (IlBoolean layered)
	Sets whether the window is layered or not. More...
void	setOpacity (IlvIntensity level)
	Sets the opacity value of the view. More...
void	setSensitive (IlBoolean sensitivity)
	Sets the sensitivity of this view to input events. More...
IlBoolean	setShapeMask (const IlvBitmap *mask, IlBoolean addTitle=IlFalse)
	Sets a non-rectangular shape on the view according to a bitmap mask. More...
void	setTransparentColorKey (IlvIntensity r, IlvIntensity g, IlvIntensity b)
	Sets the transparency color key value. More...
void	setWindowProc (IlvWindowProc windowProc, IlAny procArgument=0)
	Sets a Windows window procedure. More...
virtual void	sizeVisible (IlvRect &rect) const
	Retrieves the visible part of the view. More...
Public Member Functions inherited from IlvSystemPort
	IlvSystemPort (IlvDisplay *display, IlvWindowsHandle HDC, IlvDim width=0, IlvDim height=0)
	Windows-specific constructor. More...
virtual IlBoolean	applyValue (const IlvValue &)
	Apply an accessor. More...
virtual void	clearArea (const IlvRect &, IlBoolean=IlFalse) const
	Clears a rectangular area of the screen. More...
virtual void	clearArea (const IlvRegion &, IlBoolean=IlFalse) const
	Clears a region of the screen. More...
virtual void	clip (const IlvRect *) const
	Limits the drawing to the given rectangular area. More...
virtual void	clip (const IlvRegion *) const
	Limits the drawing to the given region. More...
virtual IlUShort	depth () const
	Gives the depth of the port. More...
virtual void	drawArc (const IlvPalette *, const IlvRect &, IlFloat, IlFloat) const
	Draws an arc. More...
virtual void	drawBitmap (const IlvPalette *, const IlvBitmap *, const IlvRect &, const IlvRegion *=0, IlvPosition=IlvCenter, IlBoolean=IlFalse) const
	Draws an image. More...
virtual void	drawBitmap (const IlvPalette *, const IlvSystemPort *, const IlvRect &, const IlvPoint &) const
	Draws an image. More...
virtual void	drawIString (const IlvPalette *, const IlvPoint &, const char *, int, IlvPosition=IlvLeft) const
	Draws a string at the given position. More...
virtual void	drawLine (const IlvPalette *, const IlvPoint &, const IlvPoint &) const
	Draws a line between 2 points. More...
virtual void	drawPoint (const IlvPalette *, const IlvPoint &) const
	Draws a point at the given position. More...
virtual void	drawPoints (const IlvPalette *, IlUInt, const IlvPoint *) const
	Draws a series of points. More...
virtual void	drawPolyLine (const IlvPalette *, const IlvPoint &, IlUInt, const IlvDeltaPoint *) const
	Draws a series of connected lines relatively to a reference. More...
virtual void	drawPolyLine (const IlvPalette *, IlUInt, const IlvPoint *) const
	Draws a series of connected lines. More...
virtual void	drawRectangle (const IlvPalette *, const IlvRect &) const
	Draws the given rectangle. More...
virtual void	drawRoundRectangle (const IlvPalette *, const IlvRect &, IlUShort) const
	Draws a round rectangle. More...
virtual void	drawSegments (const IlvPalette *, IlUInt, const IlvPoint *, const IlvPoint *) const
	Draws a set of segments. More...
virtual void	drawString (const IlvPalette *, const IlvPoint &, const char *, int, IlvPosition=IlvLeft) const
	Draws a string at the given position. More...
virtual void	drawTransformedString (const IlvPalette *, const char *, int, const IlvTransformer &, const IlvRegion *=0) const
	Draws a transformed string. More...
virtual void	drawTransparentBitmap (const IlvPalette *, const IlvSystemPort *, const IlvRect &, const IlvPoint &) const
	Draws a transparent bitmap. More...
virtual void	end ()
	Closed the dump device. More...
virtual void	fillArc (const IlvPalette *, const IlvRect &, IlFloat, IlFloat) const
	Fills the arc. More...
virtual void	fillPaths (const IlvPalette *, IlUInt, const IlvPointArray *) const
	Fills the shape defined by the given paths. More...
virtual void	fillPolyLine (const IlvPalette *, const IlvPoint &, IlUInt, const IlvDeltaPoint *, IlBoolean=IlFalse) const
	Fills a polygon. More...
virtual void	fillPolyLine (const IlvPalette *, IlUInt, const IlvPoint *, IlBoolean=IlFalse) const
	Fills a polygon. More...
virtual void	fillRectangle (const IlvPalette *, const IlvRect &) const
	Fills the given rectangle. More...
virtual void	fillRoundRectangle (const IlvPalette *, const IlvRect &, IlUShort) const
	Fills a round rectangle. More...
IlvWindowsHandle	getDC () const
	Gets the Windows Handle Device Context. More...
virtual IlBoolean	initDevice (const char *, IlvRect *=0)
	Initializes the dump device. More...
virtual IlBoolean	isABitmap () const
	Indicates that this port is a bitmap (not a view or a dump device). More...
virtual IlBoolean	isASystemPort () const
	Indicates that this port is a true system port (not a dump device). More...
virtual IlBoolean	isBad () const
	Indicates whether this port is valid. More...
virtual IlBoolean	newPage () const
	Produces an output page and prepares for a new page. More...
void	releaseDC ()
	Releases the Windows Handle Device Context. More...
virtual void	send (const char *) const
	Sends character strings to an output device. More...
virtual void	setTransformer (const IlvTransformer &)
	Applies another transformer to the coordinates provided for the drawing functions. More...
virtual void	stretchBitmap (const IlvPalette *, const IlvPoint &, const IlvBitmap *, const IlvTransformer &, const IlvRect *=0) const
	Stretches a bitmap. More...
virtual void	stretchBitmap (const IlvPalette *, const IlvRect &, const IlvBitmap *, const IlvRect *=0) const
	Stretches a bitmap. More...
virtual void	stretchBitmapData (const IlvPalette *palette, const IlvBitmapData *src, const IlvRect &from, const IlvRect &to, IlBoolean opaque=IlFalse) const
	Draws a bitmap data. More...
virtual void	stretchTransparentBitmap (const IlvPalette *, const IlvPoint &, const IlvBitmap *, const IlvTransformer &, const IlvRect *=0) const
	Stretches a transparent bitmap. More...
virtual void	stretchTransparentBitmap (const IlvPalette *, const IlvRect &, const IlvBitmap *, const IlvRect *=0) const
	Stretches a transparent bitmap. More...
Public Member Functions inherited from IlvPort
	IlvPort (IlvDisplay *display=0)
	Constructor. More...
void	composeAlpha (IlvIntensity alpha)
	Composes the current alpha value of the port. More...
virtual void	drawArrow (const IlvPalette *palette, const IlvPoint &from, const IlvPoint &to, IlFloat position) const
	Draws an arrow. More...
virtual void	drawBezier (const IlvPalette *palette, IlUInt count, const IlvPoint *points) const
	Draws a set of Bézier curves. More...
virtual void	drawClosedBezier (const IlvPalette *palette, IlUInt count, const IlvPoint *points) const
	Appends a closing curve to a set of Bézier curves. More...
virtual void	drawILabel (const IlvPalette *palette, const char *label, int length, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter) const
	Draws a label in a rectangle. More...
virtual void	drawLabel (const IlvPalette *palette, const char *label, int length, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter) const
	Draws a label in a rectangle. More...
virtual void	drawMarker (const IlvPalette *palette, const IlvPoint &location, IlvMarkerType type=IlvMarkerSquare, IlUShort size=IlvDefaultMarkerSize) const
	Draws a marker. More...
virtual void	drawMnemonicLabel (const IlvPalette *palette, const char *label, const IlvRect &drawRect, const IlvRegion *clip=0, IlvPosition align=IlvCenter, IlBoolean underline=IlTrue) const
	Draws an underlined letter in a label. More...
virtual void	drawOutlineRectangle (const IlvPalette *outlinePalette, const IlvPalette *fillPalette, const IlvRect &rect, const IlvRegion *clip=0) const
	Draws a rectangle with border effects. More...
virtual void	drawPaths (const IlvPalette *palette, IlUInt count, const IlvPointArray *paths) const
	Draws an array of paths as polylines. More...
virtual void	drawReliefDiamond (const IlvPalette *, const IlvPalette *invertedPalette, const IlvPalette *topShade, const IlvPalette *bottomShade, const IlvRect &bbox, IlUShort thickness, const IlvRegion *clip=0) const
	Draws a diamond with depth effects. More...
virtual void	drawReliefRectangle (const IlvPalette *palette, const IlvPalette *invertedPalette, const IlvPalette *topShade, const IlvPalette *bottomShade, const IlvRect &bbox, IlUShort thickness, const IlvRegion *clip=0) const
	Draws a filled rectangle with depth effects. More...
virtual void	drawShadowRectangle (const IlvPalette *palette, const IlvPalette *invertedPalette, const IlvRect &bbox, IlUShort thickness, IlvPosition shadowPosition, const IlvRegion *clip=0) const
	Draws a filled rectangle with its shadow. More...
virtual void	fillBezier (const IlvPalette *palette, IlUInt count, const IlvPoint *points) const
	Fills an area specified by a set of Bézier curves. More...
IlvIntensity	getAlpha () const
	Provides the alpha value of the port. More...
IlvAntialiasingMode	getAntialiasingMode () const
	Provides the anti-aliasing mode of the port. More...
IlvDisplay *	getDisplay () const
	Returns a pointer to the IlvDisplay of this port. More...
IlvDim	height () const
	Provides the height of the port. More...
virtual IlBoolean	isADevice () const
	Indicates that this port is a dump device. More...
void	setAlpha (IlvIntensity alpha)
	Sets the alpha value of the port. More...
void	setAntialiasingMode (IlvAntialiasingMode mode)
	Sets the anti-aliasing mode of the port. More...
void	size (IlvDim &w, IlvDim &h) const
	Gives the dimensions of the port. More...
IlvDim	width () const
	Provides the width of the port. More...
Public Member Functions inherited from IlvValueInterface
virtual IlBoolean	changeValue (const IlvValue &val)
	Changes the value of an accessor. More...
virtual IlBoolean	changeValues (const IlvValue *values, IlUShort count=0)
	Changes several accessor values simultaneously. More...
virtual void	getAccessors (const IlSymbol *const **names, const IlvValueTypeClass *const **types, IlUInt &count) const
	Retrieves the list of available accessors of an object. More...
virtual IlvValue &	queryValue (IlvValue &val) const
	Retrieves an accessor value. More...
virtual void	queryValues (IlvValue *values, IlUShort count) const
	Retrieves multiple accessor values simultaneously. More...
Public Member Functions inherited from IlvStylable
	IlvStylable ()
	Constructor.
virtual const IlvStylable *	getStylableParent () const
	Returns the parent of this object in the style hierarchy. More...
virtual const IlSymbol *const *	getStylableTags (IlUInt &nTags) const
	Returns the tags of this object. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvSystemPort
static IlvBitmapData *	GetBitmapData (IlvSystemPort *port, const IlvRect *rect=0)
	Creates an IlvBitmapData from a rectangular area in an IlvSystemPort. More...

Detailed Description

View class.

Library: xviews or winviews or mviews (mutually exclusive)

This class is like IlvView except that when instances of this class are resized, they automatically resize their child views in an elastic-like manner. You thus use this class when you want a view containing other views that are automatically resized. The first kind of lower-level view inside the top-level view is typically an elastic view so as to handle the consequences of any resizing of the top-level view.

When an elastic view is resized, the size change is transmitted proportionately to the lower-level views inside the elastic view.

Constructor & Destructor Documentation

IlvElasticView() [1/5]

IlvElasticView::IlvElasticView	(	IlvAbstractView *	parent,
		const IlvRect &	size,
		IlBoolean	visible = IlTrue
	)

Initializes a new view object that is a child of another view.

Parameters

parent	The parent view.
size	The initial location and size of the view, in the coordinate system of parent.
visible	Can be set to IlFalse to initially hide the window.

IlvElasticView() [2/5]

IlvElasticView::IlvElasticView	(	IlvDisplay *	display,
		IlvSystemView	available
	)

Initializes a new new view object by actually using an existing system view.

Parameters

display	The display instance.
available	The system view on which this IlvElasticView is based.

IlvElasticView() [3/5]

IlvElasticView::IlvElasticView	(	IlvDisplay *	display,
		IlvSystemView	parent,
		const IlvRect &	size,
		IlBoolean	visible = IlTrue
	)

Initializes a new view that is a child of an existing system view.

Parameters

display	The display instance.
parent	The parent system view.
size	The initial location and size of the view, in the coordinate system of the existing system view.
visible	Can be set to IlFalse to initially hide the window.

IlvElasticView() [4/5]

IlvElasticView::IlvElasticView	(	IlvDisplay *	display,
		const char *	name,
		const char *	title,
		const IlvRect &	size,
		IlBoolean	visible = IlTrue
	)

Initializes initializes a new view object that is a new top window.

Parameters

display	The display instance.
name	The name of this view (used by the resource association mechanism).
title	The title of this top window.
size	The initial location and size of the view, relative to the root window of display.
visible	Can be set to IlFalse to initially hide the window.

IlvElasticView() [5/5]

IlvElasticView::IlvElasticView	(	IlvDisplay *	display,
		const char *	name,
		const char *	title,
		const IlvRect &	dims,
		IlUInt	properties,
		IlBoolean	visible = IlTrue,
		IlvSystemView	transientFor = 0
	)

Initializes initializes a new view object that is a new top window with specific top-window properties.

Parameters

display	The display instance.
name	The name of this view (used by the resource association mechanism).
title	The title of this top window.
dims	The initial location and size of the view, relative to the root window of display.
properties	The properties of that view. Check the similar parameter of the similar constructor for the class IlvView for details.
visible	Can be set to IlFalse to initially hide the window.
transientFor	The possible system view for which this view is transient. If unspecified or set to 0, this view will not be transient for any view.

Member Function Documentation

moveResize()

virtual void IlvElasticView::moveResize ( const IlvRect &  newSize )

virtual

Moves and resizes the view.

Moves and changes the size of the window in the parent window.

Parameters

newSize

The new position and dimensions of the window.

Reimplemented from IlvView.

resize()

virtual void IlvElasticView::resize ( IlvDim  w, IlvDim  h  )

virtual

Resizes the view.

Parameters

w	The new width of the view.
h	The new height of the view.

Reimplemented from IlvView.
