IlvDoubleSplineLinkImage Class Reference

Implementation of links drawn with a spline defined by 3 orthogonal segments. More...

#include <ilviews/grapher/links.h>

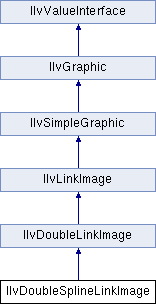

Inheritance diagram for IlvDoubleSplineLinkImage:
IlvDoubleLinkImage IlvLinkImage IlvSimpleGraphic IlvGraphic IlvValueInterface

Public Member Functions

 IlvDoubleSplineLinkImage (IlvDisplay *display, IlBoolean oriented, IlvGraphic *from, IlvGraphic *to, IlvPalette *palette=0)
 Constructor. More...

 IlvDoubleSplineLinkImage (IlvDisplay *display, IlvLinkOrientation orientation, IlBoolean oriented, IlvGraphic *from, IlvGraphic *to, IlvPalette *palette=0)
 Constructor. More...

- Public Member Functions inherited from IlvDoubleLinkImage
 IlvDoubleLinkImage (IlvDisplay *display, IlBoolean oriented, IlvGraphic *from, IlvGraphic *to, IlvPalette *palette=0)
 Constructor. More...

 IlvDoubleLinkImage (IlvDisplay *display, IlvLinkOrientation orientation, IlBoolean oriented, IlvGraphic *from, IlvGraphic *to, IlvPalette *palette=0)
 Constructor. More...

IlBoolean getFixedOrientation (IlvLinkOrientation &orient) const
 Returns the orientation mode of the link. More...

virtual IlvPointgetLinkPoints (IlUInt &nPoints, const IlvTransformer *t=0) const
 Returns the points defining the shape of the link. More...

void setFixedOrientation (IlBoolean fixed, IlvLinkOrientation orient=IlvHorizontal)
 Modifies the orientation mode of the link. More...

- Public Member Functions inherited from IlvLinkImage
 IlvLinkImage (IlvDisplay *display, IlBoolean oriented, IlvGraphic *from, IlvGraphic *to, IlvPalette *palette=0)
 Constructor. More...

virtual void computePoints (IlvPoint &src, IlvPoint &dst, const IlvTransformer *t=0) const
 Computes the endpoints of the link when it is drawn as a straight line. More...

IlvGraphicgetFrom () const
 Returns the start node. More...

IlvGraphicgetTo () const
 Returns the end node. More...

IlBoolean isOriented () const
 Indicates whether the link is oriented. More...

void setFrom (IlvGraphic *f)
 Sets the start node. More...

void setOriented (IlBoolean oriented)
 Changes the oriented mode. More...

void setTo (IlvGraphic *t)
 Sets the end node. More...

virtual IlBoolean zoomable () const
 Returns the zoomable property of the link. More...


Detailed Description

Implementation of links drawn with a spline defined by 3 orthogonal segments.

Library: ilvgrapher

A link of the IlvDoubleSplineLinkImage class is drawn as a spline made of two curves, as shown in the following figure.

- IlvDoubleSplineLinkImage -

Constructor & Destructor Documentation

◆ IlvDoubleSplineLinkImage() [1/2]

IlvDoubleSplineLinkImage::IlvDoubleSplineLinkImage ( IlvDisplay display,
IlBoolean  oriented,
IlvGraphic from,
IlvGraphic to,
IlvPalette palette = 0
)

Constructor.

The constructor initializes a new instance of the IlvDoubleSplineLinkImage class with an automatic orientation layout.

Parameters
displayThe display connection that handles the drawing of this object.
orientedA Boolean indicating whether an arrowhead is to be drawn at the end of the link.
fromThe IlvGraphic object representing the start node of the link.
toThe IlvGraphic object representing the end node of the link.
paletteThe palette used to draw the link.

◆ IlvDoubleSplineLinkImage() [2/2]

IlvDoubleSplineLinkImage::IlvDoubleSplineLinkImage ( IlvDisplay display,
IlvLinkOrientation  orientation,
IlBoolean  oriented,
IlvGraphic from,
IlvGraphic to,
IlvPalette palette = 0
)

Constructor.

The constructor initializes a new instance of the IlvDoubleSplineLinkImage class with an orientation fixed to orientation.

Parameters
displayThe display connection that handles the drawing of this object.
orientationThe fixed orientation for the link.
orientedA Boolean indicating whether an arrowhead is to be drawn at the end of the link.
fromThe IlvGraphic object representing the start node of the link.
toThe IlvGraphic object representing the end node of the link.
paletteThe palette used to draw the link.
See also
IlvDoubleLinkImage::setFixedOrientation.
