Gadget class. More...

#include <ilviews/dataccess/gadgets/htmlrep.h>

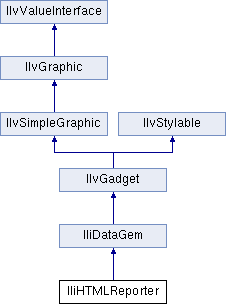

Inheritance diagram for IliHTMLReporter:

Public Member Functions
	IliHTMLReporter (IlvDisplay display, const IlvPoint &at, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	This constructor creates an HTML reporter with a classic table model type. More...

virtual IlvBitmap *	getBitmap () const
	Returns the bitmap that is displayed during the design phase in Rogue Wave Views Data Access. More...

const char *	getColumnName (IlInt colno) const
	Returns a column title. More...

const char *	getColumnValue (IlInt colno) const
	Returns the column value of the current row. More...

const char *	getColumnValue (IliTableBuffer *buff, IlInt colno) const
	Returns a column value of one buffer. More...

IliDataSource *	getDataSource () const
	Returns the data source that will be used to create the document. More...

const char *	getDataSourceName () const
	Return the data source name that will be used to create the document. More...

const char *	getDocumentBackground () const
	Returns the document background color. More...

const char *	getDocumentCopyright () const
	Returns the document copyright. More...

const char *	getDocumentTitle () const
	Returns the document title. More...

const char *	getFilename () const
	Returns the document file name. More...

const char *	getFirstPagePictureName () const
	Returns the file name for the first page picture. More...

const char *	getFirstPageTitle () const
	Returns the title for the first page. More...

const char *	getModelName () const
	Returns the document model name. More...

IliHTMLModelName	getPredefinedModel () const
	Returns the document model type. More...

IlInt	getRowCount () const
	Returns the row count of the table. More...

const char *	getRowLocationName () const
	Returns the row location name. More...

IlInt	getRowNumber () const
	Returns the number of the current row. More...

std::ostream &	getStream () const
	Returns the stream associated with the file. More...

const IliTable *	getTable () const
	Returns the table used to create the document. More...

const IliTableBuffer *	getTableBuffer () const
	Returns the data of the current row. More...

const char *	getTableOfContentsColumnName () const
	Returns the column name of the data source. More...

const char *	getTableOfContentsEntry () const
	Returns the text for an entry of the table of contents. More...

const char *	getTableOfContentsLocation () const
	Returns the table of contents entry location. More...

const char *	getTableOfContentsTitle () const
	Returns the table of contents title. More...

IlBoolean	hasTableOfContents () const
	Returns `IlTrue` if a table of contents will be created. More...

IlBoolean	isColumnVisible (IlInt colno) const
	Returns `IlTrue` if a column is visible. More...

IlBoolean	isTableOfContentsAtBeginning () const
	Returns `IlTrue` if the table of contents begins just after the first page. More...

void	report ()
	Creates the document.

virtual void	reportBeginDocument ()
	Called at the beginning of the document.

virtual void	reportBeginRows ()
	Called just before the first row is created if the model is a table style. Otherwise, it is called just after each row is created.

virtual void	reportEndDocument ()
	Called at the end of the document.

virtual void	reportEndRows ()
	Called just after the last row is created if the model is a table style. Otherwise, it is called just after each row is created.

virtual void	reportFirstPageContents ()
	Called to create the first page contents.

virtual void	reportFirstPageFooting ()
	Called to create the first page footing.

virtual void	reportFirstPageHeading ()
	Called to create the first page heading.

virtual void	reportFooting ()
	Called to create the page footing.

virtual void	reportHeading ()
	Called to create the page heading.

virtual void	reportLastPageContents ()
	Called to create the contents of the last page.

virtual void	reportLastPageFooting ()
	Called to create the last page footing.

virtual void	reportLastPageHeading ()
	Called to create the last page heading.

virtual void	reportRowContent ()
	Called to create the row contents.

virtual void	reportTableBeginEntries ()
	Called just before the first entry is created.

virtual void	reportTableEndEntries ()
	Called just after the last entry is created.

virtual void	reportTableEntry ()
	Called to create an entry of the table of contents.

virtual void	reportTableFooting ()
	Called to create the table of contents footing.

virtual void	reportTableHeading ()
	Called to create the table of contents heading.

virtual void	reportTableTitle ()
	Called to create the table of contents title.

void	setDataSource (IliDataSource *ds)
	Sets the data source that will be used to create the document. More...

void	setDataSourceName (const char *name)
	Sets the data source name that will be used to create the document. More...

void	setDocumentBackground (const char *color)
	Sets the document background color. More...

void	setDocumentCopyright (const char *cop)
	Sets the document copyright. More...

void	setDocumentTitle (const char *title)
	Sets the document title. More...

void	setFilename (const char *name)
	Sets the document file name. More...

void	setFirstPagePictureName (const char *name)
	Sets the file name for the first page picture. More...

void	setFirstPageTitle (const char *title)
	Sets the title for the first page. More...

void	setModelName (const char *mod)
	Sets the document model name. More...

void	setPredefinedModel (IliHTMLModelName mod)
	Sets the document model type. More...

void	setTableOfContents (IlBoolean has)
	Indicates if the table of contents must be created. More...

void	setTableOfContentsAtBeginning (IlBoolean beginning)
	Specifies the location of the table of contents. More...

void	setTableOfContentsColumnName (const char *name)
	Sets the column name of the data source. More...

void	setTableOfContentsTitle (const char *title)
	Sets the table of contents title. More...

void	tagBar (IlInt size=2)
	Writes the HTML tag horizontal bar. More...

void	tagBeginBody (const char color=0, const char opt=0)
	Writes the HTML tag to define the beginning of the visible document. More...

void	tagBeginBold ()
	Writes the HTML tag for begin bold. More...

void	tagBeginCenter ()
	Writes the HTML tag for begin center. More...

void	tagBeginCodeListing ()
	Writes the HTML tag for begin code listing. More...

void	tagBeginFont (const char *opt=0)
	Writes the HTML tag for begin font. More...

void	tagBeginForm (const char *opt=0)
	Writes the HTML tag for begin form. More...

void	tagBeginHead ()
	Writes the HTML tag for begin head. More...

void	tagBeginHeader (IlInt size=2, IlvAlignment align=IlvLeft)
	Writes the HTML tag to begin the headers. More...

void	tagBeginHtml ()
	Writes the HTML tag for begin HTML document. More...

void	tagBeginItalic ()
	Writes the HTML tag for begin italic. More...

void	tagBeginList ()
	Writes the HTML tag for begin list. More...

void	tagBeginListItem ()
	Writes the HTML tag for begin list item. More...

void	tagBeginListOrdered ()
	Writes the HTML tag for begin ordered list. More...

void	tagBeginScript (const char *opt=0)
	Writes the HTML tag for begin script. More...

void	tagBeginStrong ()
	Writes the HTML tag for begin strong. More...

void	tagBeginTable (const char *opt=0)
	Writes the HTML tag for begin table. More...

void	tagBeginTableColumn (const char *opt=0)
	Writes the HTML tag for begin table column. More...

void	tagBeginTableHeader (const char *opt=0)
	Writes the HTML tag for begin table header. More...

void	tagBeginTableRow (const char *opt=0)
	Writes the HTML tag for begin table row. More...

void	tagBeginUnderline ()
	Writes the HTML tag for begin underline. More...

void	tagDefineLocation (const char loc, const char text)
	Writes the HTML tag to define a location. More...

void	tagEndBody ()
	Writes the HTML tag for end body. More...

void	tagEndBold ()
	Writes the HTML tag for end bold. More...

void	tagEndCenter ()
	Writes the HTML tag for end center. More...

void	tagEndCodeListing ()
	Writes the HTML tag for end code listing. More...

void	tagEndFont ()
	Writes the HTML tag for end font. More...

void	tagEndHead ()
	Writes the HTML tag for end head. More...

void	tagEndHeader (IlInt size=2)
	Writes the HTML tag to end headers. More...

void	tagEndHtml ()
	Writes the HTML tag for end HTML document. More...

void	tagEndItalic ()
	Writes the HTML tag for end italic. More...

void	tagEndList ()
	Writes the HTML tag for end list. More...

void	tagEndListItem ()
	Writes the HTML tag for end list item. More...

void	tagEndListOrdered ()
	Writes the HTML tag for end ordered list. More...

void	tagEndStrong ()
	Writes the HTML tag for end strong. More...

void	tagEndTable ()
	Writes the HTML tag for end table. More...

void	tagEndTableColumn ()
	Writes the HTML tag for end table column. More...

void	tagEndTableHeader ()
	Writes the HTML tag for end table header. More...

void	tagEndTableRow ()
	Writes the HTML tag for end table row. More...

void	tagEndUnderline ()
	Writes the HTML tag for end underline. More...

void	tagHeadTitle (const char *title)
	Writes the HTML tag to define the document title. More...

void	tagLinkToFile (const char file, const char text)
	Writes the HTML tag to define a link to a file. More...

void	tagLinkToFileLocation (const char file, const char loc, const char *txt)
	Writes the HTML tag to define a link to a location in a file. More...

void	tagLinkToLocation (const char link, const char text)
	Writes the HTML tag to define a link to a location. More...

void	tagNewLine (IlInt count=1)
	Writes several times the HTML tag new line. More...

void	tagParagraph ()
	Writes the HTML tag new paragraph. More...

void	tagPicture (const char filename, const char opt=0)
	Writes the HTML tag to insert a picture. More...

void	tagSpace ()
	Writes the HTML tag for a space. More...

void	tagText (const char *text)
	Writes text or HTML tags or both. More...

void	tagTradeMark ()
	Writes the HTML tag for Trade Mark. More...

Public Member Functions inherited from IliDataGem
IlBoolean	hasGlobalScope () const
	Indicates the data source scope. More...

IlBoolean	isSystemUsage () const
	Indicates the system usage flag. More...

virtual void	setGlobalScope (IlBoolean global)
	Specifies whether the scope of the name of the data gem is local to the container in which it is located or globally visible. More...

virtual void	usedBySystem (IlBoolean usage)
	Specifies if the object is a system object. More...

Static Public Member Functions
static IlvSymbol *	ReportBeginDocumentSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportBeginRowsSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportEndDocumentSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportEndRowsSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportFirstPageContentsSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportFirstPageFootingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportFirstPageHeadingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportFootingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportHeadingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportLastPageContentsSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportLastPageFootingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportLastPageHeadingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportRowContentSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableBeginEntriesSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableEndEntriesSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableEntrySymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableFootingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableHeadingSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

static IlvSymbol *	ReportTableTitleSymbol ()
	Returns the name of the callback that will be called by the corresponding virtual member function. More...

Additional Inherited Members
Protected Member Functions inherited from IliDataGem
	IliDataGem (IlvDisplay display, const IlvPoint &at, IlUShort thickness=IlvDefaultGadgetThickness, IlvPalette palette=0)
	Initializes a new data gem. More...

Detailed Description

Gadget class.

Library: dbgadget

The IliHTMLReporter class defines a gadget that can be used to generate an HTML document containing the data of a data source. You can specify if you want a table of contents and if the table of contents is positioned after the first page of the document or before the last page of the document. There are four models of document:

Classic Table-The data are written into a table. The background is gray and the foreground is black.
Table-The data are written into a table. The background is white and the foreground is blue.
Classic Form-Each row of the data source is written into a form. The background is gray and the foreground is black.
Form-Each row of the data source is written into a form. The background is white and the foreground is blue.
Dynamic form-A form displays the current row of the data source of the HTML Document. There is a navigator to change the current row.

Each part of the document is associated with a virtual function and a callback. The calling order depends on the type of document model:

If the model type is a classic table or a table, the calling order is the following:

reportBeginDocument

reportFirstPageHeading

reportFirstPageContents

reportFirstPageFooting

For documents with the table of contents at the beginning of the document, the following are then called:

reportTableHeading

reportTableTitle

reportTableBeginEntries

reportTableEntry is called for each entry of the table of contents

reportTableEndEntries

reportTableFooting

reportHeading

reportBeginRows

reportRowContent is called for each row of the data source

reportEndRows

reportFooting

For documents with the table of contents at the end of the document, the following are then called:

reportTableHeading

reportTableTitle

reportTableBeginEntries

reportTableEntry is called for each entry of the table of contents

reportTableEndEntries

reportTableFooting

reportLastPageHeading

reportLastPageContents

reportLastPageFooting

reportEndDocument
If the model type is a classic form or a form, the calling order is the following:

reportBeginDocument

reportFirstPageHeading

reportFirstPageContents

reportFirstPageFooting

For documents with the table of contents at the beginning of the document, the following are then called:

reportTableHeading

reportTableTitle

reportTableBeginEntries

reportTableEntry is called for each entry of the table of contents

reportTableEndEntries

reportTableFooting

For each row of the data source, the following functions are called:

reportHeading

reportBeginRows

reportRowContent

reportEndRows

reportFooting

For documents with the table of contents at the end of the document, the following are then called:

reportTableHeading

reportTableTitle

reportTableBeginEntries

reportTableEntry is called for each entry of the table of contents

reportTableEndEntries

reportTableFooting

reportLastPageHeading

reportLastPageContents

reportLastPageFooting

reportEndDocument

Note: A column is not written if it is not visible.; If you define the callback rowContent, you must call tagDefineLocation function within your row description to insert the row location (used by table of contents). The row location is provided by the rowLocationName property.

About table of contents To create the table of contents, the HTML reporter uses the data of a data source column. For each row, there is a table of contents entry. The entry text is the content of the column for the row.

See also: IliDataGem, IliXML.

Accessors\nAccessors provide a scriptable and uniform way to inspect and modify an object by using its base class methods <tt>IlvValueInterface::queryValue()</tt>, <tt>IlvValueInterface::queryValues()</tt>, <tt>IlvValueInterface::changeValue()</tt>, <tt>IlvValueInterface::changeValues()</tt>.\n\nThis class defines the following accessors:

Data accessors

Name	Type	Equivalent methods
`dataSourceName`	String	`getDataSourceName()`, `setDataSourceName()`
`documentBackground`	String	`getDocumentBackground()`, `setDocumentBackground()`
`documentCopyright`	String	`getDocumentCopyright()`, `setDocumentCopyright()`
`documentTitle`	String	`getDocumentTitle()`, `setDocumentTitle()`
`filename`	String	`getFilename()`, `setFilename()`
`firstPagePictureName`	String	`getFirstPagePictureName()`, `setFirstPagePictureName()`
`firstPageTitle`	String	`getFirstPageTitle()`, `setFirstPageTitle()`
`model`	`IliValueModelName`	`getPredefinedModel()`, `setPredefinedModel()`
`rowCount`	Int	`getRowCount()`
`rowLocationName`	String	`getRowLocationName()`
`rowNumber`	Int	`getRowNumber()`
`tableOfContents`	Boolean	`hasTableOfContents()`, `setTableOfContents()`
`tableOfContentsAtBeginning`	Boolean	`isTableOfContentsAtBeginning()`, `setTableOfContentsAtBeginning()`
`tableOfContentsColumnName`	String	`getTableOfContentsColumnName()`, `setTableOfContentsColumnName()`
`tableOfContentsEntry`	String	`getTableOfContentsEntry()`
`tableOfContentsLocation`	String	`getTableOfContentsLocation()`
`tableOfContentsTitle`	String	`getTableOfContentsTitle()`, `setTableOfContentsTitle()`

Method accessors

Name	Return type	Equivalent methods
`getColumnName(Int col)`	String	`getColumnName(col)`
`getColumnValue(Int col)`	String	`getColumnValue(col) const`
`isColumnVisible(Int col)`	Boolean	`isColumnVisible(col) const`
`report()`	Void	`report()`
`tagBar(Int size)`	Void	`tagBar(size)`
`tagBeginBody(String color, String opt)`	Void	`tagBeginBody(color, opt)`
`tagBeginBold()`	Void	`tagBeginBold()`
`tagBeginCenter()`	Void	`tagBeginCenter()`
`tagBeginCodeListing()`	Void	`tagBeginCodeListing()`
`tagBeginFont(String opt)`	Void	`tagBeginFont(opt)`
`tagBeginHead()`	Void	`tagBeginHead()`
`tagBeginHeader(Int size, IlvAlignment align)`	Void	`tagBeginHeader(size, align)`
`tagBeginHtml()`	Void	`tagBeginHtml()`
`tagBeginItalic()`	Void	`tagBeginItalic()`
`tagBeginList()`	Void	`tagBeginList()`
`tagBeginListItem()`	Void	`tagBeginListItem()`
`tagBeginListOrdered()`	Void	`tagBeginListOrdered()`
`tagBeginStrong()`	Void	`tagBeginStrong()`
`tagBeginTable(String opt)`	Void	`tagBeginTable(opt)`
`tagBeginTableColumn(String opt)`	Void	`tagBeginTableColumn(opt)`
`tagBeginTableHeader(String opt)`	Void	`tagBeginTableHeader(opt)`
`tagBeginTableRow(String opt)`	Void	`tagBeginTableRow(opt)`
`tagBeginUnderline()`	Void	`tagBeginUnderline()`
`tagDefineLocation(String location, String text)`	Void	`tagDefineLocation(location, text)`
`tagEndBody()`	Void	`tagEndBody()`
`tagEndBold()`	Void	`tagEndBold()`
`tagEndCenter()`	Void	`tagEndCenter()`
`tagEndCodeListing()`	Void	`tagEndCodeListing()`
`tagEndFont()`	Void	`tagEndFont()`
`tagEndHead()`	Void	`tagEndHead()`
`tagEndHeader(Int size)`	Void	`tagEndHeader(size)`
`tagEndHtml()`	Void	`tagEndHtml()`
`tagEndItalic()`	Void	`tagEndItalic()`
`tagEndList()`	Void	`tagEndList()`
`tagEndListItem()`	Void	`tagEndListItem()`
`tagEndListOrdered()`	Void	`tagEndListOrdered()`
`tagEndStrong()`	Void	`tagEndStrong()`
`tagEndTable()`	Void	`tagEndTable()`
`tagEndTableColumn()`	Void	`tagEndTableColumn()`
`tagEndTableHeader()`	Void	`tagEndTableHeader()`
`tagEndTableRow()`	Void	`tagEndTableRow()`
`tagEndUnderline()`	Void	`tagEndUnderline()`
`tagHeadTitle(String title)`	Void	`tagHeadTitle(title)`
`tagLinkToFile(String file, String text)`	Void	`tagLinkToFile(file, text)`
`tagLinkToFileLocation(String file, String location, String text)`	Void	`tagLinkToFileLocation(file, location, text)`
`tagLinkToLocation(String location, String text)`	Void	`tagLinkToLocation(location, text)`
`tagNewLine(Int count)`	Void	`tagNewLine(count)`
`tagParagraph()`	Void	`tagParagraph()`
`tagPicture(String filename, String opt)`	Void	`tagPicture(filename, opt)`
`tagSpace()`	Void	`tagSpace()`
`tagText(String text)`	Void	`tagText(text)`
`tagTradeMark()`	Void	`tagTradeMark()`

Constructor & Destructor Documentation

◆ IliHTMLReporter()

IliHTMLReporter::IliHTMLReporter	(	IlvDisplay *	display,
		const IlvPoint &	at,
		IlUShort	thickness = `IlvDefaultGadgetThickness`,
		IlvPalette *	palette = `0`
	)

This constructor creates an HTML reporter with a classic table model type.

Parameters

display	The display.
at	The position.
thickness	The border thickness.
palette	The palette.

Member Function Documentation

◆ getBitmap()

virtual IlvBitmap* IliHTMLReporter::getBitmap ( ) const

virtual

Returns the bitmap that is displayed during the design phase in Rogue Wave Views Data Access.

Returns: The bitmap.

Reimplemented from IliDataGem.

◆ getColumnName()

const char* IliHTMLReporter::getColumnName ( IlInt colno ) const

Returns a column title.

Parameters

colno The column position.

Returns: The column title if the title is defined. Otherwise, it returns the column name.

◆ getColumnValue() [1/2]

const char* IliHTMLReporter::getColumnValue ( IlInt colno ) const

Returns the column value of the current row.

Parameters

colno The column position.

Returns: The column value of the current row. If the column has a mapping, it returns the mapped value.

◆ getColumnValue() [2/2]

const char* IliHTMLReporter::getColumnValue	(	IliTableBuffer *	buff,
		IlInt	colno
	)		const

Returns a column value of one buffer.

Returns: The column value of the buffer. If the column has a mapping, it returns the mapped value.

◆ getDataSource()

IliDataSource* IliHTMLReporter::getDataSource ( ) const

Returns the data source that will be used to create the document.

Returns: The data source.

◆ getDataSourceName()

const char* IliHTMLReporter::getDataSourceName ( ) const

Return the data source name that will be used to create the document.

Returns: The data source name.

◆ getDocumentBackground()

const char * IliHTMLReporter::getDocumentBackground ( ) const

Returns the document background color.

Returns: The color.

◆ getDocumentCopyright()

const char * IliHTMLReporter::getDocumentCopyright ( ) const

Returns the document copyright.

Returns: The copyright.

◆ getDocumentTitle()

const char * IliHTMLReporter::getDocumentTitle ( ) const

Returns the document title.

Returns: The title.

◆ getFilename()

const char* IliHTMLReporter::getFilename ( ) const

Returns the document file name.

Returns: The file name.

◆ getFirstPagePictureName()

const char * IliHTMLReporter::getFirstPagePictureName ( ) const

Returns the file name for the first page picture.

Returns: The file name.

◆ getFirstPageTitle()

const char * IliHTMLReporter::getFirstPageTitle ( ) const

Returns the title for the first page.

Returns: The title.

◆ getModelName()

const char* IliHTMLReporter::getModelName ( ) const

Returns the document model name.

Returns: The model name.

◆ getPredefinedModel()

IliHTMLModelName IliHTMLReporter::getPredefinedModel ( ) const

Returns the document model type.

Obsolete Function

Returns: The model name.

◆ getRowCount()

IlInt IliHTMLReporter::getRowCount ( ) const

Returns the row count of the table.

Returns: The count.

◆ getRowLocationName()

const char* IliHTMLReporter::getRowLocationName ( ) const

Returns the row location name.

The location name is used by the table of contents.

Returns: The row location name.

◆ getRowNumber()

IlInt IliHTMLReporter::getRowNumber ( ) const

Returns the number of the current row.

Returns: The row position.

◆ getStream()

std::ostream& IliHTMLReporter::getStream ( ) const

Returns the stream associated with the file.

The stream is valid only during the document creation.

Returns: The stream.

◆ getTable()

const IliTable* IliHTMLReporter::getTable ( ) const

Returns the table used to create the document.

The table is valid only during the document creation.

Returns: The table.

◆ getTableBuffer()

const IliTableBuffer* IliHTMLReporter::getTableBuffer ( ) const

Returns the data of the current row.

This buffer is valid only during the document creation.

Warning: You must not release this buffer and must not call the rowToBuffer function on this buffer.

Returns: The table buffer.

◆ getTableOfContentsColumnName()

const char * IliHTMLReporter::getTableOfContentsColumnName ( ) const

Returns the column name of the data source.

Returns: The column name.

◆ getTableOfContentsEntry()

const char* IliHTMLReporter::getTableOfContentsEntry ( ) const

Returns the text for an entry of the table of contents.

Returns: The text.

◆ getTableOfContentsLocation()

const char* IliHTMLReporter::getTableOfContentsLocation ( ) const

Returns the table of contents entry location.

The location name is used to create the HTML link between the table of contents and the information in the document.

Returns: The table of contents entry location.

◆ getTableOfContentsTitle()

const char * IliHTMLReporter::getTableOfContentsTitle ( ) const

Returns the table of contents title.

Returns: The title.

◆ hasTableOfContents()

IlBoolean IliHTMLReporter::hasTableOfContents ( ) const

Returns IlTrue if a table of contents will be created.

Returns: IlTrue if a table of contents will be created.

◆ isColumnVisible()

IlBoolean IliHTMLReporter::isColumnVisible ( IlInt colno ) const

Returns IlTrue if a column is visible.

Parameters

colno The column position.

◆ isTableOfContentsAtBeginning()

IlBoolean IliHTMLReporter::isTableOfContentsAtBeginning ( ) const

Returns IlTrue if the table of contents begins just after the first page.

Returns: IlTrue if the table of contents begins just after the first page.
