Dialog class. More...
#include <ilviews/gadgets/colorch.h>
Public Member Functions | |
| IlvColorSelector (IlvDisplay *display, IlvSystemView transientFor=0) | |
| Constructor. More... | |
| IlvColor * | get (IlBoolean grab=IlFalse, IlvCursor *cursor=0) |
| Displays the color selector as a modal dialog. More... | |
| IlvColor * | getResult () const |
| Returns the current selected color. More... | |
| void | set (IlvColor *color) |
| Sets the color displayed by the color selector. More... | |
 Public Member Functions inherited from IlvDialog | |
| IlvDialog (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlUInt properties=0, IlvSystemView transientFor=0) | |
| Constructor. More... | |
| IlvDialog (IlvDisplay *display, const char *name, const char *title, const char *filename, const IlvRect *rect=0) | |
| Constructor. More... | |
| IlvDialog (IlvDisplay *display, const char *name, const char *title, const char *filename, IlUInt properties, const IlvRect *rect=0, IlvSystemView transientFor=0) | |
| Constructor. More... | |
| virtual void | apply () |
Is called when the callback associated with the apply symbol is triggered. More... | |
| virtual void | cancel () |
Is called when the callback associated with the cancel symbol is triggered. More... | |
| virtual void | wait (IlBoolean grab=IlFalse, IlvCursor *cursor=0) |
| Displays a modal dialog. More... | |
| IlBoolean | wasCanceled () const |
| Returns the status of the dialog after closing it. More... | |
| Public Member Functions inherited from IlvGadgetContainer | |
| IlvGadgetContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a top view. More... | |
| IlvGadgetContainer (IlvDisplay *display, const char *name, const char *title, const IlvRect &rect, IlUInt properties, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue, IlvSystemView transientFor=0) | |
Initializes a new instance of the IlvGadgetContainer class as a top view. More... | |
| IlvGadgetContainer (IlvAbstractView *parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a child view of another view. More... | |
| IlvGadgetContainer (IlvDisplay *display, IlvSystemView parent, const IlvRect &rect, IlBoolean useacc=IlFalse, IlBoolean visible=IlTrue) | |
Initializes a new instance of the IlvGadgetContainer class as a child view of a system view. More... | |
| IlvGadgetContainer (IlvDisplay *display, IlvSystemView window, IlBoolean useacc=IlFalse) | |
Initializes a new instance of the IlvGadgetContainer class using an existing system view. More... | |
| virtual IlBoolean | allowFocus (IlBoolean value) |
| Specifies whether the container manages the focus. More... | |
| virtual void | applyResize (IlFloat sx, IlFloat sy, IlBoolean redraw=IlTrue) |
| Is called to carry out the resize events applying to the gadget container. More... | |
| IlBoolean | autoResize (IlBoolean a) |
| Sets the auto resize mode of the gadget container. More... | |
| IlvButton * | getDefaultButton () const |
| Returns the default button of the gadget container. More... | |
| virtual IlvGraphic * | getFirstFocusGraphic () const |
| Returns the first object that receives the focus in this container. More... | |
| virtual IlvGraphic * | getFocus () const |
| Returns the object that has the keyboard focus in the gadget container. More... | |
| virtual IlvGraphic * | getGrab () const |
| Returns the object that is currently grabbing events in the container. More... | |
| virtual IlvGraphic * | getLastFocusGraphic () const |
| Returns the last object that receives the focus in this container. More... | |
| IlvLookFeelHandler * | getLookFeelHandler () const |
| Returns the look and feel handler associated with this container. More... | |
| virtual IlvGraphic * | getNextFocusGraphic (IlvGraphic *object) const |
| Returns the next object that will receive the focus after the specified object. More... | |
| IlvGraphic * | getOverriddenFocus () const |
Returns the object that will receive the focus after calling setFocus(). More... | |
| virtual IlvGraphic * | getPreviousFocusGraphic (IlvGraphic *object) const |
| Returns the previous object that received the focus before the specified object. More... | |
| IlBoolean | isAutoResizing () const |
| Indicates whether the gadget container gets resized when loading a file. More... | |
| virtual IlBoolean | isFocusAllowed () const |
| Indicates whether the focus is allowed in the container. More... | |
| virtual void | moveFocusAfter (IlBoolean redraw=IlTrue) |
| Is called to find the next focusable object. More... | |
| virtual void | moveFocusBefore (IlBoolean redraw=IlTrue) |
| Is called to find the previous focusable object. More... | |
| void | overrideFocus (IlvGraphic *obj) |
Sets the object that will receive the focus after calling setFocus(). More... | |
| virtual void | removeGrab () |
Cancels the grabbing settings defined with setGrab(). More... | |
| void | setDefaultButton (IlvButton *button, IlBoolean redraw=IlTrue) |
| Sets the default button of the gadget container. More... | |
| virtual void | setFocus (IlvGraphic *graphic=0, IlBoolean redraw=IlTrue) |
| Sets the focus to the specified object of the gadget container. More... | |
| virtual void | setGrab (IlvGraphic *object) |
| Sets the specified object as the grabbing object. More... | |
| void | setLookFeelHandler (IlvLookFeelHandler *lfh) |
| Sets the look and feel handler of this container. More... | |
Dialog class.
Library: ilvadvgdt
The IlvColorSelector class lets you select a color. A predefined set of colors is available, but you can choose any color by modifying the slider values. The names of the graphic objects are displayed to let you change the default look of the dialog.

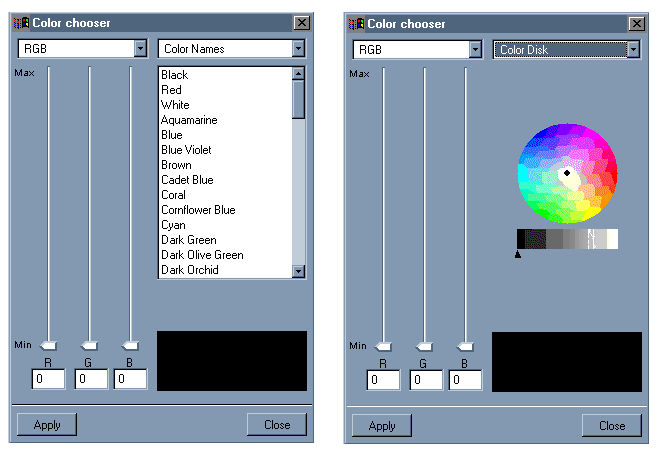

A color selector in RGB mode or HSV mode with color names and with color disk
| IlvColorSelector::IlvColorSelector | ( | IlvDisplay * | display, |
| IlvSystemView | transientFor = 0 |
||
| ) |
Constructor.
Initializes a new instance of the IlvColorSelector class.
| display | The connection to the display. |
| transientFor | The view for which the color selector is transient. See the IlvView constructors for more information about transient windows. |
Displays the color selector as a modal dialog.
| grab | Specfies whether the dialog should be system modal, that is, grabs input events on the whole system so that, until the function returns, other applications will not be able to get any keyboard or mouse event. In this case, you can specify the cursor to be displayed in the parameter cursor. If grab is set to IlFalse (the default), the dialog is application modal, that is, the application does not receive input events in other windows. |
| cursor | The cursor used to choose the color when the dialog is system modal. |
getResult(). | IlvColor* IlvColorSelector::getResult | ( | ) | const |
