IlvS57Record Class Reference

This class is the base class of the different types of S57 records. More...

#include <ilviews/maps/format/s57/s57record.h>

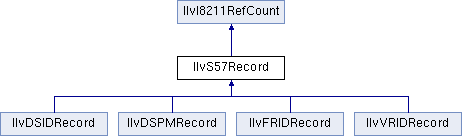

Inheritance diagram for IlvS57Record:

Public Member Functions
	IlvS57Record ()
	Initializes a new record.
Public Member Functions inherited from IlvI8211RefCount
void	lock ()
	Locks the object. More...
void	unLock ()
	Unlocks the object. More...

Detailed Description

This class is the base class of the different types of S57 records.

Library: ilvmaps

The IlvS57Record are reference counting objects, you must lock and unlock the objects of this class, you cannot directly delete these objects because there are shared by several other objects.

Note: The record objects use different files like S57Attributes.txt or S57Values.txt which are located in the directory data/maps/s57.

See also

IlvFRIDRecord, IlvVRIDRecord, IlvDSIDRecord, IlvDSPMRecord, IlvS57Reader.
