Class defining a transformation made of a logarithmic transformation to be applied to a coordinate. More...

#include <ilviews/charts/common.h>

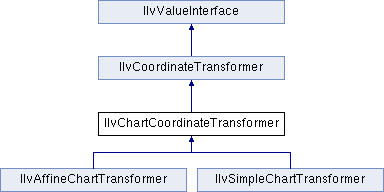

Inheritance diagram for IlvChartCoordinateTransformer:

Public Member Functions
virtual void	applyElementaryTransfo (IlDouble &val) const =0
	Applies the elementary transformation to a value. More...

virtual void	applyInverseElementaryTransfo (IlDouble &val) const =0
	Applies the inverse of the elementary transformation to a value. More...

void	applyInverseLogTransfo (IlDouble &val) const
	Applies the inverse of the logarithmic transformation. More...

void	applyLogTransfo (IlDouble &val) const
	Applies the logarithmic transformation to a value. More...

virtual IlBoolean	condToApplyElementaryTransfo () const =0
	Indicates whether the condition to apply the elementary transformation is verified. More...

virtual IlBoolean	condToApplyInverseElementaryTransfo () const =0
	Indicates whether the condition to apply the inverse of the elementary transformation is verified. More...

IlUInt	getLogBase () const
	Returns the logarithmic base. More...

virtual IlBoolean	inverseTransformPoints (IlUInt pointsCount, IlvDoublePoint *points) const
	Applies the inverse transformation to points. More...

virtual IlBoolean	inverseTransformValue (IlDouble &val) const
	Applies the inverse transformation to a value. More...

virtual IlBoolean	inverseTransformValues (IlUInt valuesCount, IlDouble *values) const
	Applies the inverse transformation to values. More...

void	setLogBase (IlUInt base)
	Sets the logarithmic base. More...

virtual IlBoolean	transformPoints (IlUInt pointsCount, IlvDoublePoint *points) const
	Applies a transformation to data points. More...

virtual IlBoolean	transformValue (IlDouble &val) const
	Applies a transformation to a data value. More...

virtual IlBoolean	transformValues (IlUInt valuesCount, IlDouble *values) const
	Applies a transformation to data values. More...

virtual IlBoolean	validateInterval (IlvCoordInterval &interval) const
	Validates an interval. More...

virtual void	write (IlvOutputFile &file) const
	Writes the attributes of the current object in a file. More...

Public Member Functions inherited from IlvCoordinateTransformer
virtual	~IlvCoordinateTransformer ()
	Destructor. More...

virtual IlvCoordinateTransformer *	copy () const =0
	Virtual copy constructor. More...

const IlvCoordinateInfo *	getOwner () const
	Returns the coordinate information that owns the current object. More...

virtual IlBoolean	inverseTransformInterval (IlvCoordInterval &itvl) const
	Applies the inverse transformation to an interval. More...

IlvOutputFile &	save (IlvOutputFile &file) const
	Writes a complete description of the current object in a file. More...

virtual IlBoolean	transformInterval (IlvCoordInterval &itvl) const
	Applies a transformation to an interval. More...

Protected Member Functions
	IlvChartCoordinateTransformer (const IlvChartCoordinateTransformer &t)
	Constructor. More...

	IlvChartCoordinateTransformer (IlUInt logBase)
	Constructor. More...

	IlvChartCoordinateTransformer (IlvInputFile &file)
	Constructor. More...

Protected Member Functions inherited from IlvCoordinateTransformer
	IlvCoordinateTransformer ()
	Constructor. More...

	IlvCoordinateTransformer (const IlvCoordinateTransformer &transfo)
	Constructor. More...

	IlvCoordinateTransformer (IlvInputFile &file)
	Constructor. More...

Additional Inherited Members
Static Public Member Functions inherited from IlvCoordinateTransformer
static IlvCoordinateTransformer *	Load (IlvInputFile &file)
	Reads a coordinate transformer object from a file. More...

Detailed Description

Class defining a transformation made of a logarithmic transformation to be applied to a coordinate.

Library: ilvcharts

This is an abstract subclass of IlvCoordinateTransformer that allows you to define a transformation to apply to a given data coordinate (x, y, theta, or rho). This transformation is composed of an elementary transformation, possibly followed by a logarithmic transformation.

The applied logarithmic transformation depends on the defined logarithmic base. If the logarithmic base is equal to 0 or 1, no logarithmic transformation is applied. Otherwise, the following transformation is applied:

c_transformed = log(c) / log(base),

where c is the initial coordinate, base is the logarithmic base, log is the natural logarithm, and c_transformed is the coordinate transformed using the logarithmic transformation.

Note: IlvChartCoordinateTransformer is an abstract class. Its constructors are defined as protected since it is not possible to create an instance of this class directly.

See also: IlvCoordinateTransformer, IlvSimpleChartTransformer, IlvAffineChartTransformer, IlvDoublePoint.

Constructor & Destructor Documentation

◆ IlvChartCoordinateTransformer() [1/3]

IlvChartCoordinateTransformer::IlvChartCoordinateTransformer ( IlUInt logBase )

protected

Constructor.

Initializes a new IlvChartCoordinateTransformer object.

Parameters

logBase The logarithmic base set for the current object.

◆ IlvChartCoordinateTransformer() [2/3]

IlvChartCoordinateTransformer::IlvChartCoordinateTransformer ( const IlvChartCoordinateTransformer & t )

protected

Constructor.

Initializes a new IlvChartCoordinateTransformer object which is a copy of transfo.

Parameters

t	The object used to initialize the current one.

◆ IlvChartCoordinateTransformer() [3/3]

IlvChartCoordinateTransformer::IlvChartCoordinateTransformer ( IlvInputFile & file )

protected

Constructor.

Initializes a new IlvChartCoordinateTransformer object from the description read in the input file named file.

Parameters

file	The file used to initialize the current object.

Member Function Documentation

◆ applyElementaryTransfo()

virtual void IlvChartCoordinateTransformer::applyElementaryTransfo ( IlDouble & val ) const

pure virtual

Applies the elementary transformation to a value.

Parameters

val	This parameter stores the value to transform and is also used to return the transformed value.

Note: This method must be called only if the condition needed to apply the elementary transformation is verified.

Implemented in IlvAffineChartTransformer, and IlvSimpleChartTransformer.

◆ applyInverseElementaryTransfo()

virtual void IlvChartCoordinateTransformer::applyInverseElementaryTransfo ( IlDouble & val ) const

pure virtual

Applies the inverse of the elementary transformation to a value.

Parameters

val	This parameter stores the value to transform inversely and is also used to return the value once it has been inversely transformed.

Note: This method must be called only if the condition needed to apply the inverse of the elementary transformation is verified.

Implemented in IlvAffineChartTransformer, and IlvSimpleChartTransformer.

◆ applyInverseLogTransfo()

void IlvChartCoordinateTransformer::applyInverseLogTransfo ( IlDouble & val ) const

Applies the inverse of the logarithmic transformation.

Parameters

val	This parameter stores the value to transform inversely and is also used to return the value once it has been inversely transformed.

The applied inverse transformation is the following:

c = exp(c_transformed * log(base)),

where c_transformed is the transformed coordinate, base is the logarithmic base, log is the natural logarithm, exp the exponential function, and c is the inversely transformed coordinate (that is, the value before the logarithmic transformation).

Note: This method must be called only if the condition needed to apply the inverse of the logarithmic transformation is verified, that is, if the logarithmic base is greater than 1.

◆ applyLogTransfo()

void IlvChartCoordinateTransformer::applyLogTransfo ( IlDouble & val ) const

Applies the logarithmic transformation to a value.

Parameters

val	This parameter stores the value to transform and is also used to return the transformed value.

The applied transformation is the following:

c_transformed = log(c) / log(base),

where c is the initial coordinate, base is the logarithmic base, log is the natural logarithm, and c_transformed is the coordinate transformed using the logarithmic transformation.

Note: This method must be called only if the condition needed to apply the logarithmic transformation is verified, that is, if the logarithmic base is greater than 1.

◆ condToApplyElementaryTransfo()

virtual IlBoolean IlvChartCoordinateTransformer::condToApplyElementaryTransfo ( ) const

pure virtual

Indicates whether the condition to apply the elementary transformation is verified.

Returns: IlTrue if the condition needed to apply the elementary transformation is verified and IlFalse otherwise.

Implemented in IlvAffineChartTransformer, and IlvSimpleChartTransformer.

◆ condToApplyInverseElementaryTransfo()

virtual IlBoolean IlvChartCoordinateTransformer::condToApplyInverseElementaryTransfo ( ) const

pure virtual

Indicates whether the condition to apply the inverse of the elementary transformation is verified.

Returns: IlTrue if the condition needed to apply the inverse of the elementary transformation is verified and IlFalse otherwise.

Implemented in IlvAffineChartTransformer, and IlvSimpleChartTransformer.

◆ getLogBase()

IlUInt IlvChartCoordinateTransformer::getLogBase ( ) const

Returns the logarithmic base.

Returns: The logarithmic base defined for the current object.

◆ inverseTransformPoints()

virtual IlBoolean IlvChartCoordinateTransformer::inverseTransformPoints	(	IlUInt	pointsCount,
		IlvDoublePoint *	points
	)		const

virtual

Applies the inverse transformation to points.

The inverse of the logarithmic transformation is applied first if the logarithmic base is greater than 1, followed by the inverse of the elementary transformation.

Parameters

pointsCount	The number of points to which the inverse transformation is applied.
points	This parameter stores the points to transform inversely and is also used to return the points once they have been inversely transformed.

Returns: IlTrue if the inverse transformation has been successfully applied to all the points and IlFalse otherwise.

Note: The inverse transformation is applied only to one coordinate of the points, since the transformation is defined for one coordinate (x, y, theta, or rho) represented by a given scale.

Reimplemented from IlvCoordinateTransformer.

◆ inverseTransformValue()

virtual IlBoolean IlvChartCoordinateTransformer::inverseTransformValue ( IlDouble & val ) const

virtual

Applies the inverse transformation to a value.

The inverse of the logarithmic transformation is applied first if the logarithmic base is greater than 1, followed by the inverse of the elementary transformation.

Parameters

val	This parameter stores the value to transform inversely and is also used to return the value once it has been inversely transformed.

Returns: IlTrue if the inverse transformation has been successfully applied to the value and IlFalse otherwise.

Implements IlvCoordinateTransformer.

◆ inverseTransformValues()

virtual IlBoolean IlvChartCoordinateTransformer::inverseTransformValues	(	IlUInt	valuesCount,
		IlDouble *	values
	)		const

virtual

Applies the inverse transformation to values.

The inverse of the logarithmic transformation is applied first if the logarithmic base is greater than 1, followed by the inverse of the elementary transformation.

Parameters

valuesCount	The number of values to which the inverse transformation is applied.
values	This parameter stores the values to transform inversely and is also used to return the values once they have been inversely transformed.

Returns: IlTrue if the inverse transformation has been successfully applied to all the values and IlFalse otherwise.

Reimplemented from IlvCoordinateTransformer.

◆ setLogBase()

void IlvChartCoordinateTransformer::setLogBase ( IlUInt base )

Sets the logarithmic base.

Parameters

base

The new logarithmic base. If base is equal to 0 or 1, no logarithmic transformation will be applied. Otherwise, the following transformation is applied:

c_transformed = log(c) / log(base),

where c is the initial coordinate, base is the logarithmic base, log is the natural logarithm, and c_transformed is the coordinate transformed using the logarithmic transformation.

◆ transformPoints()

virtual IlBoolean IlvChartCoordinateTransformer::transformPoints	(	IlUInt	pointsCount,
		IlvDoublePoint *	points
	)		const

virtual

Applies a transformation to data points.

The elementary transformation is applied first, followed by the logarithmic transformation if the logarithmic base is greater than 1.

Parameters

pointsCount	The number of points to which the transformation is applied.
points	This parameter stores the points to transform and is also used to return the transformed points.

Returns: IlTrue if all the data points have been successfully transformed and IlFalse otherwise.

Note: The transformation is applied only to one coordinate of the points since the transformation is defined for one coordinate (x, y, theta, or rho) represented by a given scale.

Reimplemented from IlvCoordinateTransformer.

◆ transformValue()

virtual IlBoolean IlvChartCoordinateTransformer::transformValue ( IlDouble & val ) const

virtual

Applies a transformation to a data value.

The elementary transformation is applied first, followed by the logarithmic transformation if the logarithmic base is greater than 1.

Parameters

val	This parameter stores the value to transform and is also used to return the transformed value.

Returns: IlTrue if the data value has been successfully transformed and IlFalse otherwise.

Implements IlvCoordinateTransformer.

◆ transformValues()

virtual IlBoolean IlvChartCoordinateTransformer::transformValues	(	IlUInt	valuesCount,
		IlDouble *	values
	)		const

virtual

Applies a transformation to data values.

The elementary transformation is applied first, followed by the logarithmic transformation if the logarithmic base is greater than 1.

Parameters

valuesCount	The number of values to which the transformation is applied.
values	This parameter stores the values to transform and is also used to return the transformed values.

Returns: IlTrue if the all the data values have been successfully transformed and IlFalse otherwise.

Reimplemented from IlvCoordinateTransformer.

◆ validateInterval()

virtual IlBoolean IlvChartCoordinateTransformer::validateInterval ( IlvCoordInterval & interval ) const

virtual

Validates an interval.

Changes the interval interval so that it becomes consistent with the definition domain of the transformer. The default implementation does nothing and returns IlFalse, which indicates that the interval has not been modified.

Parameters

interval The interval to validate.

Returns: A Boolean value indicating whether the interval has been modified.

Reimplemented from IlvCoordinateTransformer.

◆ write()

virtual void IlvChartCoordinateTransformer::write ( IlvOutputFile & file ) const

virtual

Writes the attributes of the current object in a file.

Called by the IlvCoordinateTransformer::save method. This method can be overloaded in subclasses that define new attributes. The information written by the write method is read by the IO constructor, which takes an IlvInputFile as its only argument. Both this method and the IO constructor can be automatically declared by using the DeclareCoordinateTransformerTypeInfo macro within the class declaration.

Parameters

file	The file where the attributes of the current object are written.

Reimplemented from IlvCoordinateTransformer.

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IlvChartCoordinateTransformer() [1/3]

◆ IlvChartCoordinateTransformer() [2/3]

◆ IlvChartCoordinateTransformer() [3/3]

Member Function Documentation

◆ applyElementaryTransfo()

◆ applyInverseElementaryTransfo()

◆ applyInverseLogTransfo()

◆ applyLogTransfo()

◆ condToApplyElementaryTransfo()

◆ condToApplyInverseElementaryTransfo()

◆ getLogBase()

◆ inverseTransformPoints()

◆ inverseTransformValue()

◆ inverseTransformValues()

◆ setLogBase()

◆ transformPoints()

◆ transformValue()

◆ transformValues()

◆ validateInterval()

◆ write()
